Instruction Manual
8 Channel Video Transmit Unit with 1 Bi-directional Data
Channel for a CWDM Fibre Link - includes AMG NMS
Network Management Interface

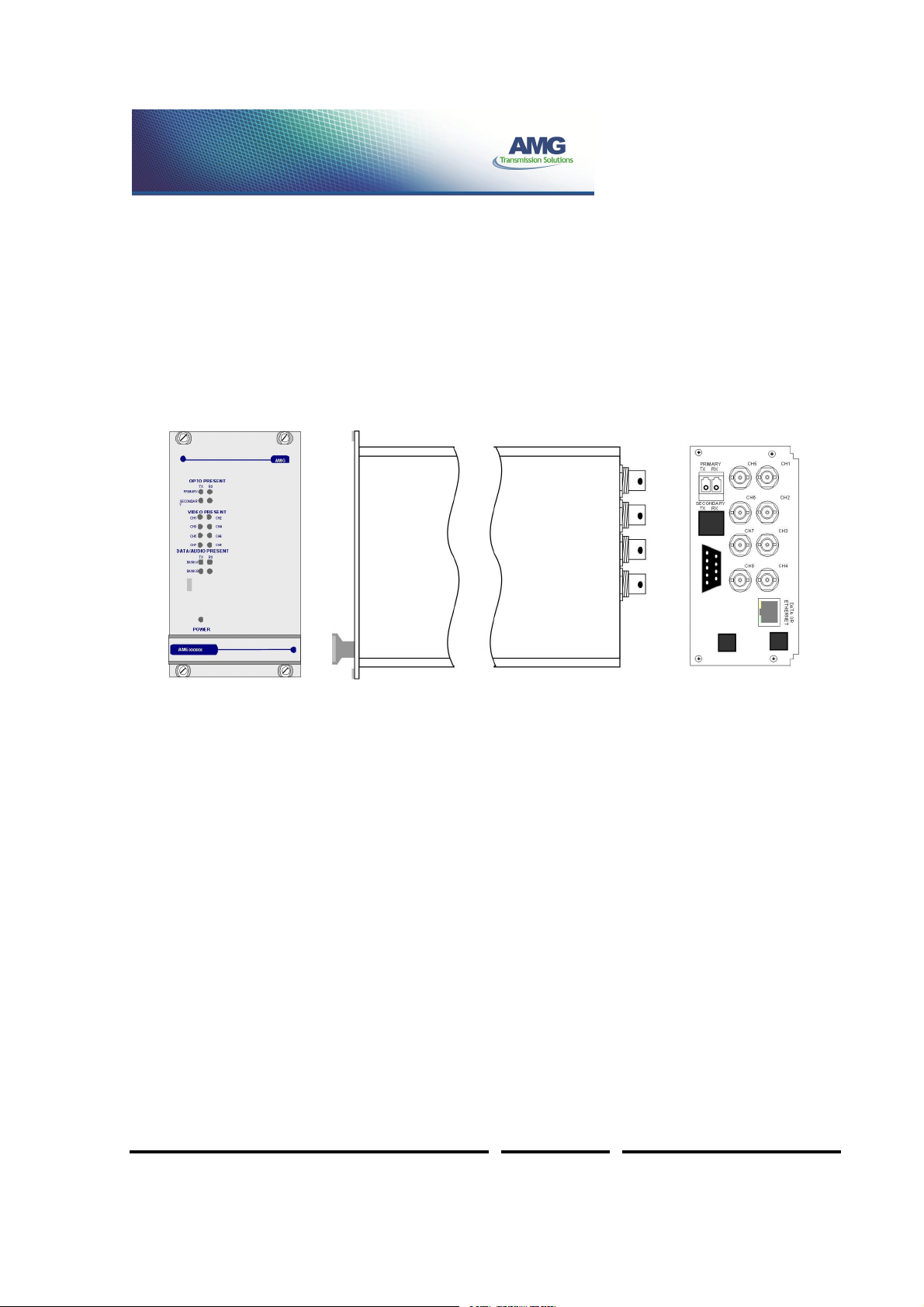

The AMG4783RN-CWDMn is a rackmount eight channel video transmit unit designed to transmit 8
video signals and transmit and receive 1 data signal over two Singlemode fibres. The AMG4783RN-
CWDMn transmits on a CWDM wavelength defined by the 'n' in the CWDMnpartno. as detailed in the
following table, but can receive from any 1310nm or 1550nm band wavelength.
The AMG4783RN-CWDMn is designed to plug into an AMG2009 or AMG2015 subrack, which in turn
fits into a 19" rack system. It also includes an AMG Management Interface to allow management of the
system using the AMG SNMP enabled Management software.
The AMG4783RN-CWDMn is designed to operate with AMG4784N-CWDMn or rackmount equivalent
AMG4784RN-CWDMn eight channel video receive unit in a point to point configuration.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 2 of 12 AMG4783RN-CWDMn Instruction
Sheet D18318-00.doc
Contents
Introduction 3
Unit Functional Schematic.................................................................................................................. 3
Standard AMG CWDM Wavelengths ................................................................................................. 3
Optical Connection ............................................................................................................................. 3
Connections 4
Video Input Connections .................................................................................................................... 4
Optical Connections ........................................................................................................................... 4
Power Connection .............................................................................................................................. 4
Data and Audio Channel Connections ............................................................................................... 4
Data and Audio Channel Configuration 5
Data and Audio Channel Configuration.............................................................................................. 5
Data Interface Connections Channel A .............................................................................................. 5
Data Channel A Configuration............................................................................................................ 5
Front Panel Indicators 6
Power LED.......................................................................................................................................... 6
Video Input LED’s............................................................................................................................... 6
Fibre Optic LED’s ............................................................................................................................... 6
Low Speed Data LEDs ....................................................................................................................... 6
Network Management 7
NMS Operation ................................................................................................................................... 7
SNMP ................................................................................................................................................. 7
Network Alarm Port ............................................................................................................................ 7
The Management Interface ................................................................................................................ 7
Alarm Output and Reset Operation .................................................................................................... 9
Physical Information 10
Dimensions ....................................................................................................................................... 10
Mounting Details............................................................................................................................... 10
Removal / replacement from / to the Case....................................................................................... 10
Safety 10
Maintenance and Repair 10

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 3 of 12 AMG4783RN-CWDMn Instruction
Sheet D18318-00.doc
Introduction
Unit Functional Schematic
The AMG4783RN-CWDMn transmits up to 8
video and 1 data and audio signals to the
AMG4784RN-CWDMn receive unit using a
wavelength defined by 'n' in the CWDMnpartno.
The example shown in the schematic is where 'n'
= 1, i.e. the Tx wavelength is 1510nm.
It also receives up to 1 data and audio channels
transmitted on any 1310nm or 1550nm band
wavelength from the AMG4784RN-CWDMn.
Standard AMG CWDM Wavelengths
CWDM
n/m
Wavelength
(nm)
CWDM
n/m
Wavelength
(nm)
CWDM
n/m
Wavelength
(nm)
CWDM
n/m
Wavelength
(nm)
1 1510 5 1470 9 1310 13 1390
2 1530 6 1490 10 1330 14 1410
3 1550 7 1590 11 1350 15 1430
4 1570 8 1610 12 1370 16 1450
For CWDM wavelengths 11-14, ITU-T G652C or D fibre is recommended.
Optical Connection
The AMG4783RN-CWDMn is connected as illustrated below when used with an AMG4784RN-
CWDMn 8-channel receive unit acting as a point to point system.
Alternatively, the AMG4783RN-CWDMn and AMG4784RN-CWDMn may be interconnected with
additional system units operating at different optical wavelengths on the same fibre using external
couplers.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 4 of 12 AMG4783RN-CWDMn Instruction
Sheet D18318-00.doc
Connections
Video Input Connections
No. of channels....................................8
Connector ............................................75 ohm BNC Socket.
Input Impedance ..................................75 ohm terminated.
Input Level ...........................................1 volt p-p nominal
Frequency Response...........................10Hz to 7MHz.
Optical Connections
PRIMARY OPTO OUT
Connector ............................................LC/PC
Primary Optical Launch Power ............0dBm
Wavelength..........................................Defined by 'n' in the AMG Partno.
Optical Fibre ........................................Singlemode
PRIMARY OPTO IN
Connector ............................................LC/PC
Primary Optical Sensitivity...................-22dBm
Wavelength..........................................Any 1310nm or 1550nm band
Optical Fibre ........................................Singlemode
Optical Overload ..................................-5dBm
NOTE: The optical launch power may overload the input of an AMG receiver if connected directly. A
minimum of 5dB loss is required to ensure correct operation.
Power Connection
Power supply .......................................from plug in connection on the AMG2009 / AMG2015 subrack
Power consumption .............................10 Watts max.
Data and Audio Channel Connections
DATA CHANNEL A
Data Channel A ...................................1 channel
Data Connector....................................RJ45
Channel A Interface On Board Data Interface – RS232, RS422 or RS485. Selected by slide switch
above RJ45 connector.
RS485 – switch position - high (closest to BNC connections)
RS422 – switch position – middle
RS232 – switch position – low (furthest from BNC connections)
DATA CHANNEL B
Data Channel B ...................................Not Present

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 5 of 12 AMG4783RN-CWDMn Instruction
Sheet D18318-00.doc
Data and Audio Channel Configuration
Data and Audio Channel Configuration
The AMG4783N-CWDMn and rackmount equivalent AMG4783RN-CWDMn sends and receives data
to/from Channel A. Channel B is not available. Channel A is a single data interface selectable by the
user with the slide switch on the rear panel.
Data Interface Connections Channel A
Channel A
RJ45 Pin
No. RS485
[switch high]
RS422
[switch mid]
RS232
[switch low]
Cat 5/6 Cable
Colour Code T568B
1IN + (A) GND White/orange
2IN - (B) IN Orange
3 White/green
4 Blue
5 White/blue
6 Green
7IN/OUT + (A) OUT + (A) N/A White/brown
8IN/OUT - (B) OUT - (B) OUT Brown
Note: (A) or (B) in brackets in above table refers to RS485 / RS422 data specification, not Channel A,
Channel B.
Data Channel A Configuration
Channel A is always present and allows for a RS232, RS422 (full duplex, four wire) or RS485 (half
duplex, two wire) interface depending on the position of the switch located above the RJ45 connector.
The switch signifies the presence of the X16004 Low Speed Data/Audio Interface Board. If there are
LED's present on the RJ45 connector then an X16003 Ethernet Interface Board is fitted.
The data input for both the RS485 and the RS422 modes detects a tri-state input condition by
monitoring the differential voltage level across the input. A differential level below 600mV positive or
negative will be detected as a tri-state condition. A level above 600mV positive or negative will be
detected as a logic 1 or logic zero respectively. It is important therefore to terminate the RS485 bus or
the RS422 input bus using 120Ω if a pre-bias is present on the RS485 or RS422 bus.
A large number of third party equipment manufacturers apply a pre-bias on their RS485 bus. This pre-
bias is applied by pulling one arm of the RS485 bus high (+5 volts) and the other arm low (0 volts)
using high value resistors within the third party equipment. In order to ensure that the AMG equipment
detects a tri-state condition, then these resistors should have a value above 5kΩ. If the third party
bias resistors are less the 750Ω the bus can be double or triple terminated as required to ensure that a
tri-state level is detected.
Note: The Data Channel A is shipped from the factory set up for RS485 operation unless otherwise
requested.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 6 of 12 AMG4783RN-CWDMn Instruction
Sheet D18318-00.doc
Front Panel Indicators
Power LED
Power...................................................Green - unit powered
Off - no power applied to unit
Video Input LED’s
Video Present CH1-8...........................Green - video signal present on input BNC
R/G - channel present but no video on I/P BNC
Fibre Optic LED’s
Primary Opto Sync TX .........................Green - optical channel transmitting
Off - optical channel not transmitting
Primary Opto Sync RX.........................Green - optical channel receiving
Org - optical channel receiving but not sync.
Off - optical channel not transmitting
Low Speed Data LEDs
Channel A
Data Present TX (RS485 or RS422) ...Green - logic zero (+V, -V) present on IN+, IN-
Red - logic one (-V,V+) present on IN+, IN-
Off - tri-state off or no connection on IN+, IN-
Data Present TX (RS232)....................Green - logic zero (+V) present on input IN+
Red - logic transitions present on input IN+
Off - logic one (-V) present on input IN+
This represents the data signals being transmitted on the optical fibre
Data Present RX (RS485 or RS422) ...Green - logic zero (+V,-V) present on OUT+, OUT-
Red - logic one (-V,+V) present on OUT+, OUT-
Off - tri-state off or no connection on OUT+, OUT-
Data Present RX (RS232) ...................Green - logic zero (+V) present on OUT+
Red - logic transitions present on OUT+
Off - logic one (-V) present on OUT+
This represents the data signals being received on the optical fibre

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 7 of 12 AMG4783RN-CWDMn Instruction
Sheet D18318-00.doc
Network Management
Network Management of the system is provided by the AMG Management Interface which allows
Management using the AMG SNMP enabled Management software.
NMS Operation
Requires Network Management "N" option in each Rx (Receive) or Tx (Transmit) unit.
Recommended for Dual Redundant Options to give knowledge of failure
Rx collects information regarding all attached Tx units
Interface
9 Way D-type management port on each Rx or Tx
RS-232 or RS-485 on Management Port
Multiple Rx/Tx units use RS-485 and effectively parallel all the RS-485 ports together
Connect to PC RS-232 Port via RS-485/RS-232 convertor
Proprietary GUI
Loss of unit
Loss of Optical Input
Loss of Video Input
SNMP
SMNP Compatibility: SMNP Version 1
AMG3700 Device do NOT act as SNMP Agents
PC running AMG NMS software is the only 'true' SNMP Agent
Provides Proxy access to all AMG devices
SNMP Community String used to differentiate between AMG devices
Network Alarm Port
Alarm Output: Normally Closed
Opens when loss of :
Video at any insert node
Primary optical input at any node
Secondary optical input at any node
Any node through a power down
Power at the receiver
Closed by: Reset
The Management Interface
The Management Interface is fitted to AMG receivers / transmitters and is signified by a 'N' in the part
number

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 8 of 12 AMG4783RN-CWDMn Instruction
Sheet D18318-00.doc
Each management interface, thus each receiver or transmitter, has an ID number with is identified
below the management port. This ID number is used by the AMG Network Management System
(NMS) to identify the unit.
The physical interface is a 9 way female D-type connector. It supports either RS-232 or RS-485.
Management Port Pin-out:
Pin Number RS-232 Connection RS-485 Connection
1 - Data B (+)
2 RD (data out of port) Data A (-)
3 TD (data into port) -
4 Connect to DTR held –ve or shorted
to ground
-
5 SG (signal ground) SG (signal Ground)
6 Alarm Output Alarm Output
7 Alarm Output Alarm Output
8 Alarm reset (Gnd) Alarm reset (Gnd)
9 Alarm reset Alarm reset
For multiple Management Ports it is recommended that the RS-485 interface is used with each RS-
485 pair connected in parallel. In this case an RS-485 to RS-232 / USB converter is required in order
to connect to a standard PC Comms. Port.
The time delay between receiving a data request and sending out a response from the port is 625µs.
Therefore any RS-485 converter should have a 'turn around' time or 'transmit dwell' time equal to or
less than 625µs.
Recommended RS-485 Converter's are:
RS-485 to RS-232
Dataforth DCP485-S: Available in the UK from http://uk.farnell.com/ Order No. 300-9348
Settings on the DCP485-S:
RS-485 Switch Settings: 1-UP, 2-DOWN, 3-DOWN, 4-UP, 5-DOWN, 6-DOWN, 7-DOWN,
8-UP
RS-232 Switch Settings: 1-DOWN, 2-UP, 3-DOWN, 4-UP
DCE/DTE set to DCE.
RS-485 to USB
B&B 485USBTB-2W: Available in Europe from http://www.bb-europe.com/ Order No. 485USBTB-2W
Connections to management port:
Management
Port
DCP485-S 485USBTB-2W
1 2 or 4 B+
2 3 or 5 A-
5 GND GND
NOTES:
On the DCP485-S, pins 3 and 5 are connected together and pins 2 and 4 are connected together.
On the 485USBTB-2W, there are 2 pairs of terminals both labeled A-, B+, either pair may be used.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 9 of 12 AMG4783RN-CWDMn Instruction
Sheet D18318-00.doc
Alarm Output and Reset Operation
The alarm output and reset is designed to indicate a change of state of the fibre loop or spur attached
to the receiver. The Alarm output is a volts free contact relay output (rating: 0.5A at 125VAC or 1A at
24VDC). It normally open, which means that when not powered the contacts will be open circuit.
On power up the contacts will close and will remain closed for up to 5 seconds. During this time the
receiver will monitor and record the state of the AMG transmit units connected to the receiver.
The contacts will then remain closed until there is a change from this recorded state. A change of state
would be:
Addition or loss of video at any insert node
Addition or loss of primary optical input at any node
Addition or loss of secondary optical input at any node
Power up or down of any node
Loss of power at the receiver
Following a change of state the contacts will remain open, regardless of whether the alarm condition
reverts back to its previous state, until the a reset signal is presented to the alarm input connections.
The alarm reset input is biased at 5V via a 1kΩ resistor. To reset the alarm, the alarm reset is required
to be pulled to ground, either by a volt-free contact or an open collector output. The alarm output will
be held in a closed state whilst the alarm reset is connected to ground.
On release of the alarm reset, the alarm output will remain in a closed state until the next change of
state to the AMG transmit unit connected to the receiver. The alarm output may not register a change
of state which happens within 5 seconds of release of the alarm reset.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 10 of 12 AMG4783RN-CWDMn Instruction
Sheet D18318-00.doc
Physical Information
Dimensions
Height...................................................3U Plug-in
Width....................................................14HP
Depth ...................................................170mm excluding connectors
Weight..................................................1000grams
Mounting Details
The unit is designed to be mounted within an AMG2009 or AMG2015 Subrack on standard card
guides.
Removal / replacement from / to the Case
Note: - The AMG unit PCB's are static sensitive. Handle with proper care and use normal electrostatic
discharge (ESD) procedures. Use properly grounded protection (for example, wrist straps) when
handling the PCB.
To remove units from the case to access the data expansion boards and the daughter boards, remove
the 2 or 4 fixing screws on the rear panel and slide the PCB's out of the case.
Ensure that the fibres do not snag or get trapped.
To replace the PCB's into the case, slide the PCB's gently into the case aligning the boards with the
appropriate slots. Ensure that the fibre do not snag or get trapped.
Safety
AMG Optical Fibre Products use Class 1 laser systems in accordance with EN 60825-2:2000.
It is always advisable to follow good practice when working with optical fibre systems. This includes:
Do not stare with unprotected eyes or with any unapproved collimating device at fibre
ends or connector faces, or point them at other people.
Use only approved filtered or attenuating viewing aids
For other safety issues and advice on good practice associated with optical fibre systems, please see
EN 60825-2:2000 or your local safety officer.
Maintenance and Repair
There are no user serviceable parts within AMG products. See unit data sheet for full specification.
In case of problem or failure, please call your local support centre or contact: AMG Systems Ltd. at
3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK.
Phone [phone]
Technical Support [phone]
Email [e-mail]

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 11 of 12 AMG4783RN-CWDMn Instruction
Sheet D18318-00.doc
This page is intentionally blank.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page 12 of 12 AMG4783RN-CWDMn Instruction
Sheet D18318-00.doc
This page is intentionally blank.
