AMI Pure Plus Mineral RO HD-22PP Owner's manual

O:\Studio\LnK_2020\AMI_LnK_2020\Manuals\Manual Export_2020\RO Water Purifiers\Excell+ Manual_Export\Excell+ Manual_Export_English (Nepal).cdr • dt. 23.01.2020
Mineral RO © 2005 - 2019 AMI RO SYSTEMS LTD, the process & purifier is patented vide patent no. 199716.
Reverse Osmosis Water Purifier with UV Sterilisation & TDS Controller
APPLIED MEMBRANES, INC.
2450 Business Park Drive, Vista, CA 92081
Call: 760-734-8734 | Fax: [phone]
www.appliedmembranes.com
Instruction Handbook
for Installation, Operation
and Maintenance.
The
Best Tasting
Pure Water
Applied Membranes, Inc. is an ISO 9001:2015 QMS Certified Company
AMI PURE PLUS
FOR WALL-MOUNTING/UNDER-THE-COUNTER/
COOLER INSTALLATION
Member of
Reverse Osmosis Water Purification with UV Disinfection & TDS Controller

Dear Customer,
At the outset, allow us to thank you for your tr ust in
AMI water purification. We take pride in our reputation for
product quality and industr y proven performance. We are
certain that your decision to own an AMI Pure Plus Mineral
T M
RO water purifier will go a long way towards keeping you
and your family in good health. We are confident that you will
be satisfied with its performance and that it will ser ve your
need f o r s a fe and c le a n d r i nking wa t e r w i thout any
compromise.
This guide will help you in getting the best out of your water
purifier. Please go through this booklet to familiarize
yourself with its operation and maintenance.
Best Wishes
Applied Membranes, Inc.
1. AMI TECHNOLOGY - A Breakthrough
in Water Purification 1
2. Features 1
3. Items in the Box 1
4. Important Instructions 2
5. Reverse Osmosis Process 3
6. UV Process 3
7. Water Flow Diagram 4
8. Electrical Circuit Diagram 4
9. UV Fail Alarm 5
10. Filter Change Alarm 5
11. Computer Controlled Operation 5
12. Automatic Operation 5
13. Installation Instructions 6
14. TDS Adjustment 7
15. Starting up the Purifier 7
16. Recommended Usage of Rejected Water 7
17. Maintenance 8
18. Important Safety Instructions 8
19. Warning 8
20. Technical Specifications 9
21. Performance Data Sheet 9
Table of Contents
AMI

2
Important Instructions
10 M
Water Source
Water in
Make sure that the reject water
connect ion t o the drai n saddle
assembly is fully inserted and not
leaking.
Rejected Water
Drain
Avoid exposure to direct sunlight
and installation in damp areas.
Do not confine the
purifier in a cabinet.
Avoid sharp bends in the pipe
fittings. Do not bend or block
the reject water pipe.
In case of not using the purifier for more than two
days, kindly switch off the power supply and drain
the storage tank.
The maximum distance between the
water source and the purifier should
not be more than 3 meters.
Do not try to service the purifier on your own. Instead,
call service technician for help.
To keep the storage tank
clean, it should be drained
once in 30 days.
1
Use Genuine AMI spares for optimum performance
Make sure that the temperature
of water entering the purifier is
o o
within 10 - 40 C.
TM
Presenting the AMI Pure Plus Mineral RO Water Purifier
based on state-of-the-art AMI Technology, for purer and
healthier water.
TM
At the heart of the AMI Pure Plus Mineral RO Water Purifier
is a Reverse Osmosis membrane having pores as small as
0.0001 microns that reduce even dissolved impurities (salts
and heavy metals) as well as harmful micro-organisms
(bacteria, viruses, etc.) and even converts hard water into
sweet and purer drinking water. It also incorporates a UV
disinfection process to give double protection from harmful
TM
micro-organisms. The AMI Pure Plus Mineral RO Water
Purifier also allows the user to control the Total Dissolved
Solids (TDS) level of purified water.
AMI TECHNOLOGY- A Breakthrough in
Water Purification*
* Tested & Certified by TUV-SUD South Asia (P) Ltd.
Items in the Box
TM
1. AMI Pure Plus Mineral RO Water Purifier : 1 Qty.
2. 3-Way Connector : 1 Qty.
3. S.S. Ball Valve : 1 Qty.
4. Food Grade Pipe ¼ inch (Blue) : 98.4 inches
5. Food Grade Pipe ¼ inch (White) : 98.4 inches
6. Food Grade Pipe inch (White) : 98.4 inches
7. Screws & Plastic Inserts : 2 Qty. each
8. Sticker Center Drill : 1 Qty.
9. Faucet : 1 Set
10. Drain Saddle Assembly : 1 Set
10. Hydrostatic Storage Tank : Optional
11. User Manual : 1 Qty.
nDouble purification by RO + UV* processes
nBuilt-in TDS Controller that allows adjustment
of TDS level of purified water
nSuitable for purification of Brackish / Tap Water /
Municipal Corporation Water Supply
n3.2 gallons optional storage tank that makes
purified water available on demand
nFully automatic operation, with auto-on and
auto-off function
n Computer-controlled operation for enhanced
purity and long life
n Filt e r C h a n ge A lar m to i n d i c a t e f i l ter
replacement time
n UV Fail Alarm* to indicate failure in UV system
n RO Membrane fused inside membrane
housing to prevent tampering
n Use of push-fit fittings for leakage free and
maintenance free performance
TM
Features of AMI Pure Plus Mineral RO Water Purifier
AMI
<a^QŁC M`Q^Ł@MZW

3
The Reverse Osmosis process, also known as
hyper filtration, is the finest filtration process known
till date. The process ensures reduction of particles as
small as ions from a solution. Reverse Osmosis uses a
semi-permeable membrane to reduce salts from
potable / brackish water. In Reverse Osmosis, water
pressure applied to the concentrated side forces the
process of osmosis into reverse. Under enough
pressure, treated water is "squeezed" through the
membrane from the concentrated side to the diluted
side. Salts dissolved in water as charged ions are
repelled by the RO membrane. The rejected impurities on the concentrated side of the
membrane are washed away in a stream of waste water and thus do not get accumulated
as in a traditional filter.
UV Process
The UV light has shorter wavelength (higher energy) than the visible light. It is called
Pure Plus-violet because it is just beyond violet light in the light spectrum. Technically,
the Pure Plus-violet light is defined to be any wavelength of light, which is shorter than
400 nanometer.
UV rays, which penetrate into the micro-organisms, are absorbed by the DNA of the
pathogen in the water. The DNA is altered in such a way that the pathogen cannot
reproduce itself. Thus, it is essentially killed and cannot cause infection. This process of DNA
modification is called inactivation.
Reverse Osmosis Process
700400
Wavelength(nm)
UVB
280-315 UVA
315-400
UVC
200-280
X-Rays Pure Plusviolet Visible Infrared Microwaves Radio

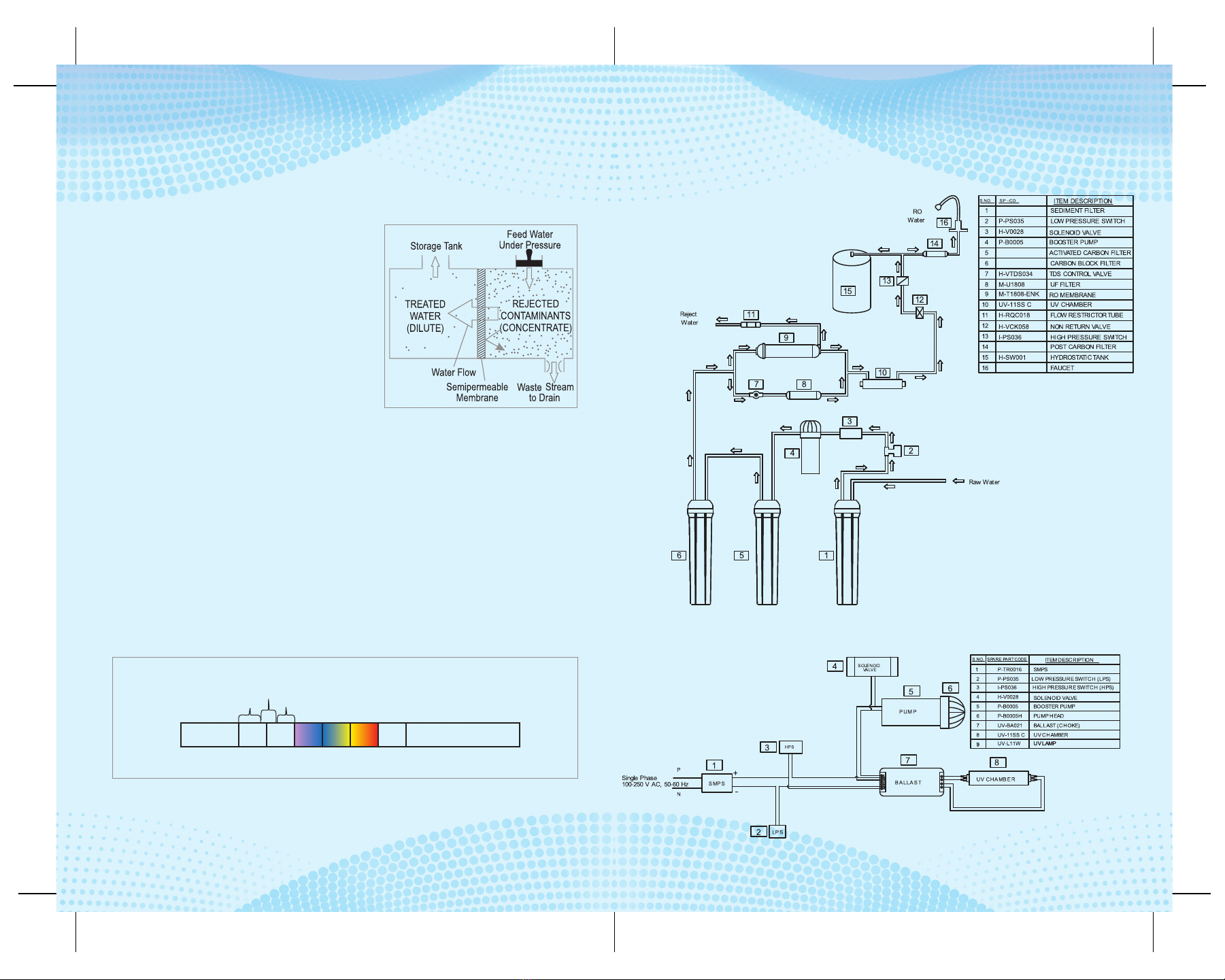

Electrical Circuit Diagram
Water Flow Diagram
4
H-F1005CF
H-F2510GAC
H-F2510AC
H-F0834-43ST
H-T5000

56
The AMI Pure Plus Mineral RO™ Water Purifier is a product of advanced technology which ensures
safe and clean drinking water. The purifier is easy and convenient to install.
Recommended Site Preparations:
nSingle Phase 100-250V AC, 50-60 Hz. connection not more than 118.1 inches away from the
point of installation of purifier
nRaw water supply with ½ inch nipple not more than 3m away
nDrain for rejected water not more than 118.1 inches away
nSpace as per dimensions of the purifier
nWall/plane surface for mounting two screws and holding the machine
nThe system and installation needs to comply with state and local laws and regulations
Specific Instructions:
nAMI Pure Plus Mineral RO™ Water Purifier is an under-the-counter RO water purifier. Make sure that it
is only mounted on a wall. Avoid installation on wooden
and metallic stands
nFor optimum performance and minimum inlet pressure
required, ensure that the raw water supply tank is at least 10 ft
above the level at which the purifier is installed
nIt is preferable to install the purifier near a sink so that faucet
can be mounted on the sink and the inlet and reject water
lines are easily available
Installation Instructions:
nScrew in the two 10x50 self taping screws at the same
horizontal level at a distance of 9.68 inches from each other
in the wall. This can be preferably done under the kitchen sink
nCarefully hang the purifier on the wall with the help of wall
mounting slot holes present on the back side of the purifier,
as shown in the figure 1
nFix the SS ball valve to the ¼ inch port of the 3-way connector
nConnect the 3-way connector to the raw water supply as
shown in the figure 2. The threaded end of the 3-way
connector is fitted in line with the raw water supply. The other end can be connected to a tap or can be
plugged off if not required
nNow connect one end of the white pipe to the SS ball valve and other end to the inlet of the right most
sediment filter (labeled as No.1 in the system flow diagram) (Note: white pipe is for raw water supply)
nDrill a 1/4” hole in the drain pipe, below the sink. Install the Drain Clamp by first
applying the foam gasket inside the front half of the drain saddle. Punch out
the cut-out hole in the center of the pad, remove the adhesive backing, and
adhere to the inside of the drain saddle, ensuring the holes are aligned. Align
the hole drilled in the drain pipe with the hole in the drain saddle. Use Phillips
screwdriver to tighten the clamp. Avoid over-tightening.
nConnect one end of the blue pipe to the outlet of the flow restrictor tube
(labeled as No. 11 in the system flow diagram) and insert tubing from the
Reject Water line to the quick connect fitting on the drain line and check the
seal (Note: Blue pipe is for reject water).
nMake a drill of 0.43 inches on the top of the sink or kitchen bed where the faucet (labeled as No. 16 in the
system flow chart) can be installed conveniently as per drawing. Secure the faucet to the sink, by
tightening the brass nut washer
n Tighten the 90 degree ball valve to the tank and connect it to the outlet of the purifier as
shown in the drawing
Installation Instructions
246 mm
Figure 1
UV Fail Alarm*
To ensure delivery of purer and healthier water, a micro-processor is installed in the purifier that performs
the following functions: -
UV Stabilisation Delay: To ensure that the UV lamp is pre-heated and is working at its optimum
level before it starts disinfecting water, the controller provides a two seconds delay to UV lamp when the
purifier is switched on. During this period, only the UV lamp is switched on and other electrical devices of
the purifier are switched off.
Purification Delay: To ensure that the idle water lying in the internal pipes and in the UV chamber is
disinfected before being passed into the storage tank, the system provides 5 second delay when the purifier
is switched on. During this time, the UV lamp kills all micro-organisms that may be in the water inside UV
chamber. After this delay, all other electrical devices such as booster pump and solenoid valve are
switched on to start normal purification process.
Audible Alarm: The controller also controls the timing of UV Fail Alarm and the Filter Change Alarm.
Computer Controlled Operation*
nThe purifier automatically shuts off when the
storage tank is full
nThe purifier does not start when inlet water supply
pressure falls below 4.267 (psi/10°C)
nThe purifier automatically restarts when water
level drops below the maximum
nThe purifier does not allow any water rejection in
absence of electricity or when tank is full
Automatic Operation
AMI Pure Plus Mineral RO™ Water Purifier has an in-built feature of an audible alarm if the UV lamp malfunctions.
This feature is provided to ensure purity. The UV Fail Alarm will sound as following:
Two short beeps after every two seconds.
In case such an alarm is audible, kindly switch off the purifier. The purifier will stop its purification process in
such a circumstance.
Filter Change Alarm
AMI Pure Plus Mineral RO™ Water Purifier has an in-built feature of an audible alarm to indicate replacement
time filters. This alarm will be audible after 700 hrs of use since the last filter change (or since the time of
installation). The Filter Change Alarm will sound as following:
4 short beeps after every two seconds; for 30 seconds. The alarm will repeat after every 2 hours of use.
In case such an alarm is audible, please change the filters of the purifier. However, if the filters are not changed
within the next 60 hours of operation, the purifier will stop functioning to ensure purity and hygiene. The
following alarm will be audible after 60 Hrs. A continuous beep for an infinite time.
In case, such an alarm is audible, kindly switch off the purifier & replace the filters. In such a circumstance, the
purifier will not function unless the filters are changed.

87
nSwitch on the power supply
nWait approximately for half an hour so that the
storage tank fully fills up**
nSwitch off the power supply
nDrain off the storage tank by opening the faucet
to remove any dust particles from the pipe and
storage tank
nClose the faucet & switch on the power supply
nThe purifier is ready to use
Starting-up the Purifier
TDS Adjustment*
Although the rejected water has high concentration
of salts, it is absolutely clean and free of impurities
like chlorine, dirt, sand, etc. which are present in raw
water. This rejected water usually goes down the
drain but if required, can be used for gardening
purposes. It has high concentration of salts and
minerals which accelerates plant growth. Rejected
water can also be used for cleaning purposes, i.e.
cleaning utensils, mopping, etc.
Recommended Usage of Rejected Water
Figure 2
3 Way Connector
SS Ball Valve
90 Degree
Ball Valve
The unique TDS Controller enables customers to retain the contents of natural minerals in purified water as per
their requirement.
n Turning the screw of the valve clockwise
results in a decreased mineral content
nTurning the screw of the valve anticlockwise
results in an increased mineral content
Note: The purification capacity of RO membrane will reduce with time due to clogging of pores of
membranes.
To ensure t ha t the p urifier operates at its
optimum level, a routine maintenance must be
performed. The frequency of the maintenance will
greatly depend upon the raw water quality and
consumption of purified water.
n Replace sediment, activated carbon block and
UF filter when the filter change alarm is audible
OR after every 12 months. It is recommended to
change the FRT when the filters are replaced
nReplace RO membrane once in a year
nReplace UV Lamp once in a year
nIf you are not going to use the purifier for a long
time (in case you are on a holiday, tour or out of
home), make sure that you disconnect the power
supply, turn off the raw water supply and drain
the storage tank
Maintenance
“This reverse osmosis system contains a replaceable component critical to the efficiency of the system.
Replacement of the reverse osmosis component should be with one of identical specifications as defined by
the manufacturer, to ensure the same efficiency and contaminant reduction performance.”
The Reverse Osmosis system contains a replaceable treatment component critical for the effective reduction
of total dissolved solids and that product water shall be tested periodically to verify that the system is
performing properly.
Replacement of spare parts are as under:-
Important Safety Instructions
nIf the supply cord is damaged, it must be replaced by the original part in order to avoid hazard
nChildren should be supervised to ensure that they do not play with the appliance
Warning
nDo not operate the UV-C emitter when it is removed from the appliance enclosure
nRead the maintenance instructions before opening the appliance
nThe appliance must be disconnected from the supply before replacing the UV-C emitter
H-F1005CF
H-F2510GAC
M-T1808-ENK
H-F0834-43ST
M-U1808
H-L11W
H-F2510AC
Sediment Filter 10”
Activated Carbon Filter 10”
RO Membrane Welded 8" Housing
Post Carbon Filter (Blue)
Hollow Fibre Membrane (UF)
Ultraviolet (UV) Replacement Lamp
Carbon Block Filter 10”
nIf the supply cord is damaged, it must be replaced by the original part in order to avoid hazard
nChildren should be supervised to ensure that they do not play with the appliance
nThis appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety
To Drain

109
“Do not use with water that is microbiologically unsafe or of unknown quality w/o adequate disinfection before or
after the system”.
Efficiency rating means the percentage of the influent water that is available to the user as reverse osmosis
treated water under operating condition that approximate typical daily usage.
The system conform to NSF/ANSI 58 for the specific performance claims as verified and substantiated by test
data. While testing was performed under standard laboratory conditions, actual performance may vary.
The influent water to the system shall include no organic solvents, Chlorine <2 mg/L, pH 7-8, Iron <2mg/L, Turbidity
<1 NTU and hardness <1000mg/L.
“This system is acceptable for treatment of influent concentrations of no more than 27 mg/L Nitrate and 3 mg/L
Nitrite (in combination measured as N), and is certified for nitrate/nitrite reduction only for water supplies with
pressure of 140 kpa ( 20 psi) or greater”.
This system has been tested for the treatment of water containing pentavalent arsenic (also known as As (V), As
(+5), or arsenate) at concentrations of 0.30 mg/L or less. This system reduces pentavalent arsenic but may not
remove other forms of arsenic. This system is to be used on water supplies containing detectable free chlorine
residual or on water supplies that have been demonstrated to contain only pentavalent arsenic. Treatment with
chloramines (combined chlorine) is not sufficient to ensure complete conversion of trivalent arsenic to
pentavalent arsenic. Please see the Arsenic Facts section of the performance data sheet for further information.
Arsenic Facts
Arsenic (As) is a naturally occurring contaminant found in many ground waters. It generally occurs in two forms
(valences or oxidation states): pentavalent arsenic (also known as As(V), As(+5), or arsenate) and trivalent arsenic
(also known as As(III), As(+3), or arsenite). In natural ground water, arsenic may exist as trivalent arsenic,
pentavalent arsenic, or a combination of both. Although both forms of arsenic are potentially harmful to human
health, trivalent arsenic is considered more harmful than pentavalent arsenic. More information about arsenic and
i t s t o x i c i t y c a n b e f o u n d o n t h e U. S . E n v i r o n m e n t a l P r o t e c t i o n A g e n c y we b s i t e a t
http://www.epa.gov/safewater/arsenic.html.
This system is designed to remove only pentavalent arsenic. This treatment system does not provide a feature for
conversion of trivalent arsenic to pentavalent arsenic. The system may remove some trivalent arsenic, however, it
has not been evaluated for its ability to remove trivalent arsenic.
Trivalent arsenic is generally more difficult to remove from drinking water than pentavalent arsenic. Trivalent
arsenic can be converted to pentavalent arsenic in the presence of an effective oxidant such as free chlorine. The
arsenic in water containing detectable free chlorine or that has been treated with another effective oxidant will be
in the pentavalent arsenic form.4 Treatment with chloramine (combined chlorine) is not sufficient to ensure
complete conversion of trivalent arsenic to pentavalent arsenic.
Consumers using public water supplies can contact their utility to verify whether free chlorine treatment chemicals
are being used. Private water supplies and waters that do not have detectable free chlorine residuals should be
analyzed to determine the form(s) of arsenic present and the potential need for oxidation of trivalent arsenic to
pentavalent arsenic.
Arsenic does not generally impart color, taste, or smell to water, therefore, it can only be detected by a chemical
analytical test. Public water supplies are required to monitor treated water for total arsenic (trivalent arsenic plus
pentavalent arsenic) and the results are available to the public from the utility. Consumers using private water
sources will need to make arrangements for testing. A total arsenic test usually costs about $15-$30 and it is
recommended the test be conducted by a certified laboratory. Local health departments or environmental
protection agencies can help provide consumers with a list of certified laboratories. Some laboratories may also
be able to analyze specifically for (speciate) the form(s) of arsenic present in a water sample if requested.
This treatment system was tested under laboratory conditions as defined in NSF/ANSI 58 Drinking Water
Treatment Units – Health Effects and was found to reduce 0.30 mg/L of pentavalent arsenic in the test water to
less than 0.010 mg/L under standard testing conditions. Actual performance of the system may vary depending on
specific water quality conditions at the consumer's installation. Following installation of this system, the consumer
should have the treated water tested for total arsenic to verify arsenic reduction is being achieved and the system
is functioning properly.
The arsenic removal component of this system must be replaced at the end of its useful life of 1-2 years. The
replacement component, H-F1005CF-R Inline Sediment Filter 10", H-F2510GAC-R Inline Carbon Filter 10", M-
T1808-ENK RO Membrane Welded 8" Housing, H-F0832-43QC Blue Post Carbon Filter (Blue), M-U1808 Hollow
Fibre Membrane (UF), H-RQC018 Flow Restrictor (FRT) 550/600, can be H-F2510AC-R Carbon Block Filter 10”
purchased directly from the manufacturer Applied Membranes, Inc.
Technical Specifications
Substance Influent challenge Maximum permissible Minimum %
concentration mg/L product water reduction
concentration mg/L
Total Dissolved Solids 750 ± 40 mg/L 187 86.8%
Arsenic (+5) 0.30 ± 10% 0.010 98.7
Barium 10.0 ± 10% 2.0 97.7
Fluoride 8.0 ± 10% 1.5 96.3
Lead 0.15 ± 10% 0.010 99.3
Nitrate / Nitrite 30 ± 10% 10 68.5
“This system has been tested according to NSF/ANSI 58 for reduction of the substances listed below. The
concentration of the indicated substances in water entering the system was reduced to a concentration less than
or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 58”.
TM
Performance Data Sheet-AMI Pure Plus Mineral RO Water Purifier
Arsenic, Barium, Fluoride, Lead, Nitrate/Nitrite contents as tested & certified by WQA as per
standards NSF/ANSI 58.
AMI Pure Plus
* Treatment capacity tested for tap water having TDS level of 750 ppm at room temperature.
Product
HD-22PP
Water Purifier
White
Suitable for Purification of Brackish/Tap Water/
Municipal Corporation Water.
3.96 (gal/hr.*)
ABS Food Grade Plastic/Stainless Steel
Wall-mounting/Under-the-Counter/Cooler Installation
18.11 (L) x 9.84 (W) x 23.22 (H)
4.267 (psi/10°C)
56.893 (psi/40°C)
6.5-8.0
Sediment, Activated Carbon, UF and Post Carbon.
11 (W)
5000 hrs. of operation
23.5 (lbs)
3.2 (gallons)
19.8 (gal/day)
Thin Film Composite RO
24 V DC
60 (W)
Single Phase 100-250V AC, 50-60 Hz.
IPX1
Product Code
Product Generic Name
Product Color
Applications
Purification Production Rate
Body Material
Mounting
Dimensions (inches)
Inlet Water Pressure/Temp (Min.)
Inlet Water Pressure/Temp (Max.)
Min./Max. Operating pH
Filter Cartridge
UV Lamp Wattage
Life of UV Lamp
Net Weight
Storage Capacity
Maximum Duty Cycle
Membrane Type
Booster Pump Voltage
Total Power Consumption
Input Power Supply
IP Rating
