Amica 10143.3TsPrDbHaScJXSp User manual

10143.3TsPrDbHaScJXSp
INSTRUCTION MANUAL
IO-CBI-0035 / 8062035
(04.2015./1)
BUILT-IN ELECTRIC OVEN
C
O
MENU

2
DEAR CUSTOMER,
The oven is exceptionally easy to use and extremely efcient. After reading the instruction
manual, operating the oven will be easy.
Before being packaged and leaving the manufacturer, the oven was thoroughly checked with
regard to safety and functionality.
Before using the appliance, please read the instruction manual carefully.
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep the instruction manual and store it in a safe place so that it can be
consulted at any time.
It is necessary to follow the instructions in the manual carefully in order to avoid possible
accidents.
Caution!
Do not use the oven until you have read this instruction manual.
The oven is intended for household use only.
The manufacturer reserves the right to introduce changes which do not affect the
operation of the appliance.

3
TABLE OF CONTENTS
Safety instructions ............................................................................................................. 4
Description of the appliance ............................................................................................. 7
Installation......................................................................................................................... 10
Operation........................................................................................................................... 12
Baking in the oven – practical hints ............................................................................... 19
Cleaning and maintenance.............................................................................................. 21
Technical data................................................................................................................... 28

4
SAFETY INSTRUCTIONS
Warning: The appliance and its accessible parts
become hot during use. Care should be taken to
avoid touching heating elements. Children less than 8
years of age shall be kept away unless continuously
supervised.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside
the oven.
Accessible parts may become hot during use. Young
children should be kept away.
Warning: Do not use harsh abrasive cleaners or
sharp metal scrapers to clean the oven door glass
since they can scratch the surface, which may result
in shattering of the glass.

5
SAFETY INSTRUCTIONS
● Ensurethatsmallitemsofhouseholdequipment,includingconnectionleads,do
nottouchthehotovenastheinsulationmaterialofthisequipmentisusuallynot
resistant to high temperatures.
● Donotleavetheovenunattendedwhenfrying.Oilsandfatsmaycatchredue
to overheating or boiling over.
● Donotputpansweighingover15kgontheopeneddooroftheoven.
● Donotuseharshcleaningagentsorsharpmetalobjectstocleanthedoorasthey
can scratch the surface, which could then result in the glass cracking.
● Donotusetheovenintheeventofatechnicalfault.Anyfaultsmustbexedby
anappropriatelyqualiedandauthorisedperson.
● Intheeventofanyincidentcausedbyatechnicalfault,disconnectthepowerand
report the fault to the service centre to be repaired.
● Therulesandprovisionscontainedinthisinstructionmanualshouldbestrictly
observed. Do not allow anybody who is not familiar with the contents of this instruc-
tion manual to operate the oven.
● Theappliancehasbeendesignedonlyforcooking.Anyotheruse(forexample
forheating)doesnotcomplywithitsoperatingproleandmaycausedanger.
Warning:Ensurethattheapplianceisswitchedoff
before replacing the lamp to avoid the possibillity of
electric shock.
You should not use steam cleaning devices to clean the
appliance.
During the pyrolytic oven cleaning process the oven cham-
bercanreachaveryhightemperature.Consequently,the
appliance outer surfaces can heat up more than usual, so
keep children away at all times.

6
Using energy in a respon-
sible way not only saves
money but also helps the
environment. So let’s save
energy! And this is how you
can do it:
Do not uncover the pan too often
(a watched pot never boils!).
Do not open the oven door unnecessarily
often.
 Switch off the oven in good time and
make use of residual heat.
For long cooking times, switch off heating
zones5to10minutesbeforenishingcook-
ing. This saves up to 20% on energy.
Only use the oven when cooking larger
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker hob.
Make use of residual heat from the
oven.
If the cooking time is greater than 40 minutes
switch off the oven 10 minutes before the
end time.
Important! When using the timer,
set appropriately shorter cooking
times according to the dish being
prepared.
Make sure the oven door is properly
closed.
Heat can leak through spillages on the door
seals. Clean up any spillages immediately.
Do not install the oven in the direct
vicinity of refrigerators/freezers.
Otherwise energy consumption increases
unnecessarily.
HOW TO SAVE ENERGY

7
During transportation, protec-
tive packaging was used to
protect the appliance against
any damage. After unpacking,
please dispose of all elements
of packaging in a way that will
not cause damage to the environment.
All materials used for packaging the appli-
ance are environmentally friendly; they are
100% recyclable and are marked with the
appropriate symbol.
Caution! During unpacking, the packag-
ing materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of
children.
UNPACKING DISPOSAL OF THE APPLIANCE
Old appliances should not sim-
ply be disposed of with normal
household waste, but should
be delivered to a collection and
recycling centre for electric and
electronicequipment.Asymbol
shown on the product, the in-
struction manual or the packaging shows that
it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this. By recycling materials or
other parts from used devices you are making
asignicantcontributiontotheprotectionof
our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.

8
C
O
MENU
DESCRIPTION OF THE APPLIANCE
Oven function
selector knob
Electronic
programmer
Temperature adjust-
ment knob
Temperatureregulator
signal light red
Door lock indicator
light

9
SPECIFICATIONS OF THE APPLIANCE
Cookerttings:
*optional
Baking tray* Grill grate
(drying rack)
Roasting tray*
Sideracks

10
Installing the oven
The kitchen area should be dry and aired
and equipped with efcient ventillation.
When installing the oven, easy access to
all control elements should be ensured.
This is a Y–type design built–in oven,
which means that its back wall and one
side wall can be placed next to a high
piece of furniture or a wall. Coating or
veneerusedonttedfurnituremustbe
applied with a heat–resistant adhesive
(100°C). This prevents surface deforma-
tion or detachment of the coating.
Hoods should be installed according to
the manufacturer’s instructions.
Make an opening with the dimensions
given in the diagram for the oven to be
tted.
Make sure the mains plug is disconnected
and then connect the oven to the mains
supply.
Insert the oven completely into the open-
ing without allowing the four screws in the
places shown in the diagram to fall out.
INSTALLATION

11
INSTALLATION
Electrical connection
Warning: This appliance must be earthed.
The appliance must be installed by a com-
petent electrician using a double pole control
unit of 16 ampere minimum capacity with
3 mm minimum contact separation at all
poles.
We recommend that the appliance is con-
nectedbyaqualiedelectricianwhoismem-
beroftheN.C.E.I.C.andwhowillcomplywith
theI.E.E.andlocalregulation.
Access to the main terminal is gained by
opening the terminal block cover at the
rear of the appliance (use a small at-
bladed screwdriver).
Connection shuld be made with 4 mm2
twin and earth cable.
First strip the wires, then push the cab-
lethrough the cable clamp in the terminal
block cover.
Connect the cable to the terminal block
and tighten the cable clamp screw (see
diagram).
 Ensurethecableexitsthroughthecable
grip clamping on the outer sheath of the
cable and x in place by tightening the
xingscrew.
 Ensureall screwsare adequatelytight-
ened. Do not over tighten as you may risk
damaging the screw threads.
Close the terminal box, ensuring that the
cover is engaged on the locking tabs.
The supply cable must be positioned
away from any hot parts of the rear of
the appliance. If this cannot be done
then another method of protecting the
supply cable from the hot parts must be
used i.e. Heat resistant sleeving or high
temperature cables.
L - Live (Red or Brown)
N - Neutral (Black or Blue)
PE-Earth(Green/Yelloworsleeving)
Groundingleadmustbeconnectedtoscrew
with symbol.
The power supply cable must have these
minimumrequirements:
- Type: HO5VV-F (PVC insulated and
sheathedexiblecable)
- 3 cores x 4 mm2.
220-240V 1N~

The oven is equipped with a retractable
knobs. In order to select a function do the
following:
1. Gently press and release a knob which
will pop out,
2. Turn the oven functions selection knob to
the desired function.

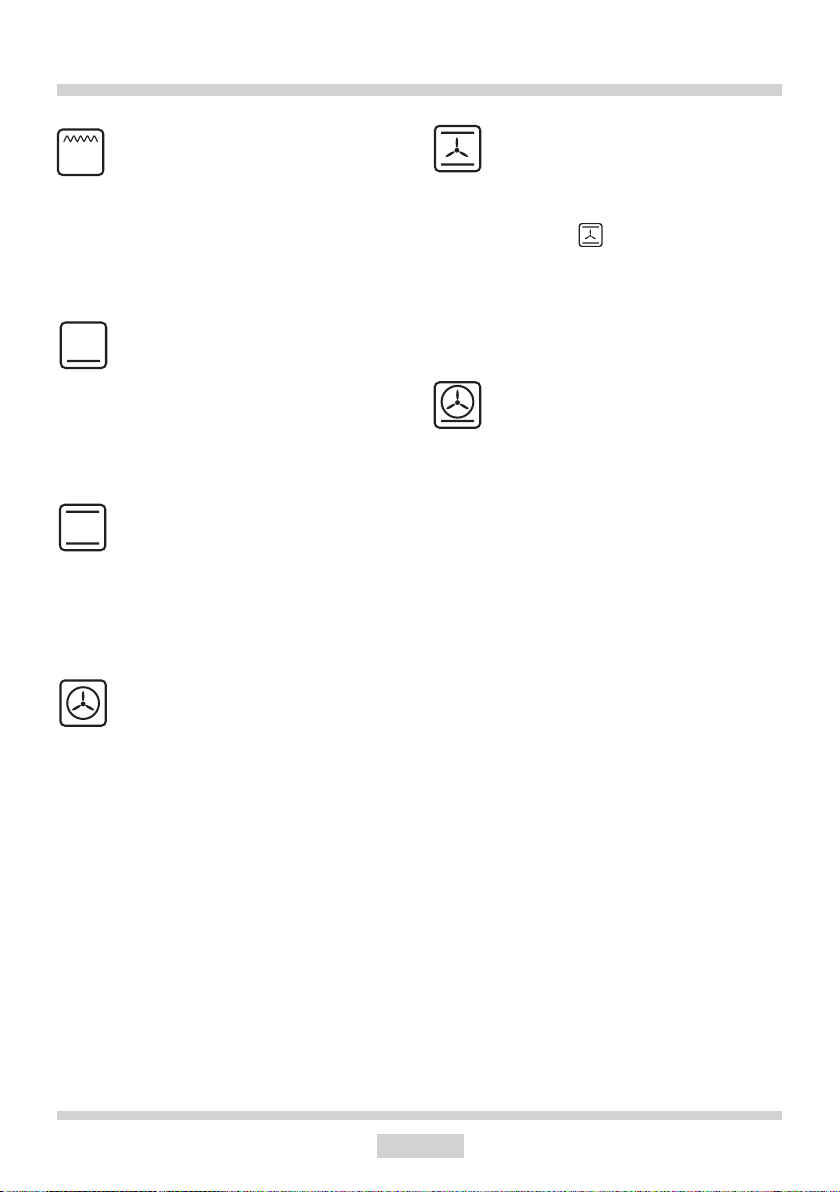

Symbols printed around the knob indicate
available oven functions.
1
2
12
OPERATION
Before using the appliance for the
rst time
● Remove packaging, clean the interior of
the oven.
● Takeoutandwashtheoventtingswith
warmwaterandalittlewashing–upliqu-
id.
●Switch on the ventillation in the room or
open a window.
●Heat the oven (to a temperature of 250°C,
for approx. 30 min.), remove any stains
and wash carefully.
Important!
The inside of the oven should only be
washed with warm water and a small
amountofwashing–upliquid.
TheelectronicprgrammerTsisequipped
with electronic sensors which are
switched on by touching or pressing
the sensor surface for at least one
second.
Each sensor reaction is conrmed by
the beep.Keep the sensor surface clean
at all times.
Important!
Inovensequippedwith the electronic
programmer Ts, the time “0.00” will
startashinginthedisplayeldupon
connection to the power supply.
The programmer should be set with
the current time. (See Electronic
programmer ). If the current time
is not set operation of the oven is
impossible.

13
OPERATION
Electronic programmer
functions
MENU – function selection button
< - sensor “–”
> - sensor “+”
Setting the time
After connection to the mains or reconnec-
tionafterapowercutthedisplayshowsash
Timer
The timer can be activated at any time, re-
gardless of the status of other functions. The
timer can be set for from 1 minute to up to 23
hours and 59 minutes.
To set the timer you should:
Press sensor MENU, then the display will
showashing ,
Press sensor MENU, then the display will
show ,
set the time using sensors <and >.
7 seconds after the time has been set the
new data will be saved.
Caution!
If the correct time is not set then proper opera-
tion of the oven is not possible.
set the timer using sensors >and <.
The time set is shown on the display and the
signal function is on.
Press sensor MENU , <or >in order to switch
off the signal, the signal function will go out
and the display will show the current time.
Caution!
If the alarm signal is not turned off manually,
it will be turned off automatically after approx.
7 minutes.
The electronic prgrammer is equipped with
electronic sensors which are switched on by
touching or pressing the sensor surface for at
least one second.
Each sensor reaction is confirmed by the
beep.
Keep the sensor surface clean at all times.
0000
0000

14
OPERATION
Semi–automatic operation
If the oven is to be switched off at a given
time, then you should:
Set the oven function knob and the tem-
perature regulator knob to the setting at which
you want the oven to operate.
Press sensor MENU until the display will
show:
Settherequiredtimeusingsensors<and >,
within a range from 1 minute to 10 hours.
The set time will be introduced to the memory
after approx. 7 seconds and the display will
show AUTO function.
When the set time has passed the oven is
switched off automatically, the alarm signal
is activated and the signal function AUTO
ashingagain;
Set the oven function knob and the tem-
perature regulator knob to the switched–off
position.
Press sensor MENU, <and >in order to
switch off the signal; the signal function will
go out and the display will show the current
time.
Caution!
In ovens equipped with one control knob,
the oven function knob is integrated with the
temperature regulator knob.
Automatic operation
Iftheovenistobeswitchedonforaspecied
periodoftimeandswitchedoffataxedhour
then you should set the operation time and
the operation end time:
Press sensor MENU until the display will
show:
Set the required time using the sensors
<and >within a range from 1 minute to 10
hours.
Press sensor MENU until the display will
show:
Set the switch–off time (operation end time)
using sensors <and >, which is limited to a
period of 23 hours and 59 minutes from the
current time.
Set the oven function knob and the tem-
perature regulator knob to the setting at which
you want the oven to operate.
88 80
80 80
80 80

15
Change the timer beeps
The tone of the timer beeps may be
changed as follows:
press sensors <and >simultaneously,
select “tone” function with the MENU sen-
sor, the display panel will start to blink:
●withthe>sensor press the appropriate
sensors from 1 to 3 to select the option you
wish.
OPERATION
The function AUTO is now on; the oven will
start operating from the point when the differ-
ence between the set operation end time and
the operation duration time occurs (e.g. the
operation time is set to 1 hour, the operation
end time is set to 14.00, so the oven will start
working automatically at 13.00).
When the oven reaches the operation end
time it will switch off automatically, the alarm
will be activated and the function AUTO will
startashingagain.
Set the oven function knob and the tem-
perature regulator knob to the switched–off
position.
Press sensor MENU, <and >in order to
switch off the alarm; the function AUTO will
go out and the display will show the current
time.
Cancel settings
Timer and automatic function settings may
be cancelled at any time.
Cancel automatic function settings:
press sensors <and >simultaneously,
Cancel timer settings:
press sensor MENU to select timer set-
tings,
press sensors <and >again,
Pyrolytic cleaning
Pyrolytic cleaning duration can be set from
2 to 3 hours.
set the oven function selector knob in posi-
tion ,
using the < and >MENUsensors,setpy-
rolytic cleaning duration.
Important! Before starting the pyrolytic
cleaning, please see "Cleaning and Main-
tenance."
82 00
88 81
12 35

16
OPERATION
The oven can be switched off by setting both
of these knobs to the position “”/“0”.
Caution!
When selecting any heating func-
tion (switching a heater on etc.) the
oven will only be switched on after
the temperature has ben set by the
temperature regulator knob.
0 Oven is off
Independent oven lighting
Set the knob in this position to light up
the oven interior.
Defrosting
Only fan is on and all heaters are off.
Fan and combined grill on
When the knob is turned to this posi-
tion, the oven activates the combined
grill and fan function. In practice, this
function allows the grilling process to
be speeded up and an improvement
in the taste of the dish. You should
only use the grill with the oven door
shut.
Oven functions and operation.
Oven with automatic air circulation
(including a fan and an ultra-fan heater)
The oven can be heated up using the bottom
and top heaters, the grill or the ultra-fan he-
ater. Operation of the oven is controlled by
the oven function knob – to set a required
function you should turn the knob to the se-
lected position, and the temperature regulator
knob–tosetarequiredfunctionyoushould
turn the knob to the selected position.
The oven is equipped with a retractable
knobs. In order to select a function do the
following:
- gently press and release a knob which will
pop out,
- turn the oven functions selection knob to the
desired function.
Pyrolytic cleaning.
Oven pyrolytic self-cleaning. The oven
heats up to a temperature of about
480°C. Grilling or baking residue is
burnt into an easy to remove ash that
can be wiped off with a damp cloth.
Important!
Before starting the pyrolytic cleaning,
please see "Cleaning and Mainte-
nance."
Enhanced roaster (super roaster)
In this setting both roaster and top
heater are on. This increases tem-
perature in the top part of the oven’s
interior, which makes it suitable for
browning and roasting of larger por-
tions of food.
5050
100
150
200
250
0

17
OPERATION
Switching on the oven is indicated by red
signal light, turning on. If the red light goes
out, it means the oven has reached the set
temperature. If a recipe recommends placing
dishes in a warmed-up oven, this should
be not done before the red light goes out for
thersttime.Whenbaking,theredlightwill
temporarily come on and go out (to maintain
the temperature inside the oven).
Top and bottom heaters on
Set the knob in this position for co-
nventional baking. This setting is ideal
for baking cakes, meat, sh, bread
and pizza (it is necessary to preheat
the oven and use a baking tray) on
one oven level.
Top heater, bottom heater and fan
are on.
This knob setting is most suitable
for baking cakes. Convection baking
(recommended for baking).
When the functions have been
selected but the temperature knob is
set to zero only the fan will be on. With
this function you can cool the dish or
the oven chamber.
Bottom heater on
When the knob is set to this position
the oven is heated using only the
bottom heater. Baking of cakes from
the bottom until done (moist cakes
withfruitstufng).
Convection with ring heating ele-
ment
Setting the knob in this position allows
the oven to be heated up by a heating
element with air circulation forced by a
rotatingfanttedinthecentralpartof
the back wall of the of and chamber.
Lower baking temperatures than in the
conventional oven can be used.
Heating the oven up in this manner en-
sures uniform heat circulation around
the dish being cooked in the oven.
Convection with ring heating ele-
ment and bottom heater on
With this setting the convection fan
and bottom heater are on, which in-
creases the temperature at the bottom
of the cooked dish. Intense heat from
the bottom, moist cakes, pizza.
Roaster on.
Roasting is used for cooking of small
portions of meat: steaks, schnitzel,
fish, toasts, Frankfurter sausages,
(thickness of roasted dish should not
exceed 2-3 cm and should be turned
over during roasting).

18
Use of the grill
The grilling process operates through infrared
rays emitted onto the dish by the incandes-
cent grill heater.
In order to switch on the grill you need to:
Set the oven knob to the position marked
grill.
Heat the oven for approx. 5 minutes (with
the oven door shut).
Insert a tray with a dish onto the appropri-
ate cooking level; and if you are grilling
on the grate insert a tray for dripping on
the level immediately below (under the
grate).
Close the oven door.
For grilling with the function grill and com-
bined grill the temperature must be set to
250ºC, but for the function fan and grill it
must be set to a maximum of 200ºC.
Warning!
When using function grill it is recommended
that the oven door is closed.
When the grill is in use accessible parts can
become hot.
It is best to keep children away from the
oven.
OPERATION

19
BAKING IN THE OVEN – PRACTICAL HINTS
Baking
we recommend using the baking trays which were provided with your cooker;
it is also possible to bake in cake tins and trays bought elsewhere which should be
put on the drying rack; for baking it is better to use black trays which conduct heat
better and shorten the baking time;
shapes and trays with bright or shiny surfaces are not recommended when using the
conventional heating method (top and bottom heaters), use of such tins can result in
undercooking the base of cakes;
when using the ultra-fan function it is not necessary to initially heat up the oven
chamber, for other types of heating you should warm up the oven chamber before
the cake is inserted;
before the cake is taken out of the oven, check if it is ready using a wooden stick (if
the cake is ready the stick should come out dry and clean after being inserted into
the cake);
after switching off the oven it is advisable to leave the cake inside for about 5 min.;
temperatures for baking with the ultra-fan function are usually around 20 – 30 degrees
lower than in normal baking (using top and bottom heaters);
the baking parameters given in Table are approximate and can be corrected based
on your own experience and cooking preferences;
 ifinformationgiveninrecipebooksissignicantlydifferentfromthevaluesincluded
in this instruction manual, please apply the instructions from the manual.
Roasting meat
cook meat weighing over 1 kg in the oven, but smaller pieces should be cooked on
the gas burners.
use heatproof ovenware for roasting, with handles that are also resistant to high
temperatures;
when roasting on the drying rack or the grate we recommend that you place a baking
tray with a small amount of water on the lowest level of the oven;
it is advisable to turn the meat over at least once during the roasting time and during
roastingyoushouldalsobastethemeatwithitsjuicesorwithhotsaltywater–do
not pour cold water over the meat.

20
BAKING IN THE OVEN – PRACTICAL HINTS
Caution!
TheguresgiveninTablesareapproximateandcanbeadaptedbasedonyourown
experience and cooking preferences.
Type
of
dish
Oven
functions
Temperature Level Time
in minutes
160 - 200 2 - 3 30 - 50
160 - 180 2 20 - 40*
140 - 160 2 10 - 40*
200 - 230 1 - 3 10 - 20
210 - 220 2 45 - 60
160 - 180 2 - 3 45 - 60
190 2 - 3 60 - 70
230 - 250 4 14 - 18
225 - 250 2 120 - 150
160 - 180 2 120 - 160
160 - 230 2 90 - 120
160 - 190 2 90 - 120
190 2 - 3 50 - 60
160 - 180 2 45 - 60
175 - 190 2 60 - 70
190 - 210 2 40 - 50
170 - 190 3 40 - 50
* Baking smaller items
Oven with automatic air circulation (including a fan and an ultra-fan heater)
