Amica 10203.3TtyDpsScLcVoCg User manual

IO-CBI-0118 / 8063464
(12.2015./1)
10203.3TtyDpsScLcVoCg
10203.3TtyDpsScLcVoW
10203.3TtyDpsScLcVoSm
INSTRUCTION MANUAL
BUILT-IN ELECTRIC OVEN

2
DEAR CUSTOMER,
The oven is exceptionally easy to use and extremely efcient. After reading the instruction
manual, operating the oven will be easy.
Before being packaged and leaving the manufacturer, the oven was thoroughly checked with
regard to safety and functionality.
Before using the appliance, please read the instruction manual carefully.
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep the instruction manual and store it in a safe place so that it can be
consulted at any time.
It is necessary to follow the instructions in the manual carefully in order to avoid possible
accidents.
Caution!
Do not use the oven until you have read this instruction manual.
The oven is intended for household use only.
The manufacturer reserves the right to introduce changes which do not affect the
operation of the appliance.

3
TABLE OF CONTENTS
Safety instructions ............................................................................................................. 4
Description of the appliance ............................................................................................. 8
Installation......................................................................................................................... 10
Operation........................................................................................................................... 13
Baking in the oven – practical hints ............................................................................... 27
Cleaning and maintenance.............................................................................................. 28
Troubleshooting..................................................................................................................35
Technical data................................................................................................................... 36

4
SAFETY INSTRUCTIONS
Warning: The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching heating
elements. Children less than 8 years of age shall be kept
away unless continuously supervised.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the ha-
zards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by chil-
dren without supervision.
During use the appliance becomes hot. Care should be taken
to avoid touching heating elements inside the oven.
Accessible parts may become hot during use. Young children
should be kept away.
Warning: Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can scratch
the surface, which may result in shattering of the glass.
Warning: Ensure that the appliance is switched off before re-
placing the lamp to avoid the possibillity of electric shock.
You should not use steam cleaning devices to clean the
appliance.

5
SAFETY INSTRUCTIONS
● Ensurethatsmallitemsofhouseholdequipment,includingconnectionleads,do
nottouchthehotovenastheinsulationmaterialofthisequipmentisusuallynot
resistant to high temperatures.
● Donotleavetheovenunattendedwhenfrying.Oilsandfatsmaycatchredue
to overheating or boiling over.
● Donotputpansweighingover15kgontheopeneddooroftheoven.
● Donotuseharshcleaningagentsorsharpmetalobjectstocleanthedoorasthey
can scratch the surface, which could then result in the glass cracking.
● Donotusetheovenintheeventofatechnicalfault.Anyfaultsmustbexedby
anappropriatelyqualiedandauthorisedperson.
● Intheeventofanyincidentcausedbyatechnicalfault,disconnectthepowerand
report the fault to the service centre to be repaired.
● Therulesandprovisionscontainedinthisinstructionmanualshouldbestrictly
observed. Do not allow anybody who is not familiar with the contents of this instruc-
tion manual to operate the oven.
● Theappliancehasbeendesignedonlyforcooking.Anyotheruse(forexample
forheating)doesnotcomplywithitsoperatingproleandmaycausedanger.
Only use the meat probe recommended for this oven.
Danger of burns! Hot steam may escape when you open the
oven door. Be careful when you open the oven door during
or after cooking. Do NOT lean over the door when you open
it. Please note that depending on the temperature the steam
can be invisible.
During the pyrolytic oven cleaning process the oven cham-
bercanreachaveryhightemperature.Consequently,the
appliance outer surfaces can heat up more than usual, so
keep children away at all times.

6
Using energy in a respon-
sible way not only saves
money but also helps the
environment. So let’s save
energy! And this is how you
can do it:
Do not uncover the pan too often
(a watched pot never boils!).
Do not open the oven door unnecessarily
often.
 Only use the oven when cooking larger
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker hob.
Make use of residual heat from the
oven.
If the cooking time is greater than 40 minutes
switch off the oven 10 minutes before the
end time.
Important! When using the timer,
set appropriately shorter cooking
times according to the dish being
prepared.
Make sure the oven door is properly
closed.
Heat can leak through spillages on the door
seals. Clean up any spillages immediately.
Do not install the cooker in the direct
vicinity of refrigerators/freezers.
Otherwise energy consumption increases
unnecessarily.
HOW TO SAVE ENERGY

7
Old appliances should not sim-
ply be disposed of with normal
household waste, but should
be delivered to a collection and
recycling centre for electric and
electronicequipment.Asymbol
shown on the product, the in-
struction manual or the packag-
ing shows that it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this. By recycling materials or
other parts from used devices you are making
asignicantcontributiontotheprotectionof
our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.
During transportation, protec-
tive packaging was used to
protect the appliance against
any damage. After unpack-
ing, please dispose of all
elements of packaging in a
way that will not cause dam-
age to the environment.
All materials used for packaging the appli-
ance are environmentally friendly; they are
100% recyclable and are marked with the
appropriate symbol.
Caution! During unpacking, the packag-
ing materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of
children.
UNPACKING DISPOSAL OF THE APPLIANCE

8

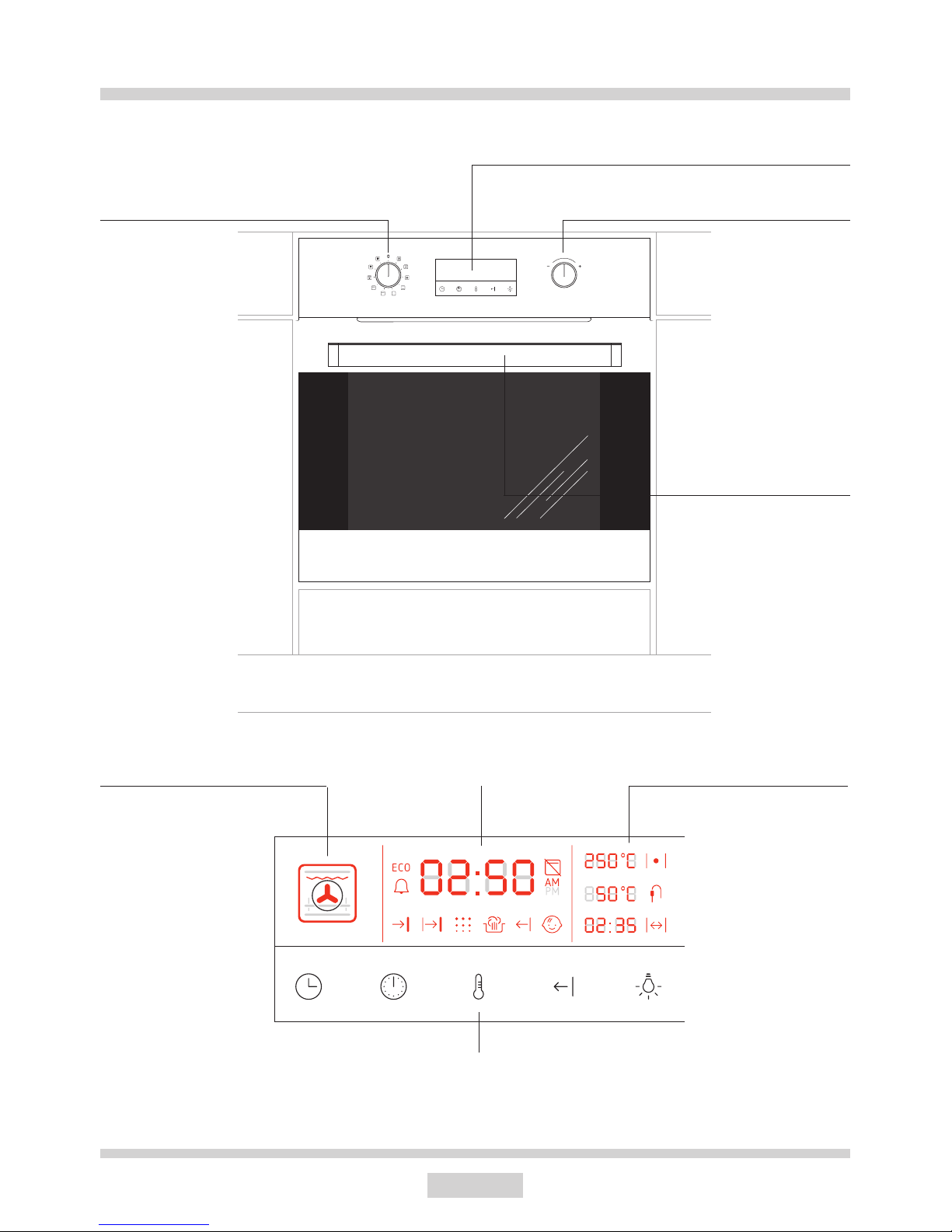

DESCRIPTION OF THE APPLIANCE
Oven door handle
Control panel
Oven function
selector knob Setting selection
knob
Oven functions
Touch controls
Temperature
Time and function
indication

9
SPECIFICATIONS OF THE APPLIANCE
Cookerttings:
*optional
Side
racks
Baking tray* Grill grate
(drying rack)
Roasting tray*
Meat probe*

10
Installing the oven
The kitchen area should be dry and aired
and equipped with efcient ventillation.
When installing the oven, easy access to
all control elements should be ensured.
This is a Y–type design built–in oven,
which means that its back wall and one
side wall can be placed next to a high
piece of furniture or a wall. Coating or
veneerusedonttedfurnituremustbe
applied with a heat–resistant adhesive
(100°C). This prevents surface deforma-
tion or detachment of the coating.
Hoods should be installed according to
the manufacturer’s instructions.

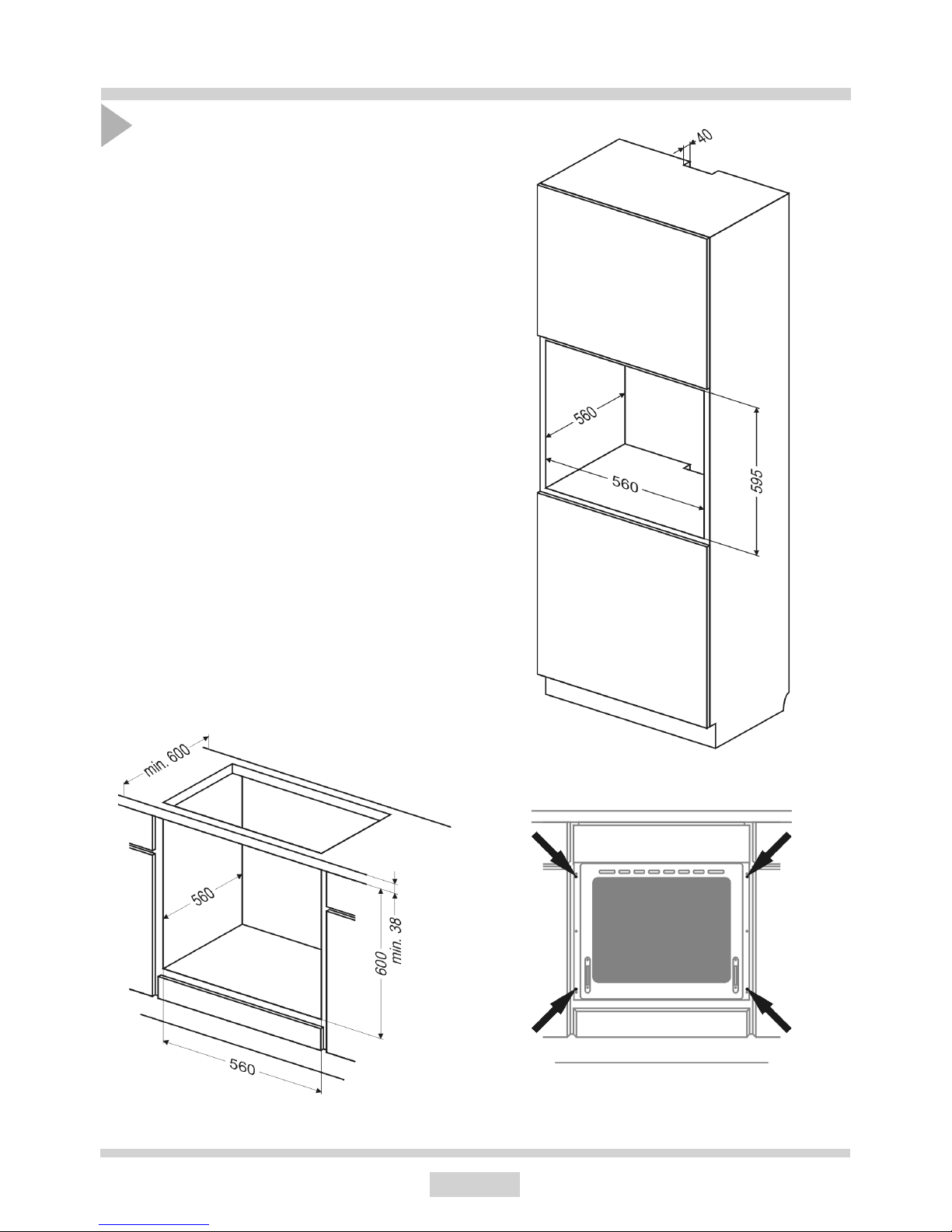

Make an opening with the dimensions
given in the diagram for the oven to be
tted.
Make sure the mains plug is disconnected
and then connect the oven to the mains
supply.
Insert the oven completely into the open-
ing without allowing the four screws in the
places shown in the diagram to fall out.
INSTALLATION

11
Adjust the position of the oven door
Adjustmentmechanismallowsyoutochange
the height of right side of the oven door
as limited by its design. Oven door height
adjustmentononesideallowsyoutolevel
the door and align it with the control panel.
Adjustmentmethod
 Loosen the nut [1] with size 13 open-end
wrench.
 Usesize4Allenkeytorotateadjustment
spindle [2] within 180° range to obtain the
correct door position. The door position
willbeadjustedinthe±1.5mmrange.
 Tighten the lock nut [1] while holding the
adjustmentspindle[2] inpositionusing
the Allen key.
12
INSTALLATION

12
INSTALLATION

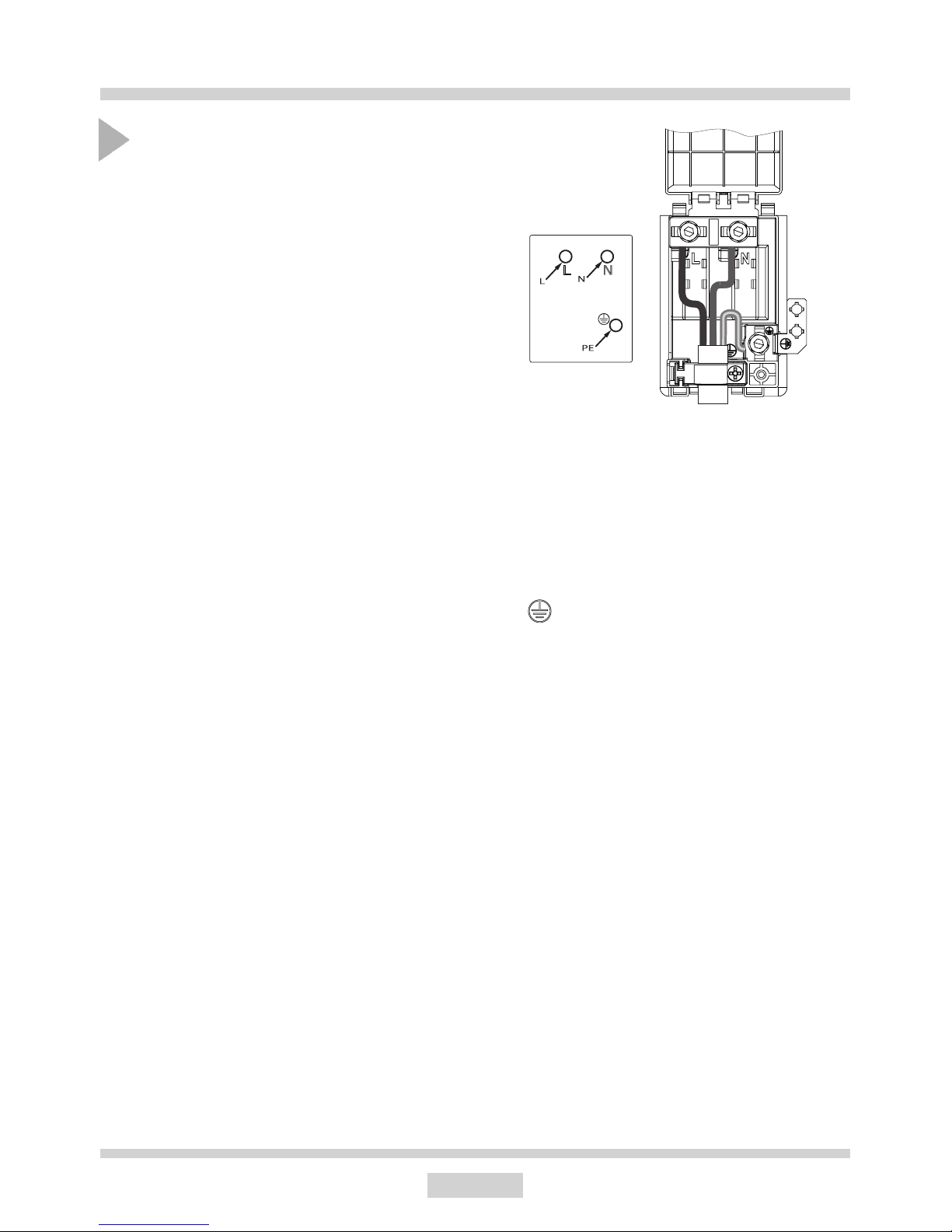

Electrical connection
Warning: This appliance must be earthed.
The appliance must be installed by a com-
petent electrician using a double pole control
unit of 16 ampere minimum capacity with
3 mm minimum contact separation at all
poles.
We recommend that the appliance is con-
nectedbyaqualiedelectricianwhoismem-
ber of the N.C.E.I.C. and who will comply with
the I.E.E. and local regulation.
Access to the main terminal is gained by
opening the terminal block cover at the
rear of the appliance (use a small at-
bladed screwdriver).
Connection shuld be made with 4 mm2
twin and earth cable.
First strip the wires, then push the cab-
lethrough the cable clamp in the terminal
block cover.
Connect the cable to the terminal block
and tighten the cable clamp screw (see
diagram).
Ensure the cable exits through the cable
grip clamping on the outer sheath of the
cable and x in place by tightening the
xingscrew.
 Ensureall screws areadequately tight-
ened. Do not over tighten as you may risk
damaging the screw threads.
Close the terminal box, ensuring that the
cover is engaged on the locking tabs.
The supply cable must be positioned
away from any hot parts of the rear of
the appliance. If this cannot be done
then another method of protecting the
supply cable from the hot parts must be
used i.e. Heat resistant sleeving or high
temperature cables.
L - Live (Red or Brown)
N - Neutral (Black or Blue)
PE - Earth (Green/Yellow or sleeving)
Grounding lead must be connected to screw
with symbol.
The power supply cable must have these
minimumrequirements:
- Type: HO5VV-F (PVC insulated and
sheathedexiblecable)
- 3 cores x 4 mm2.
220-240V 1N~

13
OPERATION
Before using the appliance for
the rst time
Important!
To clean the oven chamber use only
warm water and a small amount of
washing-upliquid.
 Remove packaging, clean the interior of
the oven,
 Take out and wash the oven accessories
with warm water and a little washing-up
liquid,
 Turn on the ventilation in the room or open
a window,
 Heat up the oven (to a temperature of
250°C for approximately 30 minutes),
remove any stains and wipe the interior
carefully. (See section: Using the control
panel),
Important!

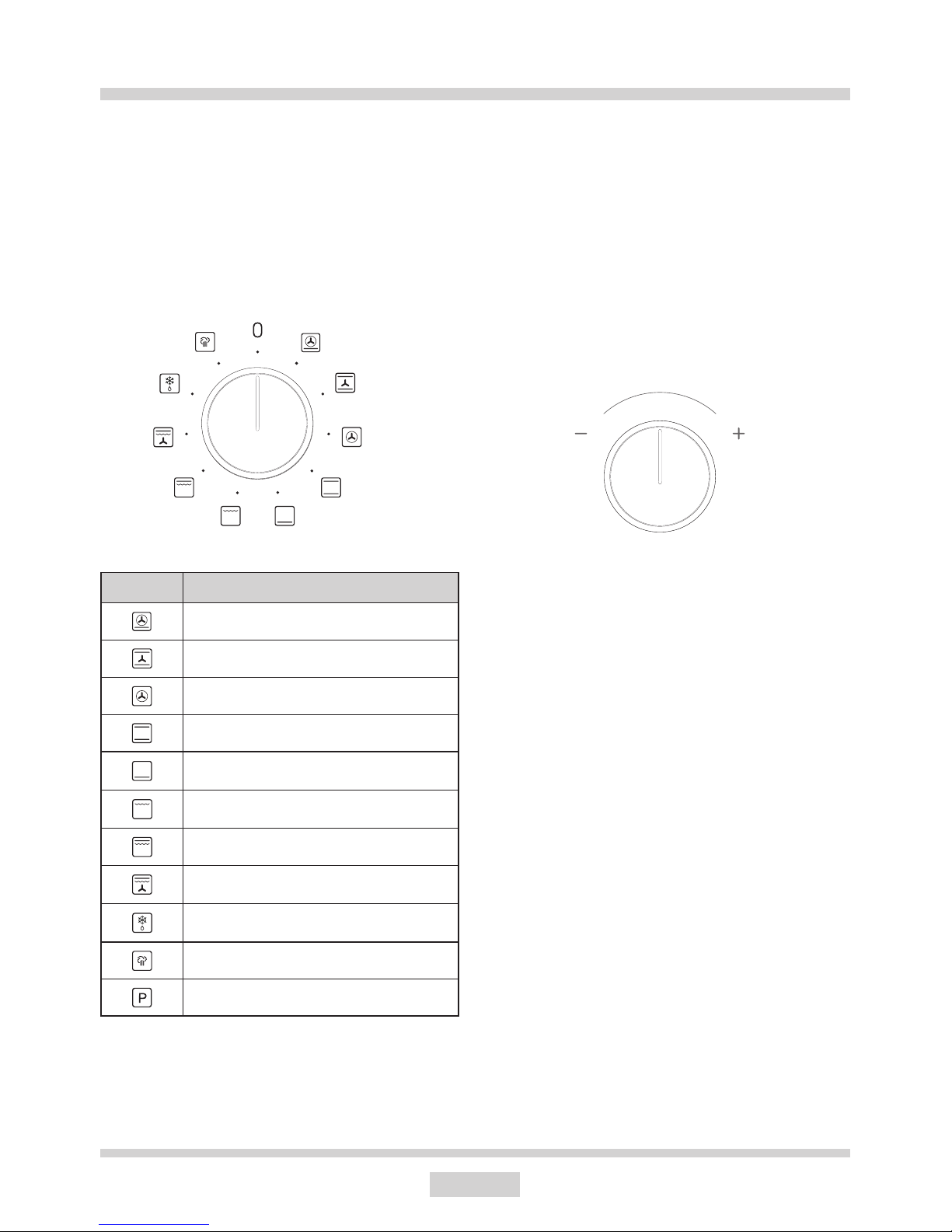

The oven features touch control panel
and display. To activate each touch
sensor, touch the glass above the
sensor (indicated by a pictogram).
An acoustic signal will be heard. (See
section: Using the control panel),
Touch sensor surfaces must be
kept clean.
Some models are equipped with
a backlit oven door handle. For
additional information on oven ac-
cessories depending on the model,
please see section Features and
components.
Oven handle backlight is turned on
during operation and acts as oven
cavity residual heat indicator, i.e. it
turns off when the temperature inside
the oven cavity drops below 50°C.
The backlight is on above 50°C and
lightintensityreectsthetemperature,
i.e. the higher the temperature inside
the oven cavity the higher the back-
light intensity.

14
OPERATION
Touch controls
The control panel features 5 touch sensors (no backlight), marked as shown above. Each
time you touch a sensor a beep is emitted (except as indicated in detailed operating instruc-
tions). Which touch sensor are enabled depends on the setting of the function selector knob
(described in detain in section on oven functions). When touch an activated sensor a beep
isemitted[conrmation].Whenyoutouchandholdasensorfor3secondsa[conrmation
2] beep is emitted.
The appliance generates the following beeps:
[conrmation]—sensortouched
[conrmation2]—sensortouchedandheld
[end]—settingentered
[kitchentimeralarm]—themaximumdurationof5minutes.
[end time] – the maximum duration of 5 minutes.
Using the control panel
- clock settings
- kitchen timer, duration, end time settings
- oven cavity and meat probe temperature settings
- fast heat-up on/off.
- oven cavity lighting on/off

15
OPERATION
Oven functions
Oven functions are indicated as follows:
Time and function indication
The clock — 24-hour orAM / PM.
The displayed functions and symbols.
ECO mode
Kitchen timer
Door lock
(Oven with pyrolytic cleaning)
End Time
Duration
Pyrolytic cleaning
(Oven with pyrolytic cleaning)
Steam Cleaning
Fast heat-up
Child lock active
Temperature
Oven cavity temperature and heating indi-
cator
Meat probe and activation indicator
Start Time/ End Time and activation indica-
tor (timer).

16
OPERATION
Oven function knob
Depending on the model, the function selec-
tor knob features 9 or 11 positions. Each posi-
tion is another oven function. Every function
is indicated by a different pictogram displayed
on the screen.
Setting selection knob
Turn left / right to set the temperature or time.
Turn right toward the "+" to increase. Turn left
toward the "–" to decrease. Turn and hold to
increase/decrease by bigger increments
Position Function
fan heater + bottom heater
bottom heater + top heater + fan
fan with ring heating element
bottom heater + top heater
bottom heater
grill
grill + top heater
grill + top heater + fan
defrosting
cleaning
pyrolytic cleaning*
* oven with pyrolytic cleaning

OPERATION
17
Turn on the oven and set the time.
When you plug in the appliance there is a
[conrmation]beep.Setthecurrenttime.The
current time must be set for the appliance
to operate. Touch controls or knobs do not
respond. An [error] beep is emitted. You can
only set the current time .
The clock shows 24-hour or AM/PM time.
Touch and hold for 3 seconds to set the
time.Youwillhearthe[conrmation2]beep
and"24h"or"12h"willashonthedisplay.
Use the setting selection knob to change
thetimemode.Touch[]brieyto conrm.
Hour digits will start to ash. Use the set-
ting selection knob to set the hour 00–23
(or 01–12 AM, 01–12 PM depending on time
mode).Thehourdigitsstopashing.Touch
brieytoconrm.A[conrmation]beepis
emitted.Theminutesdigitsstarttoashand
you can now set the minute. Use the setting
selection knob to set the minute. Touch
toconrm.An[end]beepisemitted.Digits
arenotashingandtheclockshowscurrent
time.Thesecondindicationcolonisashing.
If you do nothing for 5 seconds when setting
the time, the [settings entered] beep is emit-
ted. The clock will be set to the last setting
entered by the user. The oven enters the
standby mode. You can use oven functions.
In standby mode, the display intensity set to
low. The following are displayed:
 clock,
 symbols of the active functions: oven
cavity residual temperature, child lock,
kitchen timer, door lock.
When you use any controls the appliance
enters the operating mode. Display intensity
is set to high.
Important! In the event of a power outage
all set functions, automatic programmes, set
temperatures and timer are cleared. If you
interrupt the pyrolytic cleaning (or the door
is locked for any other reason), the oven will
start the cooling and door opening procedure
before you can set the time.
Toturnofftheoven—setfunction selector
knob to 0.

OPERATION
18
Child Lock .
Child lock is designed to prevent children from
changing the oven settings. Once the child
lock is activated the oven stops responding
to any controls except the unlocking com-
bination.
Activate the child lock.
Touch and hold , and turn setting selection
knob towards [+].Youwillhearthe[conrma-
tion 2] beep.
Deactivate the child lock.
Touch and hold , and turn setting selec-
tion knob towards [-]. You will hear the
[end] beep.
function
When ECO function is active the appliance
turns off heaters 5 minutes before the End
Time and uses residual heat to continue
cooking. This saves energy.
ECO function is activated / deactivated au-
tomatically when you turn on / off the DURA-
TION or MEAT PROBE functions. The
indicator will be displayed.
When using the meat probe, the heaters
are turned off 2°C before reaching the de-
sired temperature. The set temperature is
reached about 5 minutes after the heaters
are turned off.

OPERATION
19
Meat probe
When you connect the meat probe, in each
function selector knob position except
CLEANING and 0, the displays shows and
the set temperature (80°C by default).
Youwillhearthe[conrmation2]beepwhen
meat probe is detected. Now you can set
the core temperature to be achieved when
heaters will be turned off. Touch twice to set
the desired core temperature (when touched
once you set oven cavity temperature, when
touched twice you set meat probe core tem-
perature). Meat probe core temperature starts
ashing.Usethesetting selection knob to
adjustitintherange30°C–99°C. To u c h
toconrm.Ifyoudonotconrmwithin5
seconds the current temperature setting is
accepted.
When using the meat probe, ECO function
is active and the heaters are turned off
2°C before reaching the desired tempera-
ture to continue cooking with residual heat.
Cooking ends 5 minutes after the heaters
are turned off. The [end time] beep is emit-
ted and meat probe core temperature and
the  symbol ash. Touch any control to
silence the alarm or wait 1 minute. If you
do nothing the appliance will enter standby.
Touch twice and increase temperature to
continue cooking.
The meat probe symbol and core temperature
go out when you unplug the meat probe. You
will hear the [end] beep when meat probe is
unplugged.
When turn off the oven by setting the func-
tion selector knob to 0with the meat probe
plugged in the display will show the current
residual heat temperature. The meat probe
symbol and core temperature are not dis-
played.
Recommended meat probe temperature
settings
Important! Only use the meat probe recom-
mended for this oven.
Type of meat Temperature
[°C]
Pork 85 - 90
Beef 80 - 85
Veal 75 - 80
Lamb 80 - 85
Venison 80 - 85

OPERATION
20
Fast oven cavity heat-up.
Usefastovencavityheat-uptoquicklyreach
the desired temperature. This feature is avail-
able in all function selector knob settings
except DEFROST, CLEANING and "0". When
you touch in these settings, you will an [er-
ror] beep. When you touch the top heater,
grill and fan heater will be turned on and the
appliance operates at the maximum power
toquicklyachievethesettemperature.FAST
HEAT-UP symbol is shown on the screen.
A[conrmation]beepisheardwhentheset
temperature is reached. The oven turns on
the function selected with the function selec-
tor knob. Touch to deactivate the function
at any time. You will hear the [end] beep to
conrmdeactivation.
Light
The light turns on:
 The function selector knob is set to any
cooking function (other than 0).
 Over door is open.
 You touch —[conrmation]beepis
heard.
The light turns off:
 Automatically after 30 seconds or after 10
minutes when oven door is open.
 Automatically 30 seconds after the oven
door is closed if function selector knob
is set to a cooking function (other than 0).
 When you close the door and function
slector knob is set to 0.
 You touch —[conrmation]beepis
heard.
 You set the function selector knob to 0,
and the door is closed.
You can turn on the light permanently dur-
ing the heating function. Touch and hold
for 3 seconds to do this. The light will be on
permanently.Youwillhearthe[conrmation
2] beep. Touch brieytoturnoffthelight.
You will hear the [end] beep. The light will not
be on permanently. The light will not be on
permanently either when you turn the func-
tion selector knob to 0.
