Amica AWDT814S User manual

WASHER-DRYER
AWDT814S
IO-WMS-0477
(01.2018/1)
ONLY USE THE APPLIANCE WHEN YOU
HAVE READ AND UNDERSTAND THE
OPERATING
INSTRUCTIONS
OPERATING
INSTRUCTIONS
EN

2
ECOLOGY IN PRACTICE
BASIC INFORMATION
SAFETY AND GERMENT CARE LABELS
INSTALL THE APPLIANCE
PRODUCT DESCRIPTION
TROUBLESHOOTING
PRACTICAL TIPS ON WASHING
BUILT-IN INSTALLATION
SPECIFICATIONS
PRODUCT FICHE
3
5
6
18
21
28
31
35
41
42
In accordance with European Directive 2012/19/EU and Polish legislation regarding used
electrical and electronic goods, this appliance is marked with the symbol of the crossed-out
waste container.
This marking indicates that the appliance must not be disposed of together with other
household waste after it has been used. The user is obliged to hand it over to waste col-
lection centre collecting used electrical and electronic goods. The collectors, including local
collection points, shops and local authority departments provide recycling schemes. Proper
handling of used electrical and electronic goods helps avoid environmental and health haz-
ards resulting from the presence of dangerous components and the inappropriate storage
and processing of such goods.
CONTENTSCONTENTS

3
For many years, Amica has consistently pursued pro-ecological policy.
Concern for the environment is as important for us as the use of modern technology. That's why
we focus on energy-e󰘲cient appliances of the highest energy e󰘲ciency class — A+, A++ and
A+++.
The development of technology has enabled our factories to become more environmentally
friendly – we use less and less water, electricity and less waste water and solid waste is gener-
ated in the production.
A lot of attention is paid to materials used in production. We strive to use only those that do not
contain harmful substances and make recycling and safe disposal possible after use.
CONTENTSECOLOGY IN PRACTICE

4
Dear customer!
Thank you for choosing an Amica product. For years we have de-
livered high-quality appliances, so that household chores become
a real pleasure. Before being packaged and leaving the manufac-
turer, the appliance was thoroughly checked with regard to safety
and functionality. We also endeavour to make sure that modern
technology in Amica products always goes hand in hand with a
unique design.
Before using the appliance, please carefully read these Operat-
ing Instructions Follow these instruction to avoid improper use
and ensure long and reliable operation of the appliance. Learn the
principles of the safe use to avoid accidents.
Store these operating instructions in a safe place to use them for
reference whenever needed. These Operating Instructions contain
all the necessary information that will make the use of your Amica
appliance simple and fun. We also encourage you to 󰘰nd out more
about other Amica appliances.
We hope using your new appliance is a pleasure.
MANUFACTURER’S DECLARATION

Before plugging the appliance into the mains, remove the safety packaging and ensure
the machine is level. The manufacturer reserves the right to introduce changes, which do
not a󰘯ect operation of the appliance.
Temperatures below 0°C can damage the appliance! In the event of the
appliance being stored or transported in sub-zero temperatures, it should
be left to acclimatise in a temperature above 0°C for 8 hours before being
used.
This appliance is intended for domestic use only to wash/dry textiles
and clothes designed to be machine washed in a detergent bath.
The manufacturer hereby declares that this product
meets the requirements of the following European
directives:
Low Voltage Directive, 2014/35/EU,
Electromagnetic Compatibility (EMC) Directive
2014/30/EE,
and has been marked with the symbol and issued
with a declaration of compliance made available to
market regulators.
Carefully read the instructions below before using the appliance.
Never use the appliance outdoors or anywhere the temperature may fall below
freezing.
The appliance should not be operated by children or anyone who has not read the
instructions.
USAGE
MANUFACTURER’S DECLARATION
CONTENTSBASIC INFORMATION

SAFETY AND GERMENT CARE LABELS
The risk of death! This appliance should not be used
by children under 8 years of age,
persons with reduced physical or
mental capabilities, and persons
who do not have sufficient skills to
use this type of appliance. Such
persons should be offered proper
supervision or instructions on safe
handling of appliance and related
risks. Children must not play with
the appliance or perform any main-
tenance-related activities. Children
under 3 years of age must be kept
away from the appliance unless
continuously supervised.
Children could get caught inside
the appliance and get into a life-
threatening situation.
Risk of suffocation! If you allow children to play with
the packaging/film or parts of the
package, they can get entangled
or put packaging over their head
and risk suffocation. Keep packag-
ing/plastic film or parts of packag-
ing out of reach of children.
Risk of poisoning! Washing detergents and fabric
softeners can cause poisoning if
ingested. In the event of acciden-
tal ingestion, consult your doctor.
Washing detergents and fabric
softeners should be stored out of
the reach of children.
6

Risk of burns! If laundry is washed at high tem-
perature, door glass becomes
hot.
Prevent children from touching
the hot door.
Eye/skin irritation! Contact with detergents and
softeners may cause eye or skin
irritation. In case of eye/skin
contact, thoroughly rinse eyes/
skin to remove fabric detergent/
softener. Washing detergents
and fabric softeners should be
stored out of the reach of chil-
dren.
Risk of electric shock.
Risk of fire/damage to
property/appliance!
If the appliance is not correctly
installed, it may be dangerous.
Make sure that:
Mains voltage corresponds to
the voltage indicated on the ap-
pliance nameplate
(identification plate)
The current load and required
fuse protection are specified on
the nameplate.
The appliance is connected to
AC source only through a prop-
erly installed and grounded wall
socket in accordance with na-
tional standards.
SAFETY AND GERMENT CARE LABELS
7

SAFETY AND GERMENT CARE LABELS
Risk of electric shock.
Risk of fire/damage to
property/appliance!
The power cord and the ground-
ed wall socket fit together and
the grounding system has been
properly installed.
Power cord cross section is suf-
ficient.
Power plug is always accessi-
ble.
If a miniature circuit-breaker
is used, always use a circuit-
breaker with the following desig-
nation:
This symbol is the only way to
make sure that all the necessary
requirements have been met.
Risk of electric shock.
Risk of fire/damage to
property/appliance!
If the power cord is modified or
damaged, it may result in elec-
tric shock, short circuit or fire
due to overheating.
The power cord must not be
kinked, crushed or modified or
come in contact with any heat
source.
8

Risk of fire/damage to
property/appliance!
The use of extension cords or
splitters may result in fire due
to overheating or short circuit.
Connect the appliance directly
to a properly grounded wall
socket. Do not use extension
cords, splitters or power strips.
Health risk / risk of damage
to property/appliance!
The appliance may vibrate or
displace while in use, poten-
tially causing injury or property
damage. Set the appliance on
a clean, level and hard surface
using a level spirit.
If any protruding items are
caught by the appliance (e.g.
doors) when trying to lift or
move it, the item may come off
and cause injury.
Do not grasp any protruding
parts of the appliance to move
it.
Risk of injury! The appliance is very heavy.
Lifting may cause injury. Do not
lift this appliance by yourself.
SAFETY AND GERMENT CARE LABELS
9

SAFETY AND GERMENT CARE LABELS
Risk of injury! This appliance has sharp edges
that can cause a hand injury. Do
not hold the appliance by sharp
edges. Only lift the appliance
after you put on the gloves.
If the hoses or electrical cables
are not routed properly, you can
trip and sustain an injury. Rout
hoses and cables so that they
do not constitute a tripping haz-
ard.
Important!
Damage to property/
appliance
If the water level is too high or
too low, the appliance may not
work properly, which can cause
damage to property/appliance.
Make sure that water is supplied
under pressure of minimum 100
kPa (1 bar) and not exceeding
1000 kPa (10 bar).
If the water supplying hoses
have been modified or dam-
aged, this can cause damage
to property/appliance. The wa-
ter supply hoses must not be
kinked, crushed, modified or cut.
The use of third-party hoses to
connect the appliance to water
supply can cause damage to
property or the appliance.
10

Important!
Damage to property/
appliance
Use only hoses supplied with
the appliance, or the original
hoses up designed for the appli-
ance.
The appliance is secured for
transport with transit bolts. If
you don’t remove transit bolts
before using the appliance, the
appliance may be damaged.
Remove all transit bolts before
using the appliance for the first
time.
Make sure you keep transit bolts
in a safe place for future use. If
the appliance will be transport-
ed, to avoid any damage, you
must reinstall the transit bolts.
Risk of explosion/fire
hazard!
Laundry washed with deter-
gents that contain solvents and
thinners pose a risk of explosion
in the drum.
Thoroughly rinse laundry with
water before washing in the
washing machine.
SAFETY AND GERMENT CARE LABELS
11

SAFETY AND GERMENT CARE LABELS
Risk of poisoning! Cleaning agents containing
solvents may give off poisonous
vapours.
Do not use cleaning agents con-
taining solvents.
Risk of injury! Do not lean against/sit on open
appliance door as this can lead
to the appliance tipping over.
Do not lean against the open
door of the appliance.
Climbing on the appliance may
cause the worktop to break or
collapse and lead to an injury
Do not climb on the appliance.
Reaching into the drum while
is still rotates could injure your
hand.
Wait until the drum has come to
a standstill.
Risk of scalding! When washing at high tempera-
ture, there is a risk of scalding
as a result of contact with hot
water and detergent (e.g. when
you drain the water into the
sink).
Do not put your hands in hot
water with detergent solution.
12

Eye/skin irritation! Fabric detergents and soften-
ers may splash, if the detergent
drawer remains open during
operation.
In case of eye/skin contact,
thoroughly rinse eyes/skin to re-
move fabric detergent/softener.
In the event of accidental in-
gestion, consult your doctor.
Important!
Damage to property/
appliance
If the amount of laundry in the
washing machine exceeds the
maximum load, it may not oper-
ate properly or cause damage
to property or the appliance.
Do not exceed the maximum
load capacity of dry laundry.
Do not exceed the maximum
load capacity for individual wash
programmes.
Adding too much detergent or
fabric softener may cause dam-
age to property or the appliance.
Use fabric detergent/softener
according to the manufacturer's
instructions.
SAFETY AND GERMENT CARE LABELS
13

SAFETY AND GERMENT CARE LABELS
SAFETY AND GERMENT CARE LABELS
The risk of death!! The appliance is powered by
electricity. Touching live ele-
ments poses a risk of electric
shock. Therefore, remember:
Turn off the appliance:
Unplug the appliance from the
wall outlet.
We never grab the plug with wet
hands.
When pulling the plug, always
hold the plug, not the power
cord, because this can damage
the power cord.
Do not make any technical mod-
ifications to the appliance or its
components.
Any repairs or other work on the
appliance must only be per-
formed by our service facility
or by an electrician. The same
applies to replacing the power
cord (if necessary).
You can order a spare power
cord in our service centres.
14

SAFETY AND GERMENT CARE LABELS
Risk of poisoning! Cleaning agents containing
solvents may give off poisonous
vapours.
Do not use cleaning agents con-
taining solvents.
Risk of electric shock /
damage to property /
appliance!
If water penetrates into the ap-
pliance, it may cause a short
circuit.
Never use pressure washer or
steam cleaner to clean the ap-
pliance.
Health risk / risk of damage
to property/appliance!
The use of third-party spare
parts and accessories is dan-
gerous and may cause injury,
damage to property or appli-
ance.
For safety reasons, use original
spare parts only.
Important!
Damage to property/
appliance
Fabric cleaners, impregnating
agents, stain removers, pre-
wash agents, etc. may damage
the appliance outer surface.
Therefore, remember:
SAFETY AND GERMENT CARE LABELS
15

SAFETY AND GERMENT CARE LABELS
Important!
Damage to
property/
appliance
Make sure there is no contact with the appliance
surface.
Clean the appliance with a damp cloth only.
Dry Do not dry clothes that have not been washed.
Do not dry chemically washed garments or cloth-
ing, where stains were removed by chemicals.
Do not dry clothes soiled with substances such
as cooking oil, crude oil, acetone, alcohol, petrol,
kerosene, stain removers, turpentine, wax.
Before loading the clothes into the dryer, remove
such contamination in hot water, using a large
amount of washing detergent.
Do not dry articles made of rubber foam, latex,
water-resistant fabrics, raincoats, rubber mats,
thermally formed products, clothing or pillows
padded with foam rubber, as they may melt and
damage other items or even damage the ap-
pliance. Please carefully read these operating
instruction before installing the appliance. Dam-
age caused by improper connections or use of
the appliance is not
covered by the warranty.
NOTE: There is a cooling phase at the end
of the drying cycle. Therefore, do not turn off
the appliance before the end of the drying
cycle. Otherwise, quickly remove and hang
clothes to cool.

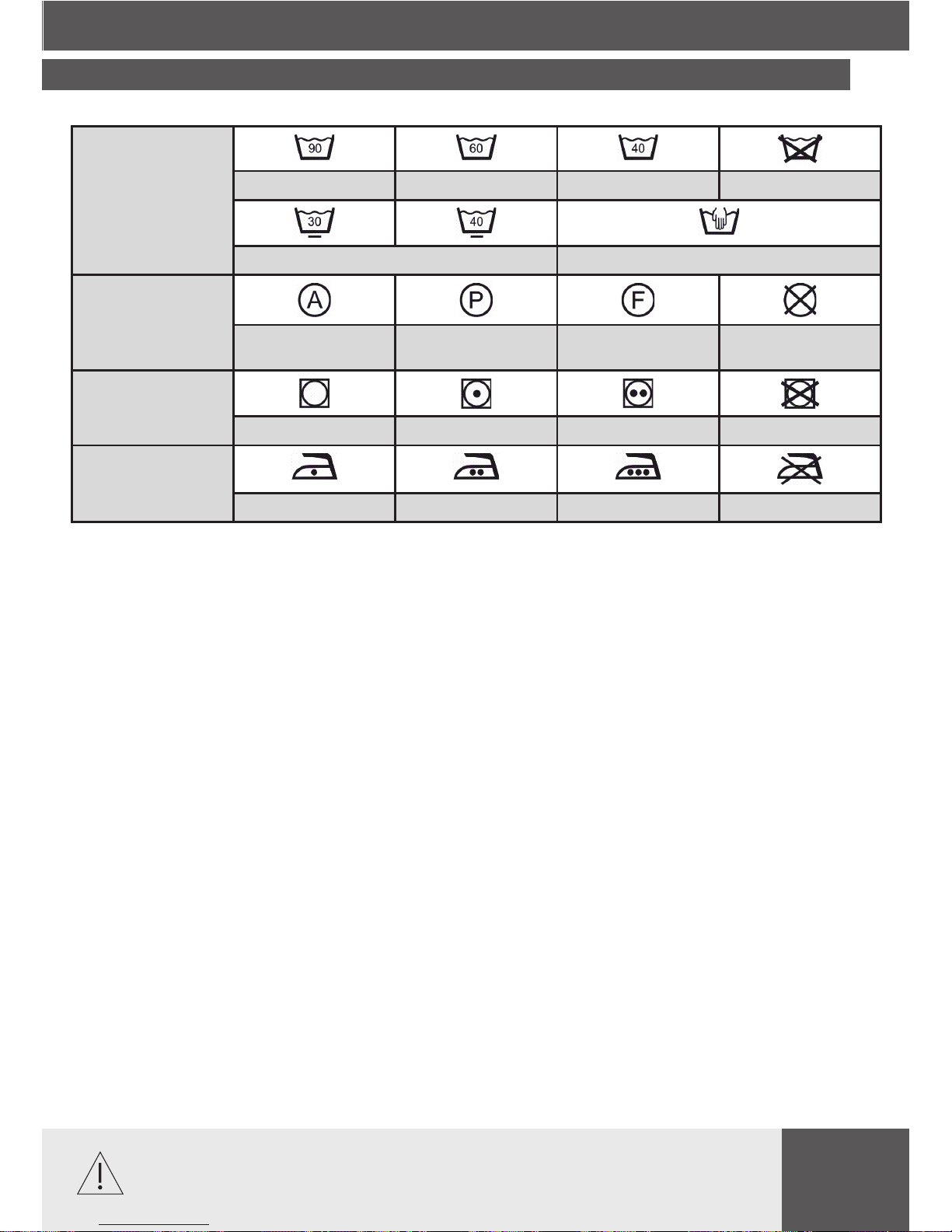

UNDERSTANDING THE SYMBOLS ON CLOTHES LABELS
16

UNDERSTANDING THE SYMBOLS ON CLOTHES LABELS
Washing
boil at 90°C normal wash at 60°C normal wash at 40°C Do NOT wash!
delicate handwash
Chemical cleaning
all solvents all except TRI petrol only NO
Dry clean!
Tumble dryer
normal low high Do NOT dry!
Ironing
110°C 150°C 200°C Do NOT Iron
Always pay attention to the symbols on garment labels
when choosing a washing programme. 17

18
unscrew the 4 transit bolts with
a spanner,
remove the rubber and plastic transport brackets from
the sockets along with the washers and bolts.
stop up the holes with the stoppers enclosed
in the accessories bag.
place the appliance on a solid, level surface,
Level the appliance by adjusting the legs (1)
1
2
Remove the transit bolts
(keep the bolts for future use, e.g. when moving house).
Caution: the transit bolts MUST be removed before the appli-
ance is used!
After positioning and levelling the appliance, check that it is stable by pressing
down each corner and ensuring it does not move!
Position and level the appliance
INSTALL THE APPLIANCE

4

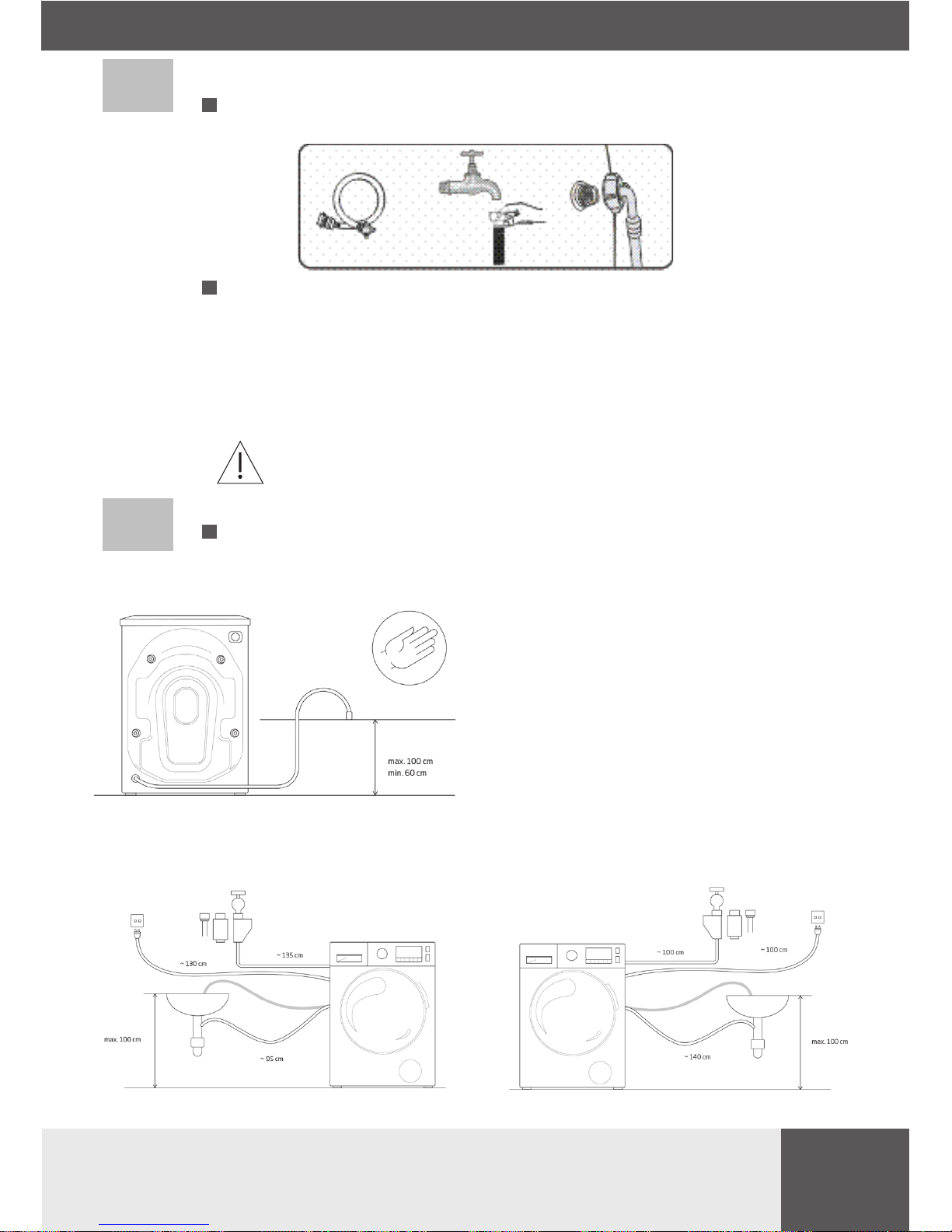

Use only the new hoses supplied with the machine. Do not re-use hoses.
A supply hose with seals is inside the drum of the machine.
Water pressure min 0.05 MPa (0.5 bar), max 1 MPa (10
bar).
The drain hose is at the back of the machine. Fix the drain hose so that it does
not move while the appliance is in operation. If necessary, use the elbow (1).
3
Connect the water supply
Water drain
1). after connecting, make sure the hose is not twisted
2) after connecting the hose and the valve, check they are sealed tight
3). regularly check the condition of the hose.
Supply the machine with cold water only.
19
Connection on the left Connection on the right
(1)
INSTALL THE APPLIANCE

5
Electrical wall outlet where the appliance is connects must be in
a visible and accessible place,
Only plug the appliance into a properly installed socket with an
earthing pin,
Do not use an extension cord to connect the appliance,
in the event of the power cord being damaged, it must be
replaced by an authorised service technician,
the electrical system to which the appliance is to be connected
must be protected with a 10 A fuse.
Connect to power supply
20
Small items such as coins, paper clips, needles, etc., may damage the
laundry and the appliance, you should therefore follow a few important
recommendations:
1). Empty pockets
2). Remove all metal items
3.) Delicate items such as bras or stockings should be washed in
protective mesh laundry bag
4). Close zippers and fasten buttons
Prepare to wash:
