AMIRIDIS-SAVVIDIS UNITED ARC-8809 User manual

7. The distance between the unit and the ceiling must be at least 30mm.
8. The unit must be installed horizontally.
9. It is recommended to install the unit at height
of at least 2.3m above the ground.
10. A triple-pole switch should precede the appliance
with at least 3mm breaking gap.
MAINTENANCE AND REPAIR:
1. Unplug the unit from the power source prior to checking or
maintaining.
2. Keep electric motor or other parts away from moisture, to avoid short
circuit.
3. Regular checking and maintenance is recommended. Clean the dust
off. Simply clean with a cloth dampened in mild detergent.
4. Detachment of the unit must be executed only by professionals.
SPECIFICATIONS:
Model No. Power (W) Air Velocity (m/s) Air Vol.
(m3/h) Length (mm) Weight HI MED LO HI MED LO (kg)
ARC-8809 475 430 393 18.7 16 13.5 1398 900 15,3
ARC-8812 610 560 510 1864 1200 19.0
ARC-8818 915 840 765 2796 1800 31.5
NOTE: Rated voltage and frequency are stated as per rating label.
By AMIRIDIS – SAVVIDIS S.A.
Operating Instructions
Before using this unit, please read all the instructions carefully.
PRODUCT OUTLINE:
Air Curtain
Centrifugal Type

AIR CURTAINS are designed for installation in shop, office building, hotel
and restaurant doorways. They discharge a curtain of air, which effectively
shuts out outside air. Use them to keep out insects, unpleasant smells,
and dust from indoors, where a large number of people pass in and out.
Air curtains also prevent air escaping from an air-conditioned room.
CONDITIONS OF USE:
Please DO NOT install the unit under following conditions:
1. Do not operate in areas with ambient temperature over 50°C or below
-10°C.
2. In steamy areas or areas with relative humidity over 95% at room
temperature.
3. In areas containing oily smoke.
4. In areas where materials or gases may cause explosion.
5. Near corrosive gases.
6. In areas where the unit may be sprinkled with water.

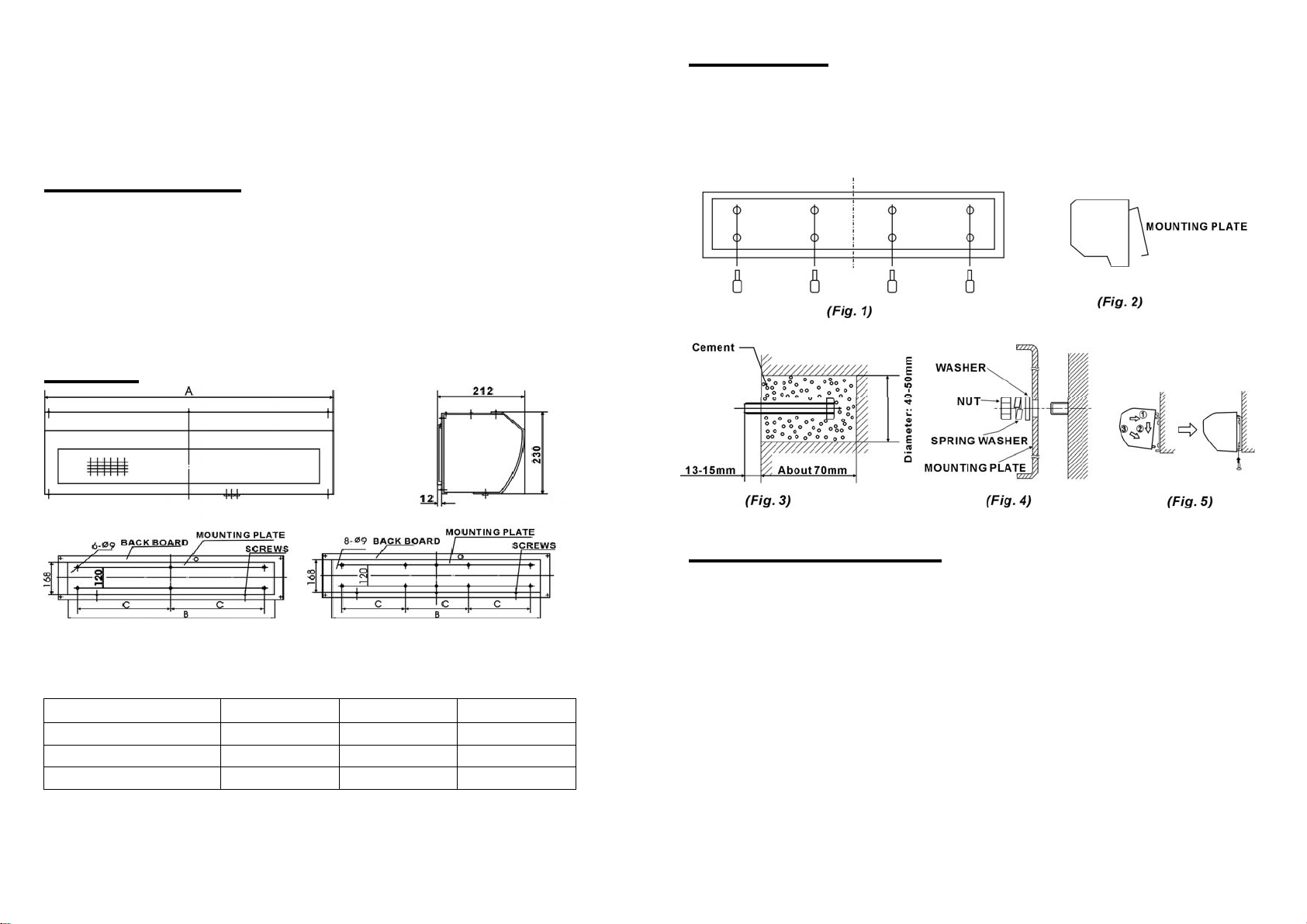

DIAGRAM:
[ Dimensions : mm ]
Model No. A B C
ARC-8809 900 850 250
ARC-8812 1200 1150 333
ARC-8818 1800 1780 560
INSTALLATION:
1. Unscrew the mounting plate and take it off. (Fig. 1 、 Fig. 2)
2. Drill a hole following the instructions, then insert the bolt and fix it
with cement. (Fig. 3)
3. Hang the mounting plate and ensure that it is fixed. (Fig. 4)
4. Install the unit onto the mounting plate and ensure that it is safely
fixed. Then tighten the screws. (Fig. 5)
CAUTIONS / INSTALLATION:
During installation, please pay special attention to the following points in
order to obtain the ultimate efficiency.
1. Install on solid place to avoid vibrations when machine is running, and
also for safety reasons. This way, unnecessary noise caused by
vibration can be prevented.
2. AIR CURTAINS are designed for indoor use.
3. Choose the most suitable model depending on the height of the room.
If the unit is fixed too high, the shut-off distance will be affected and
the efficiency will be reduced.
4. The air is drawn in from the front of the unit and is blown out
downwards.
5. Several units can be mounted next to each other in case of wide door
openings. In this case, there must be a 20-40mm space between them.
6. During installation, there must be no gap between the mounting plate
and the wall.
BACK L
V
IEW OF FM
□□
6 BACK
V
IEW FM
□□
9
、
FM
□□
10
、
FM
□□
12
、
FM
□□
15
、
FM
□□
18

NOTICE ABOUT RECYCLING
Your product is designed and manufactured with high quality
materials and components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at
their end-of-life, should be disposed of separately from your household
waste. Please dispose of this equipment at your local community waste
collection/ recycling centre.
In the European Union there are separate collection systems for used electrical
and electronic products. Please help us to conserve the environment we live in!
DECLARATION OF CONFORMITY
This product complies with the requirements of the directives
EMC-Directive: 89 / 336 / EEC
Low Voltage Directive: 73 / 23 / EEC as last amended by 96 / 68 / EEC
declare that the ARC-8809, ARC-8812, ARC-8818
are in compliance with the following norms:
EN 55014-1
EN 55014-2 (ΕΝ 61000-4-2 / -4 / -5 / -6 / -11)
EN 61000-6-3 : 2001+A11 :2004
EN 61000-3-2 / -3
EN 60335-2-80 :1997
EN 60335-1 :1994+A11+A1+A12+A13+A14+A15+A16+CORRIG.
EN 50366:2003 + A1:2006
