7. The distance between the unit and the ceiling must be at least 30mm.
8. The unit must be installed horizontally.
9. It is recommended to install the unit at height
of at least 2.3m above the ground.
10. A triple-pole switch should precede the appliance
with at least 3mm breaking gap.
MAINTENANCE AND REPAIR:
1. Unplug the unit from the power source prior to checking or
maintaining.
2. Keep electric motor or other parts away from moisture, to avoid short
circuit.
3. Regular checking and maintenance is recommended. Clean the dust
off. Simply clean with a cloth dampened in mild detergent.
4. Detachment of the unit must be executed only by professionals.
SPECIFICATIONS:
Model No. Power (W) Air Velocity (m/s) Air Vol.
(m3/h) Length (mm) Weight
HI MED LO HI MED LO (kg)
ARC-8909 465 375 345
20 17.5 15
1425 900 12
ARC-8912 570 490 430 1900 1200 16.0
ARC-8915 750 655 500 2375 1500 20.6
NOTE: Rated voltage and frequency are stated as per rating label.
By AMIRIDIS – SAVVIDIS S.A.
Operating Instructions
MODELS: ARC-8909, ARC-8912, ARC-8915
Before using this unit, please read all the instructions carefully.
Air Curtain
Centrifugal Type
PRODUCT OUTLINE:
AIR CURTAINS are designed for installation in shop, office building, hotel
and restaurant doorways. They discharge a curtain of air, which effectively
shuts out outside air. Use them to keep out insects, unpleasant smells,
and dust from indoors, where a large number of people pass in and out.
Air curtains also prevent air escaping from an air-conditioned room.
CONDITIONS OF USE:
Please DO NOT install the unit under following conditions:
1. Do not operate in areas with ambient temperature over 50°C or below
-10°C.
2. In steamy areas or areas with relative humidity over 95% at room
temperature.
3. In areas containing oily smoke.
4. In areas where materials or gases may cause explosion.
5. Near corrosive gases.
6. In areas where the unit may be sprinkled with water.
DIAGRAM:
[ Dimensions : mm ]
Model No. A B C
ARC-8909 900 231.5 216
ARC-8912 1200 231.5 216
ARC-8915 1800 231.5 216
INSTALLATION:

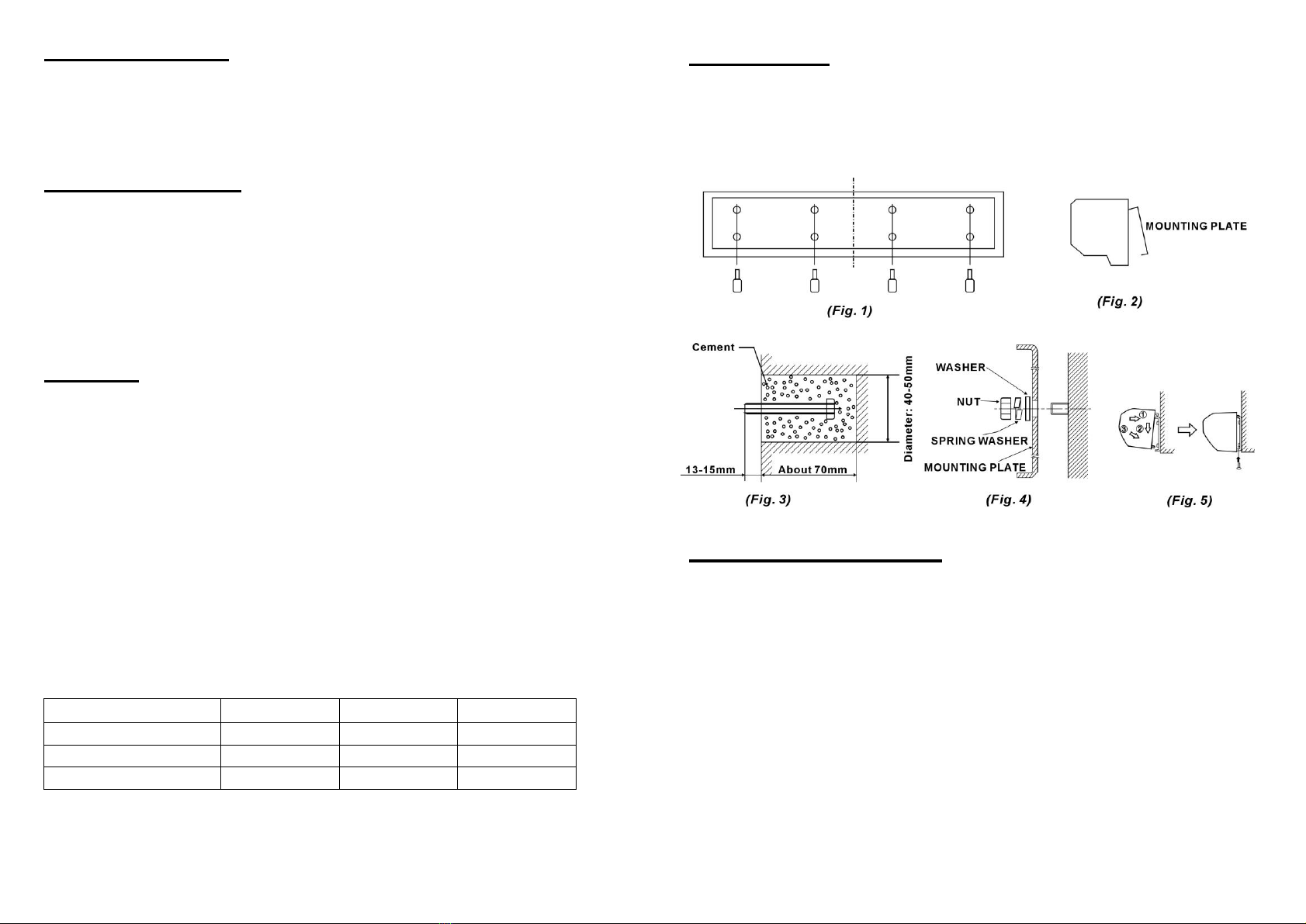

1. Unscrew the mounting plate and take it off. (Fig. 1
、
Fig. 2)
2. Drill a hole following the instructions, then insert the bolt and fix it
with cement. (Fig. 3)
3. Hang the mounting plate and ensure that it is fixed. (Fig. 4)
4. Install the unit onto the mounting plate and ensure that it is safely
fixed. Then tighten the screws. (Fig. 5)
CAUTIONS / INSTALLATION:
During installation, please pay special attention to the following points in
order to obtain the ultimate efficiency.
1. Install on solid place to avoid vibrations when machine is running, and
also for safety reasons. This way, unnecessary noise caused by
vibration can be prevented.
2. AIR CURTAINS are designed for indoor use.
3. Choose the most suitable model depending on the height of the room.
If the unit is fixed too high, the shut-off distance will be affected and
the efficiency will be reduced.
4. The air is drawn in from the front of the unit and is blown out
downwards.
5. Several units can be mounted next to each other in case of wide door
openings. In this case, there must be a 20-40mm space between them.
6. During installation, there must be no gap between the mounting plate
and the wall.
BACK L VIEW OF FM□□6 BACK VIEW FM□□9 、FM□□10、FM□□12、FM□□15、FM□□18
NOTICE ABOUT RECYCLING
Your product is designed and manufactured with high quality
materials and components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at
their end-of-life, should be disposed of separately from your household
waste. Please dispose of this equipment at your local community waste
collection/ recycling centre.
In the European Union there are separate collection systems for used electrical
and electronic products. Please help us to conserve the environment we live in!
DECLARATION OF CONFORMITY
Herewith, Amiridis-Savvidis S.A. states that this product, complies with the
requirements of below directives:
EMC-Directive: 14 / 30 / EU
Low Voltage Directive: 14/ 35 / EU
CE Marking: 93 / 68 / EEC
RoHS Directive: 11 / 65 / EU
The detailed declaration of conformity can be found at www.united-electronics.gr
Exclusive importer in Greece:
Amiridis – Savvidis S.A.
87A, 17th Noemvriou str, P.C. 55534
Thessaloniki – Greece
T: +302310944944 | F: +302310944940
www.amiridis-savvidis.gr
