LW F28 Original Instruction
CONTENT
Intended use 08
General safety warnings 08
Symbols 15
Technical data 19
Description of product 20
Installation 21
Operation 22
Maintenance and storage 25
Troubleshooting 26
Declaration of conformity 27
N
O
P
M

8 9
INTENDED USE
Use the oor cleaner exclusively for cleaning hard oors in your private household and only
on waterproof hard oors.
Do not clean water-sensitive oor coverings such as untreated cork oors (the moisture could
penetrate and damage the oor).
The device is suitable for cleaning PVC, linoleum, tiled, stone and all water resistant oor
coverings.
Please note that our equipment has not been designed for use in commercial, trade or
industrial applications. Our warranty will be voided if the machine is used in commercial,
trade or industrial businesses or for equivalent purposes.
GENERAL SAFETY WARNINGS
- Apart from the notes contained herein the general
safety provisions and rules for the prevention of
accidents of the legislator must be observed.
- Warnings and notes that are attached on the appliance
provide important notes for the safe operation.
Hazard levels
DANGER!
Point to immediate danger, which leads to severe injuries
or death.
WARNING!
Point to a possibly dangerous situation, which can lead
to severe injuries or death.
CAUTION!
Point to a possibly dangerous situation, which can lead
to minor injuries.
ATTENTION!
Point to a possibly dangerous situation, which can lead
to property damage.
GENERAL SAFETY WARNINGS
Electric components
DANGER!
- Do not immerse the device into water.
- Check the faultless condition of the appliance and the
accessories before using it. Otherwise, the appliance
must not be used.
- Immediately replace the charger with the charging
cable in case of visible damage.
- Turn off the appliance and remove the mains plug prior
to any care and maintenance work.
- Repair works may only be performed by the authorized
customer service.
- The appliance contains electrical components - do not
clean under running water.
- Do not insert conductive objects (such as screwdrivers
or the like) into the charging socket.
- Do not touch contacts or wires.
- The voltage indicated on the type plate must
correspond to the supply voltage.
- Do not scrape the power cord across sharp edges and
ensure that it does not get pressed.
WARNING!
The appliance may only be connected to alternating
current. The voltage must correspond with the type plate
of the appliance.

10 11
Charger
1. Recharge only with the charger specied by the
manufacturer. Do not use the original charger on
other Li-lon batteries or on any other type of battery
as this can increase the risk of re or explosion.
2. Check the battery charger, cable, and plug before
each use. Do not use the battery charger if damaged.
Do not open the battery charger yourself; charger
must be repaired by qualied personnel using original
spare parts.
3. The charger is designed to use a standard household
120-240 V~ 50Hz power source, ensure that the plug
matches the outlet.
4. Never modify the plug in any way, this will reduce the
risk of electric shock.
5. Do not mis-use the charger cord. Never use the cord
for carrying, pulling or unplugging the charger. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk
of electric shock.
6. Make sure the charger cord is situated so that it will
not be stepped on, tripped over or get damaged.
7. Keep the battery charger clean. Contamination can
increase the risk of electric shock.
8. Protect the battery charger from rain and moisture.
If water accesses the battery charger there is an
increased risk of electric shock.
9. Battery will heat up whilst charging. To reduce the risk
of re, do not operate battery charger on ammable
GENERAL SAFETY WARNINGS
surfaces such as paper or textiles.
10. The temperature range over which the battery
pack can be charged is typically between 5ºC-
45 ºC. Attempts to charge out with the prescribed
temperature range may automatically be blocked by
the protection circuitry of the battery pack. Longest
life and best performance can be obtained if the
battery pack is charged at room temperature.
11. Disconnect charger from the power supply when not
in use. This will reduce the risk of electric shock or
damage to the charger.
Battery pack
1. Fully charge battery pack before rst use.
2. Recharge battery pack immediately when the power
output starts to slow. DO NOT CONTINUE TO USE
PRODUCT WHEN BATTERY LEVEL IS LOW.
3. To prevent serious damage to the battery, charge in
temperatures above 5ºC or below 45ºC. Longest life
and best performance can be achieved when battery
is charged at room temperature.
4. If the battery temperature is above 45ºC it must be
allowed to cool before putting it into the charging
station.
5. To reduce the risk of explosion, ensure the battery
pack is not left in the sun for extended periods of
time and that it is kept away from re.
6. Do not carry individual battery packs in your pockets
or bag as they could short-circuit against other metal
items.
GENERAL SAFETY WARNINGS

12 13
GENERAL SAFETY WARNINGS
7. Should a Li-lon battery catch re, ensure to use the
correct re extinguisher to combat the re. DO NOT
THROW WATER ON A BURNING LI-ION BATTERY.
8. If the battery pack becomes too hot during charging,
disconnect and switch off immediately. Contact the
service centre directly.
9. Do not attempt to open the battery yourself.
10. When battery pack is not in use keep it away from
other metal objects such as paperclips, coins, keys,
nails, screws or other small metal objects that can
make a connection from one terminal to another.
Safe handling
DANGER
- The user must use the appliance as intended. The
person must consider the local conditions and must
pay attention to other persons in the vicinity when
working with the appliance.
- The appliance may not be operated in explosive
atmospheres.
- If the appliance is used in hazardous areas the
corresponding safety provisions must be observed.
- Do not use the appliance if it fell down, is visibly
damaged or leaking.
- Keep packaging lms away from children, there is a
risk of suffocation!
GENERAL SAFETY WARNINGS
WARNING
- The appliance must not be operated by children or
persons who have not been instructed accordingly.
- This appliance is not intended for use by persons
with limited physical, sensory or mental capacities or
lacking experience and/or skills, unless such persons
are accompanied and supervised by a person in
charge of their safety or they have received precise
instructions on the use of this appliance and have
understood the resulting risks.
- Children must not play with this appliance.
- Supervise children to prevent them from playing with
the appliance.
- Keep appliance out of reach of children as long as it is
switched on or hasn’t cooled down.
- Cleaning and user maintenance must not be
performed by children without supervision.
- Operate or store the appliance only in accordance
with the description or illustration.
CAUTION
- Create stability for the appliance prior to any work on
or with the appliance to prevent accidents or damage.
- Never ll solvents, solvent-containing liquids or
undiluted acids (e.g. detergents, petrol, paint
thinner, and acetone) into the water reservoir as
these substances corrode the materials used in the
appliance.
- Never leave the appliance unattended as long as it is
in operation.

14 15
- Keep parts of the body (e.g. hair, ngers) away from
the rotating cleaning rollers.
- Protect your hands when cleaning the oor head due
to a danger of injury from sharp objects (e.g. splinters).
- Keep connection cable away from heat, sharp edges,
oil and moving parts.
ATTENTION
- Only switch on the appliance when the fresh water
tank and waste water tank are tted.
- The device may not be used for vacuuming sharp
objects or large objects (e.g. glass shards, gravel, toy
parts).
- Do not ll the fresh water container with vinegar,
decalcication agents, essential oils or similar
substances. Also take care to ensure that these
substances are not vacuumed.
- Only use this appliance on hard oors with waterproof
coatings (e. g. enamelled tiles, Linoleum).
- Do not use the appliance for cleaning of carpets or
carpeted oors.
- Do not use the appliance over the oor grilles of
convector heaters. The appliance is not able to take in
the water discharged when used above grilles.
- In case of longer breaks in operation and after use,
switch off the device at the main switch / device
switch and pull the charger’s mains plug.
- Do not operate the appliance at temperatures below
0 °C.
- Protect the unit from rain. Do not store outside.
GENERAL SAFETY WARNINGS
Safety symbols
The purpose of safety symbols is to attract your
attention to any possible dangers. The safety symbols
and their explanations deserve your careful attention
and full understanding. The symbol warnings do not, by
themselves, eliminate any danger. The instructions and
warnings they give are no substitute for proper accident
prevention measures.
WARNING: Be sure to read and understand
all safety instructions within this operator’s
manual, including all safety alert symbols such as
“DANGER”, “WARNING”, and “CAUTION” before
using this tool. Failure to follow all instructions
listed below may result in electric shock, re and/or
serious personal injury.
SAFETY ALERT SYMBOLS: Indicate DANGER,
WARNING, or CAUTION. May be used in conjunction
with other symbols or pictographs.
Symbol meanings

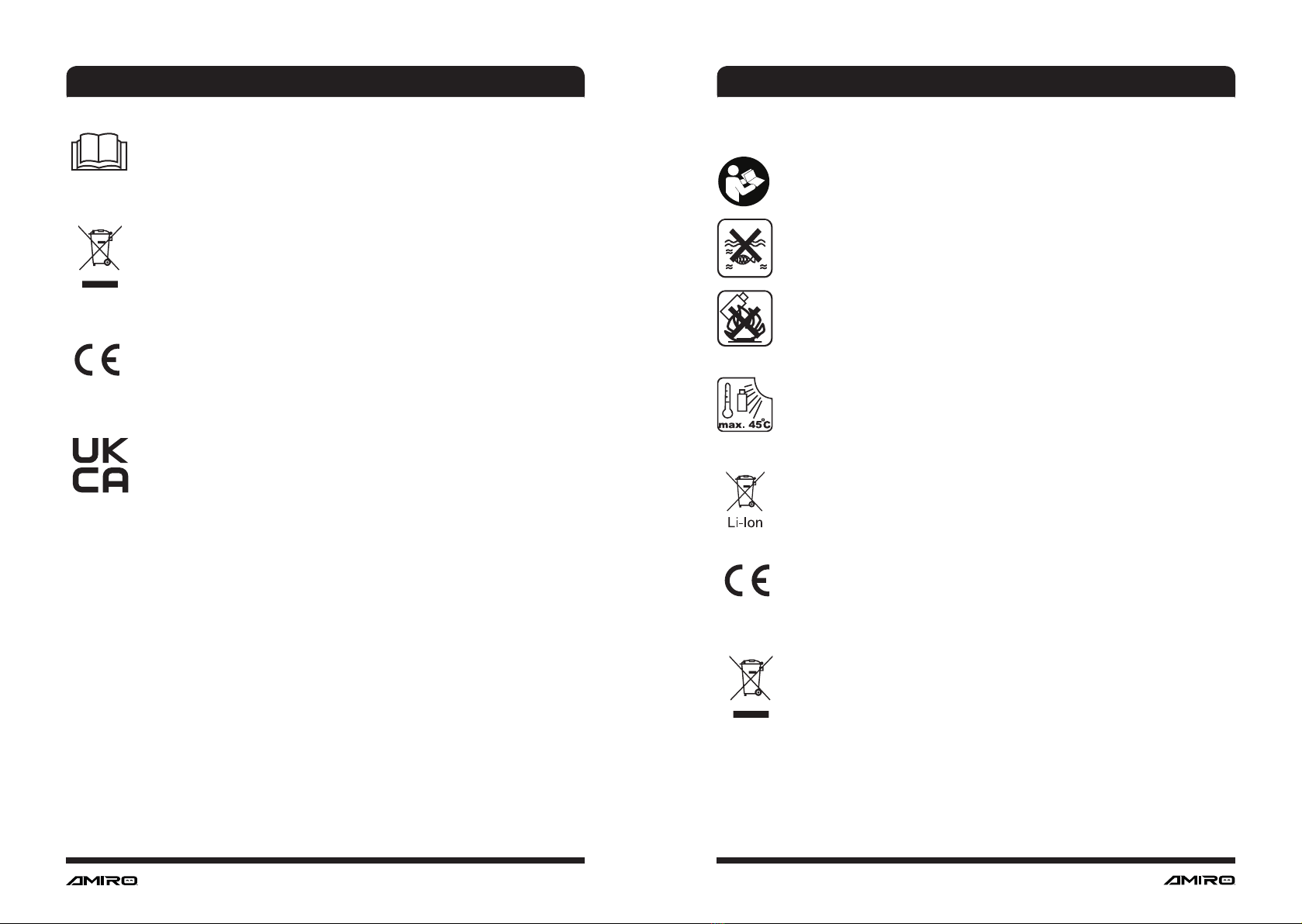

This page depicts and describes safety symbols that
may appear on this product. Read, fully understand and
follow all instructions on the machine before attempting
to assemble and operate.
SYMBOLS

16 17
To reduce the risk of injury, user must read
instruction manual carefully.
WEEE symbol. Waste electrical products should
not be disposed of with household waste. Please
recycle where facilities exist. Check with your local
authority or local store for recycling guidelines.
The product complies with the applicable
European directives and an evaluation method of
conformity for these directives was done.
Conforms to relevant UK regulatory requirements.
SYMBOLS
Warning symbols on the battery pack
To reduce the risk of injury, user must read
instruction manual carefully.
Do not throw into water.
Do not throw on re.
Do not subject the battery to strong sunlight over
long periods of time. Do not leave on a heater
(max.45°C).
Batteries contain Li-ion. Do not dispose of
waste batteries in domestic waste. Contact local
authority to nd out how to dispose of batteries.
The product complies with the applicable
European directives and an evaluation method of
conformity for these directives was done.
WEEE symbol. Waste electrical products should
not be disposed of with household waste. Please
recycle where facilities exist. Check with your
Local Authority or local store for recycling advice.

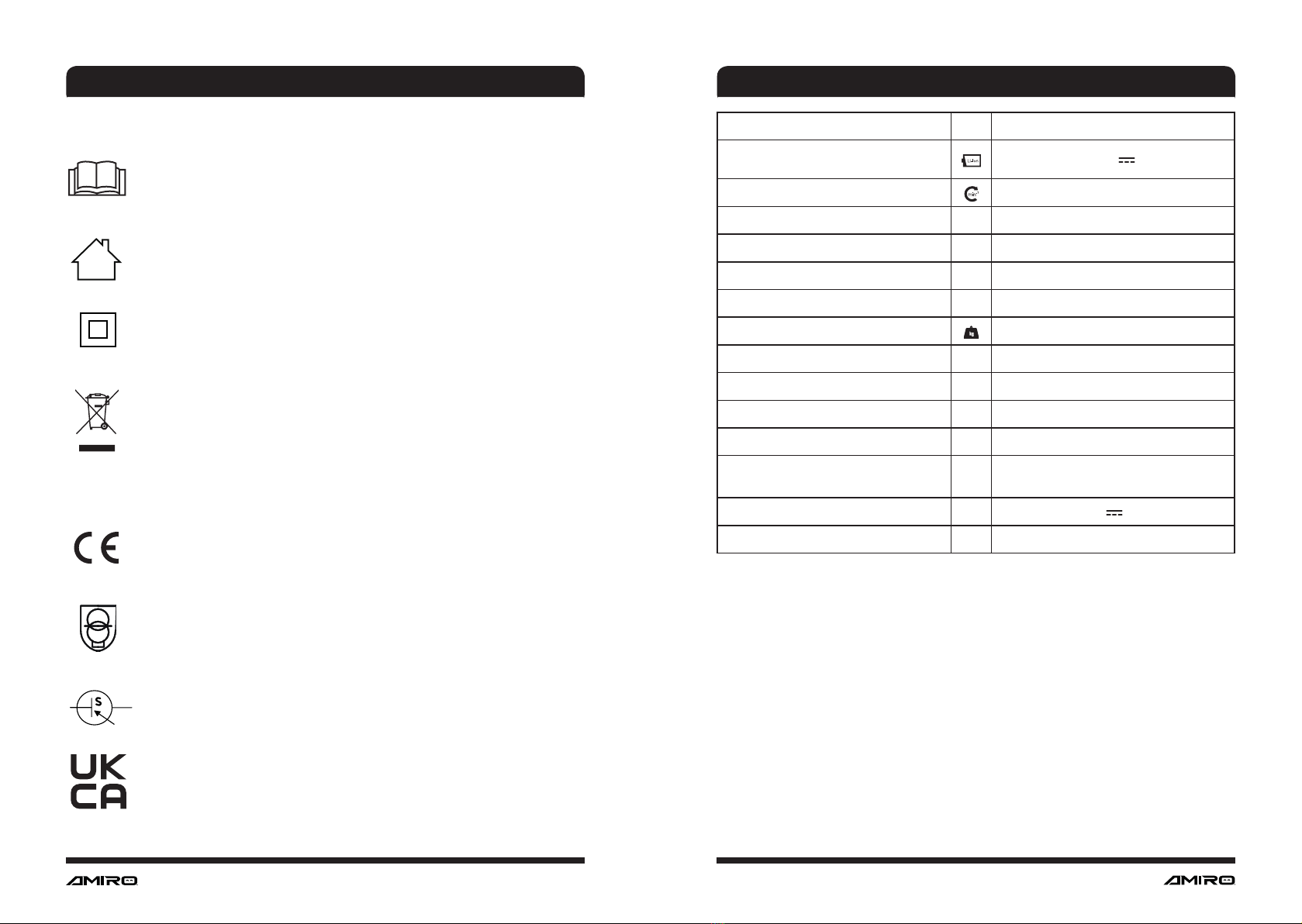

SYMBOLS

18 19
Warning symbols on the charger
To reduce the risk of injury, user must read
instruction manual carefully.
The charger is for indoor use only.
Double insulation
WEEE symbol. Waste electrical products should
not be disposed of with household waste. Please
recycle where facilities exist. Check with your
Local Authority or local store for recycling advice.
The product complies with the applicable
European directives and an evaluation method of
conformity for these directives was done.
SMPS (Switch mode power supply unit)
incorporatinga short-circuit-proof safety isolating
switching power supply.
SMPS(Switch mode power supply unit)
Conforms to relevant UK regulatory requirements.
SYMBOLS
Model LW F28
Nominal voltage of product with battery 12V
Rated power of appliance 40 W
Working width 260 mm
Roller revolutions per minute 500 rpm
Fresh water tank 300 ml
Waste water tank 120 ml
Weight 2.2 kg
Battery pack Model AL F40
Battery capacity 4 Ah
Battery charging time Max. 80 min
Battery charger Model XZ1300-3000G/ XZ1300-3000GB
Input 120-240V AC,
50/60Hz 1.0A
Output 13V , 3A
Protection class II
TECHNICAL DATA

20 21
DESCRIPTION OF PRODUCT

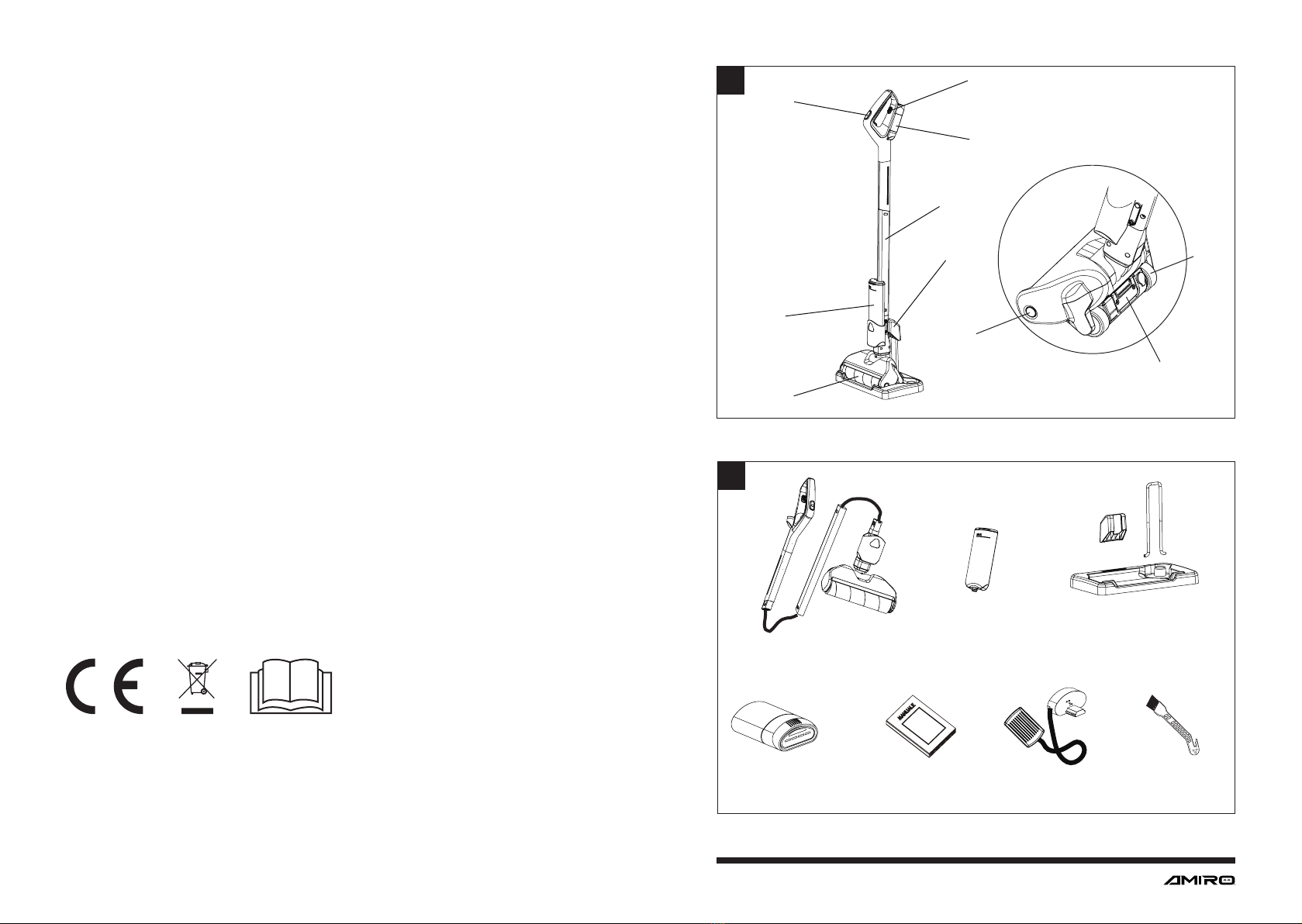

Parts description (Fig. A)
1. ON/OFF switch
2. Battery pack release button
3. Battery pack
4. Handle tube
5. Stand support
6. Rear wheel
7. Collection tank
8. Roller release button
9. Roller
10. Fresh water tank
Check the delivery parts (Fig. B)
Remove the machine from its packaging carefully and make sure that all of the following parts
are present:
a. Main oor cleaner
b. Fresh water tank
c. Stand support (3 separate parts )
d. Battery pack
e. Manual
f. Charger
g. Cleaning brush
WARNING: If any parts are damaged or missing, do not operate this tool until
these parts have been replaced. Failure to heed this warning could result in serious
personal injury.
NOTE: Always recycle the packaging in accordance with local recycling guidelines.
INSTALLATION
Assemble the main handle (Fig. C)
1. Align the main handle with the tube.
2. Insert the main handle into the tube, make sure the handle is fully locked in position.
Attach the handle to the working head (Fig. C)
1. Align the tube with the working head.
2. Insert the main handle into the socket, make sure the tube is fully locked in position.
Assembly the stand support (Fig. D)
1. Pinch the metal wire together and then install the wire into the stand base.
2. Install the holder onto the wire.
Install the fresh water tank

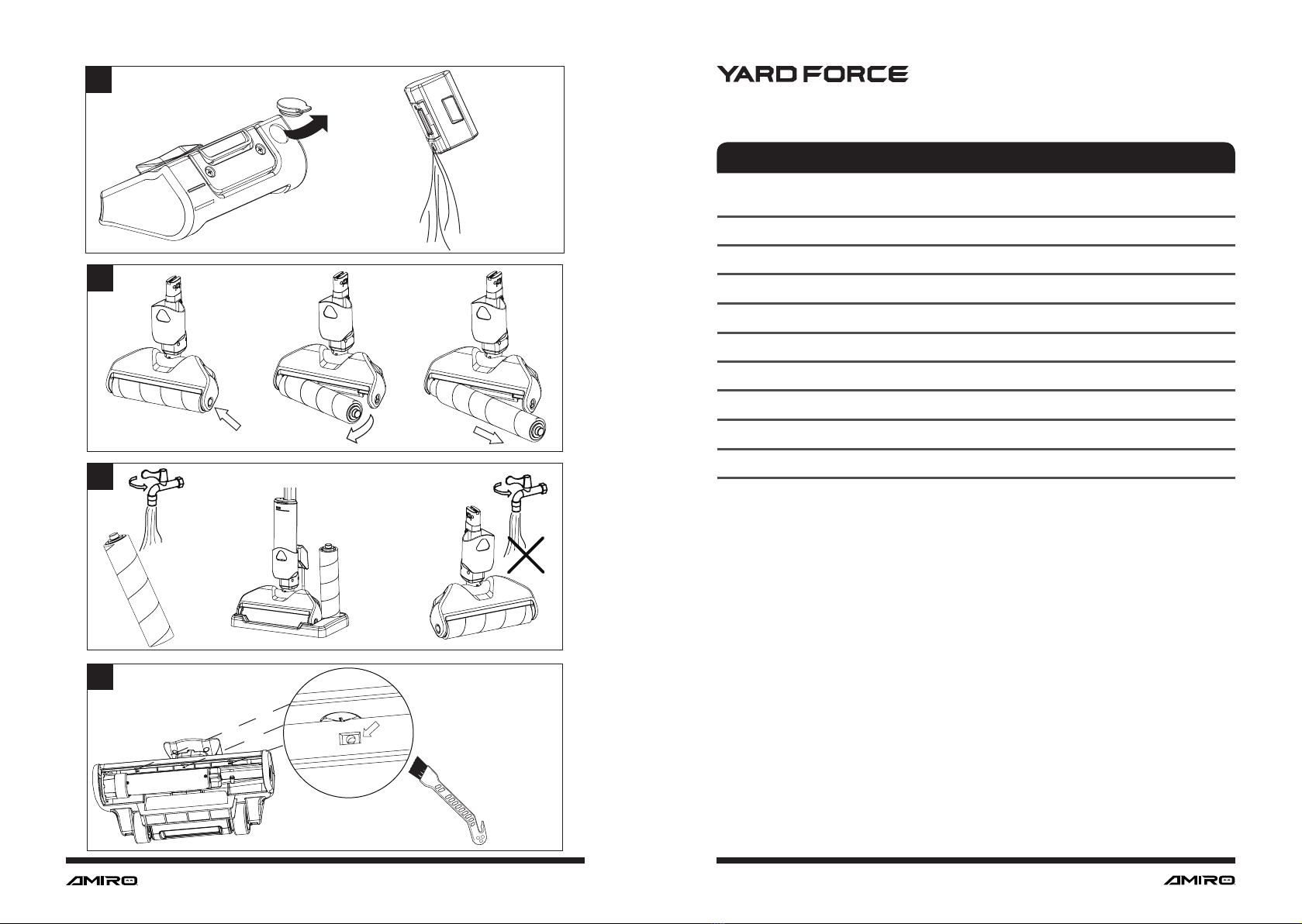

1. Firtsly remove the rubber seal and ll with the fresh water tank with water or detergent.
(Fig. E)
2. Install the rubber seal and make sure the rubber seal is rmly inserted.
3. Insert the water tank into the socket on the working head. (Fig. F)
NOTE: Do not over fill the water upon the MAX line.

22 23
Charging the battery pack
NOTE: Remove the battery pack from the charger after it has been fully charged.
NOTE: Battery should be fully charged before rst use.
NOTE: Make sure the mains voltage is the same as rating label which is located on the
charger.
1. Connect the charger to a power supply.
2. To insert the battery pack into the charger, align the raised ribs of the battery pack with
the grooves of the charger then push it in. (Fig. G)
3. The green LED light on the battery pack will ash continuously during normal charging.
4. After charging is complete, the green LED light will turn off.
Power indicator (Fig. H)
This Li-Ion battery pack is equipped with a power indicator which is used to show the battery
pack’s remaining charge. The LEDs will stay lit for approximately 4 seconds.
To obtain the best life from the battery
1. Never allow the battery to completely discharge before recharging. The battery pack
should be placed on the charger whenever the battery pack is noticeably running down
or the tool no longer performs a task it previously performed.
2. Avoid conducting short charges. Make sure that the battery is fully charged each time by
allowing the charger to complete its full charging cycle.
3. Avoid allowing loose items like screws or nails etc. to be stored with battery packs as
these or similar items can short battery packs and cause a re or explosion.
4. Always unplug the charger when not in use and store in a dry and secure place.
5. Avoid charging or storing your battery in temperatures below 5°C and above 45°C.
6. After use, allow the battery to pack to cool down for approximately 30 minutes before
attempting to recharge.
Inserting and removing the battery pack
Insert the battery pack (Fig. I)
Align the battery pack with the handle connectors. Push the battery pack into the place until
you hear a click. This means the battery pack has been locked in position.
Removing the battery pack from the tool (Fig. J)
Push the battery pack release button, and then pull out the battery pack.
OPERATION OPERATION
Before operation
ATTENTION
- The device can only collect dried dirt and liquids (max. 120 ml).
- Brush or vacuum the oor before starting work. This removes dirt and loose particles
from the oor before the wet cleaning commences.
- Before use, check the oor for water consistency at suspect areas. Do not clean water-
sensitive coatings, such as untreated cork oors (moisture ingress is possible which may
damage the oor).
- Clean the oor by moving the appliance back and forth at a similar speed as if you were
vacuum cleaning.
- If the oor is especially dirty, let the appliance glide slowly across the oor.
- Pressure does not need to be exerted on the device.
Start working
ATTENTION
- After switching on the appliance, the cleaning rollers will begin to rotate. Hold the handle
mly to prevent the appliance from moving forwards by itself.
- Make sure the fresh water tank is lled with water and the waste water tank is tted in
the appliance.
To switch on the appliance press the ON/OFF switch. (Fig. K)
Move the unit back and forth several times until the rollers are sufciently moistened.
Emptying the waste water tank
Unlock the waste water tank. Remove it the from the oor head. (Fig. L)
- Open the tank cap. Empty the waste water tank. (Fig. M)
- Clean waste water tank and its cap with tap water, depending on the degree of soiling.
- Re-insert the caps of the waste water tank.
NOTE: It is suggested to empty the water water tank after daily cleaning.
NOTE: Empty the tank when the waste water reaches the MAX line, otherwise it will occurs
the leakage.
Cleaning the roller
- Press the release button on the side to release the roller and then pull out the roller. (Fig.
N)
- Clean the roller with fresh water, and let dry on the stand support. (Fig. O)
WARNING: Do not clean the roller which is not detached from the device!

24 25
MAINTENANCE AND STORAGE
WARNING: Before performing any maintenance or cleaning work, always ensure that the
battery pack has been removed.
WARNING: Always wear heavy duty gloves when adjusting or cleaning, especially when
handling sharp objects.
Cleaning the product
– Use a soft brush to remove accumulated dust and debris. Especially the outlet holes under
the housing. Wear safety glasses to protect your eyes whilst cleaning.
– Wipe down the product enclosure with a slightly damp cloth. Do not spray the unit with
water. Water may destroy the switch unit and the electric motor.
Maintenance
1. Keep all nuts, bolts and screws tight to ensure that the machine is in a safe working
condition.
2. Examine the machine and replace worn or damaged parts for safety.
3. Never use your hands /ngers for cleaning the housing --always use a the brush due to
sharp scraper edge blade.
Battery maintenance
Use the following procedures to achieve the best battery life:
1. Protect the battery against moisture and water.
2. Store the battery only within temperature range of 5 oC to 45 oC. Do not leave the battery
in direct sunlight for extended periods of time.
3. Clean the battery regularly with a soft, clean and dry brush.
4. If you do not use the product for a long time, remember to charge and discharge the
battery pack once every 6 months.
Storage and transport
Storage
ATTENTION
- To prevent odours developing, the fresh water and waste water tank must be completely
emptied prior to storing the appliance.
- Allow wet rollers to dry in the air, do not place wet rollers in closed cupboards to dry.
- Store the appliance in a dry room.
Transport
Use the original packaging to ship whenever possible.
Replacing the roller
Slide the roller onto the motor and align the roller onto the motor drive and then click back
into place on the housing
OPERATION

26 27
TROUBLESHOOTING
WARNING: Before performing any repair work, always ensure that the battery
pack has been removed.
WARNING: Always wear heavy duty gloves when adjusting or cleaning, especially
when handling sharp objects.
Fault/malfunction Cause Remedy
The device cannot be
switched on
Battery is not correctly inserted Remove the battery and reinsert
Battery is empty Charge the battery pack
Motor damaged Contact with after-service centre
Poor cleaning
performance
Rollers are too dry Switch ON the device and operate
more than 1-2 mins
Roller used for a long time and
get worned Replace a new roller
Not enough fresh water in the
tank Fill in the fresh water in the tank
Waste water tank full Pull out the waste water
DECLARATION OF CONFORMITY
To the provisions of Council Directives
We
MEROTEC GmbH,
Otto-Brenner-Stra e 8,
47877 Willich/ Deutschland
Declare that the product:
Machine Description: 12V Floor cleaner
LW F28/ Q0QT-SP01-260ZA
Function: Clean oor
Complies with the essential health and safety requirements of the following directives:
Low Voltage Directive 2014/35/EU
Electromagnetic Compatibility Directive 2014/30/EU
EC Directive 2011/65/EU and its amendment Directive (EU) 2015/863 (RoHS)
Standards and technical specification referred to :
EN 60335-1:2012+A11+A13+A1+A14+A2+A15
EN 60335-2-10:2003+A1
EN 55014-1:2017+A11
EN 55014-2: 2021
Authorized Signatory
Date: 23.03.2022
Signature:________________________
Place: Willich
Name: Roland Menken
General Manager
MEROTEC GmbH,
Otto-Brenner-Stra e 8,
47877 Willich/ Deutschland
