Amity Technology 2720 User manual

OPERATING
MANUAL
2021
2720 HARVESTER SCRUB
12 ROW 22
8 ROW 30
2800 7th Avenue North
Fargo, ND 58108
Phone: [phone]
Fax: [phone]
Www.amitytech.com
MANUAL PART NO: MOHE72 RELEASE DATE: 01/2021
DESIGNED AND MANUFACTURED IN USA

i
This page is intenonally le blank.

ii
AMITY TECHNOLOGY LLC LIMITEDWARRANTYTERMSANDCONDITIONS –UNITEDSTATES
EFFECTIVEFOREQUIPMENT RETAILEDANDDELIVERED AFTERJUNE 1, 2020
WHAT IS WARRANTED Amity Technology warrants its new equipment to be free of defects in material and workmanship at time of delivery to the first retail pur-
chaser, renter, or lessee. Amity Technology warrants any new or unused part which is manufactured by Amity Technology for use in an Amity Technolo-
gy machine, jointly referred to as “Products”, whether such Product is purchased through an authorized Amity Technology deale r or directly from
Amity Technology. Under this Warranty, Amity Technology will repair or replace, as it chooses in its sole discretion, any cov ered Product, or any
component thereof, which Amity determines to be defective. These terms apply to all Amity Technology brands of new equipment originally marketed in the
United States.
WARRANTY PERIOD
• 12 Months from the date of delivery to the first retail purchaser, renter or lessee.
EXCEPTIONS FROM THIS WARRANTY
• Freight Charges - This warranty does not cover freight charges.
• Improvements, Changes, or Discontinuance Amity Technology reserves the right to make changes and improvements in design or changes in
specifications at any time to any product without incurring any obligations to owners of products previously sold.
• Repairs and Maintenance Not Covered Under Warranty - This warranty does not cover conditions resulting from misuse, natural calamities,
use of non-Amity Technology parts, negligence, alteration, accident, use of unapproved attachments, usage which is contrary to the intended
purposes, or conditions caused by failure to perform required maintenance. Replacement of Wear or Maintenance items (unless defective) such
as but not limited to, filters, hoses, belts, lubricants, light bulbs, wheel alignment, tightening of nuts, belts, bolts, and fittings, service tune-up,
computer parameter adjustments and general adjustments which may from time to time be required are not covered.
• Rubber Tire Warranty - Rubber tires are warranted directly by the respective manufacturer only and not by Amity Technology.
OWNER’S OBLIGATION
It is the responsibility of the Owner to transport the equipment or parts to the service shop of an authorized Amity Technology Dealer or alternatively to reim-
burse the Dealer for any travel or transportation expense involved in fulfilling this warranty. This Warranty does NOT cover rental of replacement equipment
during the repair period, damage to products which have been declared a total loss and subsequently salvaged, overtime labor charges, freight charges for
replacement parts, or special handling requirements (such as, but not limited to, the use of cranes).
EXCLUSIVE EFFECT OF WARRANTY AND LIMITATION OF LIABILITY
THIS WARRANTY IS IN LIEU OF ALL WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PURPOSE OR OTHER REPRESENTATIONS, WARRANTIES
OR CONDITIONS, EXPRESSED OR IMPLIED. The remedies of the Owner set forth herein are exclusive. The Company neither assumes nor authorizes any person
to assume for it any other obligation or liability in connection with the sale of covered machines. Correction of defects, in the manner and for applicable period of
time provided above, shall constitute fulfillment of all responsibilities of Amity Technology to the Owner, and Amity Technology shall not be liable for negligence
under contract or in any manner with respect to such machines. IN NO EVENT SHALL THE OWNER BE ENTITLED TO RECOVER FOR INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES SUCH AS BUT NOT LIMITED TO, LOSS OF CROPS, LOSS OF PROFITS OR REVENUE, OTHER COMMERCIAL LOSSES, IN-
CONVENIENCE OR COST OF RENTAL OR REPLACEMENT EQUIPMENT.
Some States or Provinces do not permit limitations or exclusions of implied warranties or incidental or consequential damages, so the limitations or exclusions in this warranty may
not apply.
Additional Warranty Information
New Equipment Warranty - Equipment is eligible for warranty service only if it qualifies under the provisions of the New Equipment Warranty. The selling
dealer will deliver this Warranty to the original retail purchaser at the time of sale, and the dealer will register the sale and Warranty with Amity Technology
LLC.
Subsequent Owners - This Warranty covers the first retail purchaser and all subsequent owners of the equipment during the specified warranty period. Should
the Amity Technology Dealer sell this equipment to a subsequent owner, the Dealer must deliver the warranty document to the subsequent owner so the sub-
sequent owner can register ownership with Amity Technology and obtain the remaining warranty benefits, if available, with no intermission in the Warranty
Period. Subsequent Owner Procedure will apply. It is the responsibility of the subsequent owner to transport the equipment to the service shop of an author-
ized Amity Technology Dealer or alternatively to reimburse the Dealer for any travel or transportation expense involved in fulfilling this warranty. This Warranty
does NOT cover charges for rental or replacement equipment during the repair period, products which have been declared a total loss and subsequently salvaged,
overtime labor charges, freight charges for replacement parts, or units sold at auction.
Warranty Service - To be covered by Warranty, service must be performed by an authorized Amity Technology Dealer. It is recommended that you obtain
warranty service from the Dealer who sold you the equipment because of that Dealer’s continued interest in you as a valued customer. In the event this is not
possible, warranty service may be performed by any other authorized Amity Technology Dealers in the United States or Canada. It is the responsibility of the
Owner to transport the equipment to the service shop of an authorized Amity Technology Dealer or alternatively to reimburse the Dealer for any travel or trans-
portation expense involved in fulfilling this warranty.
Maintenance Service - The Owner’s Manual furnished to you with the equipment at the time of delivery contains important maintenance and service infor-
mation. You must read the manual carefully and follow all the maintenance and service recommendations. Doing so will result in greater satisfaction with your
equipment and help avoid service and warranty problems. Please remember that failures due to improper maintenance of your equipment are not covered by
warranty.
Maintenance Inspections - To insure the continued best performance from your agricultural equipment, we recommend that you arrange to make your
equipment available to your selling Dealer for a maintenance inspection 30 days prior to warranty expiration.
● Amity Technology LLC ● 2800 7th Ave N ● Fargo, ND 58102 ● Phone:[phone] ●

iii
This page is intenonally le blank.

iv
WARRANTY....................................................................... ii
TABLE OF CONTENTS……................................................iv-v
1.0 INTRODUCTION………….............................................1-1
1.1 General Informaon……………..................................1-1
1.2 Serial Number……….................................................1-1
2.0 SAFETY……………........................................................2-1
2.1 Recognizing Safety Informaon in Manual…….......2-1
2.2 General Harvester Safety………................................2-1
2.3 Maintenance and Operang Safety………................2-2
2.4 Hydraulic Safety......................................................2-3
2.5 Transport Safety......................................................2-3
2.6 Safety Decals...........................................................2-4
3.0 SPECIFICATIONS.......................................................3-1
3.1 Harvester Specicaons.........................................3-1
3.1.1 Tractor Specicaons...........................................3-1
3.2 Tracon...................................................................3-1
3.2.1 Hydraulic Flow Rates............................................3-2
4.0 PREPARATION..........................................................4-1
4.1 Tractor Preparaon.................................................4-1

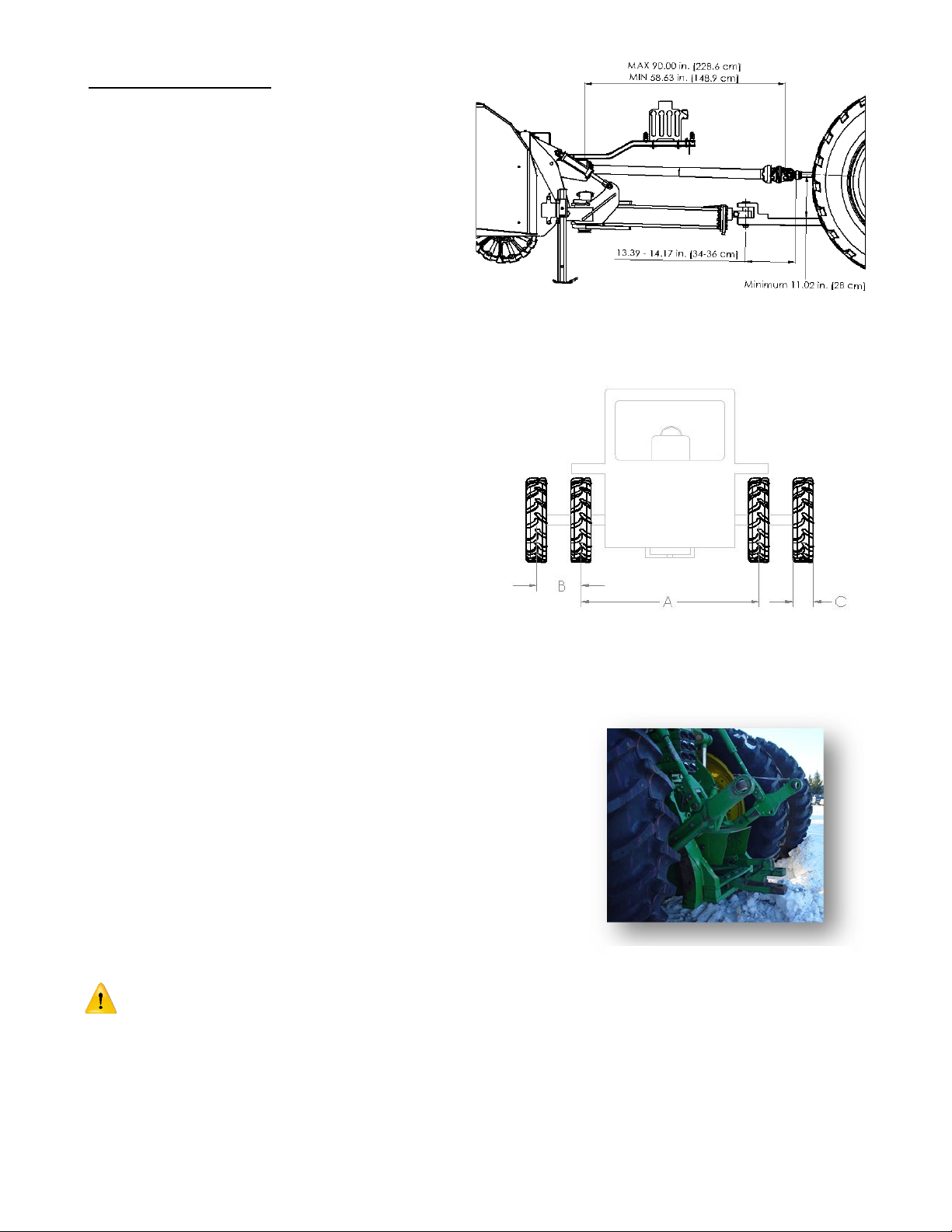

4.1.1 Adjusng the Drawbar.........................................4-1
4.1.2 Tire Spacing and Inaon....................................4-1
4.1.3 Three-Point Hitch Posion...................................4-1
4.2 Harvester Preparaon............................................4-2
4.2.1 Lier Strut Spacing...............................................4-2
4.2.2 Hydraulic Tank Oil Level and Valve Posion……...4-2
4.2.3 Scrub Control Box Wiring and Locaon...............4-2
4.2.4 Shield Placement.................................................4-3
4.2.5 Gearbox Oil Levels...............................................4-3
4.2.6 Greasing…............................................................4-4
4.2.7 Aaching PTO to Harvester…...............................4-4
4.2.8 Raising Boom.......................................................4-4
5.0 ATTACHING AND DETACHING.................................5-1
5.1 Aaching Hydraulic and Electrical Systems…….......5-1
5.2 Aaching Harvester to Tractor Drawbar.................5-1
5.3 Aaching PTO Driveline..........................................5-2
5.4 Using Stands............................................................5-2
6.0 OPERATING THE HARVESTER...................................6-1
6.1 Start Up…................................................................6-1
6.2 Field Operang Speed…..........................................6-1
6.3 Turning Radius........................................................6-1
6.4 Break-In Period.......................................................6-1
6.5 Field Cleaning..........................................................6-2
6.6 Lier Struts.............................................................6-2
6.7 Leveling Adjustment...............................................6-2
6.7.1 Manual.................................................................6-2
6.7.2 Automac Depth Control.....................................6-2
6.8 Row Finder..............................................................6-3
6.9 Digging Depth…......................................................6-3
6.9.1 Pinch Point Spacing and Posion.........................6-3
6.10 Wheel Fillers.........................................................6-3
6.11 Scrapers................................................................6-4
6.12 Paddles.................................................................6-4
6.13 Apron Chain….......................................................6-4
6.14 Grabroll Bed..........................................................6-5
6.14.1 Front Grabroll Bed.............................................6-5
6.14.2 Rear Grabroll Bed..............................................6-5
6.15 Extended Jump Chain Opon...............................6-5
6.16 Wheel Opon.......................................................6-6
6.17 Scrub Chain...........................................................6-6
6.18 Elevator Chain.......................................................6-6
6.19 Steering Axles………………………………………….…………6-7
6.20 Machine Shutdown………………………………….………..6-7
7.0 ADJUSTMENTS……….................................................7-1
7.1 Row Finder..............................................................7-1
7.2 Front Hitch..............................................................7-2
7.3 Manual Rear Leveling (Non-ADC)...........................7-2
7.4 Pinch Point Posion................................................7-3
7.5 Pinch Point Width...................................................7-4
7.6 Wheel Fillers……………………………………….………..…….7-5
7.6.1 Adding Center Mount Wheel Fillers……...............7-5
7.6.2 Adding Rim Mount Filler Tabs.............................7-5
7.7 Scrapers..................................................................7-6
7.7.1 Top Scraper..........................................................7-6
7.7.2 Boom Scraper....................................................7-6
7.8 Paddle Sha Posion…...........................................7-6
7.9 Paddles...................................................................7-7
7.10 Apron Chain..........................................................7-8
7.10.1 Apron Chain Tension..........................................7-8
7.10.2 Replacing Apron Chain.......................................7-9
TABLE OF CONTENTS

v
7.11 Front Drive Belt..............................................7-10
7.11.1 Belt Tension……………………..………………………7-10
7.11.2 Replacing Belt…...........................................7-10
7.12 Front Grabroll Spacing....................................7-11
7.13 Front Grabroll Height.....................................7-11
7.14 Grabroll Speed................................................7-12
7.15 Rock Trip Spring..............................................7-13
7.16 Rear Grabroll Height.......................................7-13
7.17 Rear Grabroll Spacing.....................................7-14
7.18 Grabroll Bed Angle.........................................7-15
7.19 Rear Drive Belt................................................7-15
7.19.1 Belt Tension.................................................7-15
7.19.2 Replacing Belt..............................................7-15
7.20 Reverse Grabroll………………………………………….7-16
7.20.1 Installing Reverse Grabroll Kit…………………..7-16
7.21 Roller Chain Tension and Replacement…..…..7-17
7.21.2 Paddle Sha Chain………………………………..….7-17
7.21.2 Jump Chain……………………………………………….7-18
7.21.3 Grabroll Bed Chain……………………………………7-18
7.21.4 Drive Chain and Apron Sha Chain…………..7-18
7.22 Slip Clutches………………………………………………..7-19
7.23 Rear Scrub…………………………………………………..7-20
7.23.1 Scrub Speed……………………………………………..7-21
7.24 Head Sha Sprocket Dimensions………………...7-21
7.25 Rear Wheel………………………………………………….7-22
7.25.1 Wheel Speed/Conveyor Speed……………...7-22
7.25.2 Wheel Drive Chain Tension……………………...7-22
7.26 Elevator………..……………………………………………..7-23
7.26.1 Elevator Chain Speed………………………………..7-23
7.26.2 Elevator Height………………………………………...7-23
8.0 TRANSPORTATION...............................................8-1
8.1 Warning Lights....................................................8-1
8.2 Preparing for Transport......................................8-1
8.3 Wheel Opon.....................................................8-1
9.0 CLEANING…..........................................................9-1
9.1 Row Finder.........................................................9-1
9.2 Lier Struts and Paddles.....................................9-1
9.3 Grabrolls.............................................................9-1
9.4 Apron Shas.......................................................9-2
9.5 Rear Scrub..........................................................9-2
9.6 Beet Tank….........................................................9-2
10.0 STORAGE..........................................................10-1
10.1 End of Season.................................................10-1
10.2 Beginning of Season.......................................10-1
11.0 LUBRICATION AND MAINTENANCE................11-1
11.1 General Maintenance Informaon.................11-1
11.1.1 Grease Type.................................................11-1
11.2 U Joints...........................................................11-1
11.3 Hydraulic Oil Tank Level…..............................11-1
11.4 Drive Belt….....................................................11-2
11.5 Lier Strut Hubs.............................................11-2
11.5.1 Torquing Spindle Nut ..................................11-2
11.6 Gearbox Oil Level ..........................................11-3
11.7 Breather Cleaning...........................................11-3
11.8 Slip Clutch Maintenance.................................11-4
11.9 Hook Rod Chains…….......................................11-4
11.10 Servicing Intervals........................................11-5
11.11 Lubricaon Chart..........................................11-6
11.12 PTO Driveline Servicing................................11-9
12.0 TROUBLESHOOTING........................................12-1
13.0 Acve Depth Control (ADC)………………………….13-1
13.1 ISOBUS ADC Operaon Introducon….……...13-1
13.1.1 Terminology…………………………………………….13-1
13.1.2 Safety……………………………………………………...13-2
13.1.3 Sokey Denions…………………………………..13-3
13.1.4 Main Page……………………………………….………13-4
13.1.5 Diagnoscs Page………………………….….………13-8
13.1.6 Sengs Page…………………………………...……..13-9
13.1.7 Acve Alarm Page………….……….………..……13-12
13.1.8 Using ADC…………………………………….…….…13-14
13.1.9 Alarm Informaon………………………..……….13-16
14.0 APPENDICES………………………………………………...14-1
14.1 Conversions ...................................................14-1
14.2 Trantorque Installaon Procedures….............14-1
14.3 Belted Chain Splice Procedure.......................14-2
14.4 Tools...............................................................14-3
14.5 Tapered Hub/Sprocket Installaon….............14-3
14.6 Torque Wrench Eecve Length……..............14-4
14.7 Easy Lock Assembly and Removal…...............14-5
14.8 Torque Chart……………………………………………….14-6
TABLE OF CONTENTS

1-1
1.0 INTRODUCTION
1.1 General Informaon
Read this manual carefully to learn how to operate and service your machine correctly. Failure to read
this manual can result in personal injury or equipment damage.
This manual is a permanent part of your machine and should remain with the machine when you sell it.
Measurements in this manual are given in both customary U.S. units and metric equivalents. Use only
correct replacement parts and fasteners. Metric and inch fasteners require appropriate tools to install.
NOTE: Right- and le-hand sides are determined by facing in the direcon the implement will travel
when moving forward.
1.2 Serial Number
Record the serial number, model number, and model year of your harvester to help trace the machine
in the event that it is stolen. Your dealer also needs these numbers for all warranty claims and for
when you order parts.

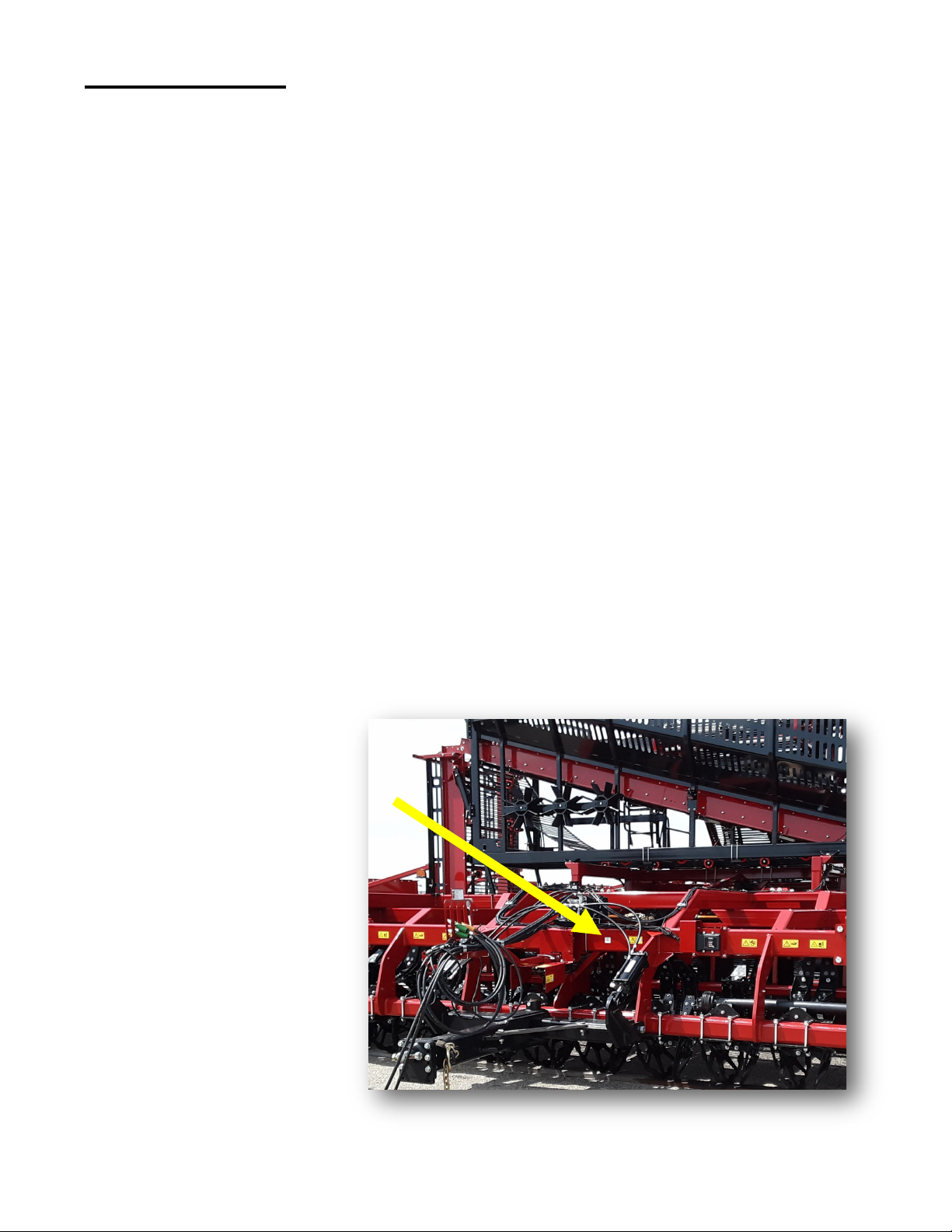

The harvester serial number is found on the serial number plate, which is located on the front of the
machine as shown in Figure 1-1.
Record your serial number, model number, and model year in the space provided below.
Serial Number:
__________________________
Model Number:
__________________________
Model Year:
__________________________
Figure 1-1: Serial Number Plate Locaon

2-1
2.0 SAFETY
2.1 Recognizing Safety Informaon in Manual
Figure 2-1 is the safety-alert symbol. When you see this symbol on your
machine or in this manual, be alert to the potenal for personal injury.
Follow recommended precauons and safe operang pracces.
2.2 General Safety
You are responsible for the safe operaon and maintenance of your Amity implement. You and anyone
else who will operate, maintain, or work around the machine should be familiar with the operang and
maintenance procedures and safety informaon in this manual.
Safety pracces protect you and the people around you, so make them a working part of your safety
program.
Equipment owners must give operang instrucons annually to operators or employees before allow-
ing them to operate the machine, per OSHA regulaon 1928.57.
The most important element of safety for this equipment is a safe operator. It is the operator’s respon-
sibility to read and follow all safety and operang instrucons in the manual. All accidents can be avoid-
ed.
A person who has not read and understood all operang and safety instrucons is not qualied to op-
erate the machine. An untrained operator exposes himself and bystanders to serious injury or death.
Do not modify the equipment in any way. Unauthorized modicaon may impair the funcon or safety,
or both, and could alter the life and warranty of the product.
The following list is a set of safety guidelines to adhere to:
1. Read and understand the Operator’s Manual and all safety signs before operang, maintaining, or
adjusng the machine.
2. Install and properly secure all shields and guards before operang.
3. Have a rst-aid kit available and know how to use it.
4. Have a re exnguisher available and know how to use it.
5. Clear the area of people and remove foreign objects from the machine before starng and oper-
ang.
6. Shi to park, disengage PTO, lower machine to ground, relieve hydraulic pressure, stop engine, re-
move ignion key, and wait for all moving parts to stop before servicing, adjusng, repairing, or dis-
connecng.
Figure 2-1: Safety-Alert Symbol

2-2
7. Annually review safety guidelines with all operators.
8. Wear suitable ear protecon for prolonged exposure to excessive noise.
Think SAFETY! Work SAFELY!
2.3 Maintenance and Operang Safety
1. Read and understand all informaon contained in the Operator’s Manual regarding maintenance,
adjustment, and operaon of the machine.
2. Shi to park, disengage PTO, lower machine to ground, relieve hydraulic pressure, stop engine,
remove ignion key, and wait for all moving parts to stop before servicing, adjusng, repairing, or
disconnecng the machine.
3. Keep hands, feet, clothing, and hair away from all moving and/or rotang parts.
4. Ensure that all tractor controls are in neutral before starng.
5. Never wear ill-ng, baggy, or frayed clothing when working on or around the machine.
6. Make sure that all guards and shields are properly installed and secured before operang the ma-
chine.
7. Clear the area of all bystanders, especially children, when carrying out any maintenance or making
adjustments on the systems or components.
8. Place stands or blocks under the frame before working beneath the machine.
9. Do not allow riders on the implement or tractor during eld operaon or transport.
10. Never operate the machine inside a closed building.
11. Stay away from overhead obstrucons and power lines during setup and operaon. Electrocuon
can occur without direct contact.

2-3
2.4 Hydraulic Safety
1. Always place all tractor hydraulic controls in neutral before dismounng.
2. Make sure that all components in the hydraulic system are kept in good condion and are clean
and ght.
3. Replace any worn, cut, abraded, aened or crimped hoses and metal lines.
4. Do not aempt any makeshi repairs to the hydraulic lines, ngs, or hoses by using tape,
clamps, or cements. The hydraulic system operates under extremely high pressure. Such repairs
may fail suddenly, creang a hazardous and unsafe condion.
5. Wear proper hand and eye protecon when searching for a high-pressure hydraulic leak. Use a
piece of wood or cardboard as a backstop instead of hands to isolate and idenfy a leak.
6. If injured by a concentrated high pressure stream of hydraulic uid, seek medical aenon imme-
diately. Serious infecon or toxic reacon can develop from hydraulic uid piercing the skin’s sur-
face.
7. Before applying pressure to the system, make sure all components are ght and that lines, hoses,
and couplings are not damaged.
8. On self-contained hydraulic systems, make sure that shut o valves are in open posion before
engaging PTO.
2.5 Transport Safety
1. Read and understand all informaon in the Operator’s Manual regarding procedures and safety
when operang the machine in the eld or on the road.
2. Make sure the Slow Moving Vehicle (SMV) emblem and required lights and reectors are in place,
clean, and can be seen clearly by all overtaking and oncoming trac.
3. Do not allow riders on any part of the machine during either eld operaon or travel.
4. Aach the machine to the tractor using only a drawbar pin with provisions for a mechanical re-
tainer.
5. Always aach a safety chain.
6. Always use hazard warning ashers when transporng unless prohibited by law.
7. Always move all parts of the machine to transport posion when travelling on a road.
8. Stay away from overhead obstrucons, such as power lines.
9. For max transport speed on smooth roads, see secon 3.3.

2-4
2.6 Safety Decals
The types of decals on the equipment are shown in the illustraon below. Proper safety requires that
you familiarize yourself with the various safety decals, the type of warning, and the area, or parcular
funcon related to that area, that requires your safety awareness.
REMEMBER: If safety decals have been damaged or removed, become illegible, or parts are replaced
without decals, then new decals must be applied. New decals are available from your authorized deal-
er.
PN: 9971011
Hazard: Moving Parts
Avoidance: Keep hands, feet, hair, and cloth-
ing away from moving parts.
PN: 303265
Hazard: Crushing from Above
Avoidance: Never crawl or work under ma-
chine unless it is properly sup-
ported.
PN: 9971013
Hazard: Moving Parts
Avoidance: Keep shields and doors in place at
all mes when operang the ma-
chine.
PN: 9971021
Hazard: Electrical Shock
Avoidance: Stay clear of overhead power
lines and other obstrucons.

2-5
PN: 997867
Hazard: High Pressure Fluid
Avoidance: Relieve pressure on system be-
fore repairing, adjusng, or dis-
connecng. Wear proper hand
and eye protecon when search-
ing for leaks. Use wood or card-
board instead of hands. Keep all
components in good repair.
PN: 997859
Hazard: General Safety Alert
Avoidance: Shut o engine and remove key
before performing maintenance
or repair work.
PN: 303277
Hazard: Falling o Machine
Avoidance: Do not climb on the machine.
PN: 997861
Hazard: General Safety Alert
Avoidance: Read and understand the Opera-
tor’s Manual before operang the
machine.
PN: 9971015
Hazard: Falling o Machine
Avoidance: Do not climb on the machine.
PN: 303263
Hazard: Geng Limbs or Clothing
Stuck in Machine
Avoidance: Keep hands, feet, hair, and cloth-
ing away from moving parts.

2-6
PN: 9971025
Hazard: Crushing from Above
Avoidance: Stay clear of this area while en-
gine and machine are operang.
PN: 303268
Hazard: Rotang Part
Avoidance: Keep clothing, yourself, and oth-
ers clear.
PN: 303267
Hazard: Rotang Flails
Avoidance: Do not approach machine unl
ail rotaon has stopped.
PN: 307165
Hazard: Flying Debris
Avoidance: Keep top door closed when ails
are rotang.
PN: 311206
Hazard: Whole Body Entanglement
Avoidance: Do not remove safety shield while
engine is running.
PN: 997863
Hazard: Electrical Shock
Avoidance: Keep the machine clear of over-
head electrical power lines.

2-7
PN: 311207
Hazard: Pinch Point
Avoidance: Keep hands clear of any moving
parts around the pinch point.
PN: 997841
Hazard: Crushing from Moving Parts
Avoidance: Stay clear of this area while en-
gine and machine are operang.
PN: 997853
Hazard: Negave Tongue Weight
Avoidance: Stay clear of the tongue when dis-
connecng the implement from
the tractor. Read the Operator’s
Manual or safety informaon and
operang instrucons before op-
PN: 997857
Hazard: Loss of Machine Control
Avoidance: Install the safety chains when
aaching the implement to the
tractor. Read the Operator’s Man-
ual for safety informaon and op-
erang instrucons before oper-

3-1
3.0 SPECIFICATIONS
3.1 Harvester Specicaons
3.3 Tracon
Front wheel assist (or four wheel drive) is recommended when pulling a harvester. In addion, front
and/or rear weights may be necessary for balance, tracon, and steering.
Table 3-1: Harvester Specicaons
Scrub Wheel
Weight (Approx.) 45,000 lbs [20,400 kg] 45,500 lbs [20600 kg]
Tank Capacity 4.5 tons [4085 kg] 4.5 tons [4085 kg]
Recommended Working Speed 3-5 mph [4.8-8.1 kmh] 3-5 mph [4.8-8.1 kmh]
Transport Width (with boom down) 25’ 4” [7.7 m] 25’ 4” [7.7 m]
Operang Width (with boom up) 32’ 8” [9.9 m] 32’ 8” [9.9 m]
Length 32’ 4” [9.8 m] 28’ 4” [8.6 m]
Transport Height (with boom down) 14’ 11” [4.4 m] 14’ 11” [4.4 m]
Operang Height (with boom up) 15’ 11” [4.8 m] 15’ 11” [4.8 m]
Scrub Wheel
Minimum Horsepower 250 hp [186.5 kw] 250 hp [186.5 kw]
Minimum Weight 30,000 30,400
PTO Output 1000 RPM 1000 RPM
Spline Size 1-3/4 in (20 spline) 1-3/4 in (20 spline)
Vercal Drawbar Load Est. 8000 lbs [3629 kg] 8500 lbs [3856 kg]
Minimum Hydraulic Capacity 30 GPM [114 L/m] 30 GPM [114 L/m]
Hydraulic Pressure 2700 PSI [18.6 Mpa] 2700 PSI [18.6 Mpa]
Number of Remotes 5 remotes or 4+ Power Beyond 5 remotes or 4+ Power Beyond
Table 3-2: Tractor Specicaons
3.2 Tractor Specicaons
Tire Size Tire Pressure Lug Nut Torque Max Transport Speed
710/70R38 46 PSI [3.2 bar] 400-450 ft-lb [542.4-610.2 N·m] 25 mph [40 kph]Non-Steerable Axle
600/60R30.5 55 PSI [3.8 bar] 400-450 ft-lb [542.4-610.2 N·m] 25 mph [40 kph]Steerable Axle
900/60R32 37 PSI [2.6 bar] 400-450 ft-lb [542.4-610.2 N·m] 25 mph [40 kph]Non-Steerable Axle
30” x 67” track —See Track Manual 25 mph [24 kph]Track Axle
Table 3-3: Tire Size, Pressure, and Lug Nut Torque
NOTE: Make sure to use hydraulic motor case drain where it applies.
NOTE: When operang with power beyond, use a load sense line to reduce the risk of damaging com-
ponents.

3-2
3.4 Hydraulic Flow Rates
Each hydraulic circuit for the harvester has a designated ow rate; approximate values are listed in
the table below.
NOTE: Values listed are a good starng point; however, ow rates should be ne-tuned to allow the
smallest ow rate possible while sll providing enough power to run harvester properly.
Table 3-4: Hydraulic Flow Rates
Circuit Standard Metric
Beet Tank Elevator 10 gpm 37.9 L/m
Row Finder (Open Center) 8 gpm 30.3 L/m
Hitch Li 10 gpm 18.9 L/m
Rear Li (non-ADC) 10 gpm 37.9 L/m
Oponal—Jump Chain 20 gpm 75.6 L/m
Oponal—Grabroll Bed Leveling 5 gpm 11.4 L/m
Oponal—Acve Depth Control (Closed Center) 16 gpm 22.7 L/m
Oponal—Wheel Drive (Wheel Machines Only) 20 gpm 75.6 L/m

4-1
4.0 PREPARATION
4.1 Tractor Preparaon
4.1.1 Adjusng the Drawbar: It is recommended
that the tractor drawbar be set to the shortest
posion and be within the given range (in accord-
ance with ANSI/ASABE AD6489-3) to maintain the
integrity of the drive system. Dimensions are
shown in Figure 4-1.
IMPORTANT: Ensure the driveline remains within operang range under all condions.
4.1.2 Tire Spacing and Inaon: Tires should be inat-
ed to the manufacturer’s specicaon. See Secon 3.3,
Tracon, for more informaon. Figure 4-2 shows the
appropriate re spacing.
A = 4 * B
B = Row Spacing
C = Tire Width; must be as narrow as possible.
IMPORTANT: Tires must be narrow enough not to contact beets when driving down rows while sll
providing enough tracon to pull the harvester.
NOTE: The Front res must be aligned with the rear res.
4.1.3 Three-Point Hitch Posion: Three-point hitches cannot be
connected to the hitch when using an Amity beet harvester. It
must be fully raised or removed.
NOTE: Amity recommends removing three-point hitches.
CAUTION: Ensure the receiver and drawbar support arms clear the PTO driveline under all condi-
ons.
Figure 4-1: Drawbar Range
Figure 4-2: Tire Spacing
Figure 4-3: Fully Raised Three-Point Hitch

4-2
4.2 Harvester Preparaon
4.2.1 Lier Strut Spacing: Verify that the spacing
matches the spacing of the planted crop as shown
in Figure 4-4.
A = B/2 Center of frame to center of strut
B = Row spacing
C = Space appropriate for size of beets. (This
space is the pinch point.)
NOTE: Refer to Secon 6.9, Operang the Har-
vester, for pinch point spacing guidelines.
4.2.2 Hydraulic Tank Oil Level and Valve Posion: Re-
fer to secon 11.0, Lubricaon and Maintenance, for
the service schedule, oil type, and lter replacement
info. “Full Cold Line” on the decal should be at the di-
mension shown in Figure 4-5.
CAUTION: Valves (1 & 2) must be open prior to
engaging the PTO or system failure will occur. Valves in
Figure 4-5 are shown in the open posion.
4.2.3 Scrub Control Box Wiring and Locaon: The scrub control box must
be correctly wired and securely fastened in the tractor cab. The correct
wiring is as follows:
White or Red wire: 12V Posive
Black wire: 12V Negave
NOTE: Locate the scrub box in a safe and secure locaon away from poten-
al liquid spills.
ABC
Figure 4-4: Lier Strut Spacing
Figure 4-5: Hydraulic Oil Level
Figure 4-6: Scrub Control Box

4-3
The preferred method for aaching the con-
trol box to the tractor is to use a 12V switched
source as shown in Figure 4-7.
When a 12V switched source is not available,
an alternave way to aach the control box is
shown in Figure 4-8.
NOTE: Figure 4-7 shows the preferred method of
aachment and should be used if at all possible.
CAUTION: When using the connecon
method shown in Figure 4-8, the control must be
disconnected when not in use.
Aer wiring the control box to the tractor, the
harness on the harvester must be wired to the
actuator switch as shown in Figure 4-9.
4.2.4 Shield Placement: Before starng, be sure to secure the
shields in operang posion (closed posion).
4.2.5 Gearbox Oil Level: Check all gearbox oil levels before operang.
Refer to secon 11.0, Lubricaon and Maintenance, for oil type and ll
level informaon.
Figure 4-7: Preferred Wire Aachment Method
Figure 4-8: Alternave Wire Aachment Method
Figure 4-9: Wiring Harness to Actuator
Figure 4-10: Gearbox

4-4
4.2.6 Greasing: Refer to secon 11.0, Lubricaon and Maintenance, for grease type and frequency re-
quirements.
IMPORTANT: Use only hand-held grease guns. Air-powered grease guns can damage your seals. Over
greasing may also damage bearing seals. If damage due to over greasing occurs, replace the damaged
seals immediately.
4.2.7 Aaching PTO to Harvester:
1. Remove the spring pin on the shield.
2. Slide the shield forward.
3. Connect the PTO to the spline sha.
4. Lock the PTO in place using two 5/8 inch bolts and nuts.
5. Slide and lock the shield into place.
4.2.8 Raising Boom: Once in the eld, follow the steps below before liing beets.
1. Raise the boom.
2. Set the boom to the desired height by locking pins to one of the 4 holes on the support struts.
3. Lower the boom onto the pins to relieve hydraulic pressure on the hydraulic cylinders.
4. Move the selector valve to the elevated posi-
on.
Figure 4-11: Aaching PTO to Harvester
Figure 4-12: Lied Boom
