AMOG D'AVINO 120TW User manual

DUMPER
120TW
ManualediUso
UserManual
Manueld’Utilisation
ManualdeUso
AMOGsrl–ViaPadulan.229/231– 80031Brusciano(NA)Italia– P.IVA 05818590639
Tel.0816588361–Fax0818863398–e‐mail:[email protected]– http://www.davinomixer.com
Ed.04/Rel.04

DAVINO 120TW - USER AND MAINTENANCE MANUAL Rev.04 - Pag. 1

DAVINO 120TW - USER AND MAINTENANCE MANUAL Rev.04 - Pag. 2
It is important to read this manual thoroughly and thoroughly
understand it well before starting any type of operation and/or
intervention on the machine.
The machine must only be used and operated by previously
instruced personnl on the vehicle and its safety regulations, as well
as be allowed to operate with the machine itself.
Therefore, it is the duty of the Operator and those who are in charge
of maintenance before starting work or maintenance to read and
understand what is described and to know and familiarize with all
the controls of the machine in order to avoid situations of danger
for themselves and for others.

DAVINO 120TW - USER AND MAINTENANCE MANUAL Rev.04 - Pag. 3
INDEX
INTRODUCTION………………………………………………………………………………………..…..……....
5
Chapter 1
GENERAL INFORMATION………………….………………….……………………….….……..
8
1.1
SYNOPTIC TABLE.……………………………………………..………….………..……...……...
8
1.2
DIRECTION REFERENCE…………..………………………….…………….……..….……..….
10
1.3
IDENTIFICATION OF THE MACHINE.………………...…….…………………… ..….………..
11
1.4
MANUFACTURER…………………………………...………………………………..………...….
11
1.5
TECHNICAL SUPPORT REQUEST……………………………………………………………...
11
Chapter 2
TECHNICAL FEATURES……..……………………………………………………………..…….
12
2.1
TECHNICAL PRESENTATION OF THE MACHINE...……..……………………………..…….
12
2.2
FIGURE……………………………………………………………...………………………...…….
15
2.3
REGULATIONS…………………………………………………………………………………..….
16
2.4
CONFORMITY CERTIFICATE CE…..…………………………………………………………….
17
Chapter 3
SAFETY PRECAUTIONS...…………….………...……………………………..…………………
18
3.1
PRECAUTIONS FOR USE…………………………………………………………………..……..
18
3.2
PRECAUTIONS AGAINST RESIDUAL RISKS..…………………………………………..…….
26
3.3
PRECAUTIONS IN MAINTENANCE.……………………………………………………..………
31
3.4
STICKERS……………………………………………………………………………………..…….
35
3.5
SAFETY DEVICES…………………………………………………………………………..……...
38
Chapter 4
PRELIMINARY INSTRUCTIONS AND RUNNING-IN…………………………………..………
45
4.1
PRELIMINARY INSTRUCTIONS…………………………………………………………………..
45
4.2
RUNNING-IN…………………………………………………………………………………..……..
45
Chapter 5
INSTRUMENTS AND CHECKS……………….………………………...……………………..…
46
5.1
DRIVER’S POSITION………………………………………...…………………..........................
47
5.2
DASHBOARD……………………………………………………………...………………………...
51
5.2.1
DRIVING DIRECTION SELECTION MODE KEY………..………………………………..…….
56
5.2.2
KEY SELECTION STEERING MODE…………………………………………………………….
57
5.2.3
PARKING BRAKE KEY…………………………………………………………………….………..
57
5.2.4
MECHANICAL GEAR SHIFT KEY………………………………………………………….…….
58
5.3
CABIN INSRUMENTS………………………………………..…………………………….………
59
5.4
JOY STICK.…………..……………………………………………………..…….…………..……..
62
Chapter 6
INSTRUCTIONS FOR USE.………………….…………………………………………………….
66
6.1
PRELIMINARY CHECKS………………………………………………………….………………..
66
6.2
REFUELLING………………………………………………………………………..…..…………..
66
6.3
REFUELLING DEF..…………………………………………………………………………………
67
6.4
LEVEL CHECK………………………………………………………………………………………
67
6.5
SEAT ADJUSTMENT………………………………………………………………………...……..
68

DAVINO 120TW - USER AND MAINTENANCE MANUAL Rev.04 - Pag. 4
6.6
LATERAL MIRRORS ADJUSTMENT……………………………………………………….
69
6.7
DRIVING SEAT ROTATION……………………………………………………………………..…
69
6.8
START UP ENGINE…………………………………………………………………….…………..
69
6.9
WHEEL ALIGNMENT…………………………..…………………………………………………...
70
6.10
STARTING AND DRIVING THE MACHINE………………………………………..…………….
71
6.11
STOP OF THE MACHINE…………………………………………………………………………..
71
6.12
STOP OF THE ENGINE…………………………………………………………………………….
72
6.13
MACHINE PARKING………………………………………………………………………………..
72
6.14
USE OF THE MACHINE DOWNHILL……………………………………………..………………
72
6.15
LOAD AND UNLOAD OF DUMP…………………………………………………….…………….
73
Chapter 7
TRANSPORTING THE MACHINE ON TROLLEY…………………………………….………...
74
Chapter 8
CIRCULATION ON ROADS……………………………………………………………....……….
75
8.1
APPROVAL FOR CIRCULATION ON PUBLIC ROADS (ITALY) ……………………...………
76
Chapter 9
TOWING………………………………………………….………………………………………..…
77
Chapter 10
PRECAUTIONS FOR COLD WEATHER .……………………………………………..………..
79
Chapter 11
PRECAUTIONS FOR PROLONGED PERIODS OF INACTIVITY ……………..……..….…..
80
Chapter 12
OPERATION PHASES……………………………………………..………………………...……..
81
Chapter 13
MAINTENANCE…………………………………………………...…………………………..…....
83
13.1
INTRODUCTION……………………………………………………………………….……..…….
83
13.2
EXTERNAL VISUAL INSPECTION ………………..………………………………………..……
85
13.3
DASHBOARD SIGNALLING CONTROL…………………………………………………..……..
85
13.4
MAINTENANCE SUMMARY SHEET ……………………………………………………………..
86
13.5
OPERATIONS EVERY 8 HOURS……………………………………………………..…………..
87
13.6
OPERATIONS EVERY 100 HOURS ……………………………………………………..….…..
91
13.7
OPERATIONS EVERY 250 HOURS………………………………………………………..…….
91
13.8
OPERATIONS EVERY 500 HOURS ……………………………………………………….……..
94
13.9
OPERATIONS EVERY 1000 HOURS ……………………………………………………….……
96
13.10
ELECTRICAL COMPONENTS …….………………………….………………..….……….
99
13.11
WHEEL REPLACEMENT …………………………………………….………………...…………
104
13.12
ENGINE…………………………………………………………………………………..…………..
105
13.13
SERVICE……………………………………………………………………...……....…..…..…….
107
Chapter 14
TROUBLE SHOOTING…………………………………………………………….…………..…..
109
Chapter 15
TABLES………………………………....……………………..…………..………………….……
111
15.1
SUPPLIES TABLES …………………………………………..………………..………….….…...
111
15.2
FLUIDS AND LUBRICANTS TABLE………………………………………….………….….……
111

DAVINO 120TW - USER AND MAINTENANCE MANUAL Rev.04 - Pag. 5
INTRODUCTION
This manual has been designed to give to the customer, to
the operators and to all the persons who enter
professionally in contact with the machine, the information,
the instructions and the suggestions on the correct,
appropriate and safe use thereof, especially In order to
avoid the most common causes of accidents that may
occur during work or maintenance
In addition, compliance with the rules contained in the
manual guarantees better performance, economies in the
exercise and a longer working life of the machine.
It is therefore important to read carefully and fully this
manual and understand it well before starting any type of
operation and/or intervention on the machine
Each machine is supplied with a copy of this manual;
Together with the spare parts catalogue, it is an integral
part of the machine and must follow it in every change of
ownership until its definitive elimination from the market
Keep the manual in the cab so that it is always available. If the manual is lost or becomes unreadable (torn,
dirty pages, etc.), immediately request a new manual from the sales dealer or the manufacturer's seat
La macchina deve essere utilizzata e gestita esclusivamente da personale precedentemente istruito sul
veicolo e sulle relative norme di sicurezza, oltre ad essere autorizzato ad operare con la macchina stessa.
Therefore, it is compulsory for the operator and those who are in charge of maintenance, before starting
work or maintenance, to read and understand what is described and to know and familiarize themselves
with all the controls of the machine in order to avoid situations of danger for themselves and others.
The operator is also obliged to observe the safety and precautionary rules on accidents, as well as the rules
of the road code where the machine circulances on the road.
If this vehicle is supplied with a contract of use or rental, it is the responsibility of the owner to ensure that
the new user reads and incorporates the manual
The manufacturer reserves the right to make at any time, without the obligation to update this
documentation, any modifications that it considers convenient for the purpose of improvement
For further clarification, please contact your dealer or the manufacturer's office, who will be at your complete
disposal for any useful information.
INTENDED USE
This machine is designed and constructed solely for the transport and unloading of earth, inert materials
(sand, gravel) or other bulk materials in the limits and in the modes of the load capacities indicated in this
manual and by the manufacturer.
Any use of the machine on public roads is subject to the traffic laws in force in the country of use.
This machine must only be used by the driver and is not intended for the carriage of other persons.
No modification must be made to the machine without the permission of the AMOG, as the modification
can lead to dangers.

DAVINO 120TW - USER AND MAINTENANCE MANUAL Rev.04 - Pag. 6
UNUSED USE
Use of the machine to perform operations other than those described is strictly forbidden. Any liability of
the AMOG for any other use or failure to comly with the instructins give by the manufacturer is excluded.
It is forbidden to carry objects of any nature inside the dump or the cabin.
It is not permitted to use the machine for underground work and in potentially explosive environments. For
underground jobs, contact the AMOG firm to request the necessary requirements for machine adaptation.
Any arbitrarily made modification on the machine raises the manufacturer from any liability for possible
damages to things or people who can directly and/or indirectly derive it. The manufacturer and its
Distribution and Assistance network are not liable for damages that may result from defective operation of
components installed on the machine in the event of maintenance or repair but not approved. Therefore,
no warranty of any kind is give regarding the product manufactured or sold by the manufacturer for damage
resulting from faulty operation of unauthorized parts and/or components.
If the machine is used differently than allowed, the operator is responsible for its own safety and that of the
persons involved.
AMOG declines any liability for accidents to persons or property resulting from non-compliance
with the provisions and insructions listed in this manual and failure to comply with safety and
accident prevention regulations.
DRIVER OF THE MACHINE
Road driving is governed by the Road Code in force in the crountry of use and therefore requires a suitable
driving license.
For the use of the machine on site, the operator must have the minimum age provided by the law in force
in the relevant country.
This training must ensure that the machine is used properly, in relation to the risks that may be caused to
oneself or to other people.
Conducting any earth moving machine always requires a particular skill and technical perparation as well
as a high sens of responsibility. The operator must therefore have specific psycho-physical requirements
to be able to carry out this work. Therefore, use of these means must be reserved only to qualified
personnel. Operators must be appropriately trained in the use of the machine and be informed of any
special hazards in the workplace.
A training course is recommended that teaches the efficient and safe use of the machine and has a specific
knowledge of the operation of the engine and the hydraulic system for cleaning and maintenance.
The operation and maintenance of the machine must be limited to those persones who :
- they have a good view and perception of colors, good hearing, coordination and readiness for
refelctions;
- to be physically and mentally fit for work, able to wait for the demands associated with the operation of
the machine in its most intese use;
- abstinence from the use of the machine if you are exhausted, undifferentiated or under the influence of
drugs, alcohol or drugs that can alter or reduce your physical ability or refelxes;
- be able to properly read and understand the instructions contained in this manual in accordance with
the manufacturer’s intent;
- thye have a good capacity to evaluate weights, distances adn dimensions;
- they have the ability to drive and drive the machine in the yard;
- they have been trained in driving and maintenance, knowing the technical characteristics, maximum
dimensions, performance and limitations;
- be conscientious, attentive and sensitive to safety issues for themselves, people, animals, things, the
car and the environment;
- they know the workplace safety rules and regulations.
These people must be assigend to this task by the legal reprensentative of the owner of the vehicle.
The operator i salso resonsible for:
- do not allow anyone to approach when using the machine;
- Prevent the use of the machine by unskilled foreign personnel;
- follow daily the security procedures learned during the training;

DAVINO 120TW - USER AND MAINTENANCE MANUAL Rev.04 - Pag. 7
- to recognize and avoid potential dangers at work;
- to include the warning signs and apply the indications (see section 4.3 “Decals”)
- to inspect the machine and check its proper functioning before starting the shift;
-to communicate any problem with the operation detected before or during operation of the machine;
- to avoid undeserved or imprudent actions that might endanger their own and others’ safety;
- always use common sense and always give priority to absolute safety.
The machine is provided for use in accordance with this manual. During its use, it is reminded operators to
always adopt an alert security attitude in order to improve the overall levelof safety of the machineBefore
starting work, the operator must verify that all safety devices are active and functioning and have the
obligation to rfuse to start oeprations if there are not conditions to work safely.
AMOG assumes no responsibility for damages caused to persons, animals, porperty or
environment resulting from the use of the machine by operators who do not meet the required
requirements.
SYMBOLOGY
For a better understanding of the information provided in this manual, critical or hazardous statements are
highlighted with the following symbolism:
Indicates an imminent risk situation that, if not avoided, could result in serious injury
or even death;
Indicates a potential risk that, if not avoided, could cause minor or
minor injuries. It can also be used to prevent dangerous operations
that can cause damage.

DAVINO 120TW - USER AND MAINTENANCE MANUAL Rev.04 - Pag. 8
Chapter 1 –GENERAL INFORMATION
1.1 SYNOPTIC TABLE

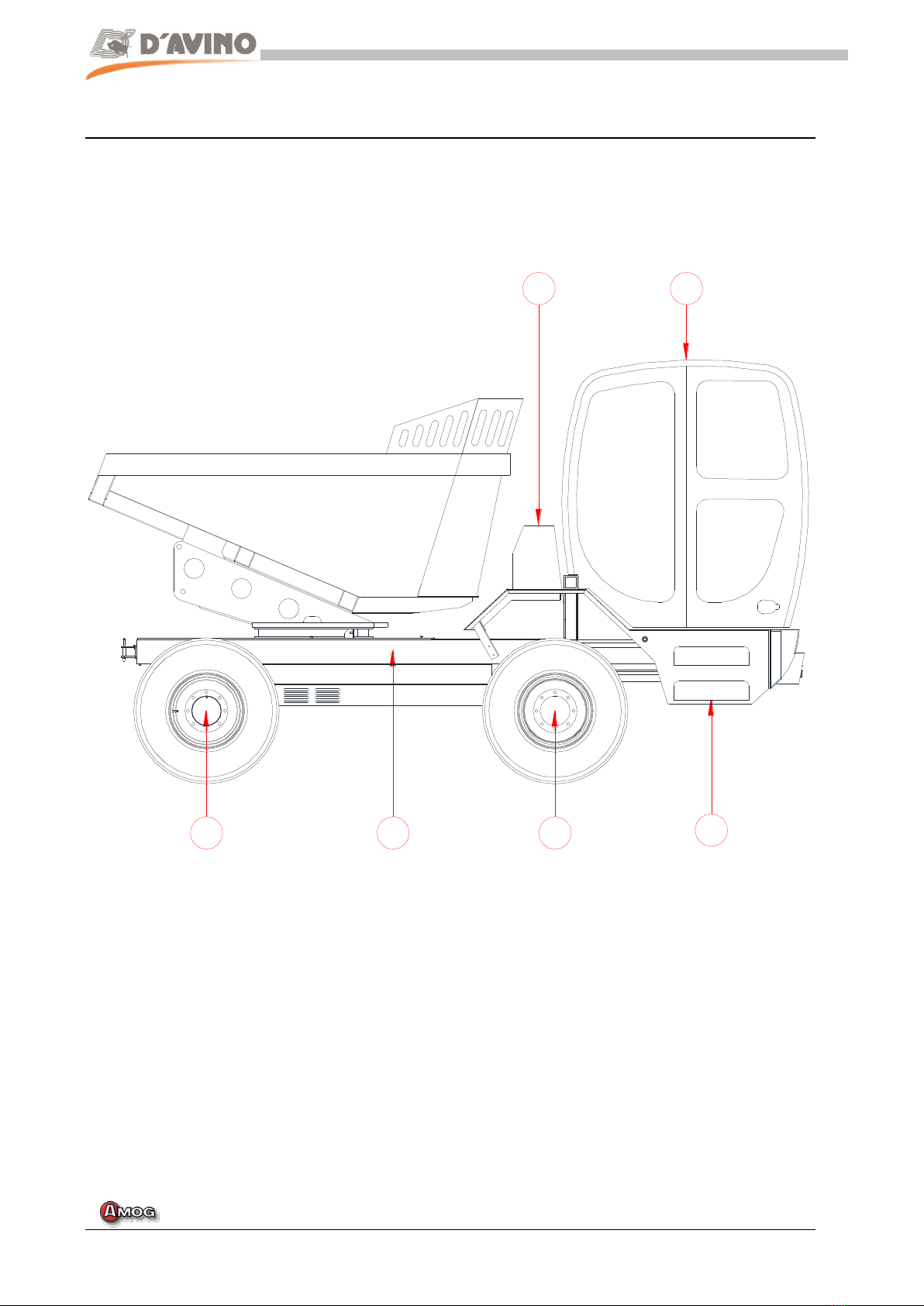

Please take time to carefully read the following legend and familiarize yourself with the basic terminology
and characteristics of the machine
6
4
2
1
3
5
2
1. Frame
2. Front Axle
3. Rear Axle
4. Right front mudguard
5. Oil tank
6. Cabin

DAVINO 120TW - USER AND MAINTENANCE MANUAL Rev.04 - Pag. 9
7
11
8
9
10 12
13
7. Dump
8. Engine hood
9. Engine
10. Battery compartment
11. Left front mudguard
12. Fuel tank
13. Swivel Frame

DAVINO 120TW - USER AND MAINTENANCE MANUAL Rev.04 - Pag. 10
1.2 DIRECTION REFERENCE
The orientation of the driving seat determines the direction of the machine.

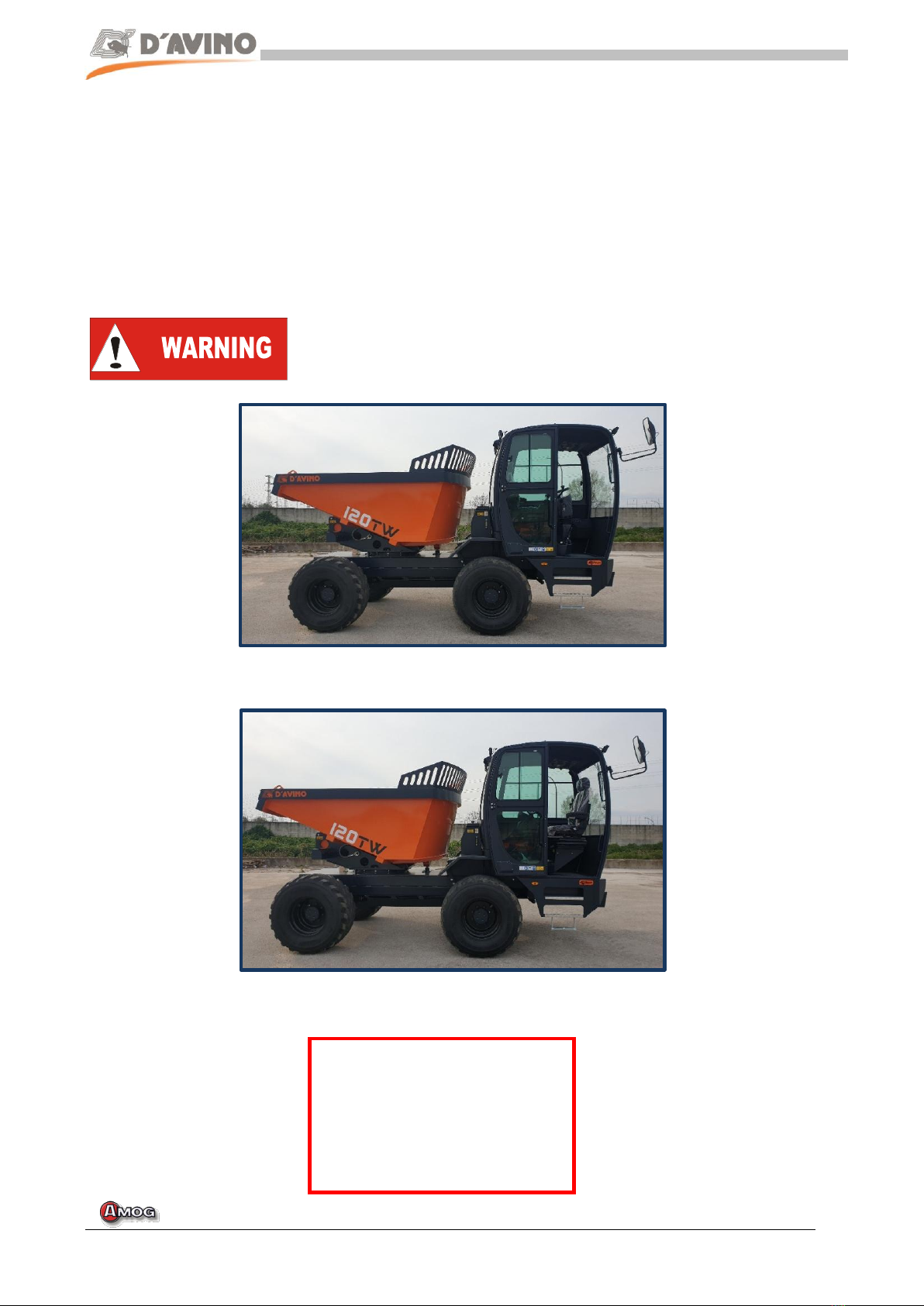

In Fig. 1 is represented the direction of advancement in TRANSFER condition (driving position facing the
front of the machine), for more or less long journeys, with or without the transport of material.
In Fig. 2, the direction of advancement in WORKING condition (driving position facing the rear of the
machine, rotated by 180 ° with respect to the transfer condition) is represented, for the operation of the
machine on site, for approaching phases and Manoeuvre for loading and unloading of material.
For traveling on the ROAD, for shorter or longer journeys, with or
without the transport of material, it is mandatory theTRANSFER
position.
is to be considered side
RIGHT or LEFT
The side corresponding to the
OPERATOR'S DRIVING
POSITION
In
TRANSFER conditon
fig.1 –TRANSFER
fig.2 –WORKING

DAVINO 120TW - USER AND MAINTENANCE MANUAL Rev.04 - Pag. 11
1.3 IDENTIFICATION OF THE MACHINE
The machine’s identifying data is stamped on to the appropriate name plate placed in the cab of the
machine:
1. Machine model
2. Number of road approval
3. Serial Number
4. Allowable loads
5. Engine power
6. Year of production
The chassis number is also written directly on the machine frame.
Other product plates are:
- ROPS/FOPS approval of the cabin
- the serial number of the engine, shown on the cylinder head or on the side of the engine
(depending on the type of engine)
- the serial numbers of the axles, shown on the axle boxes.
1.4 MANUFACTURER
The dumpers and similar commercialized models bearing the trademark D’AVINO are exclusively
manufactured at:
1.5 TECHNICAL SUPPORT REQUEST
In case of malfunctions, follow the instructions below:
Consult the TROUBLESHOOTING GUIDE in this manual.(chap.14)
If the fault could not be found or resolved using the aforementioned methods DO NOT ATTEMPT to repair
it. Such attempts may cause injury to you and or damage the machine. Contact the nearest AMOG
Assistance Center or contact us directly at:
Apart from the specifics of the fault in question, remember to have all identifying data on the machine on
hand to assist us quickly in resolving the difficulty.
Amog srl - Via Padula 229/231 - 80031 BRUSCIANO (Na) Italy
Tel. [phone]- Fax [phone]
web: www.davinomixer.com - e-mail: [e-mail]
VAT nr 05818590639

DAVINO 120TW - USER AND MAINTENANCE MANUAL Rev.04 - Pag. 12
Chapter 2 –TECHNICAL FEATURES
2.1 TECHNICAL PRESENTATION OF THE MACHINE
DESCRIPTION (ISO 7132:2003)
Trilateral rear dumping dumper –Rigid frame –N. 2 axles - N.4 wheels steering/drive –Rotating driving
seat –Max load capacity 12.000 kg
ENGINE
Manufacturer Perkins
Model 904J-E36TA
Type Diesel 4 strokes- Turbo Aftercooled
Electronic Control –Common Rail
Cylinders n°4 in line
Total displacement 3,600 l
Max power 90 kW
R.P.M. 2.400 rpm
Max Calibration Torque 500 Nm @ 1.400 rpm
Bore stroke 98 x 120 mm
Air Filter Dry cartridge
Cooling System Water
Conformity exhaust gas EU STAGE V / USA EPA Tier 4
Manufacturer Perkins
Model 1104D-44TA
Type Diesel 4 strokes –TurboAftercooled
Electronic Control –Direct Injection
Cylinders n°4 in line
Total displacement 4,400 l
Max power 83 kW (113 hp)
R.P.M 2.200 rpm
Max calibration torque 418 Nm @ 1.400 rpm
Bore for stroke 105x127 mm
Air Filter Dray cartridge
Cooling system Water
Conformity exhaust gas USA EPA Tier 3 / EU STAGE IIIA

DAVINO 120TW - USER AND MAINTENANCE MANUAL Rev.04 - Pag. 13
TRANSMISSION
Integral 4x4
N. speed front/rear 4 (2 mechanical + 2 hydraulic)
Max speed 35 km/h
Max slope 40%
Hydrostatic Transmission: “Automotive” formed by a variable displacement pump and variable motor by -
Electro-hydraulic Control for hydraulic speed selection “slow” / “fast” speed and reverse
Two-speed mechanical Reducer with electro-hydraulic control for "work" gear selection and "transfer
AXLES
Both steering with planetary reduction gears on wheel hubs
FRONT: oscillating (± 8°) with Limited Slip differential
REAR: fixed, with 100% locking differential and flanged mechanical reducer
BRAKES
SERVICE: hydraulic, inner oil-bathed power multi disc brakes on both axles, powered by a twin circuit pump
PARKING BRAKE: hyraulic, inner oil-bathed multi disc brakes on rear axle, with hydraulic command
with automatic insertion with negative cylinder.
Emergency brake assembled in the service brake.
STEERING
Hydrostatic supplied by an independent pump.
Two steering wheel (front) by a double steering cylinder
Hydraulic Power Steering Pump displacement 125 cc
Max Pump pressure max 160 bar
Power steering pump capacity 20 cc
DUMP
Reinforced with Tipping by N. 1 Telescopic Hydraulic Cylinder
Struck capacity 4.900 l
SAE heaped capacity 6.000 l
OPERATOR’SEAT
Reversible mounted on bearing and thrust bearings and rotation with electro-hydraulic control –Anatomic
Seat with elastic suspension and safety belts - Wide visibility both during transfer and working (without
cabin protection) –Thermoformed ABS steering column with electronic display and instrumentation easy
access control and easy reading –Closed cab with windshield wiper on front and rear glass.
HYDRAULIC SYSTEM
Hydraulic control valve with 2 elements
Gear pump of 26 cc for services
Gear pump of 20 cc for hydraulic steering and hydraulic brake
Hydraulic filter of 16 m
Aluminium air-oil heat exchanger with fan electric

DAVINO 120TW - USER AND MAINTENANCE MANUAL Rev.04 - Pag. 14
ELECTRICAL SYSTEM
Voltage 12 V
Battery 50 Ah (1000A)
TIRES
Front and rear 500/60 R22,5 –TWIN RADIAL
Inflation pressure 4,0 bar
DIMENSIONS
Maximum Lenght 5.325 mm
Maximum Width 2.550 mm
Maximum Height (transfer mode) 3.130 mm
Ground clearance 370 mm
Maximum angle 24°
WEIGHT
Weight 7.960 kg
ROAD STANDARDS
For full load road traffic
NOISE LEVELS
In conformity to the decree by the Italian Ministry, dated 05/08/91, appendix 2 of the Italian State Code
have established the following noise values:
With vehicle in motion (7 m) 83 dBA
With vehicle idling (7 m) 82 dBA
EQUIPMENT
Tools for ordinary maintenance
License plate
MAXIMUM PERFORMANCE
The highest level of overall machine performance is optimized for the functional testing phase before
delivery. It is recommended and absolutely forbidden to make any changes. Any alteration will result in the
global cancellation of the machine manufacturer’s, functional and ancillary equipment warranty.

DAVINO 120TW - USER AND MAINTENANCE MANUAL Rev.04 - Pag. 15

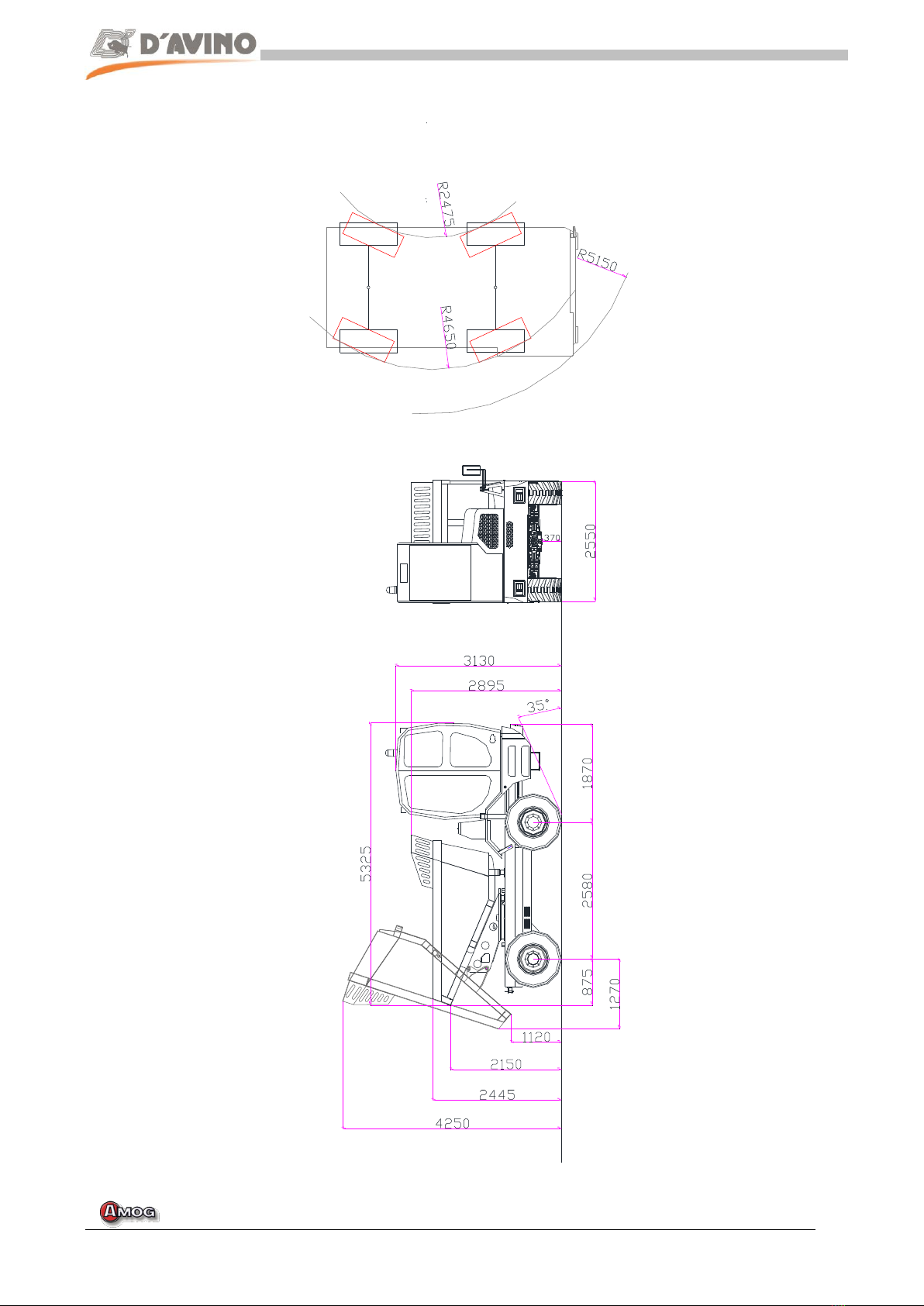

2.2 FIGURE

DAVINO 120TW - USER AND MAINTENANCE MANUAL Rev.04 - Pag. 16
2.3 REGULATIONS
The machine is built in accordance sith applicable European directives adn laws and also meets the
standards of the following standards:
MACHINE
-European Directive 2006/42 Machine safety
-Euorpean Directive 2004/108 Electromagnetic compatibility
-European Directive 2000/14 Acoustic emission
ENGINE
-EU STAGE V / EPA Tier 4
CAB
-ROPS ISO 3471
-FOPS LEVEL II ISO 3449
STANDARD QUALITY
AMOG srl is a certified company:
-ISO 9001 - 2015

DAVINO 120TW - USER AND MAINTENANCE MANUAL Rev.04 - Pag. 17
2.4 CONFORMITY CERTIFICATE CE
The machine is accompanied by a CE mark in accordance with the "essential health and safety
requirements" provided for by the Machinery Directive of the European Union, 2006/42 / EC.
Anyone who make a change that compromises the safety of the machine is responsible for the
consequences that may result from it
The CE declaration of conformity is the document signed by the manufacturer that guarantees and
certifies that the machine complies with the European regulatory provisions regarding the product. This
document is delivered together with all the documentation upon delivery of the machine, must be kept
with care and must follow the machine until it is completely taken out of service.
The declaration contains the identification data of the machine, the manufacturer and the appropriate
regulatory references. A facsimile of the EC declaration follows:

DAVINO 120TW - USER AND MAINTENANCE MANUAL Rev.04 - Pag. 18
Chapter 3 –SAFETY PRECAUTIONS
This manuali s intended to be a practical and rational guide for proper machine use to avoid the most
common causes of accidents that may occur during work and maintenance.
It is therefore important:
- carefully read this manual before proceeding to start up, use, maintenance supplies or other work;
- to know perfectly the functions of all the controls and stability of the vehicle before starting work;
- read and observe all SAFETY STANDARDS in the following manual before any intervention.
The safety of the operator and those operating near the machine depends on the prudence and judgment
in the proper use of the machine itself.
3.1 PRECAUTIONS FOR USE
PERSONAL PROTECTIVE EQUIPMENT (P.P.E.)
Operators must wear suitable suits for yard work.
Do not wear loose or dangling clothing such as tieds, scarves, unbuttoned jackets, open zip garments,
wrists widened sleeves, which can get caught in moving parts.
Avoid wearing rings, wrist watches, jewels.
Below are the main individual protective devices (P.P.E.) required for work on site :
- Helmet
- non-slip shoes
- protective goggles
- protective gloves
- noise-canceling headphones (if provided)
- Reflective clothing
- Waterproof for bad weather
- Protective mask for loads of dusty materilas.
MACHINE LIMITS
The highest performance level of the machine is defined during the functional testing phase before delivery.
Do not use the machine beyond the limits defined during the design; overcoming these limits can be
dangerous and may result in damage to the machine.
Do not try to improve machine performance with unapproved changes.
Any alteration involves the complete cancellation of the machine manufacturer’s warranty, functional and
ancillary equipment.
SECURITY DEVICES
Check all safety devices to ensure proper installation, correct operation, and possible damage.
If any irregularities are found, make any repairs.
Improper use of safety devices may result in serious accidents resulting in injury or death.
Be sure to use the safety devices correctly.
PRECAUTIONS FOR ACCESSORIES
When installing optional components or equipment, security issues maya rise. So always ask for advice
from AMOG srl.
The company does not respond to injury, accidents or malfunctions resulting from the use of unauthorized
equipment or accessories.
When installing and using accessories, read the accessory instruction manual and general accessories
information in this manual.

DAVINO 120TW - USER AND MAINTENANCE MANUAL Rev.04 - Pag. 19
TRANSLATION OF PERSON OR PURCHASES
The machine is not approved for the transportation of other persons besides the operator who must be in
the driving position of the machine.
Do not leave people outside the machine during work.
Do no allow anyone to get on the work equipment.
Do not carry persons on board the machine.
Do not use the machine for the transport of objects, except for those intended and equipped with special
attachments.
Do not use the machine as a platform or scaffolding and in no case for any function other than that specified
by the manufacturer.
GETTING ON AND OFF FROM THE MACHINE
For climbing on the vehicle, you must use the stairs and the special gates near the driving position; it is
forbidden to use the levers and the control devices.
If the car starts to move without operator inside, do not climb the car with a jump to try to stop it.
It is forbidden to go up or down the machine when it is in motion.
Get out of the machine only when it is completely stopped and stable.
Do not climb or get out of the machine by jumping or holding tools.
Go uphill or get off the driver’s seat or from other raised parts always facing the engine; to ensure the
support always hold both hands and a foot or both feet and a hand positioned on the steps and handrails.
Do not climb on the engine hood or other parts of the machine.
DRIVER’SEAT
Before entering the operator’s cab, always, remove mud and oil from the sole of the shoes. If you operate
the pedal with mud or oil under the sole of the shoe, your foot could slip, causing accidents.
Keep the area around the operator seat clean.
Do no put any object at the foot of the operator seat or around the pedals, and do not hang anything on the
control levers. The latter could be unintentionally driven, causing uncontrolled displacement of the machine
or the operation of the work equipment, and therefore of danger situations.
Arrange items that are not necessary for driving operations in the place they are intended for.
Do no bring objects into the pockets that may fall into the open compartments of the machine.
Always keep the guide spot away from foreign objects, especially if not secured.
Do no leave components or tools scattered in the operator’s cab.
Do not use mobile phones in the operator’s cab while driving or operating the machine.
Never bring hazardous objects into the operato’rs cabine, for example inflammable or explosive objects.
CABIN/OPERATOR PROTECTION
Do not modify, repair, or remove the operator’s protective structure. The protection offered by the cab/roof
would be compromised, creating a risk that could result in death or serious injury to people if structural
damage or modifications (welding, drilling, etc.) could result.
The protective structure, the operator seat, the seat belt and all the uprights must be carefully checked after
accidents.
Replace all parts that show signs of damage. The spare parts used must be original, as indicated in the
Parts Catalog.
ROPS STRUCTURE
The ROPS structure serves to protect theoperator and to reduce the impact energy in case of overturning
the machine.
The ROPS structure is an integral part of the cabin.
The ROPS structure conforms to the regulations for the type of machine. If it is damaged, repaired or
modified without permission, its deformability may change. In that case it is no longer able to perform its
function properly and must be replaced.
