Amperes ZS5602 User manual

Thank you for choosing another quality product from Amperes Electronics.
ZS5602isusedforuninterruptedpaginginstallation,inwhichpagingtocertainzonesshallnotinterruptotherzonesthatisinBGM
mode.
Beinga verymaturedproduct, ZS5602 hasbeen used widelyandaccepted asareliable and trustworthycomponentin anyinstal-
lation.Continuous productimprovementpolicybyAmpereswhich meansconstantproductupgradehadmade itaworthwhileitem
with reasonable cost to invest in.
Pleaseread throughthemanualtoavoid unnecessary mistakesduring installationandweassurethat youaregettingtheproduct
of your choice .. simply essential and truly reliable.

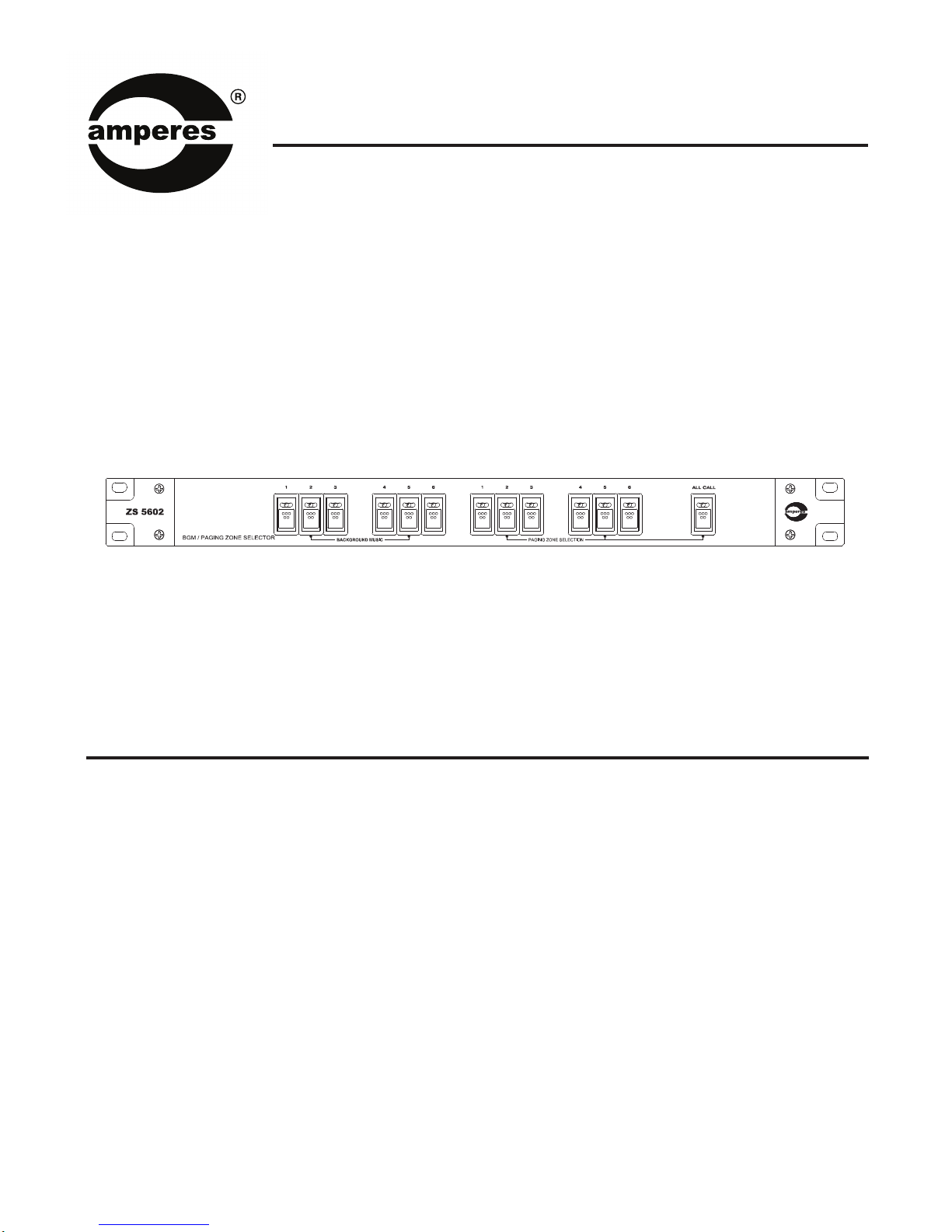

INSTRUCTION MANUAL
ZS5602
6 Channel Uninterrupted Paging
Speaker Zone Selector
VER 4 /2015

23
56
48
7
1
Front View
Rear View
9
Parts Identification
PAGE 2 ZS5602 | UNINTERRUPTED PAGING SPEAKER ZONE SELECTOR
1. BGM FRONT PANEL ZONE SWITCH
Theseswitchesare forselectingzonesforBGMbroadcasting.SelectionofBGMzonescanonlybemadeatthese switches
and not from remote control panel.
2. PAGING FRONT PANEL ZONE SWITCH
3. ALL CALL PAGING SWITCH
4. DC POWER INPUT
This equipment operates using 24V DC supply with 1A rating. Should external overriding of volume controllers is
required, we suggest that a larger rating of supply is used, such asAmperes PS9400.
Topage,usetheseswitchesandoncepressed,itshalloverridethecorrespondingBGMzonestoallowpaging tobebroad-
casted. A 24V DC signal of the zone would be sent out from the DC output port at the rear panel. Be sure to turnthese
zones off at the front panel if a remote mic with zone selection is installed in the system.
Pressing ALL CALL switch shall activate all zones into paging mode, thus overriding all BGM broadcast. 24V DC shall
present at all zones for emergency overriding purpose.
5. EMERGENCY OVERRIDE RELAY CONTACT
This port shall be connected to EP1200A Emergency Paging Panel. Once activated, all zones shall be in Paging
mode and a dry contact is closed to enable connections for 24V DC supply to volume controllers for overriding
purpose.
If this port is utilised, we recommend that the 24V zone DC outputs port to be ignored.
6. REMOTE SELECT PORT
This can be directly connected to TD6240 decoder or PM1000 series paging mic for remote zone selection during
paging.

Parts Identification
ZS5602 | UNINTERRUPTED PAGING SPEAKER ZONE SELECTOR PAGE 3
7. PAGING AMP INPUTS / ZONE OUTPUTS
Paging amplifier outputs are connected to these ports. In a 4 wire system, outputs to zones also comes from these
connectors.
Please refer to “Connecting the Unit - 3 Wire System” and “Connecting the Unit - 4 Wire System” for correct set oftermi-
nation.
8. ZONE 24V DC OUTPUT
24V DC shall present when a zone is pressed for paging. This shall enable 24V to override a volume controller. Alter-
natively, it can also be used for other purpose, such as indicator in a mimic panel, notifying that paging to a particular
zone is in progress.
Note:
We suggest that this is not used in a normal system to avoid unnecessary interruption to sensitive zones during
paging. Only override the volume controllers when truly necessary such as during emergency. Use EP1200A and link to
ZS5602 instead.
9. BGM AMP INPUTS / 3 WIRE SYSTEM OUTPUTS
Connect BGM set of amplifier outputs to these ports.
In 4 wire system, no zone outputs shall be connected from here. The outputs shall only be used for 3 wireinstal-
lations. Please refer to “Connecting The Unit - 3 Wire System”

SPEAKERVOLUME
OVERRIDE
OFF
12 3 4
5
SPEAKERVOLUME
OVERRIDE
OFF
12 3 4
5
SPEAKERVOLUME
OVERRIDE
OFF
12 3 4
5
SPEAKERVOLUME
OVERRIDE
OFF
12 3 4
5
SPEAKERVOLUME
OVERRIDE
OFF
12 3 4
5
SPEAKERVOLUME
OVERRIDE
OFF
12 3 4
5
FIRE
EP1200AEMERGENCY
PAGING MIC
Volume Controllers
PM1060 / 1120
ANALOGUE MIC WITH
REMOTE TRIGGERING
ZS5602 UNINTERRUPTED
ZONE SELECTOR
From PagingAmplifiers
Single or multiple
amplifiers
BGMAmplifiers
24V
DC
Zone Outputs ( 4 wire system )
E/M
Trigger
Overriding
Cat5e Cable
( supplied )
6 zones triggering
Triggering ZS5602 can be made via PM1060 / 1120
paging mic or PD2400 / 2800 via TD6240. ( Refer to
Cascading the Unit ).
Pin connections of PM1060 / 1120 to ZS5602 :
PM1060 / 1120 ZS5602
Pin 1 to 6
Pin 7 to 12
Pin 13 ( -ve )
Pin 14 ( NC )
Pin 15 ( +ve )
Pin 1 to 6 ( Zone 1 to 6 )
to next unit Pin 1 to 6
Pin 7 ( +ve )
nil
Pin 8 ( -ve )
-ve
Connecting The Unit - 4 Wire System
PAGE 4 ZS5602 | UNINTERRUPTED PAGING SPEAKER ZONE SELECTOR
PIN 8-COM
PIN 7-24V
PIN 6-Z6
PIN 5-Z5
PIN 4-Z4
PIN 3-Z3
PIN 2-Z2
PIN 1-Z1
1RJ45 Pin configurations.
Note that All Call and PR
from remote mic shall not
be required.
8

ZS5602 can be cascaded if required in a large installation. There is no limitation on the number of units to be cascaded and
no extra link cable is required.
Connections to EP and
Volume controllers for
E/M overriding
TD6240
DECODER
ZS5602
Unit 1
(Zone 1 to 6)
ZS5602
Unit 2
(Zone 7 to 12)
ZS5602
Unit 4
(Zone 19 to 24)
Connecting the Unit - 3 Wire System
ZS5602 is suitable for both 3 and 4 wire setup. If 3 wire system is required, a little modification to the unit is required, as
illustrated below
1. Open the top casing
2. Cut the twin cables connecting the PCBs ( PCB 1 and PCB 2 )
3. Close the casing
Please make sure that the cut cable are properly insulated and do not let any loose copper strands visible that may be in
contact with the metal casing.
RELAY
RELAY
RELAY
RELAY
RELAY
RELAY
RELAY
RELAY
RELAY
RELAY
RELAY
RELAY
PCB 1 PCB 2
CUT ALL THE TWIN CABLES
REAR SIDE
Cut only when it is intended to be used in 3 wire system
Cascading The Units
ZS5602 | UNINTERRUPTED PAGING SPEAKER ZONE SELECTOR PAGE 5
Unit 3
(Zone 13 to 18)

SPEAKERVOLUME
OVERRIDE
OFF
12 3 4
5
SPEAKERVOLUME
OVERRIDE
OFF
12 3 4
5
EP1200AEMERGENCY
ZS5602
ZONE SELECTOR
PM1060 / 1120
PAGING MIC OR
PD2400 / 2800 VIATD6240
Remote
Trigger
24V DC
E/M
Trigger 3 wire
Volume
Controller
PagingAmp BGMAmp
Join Commons
for same zone only
To Speakers
Paging
Output
BGM output
Note :
Join the COM connections for the same zone, ie
Zone 1 Paging COM to Zone 1 BGM com outputs.
Use only external volume controllers suitable for 3
wire system.
Proper cabling / termination works need to be
observed in 3 wire installations. Failure to do so may
cause audio crossing to adjacent zone, or slight
leakageofsoundthrough speakerthough thevolume
controller is at off position.
SPEAKER VOLUME
OVERRIDE
OFF
12 3 4
5
Com100V
Paging 100V BGM
To Zone Speakers
3 wire
Volume Controller
Connecting The Unit - 3 Wire System
PAGE 6 ZS5602 | UNINTERRUPTED PAGING SPEAKER ZONE SELECTOR
FIRE
PAGING PANEL

Technical Data
Input voltage
Power consumption
Relay contacts
Zone load rating
DC output rating
Remote select
Amplifier inputs
Zone selections
Switching indicators
Cabling connections
Dimensions (W x H x D) mm
Weight
24V DC ; 0.5A
10W ; 0.42 atALL CALL( without volume controllers connected )
Double pole ; 5A
500W 100V line
5Aper zone
RJ45 - 6 zones
6 BGM and 6 PagingAmplifiers
6 zones via front panel / remote select
Front panel LED
Up to 2.5 mm via detachable connectors
482 x 44 x 180 mm
2.2 kg
CD PLAYER / OTHER MUSIC SOURCES
PAGING MIC
MX2222 PRE-AMPLIFIER MIXER
AMPLIFIER FOR
PAGING AMPLIFIER FOR BGM
ZS5602 ZONE SELECTOR
SPEAKERS
VOLUME
CONTROLLER
100V line 100V line 24V DC overriding
zone triggering
Paging BGM
Mixed BGM only
BGM inputs
Paging
Note :
Cascade more than 1 ut of ZS5602 if
required
Schematic Diagram
ZS5602 | UNINTERRUPTED PAGING SPEAKER ZONE SELECTOR PAGE 7
Note:
The above specifications are correct at time of printing but subjected to changes without prior notice due to product
improvements.

Warranty Conditions
Disclaimer
AMPERES ELECTRONICS SDN BHD
MADE IN MALAYSIA
Published : MAY 2015
ISO 9001: 2008
Design & Manufacture of Public Address Equipment and Systems
Certicate No. 16895 / A / 0001 / UK / En
Only Amperes Electronics Service Centres are allowed to make warranty repairs : a list of Amperes Electronics
Service Centres may be asked for by the purchaser or send directly to Amperes Electronics Sdn Bhd at 70 Jalan
Industri PBP 3, Tmn Perindustrian Pusat Bandar Puchong, 47100, Puchong, Selangor, Malaysia or its authorized
master distributor, TNT Links Sdn Bhd / MyPA Systems Sdn Bhd. This warranty is not valid if repairs are
performed by unauthorized personnel or service centres.
This warranty covers only repairs and replacement of defective parts ; cost and risks of transportation as well as
removal and installation of the product from the main system are for the account of the purchaser. This warranty
shall not extend to the replacement of the unit.
This warranty does not cover damages caused by misuse, neglect, accident of the product as well as using the
product with power supply voltage other than shown on the product, or any other power supply source / adaptor
not recommended by the manufacturer.
This warranty does not cover damages caused by fire, earthquakes, floods, lightning and every cause not directly
related to the unit.
This warranty does not include any indemnity in favor of the purchaser or the dealer for the period out of use of the
unit; moreover the warranty does not cover any damages which may be caused to people and things when using
the product.
This warranty certificate is valid only for the described product, and is not valid if modifications are made on this
certificate or on the identification label applied on the product.
This warranty covers all the material and manufacturing defects and is valid for a period of 12 months from the
date of purchase or for a longer period in countries where this is stated by a national law. In this case, the
extension is valid only in the country where the product is purchased.
Amperes Electronics Sdn Bhd is not obliged to modify previously manufactured products under warranty if the
design changes or improvements are made.
Information contained in this manual is subject to change without prior notice and does not represent a
commitment on the part of the vendor. AMPERES ELECTRONICS SDN BHD shall not be liable for any loss or
damages whatsoever arising from the use of information or any error contained in this manual.
It is recommended that all services and repairs on this product be carried out byAMPERES ELECTRONICS SDN
BHD or its authorized service agents.
AMPERES series must only be used for the purpose they were intended by the manufacturer and in conjunction
with this operating manual.
AMPERES ELECTRONICS SDN BHD cannot accept any liability whatsoever for any loss or damages caused by
service, maintenance or repair by unauthorized personnel, or by use other than that intended by the manufacturer.
