Amphenol INFINIX SPLICE User manual

Installation Guide
Installation Guide, Part Number 151657 A1

2
Amphenol Network Solutions PN 151657
All rights reserved. 10.18.2022 A3
509.926.6000 — amphenol-ns.com
InfinX Installation Guide
Installation Guide
Copyright 2022, Amphenol Network Solutions, all rights reserved.
Amphenol Network Solutions
22425 E. Appleway Ave #11
Liberty Lake, WA 99019
Amphenol Network Solutions assumes no liability from the application or use of these products. Neither does Amphenol
Network Solutions convey any license under its patent rights nor the patent rights of others. This document and the
products described herein are subject to change without notice.
About
Amphenol Network Solutions is a global innovative original equipment manufacturer that serves the data and
communications markets. We design, manufacture, and distribute products for customers who need an end-to-end
solution for network connectivity, fiber, power distribution and rack management. We collaborate with our customers to
deliver product solutions that exceed expectations with innovative designs and world class quality. Amphenol Network
Solutions is the industry thought leader on network cable management.
Technical Support
Email: [e-mail]
Phone: [phone]

3
Amphenol Network Solutions PN 151657
All rights reserved. 10.18.2022 A3
509.926.6000 — amphenol-ns.com
InfinX Installation Guide
Installation Guide
Table of Contents
1.Section One: Introduction ......................................................................................................................... 6
1.1 About This Guide ............................................................................................................................. 7
1.2 Terminology..................................................................................................................................... 8
1.3 Specifications................................................................................................................................... 8
1.3.1 Single Frame ......................................................................................................................... 8
1.3.2 Dual Frame............................................................................................................................ 8
1.3.3 Splice Drawer ........................................................................................................................ 8
2.Section Two: INFINX SPLICE Overview................................................................................................... 9
2.1 INFINX SPLICE Drawer ................................................................................................................... 9
2.2 INFINX SPLICE Drawer Components.............................................................................................. 9
2.2.1 Splice Tray............................................................................................................................. 9
2.2.2 Splice Cradle ....................................................................................................................... 10
2.2.3 Sleeve Entry Bracket ........................................................................................................... 11
2.3 Wall Mount Frame .................................................................................................................. 11
2.4 Wall Mount Splice Rack Components ..................................................................................... 12
2.4.1 Wall Mount Bracket.............................................................................................................. 12
2.4.2 Splice Rack.......................................................................................................................... 14
2.4.3 Frame Covers ...................................................................................................................... 15
2.4.4 Fiber Management and Routing........................................................................................... 15
3.Section Three: Installation Considerations.............................................................................................. 16
3.1 Unpacking...................................................................................................................................... 16
3.1.1 Pallet 1................................................................................................................................. 16
3.1.2 Pallet 2................................................................................................................................. 16
3.2 Inspection ...................................................................................................................................... 16
3.3 Installation Guidelines.................................................................................................................... 17
3.4 Location and Space ....................................................................................................................... 17
3.5 Tools and Equipment ..................................................................................................................... 17
4.Section Four: Wall Mount Frame Installation (Dual Frame Shown) ......................................................... 17
4.1 Installing the Wall Mount Bracket ................................................................................................... 17
5.Section Five: Prepping OSP and IFC Fiber Cables................................................................................. 25
5.1 Determining Correct Split Sleeve Breakouts .................................................................................. 25
5.1.1 Split Sleeve Breakouts......................................................................................................... 25
5.2 Cable Preparation.......................................................................................................................... 26
5.2.1 Fiber and Sleeve Lengths .................................................................................................... 26

4
Amphenol Network Solutions PN 151657
All rights reserved. 10.18.2022 A3
509.926.6000 — amphenol-ns.com
InfinX Installation Guide
Installation Guide
5.2.2 Strength Members Cut Lengths ........................................................................................... 26
5.3 Installing Sleeve Kits for OSP Cable .............................................................................................. 27
5.4 Installing Sleeve Kits for IFC Cable................................................................................................ 29
5.5 Installing Strength Member Bracket (Optional Accessory).............................................................. 29
6.Section Six: Routing Fiber into Frame and Splice Drawer....................................................................... 32
6.1 Routing OSP Fiber......................................................................................................................... 32
6.1.1 Routing first 6912 OSP (Splice Drawer 1-4) ......................................................................... 32
6.1.2 Routing Second OSP (Splice Drawer 5-8 and 9-12)............................................................. 35
6.2 Routing IFC cable .......................................................................................................................... 36
7.Section Seven: Installing INFINX SPLICE Drawer .................................................................................. 37
7.1 Installing INFINX SPLICE Drawer ................................................................................................. 37
8.Section Eight: Routing Fiber into Splice Drawer...................................................................................... 38
8.1 Routing Fiber ................................................................................................................................. 38
9.Section Nine: Splicing............................................................................................................................. 42
9.1 Storing Spliced Fiber...................................................................................................................... 42
10.Section TEN: Attaching the Frame Skin and Doors............................................................................... 47
10.1 Installing Frame Covers and Doors.............................................................................................. 47
List of Figures
Figure 1-1 INFINX SPLICE Single Wall Frame ...................................................................................... 6
Figure 1-2 INFINX SPLICE Dual Wall Frame......................................................................................... 7
Figure 2-1 INFINX SPLICE Drawer........................................................................................................ 9
Figure 2-2 Release Tabs ....................................................................................................................... 9
Figure 2-3 Splice Tray.......................................................................................................................... 10
Figure 2-4 Splice Cradles .................................................................................................................... 10
Figure 2-5 Sleeve Entry Brackets ........................................................................................................ 11
Figure 2-6 Wall Mount Frame .............................................................................................................. 12
Figure 2-7 Wall Mount Bracket............................................................................................................. 14
Figure 2-8 Splice Rack......................................................................................................................... 14
Figure 2-9 Frame Covers ..................................................................................................................... 15
Figure 2-10 Fiber Manager .................................................................................................................. 15
Figure 4-1Installing Top Horizontal Hanger.......................................................................................... 18
Figure 4-2 Attaching Vertical Lacing Bars ............................................................................................ 18
Figure 4-3 Installing Cable Termination Bracket................................................................................... 19
Figure 4-4 Tie down brackets (optional)............................................................................................... 19
Figure 4-5 Splice Frame Stops ............................................................................................................ 20
Figure 4-6 Installing Splice Rack.......................................................................................................... 20
Figure 4-7 Secure Splice Rack to Wall................................................................................................. 21
Figure 4-8 IFC Entry Bracket and Tie Off Brackets .............................................................................. 21
Figure 4-9 Mounting Cable Manager.................................................................................................... 22

5
Amphenol Network Solutions PN 151657
All rights reserved. 10.18.2022 A3
509.926.6000 — amphenol-ns.com
InfinX Installation Guide
Installation Guide
Figure 4-10 Securing Cable Manager .................................................................................................. 22
Figure 4-11 Hang Right Vertical Cable Manager.................................................................................. 22
Figure 4-12 Hang Second Splice Rack ................................................................................................ 23
Figure 4-13 Installing Routing Bracket (S)............................................................................................ 23
Figure 4-14 Install Door Latches and Middle Spacer Bracket............................................................... 24
Figure 4-15 Install Top and Bottom Spacer Brackets ........................................................................... 24
Figure 5-1 Sleeve Kit Installations........................................................................................................ 26
Figure 5-2 Installing Sleeve with Insertion Tool.................................................................................... 27
Figure 5-3 Taping Sleeve Ends............................................................................................................ 28
Figure 5-4 Securing Sleeves Together................................................................................................. 28
Figure 5-5 Taping Back from Ring Cut................................................................................................. 28
Figure 5-6 Securing 2” Split Sleeve...................................................................................................... 29
Figure 5-7 Strength Member Bracket ................................................................................................... 30
Figure 5-8 Installing the Strength Member Bracket .............................................................................. 30
Figure 5-9 Securing the Strength Member Bracket .............................................................................. 31
Figure 6-1 Cable Termination Bracket ................................................................................................. 32
Figure 6-2 Routing Bracket in Right Frame .......................................................................................... 33
Figure 6-3 Center Tie Off Bracket ........................................................................................................ 33
Figure 6-4 Slack Loop.......................................................................................................................... 34
Figure 6-5 Tie Off Bracket.................................................................................................................... 34
Figure 6-6 Sleeve Entry Bracket .......................................................................................................... 35
Figure 6-7 Routing Second OSP Group............................................................................................... 35
Figure 6-8 Routing IFC Cables ............................................................................................................ 36
Figure 7-1 INFINX SPLICE Drawer...................................................................................................... 37
Figure 7-2 Splice Drawer Mounting Brackets ....................................................................................... 37
Figure 8-1 INFINX SPLICE Drawer Tray Open (2 trays shown) ........................................................... 38
Figure 8-2 Routing to Opposite Side of Tray ........................................................................................ 39
Figure 8-3 Securing Sleeves to Tray.................................................................................................... 39
Figure 8-4 Tray Fully Closed Position ................................................................................................. 40
Figure 8-5 Fiber Slack Storage ............................................................................................................ 41
Figure 9-1 Splice Holder Release Tabs ............................................................................................... 42
Figure 9-2 Fiber Routing Instructions ................................................................................................... 43
Figure 9-3 Breakout Color Identification............................................................................................... 43
Figure 9-4 Fiber Slack Straight in Front ............................................................................................... 44
Figure 9-5 Rotate Cradle Stack Clockwise........................................................................................... 44
Figure 9-6 Click the Cradle Stack into Place ........................................................................................ 45
Figure 9-7 Rotate Fiber Counterclockwise ........................................................................................... 45
Figure 9-8 Apply Colored Hook and Loop ............................................................................................ 46
Figure 9-9 Storing Slack Fiber ............................................................................................................. 46
Figure 9-9-10 Completed Fiber Slack Storage ..................................................................................... 47
Figure 10-1 Side Panel Tabs ............................................................................................................... 48
Figure 10-2 Installing Frame Covers.................................................................................................... 48
Figure 10-3 Door Hinges on Cable Manager........................................................................................ 49

6
Amphenol Network Solutions PN 151657
All rights reserved. 10.18.2022 A3
509.926.6000 — amphenol-ns.com
InfinX Installation Guide
Installation Guide
1. Section One: Introduction
Amphenol Network Solutions InfinX Splice™ is a high-density fiber splice platform providing optimal fiber
protection and access in a single design and is engineered for high-capacity data center applications.
Unique slide-out trays provide easy access to optical splices.
The InfinX Splice™platform is scalable to grow with generational equipment improvements with the capacity
to splice 1728 fibers per Splice Drawer with12 Splice Drawer per frame totaling 20,736 fibers per single
frame and 41,472 fibers per dual frame.

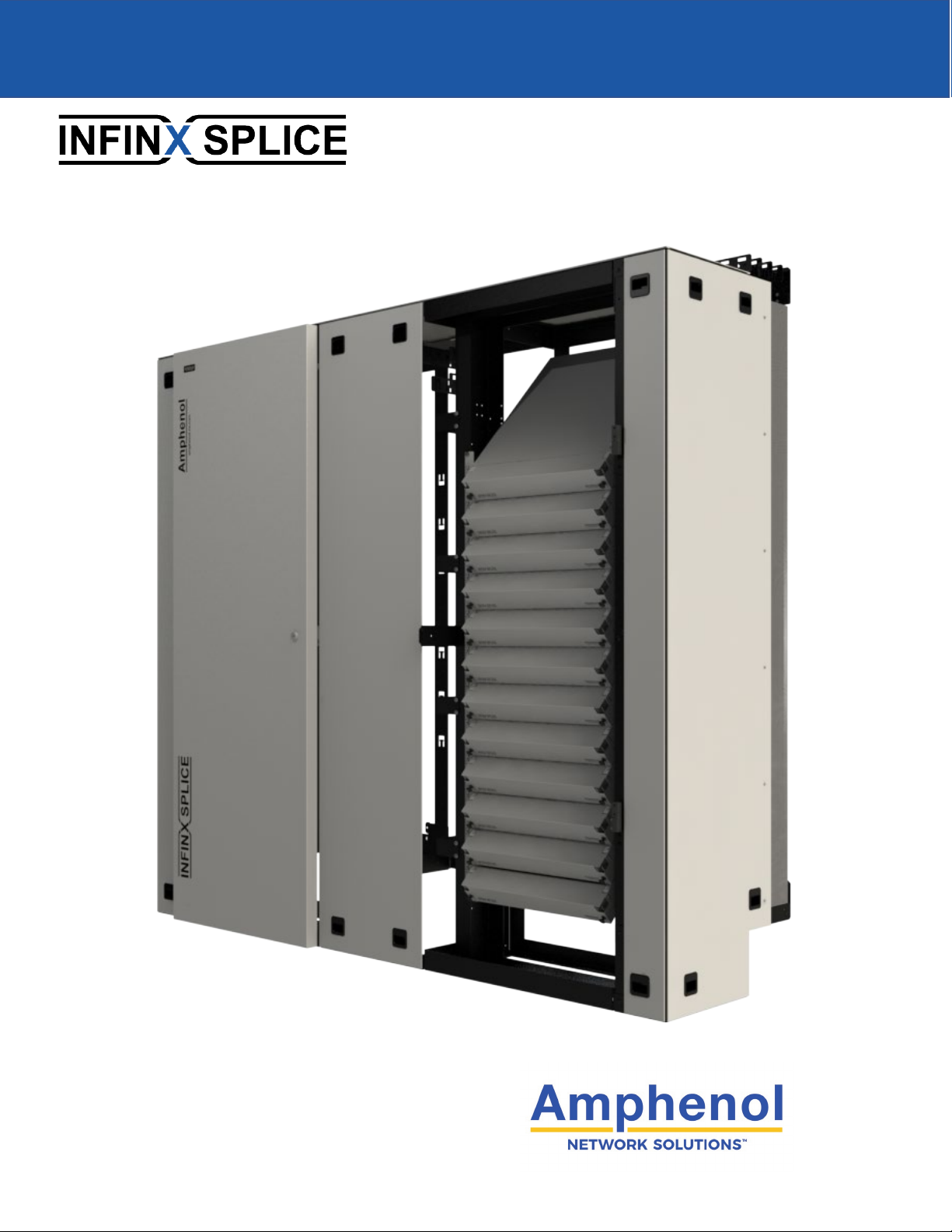

Figure 1-1 INFINX SPLICE Single Wall Frame

7
Amphenol Network Solutions PN 151657
All rights reserved. 10.18.2022 A3
509.926.6000 — amphenol-ns.com
InfinX Installation Guide
Installation Guide

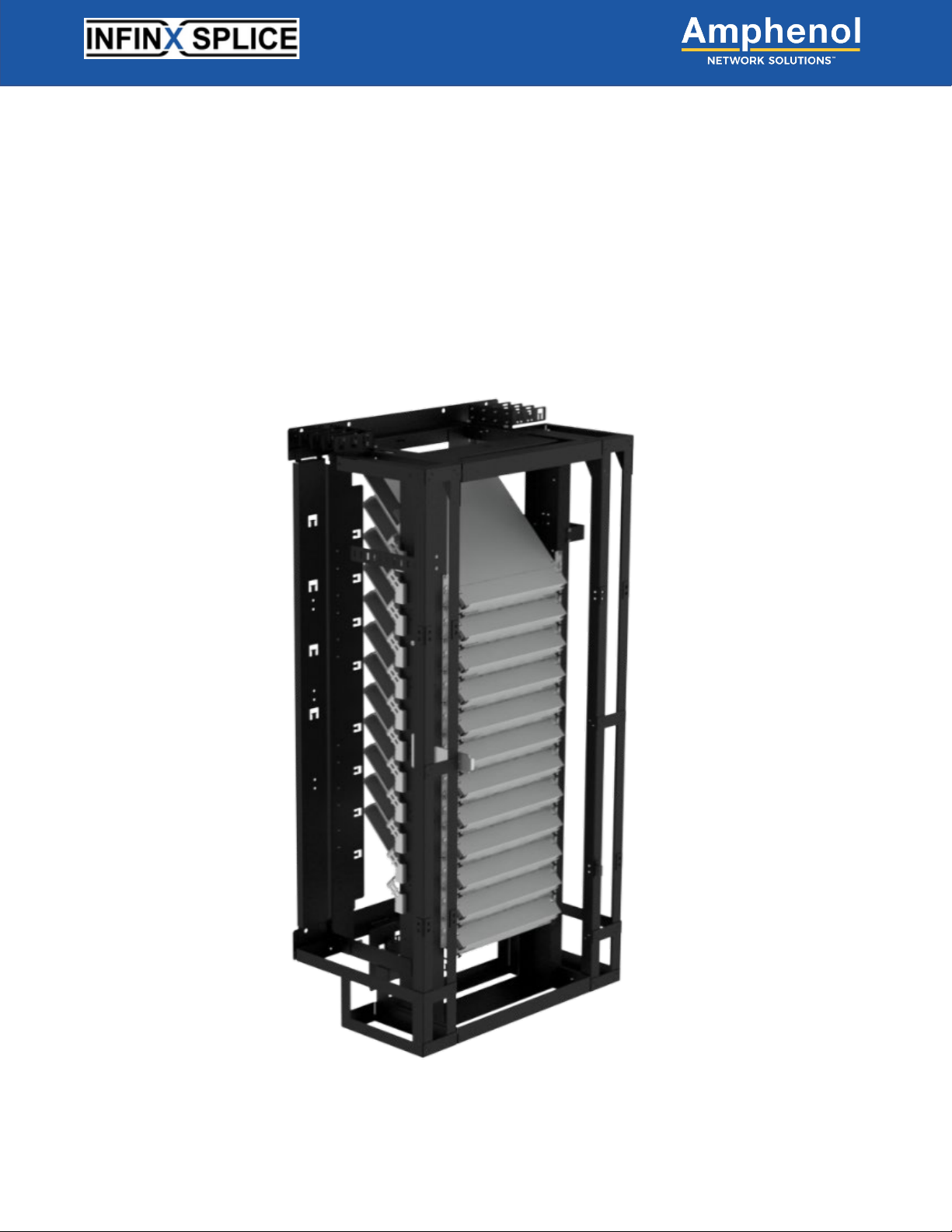

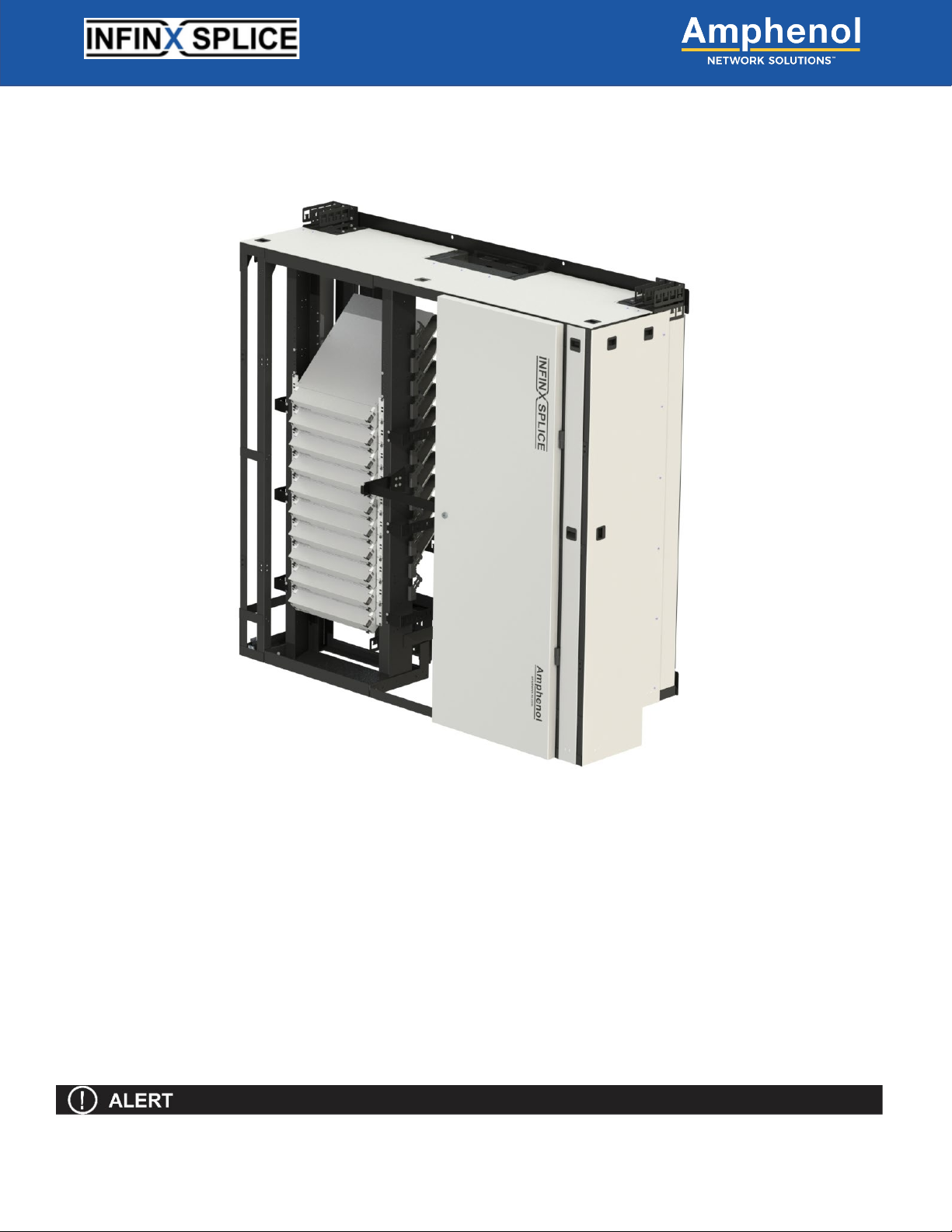

Figure 1-2 INFINX SPLICE Dual Wall Frame
1.1 About This Guide
This manual provides a comprehensive overview of and installation guidelines for the INFINX SPLICE
Platform. While care has been taken to define all necessary information, complete details may not be
covered. If you have any questions, contact Amphenol Network Solutions Technical Support at
[e-mail] or call 1-509-926-6000.
Throughout this guide, select information is highlighted in the form of Notes, Alerts, Cautions and Warnings.
These notifications are prominent, and their importance is indicated as follows:
NOTE: General information to which the user should pay special attention.
InfinX Splice – Left side without covers
and right side with covers

8
Amphenol Network Solutions PN 151657
All rights reserved. 10.18.2022 A3
509.926.6000 — amphenol-ns.com
InfinX Installation Guide
Installation Guide
ALERT! Important information and/or instructions to which the user should adhere.
CAUTION! Indicates a hazardous situation, which could result in minor or moderate injury.
WARNING! Indicates a potentially hazardous situation which could result in death or serious injury.
Amphenol Network Solutions assumes no liability from the application or use of these products. Amphenol
Network Solutions does not convey any license under its patent rights nor the patent rights of others. This
document and the products described herein are subject to change without notice.
1.2 Terminology
The following is a list of acronyms and abbreviations used throughout this manual:
Acronym/Abbreviation
Term
dB
Decibel
OSP
Outside Plant
IFC
Intra-Facility Cable
RAL
Restricted Access Location
RU
Rack Unit
TIA
Technical Inspection Association (global product certification compliance marking)
UL
Underwriter’s Laboratories
1.3 Specifications
1.3.1 Single Frame
Dimensions
64.50" H x 33.41" W x 22.13” D
Splice Drawer density
12 INFINX SPLICE Drawer
Access
Front and Sides
Mounting options
Wall Mount Frame
Weight
150 lbs (Splice Rack = 70 lbs)
1.3.2 Dual Frame
Dimensions
64.50" H x 70.45" W x 22.13” D
Splice Drawer density
24 INFINX SPLICE Drawer
Access
Front and Sides
Mounting options
Wall Mount Frame
Weight
250 lbs
1.3.3 Splice Drawer
Dimensions
15.46"H x 16.50"W x 15.56"D tray closed. 25.23"H x 16.50"W x 25.38"D tray open.
Splice Drawer density
19": 1728 fiber splices
Access
Front
Mounting options
Standard 19" rack

9
Amphenol Network Solutions PN 151657
All rights reserved. 10.18.2022 A3
509.926.6000 — amphenol-ns.com
InfinX Installation Guide
Installation Guide
2. Section Two: INFINX SPLICE Overview
2.1 INFINX SPLICE Drawer
The INFINX SPLICE Drawer is a streamlined, dense splice platform that allows 1728 splices per 2RU. The
INFINX SPLICE Platform a scalable solution capable of deploying up to 12 Splice Drawers per frame, totaling
20,736 fibers per singe frame and 41,472 fibers per dual frame.
Figure 2-1 INFINX SPLICE Drawer
2.2 INFINX SPLICE Drawer Components
2.2.1 Splice Tray
The INFINX SPLICE Tray slides in and out by depressing the black locking tabs on the side of Splice Drawer
and pulling down. This allows for easy access to the fiber and Splice Cradles.
Figure 2-2 Release Tabs

10
Amphenol Network Solutions PN 151657
All rights reserved. 10.18.2022 A3
509.926.6000 — amphenol-ns.com
InfinX Installation Guide
Installation Guide
Each tray can hold 12 mass fusion Splice Cradles.
Figure 2-3 Splice Tray
2.2.2 Splice Cradle
The INFINX SPLICE Cradle allows 12 x 12 fiber mass fusion splices = 144 fibers per cradle. With 6 cradles per
stack and 2 stacks, each drawer allows 1728 splices.
Figure 2-4 Splice Cradles

11
Amphenol Network Solutions PN 151657
All rights reserved. 10.18.2022 A3
509.926.6000 — amphenol-ns.com
InfinX Installation Guide
Installation Guide

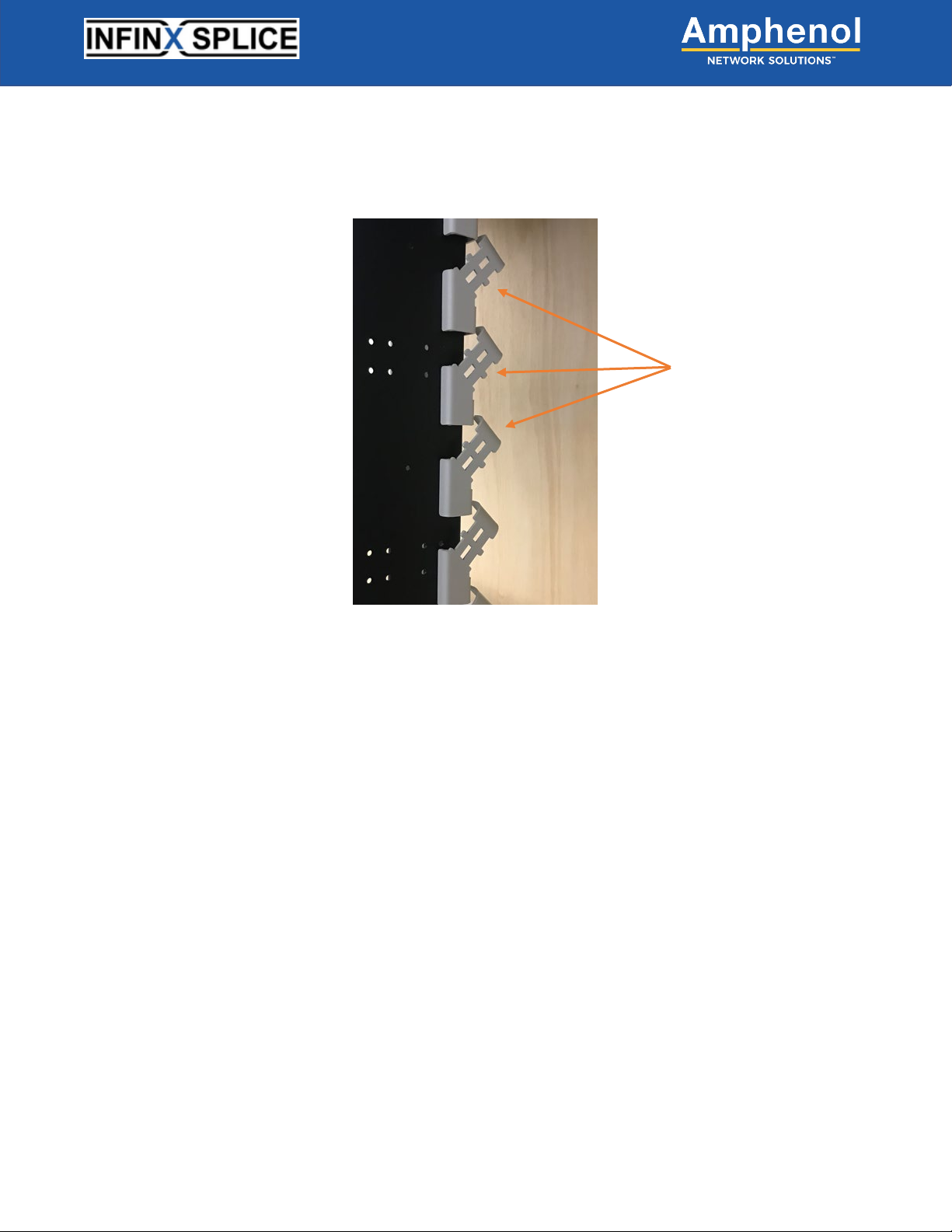

2.2.3 Sleeve Entry Bracket
The Sleeve Entry Brackets guide the fiber sleeves from the frame into the Splice Drawer while maintaining
bend radius when the Splice Drawer tray is fully extended/opened. The Sleeve Entry Brackets will come
preinstalled on the rear of the frame upright.
Figure 2-5 Sleeve Entry Brackets
2.3 Wall Mount Frame
The Wall Mount Frame is a fully enclosed frame that protects the fiber and Splice Drawers within. The
OSP/IFC cable can enter the frame from the bottom, top, or sides based on individual needs. The Wall Mount
Frame includes all necessary brackets for routing fiber within.
Sleeve Entry Brackets

12
Amphenol Network Solutions PN 151657
All rights reserved. 10.18.2022 A3
509.926.6000 — amphenol-ns.com
InfinX Installation Guide
Installation Guide
Figure 2-6 Wall Mount Frame
2.4 Wall Mount Splice Rack Components
2.4.1 Wall Mount Bracket
The Wall Mount Bracket is the anchor point for Splice Rack(s) to hang from. The Wall Mount Bracket provides
vertical lacing bars for IFC entry on each side as well as Cable Termination Brackets for securing OSP below
the frame.
Components of the Wall Mount Bracket include:
•Horizontal Hanger
•Vertical Lacing Bar
•Cable Termination Bracket

13
Amphenol Network Solutions PN 151657
All rights reserved. 10.18.2022 A3
509.926.6000 — amphenol-ns.com
InfinX Installation Guide
Installation Guide
r
Vertical Lacing Bar
Horizontal Hanger

14
Amphenol Network Solutions PN 151657
All rights reserved. 10.18.2022 A3
509.926.6000 — amphenol-ns.com
InfinX Installation Guide
Installation Guide
Figure 2-7 Wall Mount Bracket

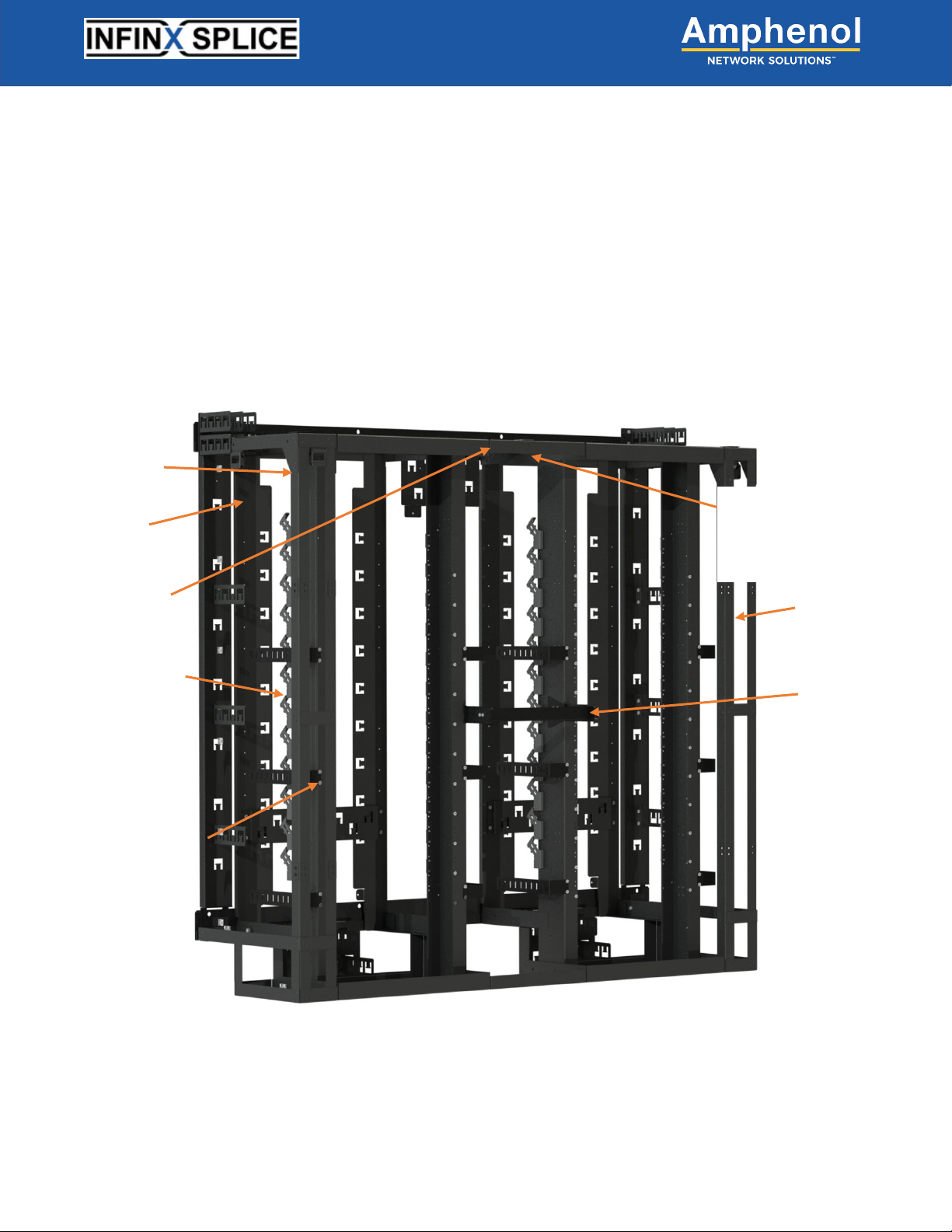

2.4.2 Splice Rack
The Wall Frame has 19” mounting rails and is 65” in height allowing a total of 12 INFINX SPLICE Drawers.
Each frame has capacity for 20,736 fiber splices. The frame provides fiber routing tie down locations to
accommodate any cable configuration and includes cable managers on the outboard sides.
Components of the Wall Frame include:
•Splice Rack
•Cable Managers
•Spacer Brackets
•Tie Off Brackets
•Sleeve Entry Brackets
Figure 2-8 Splice Rack
Cable Manager
Door Latch
Tie Off Bracket
Sleeve Entry Bracket
Spacer Bracket
Splice Rack
Cable Manager
Frame Ground
(On rear bar, ¼ -20 bolt
on 5/8" centers, H/W not
included)

15
Amphenol Network Solutions PN 151657
All rights reserved. 10.18.2022 A3
509.926.6000 — amphenol-ns.com
InfinX Installation Guide
Installation Guide

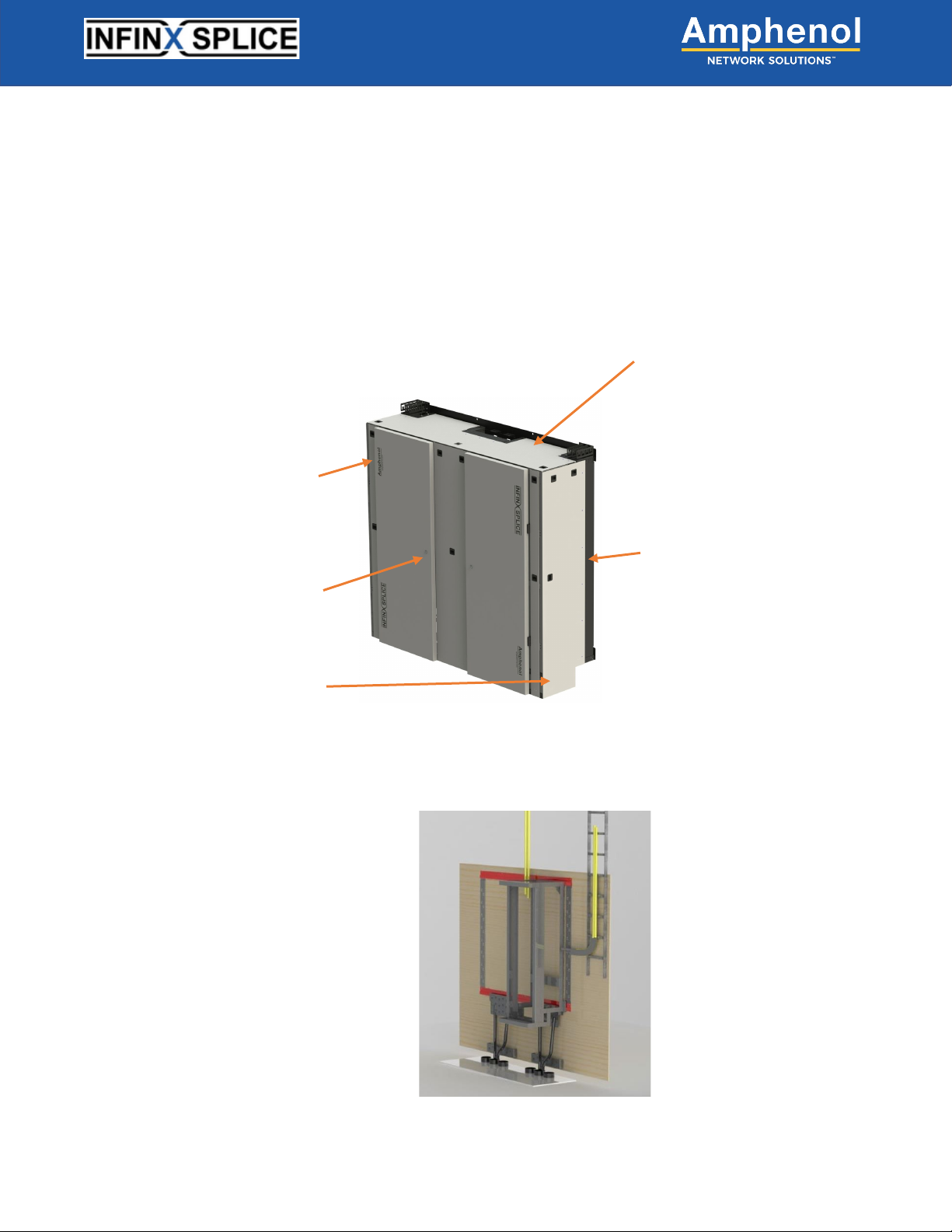

2.4.3 Frame Covers
The Frame Covers fully enclose the Splice Rack, protecting and containing all fiber within and eliminating the
possibility of exposed fibers. The Frame Covers Center Panel is used to fill the space between Splice Racks
when installing a INFINX SPLICE Dual Frame Platform. (The Center Panel is not needed for the INFINX
SPLICE Single Frame Platform)
Components of the Frame Covers include:
•Side Panels
•Center Panel
•Top Cover
•Cable Manager Cover
•Doors
Figure 2-9 Frame Covers
2.4.4 Fiber Management and Routing
`There are attachment points built into the Splice Rack and Wall Bracket to manage the fiber when routing to
the INFINX SPLICE drawer.
Components include:
•Ladder racks (optional)
•Vertical Lacing Bars
•Cable Termination Brackets
•Routing Brackets
•Tie off Brackets
•Sleeve Entry Brackets
•Hose Clamps and Hook and Loop Kits
•Split Sleeve Breakout Kit
Center Panel
Door
Top cover
Side Panel
Cable Manager Panel
re 2-10 Fiber Manager

16
Amphenol Network Solutions PN 151657
