Amprobe TMD-10 User manual

TMD-10
Dual Temperature
Meter
Users Manual
For detailed specifications and ordering info go to www.TestEquipmentDepot.com

1
English
TMD-10
Dual Temperature Meter
Users Manual
TMD10_Rev001
© 2008 Amprobe Test Tools.
All rights reserved.

2
Limited Warranty and Limitation of Liability
Your Amprobe product will be free from defects in material and workmanship for 1
year from the date of purchase. This warranty does not cover fuses, disposable batteries
or damage from accident, neglect, misuse, alteration, contamination, or abnormal
conditions of operation or handling. Amprobe’s warranty obligation is limited, at
Amprobe’s option, to refund of the purchase price, free of charge repair, or replacement
of a defective product . Resellers are not authorized to extend any other warranty on
Amprobe’s behalf. To obtain service during the warranty period, return the product with
proof of purchase to an authorized Amprobe Test Tools Service Center or to an Amprobe
dealer or distributor. See Repair Section for details. This warranty is your only remedy . All
other warranties - whether express, implied or statutory - including implied warranties of
fitness for a particular purpose or merchantability, are hereby excluded. Neither Amprobe
nor its parent company or affiliates shall be liable for any special, indirect, incidental or
consequential damages or losses, arising from any cause or theory. Since some states or
countries do not allow the exclusion or limitation of an implied warranty or of incidental
or consequential damages, this limitation of liability may not apply to you.
Repair
All test tools returned for warranty or non-warranty repair or for calibration should be
accompanied by the following: your name, company’s name, address, telephone number,
and proof of purchase. Additionally, please include a brief description of the problem or
the service requested and include the test leads with the meter. Non-warranty repair or
replacement charges should be remitted in the form of a check, a money order, credit card
with expiration date, or a purchase order made payable to Amprobe® Test Tools.
In-Warranty Repairs and Replacement – All Countries
Please read the warranty statement and check your battery before requesting repair.
During the warranty period any defective test tool can be returned to your Amprobe®
Test Tools distributor for an exchange for the same or like product.
Non-Warranty Repairs and Replacement – US and Canada
Non-warranty repairs in the United States and Canada should be sent to a Amprobe® Test
Tools Service Center. Call Amprobe® Test Tools or inquire at your point of purchase for
current repair and replacement rates.

3
➊T1 and T2 thermocouple inputs
➋LCD
➌°C / °F temperature scales
➍Data HOLD
APO, turns off Auto Power Off
➎Power ON /OFF
➏T1, T2, T1-T2
➐RELative function
OFS, Offset Thermocouple
function
➑K / J thermocouple types
➒MAX MIN
SET command to save Thermal
Offset adjustment
K/J
REL
+
ºC / ºF
HOLD
T1 T2
T1-T2
MAX
MIN
T2 WT1
24VC
- + MAX - +
J
T1 REL HOLD F C
C
F
NMAX MIN T1- T2
K
J
K
T2
J
1
2
3
4
57
9
8
6
TMD-10
W
▲
▼
APO
OFS
SET

4
TMD-10
Dual Temperature Meter
CONTENTS
Symbols.................................................................................................................5
Unpacking and Inspection...................................................................................5
Introduction..........................................................................................................5
Operation ............................................................................................................5
°C / °F ...............................................................................................................6
MAX, MIN and AVG........................................................................................ 6
K / J .................................................................................................................. 6
HOLD ..............................................................................................................6
REL ................................................................................................................... 6
T1 T2 / T1-T2....................................................................................................7
Auto Power Off (APO).................................................................................... 7
Thermocouple Error Correction (OFS, Offset)............................................... 7
Specifications........................................................................................................ 8
Maintenance and Repair ....................................................................................9
Battery Replacement ...........................................................................................9

5
SYMBOLS
Refer to the manual Complies with EU
directives
Conforms to relevant
Australian standards. Do not dispose of this
product as unsorted
municipal waste.
Warning and Precautions
The bead thermocouples supplied with the meter are not intended for•
contact with liquids or electrical circuits.
Do not mix thermocouple types.•
Match the polarity of the adapter to the polarity of the thermocouple•
inputs.
UNPACKING AND INSPECTION
Your shipping carton should include:
1 TMD-10 temperature meter
2 K-type thermocouples
1 9 volt battery
1 Manual
If any of the items are damaged or missing, return the complete package to
the place of purchase for an exchange.
INTRODUCTION
The TMD-10 is a dual input temperature measurement meter using Type K or
Type J thermocouples.
OPERATION
Press the1. button to turn power on or off
Set the Function Switch to °C or °F.2.
Select thermocouple type (K / J) and connect the thermocouple(s) to the3.
T1 or T2 input.
Do not mix thermocouple types.
Match the polarity of the adapter to the polarity of the thermocouple
input.
Expose the thermocouple(s) to the temperature(s) to be measured.4.
Read the LCD display.5.

6
°C / °F
Press the key to change from Celsius (°C) to Fahrenheit (°F) temperature
scale.
This setting can not be changed when in the HOLD mode. The TMD-10 will
auto save the temperature scale setting during shutdown.
MAX, MIN and AVG
Press the button to start the recording of the maximum, minimum,
and average of all readings after the function is enabled. Pressing the
button steps the top reading through the MAX, MIN, and AVG values. Press
the button for > 1 second to disable the function.
The MAX, MIN or AVG reading is shown on the top display and the actual
reading is shown on the bottom display for T1.
To use MAX, MIN, and AVG for T2, disable MAX, MIN, and AVG and press and
hold key > 1 sec to swap T2 to the top display and T1 to bottom display.
Press button again to activate the function.
If the TMD-10 turns off because of Auto Power Off, the recorded values will
be saved for use when the meter is re-energized.
K / J
Press key to switch T1 from type K to type J thermocouple for the top
display.
Press and hold key > 1 sec to swap T2 to the top display and T1 to
bottom display.
Press key to switch T2 from type K to type J.
Press and hold key > 1 sec to swap T1 to the top display and T2 to
bottom display.
This setting cannot be changed if in HOLD, MAX/MIN, T1-T2 or REL
modes.
The TMD-10 will auto save the thermocouple type setting during shutdown.
HOLD
Press the key to freeze the LCD displays. Press the HOLD key again to
return to normal operation. When the function is enabled, all function
keys are disabled except for power key.
REL
Relative mode allows the user to offset the subsequent meter measurements
with the top display reading as the reference value.
Press the button to enable the Relative function for the T1 thermo-
couple. The top display will reset to 0.0 (reference value) and subsequently
readings display the difference between the reference value and the actual
reading. The actual reading is shown on the bottom display. Press the
button to disable the Relative function.

7
To use the Relative mode for T2, disable and press and hold key
> 1 second to swap T2 to the top display and T1 to bottom display.
T1 T2 / T1-T2
T1 T2 displays the 2 inputs independently. Press and hold button > 1
second to swap display location of the display location of T1 and T2.
(T1-T2)
Press button to display T1 minus T2 temperature value. The top display
shows the T1-T2 temperature. The lower display shows the top display
selected in the T1 T2 mode. Press button again to disable this function
Auto Power Off (APO)
The TMD-10 powers down automatically after approximately 15 minutes of
inactivity to save battery life. Press the button to turn the TMD-10 ON. You
can disable Auto Power Off by pressing the button > 1 second after the
TMD-10 is ON.
The power cannot be turned OFF in the OFFSET SETUP mode.
Thermocouple Error Correction (OFS, Offset)
User can add an offset to compensate for the error of specific thermocouple
probes.
Press and hold the1. (OFS) button > 1 second to enter the Offset Setup
mode.
Immerse the thermocouple(s) in thermos bath with crushed ice and fresh2.
water (0.0 °C / 32.0 °F).
Press the3. button to increase or power button to decrease the
Offset value. The allowable adjustment range is ± 5 °C / ± 9 °F in 0.1°C/°F
increments.
Press4. (SET) button to save and leave setup mode. The “Offset” icon
will remain on the LCD.
Press and hold5. button > 1 second to swap T2 to the top display and
T1 to bottom display. Press button to switch T2 from type K to type J.
Repeat steps 1, 2, 3 and 4 for T2.6.
To remove the Offset, Repeat steps 1, 2, 3 and 4 setting the offset (lower7.
display) to 0.0. When both thermocouple offset are zeroed out, the
“Offset” icon will be turned off.

8
SPECIFICATIONS
General
Display: Dual 5-digit LCD displays
Overrange indication:
“OL” stands for positive temperature
“-OL” stands for negative temperature.
Low battery: the “"sign will appear while battery is low.
Power Supply: 9V NEDA 1604, IEC 6F22, JIS 006P battery.
Battery life: approx. 200 hours.
Auto power off: approx. 15 minutes.
Environment: Indoor operation, - Altitude: Up to 2000 m.
Temperature / Humidity:
Operating: 0°C to 50°C (32°F to 122°F); < 80% RH
Storage: 0°C to 50°C (32°F to 122°F); < 80% RH
Dimensions: 130 x 56 x 38 mm (5.1 x 2.2 x 1.5 in.)
Weight: 170g( 0.37 lb.) battery included
-EMC: EN61326-1 This product complies with requirements of the
following European Community Directives: 89/336/EEC (Electromagnetic
Compatibility) and 73/23/EEC (Low Voltage) as amended by 93/68/EEC (CE
Marking). However, electrical noise or intense electromagnetic fields in the
vicinity of the equipment may disturb the measurement circuit. Measuring
instruments will also respond to unwanted signals that may be present within
the measurement circuit. Users should exercise care and take appropriate
precautions to avoid misleading results when making measurements in the
presence of electronic interference.
Electrical (23 °C ± 5°C, < 80 % RH)
Temperature scale: °C or ° F
Thermocouple type:
K-type: -200°C to 1370 °C (-328 °F to 2498 °F)
J-type: -200°C to 1050 °C (-328°F to 1922 °F)
Resolution: 0.1
Accuracy: ± (0.05 % rdg + 0.7 °C), ± (0.05 % rdg + 1.4 °F)
Input protection: 24V DC or AC.

9
OPEN

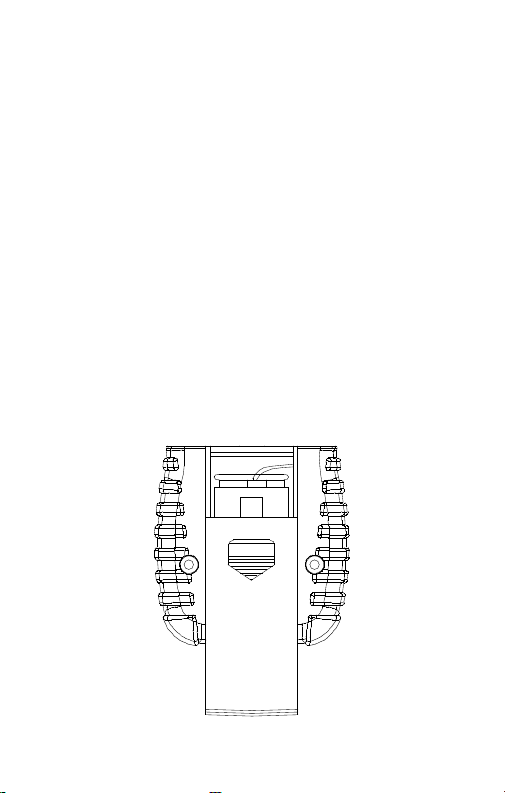

Battery Replacement
Temperature Coefficient:
± (0.01 % rdg + 0.03 °C per °C); ± (0.01% rdg + 0.06 °F per °F) outside the
specified + 18 °C to + 28 °C (+ 64°F to + 82°F) range.
Calibration: Yearly
MAINTENANCE AND REPAIR
If there appears to be a malfunction during the operation of the meter, the
following steps should be performed in order to isolate the cause of the
problem.
1. Check the battery. Replace the battery immediately when the symbol “”
appears on the LCD.
2. Review the operating instructions for possible mistakes in operating
procedure.
Except for the replacement of the battery, repair of the meter should be
performed only by a Factory Authorized Service Center or by other qualified
instrument service personnel. The front panel and case can be cleaned with
a mild solution of detergent and water. Apply sparingly with a soft cloth and
allow to dry completely before using. Do not use aromatic hydrocarbons or
chlorinated solvents for cleaning.
BATTERY REPLACEMENT
1. Turn off the meter and slide out the battery cover. Replace the battery with
a NEDA type 1604 or equivalent 9V alkaline battery. Replace the cover.
2. Remove battery when the TMD-10 is not used for extended period.
