Amprobe RTD-10 User manual

Users Manual
RTD-10 /RTD-10W
RTD Thermometer
RTD Thermometer
Wireless
For detailed specifications and ordering info go to www.TestEquipmentDepot.com

RTD-10
RTD-10W
RTD Thermometer
RTD Thermometer
Wireless
Users Manual
June 2010, Rev.1
©2010 Amprobe Test Tools.
All rights reserved. Printed in Taiwan
English

Limited Warranty and Limitation of Liability
Your Amprobe product will be free from defects in material and
workmanship for 1 year from the date of purchase. This warranty
does not cover fuses, disposable batteries or damage from accident,
neglect, misuse, alteration, contamination, or abnormal conditions
of operation or handling. Resellers are not authorized to extend
any other warranty on Amprobe’s behalf. To obtain service during
the warranty period, return the product with proof of purchase
to an authorized Amprobe Test Tools Service Center or to an
Amprobe dealer or distributor. See Repair Section for details. THIS
WARRANTY IS YOUR ONLY REMEDY. ALL OTHER WARRANTIES -
WHETHER EXPRESS, IMPLIED OR STAUTORY - INCLUDING IMPLIED
WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE OR
MERCHANTABILITY, ARE HEREBY DISCLAIMED. MANUFACTURER
SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL
OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY
CAUSE OR THEORY. Since some states or countries do not allow the
exclusion or limitation of an implied warranty or of incidental or
consequential damages, this limitation of liability may not apply
to you.
Repair
All test tools returned for warranty or non-warranty repair or
for calibration should be accompanied by the following: your
name, company’s name, address, telephone number, and proof of
purchase. Additionally, please include a brief description of the
problem or the service requested and include the test leads with
the meter. Non-warranty repair or replacement charges should be
remitted in the form of a check, a money order, credit card with
expiration date, or a purchase order made payable to Amprobe®
Test Tools.
In-Warranty Repairs and Replacement – All Countries
Please read the warranty statement and check your battery before
requesting repair. During the warranty period any defective test
tool can be returned to your Amprobe® Test Tools distributor for
an exchange for the same or like product.

Non-Warranty Repairs and Replacement – US and Canada
Non-warranty repairs in the United States and Canada should be
sent to a Amprobe® Test Tools Service Center. Call Amprobe® Test
Tools or inquire at your point of purchase for current repair and
replacement rates.

RTD-10 /RTD-10W
15
14
1210
11
8
79
13
2
4
5
6
13
Main
Display
Second
Display Third
Display

1) “ ” Power
2) °C /°F
3) “ ” Backlight
4) “T1 T2/T1-T2” Main display
5) “TYPE” Main display
6) “MAX/MIN” Main display
7) “REL” Main display
8) “HOLD” Data Hold
9) “SET”
1) Low battery
2) RTD Probe select
3) MAX/MIN/AVG
record mode
4) HOLD enabled
5) Relative mode
10) “T1 T2 T1-T2”
Second display
11) “TYPE” Second display
12) “Hi/Lo LIMITS”
Main display
13) Wireless
(RTD-10W Only)
14) Display
15) T1/T2 Input

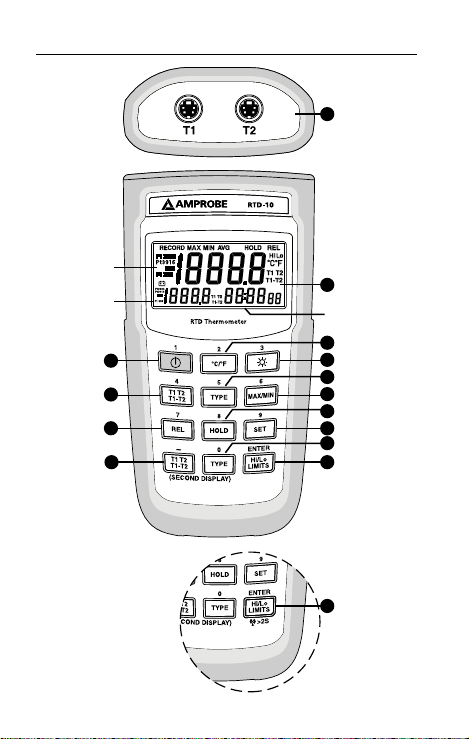

SCREEN DISPLAY
6) Hi/Lo Limits
comparative mode
7) Temperature
measurement units
8) T1/T2 thermocouple
or T1-T2 differential
9) Wireless function enabled
(RTD-10W Only)
8
7
9
1
3
2
4 5
6

1
CONTENTS
SYMBOLS.......................................................................... 2
UNPACKING AND INSPECTION ........................................ 3
INTRODUCTION ................................................................ 4
Features ........................................................................ 4
OPERATION INSTRUCTIONS............................................. 4
““ Button................................................................... 4
“°C/°F” Selecting the Temperature Scale.................... 5
“” Display Back-Light............................................... 5
“T1 T2/T1-T2” Main display Input Selection ..............5
“TYPE”(Pt385/Pt3926/Pt3916)
Main display Input RTD Probe Select..........................5
“MAX/MIN” With Time Record Mode ........................ 5
“REL” Relative Mode ................................................... 6
“HOLD” Mode..............................................................6
“SET” Mode.................................................................. 7
T1/T2 T1-T2 second display Input Selection................7
“TYPE”(Pt385/Pt3926/Pt3916)
Second display Input RTD Probe select.......................8
Wireless Mode (RTD-10W Only) .................................. 8
RTD PROBE CONNECTION................................................ 9
TEMPERATURE VSRESISTANCE TABLE (ITS90) ................ 10
SPECIFICATION.................................................................. 10
MAINTENANCE................................................................. 11

2
SYMBOLS
Caution! Refer to the explanation in this Manual
Conforms to relevant Australian standards
Complies with European Directives
Tested Comply With FCC Standards
Do not dispose of this clamp meter as unsorted
municipal waste.
WARNING and PRECAUTIONS
• To avoid electrical shock, do not use this instrument
when working voltages at the measurement surface
over 24V AC or DC.
• To avoid damage or burns, do not make
temperature measurement in microwave ovens.
Federal Communications Commission
This device RTD-10W complies with Part 15 of the
FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that may
cause undesired operation.
Note
This equipment RTD-10W has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection. This
equipment generates, uses and can radiated radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation if this equipment does cause

3
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and
receiver.
•Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV
technician for help.
Shielded interface cables must be used in order to comply
with emission limits.
Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment
Wireless Note
Wireless receiver must keep a distance at least 40cm
from the meter and meter to meter distance must be at
least 30cm.
UNPACKING AND INSPECTION
Your shipping carton should include:
1 Thermometer
2 RTD Connectors
4 AAA Batteries
1 USB Wireless Antenna (RTD-10W)
1 Software CD ROM (RTD-10W)
1 Manual
1 Plain white box

4
If any of the items are damaged or missing, return
the complete package to the place of purchase for an
exchange.
INTRODUCTION
This instrument is a 4½ digit, compact-sized portable
digital thermometer designed to use external 100Ω
Platinum RTD as temperature sensor. Temperature
indication follows Reference Temperature/Resistance
Tables (Pt385 for European Curve, Alpha=.00385. Pt3926
for American Curve, Alpha=.003926. Pt3916 for Japan
Curve, Alpha=.003916.)
Features
• Wireless two ways transmission. (RTD-10W only)
• Dual input function.
• Pt3916/Pt3926/Pt385 RTD standard.
• MAX/MIN with elapsed time, AVG, REL, HOLD
function.
• Warning beeper with Hi/Lo setting.
• Time setting, REL setting.
• According to temperature standard ITS-90.
• °C/°F user-selective.
• Resolution 0.1°C to 0.2°F.
OPERATING INSTRUCTIONS
“ ” Power Button
The “ ” key turns the thermometer on or off. In the
SET mode cannot be powered off. Exit SET mode to
power off.

5
APO function mode
Press “ ” power key for more than 6 seconds to disable
the auto-power function. The display will show “APO
OFF”.
“ °C/°F ” Selecting the Temperature Scale
Readings are displayed in either degrees Celsius(°C) or
degrees Fahrenheit(°F). When the thermometer is turned
on, it is set to the temperature scale that was in use
when the thermometer was last turned off. To change
the temperature scale, press the “°C/°F” key
“ ” Display Back-Light
Press the “ ” key to turn on or turn off the Back-Light.
“T1 T2/T1-T2” Main display Input Selection
The input selection indicates which input is selected
for main display; T1 probe, T2 probe or the difference
between the two probes (T1-T2). When the thermometer
is turned on, it is set to T1, when main display input
selected T1, then T1 input can select alternate of probe
by pressing Pt385/Pt3926/Pt3916 key switch.
“TYPE”(Pt385/Pt3926/Pt3916) Main display Input
RTD Probe Select
The “TYPE” key switches the T1 input to select the Pt385,
Pt3926 or Pt3916 RTD probe as input, when main display
input selected T1. When the thermometer is turned on,
it is set to the probe selected that was in use when the
thermometer was last turned off.
“MAX/MIN” With Time Record Mode
(only Main display)
Press “MAX/MIN” key to enter the MAX MIN Recording
mode, (displays the Maximum reading with time,
Minimum reading with time and Average reading stored
in record mode). In the this mode the automatic power-

6
off feature is disabled and “ ” key, “°C/°F” key, “REL”
key, “SET” key, “Hi/Lo LIMITS” key and main display
“T1 T2 T1- T2” key, “TYPE” key are disabled. The beeper
emits a tone when a new minimum or maximum value
is recorded.
Press “MAX/MIN” key to cycle through the MAX, MIN
and AVG readings. If an overload is recorded, the
averaging function is stopped. In this mode, press the
“HOLD” key to stop the recording of readings, all values
are held, press again to restart recording.
To prevent accidental loss of MAX, MIN and AVG data,
this mode can only be cancelled by pressing and holding
the “MAX/MIN” key for 2 seconds. All recorded readings
are erased.
“REL” Relative Mode (only Main display)
Press the “REL” key to enter the relative mode, zero the
display, and store the displayed Reading as a reference
value. REL is shown on the display. Press “REL” key
again to exit the relative mode. The relative reference
value can also be entered by the user. (See “SET mode”
later in this manual). When the desired relative value
has been entered, press “REL” key to enter the relative
mode and than press “SET” key use the entered relative
value as a reference value. Press “REL” key again to exit
the relative mode. In the relative mode, the value (can
not >±1999.9 counts) shown on the LCD is always the
difference between the stored reference and the present
reading.
“HOLD” Mode (only Main display)
Press the “HOLD” key to enter the Data Hold mode, the
“HOLD” annunciator is displayed. When HOLD mode
is selected, the thermometer held the present readings
and stops all further measurements. Press the “HOLD”
key again to cancel HOLD mode causing thermometer to
resume taking measurements. In the MAX/MIN recording
mode, press “HOLD” key to stop the recording. Press

7
“HOLD” key again to resume recording. (Previously
recorded read are not erased).
“SET” Mode (Relative value set, Time set and Hi/
Lo Limits value set)
1. Press the “SET” key to enter relative values SET
mode (Press “ENTER” key to skip setting relative
value). “= = = =.=” is displayed on the main display.
The relative value is entered via overlay numbers,
press overlay “ENTER” key to store the relative
value, and advance to elapsed time set mode.
2. Elapsed time set mode, (Press “ENTER” key to skip
Elapsed time set mode) “=.= = = : = =” is displayed
in second and third display. Time (hours, minutes,
seconds) value is entered via overlay numbers, press
overlay “ENTER” key to store time value. Elapsed
time starts from set time value.
3. Hi Limit value set mode, (Press “ENTER” key to skip
Hi Limit value set mode), “= = = =.=” is displayed in
main display, Hi Limit value is entered via overlay
numbers, then press “ENTER” key to store the Hi
Limit value. “= = = =.=” is displayed in main display,
Lo Limit value is entered via overlay numbers, then
press overlay “ENTER” key to store the Lo Limit value
and exit SET mode.
4. When the thermometer is turned on it uses the
relative value and Hi/Lo Limits values that were
entered when thermometer was last in use.
T1 T2 / T1-T2 second display Input Selection
The input selection indicates which input is selected for
second display; T1 probe, T2 probe or the difference
between the two probes (T1-T2), when the thermometer
is turned on, it is set to T2 input can select alternate of
probe by second display Pt385/Pt3926/Pt3916 key switch.

8
“TYPE”(Pt385/Pt3926/Pt3916) Second display Input
RTD Probe select
The Pt385/Pt3926 key switches the T2 input to select
the Pt385, Pt3926 or Pt3916 RTD probe as input, when
second display input selected T2. When the thermometer
is turned on, it is set to the RTD selected that was in use
when the thermometer was last turned off.
“Hi/Lo LIMITS” Mode (only Main display)
Press “Hi/Lo LIMITS” key to enter the Hi/Lo Limits
comparative mode. When the input temperature value
exceeds the Hi or Lo Limits value, the beeper emits a
continuous or pulsed tone. Press “Hi/Lo LIMITS” key
again to exit the Hi/Lo Limits mode.
Wireless Mode (RTD-10W Only)
Press the “ ” key for more than two seconds to start
wireless function. Press the “ ” key again for another
two seconds to stop wireless function. The wireless mode
will shut down if there is no wireless signal for two
minutes.
To SET CH/ID to 00,00, press the “Hi/Lo LIMITS” key and
“” power key for more than 6 seconds with the meter
powered down. The meter will set channel and ID to
00,00 status. The second display will show 00, which
means that the channel and ID has been set to 00.
To check the channel and ID of the meter
When the meter is off, press “°C/°F” key and “ ” for 5
seconds, LCD’s main display will show channel number,
the second display will show ID number.

9

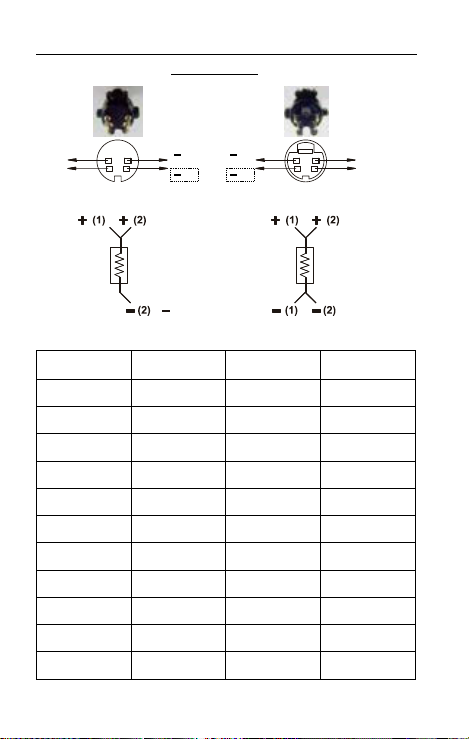

RTD PROBE CONNECTION
Temperature Vsresistance Table (ITS90)
°C Pt385 Pt3926 Pt3916
-200°C 18.521O16.996O17.057O
-100°C 60.256O59.479O59.565O
0°C 100.000O100.000O100.000O
100°C 138.505O139.272O139.171O
200°C 175.856O177.362O177.155O
300°C 212.052O214.275O213.957O
400°C 247.092O250.018O249.584O
500°C 280.977O284.591O284.036O
600°C 313.708O317.994O317.313O
700°C 345.280O- -
800°C 375.700O- -
MINI DIN PLUG
3 Wires 4 Wires
Front ViewRear View
RTD 100
(Pt385/Pt3916/Pt3926)
RTD 100
(Pt385/Pt3916/Pt3926)
[ ]
[G] [+]
+(2)
+(1)
+(2)
+(1)
(2)
(1)
(2)
(1)

10
SPECIFICATION
Electrical
Temperature
Scale
Celsius or Fahrenheit user-selectable
Measurement
Range
Pt385 (100Ω) -200°C to 800°C
(-328°F to 1472°F)
Pt3916/Pt3926 (100Ω) -200°C to 630°C
(-328°F to 1166°F)
Resolution 0.1°C or 0.2°F
Accuracy Accuracy is specified for operating
temperatures over the range of 18°C
to 28°C (64°F to 82°F), for 1 year, not
including RTD probe error.
±(0.05%rdg+0.2°C) on °C scale
±(0.05%rdg+0.4°F) on °F scale
Temperature
Coefcient
0.1 times the applicable accuracy
specification per °C from 0°C to 18°C
and 28°C to 50°C (32°F to 64°F and 82°F
to 122°F).
Input
Protection
24V dc or 24V ac rms maximum input
Voltage on any combination of input
pins.
Input
Connector
Accepts for 3 wires or 4 wires Mini-Din
plug and the meter is designed for
standard. The other probes 2.3 wires will
cause measuring tolerance due to cable
resist lance.
Maximum Differential Common Mode Voltage (Maximum
Voltage between T1 and T2 during measurement): 1 Volt

11
Environmental
Ambient
Operating
Ranges
0°C to 50°C (32°F to 122°F) <80% R.H.
Storage
Temperature
-20°C to 60°C (-4°F to 140°F) <70% R.H.
General
Display 4½ digit liquid crystal display (LCD) with
maximum reading of 19999.
Overload “----.-” or “OL” is display
Reading Rate 1 time per second.
Auto power
off
30 minutes, press power key to resume
operation
Battery 1.5V x 4pcs AAA size
Battery Life 200 hours typical with carbon zinc
battery
Dimensions 160mm(H) x 83mm(W) x 38mm(D);
6.3 in (H) x 3.3 in (W) x 1.5 in (D).
Weight Approx. 260g (0.6lb) including batteries
Wireless Features
Frequency range 910~920MHz (RTD-10W Only)
Low current consumption less than 1 mA.
The transmitting distance can reach 25 M without
magnetic interference.
- EMC: Conforms to EN61326-1.
This product complies with requirements of the
following European Community Directives: 89/ 336/
EEC (Electromagnetic Compatibility) and 73/ 23/ EEC
(Low Voltage) as amended by 93/ 68/ EEC (CE Marking).

12
However, electrical noise or intense electromagnetic
fields in the vicinity of the equipment may disturb the
measurement circuit. Measuring instruments will also
respond to unwanted signals that may be present within
the measurement circuit. Users should exercise care and
take appropriate precautions to avoid misleading results
when making measurements in the presence of electronic
interference.
MAINTENANCE AND REPAIR
Warning
To avoid possible electrical shock, disconnect the
thermocouple connectors from the thermometer before
removing the cover.
Installing and Replacing Battery
A. Screw
B. Battery Cover
C. Battery

13
1. Power is supplied by 4pcs 1.5V (SIZE AAA) UM-4
R03.
2. The “ ” appears on the LCD display when
replacement is needed. To replace battery remove
screw from back of meter and lift off the battery
cover.
3. Remove the batteries from the battery
compartment and replace them with new ones.
4. When not use for long time, remove the battery.
5. Do not store the unit in place with temperature
and humidity beyond the recommended storage
temperature.
Cleaning
Periodically wipe the case with a damp cloth and
detergent, do not use abrasives or solvents.
