Analytic Systems Pure Sine 300 User manual

Pure Sine 300
Installation and Operation Manual
220 VAC Version Shown

1
INTRODUCTION
Computers are moving into non-traditional work areas at an ever increasing rate as more and
more specialty software packages become available. However there is a major problem.
Computers require clean, pure AC power to work reliably. If you power one from the same
Genset that runs your heavy loads, you could damage it from surges and spikes generated by
switching those loads. If you power it from the same Inverter that runs a microwave and other
electrical devices, similar problems occur, plus voltage dropouts from excessive loads on the
inverter add to the problem. Also, most inverters produce ‘Quasi-Sine Wave’ AC, which often
doesn't run computers very well. Complaints of noisy displays, cursors that move by
themselves and more abound.
The Model IPS300 Watt ‘Pure Sine Wave’ Inverter is designed specifically for running
computers, high end audio, home theatre and similar equipment.
FEATURES
• ‘Pure Sine Wave’ 120 VAC / 60 Hz fully regulated output, exactly the same as
household AC.
• Crystal controlled for precise frequency (±0.01 Hz).
• 300 Watts output power sufficient for a complete computer workstation including
processor, monitor and printer (except laser printers).
• State of the art MosFet technology and unique Soft-Start circuitry for reliable operation.
• Illuminated ON-OFF switch for positive indication of proper operation.
• Heavy input filtering to shield other devices sharing the same battery.
• Transformer type output to protect computers and other sensitive equipment from
surges and spikes.
• Low voltage warning and shutdown circuitry to protect the batteries.
• Ground fault interruption protection to protect the user against possible electric shock
caused by faulty equipment plugged into the inverter.
• Over voltage and over temperature warning and shutdown circuitry to protect the
inverter.
• LED indicators and a buzzer to bring attention to the cause of the shutdown.
• One standard 2 outlet AC receptacle for easy connections.
• Versions are available for 12, 24, and 32 volt battery systems.
• Three year parts and labour warranty.
• Adjustable power save mode reduces output current when the load drops below a user
set level.

2
SPECIFICATIONS
IPS300-ip-op
Input Voltages
Nominal (ip) 12 24 32
Actual (Vdc) 10.5 - 16 20 - 30 30 - 40
Input Amps (max) 48 25 17
Input Fuses (ATC) 2 x 30A 30A 20A
Output Voltages
Nominal (op) 110 220
Actual (Vac) 115 ±5 rms 225 ±5 rms
Output Amps (max) 2.5 cont. / 3.33 peak 1.36 cont. / 1.82 peak
Output Frequency 60 ±0.01 Hz 50 ±0.01 Hz
Output Type Pure Sine Wave
Output Distortion < 5% at 300 Watts Out into 0.8 power factor load
General
Efficiency > 80% @ maximum output
Temp Range 0 – 40 °C @ maximum output
Isolation 500 VDC Input to Case, 1500 VDC Input to Output & Output to Case
Dimensions 10.7 x 7.7 x 5.2 in / 27.2 x 19.6 x 13.2 cm
Clearance 1.0 in / 2.5 cm
Material Marine Grade Aluminum
Finish Black Powder Epoxy
Fastenings 18-8 Stainless Steel
Weight 12.0 lb / 5.5 kg
Designed and manufactured by:
ANALYTIC SYSTEMS
#207 12448 82 Ave. Surrey, BC, V3W 3E9, Canada
phone [phone] fax [phone]
toll free 800-668-3884 US/Canada
email: [e-mail]; web site: www.analyticsystems.com Rev Jan 2001
Specifications subject to change without notice.

3
IMPORTANT SAFETY INSTRUCTIONS
1) SAVE THESE INSTRUCTIONS — This manual contains important safety and
operating instructions for inverter.
2) Do not expose inverter to rain or snow.
3) Use of an attachment not recommended or sold by the inverter manufacturer may
result in a risk of fire, electric shock, or injury to persons.
4) Do not disassemble inverter; take it to a qualified serviceman when service or repair
is required. Incorrect reassembly may result in a risk of electric shock or fire.
5) To reduce risk of electric shock, unplug inverter from outlet before attempting any
maintenance or cleaning. Turning off controls will not reduce this risk.
6) Never place inverter directly above battery; gases from battery will corrode and
damage inverter.
7) Never allow battery acid to drip on inverter when reading gravity or filling battery.
GROUNDING AND AC POWER CORD CONNECTION INSTRUCTIONS — Inverters should
be grounded to reduce risk of electric shock. Inverter is equipped with electric receptacles
capable of accepting an equipment-grounding conductor and a grounding plug.
Analytic Systems does not recommend the use of the IPS300 Series Pure Sine Inverters in life
support applications where failure or malfunction of this product can be reasonably expected to
cause failure of the life support device or to significantly affect its safety or effectiveness.
Analytic Systems does not recommend the use of any of its products in direct patient care.
Examples of devices considered to be life support devices are neonatal oxygen analyzers,
nerve stimulators (whether used for anesthesia, pain relief, or other purposes), autotransfusion
devices, blood pumps, defibrillators, arrhythmia detectors and alarms, pacemakers,
hemodialysis systems, peritoneal dialysis systems, neonatal ventilator incubators, ventilators for
both adults and infants, anesthesia ventilators, and infusion pumps as well as any other devices
designated as "critical" by the U.S. FDA.
DANGER: Never alter AC cord or plug provided — if it will not fit outlet, have proper cord
installed by a qualified electrician. Improper connection can result in a risk of an electric
shock.

4
INSTALLATION
MOUNTING
Mount the unit in a DRY location. Mount the unit in a ventilated area. Allow at least 1 inch of
clearance around the unit for adequate cooling.
It is NOT recommended that the unit be secured until it has been tested under the intended
load.
CAUTION: Do not mount the unit where explosive gases may accumulate as a
slight arc may occur when the power leads are connected, and in the
unlikely event of a failure, sparks may be generated inside the unit.
POWER CONNECTION
Use a voltmeter to measure the input voltage to ensure the voltage of the battery is within the
Input Voltage range printed on the front of the unit.
The unit is supplied with two 5 foot power cables. This should be adequate to connect to a
power source.
Connect the wires as follows:
• Red to Positive
• Black to Negative
If you must extend the cable:
• Use the smallest extension length possible.
• Use at least AWG 8 gauge conductors.
• Splice and solder the joint.
• Protect the joints with heat shrink tubing.
Before plugging any devices into the unit, turn it on.
If the power switch is illuminated, the unit is working properly.

5
OUTPUT CONNECTIONS
One standard AC receptacle is provided for connection of up to two devices.
Ensure that the total average load does not exceed the continuous current rating of the unit.
CAUTION: Do not apply AC voltage to the outlet. Damage caused by this action
will not be covered under warranty.
DISCONNECTION
If you disconnect the unit to remove it for service or storage, turn the power switch on for at
least one minute after it has been disconnected to discharge the storage capacitors.
OPERATION
Turn the switch on the front of the unit on to energize the outputs.
The switch will glow to indicate the presence of AC power at the receptacles.
POWER SAVE
The Power Save feature allows the user to set the level at which the unit goes into the Power
Save mode. The Power Save mode adjustment is accessed on the front of the unit. A small
flat bladed instrument screwdriver is used to make the adjustment.
Turning the potentiometer fully counter clockwise forces the Power Save mode to off. This
means that the inverter will continue to output 120VAC even if there is no devices connected to
it. Turning the potentiometer clockwise will set the level at which the Power Save mode will
operate.
The unit is internally set to come back on at 40 watts. This means that once the unit has gone
into the Power Save mode, the load must be at least 40 watts for the unit to come back on.
When the standby light on the front of the inverter is lit, the unit is in the Power Save mode.

6
TROUBLE SHOOTING
This unit provides LED indicators and a buzzer to help diagnose any problems. The unit should
sound the buzzer to alert you prior to shutting itself down. You should immediately check the
indicators to determine the cause of the shutdown.
LED INDICATORS
• LOW VOLTAGE Indicates that the battery voltage is below normal because:
• The battery needs to be recharged,
• The battery voltage is not compatible with the inverter.
• OVER TEMP Indicates that the inverter is running too hot because:
• Too much power is being drawn, turn off or unplug some devices.
• The inverter is located in a poorly ventilated area.
• OVER LOAD Indicates that the load is trying to draw more current than the
inverter can supply:
• Too much power is being drawn, turn off or unplug some devices.
• SHORT CIRCUIT Indicates that a short circuit has occurred at the inverter output:
• Turn off the inverter. Disconnect all devices from the inverter and
clear the short before reconnecting devices to the inverter.
• GROUND FAULT Indicates that the inverter has detected a ground fault and has shut
itself down to prevent a possible electric shock to the user. This could
be caused by dampness, faulty mechanism, worn insulation, etc.:
• Turn the inverter off. Have a qualified person determine the reason
for the ground fault and correct the problem.
• STANDBY Indicates that the inverter has gone into the Power Save mode.
• LOW VOLTAGE
& OVER TEMP Indicates the output voltage has risen above the specified output range
and the inverter has shut itself down to prevent damage to the
equipment plugged into it.
• The inverter has an internal fault and must be returned to the
factory for repair.

7
TROUBLE SHOOTING CHECKLIST
1. Use a voltmeter to measure the input voltage. The input should match the rating printed on
the unit.
2. Ensure that the battery is connected correctly: Red to Positive, Black to Negative.
3. Check the specifications of the load to see what power it consumes and test it from a
standard wall outlet.
4. Unplug all devices connected to the unit and turn it on.
5. Make a note of any LED’s that stay on.
6. Ensure that the Power Save mode is not activated.
7. If the unit cycles on and off, check and see if the standby light comes on when the unit is
off. If so, the Power Save mode is set too close to the recovery (40 watts) load. Adjust the
Power Save mode in accordance with the previous instructions.
8. Disconnect the input power and remove the cover. Check the automotive type fuses (ATC)
which are visible at the top of the circuit board. If any are blown, replace all of them with the
correct value shown in the specifications and on the label.
DEFECTS OR DAMAGE
If after checking all of the above and the problem persists, you may assume the unit is defective
or damaged and it must be returned for repair.

8

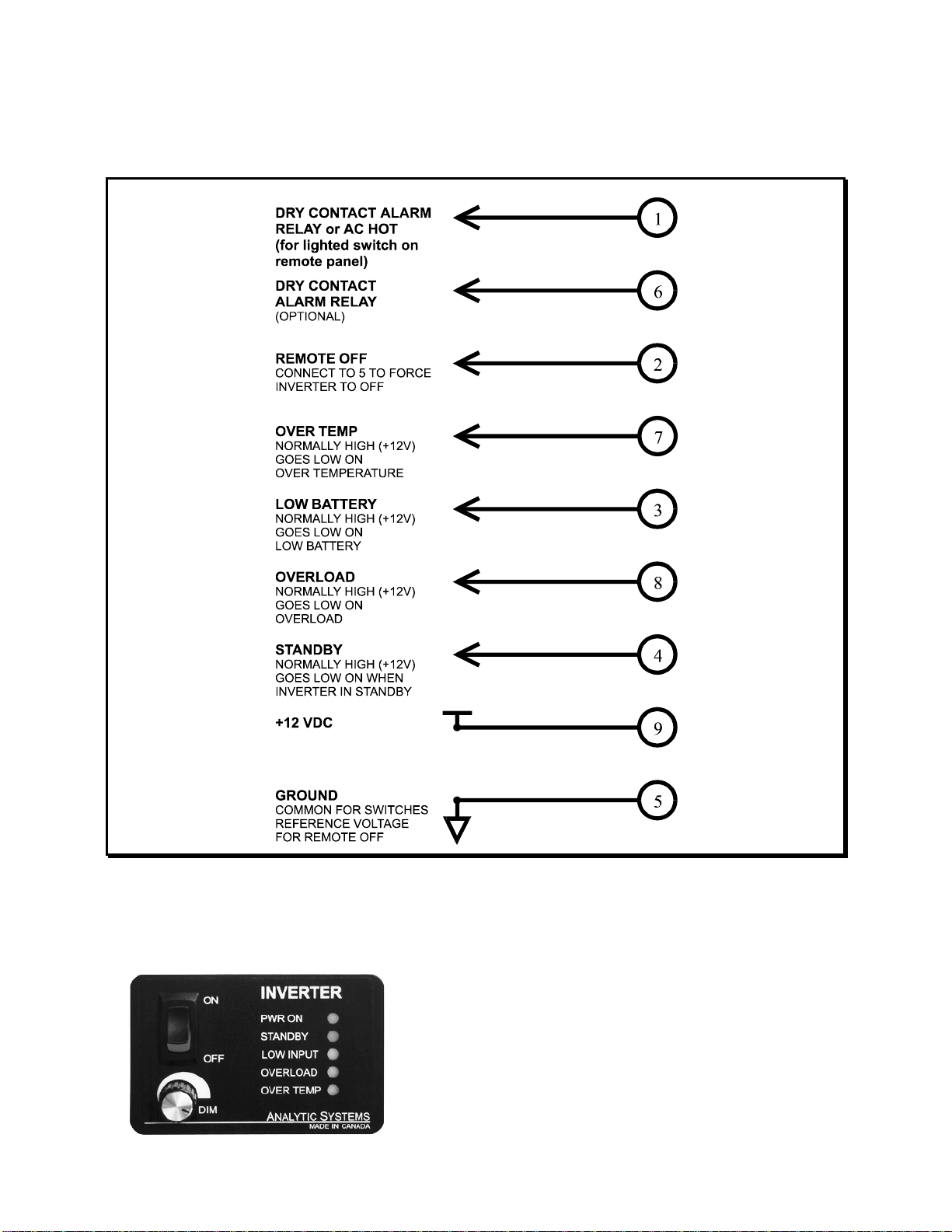

REMOTE CONNECTOR
This connector is located on the front of the unit.
Note: All switches are electronic (solid state) not mechanical relays.
REMOTE CONTROL (OPTIONAL)
A remote control panel may be connected to the inverter
using a 9-pin D-connector which attaches to the front
panel of the inverter. The remote control panel and D
connector are part of the remote control option. The
remote control panel allows the unit to be operated
remotely as well as duplicating all the diagnostic
indicators and audible alarm.

9
This page left intentionally blank.

10
This page left intentionally blank.

11
LIMITED WARRANTY
1. The equipment manufactured by Analytic Systems Ware (1993) Ltd. (the “Warrantor”) is
warranted to be free from defects in workmanship and materials under normal use and
service. This warranty is in effect for 3 years from the date of purchase by the user (the
“Purchaser”).
2. In case any part of the equipment proves to be defective, the Purchaser should do the
following:
a) Prepare a written statement of the nature of the defect to the best of the
Purchasers knowledge, and include the date of purchase, the place of purchase,
and the Purchasers name, address and telephone number.
b) Call Analytic Systems at 1-800-668-3884 or local 543-7378 and request a return
material authorization number (RMA).
c) Return the defective part or unit along with the statement at the Purchasers
expense to the Warrantor; Analytic Systems Ware (1993) Ltd., #207 12448 82nd
Ave., Surrey, B.C., V3W 3E9, Canada.
3. If upon the Warrantor’s examination the defect proves to be the result of defective
material or workmanship, the equipment will be repaired or replaced at the Warrantor’s
option without charge, and returned to the Purchaser at the Warrantor’s expense.
4. No refund of the purchase price will be granted to the Purchaser, unless the Warrantor
is unable to remedy the defect after having a reasonable number of opportunities to do
so.
5. Warranty service shall be performed only by the Warrantor. Any attempt to remedy the
defect by anyone else shall render this warranty void.
6. There shall be no warranty for defects or damages caused by faulty installation or hook-
up, abuse or misuse of the equipment including exposure to excessive heat, salt or
fresh water spray, or water immersion except for equipment specifically stated to be
waterproof.
7. No other express warranty is hereby given and there are no warranties which extend
beyond those described herein. This warranty is expressly in lieu of any other
expressed or implied warranties, including any implied warranty of merchantability,
fitness for the ordinary purposes for which such goods are used, or fitness for a
particular purpose, or any other obligations on the part of the Warrantor or its
employees and representatives.
8. There shall be no responsibility or liability whatsoever on the part of the Warrantor or its
employees and representatives for injury to any person or persons, or damage to
property, or loss of income or profit, or any other consequential or resulting damage
which may be claimed to have been incurred through the use or sale of the equipment,
including any possible failure of malfunction of the equipment, or part thereof.
9. The Warrantor assumes no liability for incidental or consequential damages of any kind.
