ANCEL FD700 User manual

FD700
-
FD700
OBDII For bmw Oil reset
BMS resetBATEPB reset
Tool SetupETCS reset
OBDⅡ
EBP reset
ETC reset Tool Setup
BAT BMS reset
For Ford Oil reset

Safety precautions
To avoid body injury and damage to the device or
your car, please read this manual carefully before
using FD700.
1. The testing process described in the manual is generally the
experience of technician.
2. Safety precaution is required in most ofthe process to avoid
body injury and damage to the device or your car.
3. Read the vehicle maintenance manual before use this device
and follow safety precautions.
4. It generates CO and other poisonous air when engine is
running. To avoidthis kind of hurt, please repair the car in a
well-air-ventilated place.
5. When the engine is running, many parts (such as the coolant
fan,pulleys, fan belt etc.) rotate at high speed. To avoid serious
injury,always be aware of moving parts. Keep a safe distance from
theseparts as well as other potentially moving objects.
6. Engine parts become very hot when the engine is running. Don’t
touch hot engine parts to avoid severe burns.
7. Fuel and battery vapors are highly flammable. To prevent an
explosion,keep all sparks, heated items and open flames away
from the batteryand fuel/ fuel vapors. Do not smoke near the
vehicle during testing.
1 EN

Coverage
1. Supports the vehicles of Ford, Lincoln and Mercury after 1996
with 16PIN Socket, including F150, Transit, VAN.
2. Supports OBDII/EOBD Modes of operation
Product specification
2.8’LCD,320 X 240 pixels color screen
Operating Voltage: 8V-18V
Operating Temperature: -10°C-60°C(14-140°F)
Storage Temperature: -20°C-70°C(4-158°F)
Appearance and Key Descriptions
-
FD700
1
3
6
5
7
2
4
9
8
OBDII For bmw Oil reset
BMS resetBATEPB reset
Tool SetupETCS reset
OBDⅡ
EBP reset
ETC reset Tool Setup
BAT BMS reset
For Ford Oil reset
2EN

1. LCD DISPLAY – Indicates test results. Backlit, 320 x 240 pixels
display
2. OK BUTTON – Confirms a selection (or action) from a menu.
3. ESC BUTTON – Cancels a selection (or action) from a menu or
returns to the menu.
4. LEFT SCROLL BUTTON –Move to left menu in main menu
mode; When more than one screen of data is retrieved, use the
left button could move to previous screens.
5. RIGHT SCROLL BUTTON –Move to right menu in main menu
mode; When more than one screen of data is retrieved, use the
right button could move to next screen for additional data.
6. UP SCROLL BUTTON –Moves up through menu items in main
menu mode；When more than one screen of data is retrieved,
use the up button could move to previous screens.
7. DOWN SCROLL BUTTON –Moves down through menu items in
main menu mode；When more than one screen of data is
retrieved, use the down button could move to next screen for
additional data.
8. OBD-16PIN CONNECTOR – Connects the scan tool to
vehicle’s Data Link Connector (DLC).
9. “I/M” BUTTON - A snapshot of emission-related systems states -
i.e., misfire monitor, EVAP system monitor etc.
I/M Readiness Remarks:
MIL Yellow- Dashboard MIL ON
MIL Gray-Dashboard MIL OFF
-not support
-complete
-not complete
EN3

1.1 Turn the ignition on.using FD700.
1.2 Locate the vehicle's 16-pin Data Link Connector
(DLC).
1.3 Main menu functions：
[OBDII]: Detect the engine system.
[For Ford]: Test all systems.
[Oil reset]: Oil change reset
[EPB reset]: EPB Brake pad reset
[BAT]: To read real Time Battery Voltage
[BMS reset]: Battery management system reset
[ETC reset]: Electric Throttle Control reset
[Tool Setup]: Language / Beeper/Instructions (Display at
startup)/Unit of Measure/Skin Style/Feedback the test result
(Main interface) (Main Menu)
1. Connect FD700
OPERATION INSTRUCTIONS
OBDII Oil reset
BMS resetBATEPB reset
Tool SetupETCS reset
For Ford
4EN

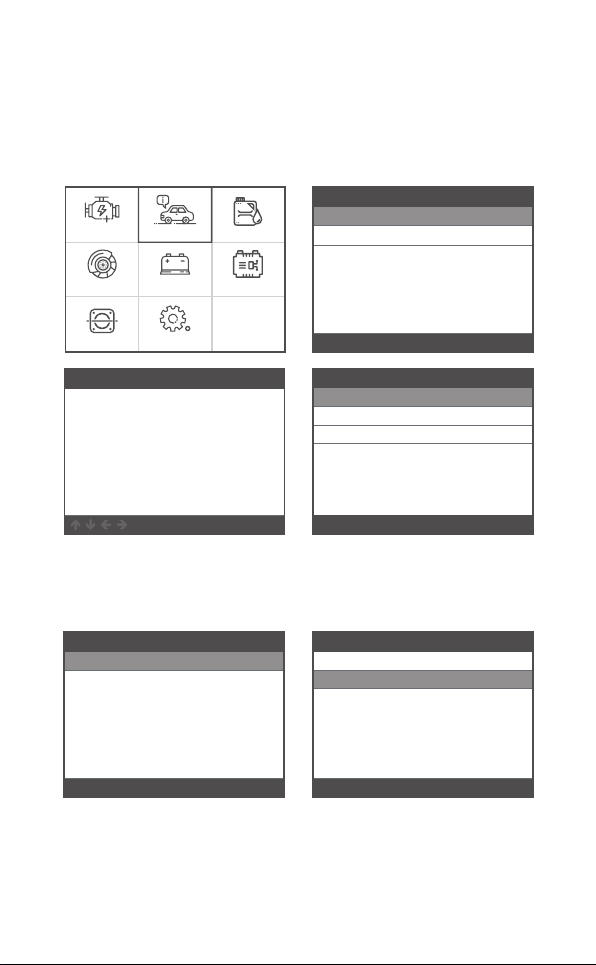

Choose [For Ford] and it displays as follows：
[System scan] is to scan all vehicle systems. Press [ System scan ]
and it displays as follows：
2.1 Basic Functions
2. FD700 Features
OBDII Oil reset
BMS resetBATEPB reset
Tool SetupETC reset
For Ford
Scanning...[18%]
BCMii(Body Control Module)
1/1
Scanning...[36%]
BCMii(Body Control Module) OK
DSM(Driver Front Seat Modu)
2/2
Select Menu
System Scan
Manual Select
Special Functions
1/3
Information
OK ESC
Vehicle：AEROSTAR
Capacity:3.0L
Engine Type:Other
ModeIYear:1996MY
PCM Part Number:XXXXXX
Vehicle information is correct?
Select Menu
Identify the Vehicle
1/2
Manual Select
5 EN

Choose [Read Fault Codes]. Press up or down button to check
each fault code as follows:
[Manual select] is to display all possible systems, select one of the
systems to diagnose.
Choose [Manual select] and it displays as follows：
2.1.1 Read Fault Codes
Scanning...[81%]
BCMii(Body Control Module) OK
3/3
Select System Diagnose
BCMii(Body Control Module) OK
PCM(Power train Control M... OK
PCM(Power train Control M... OK
PDM(Passenger Front Door
1/2
PSCM(Power Steering Control...
8/11
RCM(Restraint Control Module)
Select Menu
System Scan
Manual Select
Special Functions
2/3
Select System Diagnose
PDM(Passenger Front Door Mo...
PCM(Power train Control Module)
DDM(Driver Front Door Module)
1/11
DSM(Driver Front Seat Module)
GWM(Gateway Module A)
HVAC(Heating Ventiletion Air C.. )
IPC(Intrument Panel Control M...)
Select System Diagnose
BCMii(Body Control Module)
ABS(Antilock braking system)
6EN

Choose [Erase Fault Codes] then press [OK] button, screen
displays as follow:
You need to press [OK] again to clear the fault codes.
It shows as follow after clearing the fault codes.
If you give up clearing fault codes, please press [ESC] button.
2.1.2 Erase Fault Codes
Information
OK ESC
Erase fault codesl
Are you sure?
Information
OK ESC
Erase fault codes had Success.
Please wait 10 seconds.Turn
ignition off and Switch on again.
Read fault codes to verify.
Select Function
Read Fault Codes
Erase Fault Codes
Read Datastream
1/3
Read Fault Codes
OK ESC
P01F0 1/55
Coolant Temperature Relapsed
Lower Than Diagnostic
Monitoring Temperature
7 EN

Choose [Read Datastream] then press [OK] button, screen
displays as follows:
Press [LEFT] and [RIGHT] buttons to page.
Press [UP] and [DOWN] buttons to select one by one.
Choose [View All Items] then press [OK] button, screen displays as
follow:
Choose [Select Items] then press [OK] button, screen displays as
follows：
2.1.3 Read Datastream
A/C Pressure Sensor
Voltage[Voits]
1.40
NO Fault
Yes
NO Fault
Yes
A/C clutch output fault
detected.
CMP and CKP
Synchronized
o2s11 Status
o2s11 is warm and
ready to operate.
1-5/471
Select Datastream
All Datastream of Page[ ]
[ ]
[ ]
[ ]
[ ]
A/C Pressure Sensor Voltage
A/C clutch output fault
detected.
A/C Pressure sensor
CMP and CKP Synchronized
1-4/284
Select Function
Read Fault Codes
Erase Fault Codes
Read Datastream
3/3
Datastream
View All Items
Select Items
1/2
Datastream
Datastream
View All Items
Select Items
2/2
8EN

(Here are some common special functions. If you want to learn
more about the special features of the FD700, please call or email
us.)
2.2 Main special functions
Choose [Special Functions] and it displays as follows：
Choose [Reset PCM KAM] and it displays as follow：
Press [OK] button to next and complete special function operation:
2.2.1 Reset PCM KAM
Different car models have different special functions.
Reset KAM
OK ESC
Resetting KAM will clear
learned values the PCM has
stored for adaptive systems such
as idle and fuel.
Do you wish to continue?
Reset KAM
OK ESC
Set ignition switch to OFF
(Position 0).
Reset KAM
OK ESC
This test is now complete.
Select Function
Reset PCM KAM
Clear Transmission Adaptive T...
Steering Wheel Position Sensor...
1/3
Select Menu
System Scan
Manual Select
Special Functions
3/3
9 EN

Choose [Special Functions] and it displays as follows：
Press [OK] button to next:
2.2.2 DPF Reset
DPF Reset
OK ESC
Resetting completed.
Press [OK] button to next:
DPF Reset
OK ESC
Warning
This procedure resets the DPF
date.
Do you wish to continue?
Select Function
ABS Service Bleed
Clear EGR Adaptive Tables
DPF Reset
3/4
DPF Manual Regeneration
Select Menu
System Scan
Manual Select
Special Functions
3/3
10EN

In the Engine system, choose [Special Function] and it displays
as follow：
Choose [Injector Quantity Adjustment] and it displays as follows：
Press [OK] button to next step:
2.2.3 Injector Quantity Adjustment
Injector Quantity Adjustment
OK ESC
Carry out this procedure to
enter the new IQA date whenever
a fuel in ject is replaced or to
make a correction to the existing
in jector IQA data currently stored
in the PCM.
OK ESC
On the following screen,the
diagnostic tester will attempt to
retrieve the in jector IQA data
from the PCM allowing for
verification and data entry.
Perform the following :
Select Function
ABS Service Bleed
Reset TCM KAM
Clear Transmission Adaptive T...
5/5
DPF Manual Regeneration
IQA
Injector Quantity Adjustment
Injector 1
OK
Delete
1
0
2
3
4
3/38
Enter the character IQA
data
11 EN

OK ESC
The following injector IQA
data is currently stored in the
PCM.
In jector 1:FC2FA03028
In jector 2:002F5FF020
In jector 3:FC201F5028
Injector Quantity Adjustment
Injector Quantity Adjustment
OK ESC
Set ignition switch to OFF
(Position 0).
OK ESC
Set the ignition switch to ON.
Injector Quantity Adjustment
Press [OK] button, you will need to OK values manually and
it displays as follow：
Press left button to character selection page down.
Press Right button to information page down.
Press [OK] button to next:
Press [OK] button to next:
Note: Different models may have different configurations and
special features maybe different.
In ject...
Next
9/9
In jector 1#FC2F A
03028
In jector 2#002F5FF
020
Injector Quantity Adjustment
12EN

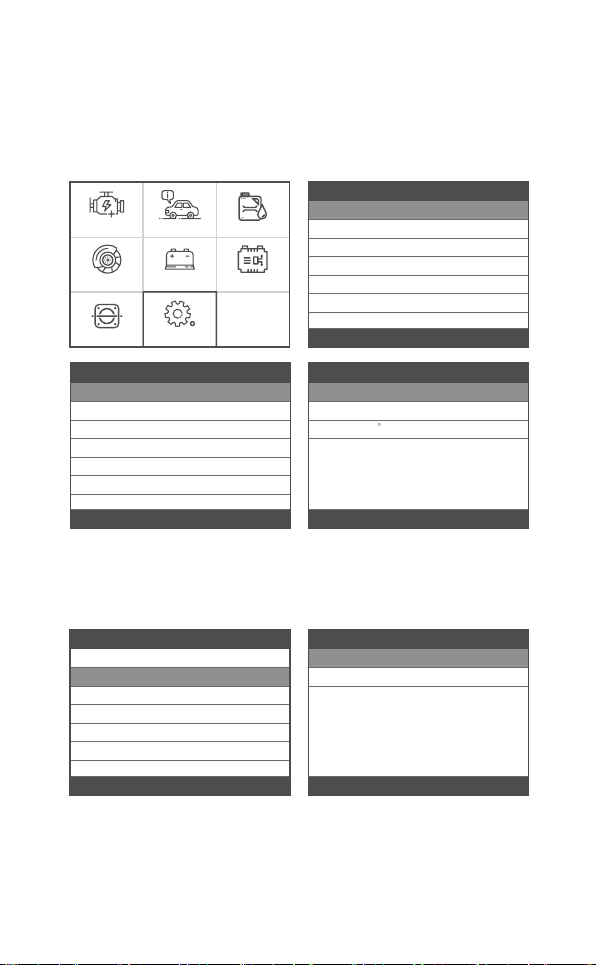

Choose [OBDII ] and it displays as follows：
3 OBDII Diagnose
If there are no Diagnostic Trouble Codes present, the display
indicates "No (pending) codes are stored in the module!" Wait a
few seconds or press any key to return to the Diagnostic Menu.
2.View DTCs and their definitions on screen
(The control module number; Sequence of the DTCs; Total
number of codes detected; Type of codes (Generic of Manufactur-
er specific)
3.1 Read Codes
OBDII Oil reset
BMS resetBATEPB reset
Tool SetupETCS reset
For Ford
Select System Diagnose
Processing
ISO9141
ISO14230-4 KWP(5BPS)
ISO14230-4 KWP
ISO15765-4 CAN (29bit)
ISO15765-4 CAN (11bit)
J1850 PWM
J1850 VPW [fail]
[fail]
[fail]
[ ]
[ ]
[ ]
[ ]
DTC
P1113
IAT Sensor Open/Short
FORD
1/3
Pending
OK ESC
Diagnostic Menu
Read Codes
Erase Codes
I/M Readiness
1/6
Data Stream
Evap System Test
Vehicle Information
1. Select [ Read Codes ] , then press [OK]
13 EN

1. Select [ Erase codes ] , then press [OK]
2. A warning message comes up asking for your confirmation.
3. Press [OK] to confirm.
3.2 Erase Codes
Diagnostic Menu
Read Codes
Erase Codes
I/M Readiness
2/6
Data Stream
Evap System Test
Vehicle Information
OK ESC
Clear/Reset Emission-Related
Diagnostic Information,Are you
sure?
Erase Codes
OK ESC
Please Turn lgnition ON with
Engine Off,Press OK key to
continue!
Erase Codes
OK ESC
Emission-Related Diagnostic
Information has been Cleared!
Erase Codes
14EN

Select I/M Readiness option, press [OK], the screen will display as
follows:
Use UP or Down button to select, then press [OK], the screen will
display as follow
N/A means not available on this vehicle, INC means incomplete or
not ready,OK means Completed or Monitor OK.
3.3 I/M Readiness
Choose [Data Stream] and it displays as follows：
3.4 Data Stream
Misfire monitor OK
OK
OK
INC
N/A
Fuel system monitor
Comprehensive component
monitor
Catalyst monitor
Heated catalyst monitor
1-5/10
I/M Readiness
Diagnostic Menu
Read Codes
Erase Codes
I/M Readiness
3/6
Data Stream
Evap System Test
Vehicle Information
Diagnostic Menu
Read Codes
Erase Codes
I/M Readiness
4/6
Data Stream
Evap System Test
Vehicle Information
Datastream
View All Items
Select Items
1/2
I/M Readiness
Since DTCs Were Cleared
This Drive Cycle
1/2
15 EN

This function enables the conditions required to conduct an
evaporative system leak test, but does not actually run the test.
The vehicle manufacturer is responsible to determine the criteria to
automatically stop the test.
Before performing this function, please check the vehicle's service
repair manual to determine the necessary procedures.
3.5 EVAP System Test
Choose [Vehicle Information] and it displays as follows：
3.6 Vehicle Information
Fuel system 1 status OL
OL
0.0%
-31°C
0.0%
Fuel system 2 status
Calculated LOAD Value
Engine Coolant
Temperature
Short Term Fuel Trim-
Bank 1
1-5/19
Datastream
Vehice Identification Number (VIN)
LVSFBFAC94F020950
Calibration Identifications(CID)
000007550753
Calibration Venfication Number (CVN)
B5073064
Diagnostic Menu
Read Codes
Erase Codes
I/M Readiness
5/6
Data Stream
Evap System Test
Vehicle Information
OK ESC
Evaportive system leak test
not supported.
Erase System Test
OK ESC
Diagnostic Menu
Read Codes
Erase Codes
I/M Readiness
6/6
Data Stream
Evap System Test
Vehicle Information
Vehicle Information
16EN

Choose [Language] and it displays as follows:
4.1 Language
Choose [Beeper] and it displays as follows:
4.2 Beeper
4. Tool Setup
OBDII Oil reset
BMS resetBATEPB reset
Tool SetupETCS reset
For Ford
Tool Setup
Language
Beeper
Instructions(Display at startup)
1/6
Unit of Measure
Skin Style
Feedback the test result
Tool Setup
Language
Beeper
Instructions(Display at startup)
2/6
Unit of Measure
Skin Style
Feedback the test result
English
Language
1/10
OFF
ON
Beeper
1/2
Français
Deutsch
Español
русский
Português
Svenska
Dansk
Language
8/10
Suomalainen
Norsk sprak
17 EN

Choose [Instructions (Display at startup)] and it displays as
follows:
4.3 Instructions (Display at startup)
Tool Setup
Language
Beeper
Instructions(Display at startup)
3/6
Unit of Measure
Skin Style
Feedback the test result
OFF
ON
1/2
Instructions(Display at startup)
Choose Unit of measure and it displays as follows:
4.4 Unit of measure
Tool Setup
Language
Beeper
Instructions(Display at startup)
4/6
Unit of Measure
Skin Style
Feedback the test result
Metric
Imperial
1/2
Unit of Measure
Choose Skin Style and it displays as follows:
4.5 Skin Style
Tool Setup
Language
Beeper
Instructions(Display at startup)
5/6
Unit of Measure
Skin Style
Feedback the test result
Sky Gray
Gem Blue
1/2
Skin Style
18EN
