Fluke 4180 User manual

4180, 4181
Precision Infrared Calibrator
Operators Manual
November 2020
© 2020 Fluke Corporation. All rights reserved. Specifications are subject to change without notice.
All product names are trademarks of their respective companies.

LIMITED WARRANTY AND LIMITATION OF LIABILITY
Each Fluke product is warranted to be free from defects in material and workmanship under normal use and
service. The warranty period is one year and begins on the date of shipment. Parts, product repairs, and services
are warranted for 90 days. This warranty extends only to the original buyer or end-user customer of a Fluke
authorized reseller, and does not apply to fuses, disposable batteries, or to any product which, in Fluke's opinion,
has been misused, altered, neglected, contaminated, or damaged by accident or abnormal conditions of operation
or handling. Fluke warrants that software will operate substantially in accordance with its functional specifications
for 90 days and that it has been properly recorded on non-defective media. Fluke does not warrant that software
will be error free or operate without interruption.
Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but
have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support is available only if
product is purchased through a Fluke authorized sales outlet or Buyer has paid the applicable international price.
Fluke reserves the right to invoice Buyer for importation costs of repair/replacement parts when product purchased
in one country is submitted for repair in another country.
Fluke's warranty obligation is limited, at Fluke's option, to refund of the purchase price, free of charge repair, or
replacement of a defective product which is returned to a Fluke authorized service center within the warranty
period.
To obtain warranty service, contact your nearest Fluke authorized service center to obtain return authorization
information, then send the product to that service center, with a description of the difficulty, postage and insurance
prepaid (FOB Destination). Fluke assumes no risk for damage in transit. Following warranty repair, the product will
be returned to Buyer, transportation prepaid (FOB Destination). If Fluke determines that failure was caused by
neglect, misuse, contamination, alteration, accident, or abnormal condition of operation or handling, including
overvoltage failures caused by use outside the product's specified rating, or normal wear and tear of mechanical
components, Fluke will provide an estimate of repair costs and obtain authorization before commencing the work.
Following repair, the product will be returned to the Buyer transportation prepaid and the Buyer will be billed for the
repair and return transportation charges (FOB Shipping Point).
THIS WARRANTY IS BUYER'S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. FLUKE SHALL NOT BE LIABLE FOR ANY
SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR LOSSES, INCLUDING LOSS OF
DATA, ARISING FROM ANY CAUSE OR THEORY.
Since some countries or states do not allow limitation of the term of an implied warranty, or exclusion or limitation
of incidental or consequential damages, the limitations and exclusions of this warranty may not apply to every
buyer. If any provision of this Warranty is held invalid or unenforceable by a court or other decision-maker of
competent jurisdiction, such holding will not affect the validity or enforceability of any other provision.
11/99
Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
U.S.A.
Fluke Europe B.V
P.O. Box 1186
5602 BD Eindhoven
The Netherlands

1
Table of Contents
Title Page
Introduction................................................................................................ 1
Contact Fluke Calibration .......................................................................... 2
Safety Information ..................................................................................... 2
Service Information.................................................................................... 3
Unpack the Product................................................................................... 4
Specifications and Environmental Conditions ...........................................4
Specifications........................................................................................ 4
Environmental Conditions..................................................................... 5
Quick Start................................................................................................. 6
Setup .................................................................................................... 6
Power on the Product ........................................................................... 6
Parts and Controls ................................................................................ 7
Front Panel ........................................................................................... 7
Display ............................................................................................. 9
Back Panel ....................................................................................... 10
Languages ............................................................................................ 11
Language Selection ......................................................................... 11
Reset to English Language.............................................................. 11
Ice Buildup and Purge Procedure (4180 Only) ..................................... 11
Purge Procedure .............................................................................. 11
Remove the Ice Buildup on the Target ............................................ 12
Set the Emissivity of the IR Thermometer ............................................ 12
Forced Air and Convection ................................................................... 13
Menu Structure .......................................................................................... 14
Temperature Setup Menu..................................................................... 14
Program Menu ...................................................................................... 15
System Menu........................................................................................ 16
View Temperature Menu ...................................................................... 17
Troubleshooting......................................................................................... 18

4180, 4181
Operators Manual
2

1
Introduction
The Fluke Calibration 4180, 4181 Precision Infrared Calibrator (The Product) is a portable instrument
or bench-top temperature calibrator used to calibrate point IR thermometers. The Product is small
enough to use in the field, and accurate enough to use in the lab.
The Product features:
• Rapid heating and cooling
• RS-232 interface capability
Built in programmable features include:
• Temperature scan rate control
• Eight set-point memory
• Adjustable readout in °C or °F
• Adjustable Emissivity
The temperature is accurately controlled by the digital controller. The controller uses a precision
platinum RTD as a sensor and controls the surface temperature with a solid state relay (triac) driven
heater (4181) and FET driven Peltier modules (4180).
The LCD (display) continuously shows the current temperature. The temperature is easily set with the
control buttons to any desired temperature within the specified range. The Product's multiple fault
protection devices ensure user and Product safety and protection.
With proper use, the Product will provide continued accurate calibration of IR temperature
measurement devices. Familiarize yourself with the safety guidelines and operating procedures of the
Product. See Safety Information.
Further information about the Product including calibration and remote commands can be found in the
4180,4181 Technical Guide found on our website at www.flukecal.com.

4180, 4181
Operators Manual
2
Contact Fluke Calibration
Fluke Corporation operates worldwide. For local contact information, go to our website:
www.flukecal.com
To register your product, view, print, or download the latest manual or manual supplement, go to our
website.
Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
[phone]
[email protected]
Safety Information
General Safety Information is located in the printed Safety Information document that ships with the
Product. It can also be found online at www.Flukecal.com. More specific safety information is listed
where applicable in this manual.
A Warning identifies conditions and procedures that are dangerous to the user. A Caution identifies
conditions and procedures that can cause damage to the Product or the equipment under test.
Follow these guidelines closely to make sure that the safety mechanisms in this Product operate
properly. This Product must be plugged into an AC-only outlet according to the Specifications and
Environmental Conditions. The power cord of the Product has a three-pronged grounding plug for your
protection against electrical shock. Plug the power cord directly into a properly grounded three-prong
receptacle. The receptacle must be installed in accordance with local codes and ordinances. Consult a
qualified electrician.
WCaution
To prevent damage to the Product:
• Always replace the fuse with one of the same rating, voltage, and type.
• Always replace the power cord with an approved cord of the correct rating and type.
• Protect the target against dirt and damage - scrapes and scratches. A well-kept target
surface, free from dirt and damage, produces better measurements. Use the target
cover whenever the Product is not in use to protect the target. Always use the target
cover when transporting the Product, but remember to never transport the Product
when the target temperature is >50 °C.
• Do not touch the target. Oils and salts from the skin will permanently damage the
target surface at high temperatures.
• Do not use fluids to clean the target surface.
• Do not use shop air to clean the target surface. Oil and contaminants in the shop air
could contaminate the surface.
• Do not use canned, compressed air (used to clean a computer) to clean the target
surface. Chemicals in the air could contaminate the target surface.
• When ice forms on the target, change the instrument set-point >50 °C to melt the
excess ice. DO NOT wipe the front plate (target). Change the set-point to 100 °C or
higher to evaporate the excess water.

Precision Infrared Calibrator
Service Information
3
• Do not force cool the surface. The surface should not be cooled by any method other
than natural convection. Forced air can often have oil or water in it. Even water can
leave mineral deposits on the surface. Trying to cool the surface too quickly can also
cause thermal shock to the emissive surface.
• Do not use liquid nitrogen (LN2) to quick cool the target.
• Do not plug the Product into 230 V if the fuse holder reads 115 V. This action will
cause the fuses to blow and may damage the Product.
• Component lifetime can be shortened by continuous high temperature operation.
• Do not change the values of the calibration constants from the factory set values.
Calibration constants shall only be changed by qualified and authorized personnel.
The correct setting of these parameters is important to the safety and proper
operation of the Product.
• Use a ground fault interrupt device.
• Always operate this Product at room temperatures as stated in Specifications and
Environmental Conditions.
• The Product is a precision instrument. Handle the Product with care. It is important to
keep the calibration well and the IR target surface clean and clear of any foreign
matter.
• If a main supply power fluctuation occurs, immediately turn off the Product. Wait until
the power has stabilized before re-energizing the Product.
• Always carry the Product in an upright position. The convenient pull-up handle al-
lows one hand carrying.
• Do not operate the instrument in excessively wet, oily, dusty, or dirty environments.
• DO NOT operate near flammable materials.
• Use the target cover at temperatures below ambient (25 °C). If ice or liquid water
forms on the target, IR thermometers will not indicate the correct temperature.
Service Information
Contact an authorized Fluke Calibration Service Center if the Product needs calibration or repair during
the warranty period. See Contact Fluke Calibration. Please have Product information such as the
purchase date and serial number ready when you schedule a repair.

4180, 4181
Operators Manual
4
Unpack the Product
Unpack the Product carefully and inspect it for any damage that may have occurred during shipment. If
there is shipping damage, notify the carrier immediately.
Verify that these components are present:
• 4180, 4181 IR Calibrator Report of Calibration
• 4180, 4181 Safety Information
• Power Cord
• Target Cover
• Serial Cable
Specifications and Environmental Conditions
Specifications
Product specifications are in Table 1.
Table 1. Specifications
4180 4181
Temperature range
(@ 23 °C ambient, 0.95 emissivity)
-15 °C to 120 °C 35 °C to 500 °C
Power
115 V ac (±10%),
50/60 Hz, 250 W
230 V ac (±10%),
50/60 Hz, 250 W
115 V ac (±10%),
50/60 Hz, 1100 W
230 V ac (±10%),
50/60 Hz, 1100 W
Display Accuracy [1]
±0.40 °C at -15 °C
±0.40 °C at 0 °C
±0.50 °C at 50 °C
±0.50 °C at 100 °C
±0.55 °C at 120 °C
±0.35 °C at 35 °C
±0.50 °C at 100 °C
±0.70 °C at 200 °C
±1.20 °C at 350 °C
±1.60 °C at 500 °C
Stability
± 0.10 °C at -15 °C
± 0.05 °C at 0 °C
± 0.10 °C at 120 °C
± 0.05 °C at 35 °C
± 0.20 °C at 200 °C
± 0.40 °C at 500 °C
Uniformity [2]
(12.7 cm (5.0 in) diameter of center of
target)
±0.15 °C at -15 °C
±0.10 °C at 0 °C
±0.25 °C at 120 °C
± 0.10 °C at 35 °C
±0.50 °C at 200 °C
±1.00 °C at 500 °C
Uniformity [3]
(5.08 cm (2.0 in) diameter of center of
target)
±0.10 °C at -15 °C
±0.10 °C at 0 °C
±0.20 °C at 120 °C
± 0.10 °C at 35 °C
±0.25 °C at 200 °C
±0.50 °C at 500 °C
Heating time 15 min: -15 °C to 120 °C
14 min: 23 °C to 120 °C 20 min: 35 °C to 500 °C
Cooling time 15 min: 120 °C to 23 °C
20 min: 23 °C to -15 °C
100 min: 500 °C to 35 °C
40 min: 500 °C to 100 °C
Stabilization time 10 min
Nominal emissivity [3] 0.95
Thermometer emissivity
compensation range 0.9 to 1.0
Target diameter 152.4 mm (6 in)
Computer interface RS-232
Size (HxWxD) 356 x 241 x 216 mm
(14 x 9.5 x 8.5 in)

Precision Infrared Calibrator
Specifications and Environmental Conditions
5
Environmental Conditions
Although the Product has optimum durability and trouble-free operation, it must be handled with care.
The Product should not be operated in an excessively dusty or dirty environment. Only use the Product
indoors. Maintenance and cleaning recommendations can be found in the 4180, 4181 Technical Guide
available at www.fluke.com.
4180 4181
Weight 9.1 Kg (20 Ib) 9.5 Kg (21 Ib)
Ambient temperature 5 °C to 35 °C (41 °F to 95 °F)
Ambient relative humidity maximum 80% for temperature <31 °C, decreasing linearly to 50 % at 40 °C
Altitude <2000 meters
Fuse(s) 115 V: T 6.3 A, 250 V
230 V: T 3.15 A, 250 V
115 V: F 10 A, 250 V
230 V: F 5 A, 250 V
Safety IEC 61010-1: Overvoltage Category II, Pollution Degree 2
IEC 61010-2-010
Electromagnetic Compatibility (EMC)
International................................. IEC 61326-1: Basic Electromagnetic Environment
CISPR 11: Group 1, Class A
Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio
frequency energy that is necessary for the internal function of the equipment itself.
Class A: Equipment is suitable for use in all establishments other than domestic and
those directly connected to a low-voltage power supply network that supplies buildings
used for domestic purposes. There may be potential difficulties in ensuring
electromagnetic compatibility in other environments due to conducted and radiated
disturbances.
Caution: This equipment is not intended for use in residential environments and may not
provide adequate protection to radio reception in such environments.
Korea (KCC) ...............................Class A Equipment (Industrial, Broadcasting, &
Communication Equipment)
Class A: Equipment meets requirements for industrial electromagnetic wave equipment
and the seller or user should take notice of it. This equipment is intended for use in
business environments and not to be used in homes.
USA (FCC).................................. 47 CFR 15 subpart B. This product is considered an
exempt device per clause 15.10
[1] For 8 μm to 14 μm spectral band thermometers with emissivity set between 0.9 and 1.0.
[2] The uniformity specification refers to how IR thermometers with different spot sizes both focused at the center of the target will measure the same
temperature.
[3] The target has a nominal emissivity of 0.95, however it is radiometrically calibrated to minimize emissivity related uncertainties.
[4] Due to physical limitations of the product, the maximum temperature of the 4181 is limited for emissivity settings greater than 0.95. See Table 5for
more information.
Table 1. Specifications (cont.)

4180, 4181
Operators Manual
6
Quick Start
Setup
Note
The Product will not heat, cool, or control until the SET PT. parameter is Enabled.
Place the Product on a flat surface with at least 15 cm (6 in) of free space around the Product.
Overhead clearance is required. Do not place under a cabinet or structure.
Plug the power cord of the Product into a mains outlet of the proper voltage, frequency, and current
capability (see Specifications and Environmental Conditions for power details). Confirm that the
nominal voltage corresponds to that indicated on the power entry model at the back of the Product.
Remove the target cover.
Power on the Product
Toggle the switch on the power entry module to turn on the power to the Product. After a brief self-test,
the controller should begin normal operation. The main screen appears within 30 seconds. If the
Product fails to operate, check the power connection. The display shows the target surface
temperature, and waits for user input before further operation.
Push SET PT. and use the arrow buttons to set the desired set-point temperature. Push ENTER to
save the set-point and enable the Product. After 5 seconds the Product starts to operate normally and
heat or cool to the designated set-point.

Precision Infrared Calibrator
Quick Start
7
Parts and Controls
This section describes the exterior features of the Product. All interface buttons are found on the front
of the Product (see Table 2). Power and serial connections are on the back of the Product
(see Table 4).
Front Panel
Table 2shows the front panel.
Table 2. Front Panel
A
The Display is a 240 x 160 pixel monochrome graphics LCD device with a bright
LED backlight. The display shows current control temperature, measurements,
status information, operating parameters, and softkey functions.
.

4180, 4181
Operators Manual
8
B
The SET PT. button enables the Product to heat or cool to a desired set-point. Until
SET PT. is enabled, the Product will not heat or cool. The Product is in a sleep state
for safety of the operator and Product.
CThe °C/°F button changes the displayed temperature units from °C to °F and °F to
°C.
DThe MENU button accesses all parameter and settings menus. From the main
menu, use the softkeys to access submenus and functions.
EThe EXIT button exits menus and cancels newly entered values.
FThe arrow buttons move the cursor on the display, change the display layout, and
adjusts the display contrast.
GThe ENTER button selects menus and accepts new values.
H
The Softkeys are the four buttons immediately below the display (F1 to F4). The
functions of the softkeys are indicated on the display above the buttons. The
function of the keys may change depending on the menu or function that is selected.
I
The block temperature indicator shows when it is safe to install the target cover. The
indicator illuminates when the target exceeds approximately 50 °C. The indicator
illuminates until the target cools to less than approximately 50 °C. If the Product is
disconnected from mains power, the indicator flashes until the target temperature is
less than approximately 50 °C.
Table 2. Front Panel (cont.)

Precision Infrared Calibrator
Quick Start
9
Display
Table 3shows the display.
Table 3. The Display
AProcess Temperature - The most recent block temperature measurement is
shown in large digits.
BThe current set-point temperature.
CThe current infrared thermometer emissivity setting (IRT ε).
DThe current calibration wavelength (CAL λ)selected. The wavelength band at
which the Product was calibrated.
EStability Status - A graph shows the current status of the stability of the Product.
F
Heating/Cooling Status - A bar graph indicates HEATING, COOLING, or CUT-
OUT. This status graph indicates the current level of heating or cooling if the
Product is not in cutout mode.
G
(not shown)
Softkey Functions (not shown) - The four sets of text at the bottom of the display
indicate the functions of the softkeys (F1-F4). These functions change with each
menu.
H
(not shown)
During Product setup and use, you are often required to enter or select parameters.
Editing windows appear on the display to show the values of parameters and
allow edits.

4180, 4181
Operators Manual
10
Back Panel
Table 4shows the back panel.
Table 4. Back Panel
AThe fan is located in the center of the back of the Product. Do not obstruct the
airflow of the fan. Leave at least 6 inches of air flow around the Product.
B
The power supply cord attaches to the power-entry module. Plug the cord into
an ac mains supply appropriate for the voltage displayed on the power entry module
and as specified in Specifications and Environmental Conditions.
The power switch is located on the power-entry module of the Product.
The Product fuses are located inside the power-entry module of the Product. If
necessary, fuses must be replaced according to Specifications and Environmental
Conditions.
CThe serial (RS-232) interface can be used to transmit measurements and control
the operation of the Product.

Precision Infrared Calibrator
Quick Start
11
Languages
Set the display to different languages depending on the configuration.
• European: English, French, Spanish, Italian, German, Chinese, Japanese
• Russian: Russian, English
Language Selection
The languages in the Menu system under the System Menu/Display Setup. Select the language to be
displayed with the left and right arrow buttons (see SYSTEM MENU in the Technical Guide). See

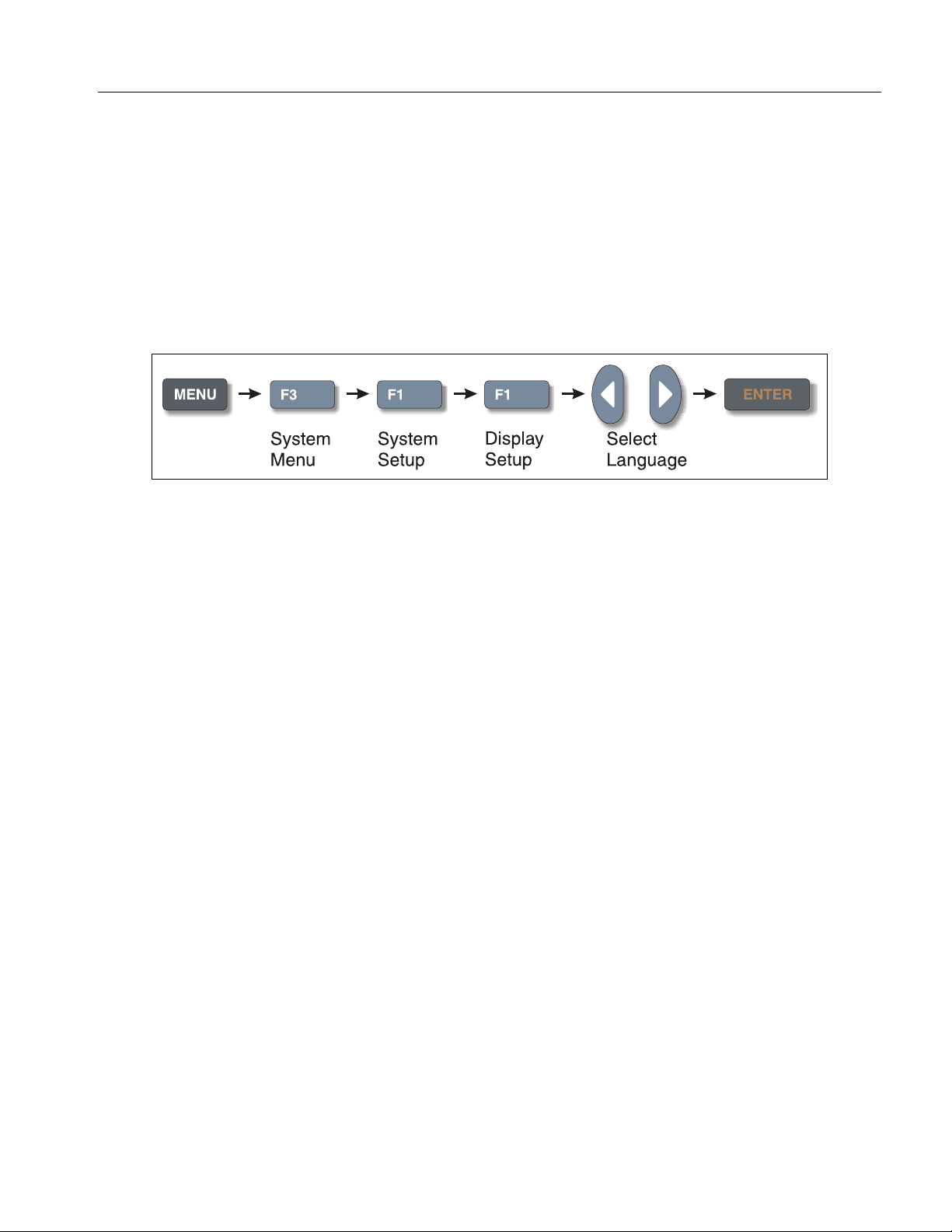

Figure 1.
Figure 1. Language Selection
Reset to English Language
F1 + F4 temporarily displays English, or returns to the selected language. The selected language
resumes after the power is switched off and on. To permanently select English, follow the instructions
in Language Selection.
Ice Buildup and Purge Procedure (4180 Only)
At the factory, the Product calibration is done with the target free of any ice or moisture. Ice or moisture
on the target changes the emissivity of the target and apparent temperature. If there is any ice or
moisture (even though it is a slight amount) on the target, the display temperature accuracy is invalid.
In addition, ice buildup can damage the surface coating causing the radiometric calibration to drift.
Always avoid ice buildup. To facilitate this, use the cover with a purge inlet provided with the Product.
Fluke Calibration recommends that the target cover be used at any set-point below the dew point.
Depending on the ambient humidity of the environment where the target is used, the dew point can be
as high as the ambient temperature of that environment.
Purge Procedure
The Cover allows the target to be used at temperatures below the dew point. The target is less likely to
form ice while the target is covered. The target cover has a purge inlet to further prevent ice buildup. To
use the purge, the user needs a 6 mm (0.25 in) outside diameter tube. Connect tubing to the purge inlet
on the target cover. Use a dry gas for the purge. This means the gas should have a dew point
<-15 °C. Fluke Calibration recommends nitrogen or dried air. If the gas contains any water vapor, ice or
moisture will form on the target. Use a relatively-low flow rate of 2.4 liters/min to 4.8 liters/min (5 CFH to
10 CFH) for the purge.

4180, 4181
Operators Manual
12
Do not leave the target uncovered for more than 5 seconds, since it can cause ice to form on the target.
To make measurements below the dew point:
1. Put the target cover in place.
2. Adjust the set-point to the desired temperature and allow the instrument to stabilize at that
temperature.
3. Remove the target cover when the target stabilizes.
4. Take a sample.
5. Replace the target cover.
Remove the Ice Buildup on the Target
If a small amount of ice has formed, place the cover back on the target and allow the purge gas to
sublime the ice. If there is more ice or you do not have a purge available, change the Product set-point
to a temperature equal to or greater than 50 °C with the target uncovered. Allow all ice to melt and all
water to dry before returning target to use. Do not wipe the target.
Set the Emissivity of the IR Thermometer
The Product is calibrated with a radiometric calibration. This calibration is done with a highly accurate
IR thermometer. This IR thermometer emissivity setting is 0.950 during Product calibration. When you
calibrate IR thermometers with the Product, it is best practice to use an IR thermometer emissivity
setting of 0.950. Some IR thermometers do not have an adjustable emissivity setting. Most of these will
have emissivity set at 0.95. In either case, the apparent emissivity setting of the Product should also be
set to 0.95. Due to safety issues and the physical limits of the instrument, temperature range of the
instrument may be limited from the specified range when using an emissivity setting other than 0.95. A
table of this limitation is shown in Table 5.
If the IR thermometer does not have an emissivity setting of 0.95, the Product allows adjustment of
emissivity (IRT ɛ, from 0.90 to 1.00). Refer to Forced Air and Convection for information on how to
access IRT ɛin the controller menu.

Precision Infrared Calibrator
Quick Start
13
If uncertain of the emissivity setting of the IR thermometer you are calibrating, consult your IR
thermometer's User's Guide or your IR thermometer's manufacturer.
Table 5. Apparent Temperature Limits
Forced Air and Convection
Since the Product has a large surface area, a major component of the temperature uncertainty is
caused by changes in convection. Because of this, keep the Product away from areas with large
amounts of air flow or drafts.
4180 4181
ɛHI (°C) LO (°C) HI (°C) LO (°C)
0.90 120.0 -15.0 500.0 35.0
0.91 120.0 -15.0 500.0 35.0
0.92 120.0 -15.0 500.0 35.0
0.93 120.0 -15.0 500.0 35.0
0.94 120.0 -15.0 500.0 35.0
0.95 120.0 -15.0 500.0 35.0
0.96 119.2 -14.5 496.6 35.0
0.97 118.4 -14.0 493.2 35.0
0.98 117.6 -13.5 489.8 35.0
0.99 116.8 -13.0 486.4 35.0
1.00 116.0 -12.5 483.0 35.0

4180, 4181
Operators Manual
14
Menu Structure
Temperature Setup Menu

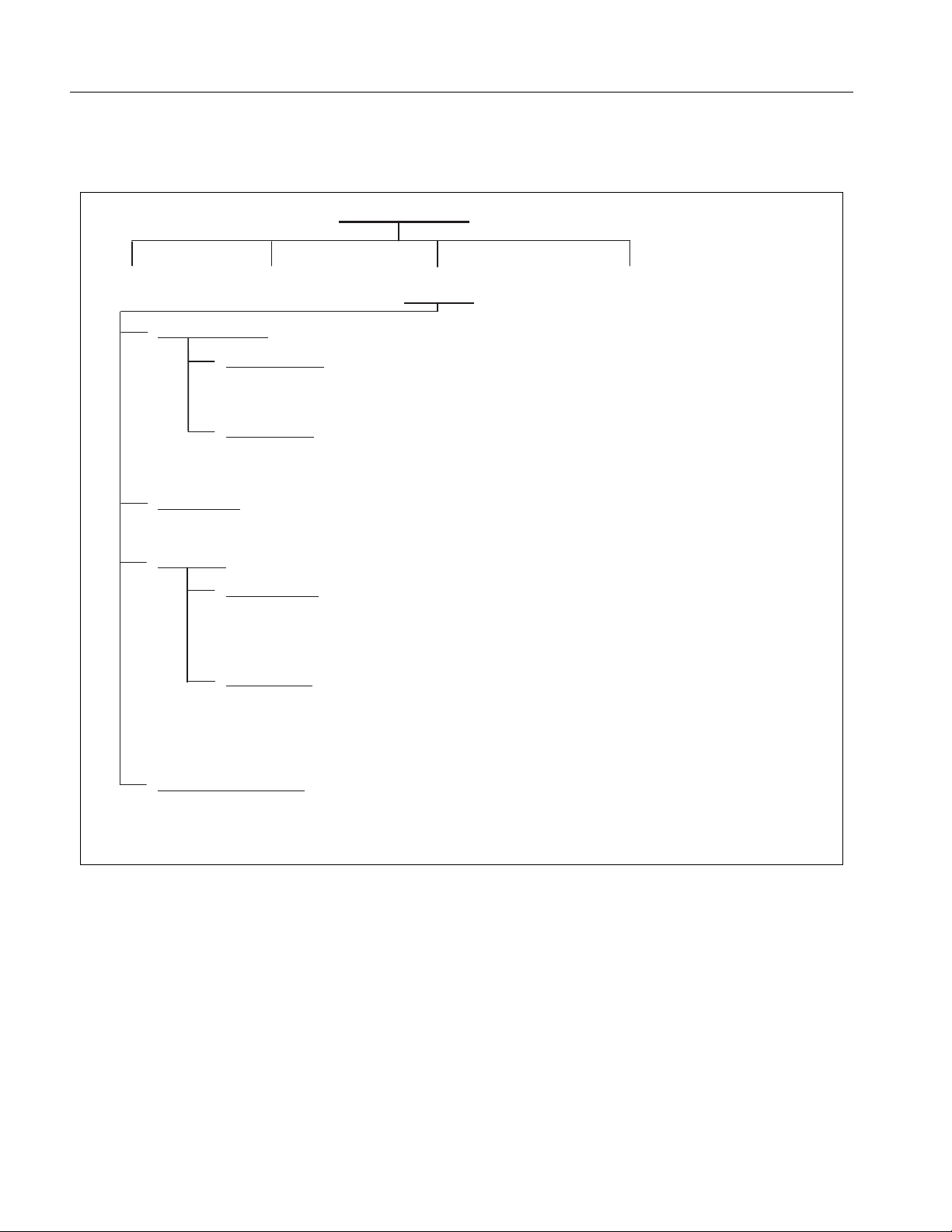

The Temperature Setup menu is shown in Figure 2.
Figure 2. Temperature Setup Menu
MAIN MENU
F1 F2 F3 F4
TEMP SETUP PROG MENU SYSTEM MENU VIEW TEMP
F1 SCAN<change the scan rate and enable alarms>
SCAN RATE: <edit>
STABLE LIMIT: <edit>
STABLE ALARM: (ENABLE/DISABLE) <select>
F2 IRT
IRT : <edit>
F3 CUTOUT<modify hard and soft cutout>
<Set display emissivity to match IR thermometer>
SOFT CUTOUT: <edit>
HARD CUTOUT: <view only>
Buttons
SET PT. - SET TEMPERATURE SETPOINT
SETPOINT: <set point temperature> <edit>
ENTER <enable control of the instrument>
F1 – SELECT PRESET <1-8> <select>
F1 – EDIT PRESET <1-8> <edit>
F4 – SAVE/DISABLE <disables control of the instrument>
ºC / ºF - Units: <°C, °F>
Up/ Down Arrow Buttons <contrast adjust> <toggle>
Up : Lighter
Down : Darker
F1 and F4 (simultaneiously) <reset to English language>
F1 and F3 (simultaneiously) <turn off button push beep>

Precision Infrared Calibrator
Menu Structure
15
Program Menu
The Program menu is shown in Figure 3.
Figure 3. Program Menu
MAIN MENU
F1 F2 F3 F4
TEMP SETUP PROG MENU SYSTEM MENU VIEW TEMP
F1 SELECT PROGram
rebmuneuqinuaybdetneserpersimargorphcaE>tceles<>8,…,1<:MARGORP
)rebmunledomretemomre
htatneserperyam(emanmargorP>tide<:EMAN
F1 EDIT PROGram
>ylnoweiv<:MARGORP
>ylnoweiv<:EMAN
TRI : <edit> The emissivity setting of the thermometer to be calibrated
noitarbilacgnirudtegratotretemomrehtmorfecnatsiD>sretemitnec<>tide<:ECNATSID
noitarbila
cgnirudderiuqersierutrepalanretxenatahtsetacidniseY>tceles<>ON,SEY<:ERUTREPA
erutarepm
etforebmunehT>tide<>8-1<:SPETS set points used in the calibration program
>tide<:1TNIOPTES
>tide<:2TNIOPTES
>tide<:3TNIOPTES
>tide<:4TNIOPTES
>tide<:5TNIOPTES
>tide<:6TNIOPTES
>tide<:7TNIOPTES
>tide<:8TNIOP
TES
F2 PROGram OPTION
SETTLE TEST: <AUTO, LIMIT> <select> Criteria for determining when the temperature of the target is stable
SOAK MINUTES: <edit> Length of time in minutes at which the calibrator remains at the set point temperature
ADVANCE: <PROMPT,AUTO> <select> Choice of advancing to the next step in the program automatically or prompted by user
CYCLES: <edit> Number of times the calibrator repeats the ramp/soak program
F3 RUN PROGram
PROGRAM: <view only> Each program is represented by a unique number
NAME: <view only> Program name (usually a thermometer model number)
STATUS: <RUN, OFF> <select> Run indicates that a program is in process and Off indicates a program is not in progress.

4180, 4181
Operators Manual
16
System Menu
The System menu is shown in Figure 4.
Figure 4. System Menu
MAIN MENU
F1 F2 F3 F4
TEMP SETUP PROG MENU SYSTEM VIEW TEMP
F1 SYSTEM SETUP
F1 DISPLaY SETUP
>tceles<>ESENIHC,ESENAPAJ,NAISSUR,NAMREG,NAILATI,HSINAPS,HCNERF,HSILGNE<:EGAUGNAL
>tceles<
>AMMOC,DOIREP<:LAMICED
>tceles<>NO,FFO<:OIDUAYEK
F2 COMM SETUP
>tceles<>0021,0042,0084,0069,00291,00483<:ETARDUAB
>tceles<>FFO,NO<:DEEFENIL
F2 PASSWORD
USER PASSWORD: <edit>
PROTECTION: <LOW, HIGH> <select>
F3 CALIBrate
F1 CONTRoL setup
:DNABlanoitroporPPMET < edit >
:noitargeTNIerutarePMET <edit>
:evitaviREDerutarePMET <edit>
F2 IR CALibration
:1LACRI <edit>
:2LACRI <edit>
:3LACRI <edit>
SURFACE: <edit>
>tceles<>RESU,mu41-8<:HTGNELEVAW
:ETADnoitarbiLAC
<edit>
F4 SYSTEM INFOrmation
MODEL: <view only>
SERIAL: <view only>
FW VERSION: <view only>
CALibration DATe: <view only>
