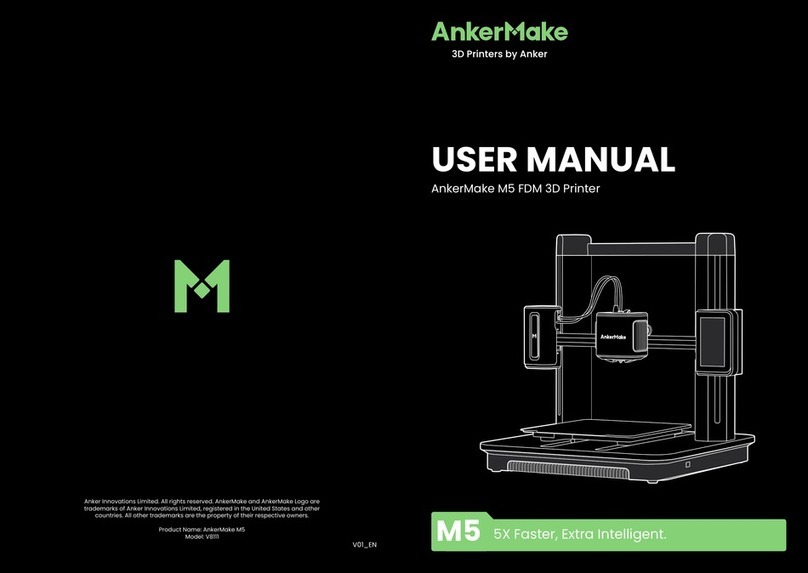

AnkerMake M5 User manual
51005003445 V01
Anker Innovations Limited. All rights reserved. AnkerMake and AnkerMake Logo are
trademarks of Anker Innovations Limited, registered in the United States and other
countries. All other trademarks are the property of their respective owners.
QUICK START GUIDE
AnkerMake M5
English 001
026
049
072
095
118
141
164
184
207
Deutsch
Español
Français
Italiano
Nederlands
Português
日本語
EN 002001 EN
ASSEMBLING THE PRINTER
What You Need
M4
M5
M2.5
AT A GLANCE
USB-C Port
Touch Screen
Camera
Power Button
Indicator Light
PEI Plate
Indicator Light* Description
Flashing Orange Slowly Heating up
Fading Green Repeatedly Printing
Flashing Red An alarm is going off
* For more indicator light status, visit https://www.ankermake.com.
Product Name: AnkerMake M5 Model: V8111
EN 004003 EN
2. Take out all the accessories in the foam, then place the protection
foam on the ground as support.
Step 1. Installing Gantry Frame
1. Open the box, then place the foam cover on the ground.
EN 006005 EN
4. Take the gantry frame out of the packaging foam, then put it back
as shown below.
3. Take out the gantry frame with its protection foam and place it on
the support foam.
EN 008007 EN
6. Mount the platform through the holes.5. Detach the bottom cover from the platform.
EN 010009 EN
Step 2. Wiring
1. Connect the motor wires.
7. Fasten screws into the platform.
M5
EN 012011 EN
3. Put the bottom cover back onto the platform.2. Connect and x the USB-C cables with screws.
M2.5
EN 014013 EN
Step 4. Connecting to Power
1. Connect the printer to a power outlet with the power cable, then
power on the printer.
①
②
2. Follow instructions on the touch screen to complete the initial setup.
Step 3. Installing Filament Holder
Secure the lament holder with screws.
M4
Option 1 Option 2
EN 016015 EN
LEVELING HEAT BED
On the touch screen, go to Control > Auto-Level to level the heat bed.
SETTING UP THE SYSTEM
1. Download and install the AnkerMake app, then sign up for an
account.
2. Follow on-screen instructions to add the printer to your device list
and connect it to Wi-Fi.
EN 018017 EN
3. Insert the lament until it reaches the extruder. Then press and
hold the button on top of the extruder while continuing to insert the
lament. Stop when you feel some resistance.
LOADING FILAMENT
1. Place the lament onto the holder.
2. Cut the tip of the lament at a 45° angle.
45°
EN 020019 EN
INSTALLING ANKERMAKE SLICER
For the best printing experience, download and install AnkerMake
Slicer to your computer from ankermake.com/software.
The AI recognition capabilities will be not available when the
printer works with other 3D slicer software, such as Cura and
Simplify3D.
4. On the touch screen, tap Load on Control > Extrude.
Wait until lament ows out of the nozzle, then tap Stop.
EN 022021 EN
NOTICE
Notice (United States Of America)
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Warning: Changes or modications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures: (1) Reorient or relocate the receiving
antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the
equipment into an outlet on a circuit different from that to which the receiver is connected. (4)
Consult the dealer or an experienced radio/TV technician for help.
FCC Radio Frequency Exposure Statement
The device has been evaluated to meet general RF exposure requirements. The device can be used
in xed/mobile exposure condition. The min separation distance is 20cm.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain
compliance with FCC regulations.
SAFETY
•The power cord shall be connected to socket-outlet with earthing connection.
•The power supply should be installed near the equipment and the socket-outlet must be easily
accessible.
•Only use the power cord provided by the manufacturer. Using unauthorized power cords may
cause danger and violate the authorization of the product as well as the guarantee.
•Plug of the power cord is considered as the disconnect device. Once unplugged, the product is
considered to be disconnected from the power source.
•Do not use the device in an environment where the temperature is too high or too low. Never
expose the device to strong sunshine or wet environments.
•The suitable temperature range for the product and its accessories is 15-35oC.
•It is recommended to supply the device in an environment with a temperature that ranges from
15℃ ~25℃ .
•When supplying, place the device in an environment that has a normal room temperature and
good ventilation.
•This equipment is not suitable for use in locations where children
are likely to be present. This equipment is not intended for use by children.
•Moving parts. Keep body parts away from moving parts.
•CAUTION Hot parts. Do not touch.
•Do not use the product in any way other than described herein in order to avoid personal injury or
property damage.
•User should comply with the laws and regulations of the corresponding countries and regions
where the equipment is located (used), abide by professional ethics, pay attention to safety
obligations, and strictly prohibit the use of our products or equipment for any illegal purposes. Our
company will not be responsible for any violators' legal liability under any circumstances.
EN 024023 EN
Notice (Europe and United Kingdom)
This product complies with the radio interference requirements of the European
Community.
Declaration of Conformity
Hereby, Anker Innovations Limited declares that this device is in compliance with the essential
requirements and other relevant provisions of Directive 2014/53/EU.For the declaration of conformity,
visit the Web site: https://ankermake.com.
This product complies with the radio interference requirements of the United Kingdom
Declaration of Conformity
Hereby, Anker Innovations Limited declares that this device is in compliance with Radio Equipment
Regulations 2017(SI 2017/1206). The full text of the UK declaration of conformity is available at the
following internet address: https://ankermake.com.
RF exposure information:
The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of
d=20 cm between the device and the human body. To maintain compliance with RF exposure
requirement, use product that maintain a 20cm distance between the device and human body.
Notice (Canada)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil nedoit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
IC RF Statement:
When using the product, maintain a distance of 20cm from the body to ensure compliance with RF
exposure requirements.
The following importer is the responsible party
Company Name: Fantasia Trading LLC
Address: 5350 Ontario Mills Pkwy, Suite 100, Ontario, CA 91764
Telephone: 1-800-988-7973
Lors de l'utilisation du produit, maintenez une distance de 20 cm du corps an de vous
conformer aux exigences en matière d'exposition RF.
DE 026025 EN
Trademarks
The Bluetooth®word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and
any use of such marks by Anker Innovations Limited is under license. Other trademarks and trade
names are those of their respective owners.
Frequency bands and power are as below:
Function Bands Operation Frequency Max.Power
Wi-Fi 2.4GHz 2412-2472MHz EIRP 19.10 dBm
Bluetooth 2.4GHz 2402-2480 MHz EIRP 8.0 dBm
The following importer is the responsible party (contract for EU matters):
Anker Innovations Deutschland GmbH I Georg-Muche-Strasse 3, 80807 Munich, Germany
The following importer is the responsible party (contract for UK matters):
Anker Technology (UK) Limited I GNR8, 49 Clarendon Road, Watford, Hertfordshire, WD17 1HP, United
Kingdom
Your product is designed and manufactured with high quality materials and components,
which can be recycled and reused.
This symbol means the product must not be discarded as household waste, and should be
delivered to an appropriate collection facility for recycling. Proper disposal and recycling
helps protect natural resources, human health and the environment. For more information
on disposal and recycling of this product, contact your local municipality, disposal service,
or the shop where you bought this product.
AUF EINEN BLICK
USB-C-Anschluss
Touchscreen
Kamera
Ein-/Aus-Taste
Leuchtanzeige
PEI-Platte
Leuchtanzeige* Beschreibung
Blinkt langsam orange Aufheizen
Verblassendes Grün wiederholt Drucken
Blinkt rot Ein Alarm wird aktiviert
*Weitere Informationen zum Status der Leuchtanzeige nden Sie unter https://www.
ankermake.com.
Produktname: AnkerMake M5 Modell: V8111
DE 028027 DE
ZUSAMMENBAU DES DRUCKERS
Werkzeug und Bauteile
M4
M5
M2.5
SCHRITT 1. Installieren des Portalrahmens
1. Öffnen Sie den Behälter und legen Sie die Schaumstoffabdeckung
auf den Boden.
DE 030029 DE
2. Nehmen Sie alle Zubehörteile aus dem Schaumstoff heraus und
legen Sie dann den Schutzschaumstoff als Unterlage auf den Boden. 3. Nehmen Sie den Portalrahmen mit seinem Schutzschaumstoff
heraus und legen Sie ihn auf die Schaumstoffunterlage.
DE 032031 DE
4. Nehmen Sie den Portalrahmen aus dem Verpackungsschaumstoff
und setzen Sie ihn wie unten gezeigt wieder ein. 5. Nehmen Sie die untere Abdeckung von der Plattform ab.
DE 034033 DE
6. Montieren Sie die Plattform durch die Löcher. 7. Drehen Sie die Schrauben in die Plattform.
M5
DE 036035 DE
SCHRITT 2. Verkabelung
1. Schließen Sie die Motorkabel an.
2. Schließen Sie die USB-C-Kabel an und befestigen Sie sie mit
Schrauben.
M2.5
