ANSMANN WFL800 User manual

ANSMANN AG
1600-0280: WFL800
1600-0281: WFL1600
1600-0282: WFL2400
WANDSTRAHLER
WALL-FLOODLIGHT
BEDIENUNGSANLEITUNG
MANUAL
Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk

Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk
2Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk
3
1
4
22

3
Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk
ORIGINALBETRIEBSANLEITUNG
WANDSTRAHLER
WFL800 | WFL1600 | WFL2400
INHALTSVERZEICHNIS
Lieferumfang........................................................................................................3
Zeichenerklärung.................................................................................................4
Bestimmungsgemäßer Gebrauch .......................................................................4
Sicherheitshinweise............................................................................................4
Produktbeschreibung..........................................................................................6
Montage................................................................................................................6
Anschluss.............................................................................................................8
Scheinwerfer einstellen ......................................................................................9
Reinigung..............................................................................................................9
Technische Daten ............................................................................................. 10
Entsorgung........................................................................................................ 11
HAFTUNGSAUSSCHLÜSSE ................................................................................... 11
GARANTIEHINWEIS .............................................................................................. 11
LIEFERUMFANG
1x Wandstrahler
1x Bedienungsanleitung
Packen Sie zunächst das Produkt aus und überprüfen Sie es auf
Vollständigkeit und Beschädigungen. Nehmen Sie ein beschädigtes Produkt
nicht in Betrieb. Sollten Sie Beschädigungen am Produkt feststellen,
kontaktieren Sie Ihren Händler.

4Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk
ZEICHENERKLÄRUNG
Bitte beachten Sie folgende Zeichen und Wörter, welche Sie in der
Bedienungsanleitung, auf dem Produkt und auf der Verpackung verwendet
werden.
=Information
Nützliche Zusatz-Informationen zum Produkt
=Hinweis
Dieser Hinweis warnt vor möglichen Schäden aller Art
= Warnung
Achtung – Gefährdung! Kann zu schweren Verletzungen oder zum Tod
führen
= Schutzklasse I
= Stromschlaggefahr
= Nicht in den Lichtstrahl schauen
= Bei Glasbruch nicht betreiben
BESTIMMUNGSGEMÄSSER GEBRAUCH
Das Produkt dient der Beleuchtung von Einfahrten, Durchgängen,
Freiflächen, usw.
Das Produkt ist ausschließlich für den privaten Gebrauch im Haushalt und
nicht für den kommerziellen Gebrauch bestimmt.
SICHERHEITSHINWEISE
Lesen Sie vor Inbetriebnahme des Produkts die komplette
Bedienungsanleitung sorgfältig durch. Sie enthält wichtige
Hinweise zum Umgang mit dem Produkt.
Wenn Sie das Produkt an dritte Personen weiterreichen,
händigen Sie diese Bedienungsanleitung mit aus.
• Halten Sie Kinder vom Produkt und der Verpackung fern. Das
Produkt ist kein Spielzeug. Kinder sollten beaufsichtigt werden, um
sicherzustellen, dass sie nicht mit dem Produkt spielen.

5
Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk
• Lebensgefahr durch Stromschlag! Vergewissern Sie sich stets,
dass die Stromzufuhr vor der Montage oder anderen Tätigkeiten
am Produkt unterbrochen ist. Sichern Sie den Schaltkasten gegen
Wiedereinschalten durch Dritte, z. B. mit einem Warnschild.
• Prüfen Sie immer, ob die Netzspannung mit den Angaben auf dem
Typenschild des Produkts übereinstimmt, bevor Sie das Produkt
anschließen.
• Der Befestigungsuntergrund und die Befestigungsmaterialien müssen
das Produkt sicher halten können. Im Zweifel wenden Sie sich an eine
fachkundige Person.
• Lebensgefahr durch Stromschlag! Achten Sie darauf, während der
Bohrung der Löcher keine Wasser-, Strom- oder Telefonleitungen zu
beschädigen. Verwenden Sie ein Leitungssuchgerät.
• Dieses Produkt entspricht der Schutzart IP54: Geschützt gegen
das Eindringen von Staub zu gefährlichen und sensiblen Teilen.
Spritzwassergeschützt. Produkt nicht in Wasser tauchen.
Die IP-Schutzart ist nur bei ordnungsgemäß montiertem Produkt
gewährleistet.
• Fassen Sie das Produkt nicht mit nassen oder feuchten Händen an.
• Achten Sie darauf, dass das Anschlusskabel nicht gespannt ist oder in
Kontakt mit scharfen Gegenständen, Chemikalien oder Lösungsmitteln
gerät.
• Überprüfen Sie regelmäßig die Anschlussleitung und den Netzstecker
auf Beschädigungen.
• Zur Vermeidung von Gefährdungen darf eine beschädigte äußere
flexible Leitung dieser Leuchte ausschließlich vom Hersteller, seinem
Servicevertreter oder einer vergleichbaren Fachkraft ausgetauscht
werden.
Das Produkt entspricht der Schutzklasse I und muss somit an den
Schutzleiter angeschlossen werden.
Lebensgefahr durch Stromschlag! Die unsachgemäße
Verwendung, Bedienung oder Montage birgt das Risiko
eines lebensgefährlichen Stromschlags. Das Produkt darf
ausschließlich durch eine Elektrofachkraft angeschlossen
werden!

6Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk
Schauen Sie nicht direkt in den Lichtstrahl.
Leuchten Sie nicht anderen Personen ins Gesicht. Geschieht dies
zu lange, kann durch Blaulichtanteile eine Netzhautgefährdung
auftreten.
Das Sicherheitsglas ist nicht austauschbar. Bei
beschädigtem Sicherheitsglas muss das Produkt
entsorgt werden.
• Ein gefahrloser Betrieb ist nicht mehr möglich, wenn das Produkt
sichtbare Beschädigungen aufweist. Wenn das Produkt beschädigt ist,
muss es entsorgt oder repariert werden.
• Reparieren Sie das Produkt nicht selbst! Lassen Sie Reparaturen nur
von einer Elektrofachkraft durchführen.
• Die Lichtquelle dieser Leuchte ist nicht austauschbar. Wenn die
Lebensdauer der Lichtquelle endet, muss die gesamte Leuchte ersetzt
werden.
• Achtung! Zum Anschluss darf nur ein Anschlusskabel der Kategorie
H05RN-F 3G 1 mm2oder höherwertig verwendet werden.
PRODUKTBESCHREIBUNG
(siehe Seite 2)
1 LEDs
2 Feststellschrauben
3 Anschlussleitung
4 Halte-/Montagebügel
MONTAGE
• Unterbrechen Sie die Stromversorgung zum Kabel direkt am
Schaltkasten und sichern Sie diesen gegen Wiedereinschalten durch
Dritte.
• Wählen Sie eine geeignete Montageposition für das Produkt.
Hinweise:
Die Befestigungslöcher im Bügel besitzen einen Durchmesser von 5 mm.
Wählen Sie passendes Montagematerial aus.
Die Montagematerialien sind nicht mitgeliefert. Als Beispiel wird in dieser
Anleitung die Montage mit 2 Schrauben und 2 Dübeln gezeigt. Je nach
Bedarf können Sie andere Montagematerialien verwenden.

7
Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk
5.
6.
7.
2.
3.
4.
1.
AUS

8Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk
8.
ANSCHLUSS
• Schließen Sie die Adern entsprechend den Markierungen an:
LPhase (braun)
Erdung (gelb-grün)
NNeutral (blau)
• Stellen Sie die Spannungsversorgung wieder her.

9
Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk
SCHEINWERFER EINSTELLEN
• Lösen Sie die Feststellschrauben.
≤ 100°
≤ 90°
• Stellen Sie den gewünschten Winkel des Scheinwerfers ein (-100° bis
+90°).
• Ziehen Sie die Feststellschrauben mit einem Innensechskantschlüssel
fest.
REINIGUNG
• Unterbrechen Sie vor jeder Reinigung die Spannungsversorgung
zum Produkt direkt am Schaltkasten. Sichern Sie das Produkt vor
unbeabsichtigtem Wiedereinschalten, indem Sie ein Hinweisschild am
Schaltkasten positionieren.
• Zur Reinigung verwenden Sie lediglich ein weiches, trockenes oder
leicht feuchtes Tuch (gegebenenfalls unter Zugabe von etwas mildem
Geschirrspülmittel). Verwenden Sie zur Reinigung auf keinen Fall
Scheuer- oder Lösungsmittel.

10 Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk
TECHNISCHE DATEN
Modell 1600-0280:
WFL800
1600-0281:
WFL1600
1600-0282:
WFL2400
Anschlussspannung 220-240 V~, 50/60 Hz
Leistung in Watt 10 W 20 W 30 W
IP-Schutzart IP54 (spritzwassergeschützt)
Schutzklasse I
Leuchtmitteltyp LED
Farbtemperatur 5000 K
Nennlichtstrom 900 lm 1800 lm 2700 lm
Maximale Projektionsfläche 200 cm2385 cm2470 cm2
Montageort Innen und außen
Montagehöhe max. 3 m
Betriebstemperatur ta-20 bis +50 °C
Abmessungen Glas
(B x H x T) – ca.
124 x
90 x
4 mm
177 x
127 x
4 mm
201 x
146 x
4 mm
Abmessungen mit Bügel
(B x H x T) – ca.
147 x
136 x
42 mm
202 x
190 x
34 mm
231 x
202 x
41 mm
Gewicht 0,44 kg 0,82 kg 1,15 kg

11
Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk
ENTSORGUNG
Entsorgen Sie die unbrauchbare Leuchte gemäß den
gesetzlichen Bestimmungen. Die Kennzeichnung „Mülltonne“
weist darauf hin, dass Elektrogeräte in der EU nicht mit dem
normalen Haushaltsmüll entsorgt werden dürfen. Benutzen
Sie die Rückgabe- und Sammelsysteme in Ihrer Gemeinde oder
wenden Sie sich an den Händler, bei dem das Produkt gekauft
wurde.
Damit erfüllen Sie Ihre gesetzlichen Pflichten und leisten Ihren Beitrag zum
Umweltschutz.
HAFTUNGSAUSSCHLÜSSE
Die in dieser Bedienungsanleitung enthaltenen Informationen können ohne
Vorankündigung geändert werden. ANSMANN übernimmt keine Haftung für
direkte, indirekte, zufällige oder sonstige Schäden oder Folgeschäden, die
durch unsachgemäße Handhabung oder durch Missachtung der in dieser
Bedienungsanleitung enthaltenen Informationen entstehen. Bei falscher
Verwendung des Produktes übernehmen wir keine Haftung und gewähren
keine Gewährleistungs- oder Garantieansprüche.
GARANTIEHINWEIS
Auf das Produkt bieten wir eine zehnjährige Garantie. Bei Schäden am
Produkt, die infolge Nichtbeachtung der Bedienungsanleitung entstehen,
kann keine Garantie gewährt werden.
Ihr gesetzlicher Gewährleistungsanspruch wird hierdurch nicht
beeinträchtigt.
Unsere Garantiebestimmungen finden Sie online unter www.ansmann.de
Das Produkt entspricht den
Anforderungen der EU-Richtlinien.
www.tuv.com
ID 1419068831
1600-0280
1600-0281
www.tuv.com
ID 1419068822
1600-0282

12 Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
WALL FLOODLIGHT
WFL800 | WFL1600 | WFL2400
CONTENTS
Scope of delivery............................................................................................... 12
Signs and symbols............................................................................................ 13
Intended use ..................................................................................................... 13
Safety instructions........................................................................................... 13
Product description.......................................................................................... 15
Installation ........................................................................................................ 15
Connection........................................................................................................ 17
Setting the floodlight ....................................................................................... 18
Cleaning............................................................................................................. 18
Technical data................................................................................................... 19
Disposal..............................................................................................................20
DISCLAIMERS .......................................................................................................20
WARRANTY INFORMATION ....................................................................................20
SCOPE OF DELIVERY
1x Wall floodlight
1x Instruction manual
First unpack the product and check it for completeness and damages. Do
not operate the product if it is damaged. Contact your retailer should you
find any damage to the product.

13
Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk
SIGNS AND SYMBOLS
Please adhere to the following signs and warnings used in the instruction
manual, on the product and on the packaging.
= Information
Additional useful information about the product
= Notice
This notice informs the user of possible damages of all kinds
= Warning
Caution – Danger! Can result in serious injury or death
= Protection class I
= Risk of electric shock
= Do not look into the light beam
= Do not operate if glass is broken
INTENDED USE
The product serves to illuminate driveways, passageways, open spaces,
etc.
The product is designed exclusively for household use; it is not suitable for
commercial purposes.
SAFETY INSTRUCTIONS
Carefully read the entire instruction manual before first
operating the product. It contains important information on
handling the product.
If you give the product to third parties, you must include this
instruction manual.
• Keep children away from the product and the packaging. The product is
not a toy. Children should be supervised to ensure that they do not play
with the product.
• Risk of fatal injury due to electric shock! Always make sure that you
interrupt the power supply before installation or other product-related
actions. Protect the fuse box against unauthorized activation by third
parties, e.g. with a warning sign.

14 Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk
• Before connecting the product with the power supply, always make
sure that the supply voltage complies with the information on the
rating plate.
• The mounting surface and materials must be able to securely hold the
product. In case of doubt, consult an expert.
• Risk of fatal injury due to electric shock! Take care not to damage
water, electricity or telecommunications lines while drilling holes. Use
a cable locator.
• This product complies with protection class IP54: Protected against the
ingress of dust into hazardous and sensitive components. Splash-
proof. Do not immerse the product in water.
The IP protection class is only ensured when the product is correctly
installed.
• Never touch the product with wet or damp hands.
• Always ensure that the power cord is not taut nor comes into contact
with sharp objects, chemicals or solvents.
• Regularly check the power cord and power plug for damages.
• To avoid hazards, the flexible exterior cord of this floodlight, if
damaged, may only be replaced by the manufacturer, its service
representative or a comparable professional.
This product complies with protection class I and must therefore
be connected to the protective earth conductor.
Risk of fatal injury due to electric shock! Improper use, operation
or installation poses a risk of potentially fatal electric shock. The
product may be connected by a professional electrician only!
Do not look directly into the beam of light.
Do not shine the light in the faces of others. Looking into the
beam of light for too long may cause damage to the retina due
to blue light.
The safety glass is non-replaceable. If the safety glass
is damaged, dispose of the product.
• Safe operation cannot be guaranteed if the product shows any kind of
damage. If the product is damaged, it must be disposed of or repaired.

15
Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk
• Do not repair the product yourself! Have repairs carried out by a
professional electrician.
• The luminary is non-replaceable. The entire product must be replaced
when the luminary reaches the end of its service life.
• Caution! Use a H05RN-F 3G 1 mm2or higher category connection cable
for connection only.
PRODUCT DESCRIPTION
(see page 2)
1 LEDs
2 Set screws
3 Power cord
4 Mounting bracket
INSTALLATION
• Interrupt the power supply to the cable at the fuse box and secure it
against reconnection by third parties.
• Select a suitable location for product installation.
Please note:
The mounting holes in the bracket have a diameter of 5 mm. Select suitable
mounting materials.
Mounting materials are not included. This manual shows by way of example
installation using 2 screws and 2 wall anchors. If necessary, you can use
other mounting materials.

16 Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk
5.
6.
7.
2.
3.
4.
1.
AUS

17
Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk
8.
CONNECTION
• Connect the wires according to the markings:
L Phase (brown)
Grounding (yellow-green)
N Neutral (blue)
• Turn back on the power supply.

18 Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk
SETTING THE FLOODLIGHT
• Loosen the set screws.
≤ 100°
≤ 90°
• Set the desired angle of the floodlight (-100° to +90°).
• Tighten the set screws with a hex key.
CLEANING
• Always disconnect the power supply at the fuse box before cleaning
the product. Secure the product against unintended reactivation by
placing a warning sign on the fuse box.
• Use only a soft, dry or slightly damp cloth (where necessary with a
little mild dishwashing detergent) to clean the product. Never use any
abrasive cleaners or solvents to clean the product.

19
Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk
TECHNICAL DATA
Model 1600-0280:
WFL800
1600-0281:
WFL1600
1600-0282:
WFL2400
Supply voltage 220-240 V~, 50/60 Hz
Power output in watts 10 W 20 W 30 W
IP protection class IP54 (splashproof)
Protection class I
Luminary type LED
Colour temperature 5000 K
Nominal luminous flux 900 lm 1800 lm 2700 lm
Max. projection area 200 cm2385 cm2470 cm2
Installation site Indoors and outdoors
Installation height max. 3 m
Operating temperature ta-20 to +50 °C
Glass dimensions
(W x H x D) – approx.
124 x
90 x
4 mm
177 x
127 x
4 mm
201 x
146 x
4 mm
Dimensions with bracket
(W x H x D) – approx.
147 x
136 x
42 mm
202 x
190 x
34 mm
231 x
202 x
41 mm
Weight 0.44 kg 0.82 kg 1.15 kg

20 Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk Deutsch | English | Français | Español | Português
Svenska | Italiano | Nederlands | Suomi | Norsk | Dansk
DISPOSAL
At the end of its service life, dispose of the light in keeping
with all legal requirements. The dustbin symbol indicates that
waste electrical and electronic equipment may not be disposed
of with normal household waste within the EU. Please use local
recycling and collection points or contact the retailer where
you purchased the product.
You thus fulfill your statutory obligations and contribute to protection of
the environment.
DISCLAIMERS
The information contained in this instruction manual is subject to change
without prior notice. ANSMANN assumes no liability for direct, indirect,
accidental or other types of damage or consequential damage that
result from improper handling of the product or failure to comply with the
information contained in this instruction manual. We assume no liability
and grant no warranty claims in cases of improper use of the product.
WARRANTY INFORMATION
We offer a ten-year warranty on the product. Damages to the product due
to failure to observe the instruction manual will void the warranty.
This does not affect your legal warranty right.
You can find our warranty terms online at www.ansmann.de
The product meets the conditions
of the European Union.
www.tuv.com
ID 1419068831
1600-0280
1600-0281
www.tuv.com
ID 1419068822
1600-0282
This manual suits for next models
5
Table of contents
Languages:
Other ANSMANN Floodlight manuals

ANSMANN
ANSMANN FL7200AC User manual

ANSMANN
ANSMANN FL800R User manual

ANSMANN

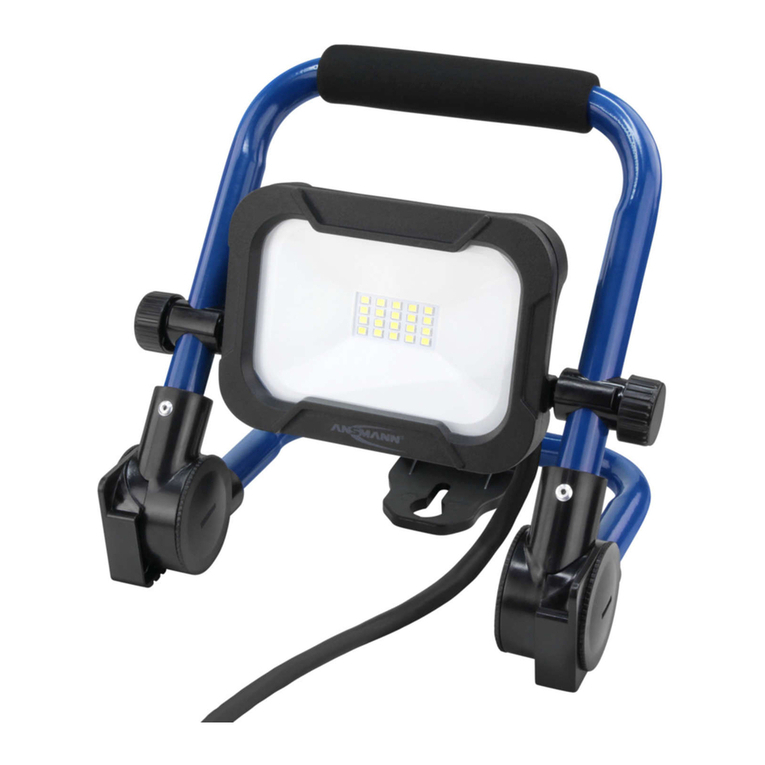

ANSMANN FL800AC User manual

ANSMANN
ANSMANN MC2+ User manual

ANSMANN
ANSMANN FL1400R User manual

ANSMANN
ANSMANN AG User manual

ANSMANN
ANSMANN WFL800S User manual

ANSMANN
ANSMANN AS Series User manual

ANSMANN
ANSMANN FL800AC User manual

ANSMANN
ANSMANN AS 10H PLUS User manual
Popular Floodlight manuals by other brands

Expolite

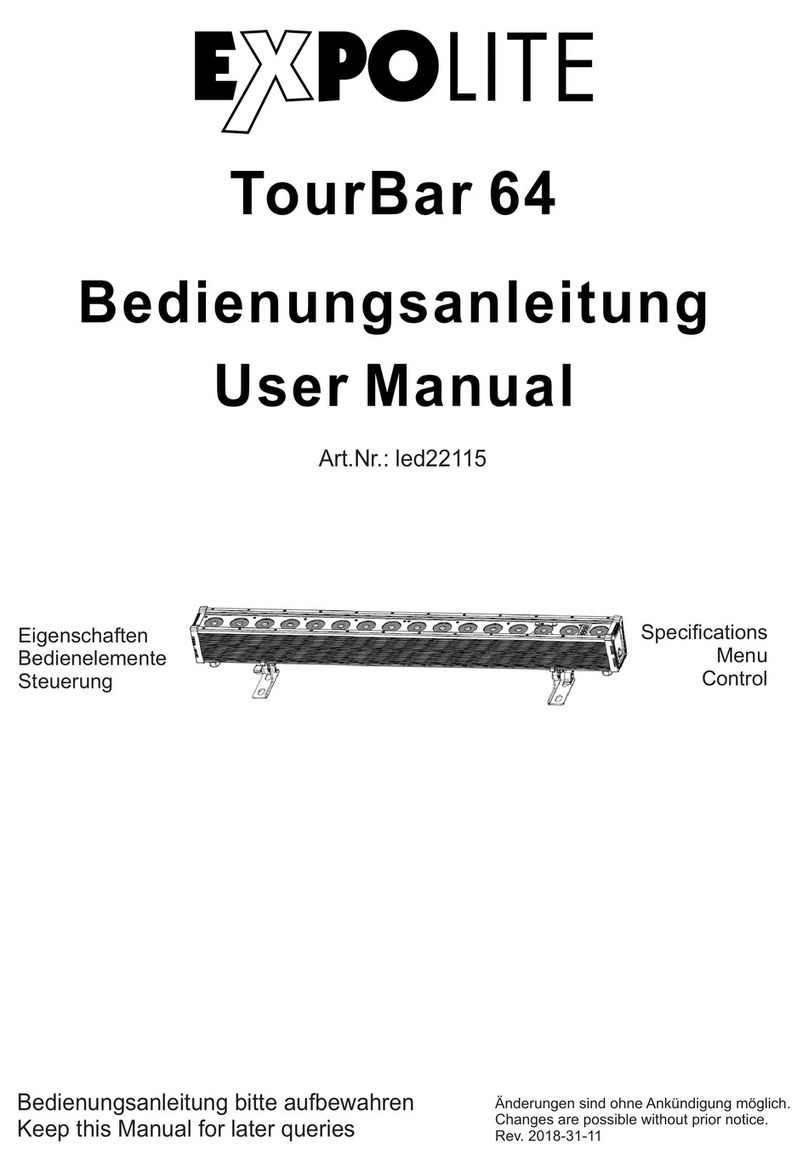

Expolite led22115 user manual

Solar Goes Green
Solar Goes Green SGG-F108-3R manual

FOS Technologies

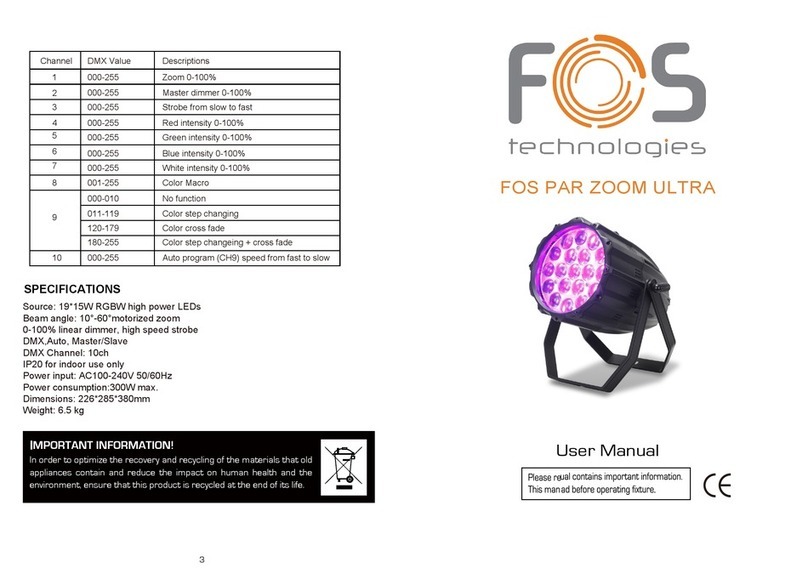

FOS Technologies PAR ZOOM ULTRA user manual

Claypaky

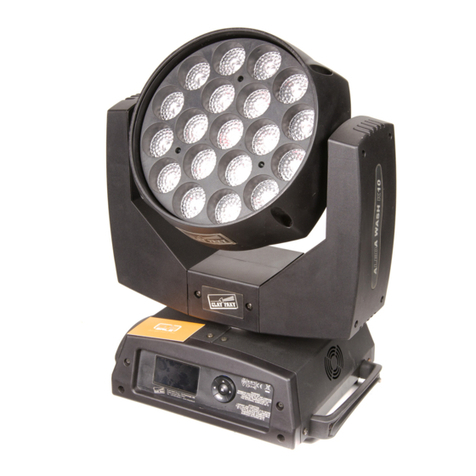

Claypaky A.LEDA B-EYE K10 EASY instruction manual

STUDIODUE
STUDIODUE CitycoloR10 user manual

Heath Zenith

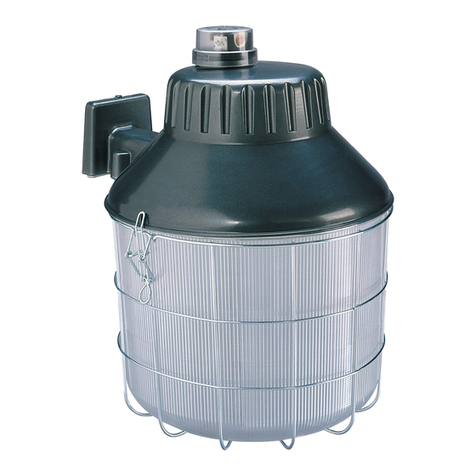

Heath Zenith SL-9272 installation instructions
