Industrial Gigabit PoE+ Injector
Industrial Grade Gigabit PoE+ Injector
User Manual
Version 1.0 (May 2020)
This manual supports the following models:
•INJ-0200G-at-24
•INJ-0200G-at-24-T
This document is the current official release manual. Please check our website (www.antaira.com) for any
updated manual or contact us by e-mail ([e-mail]).

Antaira Technologies – Industrial Gigabit PoE+ Injector
INJ-0200G-at-24 Series User Manual V1.0
iv
Table of Contents
1. Overview ............................................................... 1
1.1 Key Features............................................... 1
1.2 Package Contents....................................... 2
1.3 Safety Precaution........................................ 2
2. Hardware Description.......................................... 3
2.1 Physical Dimensions ................................... 3
2.2 Front Panel.................................................. 4
2.3 Top View ..................................................... 4
2.4 LED Indicators............................................. 5
2.5 Ethernet Ports ............................................. 5
2.6 Cabling ........................................................ 6
2.7 Wiring the Power Inputs .............................. 6
3. Mounting Installation........................................... 8
3.1 DIN-Rail Mounting....................................... 8
3.2 Wall Mounting.............................................. 9
4. Hardware Installation......................................... 10
4.1 Installation Steps....................................... 10
4.2 Maintenance and Service.......................... 11
5. Trouble Shooting................................................ 12

Antaira Technologies - Industrial Gigabit PoE+ Injector
INJ-0200G-at-24 Series User Manual V1.0
1
1. Overview
PoE and Non-PoE are both highly utilized in the industrial networking applications nowadays;
however, it sometimes goes to an awkward situation that end-device, e.g. remote camera,
supports PoE function but the Ethernet switch does not. Is there any other solution but replacing
the switch with a PoE one?
INJ-0200G-at-24 Series solve the problem simply by deploying data and power from non-PoE
switch and power input to the PD device. PoE injector is a brilliant low-cost solution for the case
that only one side of devices is supporting PoE function. Therefore, INJ-0200G-at-24 Series will be
your best choice to deal with the lack of PoE function cases.
INJ-0200G-at-24 Series supports low voltage 24VDC model with power booster technology,
ensuring full 30W PoE output, for better usage in the automation industry. INJ-0200G-at-24 Series
with fan less design, besides extending surely apply to various industrial application, INJ-0200G-
at-24-T Series works perfectly in polarized temperature from -40~75℃, and undoubtedly becomes
your best option in the industrial market.
1.1 Key Features
System Interface/Performance
•Embedded 1*10/100/1000Tx(PSE 30W) and 1*10/100/1000Tx copper port
•Compliant IEEE802.3af/at PoE technologies
•Support auto detection and classification for PoE application
•Support short-circuit and current-overloading protection for PoE application
•The total length from the device A through the Injector to the device B must not
exceed 100 meters
Power Input
•Dual 12-55VDC redundant power inputs
•1*4-pin removal terminal block
•Max. current 2.7A (Included PoE power budget)
•Max. PoE output: 30W
Operating Temperature
•Standard operating temperature model: -10°C ~ 65°C
•Extended operating temperature model (–T): -40°C ~ 75°C
Case/Installation
•IP30 protection
•DIN-Rail and wall mount design

Antaira Technologies – Industrial Gigabit PoE+ Injector
INJ-0200G-at-24 Series User Manual V1.0
2
1.2 Package Contents
1 x Quick Installation Guide
1 x INJ-0200G-at-24(-T)
1 x Wall mounting brackets and screws
1 x DC cable - 18 AWG & DC jack 5.5x2.1mm
1.3 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection
device on the power supply input. The industrial PoE injector’s hardware
specs, ports, cabling information, and wiring installation will be described
within this user manual.

Antaira Technologies – Industrial Gigabit PoE+ Injector
INJ-0200G-at-24 Series User Manual V1.0
3
2. Hardware Description
2.1 Physical Dimensions
Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ INJ-0200G-at-24
series: Industrial Gigabit PoE+ Injector
(W x D x H) is 26mm x 95mm x 75mm
Figure 2.1
INJ-0200G-at-24 Series Physical Dimensions

Antaira Technologies – Industrial Gigabit PoE+ Injector
INJ-0200G-at-24 Series User Manual V1.0
4
2.2 Front Panel
On the front panel of the Power over Ethernet Injector is equipped with two RJ-45 ports and three
LED indicators. See Figure 2.2.
2.3 Top View
Figure 2.3, below, shows the top panel of the INJ-0200G-at-24 series injector that is equipped
with one 4-pin removal terminal block connector for dual 12-55VDC power inputs.
Figure 2.3
Top Panel View of INJ-0200G-at-24 Series
Figure 2.2
Front Panel of the INJ-0200G-at-24 Series
4-pin Removal Terminal Block
For Power Inputs
Power LED
PoE LED
10/100/1000Base-T(X)
PoE+ Copper Port
10/100/1000Base-T(X)
Copper Port

Antaira Technologies – Industrial Gigabit PoE+ Injector
INJ-0200G-at-24 Series User Manual V1.0
5
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial PoE Injector that
display the power status and PoE status. Each LED indicator has a different color and has its
own specific meaning, see below in Table 2.4.
LED Color Description
PWR Green
On Power input 1 or 2 is active
Off Power input 1 and 2 is inactive
PoE Green
On The port is supplying power to the powered-
device
Off No powered-device attached or power
supplying fails
2.5 Ethernet Ports
RJ-45 Ports
RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10/100/1000Base-T, or
1000Base-Tx devices connections. Auto MDI/MDIX means that the port can connect to another
injector or workstation without changing the straight-through or crossover cabling. See the figures
shown below for straight-through and crossover cabling schematics.
RJ-45 Pin Assignments (Table 2.5)
Pin Number
Assignment
1
Rx+
2
Rx-
3
Tx+
6
Tx-
Note:
The “+” and “-” signs represent the polarity of the wires that make up each wire pair.
Table 2.5
RJ45 Pin Assignments

Antaira Technologies – Industrial Gigabit PoE+ Injector
INJ-0200G-at-24 Series User Manual V1.0
6
The table below shows the 10BASE-T/100BASE-TX MDI port pin outs.
The following figures show the cabling schematics for straight-through and crossover cables.
2.6 Cabling
Twisted-pair segments can be connected with an unshielded twisted pair (UTP) or shielded
twisted pair (STP) cable. The cable must comply with the IEEE 802.3u 1000Base TX
standard (e.g. Category 5, 5e, 6, or 6a). The cable between the equipment and the link
partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long.
Note: Cable size should be between 18~20 AWG and the torque should be tightened to 5lbs.
2.7 Wiring the Power Inputs
Please follow the below steps to insert the power wire.
1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-)
contacts on the terminal block connector as shown below in Figure 2.7.1
Pin MDI-X Signal Name MDI Signal Name
1
Receive Data plus (RD+)
Transmit Data plus (TD+)
2
Receive Data minus (RD-)
Transmit Data minus (TD-)
3
Transmit Data plus (TD+)
Receive Data plus (RD+)
6
Transmit Data minus (TD-)
Receive Data minus (RD-)
Table 2.5
Ethernet Signal Pin Outs
Figure 2.4 Figure 2.5
Straight-Through Cables Schematic Crossover Cables Schematic

Antaira Technologies – Industrial Gigabit PoE+ Injector
INJ-0200G-at-24 Series User Manual V1.0
7
2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in
Figure 2.7.2
Figure 2.7.2
Power Terminal Block
Figure 2.7.1
Power Terminal Block

Antaira Technologies – Industrial Gigabit PoE+ Injector
INJ-0200G-at-24 Series User Manual V1.0
8
3. Mounting Installation
3.1 DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial PoE injector from
the factory. If the DIN-Rail is not on the industrial PoE injector,
please refer to Figure 3.1 to learn how to install the DIN-Rail on
the injector.

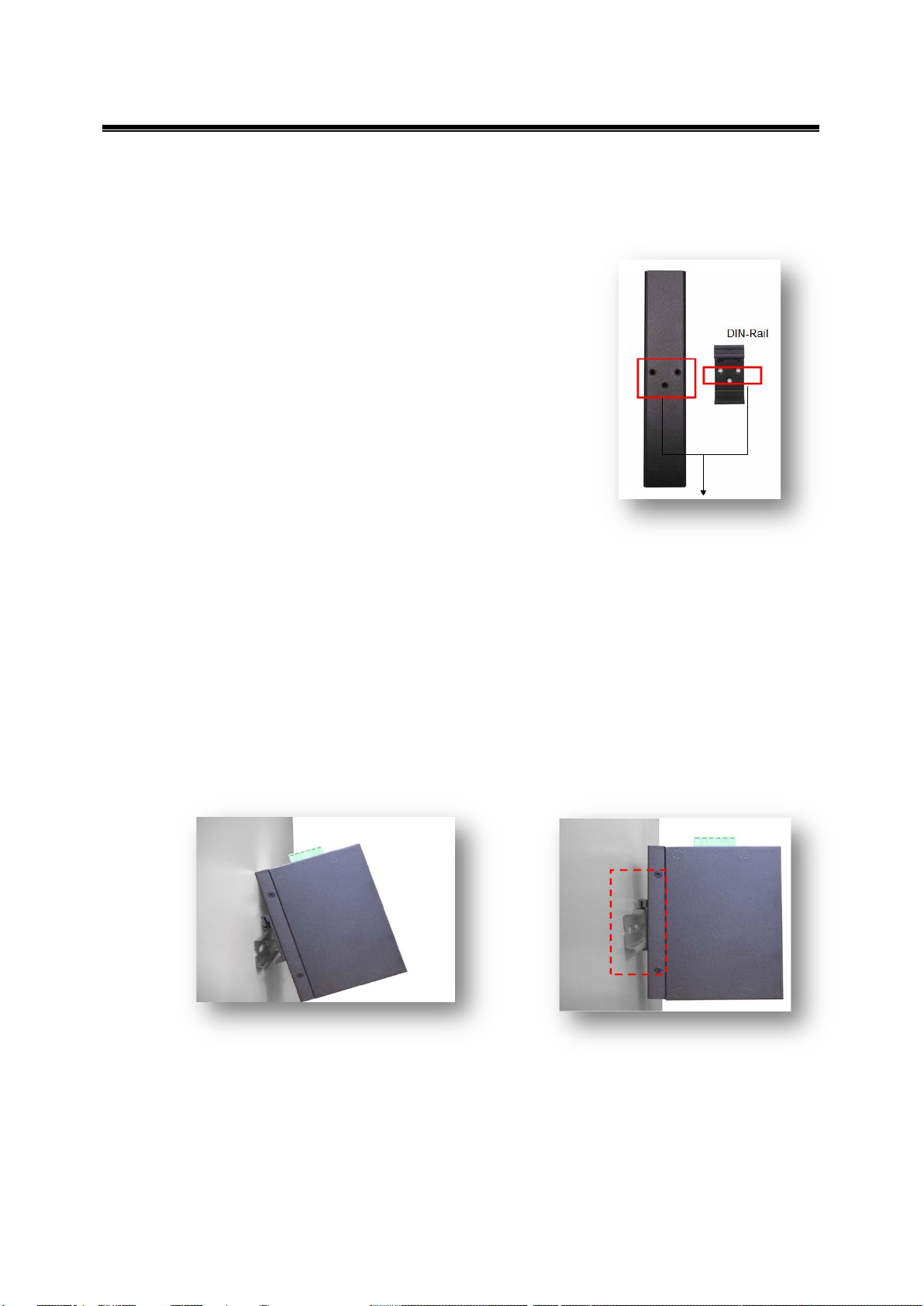

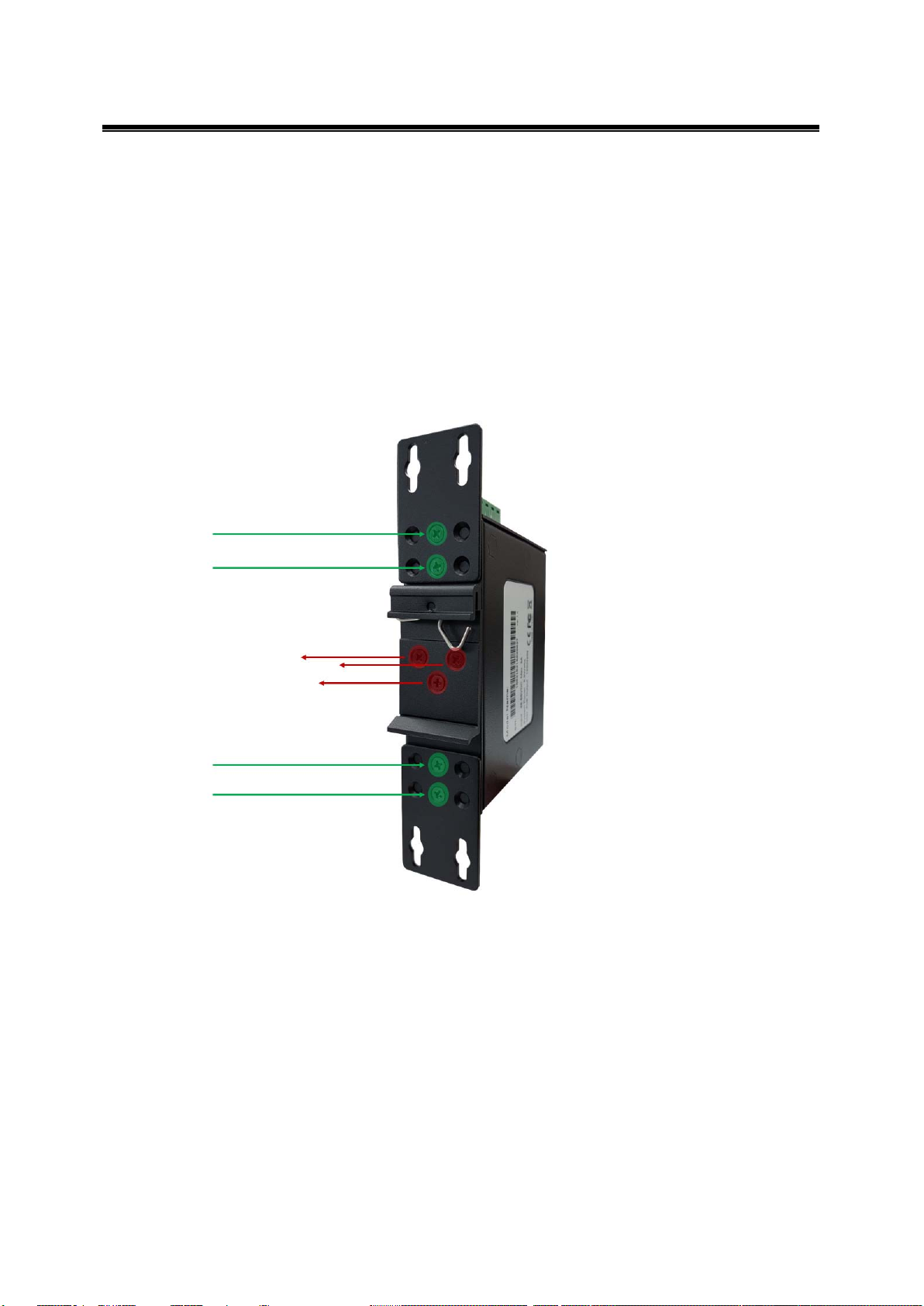

Follow the steps below to learn how to hang the industrial PoE injector.
1. Use the screws to install the DIN-Rail bracket on the rear side of the injector.
2. To remove the DIN-Rail bracket, do the opposite from step 1.
3. After the DIN-Rail bracket is installed on the rear side of the injector, insert the top of the DIN-
Rail on to the track as shown below in Figure 3.1.2
4. Lightly pull down the bracket on to the rail as shown below in Figure 3.1.3
5. Check if the bracket is mounted tightly on the rail.
6. To remove the device from the rail, do the opposite from the above steps.
Figure 3.1.1
The Rear Side of the Injector and DIN-Rail Bracket
Figure 3.1.3
Stable the Device on DIN-Rail
Figure 3.1.2
Insert the Device on the DIN-Rail

Antaira Technologies – Industrial Gigabit PoE+ Injector
INJ-0200G-at-24 Series User Manual V1.0
9
3.2 Wall Mounting
Follow the steps below to mount the device using the wall mounting bracket as shown below in
Figure 3.2.
1. Remove the DIN-Rail bracket from the device by loosening the screws.
2. Place the wall mounting brackets on the top and bottom of the device.
3. Use the screws to screw the wall mounting bracket on the device.
4. Use the hook holes at the corners of the wall mounting bracket to hang the device on the wall.
5. To remove the wall mount bracket, do the opposite from the steps above.
Figure 3.2
Remove DIN-Rail Bracket from the injector

Antaira Technologies – Industrial Gigabit PoE+ Injector
INJ-0200G-at-24 Series User Manual V1.0
10
4.Hardware Installation
4.1 Installation Steps
This section will explain how to install Antaira’s INJ-0200G-at-24 series:
Caution: This device is intended for use indoor and at altitudes up to 2000 meters.
Caution: The device is intended to be installed in an industrial control enclosure and
panel.
Installation Steps
1. Unpack the industrial PoE injector from the original packing box.
2. Check if the DIN-Rail bracket is screwed on the industrial PoE injector.
• If the DIN-Rail is not screwed on the industrial PoE injector, please refer to the
DIN-Rail Mounting section for DIN-Rail installation.
• If you want to wall mount the industrial PoE injector, please refer to the Wall
Mounting
section for wall mounting installation.
3. To hang the industrial PoE injector on a DIN-Rail or wall, please refer to the Mounting
Installation section.
4. Power on the industrial PoE injector and then the power LED light will turnon.
• If you need help on how to wire power, please refer to the Wiring the Power
Inputs
section.
• Please refer to the LED Indicators section for LED light indication.
5. Prepare the twisted-pair, straight-through category 5 cable for Ethernet connection.
6. Insert one side of the RJ-45 cable into injector’s Ethernet port and on the other side into
the networking device’s Ethernet port, e.g. switch PC or server. The Ethernet port’s (RJ-
45) LED on the industrial PoE injector will turn on when the cable is connected to the
networking device.
• Please refer to the LED Indicators section for LED lightindication.
7. When all connections are set and the LED lights all show normal, the installation is complete.

Antaira Technologies – Industrial Gigabit PoE+ Injector
INJ-0200G-at-24 Series User Manual V1.0
11
4.2 Maintenance and Service
• If the device requires servicing of any kind, the user is required to disconnect and remove it
from its mounting. The initial installation should be done in a way that makes this as
convenient as possible.
• Voltage/Power lines should be properly insulated as well as other cables. Be careful when
handling them so as to not trip over.
• Do not under any circumstance insert foreign objects of any kind into the heat dissipation
holes located in the different faces of the device. This may not only harm the internal layout,
but might cause harm to user as well.
• Do not under any circumstance open the device for any reason. Please contact your dealer
for any repair needed or follow the instructions within the manual.
• Clean the device with dry soft cloth.

Antaira Technologies – Industrial Gigabit PoE+ Injector
INJ-0200G-at-24 Series User Manual V1.0
12
5.Trouble Shooting
•Always verify the right power cord or adapter is being used. Never use a power supply or
adapter with a non-compliant DC output voltage or it will burn the equipment.
•Select the proper UTP or STP cable in order to construct the network. Use an unshielded
twisted-pair (UTP) or shield twisted-pair (STP) cable for RJ-45 connections: Also, be sure
that the length of any twisted-pair connection does not exceed 100 meters (328 feet).
•Diagnosing LED Indicators: To assist in identifying problems, the device can be easily
monitored with the LED indicators which help to identity if any problems exist.
oPlease refer to the LED Indicators section for LED light indication.
•If the power indicator LED does not turn on when the power cord is plugged in, the user
may have a problem with the power cord. Check for loose power connections, power
losses or surges at the power outlet.
oPlease contact Antaira for technical support service, if the problem still
cannot be resolved.
•If the industrial PoE injector LED indicators are normal and the connected cables are correct but
the packets still cannot transmit, please check the system’s Ethernet devices’ configuration or
status.
Antaira Customer Service and Support
(Antaira US Headquarter) + 844-268-2472
(Antaira Europe Office) + 48-22-862-88-81
(Antaira Asia Office) + 886-2-2218-9733
Please report any problems to Antaira:
www.antaira.com / [e-mail]
www.antaira.eu / [email protected]u
www.antaira.com.tw / [e-mail]
Any changes to this material will be announced on the Antaira website.
