ANTAIRA LNP-201AG-T User manual

Industrial Gigabit IEEE 802.3at PoE Injector
Wide Operating Temperature
User Manual

FCC Warning
This Equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy. It may cause harmful interference
to radio communications if the equipment is not installed and used in
accordance with the instructions. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CE Mark Warning
This is a class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.

Content
FCC Warning ......................................................i
CE Mark Warning...............................................ii
Overview............................................................1
Introduction .............................................................. 1
Features................................................................... 2
Specifications........................................................... 3
Packing List.............................................................. 5
Hardware Description.........................................6
Dimensions .............................................................. 6
Front Panel............................................................... 7
Top View .................................................................. 8
Grounding the PoE Injector...................................... 9
Wiring the Power Inputs.........................................10
RJ-45 Pin Assignments.......................................... 11
Installation........................................................14
DIN-Rail Mounting.................................................. 14
Wall-Mount Plate Mounting.................................... 16
Troubleshooting ...............................................17

1
Overview
Introduction
The Industrial Power over Ethernet Injector provides data and DC power
through the Ethernet cable to PoE-equipped devices, such as IP camera,
access point, PoE splitter or other equipment supporting IEEE 802.3at.
The injector is typically installed near the Ethernet switch. The figure
below presents the example for the Power over Ethernet Injector
application.

2
Features
10/100/1000BaseT Power over Ethernet Injector
IEEE802.3at compliant
Provides power feeding up to 30 watts
Overload current protection
DC power input ranging from 24 ~ 48V
Wide operating temperature -40 ~ 75 ºC

3
Specifications
Standard
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000Base-T
IEEE802.3af/at Power over Ethernet
Connector
LAN port: Data/Signal pins 1, 2, 3, 6
PoE port:: Data/Signal pins 1, 2, 3, 6
Power pins [1, 2 (V+)], [3, 6 (V-)]
Network Cable
10BASE-T: 2-pair UTP/STP Cat.3, 4,5 cable
EIA/TIA-568 100-ohm (100m)
100BASE-TX: 2-pair UTP/STP Cat.5 cable (Cat. 5e
recommended)
EIA/TIA-568 100-ohm (100m)
1000Base-T: 4-pair UTP/STP Cat. 5e or above cable
EIA/TIA-568 100-ohm (100m)
LED
Power x 2
PoE x 1
Power Input
24/48V
DC
Power Consumption
33.36watts @ 24 V
DC
Operating Temperature
-40oC ~ 75oC (-40oF ~ 167oF)
Storage Temperature
-40oC ~ 85oC (-40oF ~ 185oF)

4
Operating/Storage
Humidity 5% ~ 95% Humidity (non-condensing)
Dimensions
30mm x 140mm x 95mm (W x H x D)
EMC
■CE, FCC Class A
■ EN61000-6-4
■ EN61000-6-2
■EN61000-4-2 (ESD)
■EN61000-4-3 (RS)
■ EN61000-4-4 (EFT)
■ EN61000-4-5 (Surge)
■ EN61000-4-6 (CS)
■ EN61000-4-8 (Magnetic Field)
Safety UL508

5
Packing List
1 x Power over Ethernet Injector
1 x Wall-mounting kit
1 x User Manual (CD-ROM)

6
Hardware Description
Dimensions
The Power over Ethernet Injector dimensions are 30 mm (W) x 140 mm
(H) x 95 mm (D)
•
Airflow around the switch must be
unrestricted. To prevent the switch from
overheating, there must be the following
minimum clearances:
•
Top and bottom: 2.0 in. (50.8 mm)
•
Sides: 2.0 in. (50.8 mm)
Front: 2.0 in. (50.8 mm)
Warning!

7
Front Panel
On the front panel the Power over Ethernet Injector is equipped with two
RJ-45 ports and three LED indicators.
LAN port: It is an ordinary RJ-45 Ethernet port for data transmitting
and receiving.
PoE port: It is an RJ-45 Ethernet port capable of supplying power
over the Ethernet cable as well as forwarding data to powered
devices.
P1 & P2: The indicators light up when their respective power inputs
are active.
PoE: This LED indicator lights up while power feeding works
normally.

8
Top View

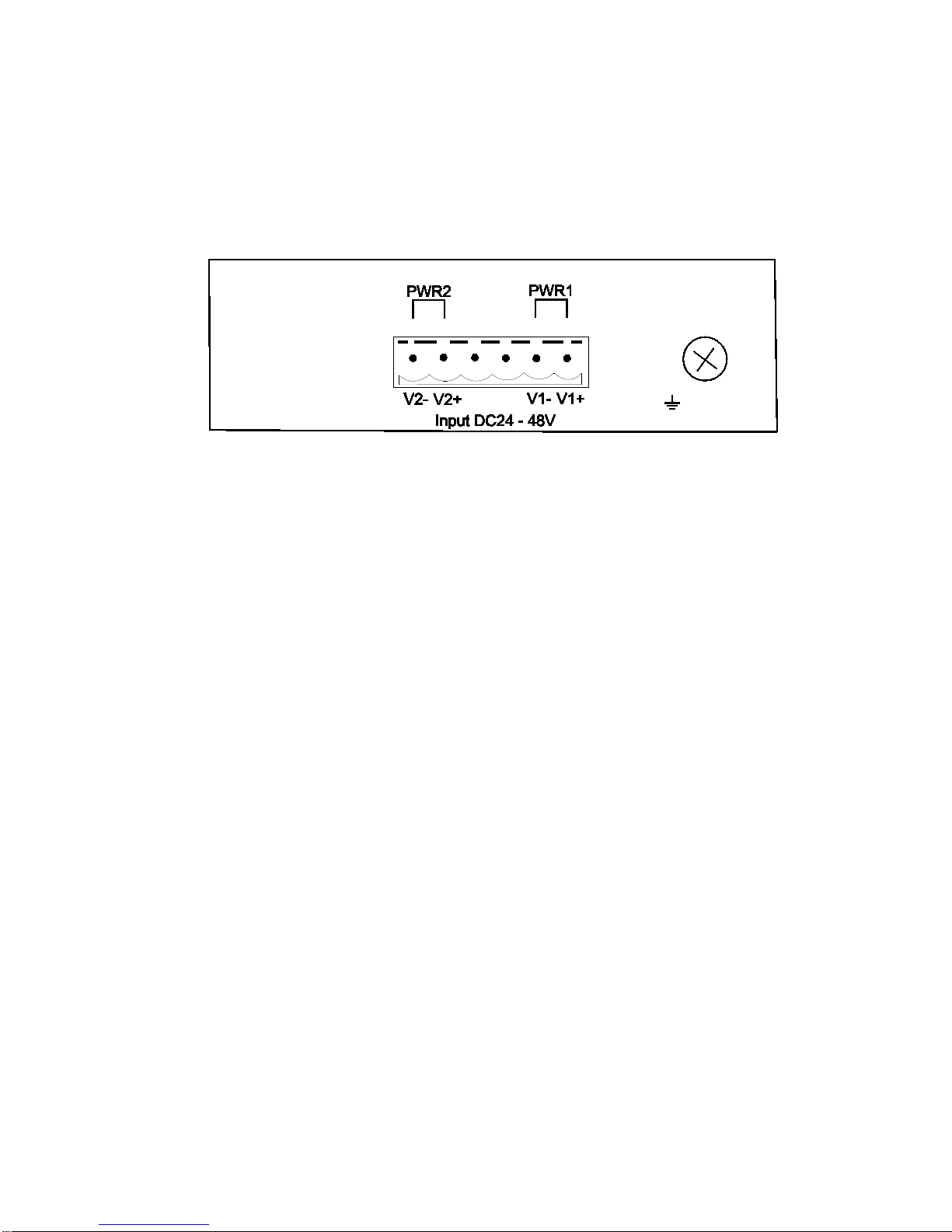

Designed with two power inputs, the PoE Injector allows users to supply
redundant power rating in the range of 24 to 48V.
Power Inputs

9
Grounding the PoE Injector
Follow the instructions below to attach the PoE Injector to ground.
When installing the PoE Injector, the ground connection must always
be made first and disconnected last.
1. On the top of the device, locate and remove the dome screw which has
a ground symbol beside it.
2. Attach the ground wire to the screw hole with the dome screw.
ATTENTION

10
Wiring the Power Inputs
Please follow the steps below to wire power lines from the terminal block
to the compliant external DC power source.
1. Before wiring, make sure the power source is disconnected.
2. Using the wire-stripping tool, strip a short piece of insulation from the
output wires of the DC power source.
3. Identify the positive and negative feed positions for the terminal block
connection. See the symbols printed on the panel indicating the
polarities and DC input power range in voltage.
Plugs for Power 1 & Power 2
4. Insert the exposed wires into the terminal block plugs. Only wires with
insulation should extend from the terminal block plugs. Note that the
polarities between the wires and the terminal block plugs must be
positive to positive and negative to negative.
5. Use a slotted screwdriver to tighten the captive screws.
Use Copper Conductors Only, 60/75
°
C, tightening to 5 lb-in
The wire gauge for the terminal block should be in the range
between 12~ 24 AWG.
ATTENTION

11
RJ-45 Pin Assignments
The UTP/STP ports will automatically sense for Fast Ethernet
(10Base-T/100Base-TX) or Gigabit Ethernet
(10Base-T/100Base-TX/1000Base-T) connection. Auto MDI/MDIX means
that the port can connect to another switch or workstation without
changing straight through or crossover cabling. See the figures below for
straight through and crossover cable schema.
10/100Base-TX Pinouts
Pin Number Assignment
1 Tx+
2 Tx-
3 Rx+
6 Rx-
Note
“+” and “-” signs represent the polarity of the wires that make up
each wire pair.
The table below shows the 10Base-T/100Base-TX MDI and MDI-X port
pinouts.
Pin Number MDI-X Signal Name MDI Signal Name
1
Receive Data plus (RD+)
Transmit Data plus (TD+)
2
Receive Data minus (RD-)
Transmit Data minus (TD-)
3 Transmit Data plus (TD+) Receive Data plus (RD+)
6
Transmit Data minus (TD-)
Receive Data minus (RD-)

12
10/100Base-TX Cable Schema
Straight Through Cable Schema
Crossover Cable Schema
10/100/1000Base-T Pinouts
The table below describes the gigabit Ethernet RJ-45 pinouts.
Pin
Signal name
Description
1
BI_DA+
Bi-directional pair A+
2
BI_DA-
Bi-directional pair A-
3
BI_DB+
Bi-directional pair B+
4
BI_DC+
Bi-directional pair C+
5
BI_DC-
Bi-directional pair C-
6
BI_DB-
Bi-directional pair B-
7
BI_DD+
Bi-directional pair D+
8
BI_DD-
Bi-directional pair D-

13

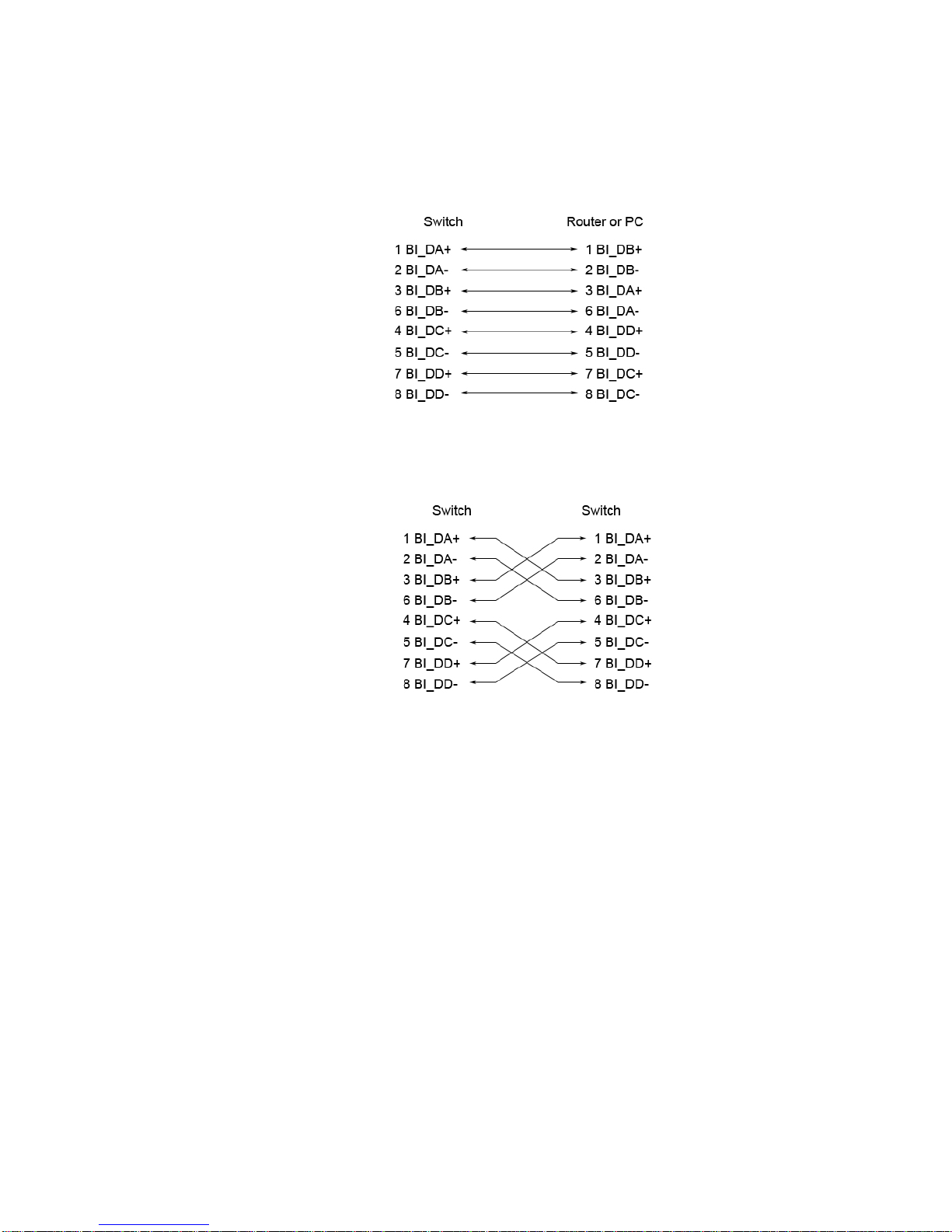

10/100/1000Base-T Cable Schema
The following two figures illustrate the 10/100/1000Base-T cable
schema.
Straight Through Cable Schema
Crossover Cable Schema

14
Installation
DIN-Rail Mounting

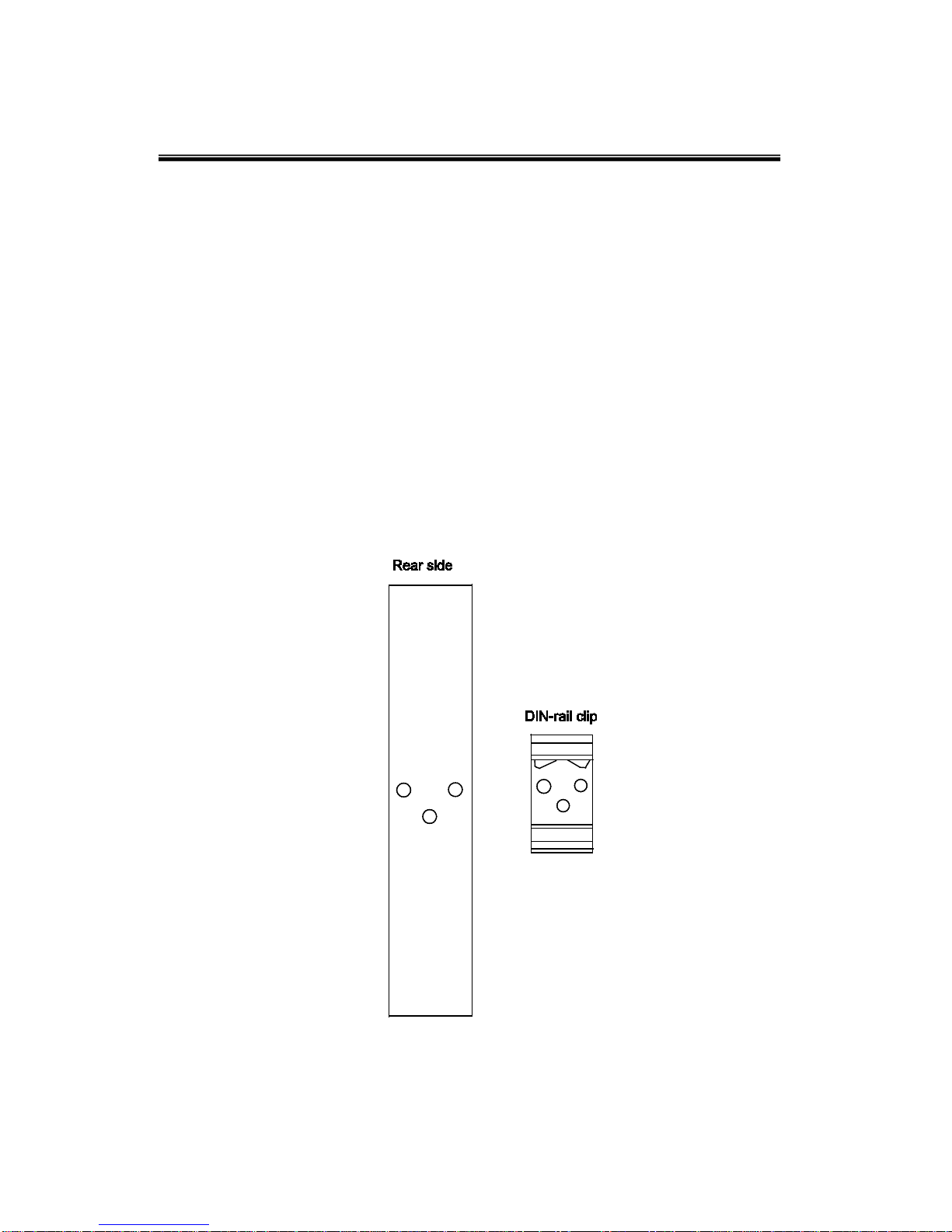

Assembling the DIN-Rail Clip
The DIN-rail clip is screwed on the device in the factory. If not, please
refer to the following steps and figure to secure the DIN-rail clip on the
device.
1. Use the screws to secure the DIN-rail clip at the rear of the device.
2. To remove the DIN-rail clip, reverse step 1.

15

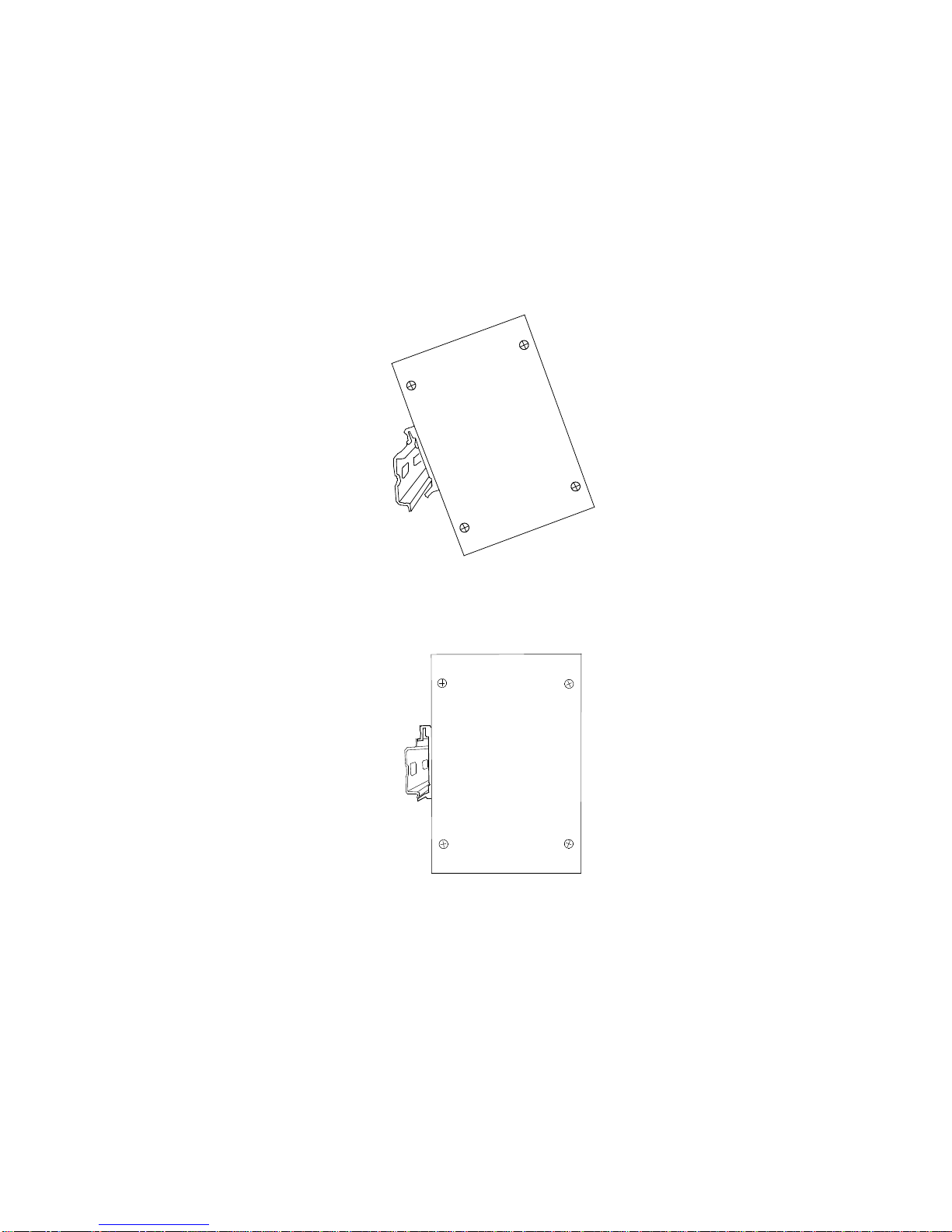

Hanging the PoE Injector
Follow the steps below to hang the device on the standard DIN rail.
1. First, position the rear side of the unit directly in front of the DIN rail.
Make sure the top of the clip hooks over the top of the DIN rail.
2. Push the unit downward.
3. Check the DIN-Rail clip is tightly fixed on the DIN rail.
4. To remove the device from the track, reverse the steps above.

16
Wall-Mount Plate Mounting
Follow the steps below to mount the device with the wall-mount plates.
1. To remove the DIN-Rail clip from the device, unscrew the screws that
secure it.
2. Align the screw holes of the wall-mount plates with the ones of the
device.
3. Use the screws included to secure the wall-mount plates on the
device.
4. Use the hook holes of the wall-mount plates to hang the device on the
wall.
5. To remove the wall-mount plates, reverse the steps above.

17
Troubleshooting
Verify that you are using the right power cord/adapter. Please don’t use a
power adapter with DC outputs higher than the power rating of this
equipment, or it will be damaged.
Select the proper UTP/STP cable for your network. Please check that you
are using the right cable. Use unshielded twisted-pair (UTP) or shielded
twisted-pair (STP) cable for the RJ-45 connections: 100ΩCategory 3, 4,
or 5 cable for 10Mbps connections or 100ΩCategory 5 cable for
100Mbps connections. Also be sure that the length of any twisted-pair
connection does not exceed 100 meters (328 feet).
Diagnosing LED Indicators: The device can be easily monitored through
LED indicators, which describe common problems the user may
encounter and where the user can find possible solutions.
If the power indicator does not light up when the power cord is plugged in,
you may have a problem with power cord. Then check for loose power
connections, power losses or surges at the power outlet. If you still cannot
resolve the problem, contact your local dealer for assistance.
If the cables are properly connected and the LED indicators show normal,
but the packets still cannot transmit, please check your system’s Ethernet
devices’ configuration or status.
