1 Overview
Antaira Technologies’ LMP-C602G-SFP-bt-V2 series is a 6-port industrial compact gigabit PoE++
managed Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports that support IEEE 802.3bt for
a maximum of 90W/port and 2*100/1000 dual rate SFP slots for fiber connections. The
LMP-C602G-SFP-bt-V2 series is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a
user-friendly web management console design. There are also two wide operating temperature models
for either a standard temperature range (STD: -10°C to 65°C) or an extended temperature range (EOT:
-40°C to 75°C).
1.1 Product Hardware Features
System Interface and Performance
- All RJ45 ports support Auto MDI/MDI-X Function
- Embedded 4*10/100/1000Tx (90W/Port) RJ45 ports and 2*100/1000 SFP slots
- Store-and-forward switching architecture
- 8K MAC address table
- Supports 9.6Kbytes jumbo frame
- 4Mbits memory buffer
Product Input
- DC 48~55V redundant, with a 6-pin removal terminal block
- Max. current: 4.1A
- Max. PoE output: 240W
- Relay contact: 24VDC, 1A resistive
- It is recommended to use a UL listed industrial power supply
- For bt PoE application(s), the recommended power input should be not less than 53VDC
Operating Temperature
- Standard operating temperature model: -10°C to 65°C
- Extended operating temperature model: -40°C to 75°C
Case / Installation
- IP40 protection metal housing
- DIN-Rail and wall-mount design
1
Antaira Technologies - Industrial Ethernet Switches
LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0
1.2 Product Software Features
Network Redundancy
- STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for network redundancy
Network Management
- Web UI based management, SNMP v1/v2/v3, Serial Console
- QoS, traffic classification QoS, Cos, bandwidth control for Ingress and Egress, broadcast storm
control, Diffserv
- IEEE 802.1q VLAN tagging, port-based VLAN support
- IGMP snooping v1/v2/v3, IGMP filtering / throttling, IGMP query up to 1024 group
- Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP,
HTTPS, SSH/SSL, TFTP
- MODBUS TCP for SCADA system integration
Port Configuration
- Status, statistics, mirroring, rate limiting, event syslog
Event Handling
- Event notification: Cold/Warm Start, Power Failure, Authentication, SNMP trap and Fault Alarm
Relay Output
Storage Upgrade via TFTP and HTTP
Configuration Backup - USB Port
1.3 Package Contents
- LMP-C602G-SFP-bt(-T)-V2
- Quick installation guide
- Wall mounting bracket set with screws
- DC cable - 18AWG & DC jack 5.5 x 2.1mm
- Dust cover set
- Mini-USB B type male to DB9 RS-232 female cable
2
Antaira Technologies - Industrial Ethernet Switches
LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0
1.4 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power
supply input. The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring
installation will be described within this hardware manual.
Attention: Si la tension CC est fournie par un circuit externe, veuillez utiliser un dispositif de protection sur
l'entrée d'alimentation. Les spécifications matérielles, les ports, les informations de câblage et
l'installation du câblage du commutateur Ethernet industriel seront décrits dans ce manuel d'utilisation.
Warning Labels
The caution label means that you should check certain information on the user manual when working
with the device. (Shown in Figure 1.1)
Étiquettes d'avertissement
L'étiquette d'avertissement signifie que vous devez vérifier certaines informations du manuel d'utilisation
lorsque vous travaillez avec l'appareil. (Illustré à la figure 1.1)
Figure 1.1 - Caution Label
Figure 1.1 - Étiquette de mise en garde
Figure 1.2 - Hot Surface Warning Label
Figure 1.2 - Étiquette d'avertissement de surface chaude
3
Antaira Technologies - Industrial Ethernet Switches
LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0
2 Hardware Description
2.1 Physical Dimensions
Figure 2.1, below, shows the physical dimensions of this product series:
(W x D x H) is 64.9mm x 89.8mm x 110mm
Figure 2.1 - Physical Dimensions
4
Antaira Technologies - Industrial Ethernet Switches
LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0
2.2 Front View Panel
Figure 2.2, below, shows the front panel of the product series:
Figure 2.2 - Front View Panel
2.3 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that display the
power status and network status. Each LED indicator has a different color and has its own specific
meaning, see below in Table 2.1.
5
LED
Color
Description
Power 1
(P1)
Green
On
Power Input 1 is active
Off
Power Input 1 is inactive
Power 2
(P2)
Green
On
Power Input 2 is active
Off
Power Input 2 is inactive
Antaira Technologies - Industrial Ethernet Switches
LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0
6
Status
(S)
Red
On
System booting
Green
On
The system is ready. There are no events
occurring.
Flashing
When the user presses the reset button
Red
On
The system is working normally, but the software
set event occurs (ex. Power inactive, Ethernet port
link down, etc.)
Flashing
When the user presses the reset button
Master
(M)
Green
On
ERPS Owner Mode (Ring Master) is ready
Off
ERPS Owner Mode is not active
Ring
(R)
Green
On
ERPS Ring Network is active
Flashing
ERPS Ring Network works abnormally or
misconfigured
Off
ERPS Ring Network is not active
PoE Load
-
Off
No PD connect
Green
On
PoE Load ≤ 50%
Green & Blue
On
PoE Load 51~70%
Green, Blue, & Red
On
PoE Load 71~90%
Green, Blue, & Red
(Red flashing)
On
PoE Load 91~100%
SFP Port 1~2
Green
On
Connected to network, 1000Mbps
Flashing
Networking is active
Off
Not connected to network
Amber
On
Connected to network, 100Mbps
Flashing
Networking is active
Off
Not connected to network
LAN Port 3~6
LNK/ACT
(Upper LED)
Green
On
Connected to network, 1000Mbps
Flashing
Networking is active
Off
Not connected to network
Antaira Technologies - Industrial Ethernet Switches
LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0
Table 2.1 - LED Indicators

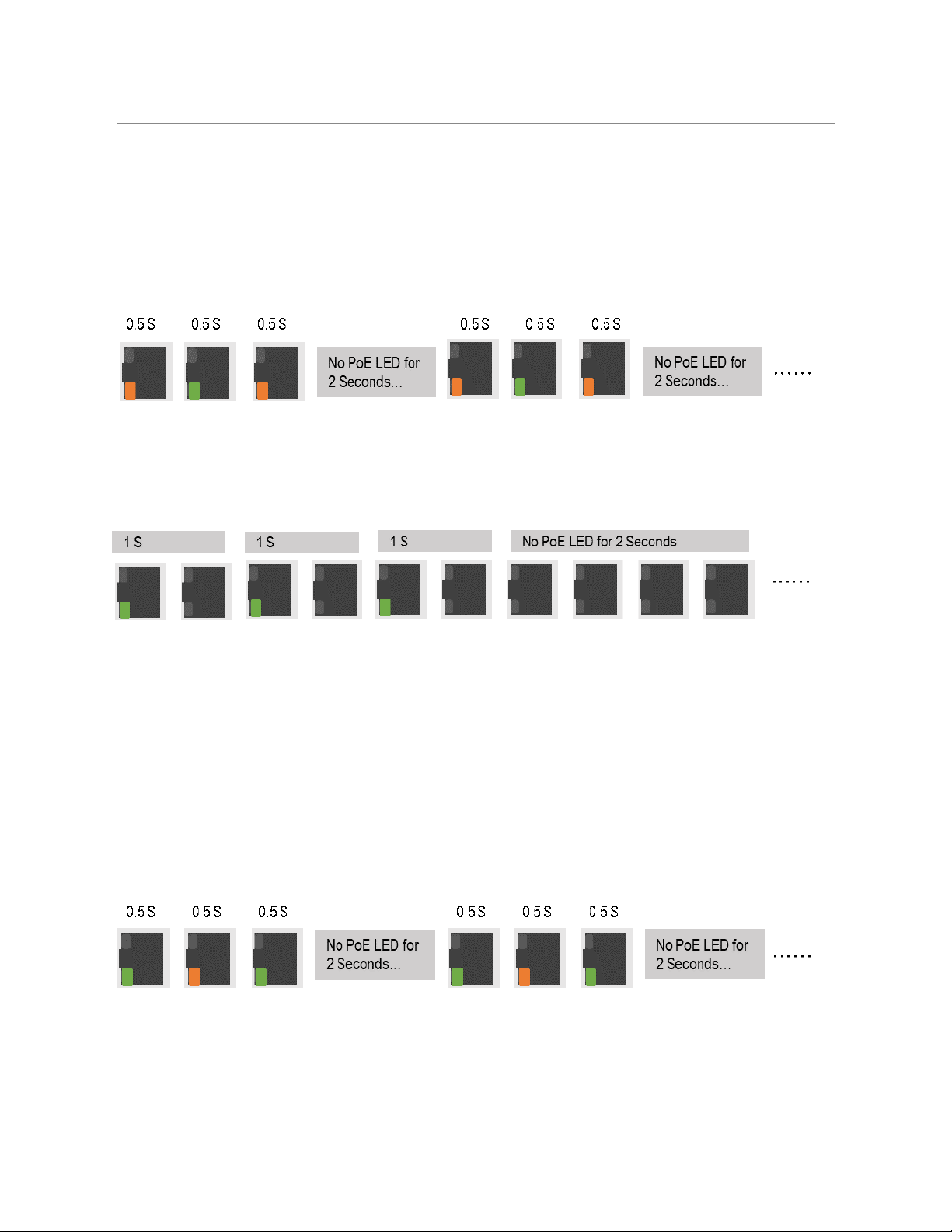

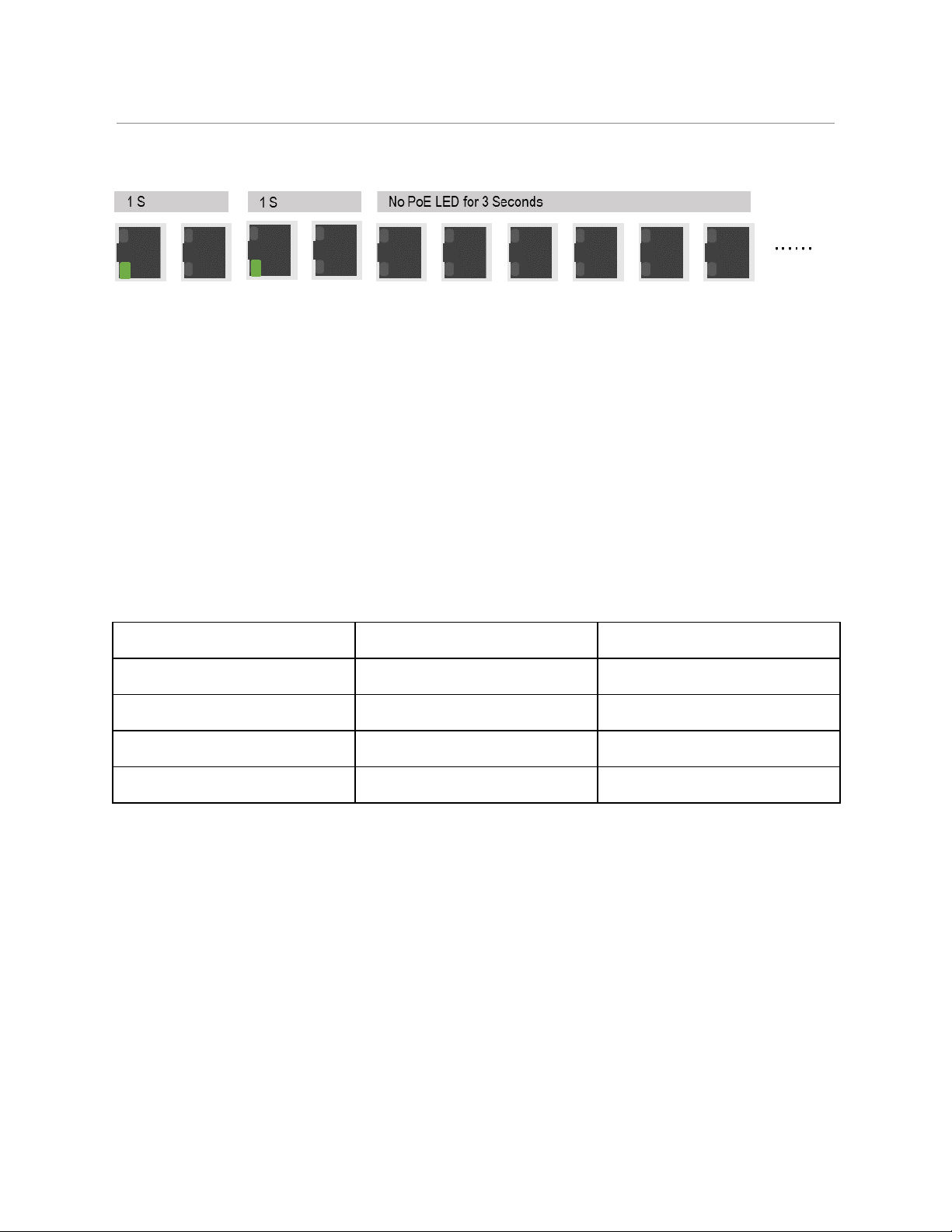

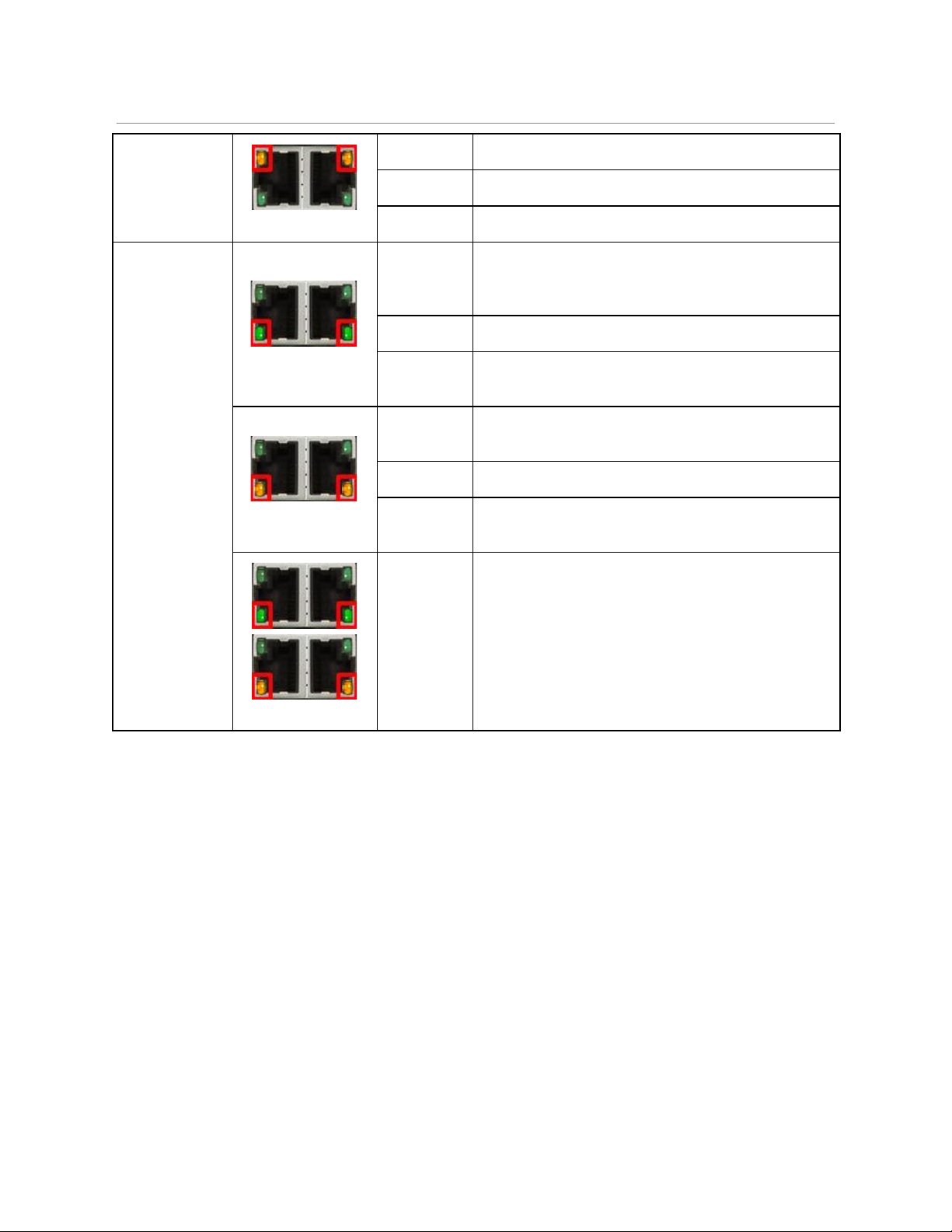

2.4 PoE Port LED Indicators
The LED light indicators on the PoE copper port can help the user know if and when an event immediately
occurs or is happening. When the event is happening, you can verify the event from the Dual-color LED
status. If the port has recovered from an event, you can verify the event from the blinking frequency of the
PoE LED (5 seconds as a cycle).
Power Budget Exceeded Event
When the total PoE budget is overloaded (>100%), the PoE port of the lowest priority PoE port will be shut
down. The PoE LED of the port will act cyclically as below until the port is recovered from the event:
7
Amber
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Off
Not connected to network
LAN Port 3~6
PoE Mode
(Lower LED)
Green
On
IEEE 802.3bt connection
(Single Signature PD Class 5~8 / Dual Signature
PD Channel Class 1~5)
Flashing
Port link is recovered from failure event
Off
No powered-device attached or power supplying
fails
Amber
On
IEEE 802.3af/at connection
(Single Signature PD Class 0~4)
Flashing
Port link is recovered from failure event
Off
No powered-device attached or power supplying
fails
Green / Amber
Alternating
The port is trying to recover from event failure
(Frequency: 20 secs / time)
Antaira Technologies - Industrial Ethernet Switches
LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0
Figure 2.3 - PoE Budget Overloaded LED Sequence
After the PoE port is recovered from the PoE budget overload event, the PoE LED of the port will act
cyclically as below until the event indicator is clear manually:
Figure 2.4 - PoE Budget Recovering LED Sequence
**IEEE 802.3af/at: Amber
**IEEE 802.3bt: Green
PoE Port Over Current Event (PoE Port Overload Event)
When the current limit of the specific PoE port is exceeded, the PoE power will be shut down. The PoE
LED of the port will act cyclically as below until the port is recovered from the event:
Figure 2.5 - PoE Over Current LED Sequence
**IEEE 802.3af/at: Amber
**IEEE 802.3bt: Green
After the PoE port is recovered from the PoE Port Over Current event, the PoE LED of the port will act
cyclically as below until the event indicator is clear manually:
Figure 2.6 - PoE Over Current Recovering LED Sequence
8
Antaira Technologies - Industrial Ethernet Switches
LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0
**IEEE 802.3af/at: Amber
**IEEE 802.3bt: Green
Cable Short Event
When the working PD encounters a cable short event, the PoE port LED will act cyclically as below until
the port is recovered from the event:
Figure 2.7 - PoE Cable Short LED Sequence
After the PoE port is recovered from the Cable Short event, the PoE LED of the port will act cyclically as
below until the event indicator is clear manually:
Figure 2.8 - PoE Cable Short Recovering LED Sequence
**IEEE 802.3af/at: Amber
**IEEE 802.3bt: Green
Dual PD Fail Event
When one channel of the connected dual PD is failed, the failed channel will be shut down and the active
channel will still supply PoE to the connected PD. The PoE Port LED will act cyclically as below until the
port is recovered from the event:
Figure 2.9 - PoE Dual PD Failed LED Sequence
9
Antaira Technologies - Industrial Ethernet Switches
LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0
After the PoE port is recovered from the Dual PD Fail event, the PoE LED of the port will act cyclically as
below until the event indicator is clear manually:
Figure 2.10 - PoE Dual PD Recovering LED Sequence
**IEEE 802.3af/at: Amber
**IEEE 802.3bt: Green
*Note:
1. The system will automatically retry to recover from the event failure every 20 seconds.
2. To clear the warning PoE Indicator of the recovered port, please replug the port cable or reopen the PoE
function of the port via DIP switch (≥ 2 sec.)
2.5 DIP Switch
The 4-pin DIP switch on the front panel of the Ethernet switch works as the PoE controller for PoE port
1~4.
Table 2.2 - DIP Switch Functions
2.6 Relay Contact Alarm Warning
2-pin 1*24VDC@1A resistive normal open on 6-pin terminal block.
The relay contact alarm will be triggered when anyone of the listed events occurs.
Key trigger event 1: Power 1 or Power 2 is inactive
Key trigger event 2: PoE total loading > 100% PoE output budget
Key trigger event 3: PoE over current per port
Key trigger event 4: Cable short per port
Key trigger event 5: One of the channels in Dual PD fail
10
ON
OFF
DIP Switch 1
Enable Port 3 PoE function
Disable Port 3 PoE function
DIP Switch 2
Enable Port 4 PoE function
Disable Port 4 PoE function
DIP Switch 3
Enable Port 5 PoE function
Disable Port 5 PoE function
DIP Switch 4
Enable Port 6 PoE function
Disable Port 6 PoE function
Antaira Technologies - Industrial Ethernet Switches
LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0
* Note:
When the relay is triggered because of event 2~5, the relay contact alarm will update the status every 30
seconds. If there is no event happening for 30 seconds, the relay contact alarm will be turned off. If the
user disables the failed PoE port by removing the cable or DIP switch manually, the relay will be recovered
immediately.
2.7 Reset Button
There is a “reset” button located on the top panel of the industrial Ethernet switch that helps users to
reboot, restore default, or save running configurations by pressing the button for different seconds.
Please refer to Table 2.3 for the timing and function.
Table 2.3 - Reset Button Functions
2.8 Ethernet Ports
●RJ45 Ports
RJ45 Ports (Auto MDI/MDI-X): The RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or
1000Base-T connections. Auto MDI means that the switch can connect to another switch or workstation
without changing the straight-through or crossover cabling. See the figures below for straight-through and
crossover cabling schematics.
●RJ45 Pin Assignments
Table 2.4 - 10/100Base-T(X) RJ45 Pin Assignments
11
Seconds
Function
Fault LED
0s < t (press time) < 4s
Reboot the switch
LED is flashing with green color
4s < t (press time)
Restore factory default
LED is flashing with green and red color
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / RX+
3 / TX+
1 / RX+
1 / TX+
2 / RX-
6 / TX-
2 / RX-
2 / TX-
3 / TX+
1 / RX+
3 / TX+
3 / RX+
6 / TX-
2 / RX-
6 / TX-
6 / RX-
Antaira Technologies - Industrial Ethernet Switches
LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0
Table 2.5 - 1000Base-T RJ45 Pin Assignments
*Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.
2.9 Cabling
Use the four twisted-pair, category 5e, or the above cabling for the RJ45 port connections. The cable
between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328
ft.) in length.
The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications
for both telecommunication and data communication applications.
Caution: Please employ optional optical transceiver (SFP/Fixed Fiber) that complies with
IEC-60825-1 and classified as Class 1 laser product.
Attention: Veuillez utiliser un émetteur-récepteur optique en option (SFP/fibre fixe) conforme à
la norme IEC-60825-1 et classé comme produit laser de classe 1.
12
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / TP0+
3 / TP1+
1 / TP0+
1 / TP1+
2 / TP0-
6 / TP1-
2 / TP0-
2 / TP1-
3 / TP1+
1 / TP0+
3 / TP1+
3 / TP0+
4 / TP2+
7 / TP3+
4 / TP2+
4 / TP3+
5 / TP2-
8 / TP3-
5 / TP2-
5 / TP3-
6 / TP1-
2 / TP0-
6 / TP1-
6 / TP0-
7 / TP3+
4 / TP2+
7 / TP3+
7 / TP2+
8 / TP3-
5 / TP2-
8 / TP3-
8 / TP2-
Antaira Technologies - Industrial Ethernet Switches
LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0
2.10 Wiring the Power Inputs
Caution: Please follow the steps below when inserting the power wire.
Attention: Veuillez suivre les étapes ci-dessous lors de l'insertion du câble d'alimentation.
1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the
terminal block connector as shown below in Figure 2.11.
Figure 2.11 - Power Terminal Block
2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.12.
Figure 2.12 - Power Terminal Block
Caution:
Only use copper conductors, 125°C, tighten to 5 lbs.
The wire gauge for the terminal block should range between 18~20 AWG.
Attention:
Utilisez uniquement des conducteurs en cuivre, 125°C, serrez à 5 lb.
Le calibre des fils du bornier doit être compris entre 18 et 20 AWG.
13
Antaira Technologies - Industrial Ethernet Switches
LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0
2.11 Wiring the Fault Alarm Contact
The fault alarm contact is in the middle of the terminal block connector as the picture shows below in
Figure 2.13. By inserting the wires, it will detect the fault status including power failure or port link failure
(managed industrial switch only), and form a normal open circuit. An example is shown below in Figure
2.13.
Figure 2.13 - Wiring the Fault Alarm Contact
Caution:
The wire gauge for the terminal block should range between 12 ~ 24 AWG.
If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power fault
alarm.
Attention:
Le calibre des fils du bornier doit être compris entre 12 et 24 AWG.
Si vous n'utilisez qu'une seule source d'alimentation, connectez les broches 1 à 5 et les broches
2 à 6 pour éliminer l'alarme de panne de courant.
14
Antaira Technologies - Industrial Ethernet Switches
LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0
2.12 Grounding Note
Grounding and wire routing help limit the effects of noise due to Electromagnetic Interference (EMI). Run
the ground connection from the ground screw to the grounding surface prior to connecting devices. The
grounding screw symbol is shown below in Figure 2.14
.
Figure 2.14 - Grounding Screw Symbol
Caution: Using a shielded cable achieves better electromagnetic compatibility.
Attention: L'utilisation d'un câble blindé permet une meilleure compatibilité électromagnétique
15
This manual suits for next models
2
Table of contents
Other ANTAIRA Switch manuals
ANTAIRA
ANTAIRA LNP-1802G-SFP Series User manual
ANTAIRA
ANTAIRA LMX-0500-V2 Series User manual
ANTAIRA
ANTAIRA LMX-2828G-10G-SFP User manual
ANTAIRA
ANTAIRA USB-HUB4K User manual
ANTAIRA
ANTAIRA LNP-C501G-SFP-bt-24 Series User manual
ANTAIRA
ANTAIRA LMX-0804G-SFP Series User manual
ANTAIRA
ANTAIRA LMX-1600G Series User manual
ANTAIRA
ANTAIRA LMP-0600 Series User manual
ANTAIRA
ANTAIRA LMX-1202G-SFP Series User manual
ANTAIRA
ANTAIRA LNX-1600 Series User manual
ANTAIRA
ANTAIRA LMP-0804G-SFP Series User manual
ANTAIRA
ANTAIRA LNP-0501-M-24 User manual
ANTAIRA
ANTAIRA LMP-0501 V2 User manual
ANTAIRA
ANTAIRA LNP-0602 Series User manual
ANTAIRA
ANTAIRA LMP-0501 Series User manual
ANTAIRA
ANTAIRA LNP-0702C-SFP Series User manual
ANTAIRA
ANTAIRA LNP-0802C-SFP Series User manual
ANTAIRA
ANTAIRA LMP-2602G-SFP Series User manual
ANTAIRA
ANTAIRA LNX-1002G-10G-SFP User manual
ANTAIRA
ANTAIRA LMP-0601G-SFP-24-V2 Series User manual
Popular Switch manuals by other brands
Siemens
Siemens 3VM11 1AA Series operating instructions
Kemo Electronic
Kemo Electronic M203 quick start guide
Siemens
Siemens SCALANCE X320-3LD FE operating instructions
NETGEAR
NETGEAR ProSAFE GS724Tv4 user manual
AheadX
AheadX ASHIL installation manual
Brocade Communications Systems
Brocade Communications Systems ICX 6450-C Hardware installation guide
