ANTAIRA LMX-1202M-SFP Series User manual

Antaira Technologies
LMX-1202M-SFP Series
12-Port Industrial Managed Ethernet Switch, w/8*10/100Tx RJ45,
2*10/100/1000Tx RJ45, and 2*100/1000 SFP Slots, 12~48VDC
Power Input
Quick Installation Guide
Version 1.1
(November 2019)
Tel: [phone]
Fax: [phone]
www.antaira.com
19020000000108
Package Check List
The package contains the following items:
 1 – Quick installation guide
 1 – LMX-1202M-SFP(-T)
 1 – Wall mounting bracket set with screws
 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
 1 – RJ45 to DB9 Serial Console cable
 1 – RJ45 dust cover set
Front Panel Layout
Top Panel View
LMX-1202M-SFP series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(12~48VDC).
Product Overview
System Interface/Performance
 All RJ45 ports support the auto MDI function
 Embedded 8*10/100Tx RJ45, 2*10/100/1000Tx RJ45, and
2*100/1000 SFP Slots
 Store-and-forward switching architecture
 8K MAC address table
 Power line EFT protection: 2,000VDC; Ethernet ESD
Protection: 6,000VDC
Power Input & Connection
 DC 12 to 48V redundant power with a 6-pin removal terminal
block
 It is recommended to use a UL listed industrial power supply
Operating Temperature
 Standard operating temperature model: -10°C to 70°C
 Extended operating temperature model: -40°C to 75°C
Case/Installation
 IP30 protection
 DIN-Rail and wall mount design
LED Indicators
LED Color Description
Power 1 Green
On Power input 1 is active
Off Power input 1 is inactive
Power 2 Green
On Power input 2 is active
Off Power input 2 is inactive
Fault Green/Red
Green Preconfigured alarms are not detecting failure
Red Preconfigured alarms are detecting failure
Flashing Switch is in the process of booting
Master Green
On ERPS Owner Mode (Ring Master) is ready
Off ERPS Owner Mode (Ring Master) is not active
Ring Green
On Ring Network is active
Off Ring Network is not active
LAN Port 1~8
(Upper LED)
Green
On Connected to network, 100Mbps
Flashing Networking is active
Off Not connected to network
LAN Port 1~8
(Lower LED)
Green
On Connected to network, 10Mbps
Flashing Networking is active
Off Not connected to network
LAN Port 9~10
(Upper LED)
Green
On Connected to network, 1000Mbps
Flashing Networking is active
Off Not connected to network
LAN Port 9~10
(Lower LED)
Green
On Connected to network, 10/100Mbps
Flashing Networking is active
Off Not connected to network
SFP Port
11~12
LINK/ACT
Green:1000Mbps
/
Amber:100Mbps
On Connected to network
Flashing Networking is active
Off Not connected to network
Groundin
g
Screw
6-Pin Removal Terminal Block
(
Power In
p
ut
)
LAN# 1~8 – 10/100Tx RJ45
LAN# 1~8 – LED for Link/Activity
Status 10Mb
p
s
LED for Power 1, Power 2, Fault, Master,
and Ring
RJ45 for Serial Console RS232
LAN# 1~8 – LED for Link/Activity
Status 100Mbps
SFP
#
11~12
–
LED for Link/Activit
y
Status
SFP# 11~12
–
100/1000 SFP
USB2.0
–
Confi
g
uration Backu
p
Port
Reset Button
LAN# 9~10 – 10/100/1000Tx RJ45
LAN# 9~10 – LED for Link/Activity Status
1000Mbps
LAN# 9~10 – LED for Link/Activity Status
10/100Mbps
Groundin
g
Screw
6-Pin Removal Terminal Block
(
Power In
p
ut
)

Quick Installation
Ethernet Ports
RJ45 Ports (Auto MDI)
All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or
1000Base-T device connections. Please follow the wiring pin
assignment table below for Ethernet port installation.
RJ45 Ethernet Port Pin Outs
Pins T568A Color T568B Color 10Base-T,
100Base-TX
1000
Base-T(X)
Pin 1 white/green stripe white/orange stripe Rx+ TP0+
Pin 2 green solid orange solid Rx- TP0-
Pin 3 white/orange stripe white/green stripe Tx+ TP1+
Pin 4 blue solid blue solid unused TP2+
Pin 5 white/blue stripe white/blue stripe unused TP2-
Pin 6 orange solid green solid Tx- TP1-
Pin 7 white/brown stripe white/brown stripe unused TP3+
Pin 8 brown solid brown solid unused TP3-

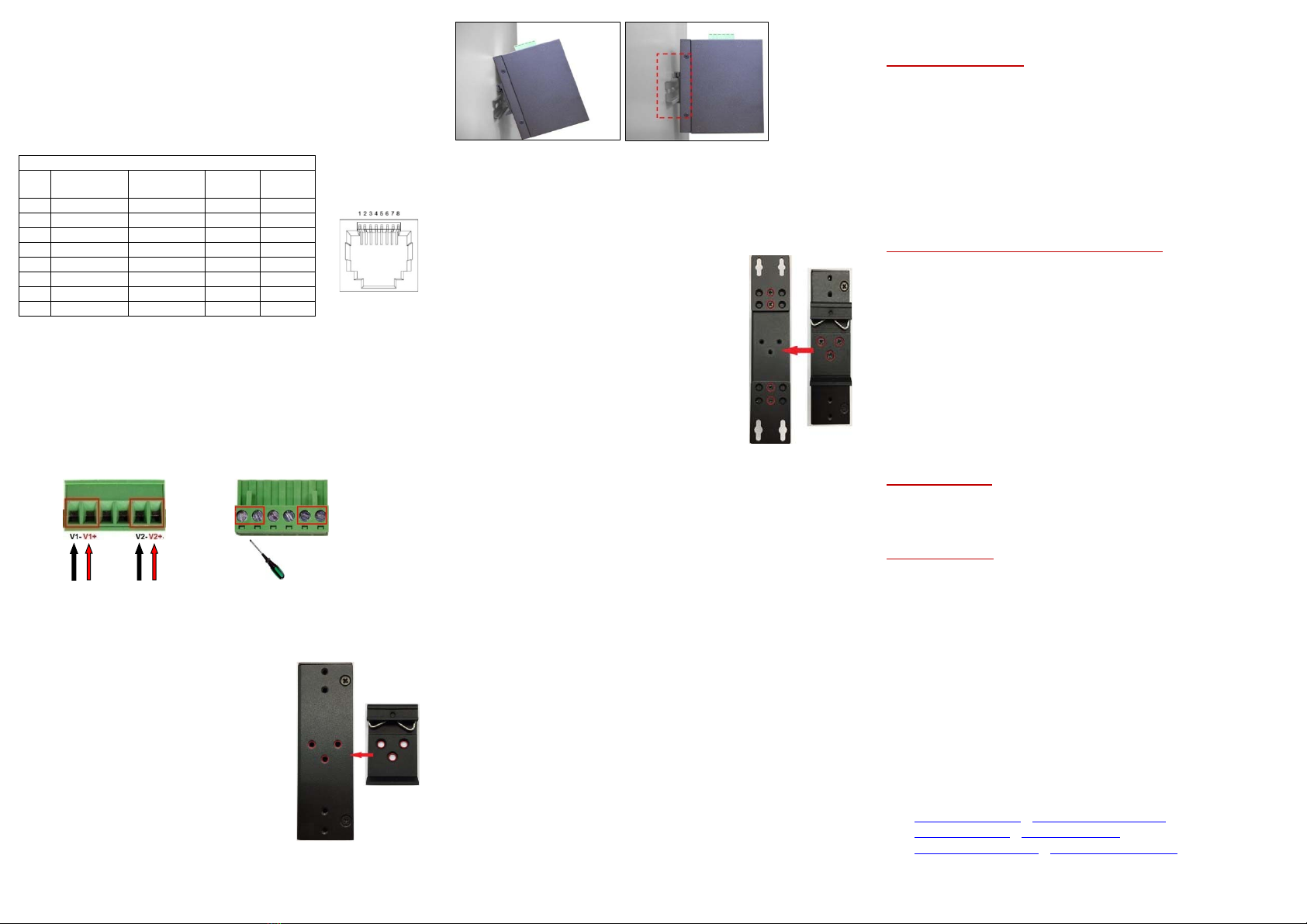

Power Input Wiring
Please follow the steps below to insert the power wire:
1. Insert the positive and negative wires into the PWR1
(V1+, V1-) and PWR2 (V2+, V2-) contacts on the
terminal block connector as shown below in Figure 1.
2. Tighten the wire-clamp screws to prevent the wires from
loosening, as shown below in Figure 2.
Figure 1 Figure 2
Industrial Switch Mounting
DIN-Rail Mounting
The DIN-Rail bracket is pre-installed on
the industrial Ethernet switch from the
factory. Please refer to Figure 3 for a
DIN-Rail bracket installation reference.
Follow the steps below for installing the
industrial switch on the DIN-Rail track:
1. Insert the top of the DIN-Rail on to the
track as shown below in Figure 4.
2. Lightly pull down the bracket on to the
rail as shown below in Figure 5.
3. Check if the bracket is mounted tightly
on the rail.
4. To remove the industrial
Ethernet
switch
from the rail, do the opposite from the steps above.
Figure 4
Wall Mounting
Follow the steps below to mount the industrial Ethernet switch
using the wall mounting bracket as shown below in Figure 6.
1. Remove the DIN-Rail bracket from the industrial Ethernet
switch by loosening the screws.
2. Place the wall mounting brackets on the
top and bottom of the industrial Ethernet
switch.
3. Use the screws to screw the wall
mounting bracket on the industrial
Ethernet switch.
4. Use the hook holes at the corners of the
wall mounting bracket to hang the
industrial Ethernet switch on the wall.
5. To remove the wall mount bracket, do the
opposite from the steps above.
Field Maintenance and Service
 If the device requires servicing of any kind, the user is
required to disconnect and remove it from its mounting. The
initial installation should be done in a way that makes this as
convenient as possible.
 Voltage/power lines should be properly insulated as well as
other cables. Be careful when handling them so as to not trip
over.
 Do not under any circumstance insert foreign objects of any
kind into the heat dissipation holes located in the different
faces of the device. This may not only harm the internal
layout, but might cause harm to user as well.
 Do not under any circumstance open the device for any
reason. Please contact your dealer for any repair needed or
follow the instructions within the manual.
Warranty Policy
Warranty Conditions
Products supplied by Antaira Technologies are covered in this
warranty for sub-standard performance or defective
workmanship. The warranty is not, however, extended to goods
damaged in the following circumstances:
(a) Excessive forces or impacts
(b) War or an Act of God: wind storm, fire, flood, electric shock,
earthquake
(c) Use of unqualified power supply, connectors, or
unauthorized parts/kits
(d) Replacement with unauthorized parts
RMA and Shipping Costs Reimbursement
Customers shall always obtain an authorized "RMA" number
from Antaira before shipping the goods for repair or
replacement.
 Within the warranty period (based on the invoice date), all
parts and labor are free of charge to the customers.
 Customers are responsible for the cost of parts and labor, if
the products are out of warranty.
 For RMA service, customers are responsible for the shipping
expense for shipping the RMA unit(s) to Antaira. Antaira is
responsible for the shipping expense via a ground service
for the return repair/replace unit(s) back to customers.
Limited Liability
Antaira would not be held responsible for any consequential
losses from using Antaira’s product.
Warranty Period
5-Year Warranty
Antaira’s Customer Service and Support
 Antaira’s Technical Service & Support Centers:
+ 844-268-2472 (Antaira US Headquarter)
+ 48-22-862-88-81 (Antaira Europe Office)
+ 886-2-2218-9733 (Antaira Asia Office)
 Antaira’s Web Sites & Repair/Support Emails:
www.antaira.com / [email protected]
www.antaira.eu / [email protected]
www.antaira.com.tw / [email protected]
*Any changes will be announced on the Antaira website.
Figure 3
Figure 6
Figure 5
