Antari HZ-400 User manual

HZ-400
Haze Machine
User Manual
- English
-中文
© 2023 Antari Lighting and Effects Ltd.

1. Introduction ................................................................................................................................................. 1
2. Safety Information....................................................................................................................................... 1
3. Package Contents & Inspection................................................................................................................... 2
4. Machine Details........................................................................................................................................... 3
5. Technical Label Information........................................................................................................................ 3
6. Haze Fluid.................................................................................................................................................... 3
7. Setting and Manual Operation..................................................................................................................... 4
8. Control Settings ........................................................................................................................................... 4
9. DMX Connection ........................................................................................................................................ 4
10. HC-1 Timer Cable Remote (Standard) ........................................................................................................ 5
11. HCR-1 Wireless Remote (Optional)............................................................................................................ 6
12. Service and Maintenance............................................................................................................................. 6
13. Technical Specifications .............................................................................................................................. 6
14. Warranty Disclaimer.................................................................................................................................... 7
15. Machine Dimension..................................................................................................................................... 7
1. 前言............................................................................................................................................................. 8
2. 安全注意事項............................................................................................................................................. 8
3. 包裝內容與檢查......................................................................................................................................... 9
4. 機器訊息................................................................................................................................................... 10
5. 技術標籤資訊........................................................................................................................................... 10
6. 煙霧水....................................................................................................................................................... 10
7. 設定與手動操作說明................................................................................................................................11
8. 控制設定....................................................................................................................................................11
9. DMX 說明..................................................................................................................................................11
10. HC-1 有線定時控制器(標配)................................................................................................................... 12
11. HCR-1 無線控制器(選配)........................................................................................................................ 13
12. 維護和保養............................................................................................................................................... 13
13. 技術規格................................................................................................................................................... 13
14. 保固聲明................................................................................................................................................... 14
15. 機器尺寸圖............................................................................................................................................... 14
Appendix I Grounding Instruction .................................................................................................................... 15

1
User Manual
1. Introduction
Please read all the user manual before operating the machine, and place the manual where the user can refer to it at
all time. The manual includes how to install and operate the machine under safe conditions and explain all the labels
printed on the machine. If you encounter any problem, contact your local Antari dealer for assistant immediately.
2. Safety Information
DANGER
If the danger is not avoided, it will cause death or serious injury
WARNING
If the warning is not heeded, it can cause death or serious injury.
CAUTION
If the precaution is not taken, it may cause minor or moderate injury.
DANGER
Must connect the machine to the correct rated voltage or it might lead to an electrical shock or a burn and may
cause serious consequences.
Must connect the machine to a protected circuit and ensure it is properly grounded to avoid the risk of
electrocution. For grounding instruction, please refer to Appendix I on page 15.
Do not operate the machine with a bundled power cord, it could lead to a fire hazard.
When operating the machine, do not point at people, animals, or fire.
WARNING
Please operate the machine on a flat, level hard and well ventilated surface area, reserve at least 50cm space
around the machine and make sure there is no flammable gas or material nearby.
Do not disassemble, repair or modify the machine, it may cause damages, malfunction, risk of electrical shock
or result in fire.
The machine can only be operated by adults or professionals, is not intended for use by person with reduced
physical sensory, mental capabilities, or lack of experience and knowledge including children.
Do not leave the machine running unattended, make sure all powers are off when leaving.
Children should be supervised to ensure that they do not play with the machine.
Do not use the machine upside down or tilt it, it might cause damages or malfunction.
Please store the fluid inside in a well ventilated area without direct sunlight and keep out of reach of children.
In case of eye contact or accidentally swallow the fluid, please seek medical attention immediately.
CAUTION
Keep the machine dry at all time. The machine is not waterproof, do not expose the machine to water, rain or
moisture environment.
Please make sure the power outlet is not damaged or loose before plug in the power cord.
If the power cord is damaged, it must be replaced by Antari or its local dealers, otherwise the warranty will be
void.
Before transporting the machine, please make sure the fluid is drained and tank is empty. (Recommend using
original package)

2
The machine is for indoor use only.
Do not operate the machine in any area with unstable voltage.
If you experience strange sound or malfunction, turn off the power and unplug the power cord immediately
and contact your local Antari dealer for assistant.
Do not contact any moving part.
Only use accessories recommended or sold by Antari.
Please make sure the power is off when not using the machine and unplug the power cord if not intend to use
for a long period of time.
To disconnect, turn all controls to the off position, then remove plug from outlet.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
Unplug from outlet before servicing or cleaning.
Do not operate the machine with a damaged cord or plug, or after the machine malfunctions or is dropped or
damaged in any manner. Return machine to the nearest authorized service facility for examination, repair, or
electrical or mechanical adjustment.
To ensure the lifespan of the machine, please only use the fluid manufactured by Antari, do not use other fluid
or additive, otherwise it may cause malfunction.
Before operating the machine, please read all warning labels on the machine, description as below;
Top Cover Printing
USE DEALER RECOMMENEDED HAZE LIQUID ONLY!
DO NOT OPEN CASE RISK OF ELECTRIC SHOCK
WARNING!
PLEASE USE RECOMMENED, NON-FLAMMABLE FLUID ONLY. MAKE SURE THT THE LIQUID
LEVEL DOES NOT EXCEED THE MARK AS MACHINE PERFORMANCE MAY SUFFER
Rear Cover Printing
WARNING!
DISCONNECT POWER BEFORE CHANGING FUSE.
USE ONLY WITH ADULT SUPERVISION.
DO NOT OPERATE WITHOUT LIQUID.
FOR INDOOR USE ONLY. KEEP DRY.
NO USER SERVICEABLE PARTS INSIDE.
MAX. FLUID LEVEL
MAKE SURE THAT THE LIQUID LEVEL DOES NOT EXCEED THIS MARK.
3. Package Contents & Inspection
Immediately upon receiving the machine, carefully unpack the carton, check the content to ensure it is the correct
model and all parts are included. If any part appears to be damaged or missing during transportation, please contact
your local dealer and return in original package for inspection.
3.1 Package Contents
1 x HZ-400 Haze Machine
1 x IEC Power Cable
1 x HC-1 Timer Cable Remote
1 x User Manual or scan QR Code on the Machine
3.2 Optional Accessories
Item Code
Description
HCR-1
Wireless Remote

3

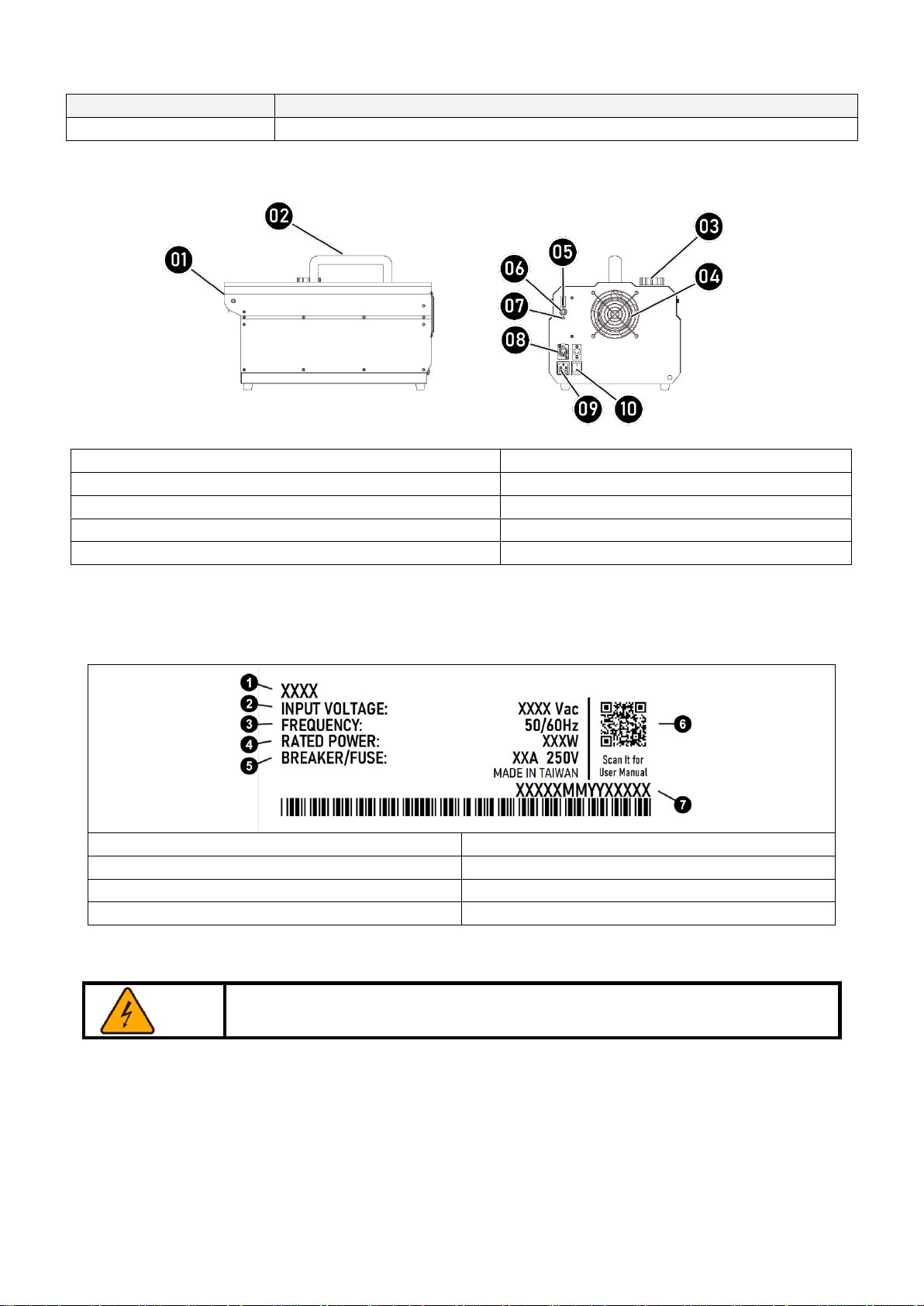

4. Machine Details
01. Fog Nozzle
06. Cable Remote Input
02. Handle
07. Indicator Light
03. Tank Cap
08. XLR 5-Pin Connector (DMX)
04. Fan
09. IEC Connector (Power)
05. Dip Switch
10. Power Switch
5. Technical Label Information
Please read the technical label information on the back of the machine before operating it.
1. Model Name
5. Breaker/Fuse
2. Input Voltage
6. QR CODE for User Manual
3. Frequency
7. Serial No.
4. Rated Power
6. Haze Fluid
CAUTION
Always turn off the power before filling the fluid tank. Do not add flammable
liquid to the fluid tank. If fluid gets inside the machine, please contact your local
Antari dealer for assistant.
Only the haze fluid manufactured by Antari can be used, do not mix or dilute the haze fluid. Due to improper
storage or using other fluid might cause malfunction.
The machine is tested and calibrated with the specific haze fluid to get the best performance.
Please empty the fluid in the tank before switching to another fluid to avoid mixing.
The warranty on your haze machine will be void if you use haze fluid not manufactured by Antari.

4
7. Setting and Manual Operation
WARNING
Machine falling off might cause serious injury, please make sure it is secure
and firm on the overhead.
Step 1. Place the machine on a flat, level hard and well ventilated surface area and reserve at least 50cm open
space around the machine, and make sure there is no flammable gas or material nearby;
Step 2. Fill with Antari approved haze fluid;
Step 3. Connect the machine to the power outlet. Please read the technical label on the back of the machine and
make sure the power outlet is the correspond to the rated voltage for the machine;
Step 4. Turn on the power, make sure the RED indicator light in on, then you can start to operate the machine;
Step 5. Refer to Page 5 and 6 for how to use controller to operate the machine;
Step 6. To turn off the machine, please make sure the machine is not operating then turn of the power. If you will
not use the machine a long period of time, please remove the power cord.
8. Control Settings
HZ-400 Haze Machine can be operated in the following modes. The machine can only accept 1 type of signal at a
time. When using different control modes at the same time, the machine will work according to built-in control
priority:
Manual
Timer
DMX512
Wireless
9. DMX Connection
9.1 DMX Connector Pin Assignment
The machine has a XLR 5-Pin for DMX connection. The diagram below indicates pin assignment information.
Pin
Function
1
Ground
2
Data-
3
Data+
4
N/A
5
N/A
** There is a protection cap on DMX IN, please
remove it with your finger before operation.
9.2 DMX Channel Function
DMX Value
Function
0~5
Off
6~255
On
9.3 Addressing
Each device occupies 1 channel. To ensure that the control signals are properly directed to each device, they require
addressing. This is to be adjusted for every single device by changing the DIP-switches as set out in the table
below. The starting address is defined as the first channel from which the device will respond to the controller.

5
Please make sure that you do not have any overlapping channels in order to control each device correctly and
independently from any other fixture on the DMX data link. If two, three or more devices are addressed similarly,
they will work similarly.
Occupation of the DIP-Switches:
DIP
1
2
3
4
5
6
7
8
9
Ch.
1
2
4
8
16
32
64
128
256
Setting the DMX-Starting
Address
DIP-Switch No.
1
2
3
4
5
6
7
8
9
Device Number & Channels
Staring Address
1
2
4
8
16
32
64
128
256
Device 1 – Channel 1
On
▲
Off
▽
▽
▽
▽
▽
▽
▽
▽
Device 2 – Channel 2
On
▲
Off
▽
▽
▽
▽
▽
▽
▽
▽
Device 3 – Channel 3
On
▲
▲
Off
▽
▽
▽
▽
▽
▽
▽
Device 4 – Channel 4
On
▲
Off
▽
▽
▽
▽
▽
▽
▽
▽
Device 5 – Channel 5
On
▲
▲
Off
▽
▽
▽
▽
▽
▽
▽
10. HC-1 Timer Cable Remote (Standard)
HC-1 Timer Cable Remote is a standard accessory for HZ-400 Haze Machine, please see instruction below;
Button/Knob
Function
DURATION [KNOB]
Adjust Duration
INTERVAL [KNOB]
Adjust Interval
POWER [RED BUTTON]
Power On / Off
HAZE [GREEN BUTTON]
Fogging On / Off
TIMER ON/OFF [YELLOW BUTTON]
Timer Mode On / Off
** If you encounter any problem, please contact your local Antari dealer for assistant.

6

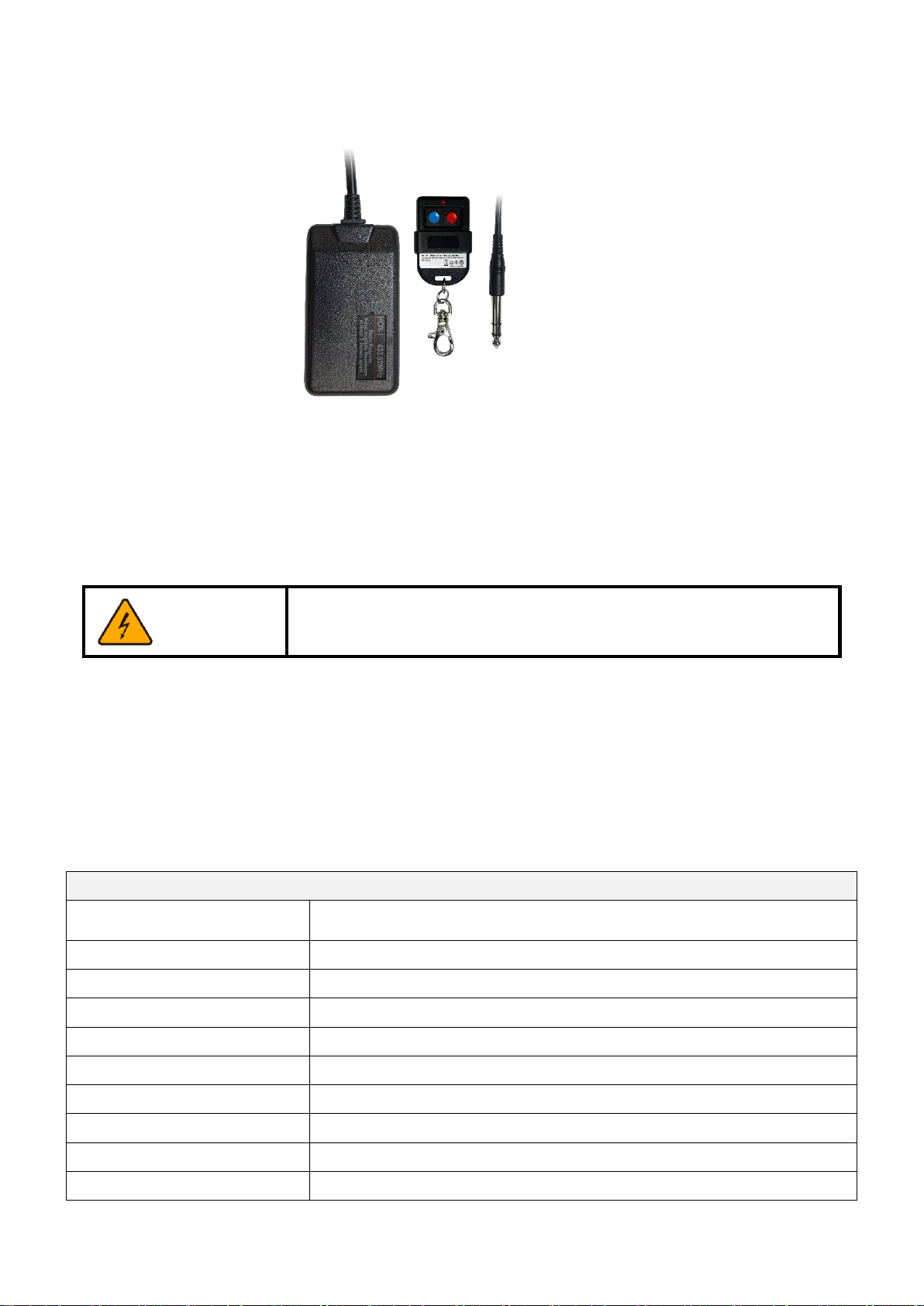

11. HCR-1 Wireless Remote (Optional)
HCR-1 Wireless Remote is an optional accessory for HZ-400 Haze Machine, it included a receiver and a wireless
transmitter. It’s ready to use, no pairing necessary, please see instruction below;
1. Plug the receiver to the back of the machine;
2. Press BLUE button to start bubbling and press RED button to stop bubbling.
** Signal range is approximately 50m in open area, it may vary depending on actual situation on site.
** If you encounter any problem, please contact your local Antari dealer for assistant.
12. Service and Maintenance
DANGER
Disconnect the power cord before starting maintenance operation!
Always keep the machine clean.
Can use an air compressor, a vacuum or a soft brush to remove the dust on the machine.
Can use a slightly damp cloth to clean the casing.
Before store or after use the machine, please make sure the fluid box is empty and dry.
It is recommended to run the machine at least once a month in order to maintain its best performance and
output condition.
Excessive dust and build up liquid residue will reduce the performance and cause overheat.
13. Technical Specifications
HZ-400
Input Voltage
US Model : AC 100-120V, 50/60Hz 4.0A
EU Model : AC 220-240V, 50/60Hz 2.0A
Rated Power
470W
Fluid Consumption
1.1 ml/min (100% output)
Fluid Tank Capacity
2.5 Liters (0.66 gallon)
Compatible Fluid
Antari HZL Haze Fluid
Operating Time
37 hrs (100% output)
Ambient Temp. Range
0°C – 40°C (32°F – 104°F)
Control Methods
Manual、Timer、DMX512、Wireless (Optional)
Interface
XLR 5-Pin Connector (DMX)、IEC (Power)
DMX Channels
1 Channel

7
Included Accessories
HC-1 Timer Cable Remote
Optional Accessories
HCR-1 Wireless Remote
Dimension
L 510 W 320 H 325 mm (L 20.07 W 12.60 H 12.79 inch)
Weight
18.5 kg (40.79 lbs.)
14. Warranty Disclaimer
We guarantee the merchandise manufactured by us to be free from defect in material and workmanship for a period
of one year. Our obligation and liability under this warranty shall be restricted to repair or replacement at our
factory or local authorized dealer. We assume no liability of the products that are improperly used or used for any
purpose other than that for which they are specially designed. This warranty shall not apply to any merchandise
which has been repaired, altered or assembled outside our factory in any way so as in our judgment to affect its
performance, nor which has been subjected to misuse, negligence, or accident nor to any merchandise operated
contrary to our printed instructions. We will not allow or be liable of any loss or any damages of any kind in
connection with the use, sale, or repair of any merchandise purchased from us.
15. Machine Dimension

8
中文使用說明書
1. 前言
在操作本機器之前，請務必仔細詳閱本說明書然後請將本說明書放置在機器使用者可隨時查閱之處存放。
此說明書包含如何安全的安裝及操作本機器以及說明所有在機器上的標示。如果您有任何操作上的問題，
請立即聯繫當地的 Antari 經銷商尋求協助。
2. 安全注意事項
危險
若不確實避免這些指示，可能導致嚴重人身傷害甚至死亡。
警告
若不確實遵循這些指示，可能導致嚴重人身傷害甚至死亡。
注意
若不確實注意這些指示，可能導致人身傷害甚至死亡，嚴重程度視情況而定。
危險
請務必使用正確電壓。如果使用錯誤電壓，可能會遭受危險的電擊燒傷或更嚴重的後果。
請務必將機器連結到有保護的電路，並確保有正確的接地，以避免觸電的危險。關於接地方式請參考
第15 頁附錄 I。
請勿在捆綁電源線的情況下使用，可能會發熱導致火災。
操作機器時請 勿 將 機 器 對 著 人 體 、動物或火 焰使用。
警告
請於堅固、平坦、穩定且通風良好的表面上使用機器。請勿遮蓋機器散熱部份，機器周邊至少應保留
50 公分的空間並確認附近沒有易燃性物質或可揮發性氣體。
請勿隨意拆卸、修理或改造機器，這可能會導致機器故障、損壞、觸電危險或造成火災。
本機器僅限有行為能力之成人或專業人員操作，不預期提供生理、感知、心智能力、經驗或知識不足
者之使用者(包含孩童)使用本機器。
請勿在無人看管時讓機器運作，並 於 外 出 離 去 時 確 實關閉 電 源 。
孩童應受監督，以確保孩童不能操作或嬉戲玩本機器。
請勿將機器倒放或傾斜使用，可能導致機器動作不正常或損壞。
請將液體存放在室內孩童無法取得之處，保持通風及避免陽光直射。如果有觸碰眼睛或誤食機器，請
立即尋求醫生的協助。
注意
本機器無防水設計，請隨時保持機器乾燥，嚴禁將其潑水、浸水、淋雨或放在潮溼的環境。
在插 入 電 源 插 座前 ，請確認電 源 插 座無損壞或鬆動。
若電源線損壞，必須使用原廠電源線或組件進行更換，否則將導致保固無效。
在運輸本機器前，請確認機器的油箱已清空並且包裝完整。(建議使用原廠包裝)
