Antari SW-300 User manual

SW-300
Wireless Long Throw Snow Machine
User Manual
- English
-中文
© 2023 Antari Lighting and Effects Ltd.

1. Introduction ................................................................................................................................................. 1
2. Safety Information....................................................................................................................................... 1
3. Package Contents & Inspection................................................................................................................... 2
4. Machine Details........................................................................................................................................... 3
5. Technical Label Information........................................................................................................................ 3
6. Snow Fluid................................................................................................................................................... 3
7. Setting and Manual Operation..................................................................................................................... 3
8. Control Settings ........................................................................................................................................... 4
9. DMX Connection ........................................................................................................................................ 5
10. RDM Function............................................................................................................................................. 6
11. SC-3 Cable Remote (Optional).................................................................................................................... 6
12. W-1 Wireless Transmitter (Standard) .......................................................................................................... 7
13. Service and Maintenance............................................................................................................................. 7
14. Technical Specifications .............................................................................................................................. 8
15. Warranty Disclaimer.................................................................................................................................... 8
16. Machine Dimension..................................................................................................................................... 8
1. 前言............................................................................................................................................................. 9
2. 安全注意事項............................................................................................................................................. 9
3. 包裝內容與檢查....................................................................................................................................... 10
4. 機器訊息....................................................................................................................................................11
5. 技術標籤資訊............................................................................................................................................11
6. 雪花水........................................................................................................................................................11
7. 設定與手動操作說明............................................................................................................................... 12
8. 控制設定................................................................................................................................................... 12
9. DMX 說明................................................................................................................................................. 13
10. RDM 功能................................................................................................................................................. 14
11. SC-3 有線控制器(選配)........................................................................................................................... 14
12. W-1 無線發射器(標準)............................................................................................................................. 15
13. 維護和保養............................................................................................................................................... 15
14. 技術規格................................................................................................................................................... 16
15. 保固聲明................................................................................................................................................... 16
16. 機器尺寸圖............................................................................................................................................... 16

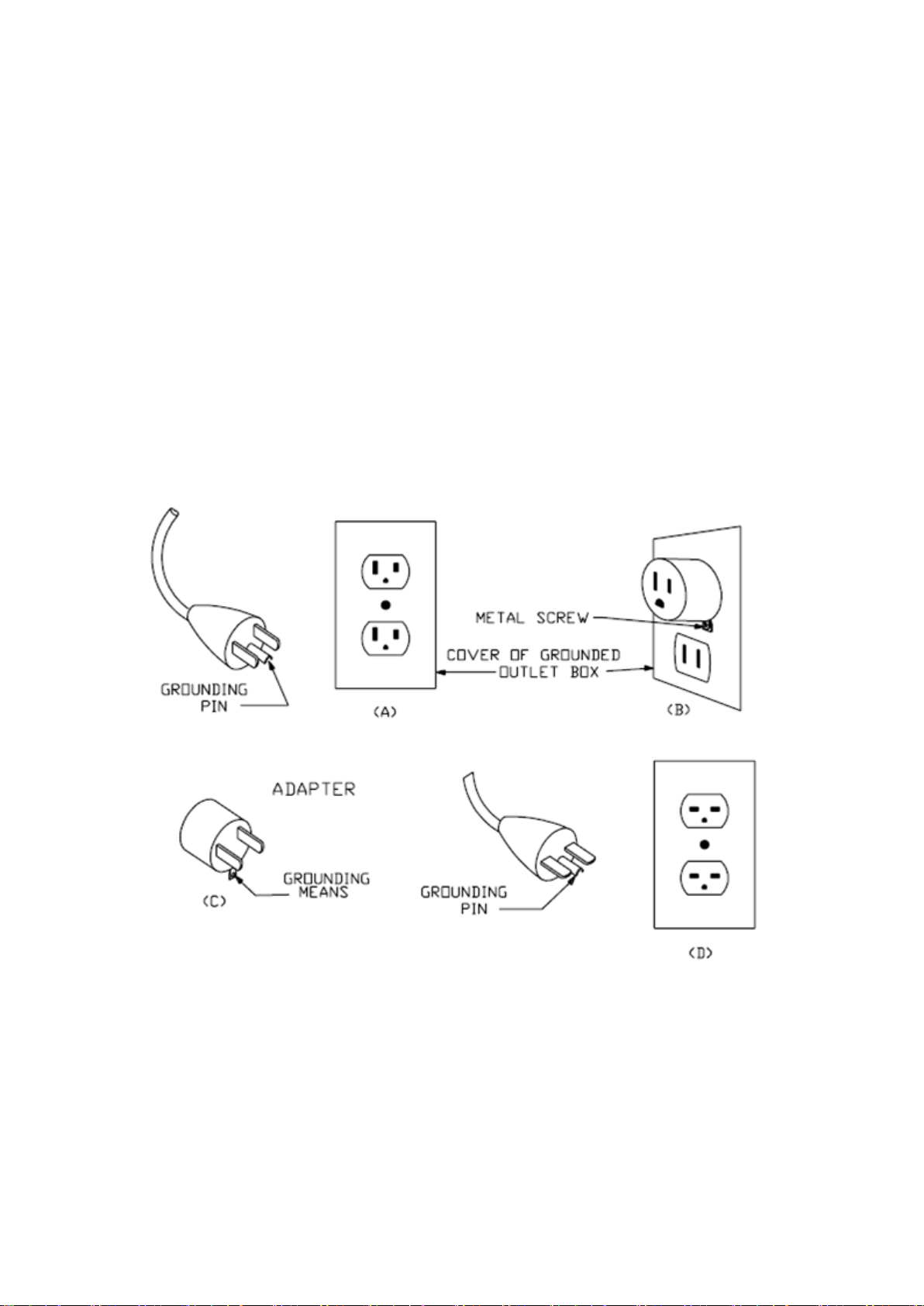

Appendix I – Grounding Instruction.................................................................................................................. 17

1
User Manual
1. Introduction
Please read all the user manual before operating the machine, and place the manual where the user can refer to it at
all time. The manual includes how to install and operate the machine under safe condition and explain all the labels
printed on the machine. If you encounter any problem, contact your local Antari dealer for assistant immediately.
2. Safety Information
DANGER
If the danger is not avoided, it will cause death or serious injury
WARNING
If the warning is not heeded, it can cause death or serious injury.
CAUTION
If the precaution is not taken, it may cause minor or moderate injury.
Must connect the machine to the correct rated voltage or it might lead to an electrical shock or a burn and may
cause serious consequences.
Must connect the machine to a protected circuit and ensure it is properly grounded to avoid the risk of
electrocution. For grounding instruction, please refer to Appendix I on page 17.
Do not operate the machine with a bundled power cord, it could lead to a fire hazard.
When operating the machine, do not point at people, animals, or fire.
WARNING
Please operate the machine on a flat, level hard and well ventilated surface area, reserve at least 50cm space
around the machine and make sure there is no flammable gas or material nearby.
Do not disassemble, repair or modify the machine, it may cause damages, malfunction, risk of electrical shock
or result in fire.
The machine can only be operated by adults or professionals, is not intended for use by person with reduced
physical sensory, mental capabilities, or lack of experience and knowledge including children.
Do not leave the machine running unattended, make sure all powers are off when leaving.
Children should be supervised to ensure that they do not play with the machine.
Do not use the machine upside down or tilt it, it might cause damages or malfunction.
Please store the fluid inside in a well ventilated area without direct sunlight and keep out of reach of children.
In case of eye contact or accidentally swallow the fluid, please seek medical attention immediately.
CAUTION
Keep the machine dry at all time. The machine is not waterproof, do not expose the machine to water, rain, or
moisture environment.
Please make sure the power outlet is not damaged or loose before plug in the power cord.
If the power cord is damaged, it must be replaced by Antari or its local dealers, otherwise the warranty will be
void.
Before operating the machine, please sure the fluid is filled in the fluid tank to avoid the pump in idling state
which could lead to overheat or malfunction.
Before transporting the machine, please make sure the fluid is drained and tank is empty. (Recommend using
original package)
The machine is for indoor use only.
Do not operate the machine in any area with unstable voltage.
If you experience strange sound or malfunction, turn off the power and unplug the power cord immediately
and contact your local Antari dealer for assistant.
Do not contact any moving part.
DANGER

2
Only use accessories recommended or sold by Antari.
Please make sure the power is off when not using the machine and unplug the power cord if not intend to use
for a long period of time.
To disconnect, turn all controls to the off position, then remove plug from outlet.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
Unplug from outlet before servicing or cleaning.
Do not operate the machine with a damaged cord or plug, or after the machine malfunctions or is dropped or
damaged in any manner. Return machine to the nearest authorized service facility for examination, repair, or
electrical or mechanical adjustment.
To ensure the lifespan of the machine, please only use the fluid manufactured by Antari, do not use other fluid
or additive, otherwise it may cause malfunction.
Before operating the machine, please read all warning labels on the machine, description as below:
Rear Cover Printing
WARNING!
DISCONNECT POWER BEFORE CHANGING FUSE.
USE ONLY WITH ADULT SUPERVISION.
DO NOT OPERATE WITHOUT SNOW LIQUID.
FOR INDOOR USE ONLY. KEEP DRY.
NO USER SERVICEABLE PARTS INSIDE.
3. Package Contents & Inspection
Immediately upon receiving the machine, carefully unpack the carton, check the content to ensure it is the correct
model and all parts are included. If any part appears to be damaged or missing during transportation, please contact
your local dealer and return in original package for inspection.
3.1 Package Contents
1 x SW-300 Wireless Long Throw Snow Machine
1 x 5 Liters Fluid Tank
1 x IEC Connector (Power)
1 x W-1 Wireless Transmitter
1 x Hanging Bracket
1 x User Manual or Scan QR Code on the Machine
3.2 Optional Accessories
Item Code
Description
SC-3
Cable Remote
SW-300-FB
Floor Bracket

3
4. Machine Details
01. Nozzle
06. LCD Display
02. Handle
07. XLR 5-Pin DMX
03. Hanging Bracket
08. XLR 4-Pin Remote Connector
04. 5 Liter Fluid Tank
09. Power Switch
05. Wireless Connector
10. IEC Connector (Power)
5. Technical Label Information
Please read the technical label information on the back of the machine before operating it.
1. Model Name
5. Breaker/Fuse
2. Input Voltage
6. QR CODE for User Manual
3. Frequency
7. Serial No.
4. Rated Power
6. Snow Fluid
CAUTION!
Always turn off the power before filling the fluid tank. Do not add flammable
liquid to the fluid tank. If fluid gets inside the machine, please contact your local
Antari dealer for assistant.
Only the snow fluid manufactured by Antari can be used, do not mix or dilute the snow fluid.
The machine is tested and calibrated with the specific snow fluid to get the best performance.
Please empty the fluid in the tank before switching to another fluid to avoid mixing.
The warranty on your snow machine will be void if you use snow fluid other than that recommended by the
Antari of your snow machine.
7. Setting and Manual Operation
WARNING
Machine falling off might cause serious injury, please make sure it is secure
and firm on the overhead.

4
Step 1. Place the machine on a flat, level hard and well ventilated surface area and reserve at least 50cm open
space around the machine, and make sure there is no flammable gas or material nearby;
Step 2. Fill the fluid tank with Antari approved snow fluid;
Step 3. Connect the machine to the power outlet. Please read the technical label on the back of the machine and
make sure the power outlet is the correspond to the rated voltage for the machine;
Step 4. When the machine is ready, the LCD display will show “Ready to Snow”;
Step 5. To start making snow in Timer Mode, press [TIMER] and press [STOP] to stop; this will run based on
“Interval” & “Duration” setting in the main menu;
Step 6. Or to start making snow in Volume Mod, press [VOLUME] and press [STOP] to stop; you can adjust the
volume by pressing [UP] and [DOWN];
Step 7. To turn off the power, please make sure the machine is not operating. If you will not use the machine a
long period of time, please unplug the power cord.
8. Control Settings
SW-300 Wireless Long Throw Snow Machine can be operated in the following modes. The machine can only
accept 1 type of signal at a time. When using different control modes at the same time, the machine will work
according to built-in control priority:
Manual
Timer
DMX512
Wireless
Cable Remote
8.1 Control Panel Description
SW-300 Wireless Long Throw Snow Machine can be operated with the onboard digital control interface.
Button
Operating Method
Function
MENU
Press
To enter and scroll through the setting menu
UP
Press
Increase value / Up
DOWN
Press
Decrease value / Down
TIMER
Press
1. Press to start making snow according to the set time
2. Press “stop” to stop making snow
VOLUME
Press
1. Press to start making snow according to set volume output
2. Press “stop” to stop making snow
STOP
Press
Stop / Confirm

5
8.2 Menu Options Description
Options
Description
Interval Set 20s
Set Interval between 20 - 2000 sec
Duration Set 10s
Set Duration between 10 - 200 sec
Timer Out 100%
Set Timer Mode Output 0 - 100%
Volume Out 100%
Set Volume Mode Output 0 - 100%
Fan Out 20%
Set Fan Output 20 – 100%
DMX512 Add.001
001-511
Wireless On
On / Off
Quick Start Off
On / Off
9. DMX Connection
9.1 DMX Connector Pin Assignment
The machine has a XLR 5-Pin for DMX connection. The diagram below indicates pin assignment information.
Pin
Function
1
Ground
2
Data-
3
Data+
4
N/A
5
N/A
The cap on the DMX IN port is a protection cover.
Please remove it with your finger before operation.
9.2 DMX Setting
Channel 1
DMX Value Range
Function
Snow Output Level
0 – 5
Snow off
6 – 255
Snow Output 1 – 100%
Channel 2
DMX Value Range
Function
Fan Output Level
0 – 5
Fan 20%
6 – 255
Fan 21 – 100%

6
10. RDM Function
The SW-300 Long Throw Snow Machine is RDM enabled, allowing control system to configure, mointor and
manage.
See below table for supported RDM parameters
Value
RDM Parameter ID’s
GET Allowed
SET Allowed
0x0001
DISC_UNIQUE_BRANCH
0x0002
DISC_MUTE
0x0003
DISC_UN_MUTE
0x0030
STATUS_MESSAGE
O
0x0050
SUPPORTED_PARAMETERS
O
0x0051
PARAMETER_DESCRIPTION
O
0x0060
DEVICE_INFO
O
0x0070
PRODUCT_DETAIL_ID_LIST
O
0x0080
DEVICE_MODEL_DESCRIPTION
O
0x0081
MANUFACTURER_LABEL
O
0x0082
DEVICE_LABEL
O
O
0x00C0
SOFTWARE_VERSION_LABEL
O
0x00E0
DMX_PERSONALITY
O
O
0x00E1
DMX_PERSONALITY_DESCRIPTION
O
0x00F0
DMX_START_ADDRESS
O
O
0x0400
DEVICE_HOURS
O
0x1000
IDENTIFY_DEVICE
O
O
11. SC-3 Cable Remote (Optional)
SC-3 Cable Remote is an optional accessory for SW-300 Wireless Long Throw Snow Machine, please see
instruction below;
Button/Knob
Function
VOLUME [KNOB]
Adjust Volume Output
FAN [KNOB]
Adjust Fan Output
POWER [RED BUTTON]
Power On / Off
MAX FAN [GREEN BUTTON]
Max Output on Fan
PRIMING [YELLOW BUTTON]
Max Output on Pump & Fan

7
Note:
** You must turn on the power of the remote in order to use it.
** PRIMING [YELLOW BUTTON] is meant for priming use, with a new tank of fluid or refill the fluid may not pump
properly due to airlock in the tube, you can use this function to activate pump at maximum output.
** MAX FAN [GREEN BUTTON] is used, when needed to clean out residue on the tip of output nozzle
** If you encounter any problem, please contact your local Antari dealer for assistant.
12. W-1 Wireless Transmitter (Standard)
W-1 Wireless Transmitter is a standard accessory for SW-300 Wireless Long Throw Snow Machine.
12.1 W-1 Wireless Transmitter
Battery：27A 12V
Effective Range：The effective range is approximately 50m,
depends on actual condition, it may vary.
W-1 wireless transmitter has 2 buttons, each function as follow:
W-1 Wireless Transmitter
Button
Function
[A]
Start
[B]
Stop
12.2 Pairing
Each receiver can pair up to 5 transmitters, please follow the steps below to pair;
Step 1. Turn on the power, “Wireless Setup” will show on the display for 15 seconds. Within this time period,
press button A on the W-1 transmitter to pair with the machine. When screen shows “Wireless Setup OK”,
means it’s paired;
Step 2. Please repeat Step 1 to pair multiple transmitters.
*If exceed 15 seconds, turn the power off and on again.
13. Service and Maintenance
DANGER!
Disconnect the power cord before starting maintenance operation!
Always keep the machine clean.
Can use an air compressor, a vacuum or a soft brush to remove the dust on the machine.
Can use a slightly damp cloth to clean the casing.
Before store the machine, please make sure the machine is completely cool down to avoid moisture inside the
machine causing malfunction.
It is recommended to run the machine at least once a month in order to maintain its best performance and
output condition.
Excessive dust and build up liquid residue will reduce the performance and cause overheat.

8
14. Technical Specifications
SW-300
Rated Voltage
US Model: AC 100-120V, 50/60Hz 7.5A
EU Model: AC 220-240V, 50/60Hz 4.0A
Rated Power
880W
Fluid Consumption
280 ml/min (100% output)
Fluid Tank Capacity
5 Liters (1.32 Gallon)
Compatible Fluid
Antari SL-N Snow & Foam Fluid (New Formula)、Antari SL-AN Premium Snow
Fluid (New Formula)、Antari SL-H Super Dry Snow Fluid、Antari SL-C Anti-
Freezing Snow Fluid、Antari SL-UV UV Snow Fluid
Ambient Temp. Range
5°C – 40°C (41°F – 104°F)
Control Methods
Manual、Timer、DMX512、Wireless (Standard)、Cable Remote (Optional)
Interface
XLR 5-Pin (DMX)、XLR 4-Pin (Remote)、IEC (Power)
DMX Channels
2 Channels
Included Accessories
W-1 Transmitter、Hanging Bracket
Optional Accessories
SC-3 Cable Remote、SW-300-FB Floor Bracket
Dimension
L 500 W 276 H 311 mm (L 19.68 W 10.87 H 12.27 inch)
Weight
11.5 kg (25.35 lbs.)
15. Warranty Disclaimer
We guarantee the merchandise manufactured by us to be free from defect in material and workmanship for a period
of one year. Our obligation and liability under this warranty shall be restricted to repair or replacement at our
factory or local authorized dealer. We assume no liability of the products that are improperly used or used for any
purpose other than that for which they are specially designed. This warranty shall not apply to any merchandise
which has been repaired, altered or assembled outside our factory in any way so as in our judgment to affect its
performance, nor which has been subjected to misuse, negligence, or accident nor to any merchandise operated
contrary to our printed instructions. We will not allow or be liable of any loss or any damages of any kind in
connection with the use, sale, or repair of any merchandise purchased from us.
16. Machine Dimension
