Antari S-500XL User manual

1
S-500 / S-500XL
Snow Machine
User Manual
- For U.S. Market -
English
!"#"$%&'()*+%,+-.(+'-%)'/%01123(4%,(/5%

2

3
User Manual
Safety Information
Please read the following safety information carefully before operating the
machine. This information includes important safeguards about installation,
usage, and maintenance. Pay attention to all warning labels and instructions in
this manual and printed on the machine.
If you have questions about how to operate the machine safely, please contact your local
Antari dealer for help.
․ Keep this device dry.
․ Always connect to a grounded circuit to avoid risk of electrocution.
․ Before connecting the machine to power, always check the voltage indicated on the
machine matches to your local AC voltage. Do not use the machine if the AC power
voltage does not match.
․ Disconnect the machine from AC power before servicing and when not in use.
․ This product is for indoor use only! Do not expose to rain or moisture. If fluid is spilled,
disconnect AC power and clean with a damp cloth. If fluid is spilled onto electronic parts,
immediately unplug the machine and contact your local Antari dealer for advice.
․ No user serviceable and modifiable parts inside. Never try to repair this product, an
unauthorized technician may cause damage or malfunction to the machine.
․ For adult use only. Never leave the machine running unattended.
․ Install the machine in a well-ventilated area. Provide at least 50 cm of space around the
machine.
․ Never add flammable liquid of any kind to the machine.
․ Make sure there are no flammable materials close to the machine while operating.
․ Only use Antari fluid. Other fluid may lead to a heater clog and malfunction.
․ If the machine fails to work, unplug the machine and stop operation immediately.
Contact your local Antari dealer for advice.

4
․ Before transporting the machine, make sure the fluid tank is completely drained.
․ Snow fluid may present health risks if swallowed. Do not drink snow fluid. Store it
securely. In case of eye contact or if fluid is swallowed, immediately look for medical
advice.
․ This appliance must be grounded. In the event of malfunction or breakdown, grounding
provides a path of least resistance for electric current to reduce the risk of electric
shock. This appliance is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate outlet
that is properly installed and grounded in accordance with all local codes and
ordinances.
DANGER – Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician or serviceman if the grounding
instructions are not completely understood, or if in doubt as to whether the appliance is
properly grounded. Do not modify the plug provided with the appliance – if it will not fit the
outlet, have a proper outlet installed by a qualified electrician
IMPORTANT SAFETY INSTRUCTIONS
WARNING – When using electric appliances, basic precautions should always be followed,
including the following
a) Read all the instructions before using the appliance
b) To reduce the risk of injury, close supervision is necessary when an appliance is used
near children.
c) Do not contact moving parts.
d) Only use attachments recommended or sold by the manufacturer.
e) Do not use outdoors.
f) For a cord-connected appliance, the following shall be included:
- To disconnect, turn all controls to the off (“O”) position, then remove plug from outlet.
- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
- Unplug from outlet when not in use and before servicing or cleaning.
- Do not operate any appliance with a damaged cord or plug, or after the appliance
malfunctions or is dropped or damanged in any manner. Return appliance to the

5
nearest authorized service facility for examination, repair, or electrical or mechanial
adjustment.
g) For a portable appliance – To reduce the risk of electrical shock, do not put in water or
orther liquid. Do not place or store appliance where it can fall or be pulled into a tub or
sink.
h) For a grounded appliance – Connect to a properly grounded outlet only. See Grounding
Instructions.
GROUNDING INSTRUCTIONS
This appliance must be grounded in the event of malfunction or breakdown, grounding
provides a path of least reisstance for electric current to reduce the risk of electric shock.
This appliance is equipped with a cord having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet that is properly installed
and grounded in accordance with all local codes and ordinances.
DANGER – Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. The conductor with insulation having an outer surface that is green with or
without yellow stripes is the equipment-grounding conductor. If repair or replacement of the
cord or plug is necessary, do not connect the equipment-grounding conductor to a live
terminal. Check with a qulified electrician or servicemen if the grounding instructions are not
completely understood, or if in doubt as to wheter the appliance is properly grounded. Do not
modify the plug provided with the appliance. If it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
DANGER – improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician or serviceman if the grounding
instructions are not completely understood, or if in doubt as to whether the appliance is
properly grounded. Do not modify the plug provided with the appliance – if it will not fit the
outlet, have a proper outlet installed by a qualified electrician.
This appliance is for use on a nominal 120V circuit and has a grounding plug that looks like
the plug illustrated in sketch A in Figure 73.1. A temporary adaptor, which looks like the
adaptor illustrated in sketches B and C, may be used to connect this plug to a 2 pole
receptacle as shown in sketch B if a properly grounded outlet is not available. The temporary
adaptor should be used onnly until a properly grounded outlet an be installed by a qualified

6
electrician. The green colored rigid ear, lug, and the like, extending from the adaptor must be
connected to a permanent ground such as a properly grounded outlet box cover. Whenever
the adaptor is used, it must be held in place by the metal screw.
Unpacking and Inspection
Immediately upon receiving the machine, carefully unpack the carton, check all content to
ensure that all parts are present and have been received in good condition. If any parts
appear damaged or mishandled from shipping, notify the shipper immediately and retrain the
packing material for inspection.
What is included:
S-500
S-500XL
1 x S-500 Snow Machine
1 x Power Cord
1 x User Manual
1 x Fluid Tank Feed Tube
1 x 20 Liter Fluid Tank
1 x 10 Meter Air Hose
1 x Nozzle
1 x SC-3 Remote
1 x S-500 XL Snow Machine
1 x Power Cord
1 x User Manual
1 x Fluid Tank Feed Tube
1 x 20 Liter Fluid Tank
1 x 20 Meter Air Hose
1 x Nozzle
1 x SC-3 Remote
1 x PM-1 Pan Motor

7
Product Dimension
S-500 Model
S-500XL Model
551 mm
651 mm
592 mm
603 mm
651 mm
803mm

8
Product Overview
S-500 Control Panel
Nozzle
Tank Capacity:20 liters (5.2 gallon)
XLR 5-Pin DMX Connector
XLR 3-Pin DMX Connector
Neutrik PowerCon
SC-3 Wireless Remote (Optional)
Breaker
Main Power Switch
Wireless Remote Antenna (Optional)
Control Panel

9
Setting Up
Step 1: Place the machine on a flat surface and in a suitable large area with at least 50 cm
open space around the machine.
Step 2: Fill the fluid tank with ANTARI SL-5A Premium Water Based Snow Fluid
Step 3: Connect the machine to suitable rated power supply. To determin e the power
requirement for the machine refer to the label on the back of the machine.
Always connect the machine to a protected circuit and ensure it is properly
grounded to avoid risk of electrocution.
Step 4: Turn on the machine, press the [VOLUME]/[DOWN] button on the control panel to
start making snow.
Step 5:To t u r n off the machine, press the [STOP] button and put the power switch to the
OFF position.
Operation
Control Panel Operation
The machine can be operated with onboard digital control interface
SKU# PM-1 Pan Motor (Optional)

10
Button
Function
[MENU]
Scroll through setting menu
[UP]/[TIMER]
Up/Activate Timer function
[DOWN]/[VOLUME]
Down/Activate Volume function
[STOP]
Deactivate Timer/Volume function, Escape from menu
Language Setting
To switch the language used for the control interface, press the [Menu] button BEFORE
turning on the machine and HOLD it until the LCD screen flashes twice. After the two flashes,
press [Menu] to choose the language: English and 中文 (Chinese). After choosing the
desired language, press [STOP] to memorize the setting.
Control Menu
Set interval time at timer mode from 15 to 360 sec
Set duration time at timer mode from 5 to 120 sec
Set output volume at timer mode from 1 to 100%
Set output volume at volume mode from 1 to 100%
Timer Interval
XXX Sec
Timer Duration
XXX Sec
Timer Output
XXX %
Volume Output
XXX %
&'()*+% % 678##%
%
92)/:%(;%6';<%

11
Set fan speed from 20 to 100%
Set DMX/W-DMX address from 1 to 511
Turn On/Off W-DMX function
Unlink from W-DMX transmitter
Turn On/Off wireless remote
Pair/Unpair with wireless remote.
*This menu will not be shown when Wireless is turn Off.
Turn On/Off run last setting function
DMX Connector Pin Assignment
The machine provide 3 or 5 pin XLR connector for DMX connection. Diagram below indicate
pin assignment information
Fan Speed
XXX %
W-DMX Power
XX
DMX-512
Address: XXX
W-DMX Reset
XX
Wireless Register
Up:Pair Down:Del
Run Last Setting
XX
Wireless
XX

12
Pin
Function
1
Ground
2
Data-
3
Data+
DMX Operation
Making the DMX Connection – Connect machine to a DMX controller or to one of the
machines in the DMX chain. The machine uses an 3-pin XLR connector for DMX connection,
the connector is located on the rear of the machine.
Address Setup – Use control menu to set DMX address. The machine occupies 2 control
channels. The starting address is defined as the first channel from which the machine will
respond to the controller. Always double check to make sure there are no overlapping
channels in order to control the machine correctly
DMX Channel Function
Channel 1
DMX Value Range
Function
Snow Output Level
0 – 5
Snow off
6 – 255
Snow Output 1 – 100%
Channel 2
DMX Value Range
Function
Fan Output Level
0 – 5
Fan 20%
6 – 255
Fan 21 – 100%

13
Wireless Remote Operation (Optional)
Wireless remote control system WTR-20 consist of a transmitter equipped with four buttons
to activate, deactivate and adjust output level; with an onboard receiver attach to the front
panel of S-500 snow machine.
SKU# WTR-20 Wireless Kit
Button
Function
[A]
Activate output
[B]
Deactivate output
[C]
Increase output level
[D]
Decrease output level
In a free open space the effective distance is 50 meters, actual usage depending on
obstacle level the effective distance is 10-25 meteres.
Registering a transmitter
Transmitter can be pair or deleted from the receiver. Each receiver can pair up to 10
transmitters. Follow below diagram to pair or delete transmitter.
IMPORTANT NOTE: Wireless register menu will only be shown when Wireless is turn ON
Transmmiter battery replacement

14
If effective distance seems to be decreased, it is possible the battery level are low and
require replacement. In order to replace the battery, undo the three screws on the back of
transmitter to release the cover. Replace with same type and specification of battery which is
27A 12V.

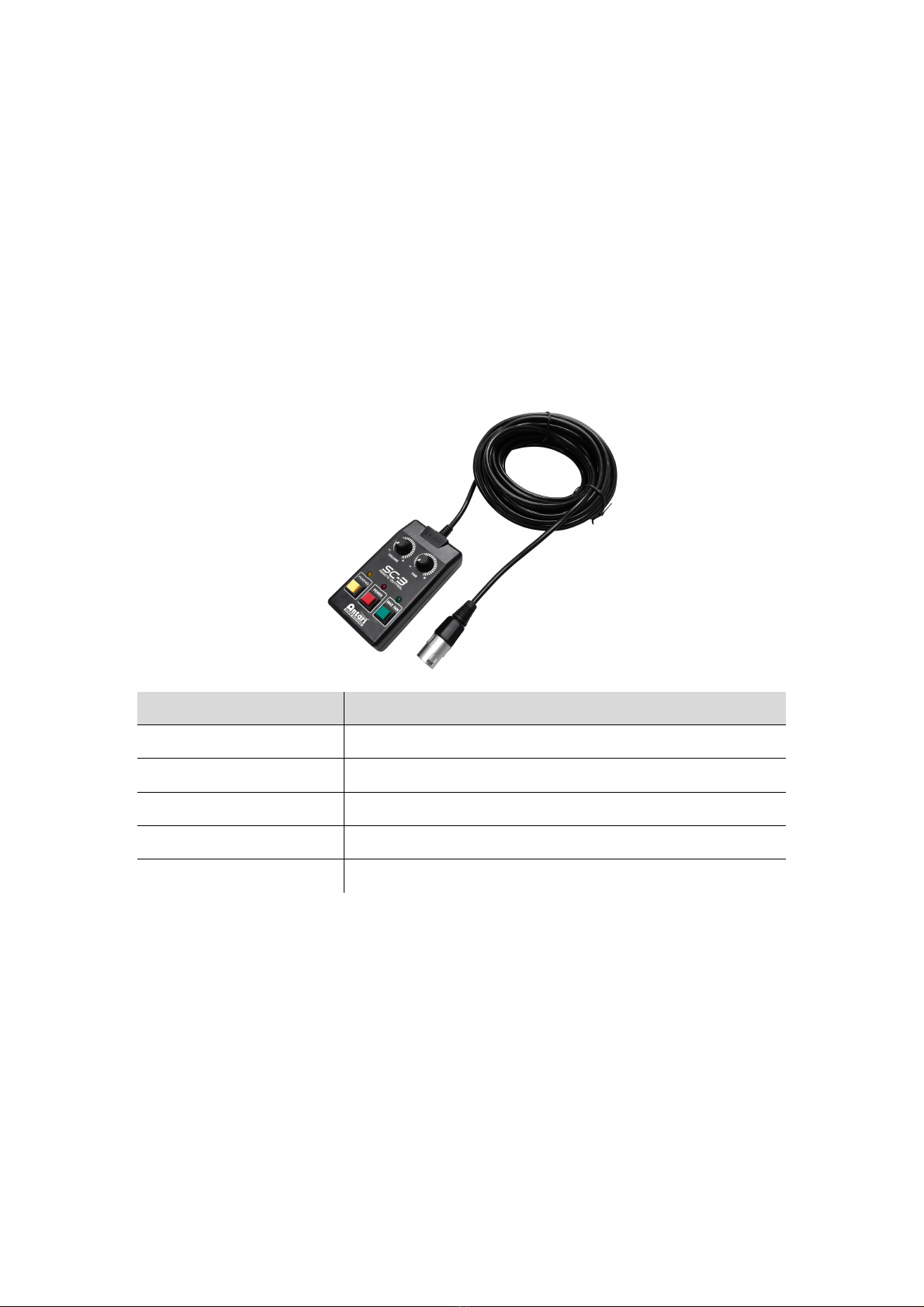

Wired Remote Operation SKU# SC-3 (Optional)
Wire remote control module SC-3 enable to control the machine from a remote location.
With three push button and two rotary knob to activate/deactivate, priming and output level
adjustment.
Button/Knob
Function
[TOP LEFT KNOB]
Adjust pump output level
[TOP RIGHT KNOB]
Adjust blower output level
[LEFT BUTTON]
Max output on pump and blower
[CENTRE BUTTON]
Turn On/Off SC-3 remote
[RIGHT BUTTON]
Max output on blower
IMPORTANT NOTE:
[LEFT BUTTON] is meant for priming use,with a new tank of fluid or refill the fluid may not
pump properly due to airlock in the pipeline, use this function to activate pump at maximum
output, the [RIGHT BUTTON] is used when needed to clean out residue on the tip of output
nozzle. Both of these button will overtake output adjustment knobs.

15
Physical Installation
Important
l Use supplied mounting bracket or rigging clamp to install nozzle.
l Mak sure installation location, fastening connecting, and rigging hardware can hold at
least 10 times the weight of the nozzle.
l Make sure no combustible or flammable material nearby.
l Secure nozzle with an approved safety cable that can hold at least 10 times the weight
of nozzle.
l Make sure nozzle installed in a well ventilated area.
l Consider nozzle replacement and routine maintenance access when selecting
installation location.
l Connect fluid tank tubing before operation
Adjustable Moutning Bracket
Adjust mounting bracket by loosening screws, set the nozzle to desire angle and tighten the
screw to finish adjustment. Illustration below demostrates how to adjust mounting bracket.

16
Mounting
Use screws for surface mounting or clamps for truss mounting.
ST-10 Air Hose Extension (Optional)
The maximum air hose length is 20 meters. Illustration below demostrates how to connect
extension air hose
Status of W-DMX Connection (Optional)
Symbol on the Liquid Crystal Display
Status of W-DMX connection
○
Transmitter not assigned
◎
Transmitter assigned, No DMX signal
⊙
Transmitter link lost or linking to transmitter
●
Transmitter assigned, DMX signal received

17
Fluid
Only use Antari SL-5A liquid for the S-500 Snow Machine. The machine is tested and
calibrated with this liquid to get the best output performance. Warranty will be void if any
other type of liquid is used, improper use of liquid may lead to machine failure and
malfunction.
Service and Maintenance
․ Do not allow the machine to become contaminated.
․ Remove dust from air vents with air compressor, vacuum or a soft brush.
․ Only use a damp cloth to clean the casing.
․ Before storing run distilled water through the system to help avoid condensing the pump
or heater.
․ It is recommended to run the machine on a monthly basis in order to achieve best
performance and output condition.
․ Excessive dust, liquid and dirt built up will degrade performance and cause overheating.
․ Before storing away after operation, pump pure water through the system for at least 1
to 2 minutes. This will help clean out the remaining snow fluid and prevent pump from
malfunction on next usage.
Breaker Reset
Disconnect AC power before reset breaker. Only replace fuse with same type
and rating.
Step 1: Disconnect power cord from supply.
Step 2: Flip breaker to ON position.
Step 3: Turn on machine to test.
Breaker
120V = 10A 250V
230V = 5A 250V

18
Technical Specifications
S-500
- Input voltage
- Rated power
- Fluid consumption
- Fluid tank capacity
- Compatible fluid
- Ambient temp.range
- Control
- DMX channels
- Connection
- Optional Accessories
- Dimension
- Weight
US model :AC 100-120V, 50 / 60HZ 7.5A
EU model :AC 220-240V, 50 / 60Hz 3.8A
900 W
400 ml/min
20 Liters (5.28gal)
Antari SL-20N Snow Foam Fluid
Antari SL-20AN Snow Foam Fluid
Antari SL-20H Snow Foam Fluid
Antari SL-20C Snow Foam Fluid
5℃- 40℃(41℉- 104℉)
Manual
Timer
DMX 512
Wireless (Optional)
Wireless DMX (Optional)
2 channels
Neutrik Powercon(Power)
XLR 3-pin and 5-pin (DMX)
W-DMX-PCBR Wireless DMX 512
WTR-20 Wireless Remote
WTR-70 Wireless DMX 512 and Remote
WTR-80 Wireless Remote
WTR-90 Wireless DMX
SC-3 Cable Remote
ST-10 10 Meter Extension Hose
PM-1 Pan Motor
L592 W551 H651 mm
(L23.31 W21.69 H25.63 inch)"
37.2 kg (82.01 lbs)

19
S-500XL
- Dimension
- Weight
L803 W603 H651 mm
(L31.61 W23.74 H25.63 inch)
46.4 kg (102.29 lbs)

20
C08S50004-ATU
This manual suits for next models
1
Table of contents
Other Antari Dj Equipment manuals

Antari
Antari SW-300 User manual

Antari
Antari AF-3 User manual

Antari
Antari W-101 User manual

Antari
Antari IP-1500 User manual

Antari
Antari SW-250XK User manual

Antari
Antari AF-5X User manual

Antari
Antari SW-250 User manual

Antari
Antari F-5 Fazer User manual

Antari
Antari B-200T User manual

Antari
Antari HZ-400 User manual

Antari
Antari S-100X User manual

Antari
Antari S-100II User manual

Antari
Antari DarkFX Spot 510 IP User manual

Antari
Antari S-600 Yeti User manual

Antari
Antari SW-250X User manual

Antari
Antari S-500 User manual

Antari
Antari B-200 User manual

Antari
Antari S-500 User manual

Antari
Antari AF-6 User manual

Antari
Antari W-101 User manual
