Z-390 Fazer
User Manual
- ENGLISH
- 中文
© 2019 Antari Lighting and Effects Ltd.

© 2019 Antari Lighting and Effects Ltd. www.antari.com

3
© 2019 Antari Lighting and Effects Ltd. www.antari.com
- ENGLISH-
Safety Information
Please read the following safety information carefully before operating the
machine. This information includes important safeguards about installation,
usage, and maintenance. Pay attention to all warning labels and instructions in
this manual and printed on the machine.
If you have questions about how to operate the machine safely, please contact your local
Antari dealer for help.
Keep this device dry.
Always connect to a grounded circuit to avoid risk of electrocution.
Before connecting the machine to power, always check the voltaged indicate on the
machine matches to your local AC voltage. Do not use the machine if AC power
voltage does not match.
Disconnect the machine from AC power before servicing and when not in use.
If the supply cord is damaged, contact your local Antari dealer for replacement.
This product is for indoor use only! Do not expose to rain or moisture. If fluid is spilled,
disconnect AC power and clean with a damp cloth. If fluid is spilled onto electronic
parts, immediately unplug the machine and contact your local Antari dealer for advice.
No user serviceable and modifiable parts inside. Never try to repair this product, an
unauthorized technician may lead the machine to damage or malfunction.
For adult use only. Children being supervised not to play with the machine. Never
leave the machine running unattended.
The machine is not to be used by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge.
Installed in a well ventilated area. Provide at least 50 cm space around the machine.
Never add flammable liquid of any kind to the machine.
Make sure there are no flammable materials close to the machine while operating.
Only use Antari fluid. Other fluid may lead to heater clog and malfunction.

4
© 2019 Antari Lighting and Effects Ltd. www.antari.com
328
If the machine fails to work, unplug the machine and stop operation immediately.
Contact your local Antari dealer for .
Before transporting the machine, make sure the fluid tank is completely drained.
Smoke fluid may present health risks if swallowed. Do not drink smoke fluid. Store it
securely. In case of eye contact or if fluid is swallowed immediately look for medical
advice.
Unpacking and Inspection
Immediately upon receiving the machine, carefully unpack the carton, check the content to
ensure that all parts are present and have been received in good condition. If any parts
appear damaged or mishandled from shipping, notify the shipper immediately and retain the
packing material for inspection.
What is included: 1 x Z-390 Fazer
1 x Power Cord
1 x User Manual

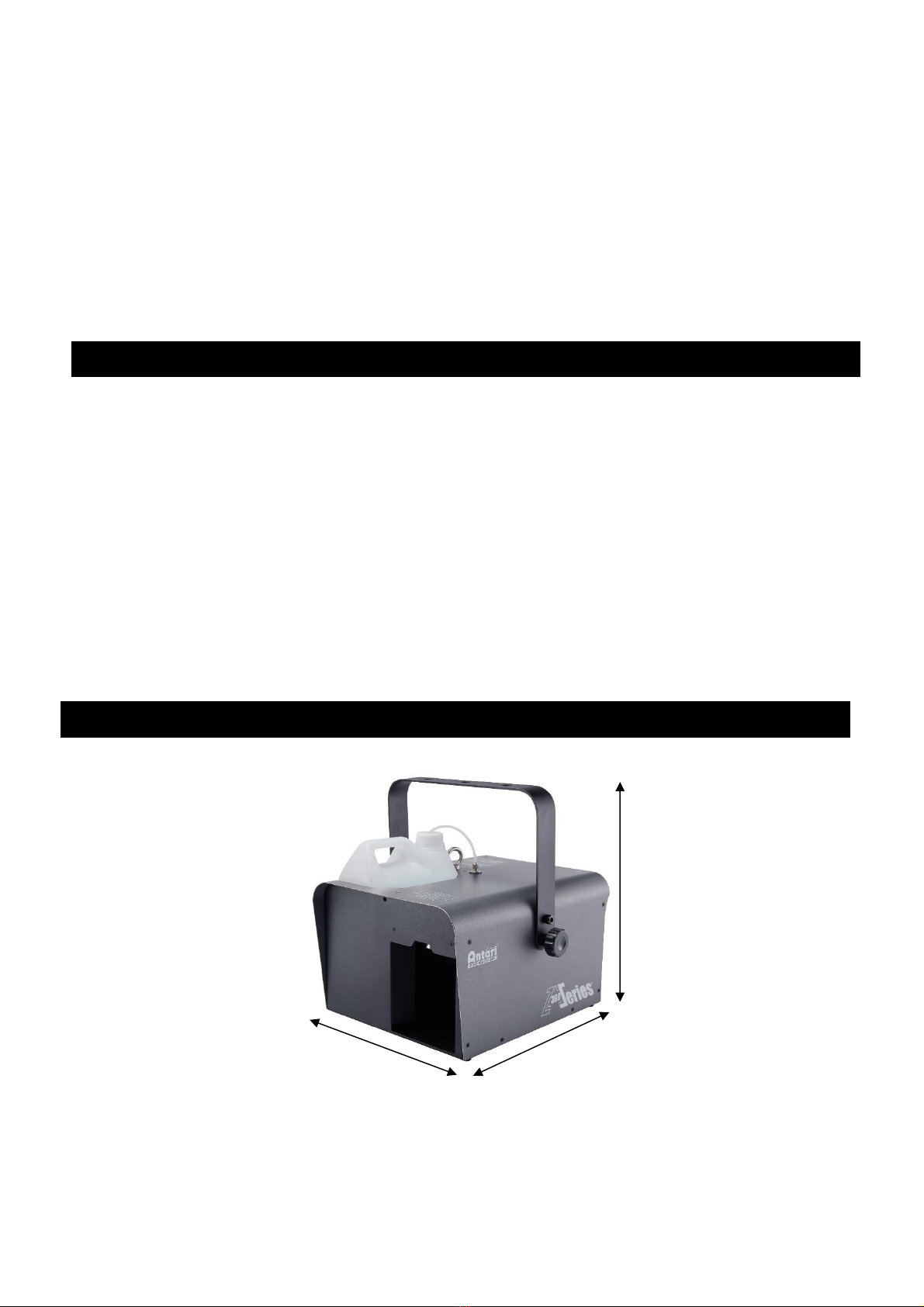

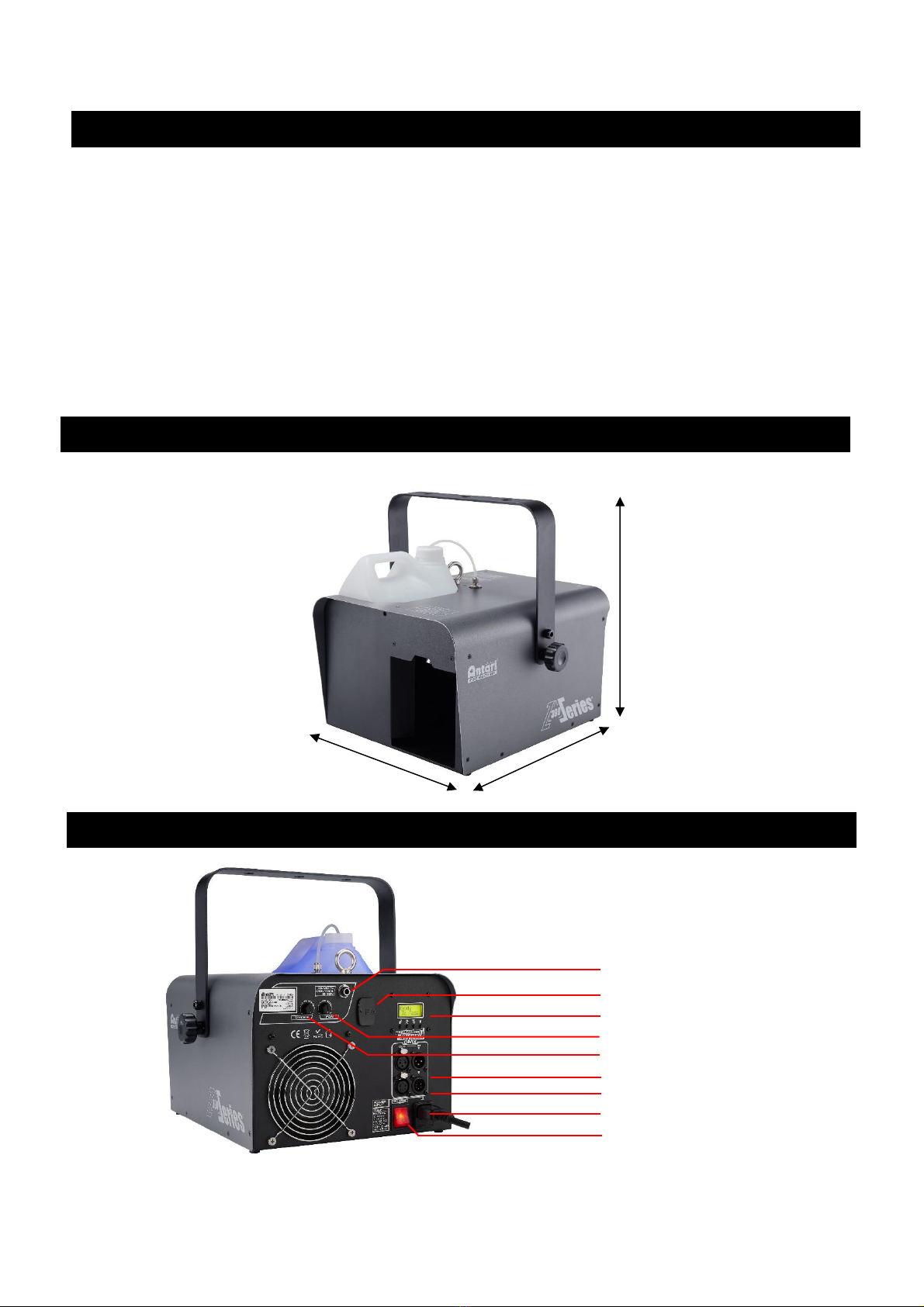

Product Dimensions
343.9 mm
368 mm
339.7 mm

5
© 2019 Antari Lighting and Effects Ltd. www.antari.com
Product Overview
Setting Up
Step 1: Place the machine on a flat surface and in a suitably large area with at least 50 cm
of open space around the machine.
Step 2: Fill the fluid tank with Antari approved fluid.
Step 3: Connect the machine to a suitably rated power supply. To determine the power
requirement for the machine refer to the label on the back of the machine.
Always connect the machine to a protected circuit and ensure it is properly
grounded to avoid risk of electrocution.
Step 4: Turn on the machine and allow it to heat up. Heat up takes approximately 1.5
mintues. Once the machine has reached operating temperature, the LCD display will show
“Ready to Faze”. Now the machine is ready for operation.
Step 5: To start making haze, locate the Volume button on the control panel, and press the
button to start making faze.
Step 6: To turn off the machine, press the Stop button and put the power switch to the OFF
position.
XLR 3-Pin DMX Connector
LCD display Control Panel
Power Inlet
Fan Speed Adjustment Knob
Wire Remote Sock
Main Power Switch
XLR 5-Pin DMX Connector
Output Level Adjustment Knob
Wireless Operation (Optional)

6
© 2019 Antari Lighting and Effects Ltd. www.antari.com
Operation
Control Panel Operation
The machine can be operated with the onboard digital control interface or two rotary knobs
located on the rear.
Rotary Knob
Function
SMOKE
Turn haze on/off, adjust output volume from 1~100%
FAN
Adjust fan speed from 20%~100%
Button
Function
[MENU]
Scroll through setting menu
▲[UP]/[TIMER]
Up/Activate Timer function
▼[DOWN]/[VOLUME]
Down/Activate Volume function
[STOP]
Deactivate Timer/Volume function
Control Menu
Set the interval from 1 to 180 seconds
Set the duration from 1 to 120 seconds
Set the timer output from 1 to 100%
Interval
Set 180s
Duration
Set 120s
Timer
Out 100%

7
© 2019 Antari Lighting and Effects Ltd. www.antari.com
Set the output volume from 1 to 100%
Set the output volume from 1 to 100%
Set the DMX address from 1 to 511
Set the DMX mode Sync, 1Ch or 2Ch
Turn On or Off wireless control
Turn On/Off run last setting function
Check machine info

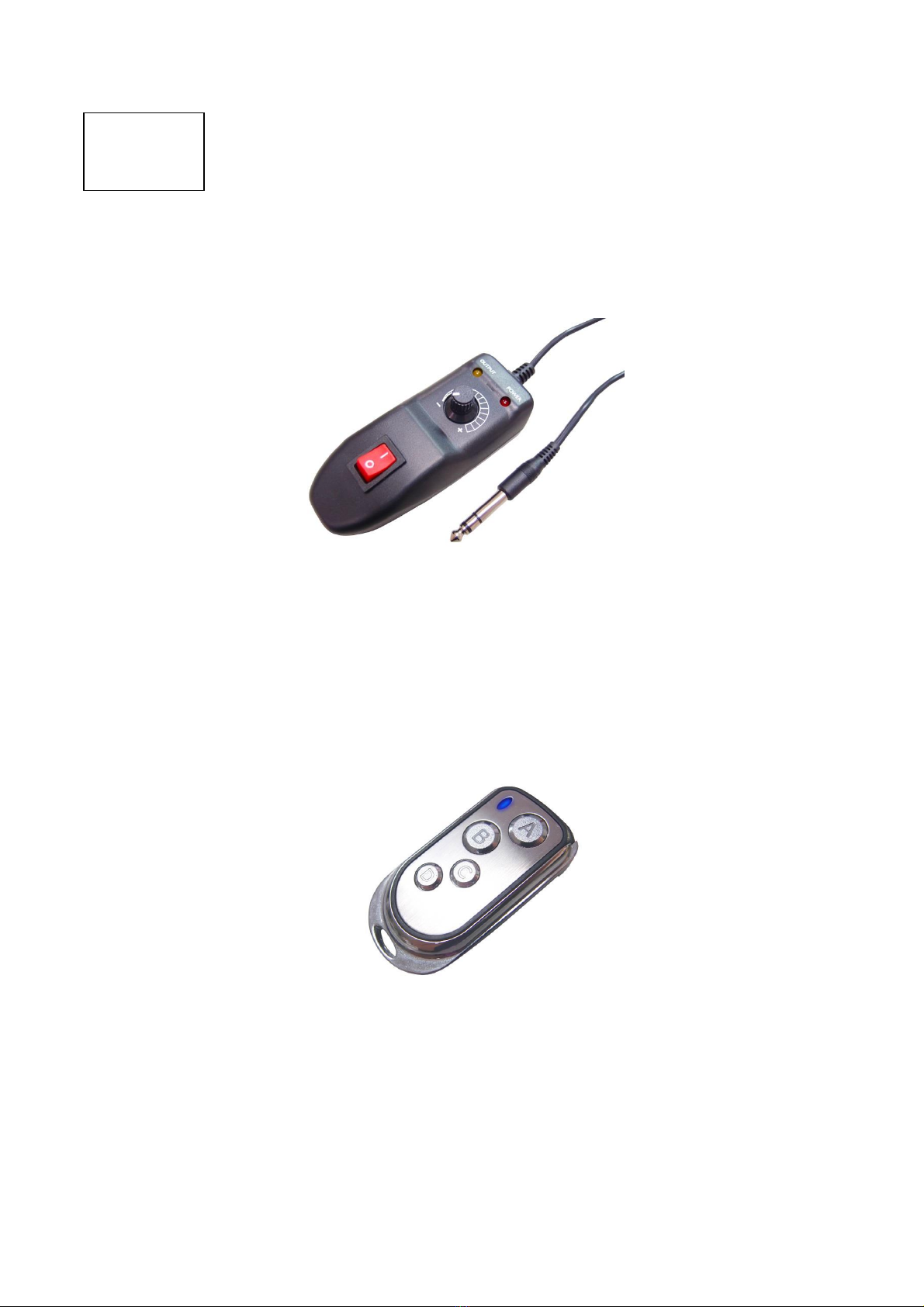

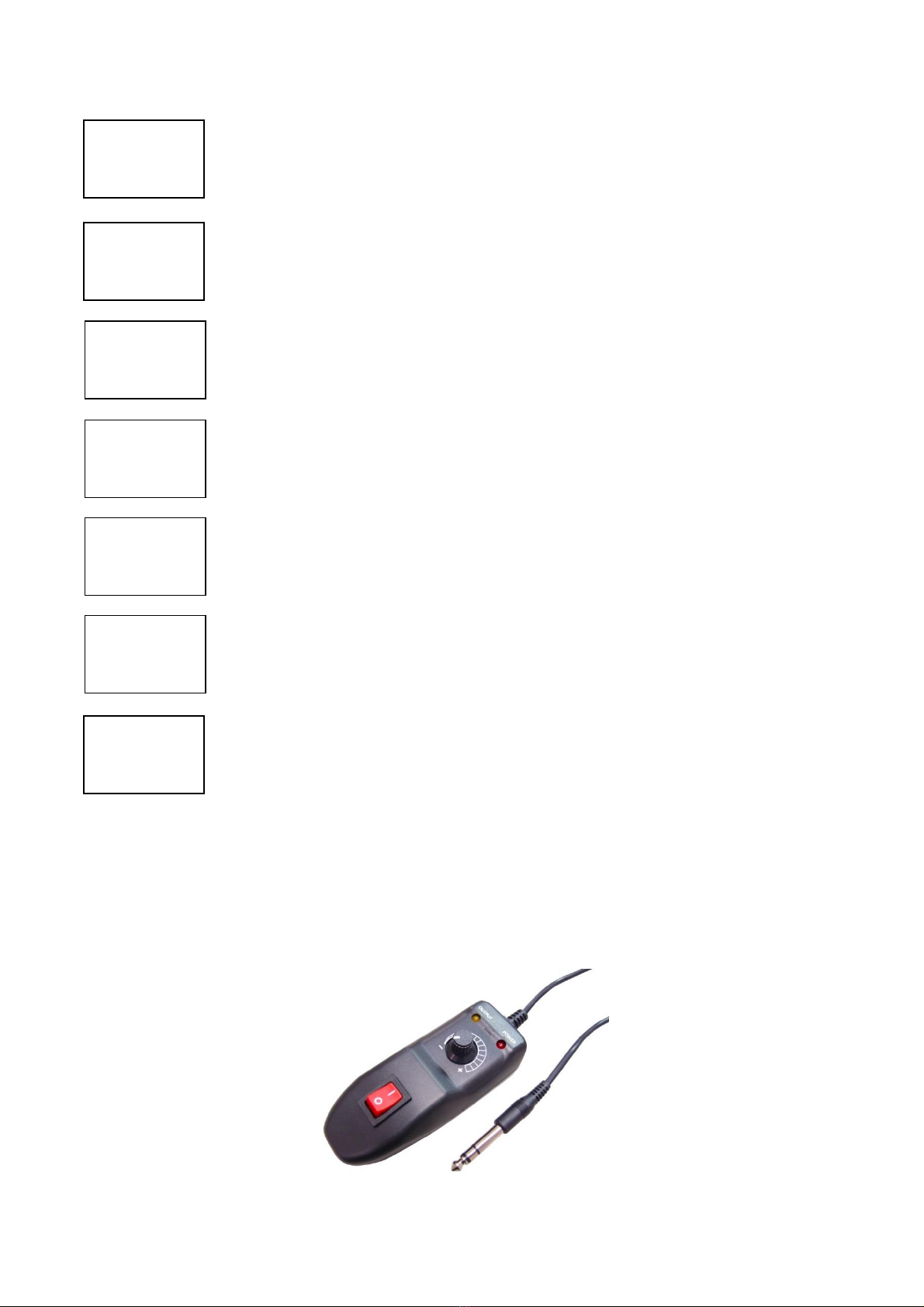

Remote Control Operation (Optional)
To operate the machine by remote control, connect the remote to the microphone jack
located on the rear of the machine. Use the switch to turn wind on/off, and use the rotary
knob to adjust the output volume from 0~100%.
Info
Ver: 1.0
Volume
Out 100%
Fan
Out 100%
DMX512
Add. 511
DMX Mode
1Ch
Wireless
OFF
Quick
Start OFF

8
© 2019 Antari Lighting and Effects Ltd. www.antari.com
WTR-20 Wireless Operation (Optional)
The wireless remote control system W-2 consists of a transmitter equipped with four buttons
to turn faze output on or off, and adjust the output volume; with an onboard receiver attached
to the rear panel of the Z-390.

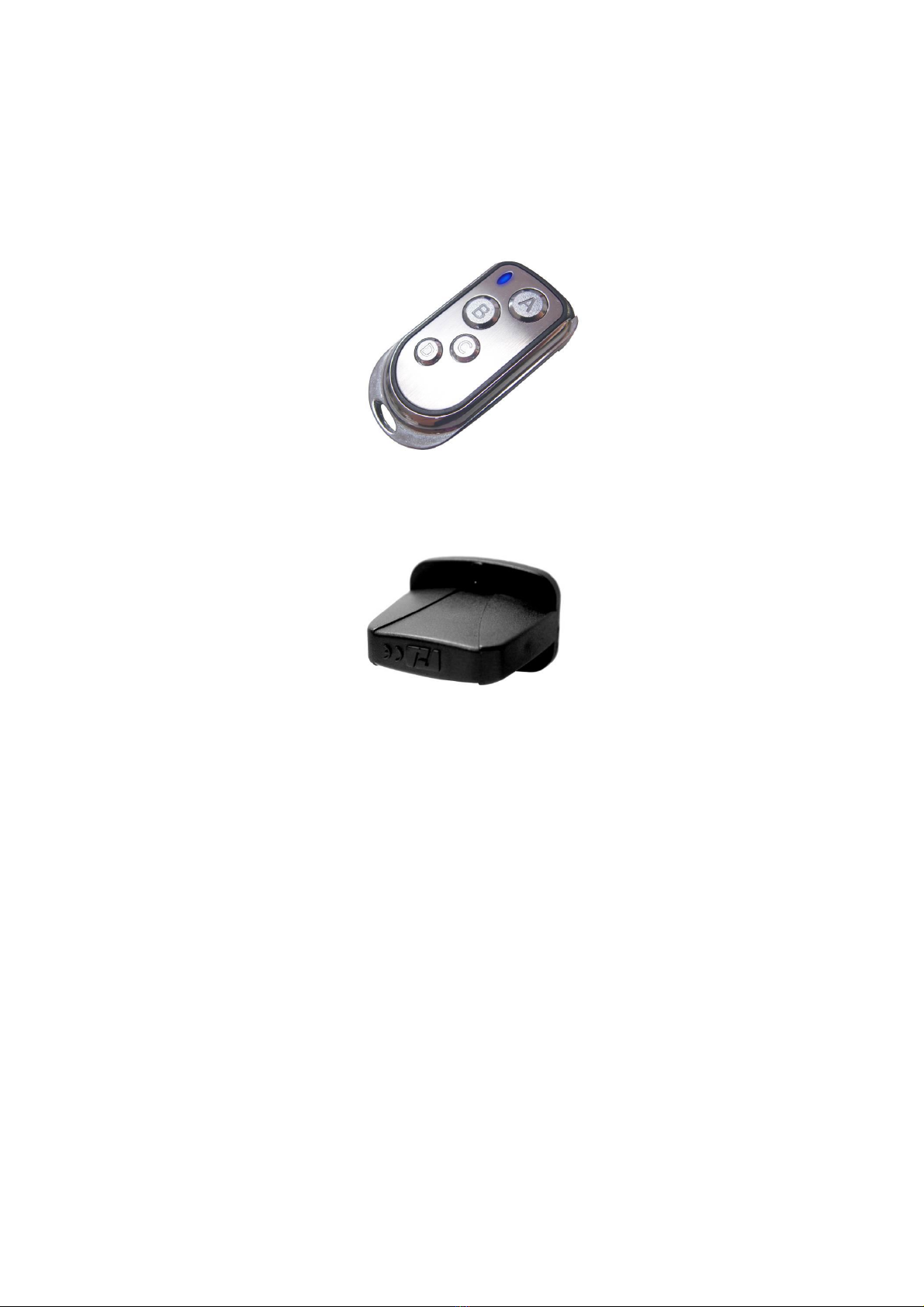

W-2 Wireless Transmitter

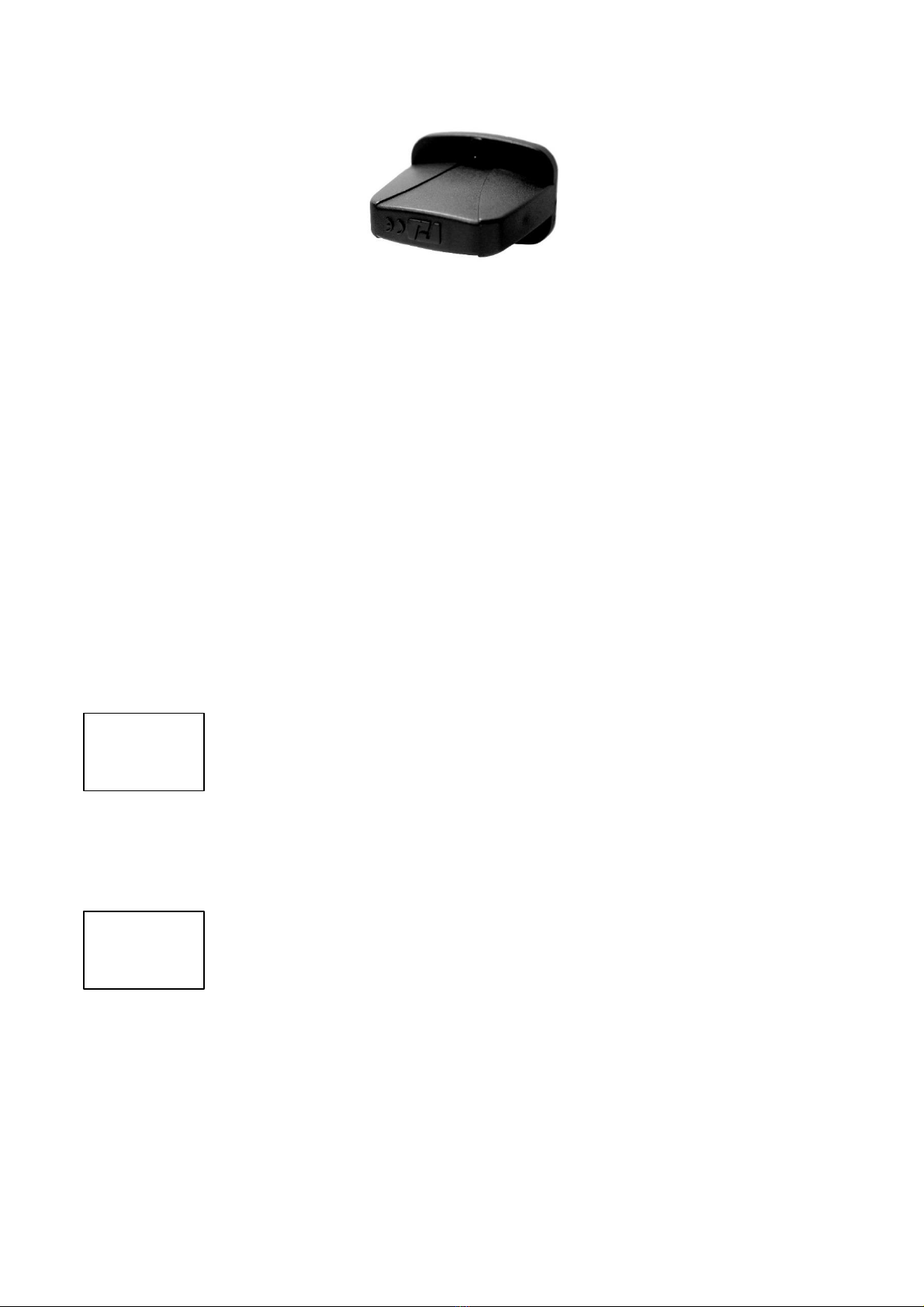

Wireless Receiver
Wireless remote control function:
[A] button –Turn on faze output
[B] button –Turn off faze output
[C] button –Increase output volume
[D] button –decrease output volume
In an open and unobstructed space the effective distance is 50 meters, usage depending
on obstacle level, is 10-25 meters.
Registering a transmitter
Transmitters can be paired or deleted from the receiver. Each receiver can pair up to 10
transmitters. Follow below steps to pair or delete a transmitter from a receiver.

9
© 2019 Antari Lighting and Effects Ltd. www.antari.com
Step 1: Set Wireless to ON
Step 2A: Press [UP] to pair a new transmitter; press any button on the W-2 remote to finish
pairing.
Step 2B: Press [DOWN] button to delete existing transmitter.
Transmitter battery replacement
If the effective distance seems to decrease, it is possible the battery level is low and
requires replacement. In order to replace the battery, undo the three screws on the back of
the transmitter to release the cover. Replace with same type and specification of battery
which is 27A 12V

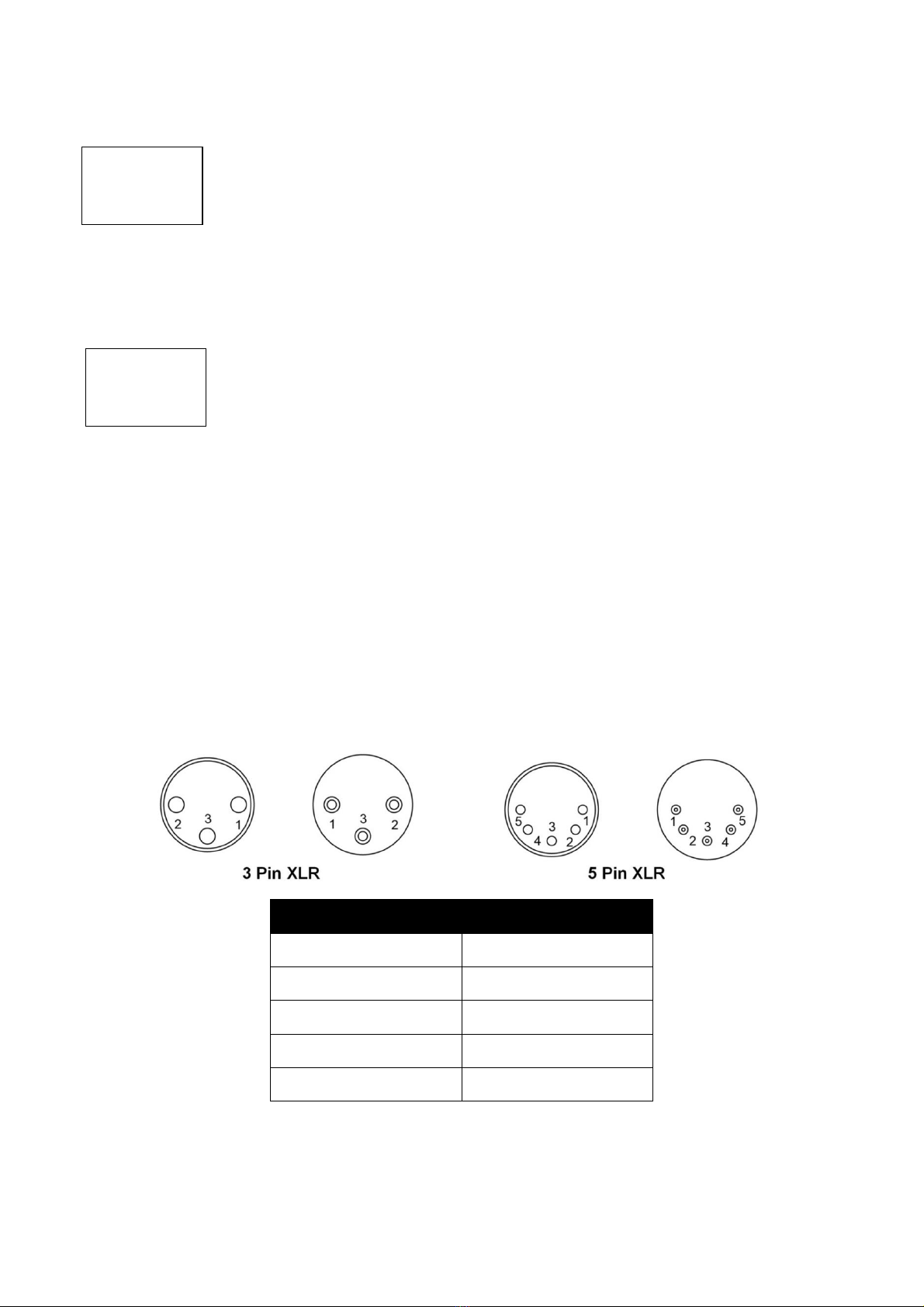

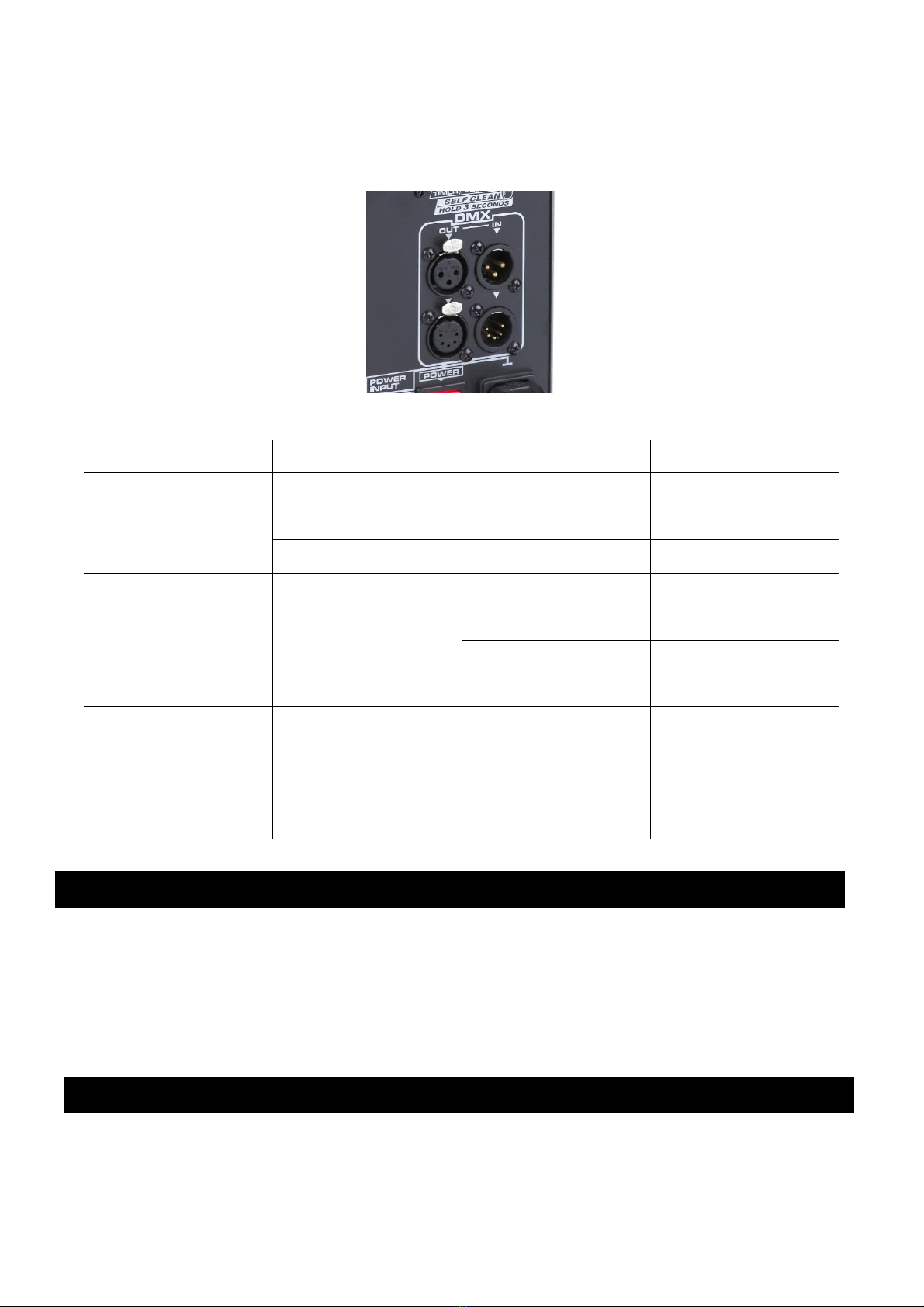

DMX Connector Pin Assignment
The machine provides a 3- or 5-pin XLR connector for DMX connection. The diagram below
indicates pin assignment information.
Pin
Function
1
Ground
2
Data-
3
Data+
4
N/A
5
N/A
DMX Operation
Making the DMX Connection –Connect the machine to a DMX controller or to one of the
UP: Pair
DOWN:Del
Wireless
ON

10
© 2019 Antari Lighting and Effects Ltd. www.antari.com
machines in the DMX chain. The machine uses a 3-pin or 5-pin XLR connector for DMX
connection, the connector are located on the front of the machine.
DMX Channel Function
Channel Mode
Channel
Value
Function
2
1
0-5
6-255
Faze off
Faze 1-100%
2
6-255
Fan 20-100%
1
1
0-5
Faze off
Fan 100%
6-255
Faze 1-100%
Fan 100%
Sync
1
0-5
Faze Off
Fan 20%
6-255
Faze 1-100%
Fan 21 –100%
Fluid
Only use Antari FLG water-based liquid for the Z-390 Fazer. The machine is tested and
calibrated with this liquid to get the best output performance. Warranty will be voided if any
other type of liquid is used, improper use of liquid may lead to machine failure and
malfunction.
Service and Maintenance
․Do not allow the machine to become contaminated.
․Remove dust from the air vents with air compressor, vacuum or a soft brush.
