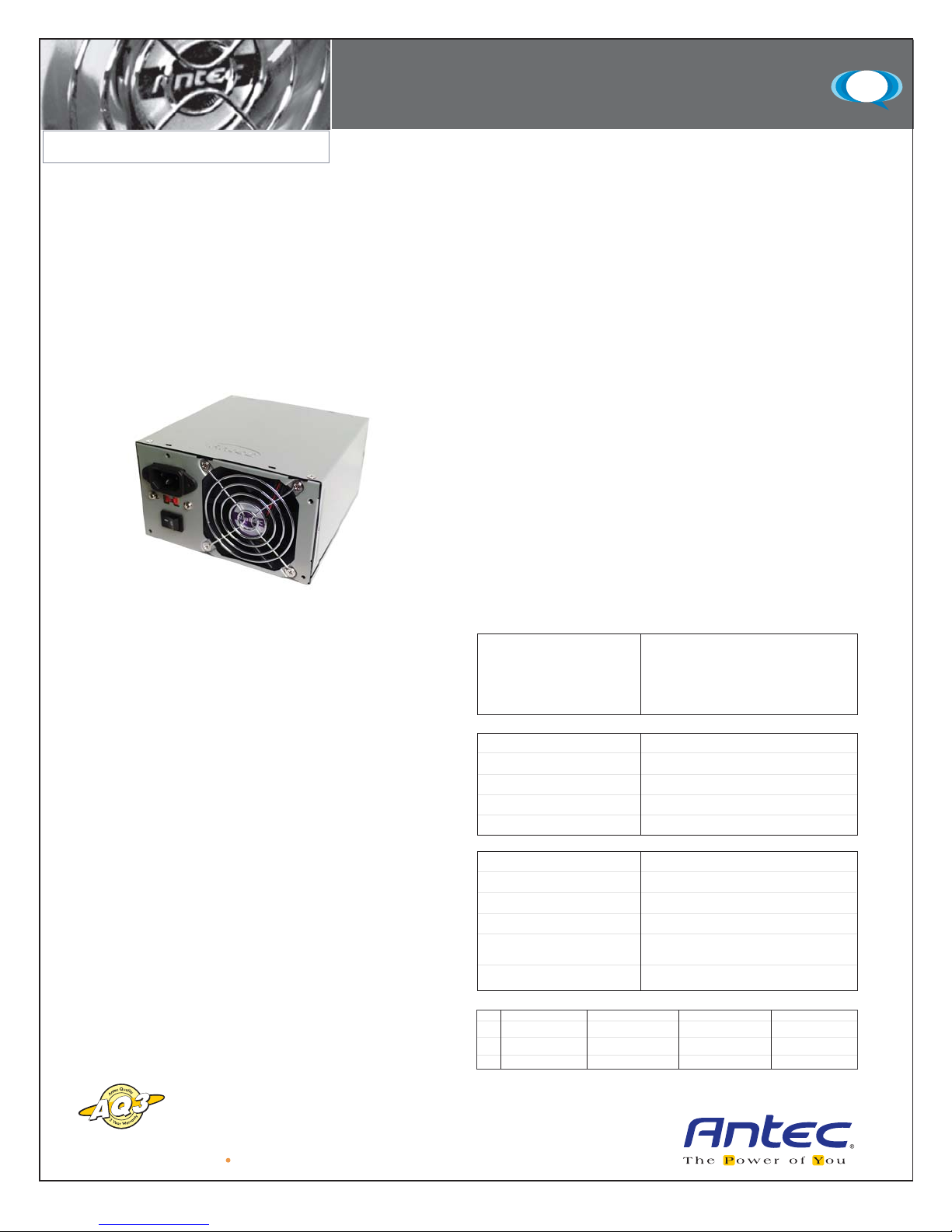

Antec SmartPower 4 Serial-ATA User manual

SMART POWER 2.0
POWER SUPPLIES
Major New Features include:
• Dual 80mm fans in flow-through configuration
• Unique Dual Fans Design: The external exhaust fan starts,
stops and adjusts its speed in response to system
temperature, while the other fan is temperature-regulated
• Dual +12V output circuitry for stability and safety
• Advanced Cable Management system (in 500W model)
allows you to use only the cables that are needed
• 4 Serial-ATA connectors
• PCI-E graphics card connector
Safety Protection
Over current protection (OCP),
Over Voltage Protection (OVP),
Short Circuit Protection (SCP),
Under Voltage Protection (UVP),
Over Power Protection (OPP)
Environmental:
Input Voltage
Input frequency Range
Inrush Current
Input Current
EMI/RFI
115V/230VAC
47Hz ~ 63Hz
40A @ 115V , 80A @ 230V
10A @ 115V, 5A @ 230V
FCC Class B
Operating Temperature
Operating Altitude
MTBF
Net Weight
Safety Approvals
Size
0°C to 50°C
Sea level 10,000ft
80,000 hours at 25°C
2.2 kg/4.9 lbs
UL, CUL, CB, FCC Class B, TÜV, ( CCC,
CE EURO only)
5.9" (W) x 3.4" (H) x 6.1" (D)
www.antec.com 1-800-22ANTEC (US) / [phone] (EU)
SPECIFICATION:
• ATX12V version 2.01 compliant
• Dual 12V output circuitry provides added system stability
and meets 240VA UL requirements and safety purpose:
12V1for Motherboard and peripherals; 12V2for processor
• ATX12V v2.01 compliance allows SmartPower 2.0 to
consume up to 25% less power than standard power
supplies, saving you money on your electric bill. 24-pin
power connector with detachable 4-pin section for
backwards compatibility with ATX 20-pin motherboards.
• 4 SATA Connectors support Serial ATA optical drives
• Flow-through dual 80mm fans (one intake and one exhaust)
• Unique Dual Fan Technology: exhaust fan starts to spin
when the power supply reaches certain temperatures to
ensure proper airflow, the second fan spins on power up
• Industrial grade protection prevents damage resulting
from short circuits, power overloads, excessive
current, low voltages and excessive voltages
• Increased 12V output capability for system components
that consume more power from 12V rail
• PCI-E graphics connector
• Safety approvals: UL, CUL, TÜV, CB, FCC Class B,
CE, CCC ( EU Only )
• Increased MTBF: 80,000 hours
• Size: 5.9" (W) x 3.4" (H) x 6.1" (D)
15cm (W) x 8.6cm (H) x 15.5cm (D)
• Available from 350 watt to 500 watt
• PF value greater than 90% (EU only)
• Gold plated connector for superior conductivity
Antec—the leader in power supply technology since 1986.
350 Watt
0761345-26350-4
0761345-14350-9
0761345-14351-6
400 Watt
0761345-26400-6
0761345-14400-1
0761345-14401-8
450 Watt
0761345-26450-1
0761345-14450-6
0761345-14451-3
500 Watt
0761345-26500-3
0761345-14500-8
0761345-14501-5
New and Improved SmartPower 2.0
15cm (W) x 8.6cm (H) x 15.5cm (D)
Our best-selling power supplies now with two fans standard
SmartPower has long been the smart choice for system builders, offering the best value in a quality
power supply. SmartPower 2.0 meets ATX12V v2.01 standards, with dual+12V rails and 4 serial
ATA connectors, and features Antec's unique dual fan hybrid design for virtually silent operation.
SmartPower 2.0 power supplies carry UL, CUL, TÜV, CB, FCC Class B, CE and CB approvals.
European models also carry CE and CCC in addition to those previously listed.
UCC 13#:
US
PEC
PGB
Quiet
computing
™
Input:
