Anvil PWK0007 R04 User manual

4-INS-PWK0007
NB:
REGISTER ON-LINE TODAY
Register your warranty on-line now at www.anvilworld.com
NO WEB ACCESS
If you do not have access to the Web. Kindly register by completing
the warranty registration form and fax it to the ANVIL ofce in the
country of purchase.
Failure to do so will invalidate your warranty.
INSTALLATION OPERATION AND CARE OF
PIE WARMER MODELS: PWK0007 R04 / PWA1007 R01
PIE WARMER
LIMITED WARRANTY
All equipment which is sold under ANVIL trademark and used for
commercial purposes is warranted against defects in materials and
workmanship. The warranty runs for two years from the date of
original installation and is for the benet of the original purchaser
only. All other Warranties ,expressed or implied , statutory or
otherwise, including without limitations any implied Warranty of
Merchantability or tness for purpose are excluded .The Seller shall
in no event be liable for direct,indirect or consequential damages in
connection with ANVIL commercial products.
The Sellers obligation under this Warranty is limited to the
repair of defects without charge. Defective units must be taken or
shipped,transportation charges prepaid,to ANVIL.
This Warranty is not effective if damage occurs because of
accident,carelessness,improper installation,lack of proper
set-up,supervision when required or if the equipment is installed or
operated in any manner contrary to the installation and
operating instructions. In these cases,repairs will be made at a
reasonable cost. Work performed by unauthorized personnel or
unauthorized service agencies using non Anvil spares voids this
Warranty.

THESE INSTRUCTIONS MUST BE FOLLOWED FOR US TO
GUARANTEE OUR FULL SUPPORT OF YOUR CLAIM FOR
PROTECTING AGAINST LOSS FROM CONCEALED DAM-
AGE. THE FORM FOR FILING SUCH A CLAIM WILL BE
PROVIDED BY THE CARRIER.
UNPACKING
Unpack the product and check for any damage incurred during
transit. This should be reported to the responsible carrier, railway or
postal authority, and a request for a damage report should be made.
GENERAL INSTALLATION AND OPERATION INSTRUCTIONS
1. This unit has been designed for countertop display of food such
as pies and sausage rolls . The heater system ensures that the
products placed inside can be stored and served at the correct
temperature and humidity. An internal lighting system enhances
the products displayed.
2. There are three wire shelves provided with the unit. The wire
shelves must be positioned with the four legs inside the support
runner this prevents the shelf from sliding forward or backward.
3. Install the unit in the most convenient location for the ease of
cleaning, maintenance and point of sale of display.
4. The temperature is manually controlled.
5. The unit has a temperature gauge to monitor the temperature
inside the unit.
6. There is a removable crumb tray positioned at the front of the
unit.
1
NOTES
14

1LID PANEL
2TOP GLASS
3BODY ASS
4WIRE COVER ANGLE
5COOL WHITE 14W ENERGY SAVER
6PORCELAIN LAMP HOLDER
7DOOR MAGNET
8BUSH
9DOOR HINGE
10 DOOR GLASS
11 ELEMENT MOUNTING BRACKET
12 GASSTRONORM CONTAINER
13 WATER DISH HOLDER
14 TOP GLASS DISPLAY
15 DOOR HANDLE BACK
16 DOOR HANDLE
17 DOOR KNOB
18 CONTROL PANEL
19 PILOT LIGHT
20 CONTROL KNOB
21 INDICATING THERMOMETER
22 ROCKER SWITCH
23 THERMOSTAT
24 CABLE STRAIN
25 FEET
26 ELEMENT BRACKET SUPPORT
27 1500W ELEMENT
28 POWER CORD
29 BASE COVER
30 SHELF
31 CRUMB TRAY
32 L/H FRONT ANGLE GLASS
33 R/H FRONT ANGLE GLASS
34 SHELF RUNNER
35 FRONT GLASS
MODEL: PIE WARMER 450
MODEL CODE :PWA1007 REV.0
Description
Part No.
13
SPECIFIC OPERATING INSTRUCTIONS
1. The unit is provided with a small humidity pan and mount-
ed in the internal bottom plate. Should humidity be required this
must be lled with 600 ML of water and the level must be
monitored on a regular basis.
2. For servicing, the unit is provided with a removable bottom
panel.
3. For changing the top light bulb, the four screws holding
the top lid must be removed. Lift off the lid and the light
tting is accessible.
4. For ease of cleaning remove Gastronorm container.
2

EXPLODED DIAGRAM
PIE WARMER 450MM WIDE
MODEL: PWA1007 R00
16
1
2
3
5
6
4
7 8 9
10
11
12
13
14
19
20 18
23
22 21
24
25
26
27
28
29
30
32 33
31
34
35
MODEL: PWA1007 REV.0 PIE WARMER 450
15
17
12
CLEANING
1. Always ensure that the unit is disconnected from the mains
power supply before cleaning
2. This appliance should not be cleaned with a water jet or im-
mersed in water. Use only a damp cloth or sponge dipped in
soapy water.
3. Wipe off the unit with a dry cloth and wait at least half an hour
before re – connecting to the mains outlet.
WARNING
Burn Hazard.
Do not touch hot food,liquid or heating surfaces
while equipment is heating or operating
Hot surfaces and food can burn skin. Allow the hot surfaces to cool
before handling
THIS APPLIANCE SHOULD NOT BE CLEANED WITH
A WATER JET OR IMMERSED IN WATER. USE ONLY
A DAMP CLOTH OR SPONGE DIPPED IN SOAPY
WATER. DO NOT USE STEEL-WOOL WHICH WILL
MARK THE BRIGHT STAINLESS STEEL FINISH
3

WIRING DIAGRAM
PIE WARMER 450MM WIDE
MODEL CODE: PWA1007 R00
LEGEND DESCRIPTION PART NUMBER
S1 ROCKER SWITCH 1-RS-NI
B1 THERMOSTAT 1-THER-PWK0001
H1 INTERIOR LIGHT 1-LB-PWA0001
E1 ELEMENT 750W/230V 5-1500-PWA0001
H2 PILOT LIGHT 1-PL-BMA0001
L
NE
B1
E1
H2
230V
LEGEND DESCRIPTION PART NUMBER
B1 CONTROL THERMOSTAT 1-THER-PWK0001
E1 ELEMENT 1500W 5-1500W-PWA0001
S1 LIGHT SWITCH 1-RS-NI
H1 LIGHT 1-LB-PWA0001
H2 CONTROL PILOT LIGHT 1-PL-BMA0001
H1
S1
MODEL: PIE WARMER 450
MODEL CODE: PWA1007
REV.0
11
SAFETY
1. When this appliances is to be positioned in close proximity
to a wall, partitions, kitchen furniture, decorative nishes, etc.
it is recommended that they be made of non-combustible mate-
rial. If not, they shall be clad with a suitable non-combustible
heat insulating material, and the closest attention be paid to re
prevention regulations.
2. Do not operate without the crumb tray, as it will cause burn
marks on the counter top.
3. Use the appliances on an individual 15A mains outlet only.
DO NOT OVERLOAD THE CIRCUIT.
4. Ensure that the equipment and the power supply cord does not
come into contact with hot surfaces.
5. Supervision is necessary when the appliance is used in close
proximity to children.
6. If the supply cord is damaged, it must be replaced with a new
cord assembly available from the suppliers agent.
7. Use only earthed outlets matching the serial plate voltage.
8. Have equipment installed by a qualied person in accordance
with local codes and ordinances.
9. Use equipment in a at level position.
10. The equipment may be hot, even though the pilot light is not on.
11. Do not operate if equipment has been damaged or is malfunc-
tioning in any way.
12. These appliances are designed to run only on alternating current
(A.C.) DO NOT CONNECT TO DIRECT CURRENT (D.C)
WARNING
Electric Shock Hazard.
Keep water and other liquids from entering the inside
of the equipment. Liquid inside the equipment could
cause an electrical shock
Do not spray water or cleaning products. Liquid could contact the
electrical components and cause a short circuit or an electrical shock.
Do not use equipment if power cord is damaged or has been modied
READ ALL INSTRUCTIONS BEFORE USE. FAILURE TO
FOLLOW THESE PRECAUTIONS COULD RESULT IN INJURY TO
YOURSELF AND OTHERS
4

MODEL DESCRIPTION VOLTS
(V/Hz)
POWER
(W)
PWK0007 PIE WARMER MINI 230V/50Hz 750
PWA1007 PIE WARMER 450 WIDE 230V/50Hz 1500
ELECTRICAL CONNECTION INFORMATION
IT IS ESSENTIAL TO MAKE SURE THAT THE INCOMING
VOLTAGE IS THE SAME AS THE RATED VOLTAGE OF
THE UNIT AS FOUND ON THE SERIAL PLATE. THE SE-
RIAL PLATE IS LOCATED AT THE REAR OF THE UNIT
ADJACENT TO THE INCOMING CABLE ENTRY.
5

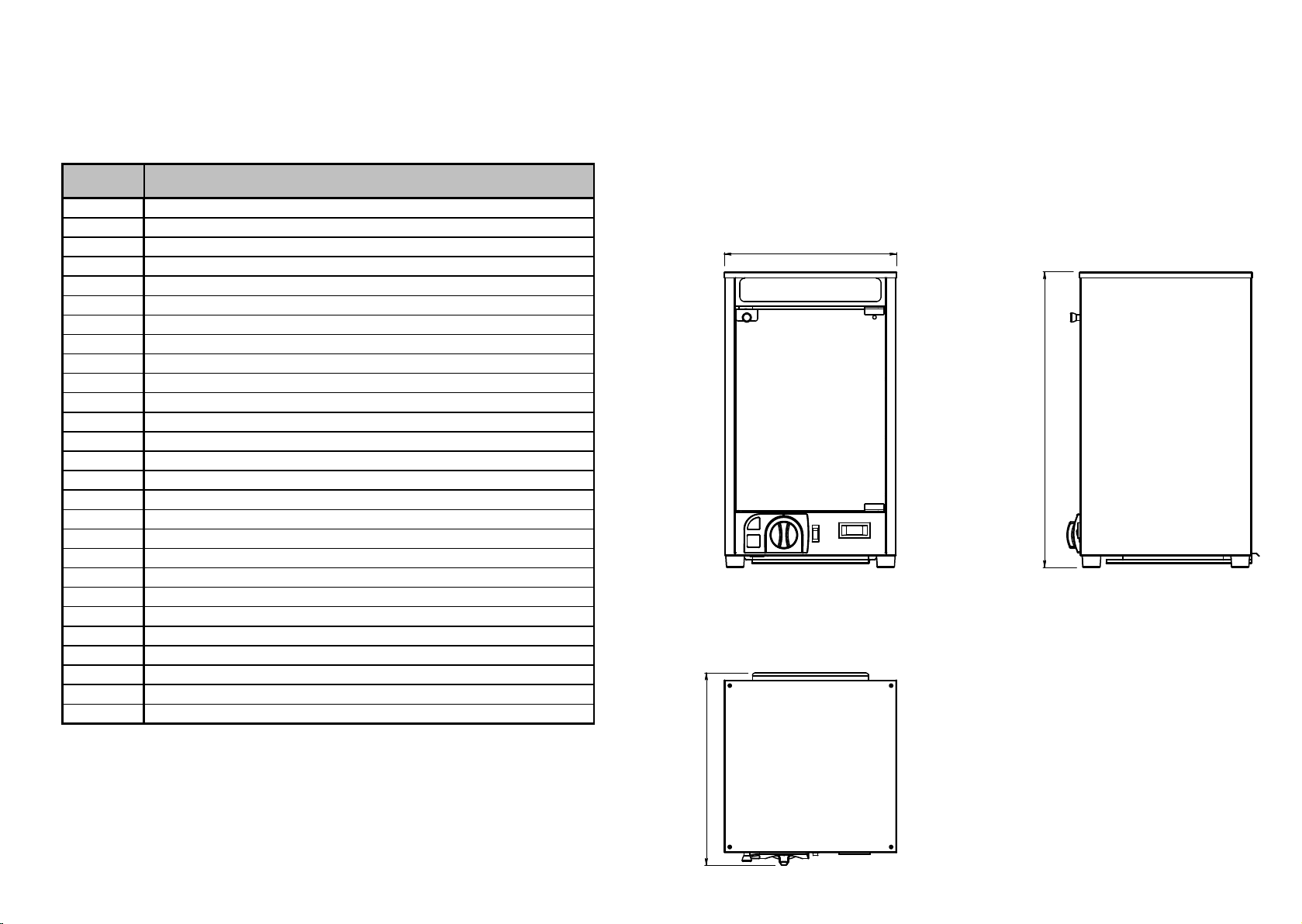

POSITIONING DIAGRAM
PIE WARMER 450MM WIDE
MODEL: PWA1007
PIE WARMER 450
MODEL: PWA1007
REV.0
453
644
503
10

1TOP COVER
2INNER GLASS
3COOL WHITE ENERGY SAVER LIGHT BULB
4PORCELAIN LAMP HOLDER
5DISPLAY GLASS
6GASTRONORM PAN
7GASTRONORM HOLDER
8HINGE BUSH, HINGE AND MAGNET SET
9DOOR CATCH
10 DOOR HANDLE
11 FRONT GLASS DOOR
12 KNOB
13 PILOT LIGHT
14 FASCIA PANEL
15 ROCKER SWITCH
16 TEMPERATURE GAUGE
17 CABLE RELIEF
18 ELEMENT
19 FOOT
20 BOTTOM COVER
21 THERMOSTAT
22 POWER CABLE
23 ANGLE SHELF
24 OUTER ENCLOSRE
25 CRUMB TRAY
26 SHELF RUNNER
27 FRONT GLASS
MODEL: PIE WARMER MINI
MODEL CODE :PWK0007 R04
Description
Part No.
9

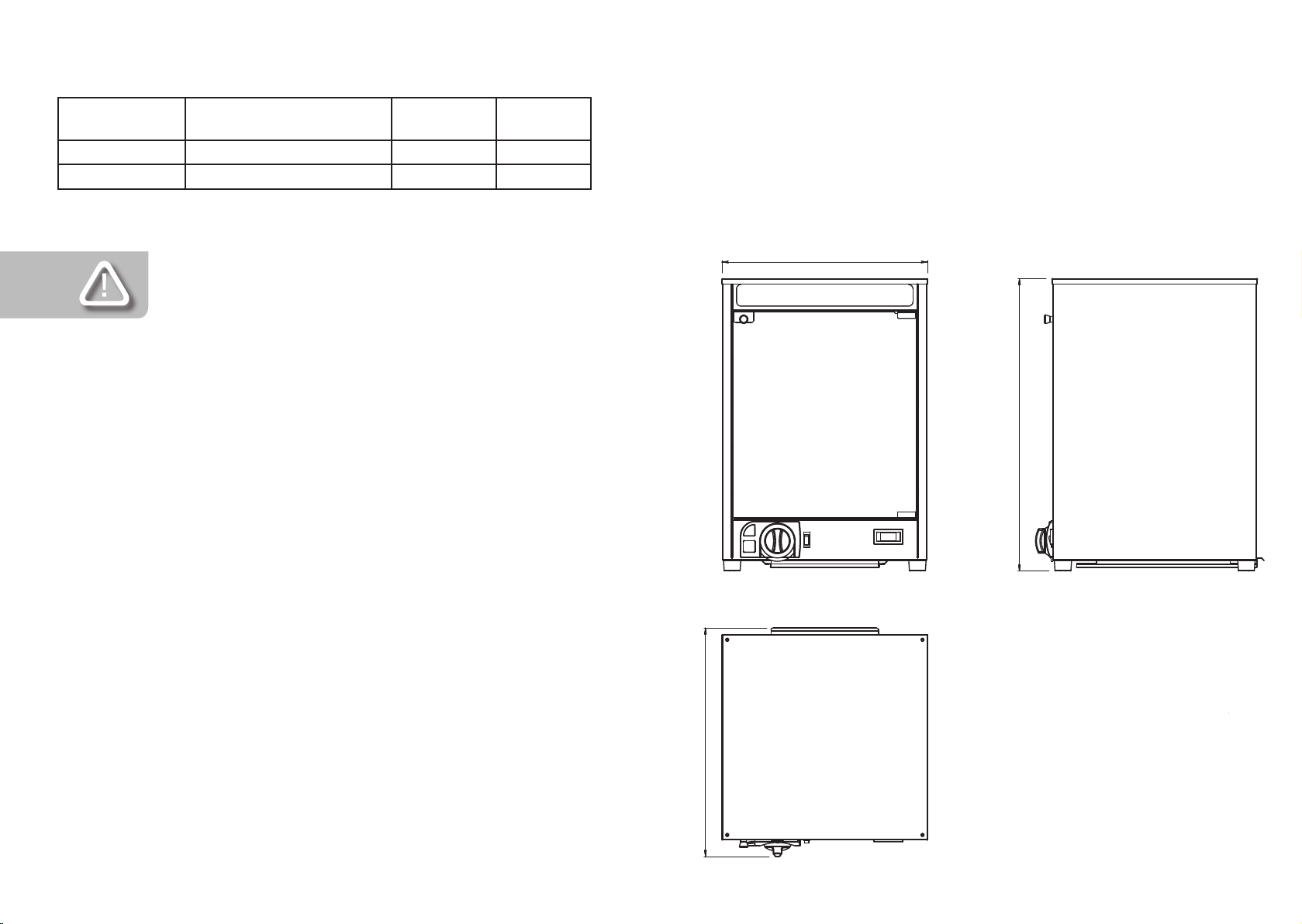

POSITIONING DIAGRAM
PIE WARMER MINI
MODEL: PWK0007
353
604
393
6

EXPLODED DIAGRAM
PIE WARMER
MODEL: PWK0007 R04
9
12
7
1
2
4
6
5
20
8
10
11 16
8
14
19
15 17
24
8
3
23
25 27
13
21
18
26
22
8
LEGEND DESCRIPTION PART NUMBER
S1 ROCKER SWITCH 1-RS-NI
B1 THERMOSTAT 1-THER-PWK0001
H1 INTERIOR LIGHT 1-LB-PWA0001
E1 ELEMENT 750W/230V 5-750-PWA0002
H2 PILOT LIGHT 1-PL-BMA0001
WIRING DIAGRAM
PIE WARMER
MODEL CODE: PWK0007 R02
B1
L
NE
S1
E1
H2
230V
H1
LEGEND DESCRIPTION PART NUMBER
B1 CONTROL
THERMOSTAT 1-THERMO-TO-TEF
E1 ELEMENT 750W 5-750W-PWA0002
S1 LIGHT SWITCH 1-RS-NI
H1 LIGHT 1-LB-PWA0001
H2 CONTROL PILOT
LIGHT 1-PL-BMA0001
7
