Aovo W PRO User manual

W PRO
Instructions For Use
(Please keep and read this manual carefully before using this product)
[email protected]
4

-01-
1. Please read this Disclaimer & Warning and Safety Guidelines carefully
before using our product. This product is not recommended for people
under the age of 14. By using this product, you hereby agree to this
disclaimer and signify that you have read it fully. You agree that you are
responsible for your own conduct and any damaged caused while using
this product, and its consequences . You agree to use this product only for
purposes that are proper and in accordance with local regulations, terms
and all applicable polices and guidelines AOVO may make available.
2. When using this product, please be sure to strictly abide by the specifica-
tion requirements and safety guidelines stated in this document. Any
personal injury property damage, legal disputes and all other adverse
events caused by the violation of the safety instructions or due to any other
factor, WILL NOT be AOVO’s responsibility.
DISCLAIMER & WARNING
SAFETY GUIDELINES
Check Before Use:
① This product is a high precision drone that integrates various electronic
stability and control mechanisms. Please be sure to setup this drone careful-
ly and correctly to ensure safe, accident-free operation.
② Please be sure that the batteries of the drone and transmitter are clean,
undamaged and, fully charged.
③ Please be sure that all the propellers are undamaged and are installed in
the correct orientation.

-02-
④Please do a thorough check of the product before each use. Inspect the
integrity of the parts, any signs of cracks and wear of the propeller, battery
power and effectiveness of the indicator, etc. If after doing a complete
check any issues are found, please refrain from using the product until the
issue has been resolved.
Flight Environment:
Fly in Open Areas Maintain Line
of Sight Fly Below 390 feet (120 m)
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Avoid flying over or near obstacles, crowds, high voltage power lines,
trees,South pole and North Pole, base station.
DO NOT fly near strong electromagnetic sources such as power lines and
base stations as it may affect the onboard compass.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Don’t use this drone in adverse weather conditions such as rain, snow, fog,
and wind.

-03-
Operation Requirements：
①Please don’t use this product to follow any moving vehicles .
②During the flight, only turn off the motor in case of an emergency.
③As battery becomes low return the drone back to your starting point.
④Thisproductshouldnotbeusedwhiledrinkingalcohol,ifyouarefeeling
fatigued, taking medicine, or feeling any physical discomfort.
⑤Beware of the noise volume the drone produces. Keep your distance to
avoid ear damage.
Use of Battery:
①Please ensure batteries are fitted in the correct orientation as shown in
the instruction manual.
②Avoid short circuits by fitting the batteries incorrectly, and do not crush
or squeeze the batteries as this could carry the risk of an explosion.
③Donot mix new and oldbatteries as this can lead to a poor performance
of the product.
④Dispose used batteries carefully, do not litter.
⑤Please keep dead batteries away from heat and fire.
⑥If the device is not going to be used for an extended period of time,
remove batteries to prevent potential damage from battery leakage.
⑥Stay away from the rotating
propellers and motors. ⑦Don’t fly in the No-Fly Zone.

-04-
⑦It is recommended to only use the USB charging cable that comes with
the drone to charge the battery.
⑧Don't connect the battery directly to wall outlets or car cigarette -lighter
sockets.
⑨Don't attempt to disassemble or modify the battery in any way.
⑩Don't use the battery if it gives off an odor, generates heat, becomes
discolored or deformed,or appears abnormal in any way. If the battery is in
use or being charged, remove it from the device or charger immediately
and discontinue use.
Don't pierce the battery casing with a nail or other sharp object, break it
open with a hammer, or step on it!
Always charge the batteries in a fireproof container and away from
combustible materials. Don't charge on surfaces that can catch fire. This
includes: wood, cloth, carpet, or in the application's device.
Don't immerse the battery in water or allow it to get wet.
Don’t solder battery terminal directly.
Keep battery out of reach of children or pets.
Don't short-circuit the battery by connecting wires or other metal object
to the positive(+) and negative(-) terminals.
11
12
13
14
15
16
Li-Po Battery Disposal & Recycling
Waste Lithium-polymer batteries must not be placed with household trash.
Please contact local environmental or waste agency or the waste agency
or the supplier of your model or your nearest Li-Po battery recycling center.

-05-
×1 ×1 ×1
×4 ×1 ×1
MAINTENANCE
①Clean the product after each use with a clean, soft cloth.
②Avoid prolonged exposure to direct sunlight and avoid buildup of heat
on the drone.
③ This device is not waterproof and must not be submerged in water
under any circumstance. Failure to maintain the device completely dry will
result in the failure of the unit.
④Check the charging plug and other accessories for signs of damage
frequently. If any part of the device is damaged, refrain from flying until
maintenance can be carried out.
Drone Transmitter Drone Battery
Propeller USB Charging
Cable Screwdriver
PACKAGE CONTENTS

-06-
DRONE’S DETAILS
Lights
Vision Positioning Lens
Battery
Propeller B Propeller B
Propeller A
Propeller A
HD Camera
Power Switch

-07-
TRANSMITTER DETAILS
Transmitter Functions
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Left Joystick
Unlock
Gyroscope calibration
Return to Home
Right Joystick
Speed
Antenna
Phone Holder
Camera Angle
Adjustment
GPS Mode Switch
Record Video
Take Photos
Charge
+
-
CHA

+
-
+
-
-08-
•Return to Home
Press the button to start the RTH, the transmitter makes “beep beep”
sound per 1.5 seconds and the drone will fly back to the recorded Home
Point.
Press the RTH button again to exit RTH procedure and regain control of
the drone.
•Photo/ Video
•Speed Switch
Press the button “ ” on the Controllor and you will hear a beep, which
means the drone is at the low speed.
Press the button “ ” again and you will hear two beeps, which means
the drone is at the high speed.
•GPS Mode Switch
•Unlock/Lock
Press the button and the camera icon “ ” on the Controllor, the
camera takes one photo.
Press the same button, the video icon “ ” on the Controllor, the
camera will take the video. Press again will exit shooting.
When turning on the transmitter, the default mode is the GPS Mode. Turn
off GPS by press GPS switch. Check the icon “ ” on the App interface to
confirms GPS status.
Low speed is default setting before speed change.
Press the button ” “ then the motor will rotate.
PulltheLeftJoysticktothebottomposition.Themotorwillstoprotatingand
the drone will be locked.

-09-
Controller Operation
Ascend
Descend
Rotate Left Rotate Right
Up
Left Right
Down
Left Joystick
Forward
Backward
Up
Down
Left Right
Right Joystick
Fly to
Left Fly to Right

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
-10-
INSTALLATION

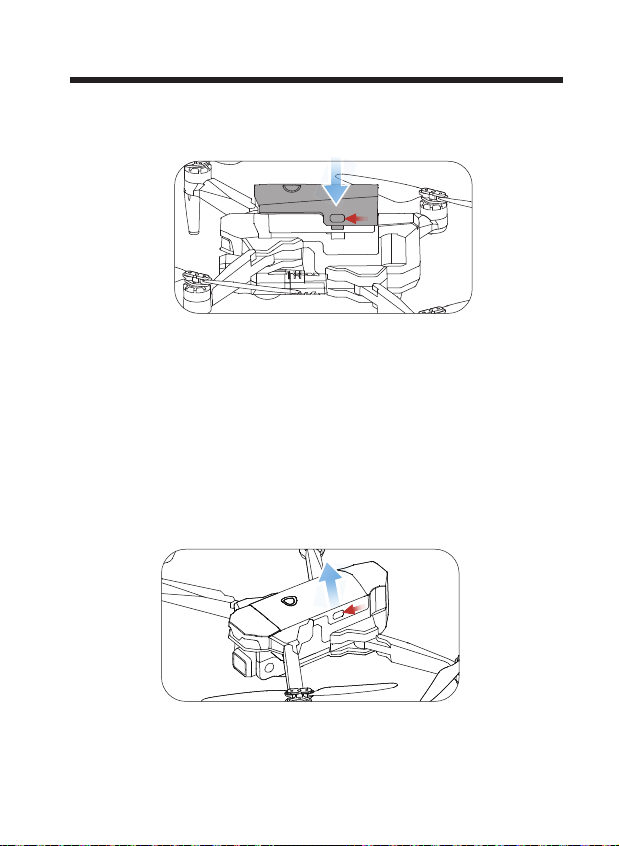

Installation: Push the battery into the battery compartment of the drone.
Make sure that you hear a click sound indicating the battery is firmly
installed.
Attention:
The battery should be installed firmly, failure to do so may affect the flight
safety of your drone. The drone may crash due to power-cut during the
flight.
Removal: As shown above, press and hold the lock on the both side of the
battery at the same time to remove the battery.
Drone Battery

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
-11-
1. Connect the USB cable to a USB socket such as mobile power supply.
2. Connect the remote controller with USB cable, the LED of controller is
turn solid in Green means Charging status. If the LED of controller is off,
means Charging completed. .
Note：The voltage of power supply is no greater than or equal to 5V,
otherwise there is a risk of overloading the USB cable. The charging time
approx 45 mins
Install TF Card
Transmitter Battery
5V
As shown in the above figure. Please push the camera module out and
insert the TF card (Need to be purchased separately )to TF card slot, then
you could hear “Click” , means insert successfully. Push the camera module
into the specified position of drone.
1. Please operate carefully for avoid damage the camera module.
2. The original pixel pictures and videos will be stored in the TF card.
TF

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
AB
B A
-12-
Propellers
The drone will not fly unless the correct propeller is installed on the correct
motor shaft. See illustration above. An “A” or “B” is printed on the back of
each propeller. Lock the propeller to the motor shafts with screws rotating
each screw clockwise.
Installation
HEAD
Removal
For propeller removal use screwdriver (provided) to rotate counter-clock-
wise and remove propellers.

-13-

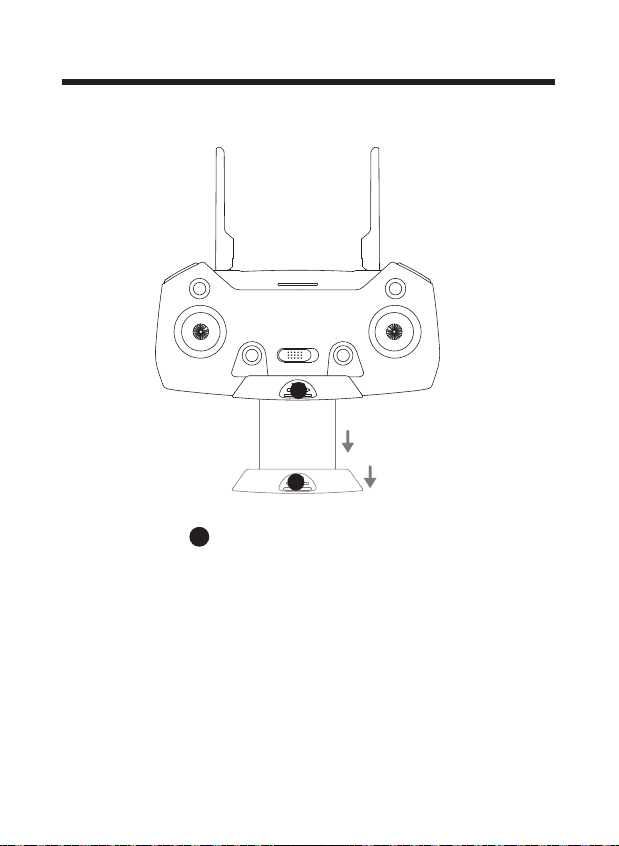

Phone Holder
①Pull down the position of controller.
②Adjust the Mobile Device Holder to hold tightly for the mobile device.
1
1
2

2
1
-14-

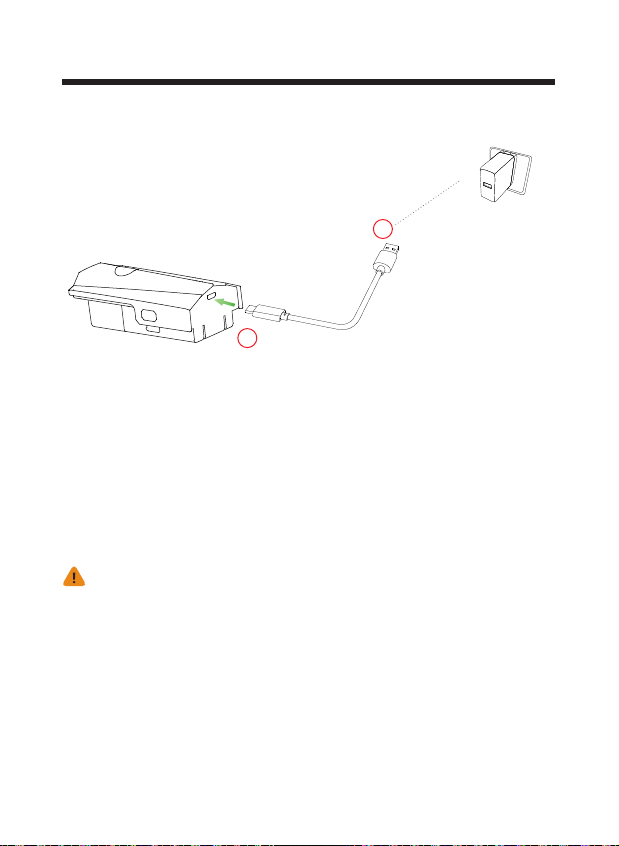

CHARGING
①Connect the USB cable to a USB socket such as mobile power supply
(Use an power supply with standard output voltage 5V and current greater
thanorequalto 2A). And then connect the battery withUSBcable,the LED
of battery is flashing, means charging. When four LEDs on battery are
bright and go steady, means Charging completed.
②The charging time of a single battery is 4.5~5.5 hours.
·Before charging, please check the contents of the “ Use of Battery”
section of the “ Safety Guidelines” carefully!
·This product is only equipped with a single battery, you can choose to
buy another battery to experience a longer flight.
·Use an power supply with standard output voltage 5V and current
greater than or equal to 2A, otherwise there is a risk of overloading the USB
cable.
USB Adapter
(5V/2.0A)

-15-
Download APP
OPERATION GUIDE
Scan the QR code, corresponding to either App Store™ or Google™ Play
Store and download the “ W - GPS ” application for free.
Required Operating Systems: iOS v8.0 and later / Android v4.3 and later
iOS Android APP on Google play
HEAD
To unfold the drone follow the steps below.
Step 1: Unfold the front arms.
Step2: Unfold the rear arms and place drone on a flat, level surface. Head
should face forward.
Unfolding the Drone
CONTACT US
Please do not hesitate to contact us if you need further support.
[email protected]

-16-
Connect to Wi-Fi
① Short press and then long press the Power Switch approx 2 seconds,
and the LEDs on the battery are fully bright and the drone make a sound,
means the drone power on, and place it on a level surface with the head
forward.
Connect your smart phone to the Wi-Fi network created by the drone.
Check the drone’s status in the ”W - GPS” App.
②Your smartphone will launch a search of the available Wi-Fi networks:
③Select the Wi-Fi network: W PRO-4K-******.
④Wait for several seconds until your smartphone connect to the Wi-Fi network
of the drone.
This connection is generally represented by the Wi-Fi logo appearing on
your smartphone’s screen.
⑤Launch the W - GPS application.
> The connection between your smartphone and the drone will be
established automatically.
W PRO-4K-******

-17-

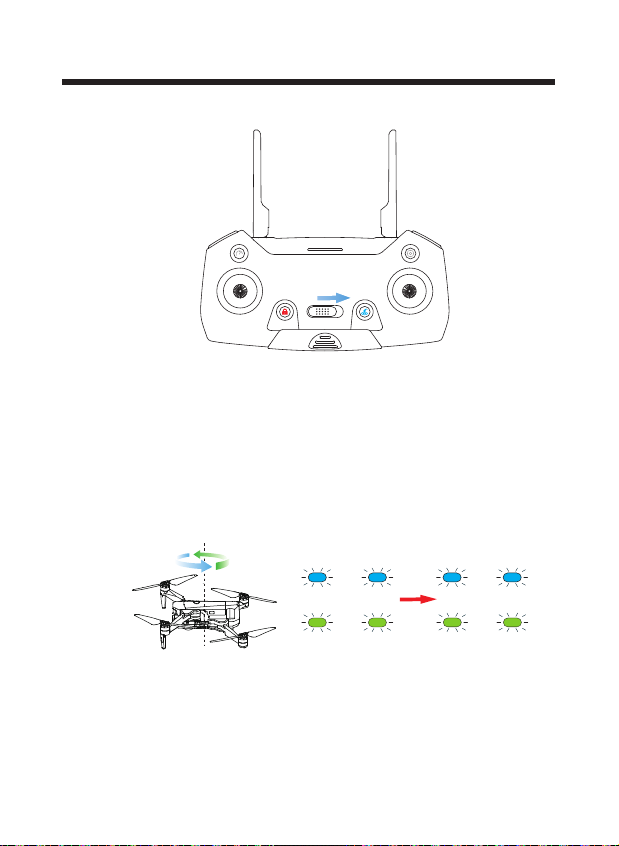

Calibrating the Compass
After pairing operation, the LED lights of the drone are sharp-flashing, that
mean is begin compass calibration.
Step 1:
Now, the APP interface displays the diagram. Hold the drone horizontally
and rotate the drone in approx 3 complete circles. When completed the
transmitter sends out “Beep” sound and LED lights of drone flash slowly.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Front lights
Rear lights
flash rapidly flash slowly
+
-
Pairing
After connect the WiFi signal between smart phone and drone. Turn on
the switch on the transmitter. Once the transmitter sends out “Beep” sound,
it means that the drone has been successfully paired with the transmitter.

3 S
-18-

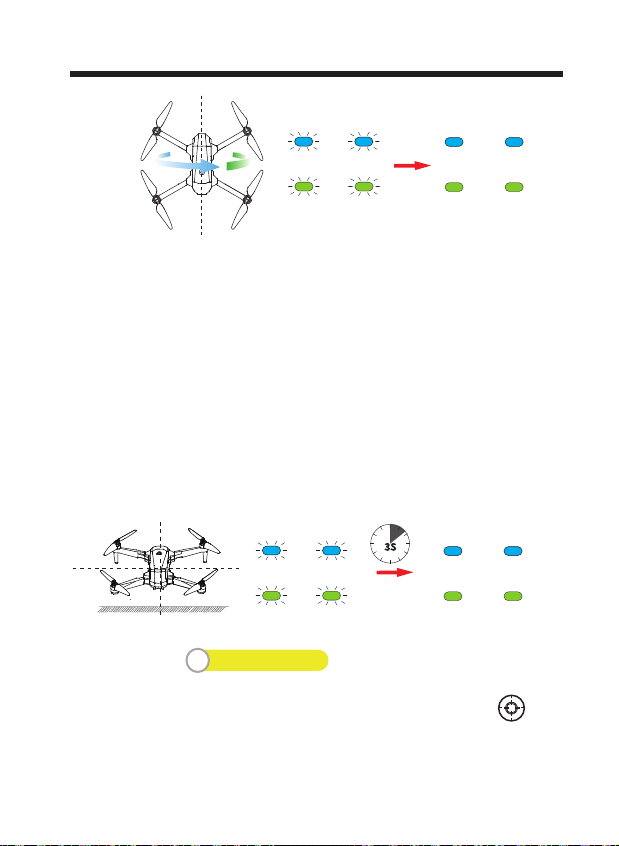

HEAD
Gyroscope calibration
Step 2:
Now, the APP interface displays the diagram. Hold the drone vertically and
rotate the drone in 3 complete circles. When completed the transmitter
sends out “Beep” sound and LEDs lights of drone turn solid.
Attention:
·If the GPS receives a signal from 7 or more satellites the rear LEDs of the
drone will flash twice per second.
·Every time the drone is powered on the compass calibration should be
performed.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Slide right to confirm
Front lights
Rear lights
Now, the APP interface displays the diagram. Place the drone on the
level surface and . The LED lights of the drone will
flash rapidly for about 3 seconds. When completed, the front and rear
lights turn solid. Or press the Gyroscope calibration switch “ ” on
the remote control. The LED lights of the drone will flash rapidly for
about 3 seconds. When completed, the front and rear lights turn solid.
flash slowly Solid
flash rapidly Solid

+
-
+
-
-19-
Unlocking the Motor
Locking the Motor
PulltheLeftJoysticktothebottom position. The motor will stop rotating and
the drone will be locked. (Pic.1)
Pic. 1
Please unlock the motor before take-off.
Press the red button “ ” , the motors rotate.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
①Unlock the motor function will be activated, base the GPS receives a
signal from 7 or more satellites OR Indoor mode.
②If you do not any operation approx 10 seconds after unlock the drone,
the motors will stop rotating.
