Apollo DCLF4AN Instruction manual

INSTALLATION, OPERATION & MAINTENANCE MANUAL
2-1/2” - 12” Double Check Valve | Double Check Detector Assembly
DC4AN | DCLF4AN | DCDA4AN | DCDLF4AN | DCDA24AN | DCDA2LF4AN
ES1597 IOM BFMMDC4ANLBF rev.a

2
Customer Service [phone] www.apolloflowcontrols.com
“Apl” Flow Controls
INSTALLATION, OPERATION & MAINTENANCE
MANUAL
SECTION DESCRIPTION PAGE
Double Check Valve Backflow Preventer DC4AN / DCLF4AN
I Description and Operation 3
II Installation 3
III Troubleshooting Guide 4
IV Maintenance Instructions (DC/DCDA mainline) 4
2-1/2” - 6” 4-5
8” - 12” 5-6
V Testing Procedures 7
Double Check Valve Detector Assembly DCDA4AN / DCDALF4AN & DCDA24AN / DCDA2LF4AN
VI Description and Operation 9
VII Installation 9
VIII Maintenance Instructions - Bypass Single Check (Type 2) 16
IX Maintenance Instructions - Bypass Double Check (Type 1) 27
PARTS LIST
2-1/2” - 6” DC & DCDA (Mainline) 11-12
8” - 12” DC & DCDA (Mainline) 13-14
2-1/2” - 12” DCDA2 (Type 2) Bypass Single Check 15
2-1/2” - 12” DCDA (Type 1) Bypass DC 28
REPAIR KITS
2-1/2” - 6” Check Valves 12-13
8” - 12” Check Valves 14
Bypass Line Kits 16-26
Shut-o Valves 29-31
TABLE OF CONTENTS

3
Customer Service [phone]
backflow.apollovalves.com
ES1597 REV A.
BFMMDC4ANLBF
FIGURE 1
TC: TEST COCK
CV: CHECK VALVE
The Double Check Valve (DC) device consists of two independently-acting, spring-loaded check valves. Two resilient seated
shut-off valves and four test cocks complete the assembly. Each check is designed to maintain a minimum of 1 psi across the
check during normal operation. If at any time the pressure downstream of the device increases above the supply pressure, both
check valves will close to prevent any backflow from occurring. The no flow condition is illustrated in Figure 1. To initiate flow, supply
pressure must be sufficient to open both checks and overcome friction, normally a minimum of 3 to 5 psi above the downstream pressure.
I. DESCRIPTION AND OPERATION
II. INSTALLATION
1. The DC must be installed in an accessible location to facilitate periodic field testing and maintenance.
2. Flush all upstream POST INDICATORPOST INDICATORng thoroughly to remove foreign matter prior to installing the device.
3. The device may be installed in the n-flow position as shown in Figure 1. Adequate clearance between the lower most portion of the device and
flood grade or floor should be provided for ease of maintenance.
4. If shut-off valves are provided separately, they should be installed with test cocks on the upstream and downstream sides of
5. The wedge of the inlet shut-off valve (as shown in Figure 1). Contact local jurisdictional authorities for local requirements.
6. After installing the assembly and with downstream or #2 shut-off valve closed, pressurize the device and bleed air through test cock #4. Then
open #2 shut-off valve.
Note: Pressures are for illustrative purposes only and are not necessarily indicative of any actual valve.

4
Customer Service [phone] www.apolloflowcontrols.com
“Apl” Flow Controls
INSTALLATION, OPERATION & MAINTENANCE
MANUAL
FIGURE 3
FIGURE 2
III. TROUBLESHOOTING
IV. MAINTENANCE INSTRUCTIONS
SYMPTOM CAUSE CORRECTIVE ACTION
Check valve fails to hold 1 psid. 1. Shut-o valve not closed completely.
2. Check valve fouled with debris.
3. Check poppet stem not moving freely in
guide.
1. Close #2 shut-o valve or inspect for
possible through leakage.
2. Inspect and clean seat disc and seat.
3. Inspect for debris or deposit on poppet
stem or guide.
2-1/2” - 6” SIZES
Open test cocks #2, #3, and #4 to relieve pressure from the device. Both shut-off valves must be closed.
A. CHECK REMOVAL
Note: If the first check seat disc needs only to be cleaned, it is not necessary to remove the entire check module from the valve body.
See the next section, “Check Maintenance”, for seat disc cleaning instructions.

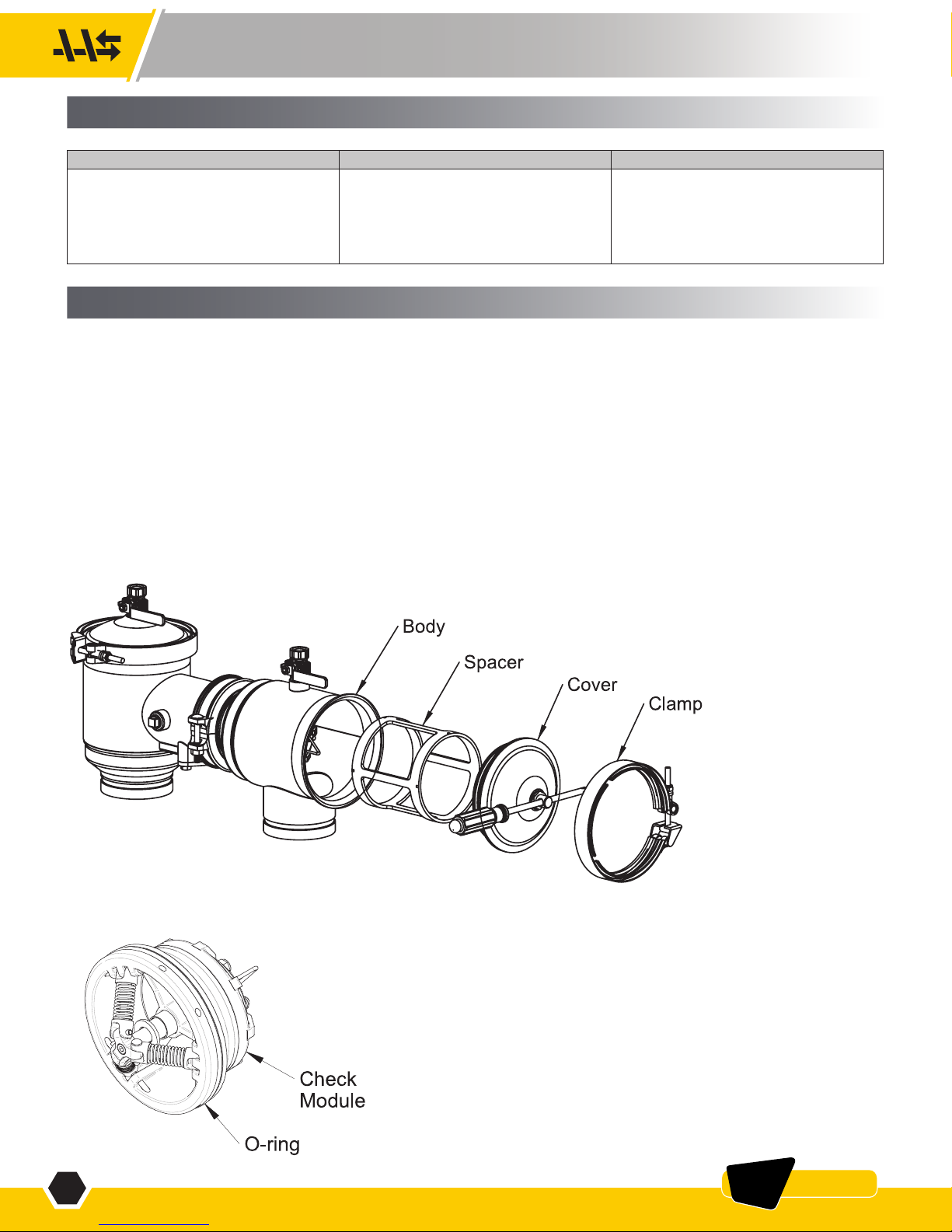

1. Remove the cover clamp by backing off the nut until the latch can be disengaged from the T-bolt. Pull the clamp apart and slide away from the
valve. See Figure 2.
2. Lift off the cover. A flat screwdriver will aid in lifting the cover out of the body. See Figure 2.
3. Remove the check-retaining spacer from the body. Pull the check module straight out of body. The check module is sealed in place with an o-ring.
See Figure 3.

5
Customer Service [phone]
backflow.apollovalves.com
ES1597 REV A.
BFMMDC4ANLBF
FIGURE 5
Spring/Seat Sub-Assembly
(rst check may remain in valve
body for disc cleaning only)
B. CHECK MAINTENANCE
If only cleaning of the first check is necessary, simply remove the three (3) nuts for 2-1/2” & 3” valves/ four(4) nuts for 4” & 6” valves on the
black plastic disc retainer (See Figure 4). Remove the check handle and washer and lift the disc retainer and disc out of the body. Rinse
the disc with clean water or replace if necessary. The disc may be flipped over for a temporary repair, but should be replaced if damaged.
Replace the disc, disc retainer, washer, handle, and nuts. Do not over tighten locknuts.
NOTE: The springs are factory installed and should not be removed or adjusted. Serious injury could occur if springs are disassembled.
IV. MAINTENANCE INSTRUCTIONS
8” - 12” SIZES
Open test cocks #2, #3, and #4 to relieve pressure from the device. Both shut-off valves must be closed.
A. CHECK REMOVAL
Note: If the first check disc needs only to be cleaned, it is not necessary to remove the entire check module from the valve body. See
the next section, “Check Maintenance”, for disc cleaning instructions.

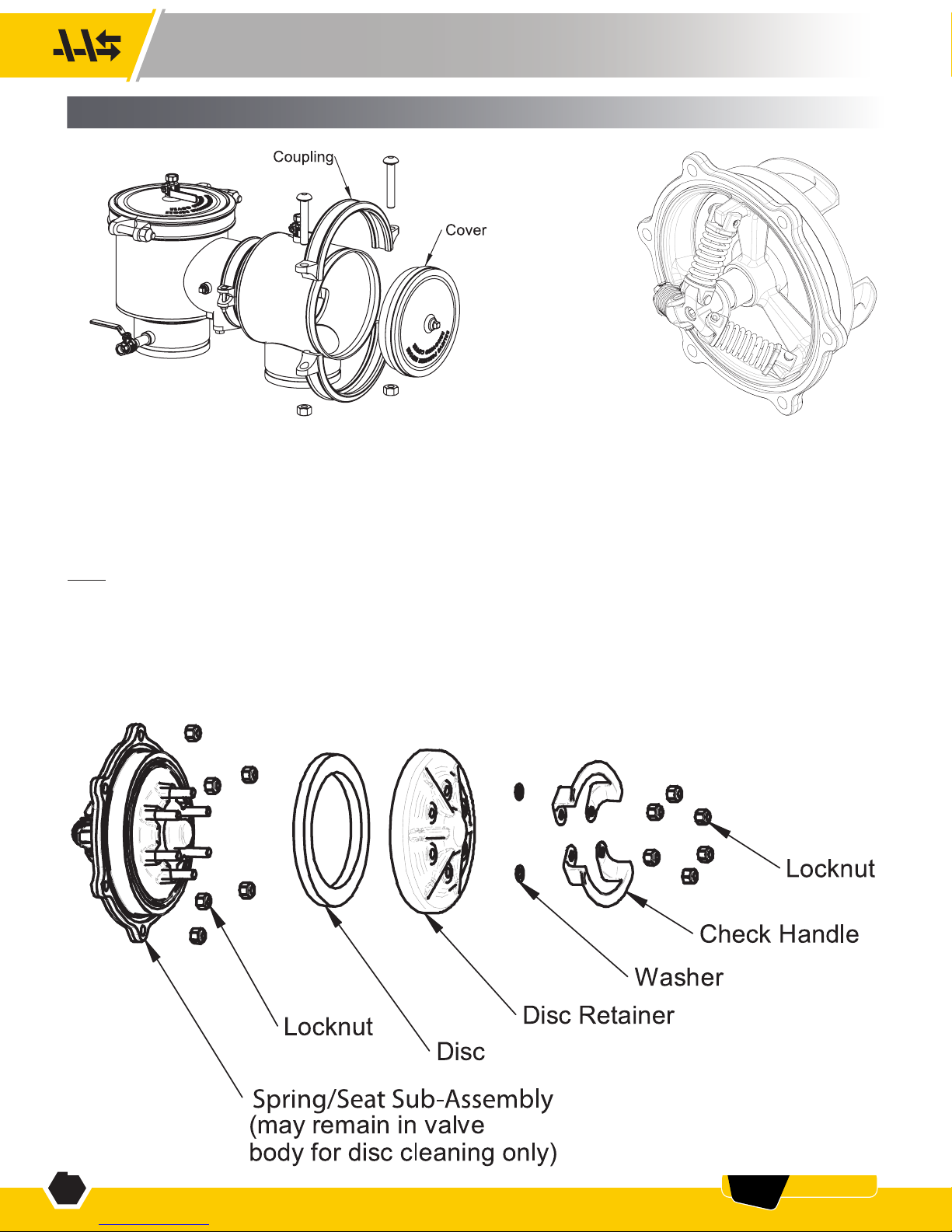

1. Take off the cover coupling by removing the two bolts and nuts. The gasket may remain on the valve body.
2. Lift off the cover. (See Figure 6)
3. Remove the six (6) nuts for 8” valves/ eight (8) nuts for 10” & 12” valves with a 3/4” socket and ratchet.
4. Slide the entire check module off the body studs and remove from body (see Figure 7).
FIGURE 4
2-1/2” – 6” SIZES

6
Customer Service [phone] www.apolloflowcontrols.com
“Apl” Flow Controls
INSTALLATION, OPERATION & MAINTENANCE
MANUAL
B. CHECK MAINTENANCE (CAN BE ACHIEVED WITHOUT REMOVING ENTIRE CHECK.)
If only cleaning of either check is necessary, simply remove the six (6) nuts for 8” valves / eight (8) nuts for 10” & 12” valves on the black plastic
disc retainer (See Figure 8). Remove the check handles and washers and lift the disc retainer and disc out of the body. Rinse the disc with
clean water or replace if necessary. The disc may be flipped over for a temporary repair, but should be replaced if damaged. Replace the disc,
disc retainer, washer, handle, and nuts. Do not over tighten locknuts.
NOTE: The springs are factory installed and should not be removed or adjusted. Serious injury could occur if springs are disassembled.
FIGURE 6 FIGURE 7
Spring/Seat Sub-Assembly
(rst check may remain in valve
body for disc cleaning only)
FIGURE 8
8” - 12” SIZES
IV. MAINTENANCE INSTRUCTIONS

7
Customer Service [phone]
backflow.apollovalves.com
ES1597 REV A.
BFMMDC4ANLBF
NOTE: This is a three-valve test kit procedure. Your local water purveyor should be consulted for acceptable test procedures. This
procedure is to be used on a stand-alone double check valve (DC), the mainline DC of a double check detector, and/or the bypass DC
of a standard (Type 1) double check detector. See Figure 9 for a schematic of the test setup.
TEST SETUP:
Flush test cocks (TC) (#1, #2, #3 & #4). Close shut-off valve #2. All TCs should be closed.
CHECK VALVE #1:
1. Close all valves on test kit.
2. Connect the high side hose to TC #2 and the low side hose to TC #3. Open TC #2 and TC #3.
3. Open vent valve “C” and high “A” on the test kit to bleed air from the high side of the kit. Close high “A” valve and then open low “B” valve to bleed
the low side. Close low “B” valve.
4. Record the gauge reading. It must be a minimum of 1.0 psid to pass. Close TC #2 and TC #3.
CHECK VALVE #2:
1. Move the high side hose to TC #3 and the low side hose to TC #4. Open TC #3 and TC #4.
2. Open vent “C” valve. Then open high “A” and bleed air from the high side of the kit. Close high “A” valve, and then open low “B” valve and bleed
the low side of the kit. Close low “B” valve.
3. Record the gauge reading. It must be a minimum of 1.0 psid to pass. Close TC #3 and TC#4. Remove hoses and drain test kit.
4. Slowly open shut-off valve #2 to restore water flow.
LEAKING #2 SHUT-OFF VALVE:
The following test will expose a leaking #2 shut-off valve.
1. Both shut-off valves should be open. Make sure all valves on test kit are closed. Connect the high “A” hose to TC #2 and the low “B” hose to TC
#3. Open TC #2 and TC #3.
2. Open the high “A” valve and vent “C” valve to bleed air from high side of gauge. Open low “B” valve to bleed air from low side of gauge. Close valves
“A”, “B” and “C” on test kit.
3. Connect the vent hose to TC #4. Open TC #4.
4. Close shut-off valve #2. The differential gauge needle should read at least 1.0 psid.
5. Open the high “A” valve and vent “C” valve. This will put back pressure on check valve #2.
6. Close TC #2.
If gauge is steady, then shut-off valve #2 is holding tight. However, if gauge drops to zero psid, then shut-off valve #2 is leaking. If the gauge
rises then the #2 shut-off valve is still leaking, but is under back-pressure from a downstream source.
TESTING PROCEDURE FOR SINGLE CHECK ON DCDA TYPE 2 BYPASS:
Note: The first check of the mainline valve is also the first check of the bypass assembly and the test results for the first mainline check
should be recorded as the first check of the bypass assembly. If the local water authority requires a second test for the first check, perform
the test again and record the results. The second check is the single check on the bypass line. (See page 10 for test cock locations)
7. Flush water through the bypass line test cocks to eliminate foreign material.
8. To test the bypass single check, connect the “high” side hose to the first test cock on the bypass line (upstream of single check valve). Hold the
“low” side hose level with the gauge.
9. Close the inlet shut-off valve on the mainline and bypass line. The single check valve must hold at least 1.0 psid.
WRAP UP:
CLOSE ALL TEST COCKS. OPEN #2 SHUT-OFF VALVE. DRAIN GAUGE.
V. TESTING PROCEDURES

8
Customer Service [phone] www.apolloflowcontrols.com
“Apl” Flow Controls
INSTALLATION, OPERATION & MAINTENANCE
MANUAL
3 VALVE TEST KIT
FIGURE 9

9
Customer Service [phone]
backflow.apollovalves.com
ES1597 REV A.
BFMMDC4ANLBF
The Double Check Detector Assembly (DCDA Type 1) contains a mainline DC incorporating two spring loaded check valves and a bypass line
consisting of an approved DC assembly and a water meter. The DCDA Type 2 contains a mainline DC incorporating two spring loaded check
valves and a bypass line consisting of a single check valve and a water meter. Each device is equipped with test cocks for periodic field
testing and is normally supplied with inlet and outlet shut-off valves. NOTE: UL and FM installations must include indicating type shut-off
valves.
During no flow conditions, the mainline and by-pass check valves will remain closed. If there is a low flow demand (up to a minimum of 2
gpm) of water downstream, the flow is routed through the water meter to monitor such consumption. If the downstream pressure increases
above the supply pressure or there is a reduction in the inlet pressure, the mainline and bypass check valves will close to prevent backflow.
VI. DESCRIPTION AND OPERATION
VII. INSTALLATION
1. The DCDA must be installed in an accessible location to facilitate periodic field testing and maintenance.
2. Flush all upstream POST INDICATORPOST INDICATORng thoroughly to remove foreign matter prior to installing the device.
3. The device may be installed in the n-flow position. A clearance of 12” to 30” between the lower most portion of the device and flood grade or floor
should be provided for ease of maintenance.
4. After installing the assembly and with downstream (#2) shut-off valve closed, pressurize the device and bleed air through test cock #4. Then
open #2 shut-off valve.
OTHER INSTALLATION TIPS
• Installing this device in a POST INDICATORt requires consideration for future maintenance and repair. Along with necessary clearances, there
must be adequate drainage within the POST INDICATORt to deter potential accumulation of standing water. Also, check with local codes and/or
inspectors prior to making such installations.
• Do not install in areas subject to freezing without using a properly designed enclosure.
• As in any POST INDICATORPOST INDICATORng system, provisions should be made to minimize water hammer and pressure rise due to thermal
expansion, as these conditions can create damaging and dangerously high internal pressures.

10
Customer Service [phone] www.apolloflowcontrols.com
“Apl” Flow Controls
INSTALLATION, OPERATION & MAINTENANCE
MANUAL
DCDA24N TYPE 2
DCDA2LF4AN TYPE 2
DCDA4AN TYPE 1
DCDALF4AN TYPE 1
DCDA BYPASS TYPES

11
Customer Service [phone]
backflow.apollovalves.com
ES1597 REV A.
BFMMDC4ANLBF
FIGURE 10
DC4AN, DCLF4AN
DCDA4AN, DCDALF4AN (MAINLINE)
DCDA24AN, DCDA2LF4AN (MAINLINE)
PART NUMBER DIAGRAM - 2-1/2” - 6”

12
Customer Service [phone] www.apolloflowcontrols.com
“Apl” Flow Controls
INSTALLATION, OPERATION & MAINTENANCE
MANUAL
DC4AN/DCDA4AN (MAINLINE) / DCDA24AN (MAINLINE) PARTS LIST
DCLF4AN/DCDALF4AN (MAINLINE) / DCDA2LF4A (MAINLINE) PARTS LIST
ITEM # DESCRIPTION QTY. PART NUMBER
2-1/2” 3” 4” 6”
1Shut-o Valve 2 See Pages 18 & 19
2Coupling 3W-5237-00 W-5238-00 W-5239-00 W-5240-00
3 First Check Body 1 Consult Factory
4Second Check Body 1Consult Factory
5Check Module 2W-9856-05 W-9668-05 W-9669-05
6Check Retaining Spacer 2 G-4832-00 G-4804-00 G-4805-00
7Cover Clamp 2W-9293-00 W-9183-00 W-9221-00
8O-ring, Cover 2D-4976-00 D-4870-00 D-5001-00
9Retaining Nut 2C-2635-00 C-1756-00
10 Cover, Inner 2F-3900-00 F-3864-00 F-3865-00
11 Cover, Outer 2E-2903-00 E-2865-00 E-2866-00
12 O-ring, Test Cock 2 D-4892-00 D-3904-00
13 Second Check Cover Plug 1 L-8462-06 L-8463-06
14 Test Cock, MxF 1 77CLF-803-10 77CLF-804-10
15 Seat/Spring Sub-Assy 2W-9715-05 W-9717-05 W-9719-05
16 Check Seat O-ring 1 D-5171-00 D-4869-00 D-5000-00
17 Disc 1D-4958-00 D-4862-00 D-4890-00
18 Disc Retainer 1L-7800-00 F-3862-00 F-3863-00
19 Washer (QTY) E-2905-00 (1) E-2920-00 (1) E-2878-00 (4)
20 Handle 1H-3814-00 H-3792-00 H-3793-00
21 Locknut (QTY) C-1900-00 (3) C-2052-00 (4) C-2053-00 (4)
22 Test Cock, Cover 2 77CLF-803-A0 77CLF-804-A0
23 Plug, 1/2” NPT 2K-4594-05
24 O-ring, RV Port 1 D-4866-00
25 Cover, RV Port 1 F-3875-00
26 Screw, 3/8-16 x .63 2 B-1921-00
27 Reducer Bushing 2K-4605-00 N/A
28 Nipple 4K-3406-00 K-3412-00
29 Elbow, 90°2K-4598-00 K-3501-00
30 Test Cock, FxF 2 77CLF-103-10 77CLF-104-10
Individual parts are only available for bulk sales. Please refer to the appropriate repair kits below and on page 13.
Note: All bronze components listed are lead-free*
*LEAD FREE: The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average. Complies with CA
AB1953, VT Act 193, MD HB
CHECK RUBBER ONLY KIT
(ONE KIT REPAIRS ONE CHECK)
SIZE
2-1/2” & 3” 4” 6”
REPAIR KIT MODEL NUMBER RK4A3CMR RK4A4CMR RK4A6CMR
ITEM # ORDERING NUMBER 4A-000-01 4A-00A-01 4A-00C-01
not Shown Lubricant I-9016-00
17 Disc D-4958-00 D-4862-00 D-4890-00
16 Check O-ring D-5171-00 D-4869-00 D-5000-00
24 Relief Valve Port O-ring D-4866-00
8Cover O-ring D-4976-00 D-4870-00 D-5001-00
12 Test Cock O-ring D-4892-00 D-3904-00
Note: All bronze components listed are lead-free*
* LEAD FREE: The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average. Complies with CA
AB1953, VT Act 193, MD HB372, LA HB471, and Federal Public Law 111-380.
PARTS LIST - 2-1/2” - 6”
REPAIR KITS - 2-1/2” - 6”

13
Customer Service [phone]
backflow.apollovalves.com
ES1597 REV A.
BFMMDC4ANLBF
REPAIR KITS (MAINLINE) 2-1/2” - 6”
DC CHECK COMPLETE KIT
(ONE KIT REPAIRS ONE CHECK)
SIZE
2-1/2” & 3” 4” 6”
REPAIR KIT MODEL NUMBER RK4A3CMC RK4A4CMC RK4A6CMC
ITEM # ORDERING NUMBER 4A-000-02 4A-00A-02 4A-00C-02
not shown Lubricant I-9016-00
5Check Module S-Assy W-9856-05 W-9668-05 W-9669-05
16 Check O-ring D-5171-00 D-4869-00 D-5000-00
8Cover O-ring D-4976-00 D-4870-00 D-5001-00
Note: All bronze components listed are lead-free*
* LEAD FREE: The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average. Complies with CA AB1953,
VT Act 193, MD HB372, LA HB471, and Federal Public Law 111-380.
10” & 12” ONLY
REPAIR KITS - 2-1/2” - 6”
FIGURE 11
DC4AN, DCLF4AN
DCDA4AN, DCDALF4AN (MAINLINE)
DCDA24AN, DCDA2LF4AN (MAINLINE)
PART NUMBER DIAGRAM - 8 - 12”

14
Customer Service [phone] www.apolloflowcontrols.com
“Apl” Flow Controls
INSTALLATION, OPERATION & MAINTENANCE
MANUAL
DC4AN/DCDA4AN (MAINLINE) / DCDA24AN (MAINLINE) PARTS LIST
DCLF4AN/DCDALF4AN (MAINLINE) / DCDA2LF4AN (MAINLINE) PARTS LIST
ITEM # DESCRIPTION QTY. PART NUMBER
8” 10” 12”
1Shut-o Valve 2 See Page 18 & 19
2Coupling (QTY) W-9791-00 (3) W-5242-00 (3) W-9243-00 (1)
Bolt Pack 1N/A N/A 40-00H-BP
3 First Check Valve Body 1 Consult Factory
4 Second Check Valve Body 1 Consult Factory
5 Check O-ring 2 D-4935-00 D-4997-00
6Check Module 2W-9672-05 W-9861-05
7 Locknut, 1/2-13 (QTY) C-2638-00 (24) C-2638-00 (32)
8Cover Clamp 2W-9243-00 W-9355-00
9Cover 2E-2898-05 Q-7064-19
10 Plug, 3/4" NPT 1K-4595-05 N/A
11 Test Cock 377CLF-804-10 77CLF-104-10
12 Seat/Spring Sub-Assy 2W-9721-05 W-9723-05
13 Disc 2D-4934-00 D-4960-00
14 Disc Retainer 1F-3899-00 F-3903-00
15 Washer 2E-2897-00
16 Handle 2H-3828-00 H-3813-00
17 Cap, 1/2" NPT 5 N/A K-4656-00
Plug, 1/2" NPT 2K-4594-05 N/A N/A
18 O-ring, RV Port 1 D-4963-00 D-2304-00
19 Cover, RV Port 1 F-3898-05 F-3922-00
20 Screw 2B-2348-00 B-1690-00
21 Nipple 2K-3412-00
22 Elbow, 3/4", 90° 1 K-4599-00
23 Test Cock, FxF 1 77CLF-104-10
24 Lifting Tab 2 N/A E-2955-05
25 Screw, 1/4-20 X .50 8 N/A B-1913-00
Individual parts are only available for bulk sales. Please refer to the appropriate repair kits below.
Note: All bronze components listed are lead-free*
*LEAD FREE: The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average. Complies with CA
AB1953, VT Act 193, MD HB372, LA HB471, and Federal Public Law 111-380.
REPAIR KITS (MAINLINE) 8”–12”
CHECK RUBBER ONLY KIT
(ONE KIT REPAIRS ONE CHECK)
SIZE
8” 10” & 12”
REPAIR KIT MODEL NUMBER RK4A8CMR RK4A12INCMR
ITEM # ORDERING CODE 4A-00E-01 4A-00H-01
not shown Lubricant I-9016-00
13 Disc D-4934-00 D-4960-00
5 Check O-ring D-4935-00 D-4997-00
18 Relief Valve Port O-ring D-4963-00 D-2304-00
DC CHECK COMPLETE KIT
(ONE KIT REPAIRS ONE CHECK)
SIZE
8” 10” & 12”
REPAIR KIT MODEL NUMBER RK4A8CMC RK4A12INCMC
ITEM # ORDERING CODE 4A-00E-00 4A-00H-00
not shown Lubricant I-9016-00
6Check Module S-Assy W-9672-05 W-9861-05
5 Check O-ring D-4935-00 D-4997-00
Note: All bronze components listed are lead-free*
* LEAD FREE: The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average. Complies with CA
AB1953, VT Act 193, MD HB372, LA HB471, and Federal Public Law 111-380.
PARTS LIST & REPAIR KITS - 8” - 12”

15
Customer Service [phone]
backflow.apollovalves.com
ES1597 REV A.
BFMMDC4ANLBF

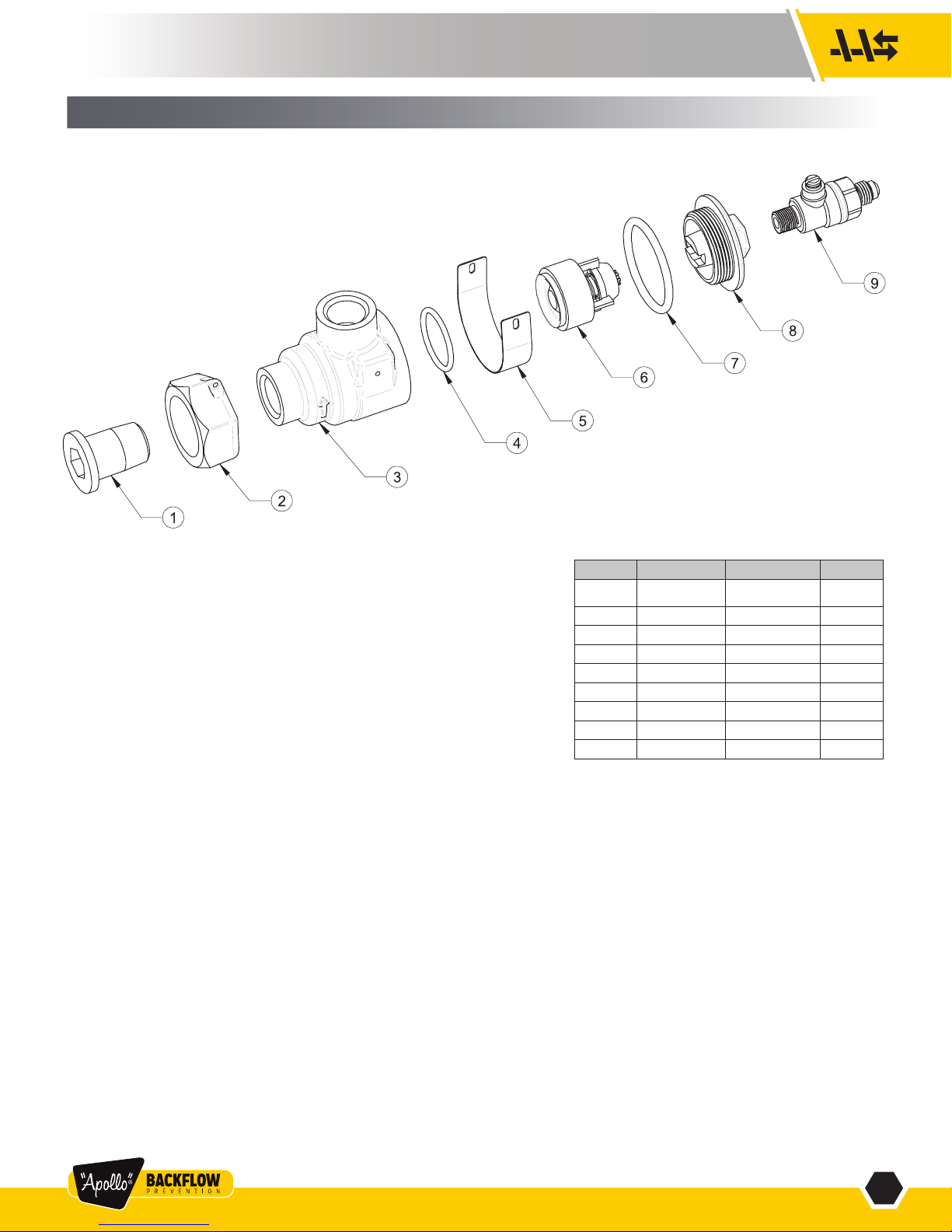

W977005 SINGLE CHECK VALVE (LEAD FREE*)
PART LIST - BYPASS SINGLE CHECK (TYPE 2)
INDIVIDUAL PARTS ARE ONLY AVAILABLE FOR BULK SALES.
PLEASE REFER TO THE APPROPRIATE REPAIR KITS BELOW.
BYPASS SINGLE CHECK REPAIR KITS
4A-003-12: CHECK REPAIR KIT: INCLUDES ITEMS 4, 6, AND 7 (1 EA.)
4A-003-13: CHECK COMPLETE KIT: INCLUDES ITEMS 1-9 (1 EA.)
Note: All bronze components listed are lead-free*
* LEAD FREE: The wetted surfaces of this product shall contain no more than
0.25% lead by weighted average. Complies with CA AB1953, VT Act 193, MD
HB372, LA HB471, and Federal Public Law 111-380.
ITEM PART # DESCRIPTION QTY
1K-4587-06 TailPOST
INDICATORece 1
2C-1844-05 Union Nut 1
3Q-7281-05 Body 1
4D-3885-00 Check O-ring 1
5I-9342-00 Nameplate 1
6F-3228-00 Check Valve 1
7D-3589-00 Cap O-ring 1
8F-4042-05 Cap 1
978LF-270-01 Test Cock 1

16
Customer Service [phone] www.apolloflowcontrols.com
“Apl” Flow Controls
INSTALLATION, OPERATION & MAINTENANCE
MANUAL
A. DISASSEMBLY - CHECK VALVE MODULE
1. Close #2 bypass line shut-off valve, then close #1 bypass line shut-off valve.
2. Bleed pressure from the assembly by opening the upstream test cock (located on the bypass line #1 shut-off valve) and the downstream test cock
(located on the check valve cap).
3. Unscrew cap using hex head provided.
4. Pull check module straight out of body. Needle-nose pliers will aid in removing check valve. Check o-ring may remain in valve body.
NOTE: Check valve modules are not user serviceable. In the event of check failure, replacement modules are sold individually. However,
debris caught in the check may be rinsed out.
B. ASSEMBLY - CHECK VALVE MODULE
1. Install new or cleaned check valve module into body (ensure check o-ring is in place).
2. Apply a thin coat of Apollo®®supplied lubricant, DOW 111 or equal, on cap o-ring.
3. Install cap.
VIII. MAINTENANCE INSTRUCTIONS - BYPASS SINGLE CHECK (TYPE 2)
BYPASS LINE KITS
SIZE METER OPTION TYPE 1 BYPASS
KIT PART NO.
TYPE 2 BYPASS
KIT PART NO.
2-1/2”
GALLONS PER MIN 4ALF-600-BPE 4ALF-620-BPE
CUBIC FT PER MIN 4ALF-600-BPC 4ALF-620-BPC
NO METER 4ALF-600-BPG 4ALF-620-BPG
3”
GALLONS PER MIN 4ALF-600-BPE 4ALF-620-BPE
CUBIC FT PER MIN 4ALF-600-BPC 4ALF-620-BPC
NO METER 4ALF-600-BPG 4ALF-620-BPG
4”
GALLONS PER MIN 4ALF-60A-BPE 4ALF-62A-BPE
CUBIC FT PER MIN 4ALF-60A-BPC 4ALF-62A-BPC
NO METER 4ALF-60A-BPG 4ALF-62A-BPG
6”
GALLONS PER MIN 4ALF-60C-BPE 4ALF-62C-BPE
CUBIC FT PER MIN 4ALF-60C-BPC 4ALF-62C-BPC
NO METER 4ALF-60C-BPG 4ALF-62C-BPG
8”
GALLONS PER MIN 4ALF-60E-BPE 4ALF-62E-BPE
CUBIC FT PER MIN 4ALF-60E-BPC 4ALF-62E-BPC
NO METER 4ALF-60E-BPG 4ALF-62E-BPG
10”
GALLONS PER MIN 4ALF-60G-BPE 4ALF-62G-BPE
CUBIC FT PER MIN 4ALF-60G-BPC 4ALF-62G-BPC
NO METER 4ALF-60G-BPG 4ALF-62G-BPG
12”
GALLONS PER MIN 4ALF-60H-BPE 4ALF-62H-BPE
CUBIC FT PER MIN 4ALF-60H-BPC 4ALF-62H-BPC
NO METER 4ALF-60H-BPG 4ALF-62H-BPG

17
Customer Service [phone]
backflow.apollovalves.com
ES1597 REV A.
BFMMDC4ANLBF

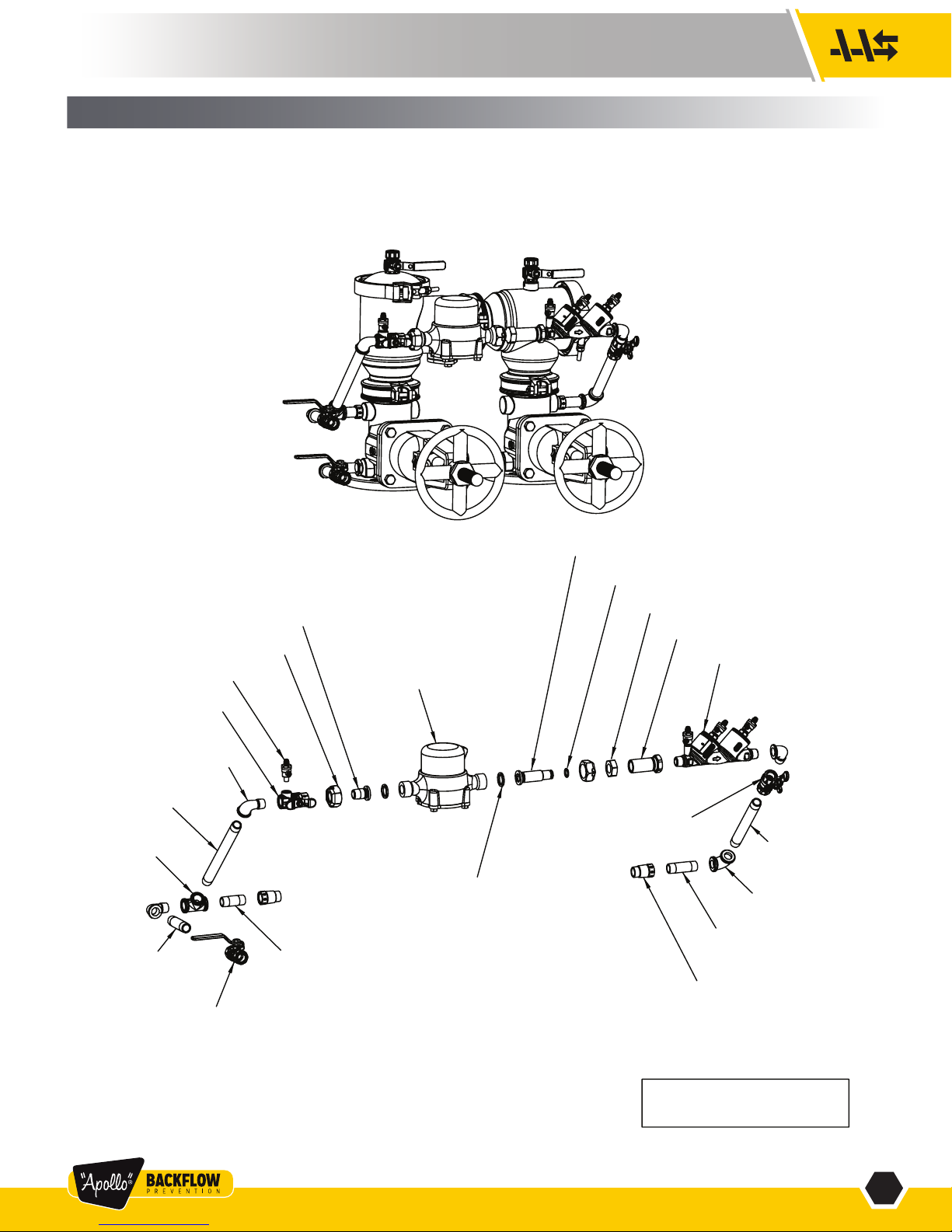

2-1/2" & 3"
TYPE 1
BYPASS
LINE
APPLY TEFLON TAPE TO PIPE
THREADS AND INSTALL
COMPONENTS AS SHOWN.
1/2" X 3"
Long Nipple
1/2" X 2" Long Nipple
1/2" X 9"
Long Nipple
1/2" X 2-1/2"
Long Nipple
1/2" Street Elbow (3 ea.)
1/2" 90° Elbow
3/4" MNPT X
1/2" FNPT Fitting
(2 ea.)
1/2" Ball Valve
with Tapped Port
(Note Location of Port)
1/2" Tee
1/2" F X F Ball Valve
with Lever Handle
Test Cock
Meter Nut (2 ea.)
Meter Adapter
Adjustment Joint Coupling
1/2" DCLF4A
Double Check Valve
1/2" Ball Valve
without Tapped Port
Rubber Washer (2 ea.)
Water Meter
Adjustment Joint Nut
Adjustment Joint O-ring
Adjustment Joint Adapter
1/2" X 6-1/2"
Long Nipple
BYPASS KITS

18
Customer Service [phone] www.apolloflowcontrols.com
“Apl” Flow Controls
INSTALLATION, OPERATION & MAINTENANCE
MANUAL
APPLY TEFLON TAPE TO PIPE
THREADS AND INSTALL
COMPONENTS AS SHOWN.
4"
TYPE 1
BYPASS
LINE
1/2" DCLF4A
Double Check Valve
1/2" Ball Valve
F X F with Lever
Handle
1/2" Ball Valve
with Tapped Port
(Note Location of Port
)
1/2" X 3"
Long
Nipple
1/2" Street
Elbow (3 ea.)
1/2" X 5"
Long Nipple
1/2" Coupling
(2 ea.)
1/2" Tee
1/2" X 1-1/2" Nipple (2 ea.)
Test Cock
Meter Nut (2 ea.)
Meter Adapter
Rubber Washer (2 ea.)
Water Meter
1/2" Ball
Valve without
Tapped Port
1/2" 90°
Elbow
3/4" MNPT X
1/2" FNPT Fitting
(2 ea.)
Adjustment Joint Coupling
Adjustment Joint Nut
Adjustment Joint O-ring
Adjustment Joint Adapter
1/2" X 4"
Long Nipple
1/2" X 3-1/2"
Long Nipple
BYPASS KITS

19
Customer Service [phone]
backflow.apollovalves.com
ES1597 REV A.
BFMMDC4ANLBF
APPLY TEFLON TAPE TO PIPE
THREADS AND INSTALL
COMPONENTS AS SHOWN.
6"
TYPE 1
BYPASS
LINE
3/4" X 3"
Long Nipple
3/4" Close
Nipple
3/4" X 2-1/2"
Long Nipple
3/4" F X F
Ball Valve
3/4" X 3/4"
X 1/2" Te e
1/2" X 5" Long
Nipple (2 ea.)
1/2" Coupling (2 ea.)
1/2" X 7-1/2" Nipple
(2 ea.)
1/2" 90° Elbow (2 ea.)
1/2" X 3-1/2" Long Nipple
1/2" Ball Valve with Ta pped Port
(Note Location of Port)
Test Cock
3/4" MNPT X
1/2" FNPT Fitting
1/2" X 2"
Long Nipple
1/2" Street
Elbow
1/2" Ball Valve
without Tapped Port
1/2" DCLF4A
Double Check Valve
Meter Nut (2 ea.)
Meter Adapter
Rubber Washer (2 ea.)
Water Meter
Adjustment Joint Coupling
Adjustment Joint Nut
Adjustment Joint O-ring
Adjustment Joint Adapter
3/4" 90°
Elbow
BYPASS KITS

20
Customer Service [phone] www.apolloflowcontrols.com
“Apl” Flow Controls
INSTALLATION, OPERATION & MAINTENANCE
MANUAL
APPLY TEFLON TAPE TO
PIPE
THREADS AND INSTALL
COMPONENTS AS SHOWN.
8"
TYPE 1
BYPASS
LINE
3/4" MNPT X
1/2" FNPT Fitting (2 ea.)
1/2" X 9"
Long Nipple
(4 ea.)
1/2" X 5" Long Nipple
1/2" X 5-1/2"
Long Nipple
1/2" 90° Elbow (4 ea.)
1/2" Ball Valve
with Tapped Port
(Note Location of Port)
Test Cock
Meter Nut (2 ea.)
Meter Adapter
Rubber Washer (2 ea.)
Water Meter
Adjustment Joint Coupling
1/2" DCLF4A
Double Check Valve
1/2" Ball Valv
e
without T
apped
Port
1/2" X 2" Nipple (2 ea.)
Adjustment Joint Nut
Adjustment Joint
O-ring
Adjustment Joint
Coupling
1/2"
Coupling
(2 ea.)
BYPASS KITS
