Aputure amaran Series User manual

Product Manual
English
amaran P60x

Foreword
Thank you for purchasing the amaran series LED photography light-
amaran P60x.
The amaran P60 series is creators' best choice because of its feature of
lightweight and flexibility.

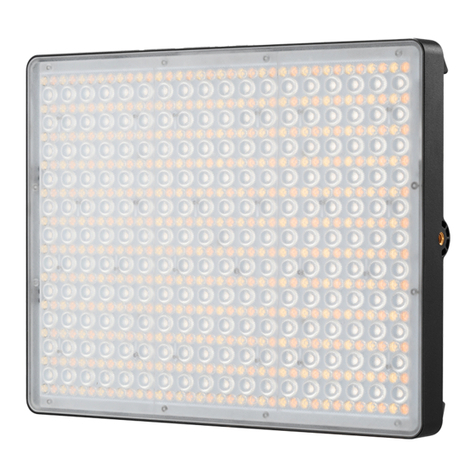

The amaran P60x is a panel photography light with adjustable temperature
(3200K-6500K), power of 60w, and maximum illuminance of 5070lux@1m
(5600K). The P60x is also excellent in terms of light quality, with a color
rendering index of up to CRI95+, TLCI 97, and no flicker at all.
IMPORTANT SAFETY INSTRUCTIONS
When using this unit, basic safety precautions should always be followed,
including the following:
Read and understand all instructions before using.
Close supervision is necessary when any fixture is used by or near
children. Do not leave the fixture unattended while in use.
Care must be taken as burns can occur from touching hot surfaces.
Do not operate the fixture if a cord is damaged, or if the fixture has
been dropped or damaged, until it has been examined by quali fied
service personnel.
Position any power cables such that they will not be tripped over,
pulled, or put into contact with hot surfaces.
If an extension cord is necessary, a cord with an amperage rating at
least equal to that of the fixture should be used. Cordsrated for less
amperage than the fixture may overheat.
Always unplug the lighting fixture from the electrical outlet before
cleaning and servicing, or when not in use. Never yank the cord to
remove the plug from the outlet.
Let the lighting fixture cool completely before storing.
To reduce the risk of electric shock, do not immerse this fixture in
water or any other liquids.
To reduce the risk of re or electric shock, do not disassemble this
fixture. Contact [email protected] or take it to qualified service
personnel when service or repair work is required. Incorrect
reassembly may cause electric shock when the lighting fxture is
in use.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
- 1 -

The use of an accessory attachment not recommended by the
manufacturer may increase the risk ofre, electric shock, or injury to
any persons operating the fixture.
Power this fixture by connecting it to a grounded outlet.
Please do not place the LED lighting fixture near any flammable object.
Only use a dry microfiber cloth to clean the product.
Please have the product checked by an authorized service personnel
agent if your product has a problem.
The malfunctions caused by unauthorized disassembly are not covered
under the warranty.
We recommend only using the original Aputure cable accessories.
Please note that our warranty for this product does not apply to any
repairs required due toany malfunctions of unauthorized Aputure
accessories, although you may request such repairs for a fee.
This product is certified by RoHS, CE, KC, PSE, and FCC. Please
operate the product in full compliance with the operation
standards. Please note that this warranty does not apply to repairs
arising from malfunctions, although you may request such repairs on
a chargeable basis.
The instructions and information in this manual are based on thorough,
controlled company testing procedures. Further notice will not be given
if the design or specifi cations change.
SAVE THESE INSTRUCTIONS
11.
12.
13.
14.
15.
16.
17.
18.
19.
- 2 -

FCC compliance statement
This device complies with Part 15 of the FCC rules. The operating
equipment must meet the following two conditions:
(1) This device will not cause harmful interference;
(2) This device can withstand any external interference, including
interference that may cause unintended operation.
[Warning] If the user makes changes or modifications without the express
permission of Aitus, he may lose the right to continue to operate the device.
[Note] This device has been tested and determined to comply with the limits
of a Class B digital device (in accordance with Part 15 of the FCC rules).
These limits are designed to provide reasonable protection from harmful
interference in residential installations. This device generates, uses, and
can radiate radio frequency energy. If it is not installed and used in
accordance with the instructions, it may cause harmful interference to
radio communications. However, under certain installation conditions,
there is no guarantee that such interference will not occur. If this
equipment does cause harmful interference to radio or television
reception, and this can be determined by turning off and on the
equipment, it is recommended that the user try one or more of the
following measures to eliminate the interference:
Increase the distance between the equipment and the receiver.
Connect the equipment to an outlet on another circuit, not the
outlet on the circuit to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
FCC radiation exposure statement
This device complies with FCC radiation exposure limits for uncontrolled
environments.
- 3 -

Componets List
amaran P60x
Carrying case
Adapter
AC Power cable
1/4-20in & 3/8-16in
Spigot
Softbox
Grid
- 4 -

Product Details
LED chips
Transparent
protective baffle
Softbox
support
handle
1/4 screw hole
OLED Display
Power Button
DC Input
Menu
Button
INT Wheel
CCT Wheel
NP-F battery
slot
LIGHTING Mode
Button
EFFECTS Mode
Button
- 5 -

Installation
1. The lamp fixing
2. Softbox installation
Screw the 1/4’’ to 3/8’’ screw clockwise into the 1/4’’ copper nut at the
bottom (or side) of the LED lamp, and tighten it;Connect the 1/4’’ to 3/8’’
screw and the lamp holder through the lamp holder support column,
adjust the appropriate angle and tighten it.
The light soft box can be installed according to the needs of use.
1. Stretch soft box 2. Straighten the two support
rodson both sides of the soft
box to become a support rod
3. Install the soft box to the
lamp body
4. The grid can be installed
according to the requirements
- 6 -

Power supply
1. Adapter power supply
AC 100V-240V
Remaining
Operating time
Brightness
CCT
Bluetooth Mode
When disassembling the power cable, please rotate the spring lock button
on the power cable before disassembling, do not pull it hard.
- 7 -

2. Lithium battery power supply
Battery Installation: Slide the lithium
battery into the battery slot.
Battery Removing: Press the battery
lock button while gently pushing up
the battery to remove the battery.
* This product uses a lithium battery model Sony NP-F Series: NP-F960/F970
3. V-mount battery or Anton Bauer battery power supply
Through the "D-tap to DC" connection cable, the lamp body can be
connected to the V-mount battery or Anton Bauer battery for power
supply.
- 8 -
* D-tap to DC cable needs to be purchased separately.

Operation Instructions
1. Turning on the Light
After connecting the lamp body to an appropriate power source,
press the power switch to start the P60x.
2. Manual Control
Rotate the Intensity (INT) Wheel
to adjust the intensity of the light
from 0-100%.
Rotate the CCT / HUE wheel to
adjust the CCT of the light from
3200K-6500K.
* The speed at which you rotate the knob will result in different rates
of change.
- 9 -

2.1 Press the LIGHTING button to
enter CCT mode to adjust the CCT
and INT of the light.
2.2 Press the EFFECTS button, the default current light effect mode takes
effect ( a total of four light effects: paparazzi, Strobe, fireworks, Pulsing ).
Paparazzi Strobe
Fireworks Pulsing
2.3 Press the MENU button to enter the menu interface.
- 10 -
MENU

3. Menu introduction
3.1 Fan Mode
Press the MENU button to enter
the menu interface, rotate the INT
wheel to select and press to enter
the Fan mode, rotate the INT wheel
to select the smart/medium mode,
and then short press the INT wheel
to confirm the selection.
3.2 Studio Mode
Press the MENU button to enter
the menu interface, rotate the INT
wheel to select and press to enter
the Studio mode interface. Rotate
the INT wheel to select "Yes", and
the power-on light is on.
3.3 Bluetooth Reset
Press the MENU button to enter
the menu interface, rotate the INT
wheel to select and press to enter
the Bluetooth Reset. Rotate the
wheel to select "YES" to reset the
Bluetooth pairing; If you choose
“NO”, then it will return to the
previous menu.
3.4 Fixture Serial No
Press the MENU button to enter
the menu interface, rotate the INT
wheel to select and press to enter
the Fixture Serial No.and you can
see that device has a unique serial
number.
- 11 -

3.5 Language
Press the MENU button to enter
the menu interface, rotate the INT
wheel to select and press to enter
the Language menu. You can rotate
the INT wheel to select English or
Chinese, and then press the Select
wheel to confirm the selection.
3.6 Firmware Version
Press the MENU button to enter
the menu interface, rotate the INT
wheel to select and press to enter
the Firmware Version, You can
check the firmware version number
of the fixture.
3.7 Custom FX
Press the MENU button to enter the menu interface, rotate the INT wheel
to select and press to enter the Custom FX. You can choose to enter Picker
FX, Music FX, or Touchbar FX interface. Each type can save 10 custom FXs.
In the name of each FX, "NO FX" means unsaved FX, and "Untitled" means
saved FX.
3.8 Exit
Press the MENU button to enter the menu interface, rotate the INT wheel
to select and press to enter the Exit.You can return to the initial interface
of CCT mode.
- 12 -

4. Use of Sidus Link APP
You can download the Sidus Link app from the iOS App Store or Google
Play Store for enhancing the functionality of the light. Please visit sidus.link
/app/help for more details regarding how to use the app to control your
Aputure lights.
Specifications
CCT
CRI
TLCI
CQS
SSI (D56)
SSI (D32)
Beam angle
Power Output
Power Input
Operating Current
Operating Voltage
NP-F Battery Operating Voltage
V/Anton Bauer Mount Battery
Operating Voltage
Operating temperature
Control Methods
Wireless Operating Range
(Bluetooth)
Screen Type
Cooling Method
Head Cable
Power cable
Lamp Head Size
Lamp Head Weight
3200K~6500K
≥95
≥97
≥95
≥72
≥84
45°
≤60W
≤72W
4.5A
100V-240V 50Hz/60Hz
6.5v-8.4v
12.5V-16.8V
-20°C ~ 45°C / -4°F ~ 113°F
Manual，Sidus Link APP
≥80m / 262.5ft
OLED
Active Cooling
2-Pin DC Head Cable（3m）
Locking Power cable（1.5m）
25.10*17.40*3.95cm
979g
- 13 -

Photometrics
CCT
3200K
4300K
5600K
6500K
Distance
Lux
Fc
Lux
Fc
Lux
Fc
Lux
Fc
0.5m
17570
1632
17670
1642
18120
1683
18410
1710
1m
4860
452
4940
459
5070
471
5180
481
2m
1280
119
1283
119
1328
123
1354
126
* This is an averaged result. The luminance of your individual unit may
vary slightly from this data
Trademark statement
Sony is a trademark and product model of Sony Corporation in China or
other countries.
- 14 -

Aputure Imaging Industries Co., Ltd. Add: F/3, Building 21, Longjun industrial estate, HePing West Road, Shenzhen, Guangdong E-MAIL: [email protected] Sales Contact: (86)0755-83285569-613
Aputure Imaging Industries Co., Ltd. warrants the original consumer purchaser from defects in material and workmanship for a period of one (1) year after the date of purchase. For more details of warranty visit www.aputure.com
Serial No. Item Name Purchase Date Buyer Name Buyer Phone Buyer Add Franchiser Seal
Add: F/3, Building 21, Longjun Industrial Estate, Heping West Road, Shenzhen, Guangdong
Aputure Imaging Industries Co.,Ltd.
Inspection: Qualified

amaran P60x
使 用 者 指 南
中 文

前言
感谢您购买“艾蒙拉”系列LED摄影灯—amaran P60x。
艾蒙拉P60x是一款可调色温(3200K-6500K),功率为60w，最大照度达到
5070lux@1m（5600K）的平板摄影灯。P60x在光线质量方面同样出色，
显色指数高达CRI95+，TLCI 97，且全域无频闪。
艾蒙拉P60系列小巧轻便，使用灵活，是创作者们的得力助手。
重要的安全说明
使用此摄影灯时，应始终遵循基本的安全预防措施，包括：
使用前阅读并理解所有说明。
当儿童靠近设备或使用设备时，必须进行密切监督。在使用设备时，请
勿将设备置于无人看管状态。
必须小心接触高温部件防止被烫伤。
请勿操作电源线损坏的设备以及掉落或损坏的设备，直到合格的维修人
员检查过。
请归置好电源线，防止被电源线绊倒或拉扯电源线导致设备断电，且电
源线不可接触灼热表面。
如果需要延长线，应使用额定电流至少等于设备额定电流的延长线。额
定电流小于设备的电线可能过热。
在清洁和维修之前以及不使用时，务必从电源插座上拔下电器插头。切
勿拉扯电线从插座拔出插头，应抓住插头并拉动来拔出。
在存放前让设备完全冷却。存放时，请将电源线从设备上拔出，待冷却
后归置在安全箱中对应位置。
为降低电击风险，请勿将本产品浸入水中或其他液体中。
为降低电击风险，请勿拆卸本产品，在需要维修时将其交给合格的维修
人员。不正确的重装可能会在随后使用设备时引起电击。
使用非制造商推荐的配件可能会引起火灾、电击或人身伤害。
请将本产品连接到接地插座。
请勿将本产品置于液体或其他易燃、易挥发溶剂附近，避免损坏产品。
请用软布、干布清洁本设备。
请勿在潮湿的环境下使用本设备，否则有短路或电击的危险。
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
- 17 -

16.
17.
18.
19.
需要维修时请联系授权的维修人员。本设备内有精密电子线路。未经许
可擅自拆卸导致故障不在本司保修范围内，但用户可以付费维修。
建议使用爱图仕原厂线缆。由于使用非爱图仕原厂附件导致本产品的任
何损坏，不在本司保修范围内，但用户可以付费维修。
本产品已通过 RoHS, CE, KC, PSE和FCC认证，请参考相关国家标准使用
和操作。因使用操作不当而造成机器损坏，不在保修范围内，但用户可
以付费维修。
此使用者指南依据本公司严格测试制定。设计和规格如有变更，恕不另
行通知
保存这些说明
FCC 符合声明
此设备符合 FCC 规则第 15 部分中的规范。操作设备须符合以下两个条件：
(1) 此设备不会导致有害干扰；
(2) 此设备可承受任何外来干扰，包括可能导致非预期操作的干扰。
扩大设备与接收器之间的距离。
将设备连接到其他电路的插座中，而不是接收器所连接电路的插座。
咨询经销商或有经验的无线电/电视机技术人员以获得帮助。
【注】此设备经测试确定符合 B 类数码设备（依照 FCC 规则第 15 部分规范）
的限制。这些限制的设计旨在为居住场所安装条件下的有害干扰提供合理的
保护。此设备生成、使用并可以发射射频能量。如果未按照指示安装和使用，
可能对无线电通信造成有害干扰。但是，在特定安装条件下，不保证这类干
扰不会发生。如果此设备确实对无线电或电视机接收信号造成有害干扰，而
这点可以通过关闭和打开设备来确定，那么建议用户尝试使用以下一种或多
种措施来消除干扰：
【警告】如果用户未经爱图仕明确许可而进行改动或改装，可能会丧失继续
操作该设备的权利。
FCC 辐射暴露声明
本设备符合FCC针对未受控制环境所制定的辐射暴露限制。
- 18 -

物品清单
amaran P60x
便携包
适配器
AC电源线
转向支撑柱
柔光箱
格栅
- 19 -
