INSTALLATION
AND
OPERATING
INSTRUCTIONS
Models: DAO & DBO
RETAIN THIS MANUAL FOR FUTURE REFERENCE
P/N 88701 9/05
1
CREAM DISPENSERS
APW WYOTT
P.O. Box 1829
Cheyenne, WY 82003
This equipment has been engineered to provide you with year-round dependable service when used
according to the instructions in this manual and standard commercial kitchen practices.
WARNING: Improper installation, adjustment, alteration, service or maintenance can
cause property damage, injury or death. Read the Installation, Operating and
Maintenance Instructions thoroughly before installing or servicing this equipment.
!!
R
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this manual for the life of the equipment. For
Warranty Service and/or Parts, this information is required.
ModelNumber SerialNumber DatePurchased
!
CAUTION: These models are designed, built, and sold for commercial use. If these models are
positioned so the general public can use the equipment make sure that cautions, warnings, and
operating instructions are clearly posted near each unit so that anyone using the equipment will
useitcorrectlyandnotinjurethemselvesorharmthe equipment.
!
!!
IMPORTANT: Localcodesshouldalwaysbeused when installingthisequipment.
!
!
CAUTION: Maintenance & repair should be handled by a factory authorized agent. Before doing
any maintenanceor repair, contactAPW Wyott.

2
1. Select the sit for your unit.
2. Using the base as a template, drill a 1/4
diameterhole throughyourcounter.
3. Attach the base to the counter with the
oval head screws, flat washers and keps
nuts.
Clean the machine before using it
forthe first time.
NOTE:
INSTALLATION INSTRUCTIONS
ASSEMBLY
1. Attach the machine body onto
the base. Turn the body back
and forth slightly to make sure
it is seated properly.
2. Widen the ends of the dispensinglever, and insert them throughthe holes in the base.
3. Removethe rubberbandfromthe spout and portion adjustment nuts.
4. Turn the portion adjustment nuts all the way up. The position of these nuts control the portion of
creamyoudispense.The farther up they are, the largerthe portion.
5. Pull out the stop button, and push the spout into the nylon stop assembly; then release the stop
button.This locks the spout into place.
6. Place the cup and piston into the creamer as illustrated.
OPERATION
1. The machine is supplied with two iceless coolers. Freeze the coolers for about four hours.
An iceless cooler will keep cream cool for up to 4 hours, depending on local conditions.
Use the second cooler when it becomes necessary to re-freeze the first.
2. Fill the creamer.
3. Place one cooler in the top of the machineto keep the cream cool.
4. Adjust the portion adjustmentnuts forthe desired portion.
5. To dispense cream fromthe DAO and DBO, simply lift the handle and release it.
NOTE:

3
CLEANING
SERVICE INFORMATION
1. Disassemble the machine and wash all parts in detergent and water, running the brush through
the discharge tube assembly and through the spout.
Do not drop the valve parts or wash them with other metallic objects. Be sure the 0
Rings are in the grooves of both the spout and piston stem. If they are missing or damaged, the
dispenser will leak.
2. Rinse well, first in hot water and then in iced water to cool the parts before filling the. Machine
with cream.
3. Once each week soak all parts in a sanitizing solution for at least 15 minutes, and allow them to air
dry;then reassemblethemachine.
When you place a parts order, be prepared to provide the unit's model number, in addition to part
description and part number.
Use only original APW Wyott 0 Rings which are properly sized and made of F.D.A. approvd
material.
CAUTION:
NOTE:
ILLUSTRATED PARTS BREAKDOWN
DAO Lid (37)
DBO Lid (118)
DAO Cooler (139)
DBO Cooler (145)
Piston w/O Rings (274)
Cup (46)
Spout w/ O Rings (275)
DAO Liner Gasket (21009)
DBO Liner Gasket (21163)
DAO Liner (282)
DBO Liner (291)
Gland Gasket (21005)
Gland Nut (20)
Nut (24)
Stop Button (28)
Screw (81954-00)
Washer (85053-00) Keps Nut (84168-00)
Nylon Stop (27)
O Ring 1/4
I.D. X 3/8 O.D.
(21148)
O Ring 5/16
I.D. X 7/16 O.D.
(21151)
O Ring 9/16
I.D. X 11/16 O.D.
(21151)
DAO Insulation (7)
DBO Insulation (104)
Portion Adjustment Stud (66)
Dispensing Lever Assembly
DAO (285) DBO (286)
Dispensing Lever
Assembly
DAO Base (48)
DBO Base (127)
Lockwasher 1/4 Split (85082)
Portion Adjustment Nut (24)
Bottom Gasket (21167)
[DBO Only]
Jacket Bottom (108) [DBO Only]
DAO Lower Jacket (8)
DBO Lower Jacket (259)

4

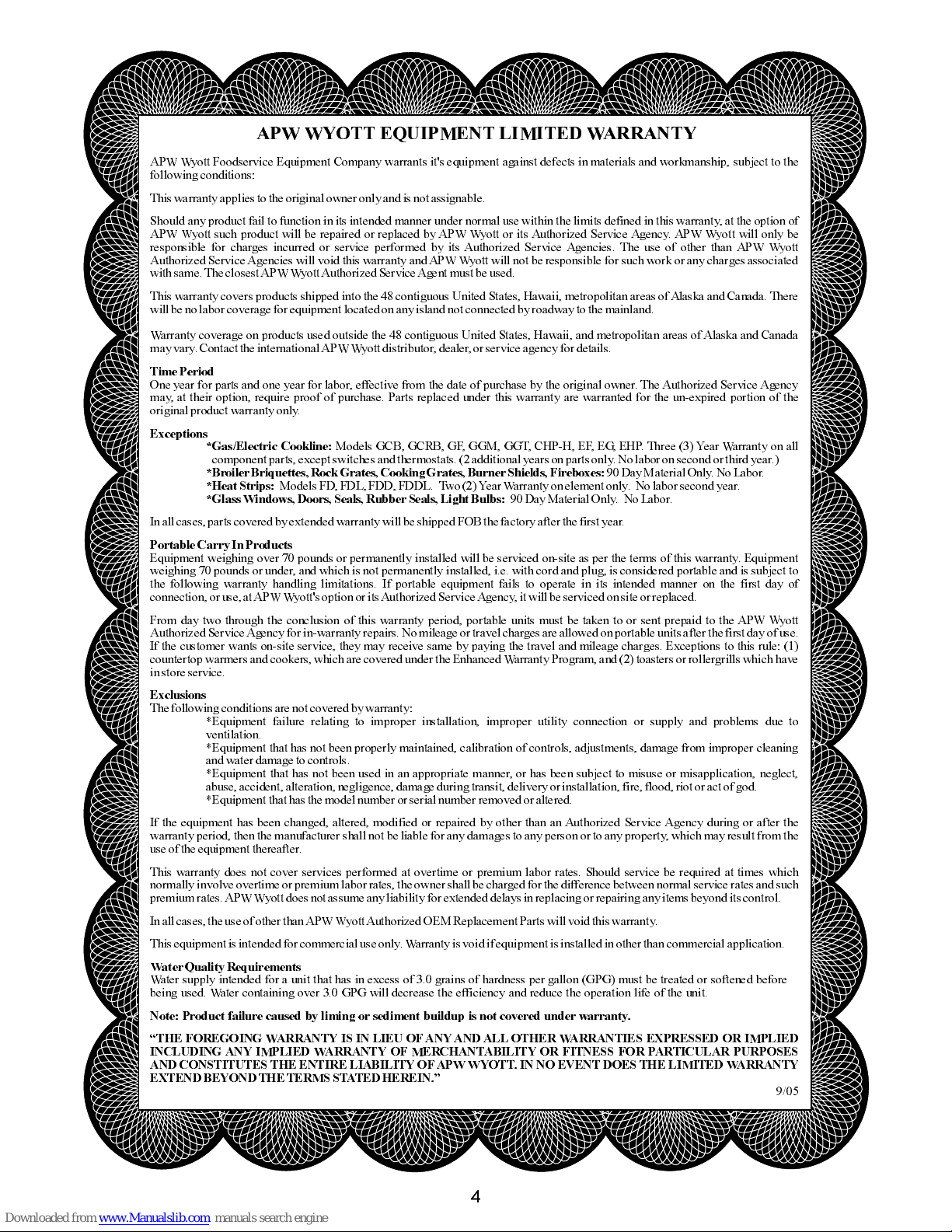

APW WYOTT EQUIPMENT LIMITED WARRANTY
APW Wyott Foodservice Equipment Company warrants it's equipment against defects in materials and workmanship, subject to the
following conditions:
This warranty applies to the original owner only and is not assignable.
Should any product fail to function in its intended manner under normal use within the limits defined in this warranty, at the option of
APW Wyott such product will be repaired or replaced by APW Wyott or its Authorized Service Agency. APW Wyott will only be
responsible for charges incurred or service performed by its Authorized Service Agencies. The use of other than APW Wyott
Authorized Service Agencies will void this warranty and APWWyott will not be responsible for such work or any charges associated
with same. The closestAPWWyottAuthorized ServiceAgent must be used.
This warranty covers products shipped into the 48 contiguous United States, Hawaii, metropolitan areas ofAlaska and Canada. There
will be no labor coverage for equipment located on any island not connected by roadway to the mainland.
One year for parts and one year for labor, effective from the date of purchase by the original owner. TheAuthorized Service Agency
may, at their option, require proof of purchase. Parts replaced under this warranty are warranted for the un-expired portion of the
original product warranty only.
Models GCB, GCRB, GF, GGM, GGT, CHP-H, EF, EG, EHP. Three (3) Year Warranty on all
component parts, except switches and thermostats. (2 additional years on parts only. No labor on second or third year.)
In all cases, parts covered by extended warranty will be shipped FOB the factory after the first year.
Equipment weighing over 70 pounds or permanently installed will be serviced on-site as per the terms of this warranty. Equipment
weighing 70 pounds or under, and which is not permanently installed, i.e. with cord and plug, is considered portable and is subject to
the following warranty handling limitations. If portable equipment fails to operate in its intended manner on the first day of
connection, or use, atAPWWyott's option or itsAuthorized Service Agency, it will be serviced on site or replaced.
From day two through the conclusion of this warranty period, portable units must be taken to or sent prepaid to the APW Wyott
Authorized Service Agency for in-warranty repairs. No mileage or travel charges are allowed on portable units after the first day of use.
If the customer wants on-site service, they may receive same by paying the travel and mileage charges. Exceptions to this rule: (1)
countertop warmers and cookers, which are covered under the Enhanced Warranty Program, and (2) toasters or rollergrills which have
in store service.
The following conditions are not covered by warranty:
*Equipment failure relating to improper installation, improper utility connection or supply and problems due to
ventilation.
*Equipment that has not been properly maintained, calibration of controls, adjustments, damage from improper cleaning
and water damage to controls.
*Equipment that has not been used in an appropriate manner, or has been subject to misuse or misapplication, neglect,
abuse, accident, alteration, negligence, damage during transit, delivery or installation, fire, flood, riot or act of god.
*Equipment that has themodel number or serial number removed oraltered.
If the equipment has been changed, altered, modified or repaired by other than an Authorized Service Agency during or after the
warranty period, then the manufacturer shall not be liable for any damages to any person or to any property,which may result from the
use of the equipment thereafter.
This warranty does not cover services performed at overtime or premium labor rates. Should service be required at times which
normally involve overtime or premium labor rates, the owner shall be charged for the difference between normal service rates and such
premium rates.APWWyott doesnot assume anyliability for extended delaysin replacing orrepairing any items beyondits control.
In all cases, the use of other thanAPWWyottAuthorized OEM Replacement Parts will void this warranty.
This equipment is intended for commercial use only. Warranty is void if equipment is installed in other than commercial application.
Water supply intended for a unit that has in excess of 3.0 grains of hardness per gallon (GPG) must be treated or softened before
being used. Water containing over 3.0 GPG will decrease the efficiency and reduce the operation life of the unit.
9/05
Warranty coverage on products used outside the 48 contiguous United States, Hawaii, and metropolitan areas of Alaska and Canada
may vary. Contact the internationalAPWWyott distributor, dealer, orservice agency for details.
Models FD, FDL, FDD, FDDL. Two (2) Year Warranty on element only. No labor second year.
Time Period
Exceptions*Gas/Electric Cookline:
*Glass Windows, Doors, Seals, Rubber Seals, Light Bulbs:
Portable Carry In Products
Exclusions
Water Quality Requirements
Note: Product failure caused by liming or sediment buildup is not covered under warranty.
THE FOREGOING WARRANTY IS IN LIEU OFANY AND ALL OTHER WARRANTIES EXPRESSED OR IMPLIED
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSES
AND CONSTITUTES THE ENTIRE LIABILITY OFAPW WYOTT. IN NO EVENT DOES THE LIMITED WARRANTY
EXTEND BEYOND THE TERMS STATED HEREIN.
*BroilerBriquettes,
*Heat Strips: RockGrates, CookingGrates, Burner Shields, Fireboxes:
90Day MaterialOnly. NoLabor.
90 Day Material Only. No Labor.
