Aqua Creek Products Power EZ 2 User manual

MANDATORY
LEAVE THIS MANUAL WITH OWNER
Read and follow all instructions.
Lift safety can only be ensured if the lift is
installed and operated according to these
instructions.
• FOR SAFETY REASONS
• NEVER swim alone
• NEVER use the lift with a dry pool
• NEVER apply direct water pressure to the electronics
• NEVER permit children to play on or around the lift
• DO NOT allow children to use the lift without adult
supervision
USE THIS MANUAL FOR PART #’s:
F-EZPL2
8/15/2022 12:41:43 PM PAGE - 1
EZ2
CATALOG NO. F-EZPL2
READ CAREFULLY
Check entire box and all packing
materials for parts. Before beginning
assembly, read the instructions and
identify parts using the figures and
parts listed in this document.
It is critical that all parts be carefully
inspected prior to installation. If any
damage occurred in transit, Aqua Creek
Products, LLC must be notified within
three days of receipt of unit.
Proper installation cannot be
overstressed, as an improper
installation voids Aqua Creek’s warranty
and may affect the safety of the user.
Aqua Creek Products, LLC
9889 Garrymore Lane
Missoula, MT 59808
Toll Free: [phone]
Local/Intnl: [phone]
www.aquacreek.com

8/15/2022 12:41:43 PM PAGE - 2
Aqua Creek Products
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING
WARNING - To reduce the risk of injury, do not permit children to use this
product unless they are closely supervised at all times.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
A wire connector is provided on the unit to connect a minimum 8 AWG (8.4mm2)
solid copper conductor between this unit and the means for local equipotential
bonding.
Check the unit periodically for signs of deterioration: Keep all nuts, bolts and screws
tight to be sure the lift is in safe working condition.
Affix supplied ADA POOL/SPA LIFT sign in a location visible from the lift at all times.
Rechargeable batteries are to be removed from the appliance before being charged.
Batteries are to be inserted with the correct polarity. If the appliance is to be stored
unused for a long period of time, the batteries should be removed and stored on the
wall mounted charger to maintain the battery charge.The supply terminals are not to
be short-circuited.
REDUCE THE RISK OF DROWNING!
Supervise children at all times.
No jumping or diving from the lift.
Seat may be hot, use caution when entering.
Keep covered when not in use. Inspect and clean before use.
INDOOR BATTERY CHARGER:
AMPERAGE = 0.65 FREQUENCY = 60
24 VOLT BATTERY
AMPERAGE = 10 IP RATING = IPX5
SAVE THESE INSTRUCTIONS

4
PRODUCT COMPONENTS
ASSEMBLY - STEP 01 THRU 03
5
ASSEMBLY - STEP 04 THRU 07
6
ASSEMBLY - STEP 08 THRU 09
7
EZ2 - CATALOG NO. F-EZPL2
PAGE
PAGE
Aqua Creek Products
TABLE OF CONTENTS
8/15/2022 12:41:43 PM PAGE - 3
PRODUCT DOCUMENTS PRODUCT DOCUMENTS
1
COVER SHEET
TABLE OF CONTENTS
3
IMPORTANT SAFETY
INSTRUCTIONS
2
INSPECTION REPORT
8
VISUAL INSPECTION
11
PHYSICAL INSPECTION
12
WARRANTY
CARE
9
10

2
1
8
5
3
4
6
7
EZ2 - INV01521

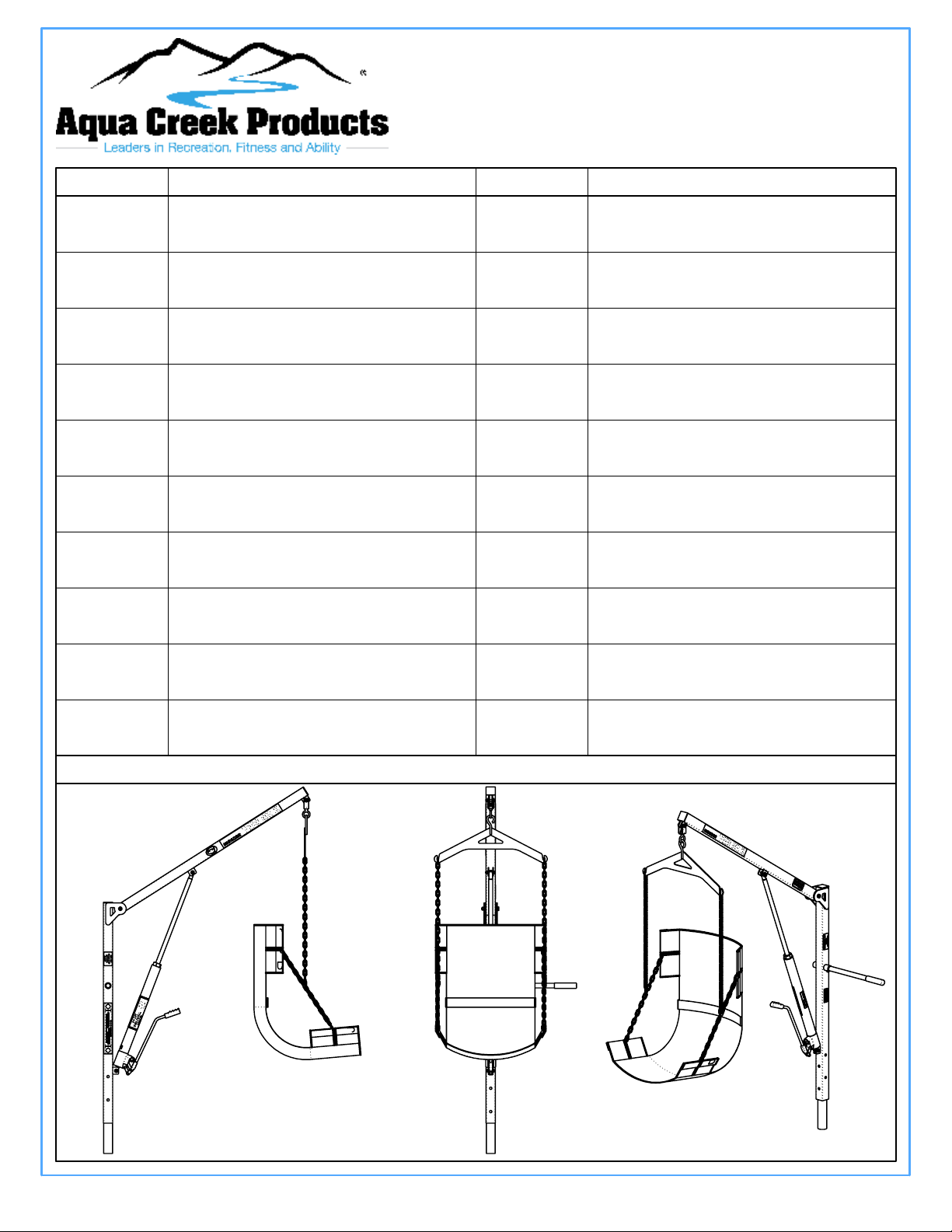

ITEM PART NO. QTY. REV. DESCRIPTION
1 INV03081 1 P2 ASSEMBLY - MAST - (EZ2)
2 INV01520 1 P1 ASSEMBLY - BOOM ARM - (EZ2)
3 INV01395 1 P1 ACTUATOR KIT - HYDRAULIC RAM (EZ2)
4 INV01397 1 P1 ASSEMBLY - SWIVEL - (EZ SERIES)
5 INV01394 1 P1 WELDMENT - HANGER BAR - (EZ SERIES)
6 INV01383 1 P1 ASSEMBLY - CHAIN SET - EZ SERIES
7 INV01386 1 P1 ASSEMBLY - SLING - WITH BARS
8 INV01412 1 P1 ASSEMBLY - TURN BAR
8/15/2022 12:41:43 PM PAGE - 4
Aqua Creek Products
PRODUCT COMPONENTS

BS - 1/2"X2 3/4"X3/8"-16 SHOULDER BOLT
PART NO. INV00455
WF - 3/8" FLAT WASHER
PART NO. INV01174
NN - 3/8"-16 NYLOCK NUT
PART NO. INV00739

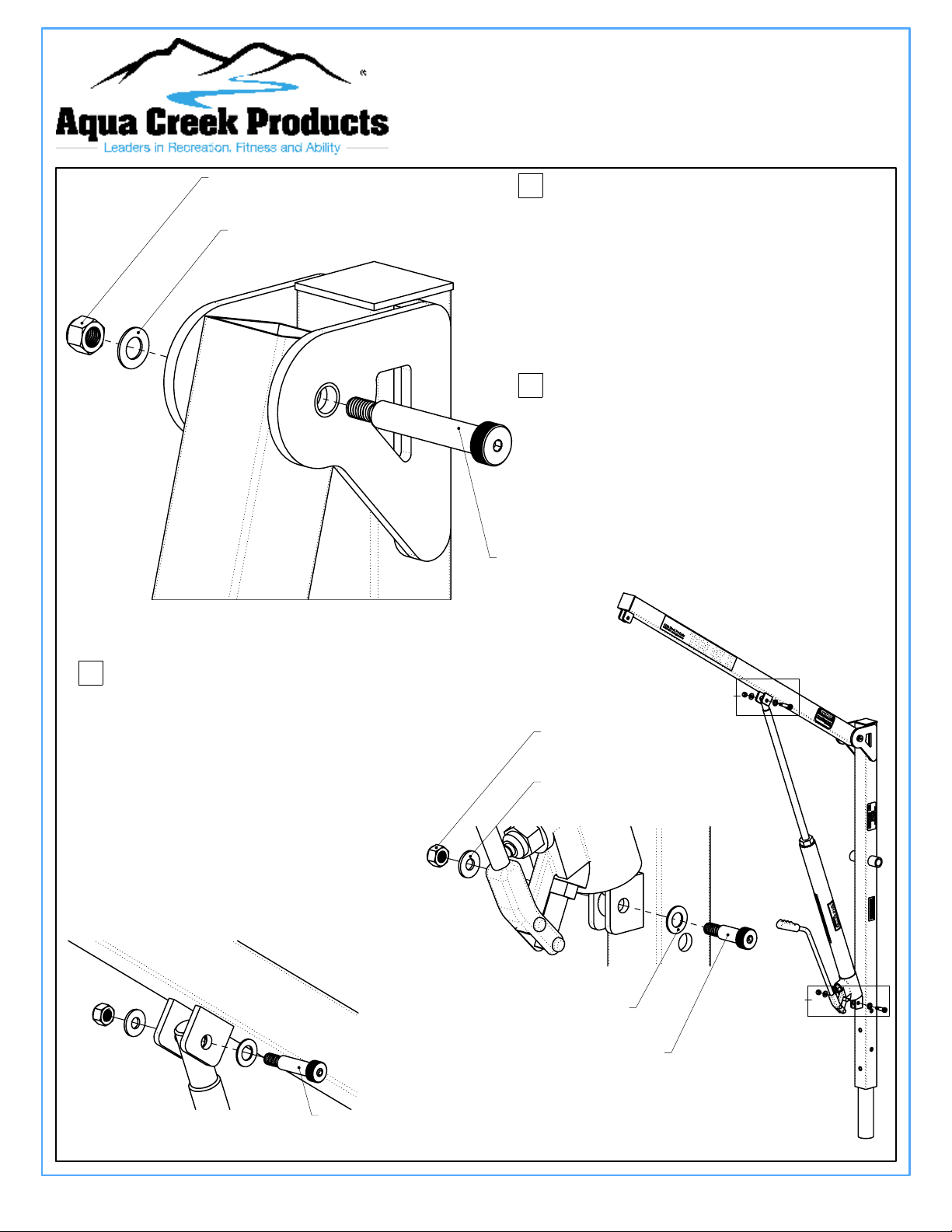

1
LIFT THE EZ2 MAST ASSEMBLY FROM
THE SHIPPING CONTAINER. INSERT THE
1.90" [48mm] POST OF THE MAST
ASSEMBLY INTO THE DECK ANCHOR. EASE
THE MAST ASSEMBLY DOWN UNTIL IT
RESTS ON THE INNER SURFACE OF THE
ANCHOR. THE SQUARE MAST TUBE WILL
REMAIN ABOVE THE DECK SURFACE
APPROXIMATELY 1/2"
2
REMOVE THE BOOM ARM FROM THE
SHIPPING BOX. CONNECT THE BOOM ARM
TO THE MAST. TIGHTEN NYLOCK NUTS.
NOTE: BE CAREFUL NOT TO OVERTIGHTEN
BOLTS. OVER-TIGHTENING
CAN CAUSE DAMAGE AND COMPROMISE
THE SAFETY OF YOUR LIFT.
STEP 03-A
STEP 03-B
DETAIL STEP 03-A
SCALE 1 : 3
WF - 5/16" FLAT WASHER
PART NO. INV01176
NN - 5/16"-18 NYLOCK NUT
PART NO. INV00742
WF - 3/8" FLAT WASHER
PART NO. INV01174
BS - 3/8"X7/8"X5/16"-18 SHOULDER BOLT
PART NO. INV01870
DETAIL STEP 03-B
SCALE 1 : 3
BS - 3/8"X1 1/4"X5/16"-18 SHOULDER BOLT
PART NO. INV00461
3
REMOVE THE HYDRAULIC RAM FROM
THE SHIPPING BOX. CONNECT THE
HYDRAULIC RAM TO THE MAST AND BOOM
ARM. TIGHTEN NYLOCK NUTS.
NOTE: BE CAREFUL NOT TO OVERTIGHTEN
BOLTS. OVER-TIGHTENING
CAN CAUSE DAMAGE AND COMPROMISE
THE SAFETY OF YOUR LIFT.
Aqua Creek Products
PRODUCT ASSEMBLY
8/15/2022 12:41:43 PM PAGE - 5

4
REMOVE THE SWIVEL FROM THE SHIPPING BOX.
CONNECT THE SWIVEL TO THE BOOM ARM. TIGHTEN
NYLOCK NUTS.
NOTE: BE CAREFUL NOT TO OVERTIGHTEN BOLTS. OVER-
TIGHTENING CAN CAUSE DAMAGE AND COMPROMISE THE
SAFETY OF YOUR LIFT.
BS - 3/8"X1 1/4"X5/16"-18 SHOULDER BOLT
PART NO. INV00461
WF - 5/16" FLAT WASHER
PART NO. INV01176
NN - 5/16"-18 NYLOCK NUT
PART NO. INV00742
STEP 05
STEP 06
STEP 07
DETAIL STEP 05
SCALE 1 : 3
DETAIL STEP 06
SCALE 1 : 2
DETAIL STEP 07
SCALE 1 : 4
5
REMOVE THE HANGER BAR FROM THE
SHIPPING BOX. CONNECT THE HANGER BAR
TO THE SWIVEL.
6
REMOVE THE CHAINS AND QUICK LINKS
FROM THE SHIPPING BOX. CONNECT THE
CHAINS TO THE HANGER BAR.
7
REMOVE THE SLING AND SLING BARS
FROM THE SHIPPING BOX. CONNECT THE
SLING BARS TO THE QUICK LINKS. ADJUST
CHAINS ON HANGER BAR TO YOUR REQUIRED
HEIGHT.
8/15/2022 12:41:43 PM PAGE - 6
EZ2
CATALOG NO. F-EZPL2

8
REMOVE THE TURN BAR FROM THE SHIPPING BOX.
CONNECT THE TURN BAR TO THE MAST.
NOTE: BE CAREFUL NOT TO OVERTIGHTEN BOLTS. OVER-
TIGHTENING CAN CAUSE DAMAGE AND COMPROMISE THE
SAFETY OF YOUR LIFT.
BB - 1/4"-20X1/2" BUTTON HEAD BOLT
PART NO. INV00345
WL - 1/4" LOCK WASHER
PART NO. INV01182
WF - 1/4" FLAT WASHER
PART NO. INV01170
9
WITH THE LIFT FULLY ASSEMBLED AND ANCHORED, RUN THE LIFT COMPLETELY OUT
AND BACK IN 3 TO 5 TIMES, WITHOUT WEIGHT, FOR THE LIFTS "BREAK IN" CYCLE PERIOD.
CONGRATULATIONS, YOUR LIFT IS NOW READY FOR USE!
MOVE HANDLE
UP AND DOWN
TO RAISE LIFT
PUSH HAND UP AND
HOLD TO LOWER LIFT
DO NOT PUSH OR PULL AGAINST
THE HYDRAULIC RAM - IT WILL CAUSE
DAMAGE TO THE LIFT
46.69cm
R18
3
8
"
139.71cm
R55"
360
MANUAL
ROTATION
8/15/2022 12:41:43 PM PAGE - 7
EZ2
CATALOG NO. F-EZPL2
LIFT FUNCTION

https://aquacreekproducts.com/help-center/troubleshooting/
8/15/2022 12:41:43 PM PAGE - 8
Aqua Creek Products Annual Pool Lift Safety
INSPECTION REPORT
LIFT / INSPECTION INFORMATION
Test Date:
Pool Lift Model:
Serial Number:
Inspected By:
Find additional trouble shooting info. and videos at:
For Additional Support Assistance Call:
Toll Free: 888-687-3552
International: 1+406-549-0769
Maintenance Notes:
Please read and fill out all
information carefully
Improper use and/or maintenance of pool lift can lead to actuator and/or other mechanical failures and
possible personal injury. Please read and follow the product operators' manual and the instructions
below.
NOTE: Completely cycle the lift without a load before each use to
verify the lift is functioning properly
.
Product service life depends on the load characteristics, type and frequency of use, and the environment in •
which the product is being used. For example, persons not calmly sitting but falling down with their full body
weight in the chair, or using the pool lift's chair as a diving platform can cause premature actuator failure
and/or possible personal injury.
Based on historical product service life analysis, Aqua Creek recommends replacing the actuator(s) and other •
electronic components after 5 years of service. Check component serial numbers and purchase records to
verify the age of your components.
A functional weight lifting force of a maximum of 100lbs. Must be periodically verified by applying a non-live •
load (without a person) through the entire operating cycle of the lift. This process is performed in order to
verify the smooth operation. Make note of any unusual noises or sudden movements coming from the
actuator(s) or other components. Note: In some lifts, a sudden quick movement at the beginning of the
cycle is normal but should smooth out over the course of operation.
Creating a side load on the actuator by pushing and/or pulling on the actuator, especially under load •
conditions, can cause damage to the actuator and or personal injury.
Electronic components are designed to be plug-and-play type replacements. There is no need to access the •
internal mechanisms in these components. The actuator, battery, and all electronic components may only be
disassembled by authorized factory-trained personnel. Disassembly of electronic components by improperly
trained and unauthorized persons will void the warranty on those components.
The operator of the pool lift should never allow the pool lift to hit any stationary object either vertically or •
horizontally while operating a pool lift, i.e. walls, ceiling, pool/spa bench, etc.
For quick and accurate troubleshooting and inspections, we recommend having a voltage meter, Vito Battery •
Check Cable (Item F-VTC002) and an Aqua Creek Test Light (Item F-01TL) on hand as well as adequate test
and replacement components for the unit.
Remove the pool lift from service immediately if any unusual noise is heard coming from the actuator such as •
grinding, popping or sudden inconsistent movements.
Immediately remove from service any lift that does not have 100% compliance with the inspection until the •
appropriate corrections have been made by a qualified person.

8/15/2022 12:41:43 PM PAGE - 9
Aqua Creek Products Annual Pool Lift Safety
INSPECTION REPORT
1. OVERALL VISUAL INSPECTION
INSPECTION ITEM PASS FAIL N/A
Corrosion is common with anything in a swimming pool environment; even stainless steel. Proper and
regular maintenance and cleaning will prevent most instances of corrosion. Replace any components
that have corrosion caused pitting, cracking, thinning of the base metal, or other instances of
corrosion that can't be eliminated and/or minimized through thorough cleaning. Refer to
product manual for additional maintenance instructions. Make comments and/or recommendations in
the notes area below each section.
Anchor bolts, concrete around anchors, etc… are in good condition. 1.
No cracks in concrete, missing hardware, and anchors are installed
correctly.
The fixing anchor is installed correctly and is in good condition. 2.
Powder coated components are clean, corrosion free, and in good 3.
overall condition. Clean and repair any missing powder coat
finish. Apply a coat of was on the cleaned and repaired finish.
Welded joints show no signs of cracks or fatigue. Replace any 4.
non-compliant components.
Hardware is present, secure, and not corroded (bolts, nuts, 5.
bushings, etc…).
All wiring routing clips are present and in good condition. 6.
All product warning labels are present and legible. 7.
Plastic seat, foot rest, and other plastic components are present 8.
and in good shape.
Armrest hand grips are present, in good condition, and are well 9.
secured to the arms.
Electronic and lift covers are present and in good condition (Lift 10.
covers are highly recommended for outdoor installations).
Inspect rotation gears for any damage or missing teeth. Inspect 11.
rotation motor gear and alignment to ensure proper rotation of the
lift.
Inspect lift slings, seat belts, and other similar stitched and 12.
webbed or weaved materials for damage, fatigue, and/or
deterioration. Replace at first sign of any fatigue or damage.
NOTES/RECOMMENDATIONS:

NOTES/RECOMMENDATIONS:
With all connections connected, operate the lift through a 1.
complete cycle without weight to confirm the lift is functioning
correctly. Note any strange noises and any unusual operation.
Verify the lift was installed correctly; is the lift free to travel in and 2.
out of the pool without hitting anything like a wall, rail, bench,
etc…
Rotate lift at least 90 degrees over the water and back again if 3.
applicable.
A physical test of the lift function is required when doing an annual inspection. NOTE: The lift should
always be run through a completed cycle without a load prior to each use. The annual test should be
ran both empty and with a typical load weight to test the lift's functions. Make comments and/or
recommendations in the notes area below each section.
N/A FAIL PASS INSPECTION ITEM
1. PHYSICAL POOL LIFT TEST
Aqua Creek Products Annual Pool Lift Safety
INSPECTION REPORT
8/15/2022 12:41:43 PM PAGE - 10

8/15/2022 12:41:43 PM PAGE - 11
LIMITED FIVE (5)
YEAR WARRANTY:
Aqua Creek Products, LLC (a.k.a. Aqua Creek) warrants to the original end user purchaser that products manufactured by Aqua
Creek, when properly installed in accordance with assembly and installation instructions, and properly used and maintained, shall
be free from defects in material and workmanship for a period of
five (5) years from the date of original purchase
,
provided that Aqua Creek receives prompt notice in writing of any defect or failure and satisfactory proof thereof, with the
following exception(s):
Exceptions:
All electrical components, including the linear actuator shall have the following warranty period: •
Year 1-2: 100% Coverage •
Year 3: 60% Coverage (Customer is responsible for 40% of replacement cost) •
Year 4: 50% Coverage (Customer is responsible for 50% of replacement cost) •
Year 5: 40% Coverage (Customer is responsible for 60% of replacement cost) •
Hydraulic actuators and mesh slings shall have a warranty period of
one (1) year from the date of original purchase
. •
Powder coat finish scratches, scrapes, corrosion, or dents from customers normal use, negligence, or abuse. •
This warranty specifically excludes reimbursement for labor to remove, repair, or install the product and any shipping charges.
These warranties do not cover any damages due to accident, force majeure, act of nature, misuse, abuse, negligence or failure to
properly maintain any products, or normal wear and tear from day to day operations. In the event that any products are altered,
repaired, or improperly installed or improperly used by anyone without the prior written approval by Aqua Creek, all warranties
are void. IMPORTANT: AMOUNT OF WEIGHT PLACED ON LIFT SHALL NOT EXCEED THE RATED LIFTING CAPACITY FOR THE LIFT.
NEVER OPERATE THE LIFT UNDER LOAD IN A DRY POOL (WITH NO WATER IN THE POOL). It is the responsibility of the lift owner to
verify the weight of the patron for warranty claim purposes and to ensure that the lift is not overloaded. Non-payment for
product to Aqua Creek may void warranty.
To initiate a warranty claim, the owner of an Aqua Creek product must provide the place of purchase, in writing, with a full
description of the product, its serial number, the dates of purchase and installation, and the exact nature of the defect. Within
thirty (30) days after receipt of a written warranty claim by Aqua Creek, and barring any unforeseen delays, the place of purchase
will be notified of Aqua Creek’s decision regarding the claim.
If requested by Aqua Creek, any defective product must be returned, freight prepaid by customer, to Aqua Creek’s designated
factory location or duly appointed distributor for inspection and/or repair. Aqua Creek will, at its option, repair or replace the
failed or defective item, and deliver the repaired product or replacement to the customer. All freight charges are the
responsibility of the customer. Products returned to Aqua Creek for which Aqua Creek provides replacement under this limited
warranty shall become the property of Aqua Creek. A new warranty period shall
NOT
be established for the repaired or replaced
products. Such products shall remain under warranty only for the remainder of the original warranty period on the original
products purchased.
This written limited warranty constitutes the final, complete and exclusive statement of warranty terms. No person or
organization is authorized to make any other specific or implied warranties or representations on behalf of Aqua Creek.
THE WARRANTIES SET FORTH HEREIN ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, WHICH ARE HEREBY
DISCLAIMED AND EXCLUDED, INCLUDING WITHOUT LIMITATION ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE OR USE.
THE SOLE AND EXCLUSIVE REMEDIES FOR BREACH OF ANY AND ALL WARRANTIES WITH RESPECT TO THE PRODUCTS SHALL BE
LIMITED TO REPAIR OR REPLACEMENT AT AQUA CREEK’S DESIGNATED FACTORY LOCATION, OR DULY APPOINTED DISTRIBUTOR,
OR IN PLACE AT AQUA CREEK’S OPTION. IN NO EVENT SHALL AQUA CREEK’S LIABILITY EXCEED THE ENTIRE AMOUNT PAID TO
AQUA CREEK BY THE ORIGINAL PURCHASER FOR THE FAILED OR DEFECTIVE PRODUCT. IN NO EVENT SHALL AQUA CREEK
PRODUCTS, LLC BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES OR
LOST PROFITS FROM ANY BREACH OF THIS LIMITED WARRANTY OR OTHERWISE.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH MAY VARY FROM STATE TO
STATE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES,
SO SOME OF THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
Aqua Creek Products, LLC
9889 Garrymore Lane
Missoula, MT 59808
Toll Free: [phone]
Local/Intnl: [phone]
www.aquacreek.com

8/15/2022 12:41:43 PM PAGE - 12
Aqua Creek Products
PROPER CARE OF LIFTS
PROCEDURE
DAILY WEEKLY
BEFORE
EACH USE
MONTHLY
Check battery level indicator on control box.
Run the lift through a complete test cycle (fully
extend actuator) to verify it is functioning
properly.
Wash lift with fresh water and dry with clean,
solft, non-abrasive cloth.
Recharge battery.
Visually inspect lift for damage, corrosion, and
loose or missing hardware.
Check all contact points for damage and/or
corrosion.
Repair, clean and apply dielectric grease to all
contact points.
Thoroughly clean lift frame and apply a liberal
coat of car wax to maintain the lift's finish.
Check all Warning and Cautionary labels to
make sure they are not faded or worn. Replace
as needed.
PROPER CARE NOTES:
• Use only fresh water to wash your lift. Do not wash with pool water.
• Use only clean, soft, non-abrasive cloths on your lift.
• Do not store lift in pump room or near chemicals.
• Do not allow children to play on or around this lift.
• When cleaning the lift, do not spray water directly on control box or battery.
• The lift may need to be bonded according to local code requirements.
• If the lift is not used for extended periods, remove the battery from the lift and
store it on the wall charger to maintain the battery's charge. The charger should be
plugged in and in a climate controlled area.
STAIN REMOVAL NOTES:
To remove stubborn stains from finish, spray affected area with mild dish
soap, rub briskly with a 3M Scotch Brite™ pad. Use white epoxy paint to
touch up the finish. Apply wax to protect when dry.
For service and/or replacement parts, contact
Toll free: [phone]
N/A
N/A
N/A
