Aqua Creek Products Patriot-AT1 User manual

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/18/19
Patriot-AT1
Portable Lift
Check entire box and inside all packing materials for parts. Before beginning assembly, read the
instructions and identify parts using the fi gures and parts listed in this document.
It is critical all parts be carefully inspected by the installer prior to installation to ensure no damage
occurred in transit and a damaged part is not used. If any damage occurred in transit, Aqua Creek
Products, LLC must be notifi ed within three days of receipt of unit.
Proper installation cannot be overstressed, as an improper installation voids Aqua Creek’s warranty
and may affect the safety of the user.
READ CAREFULLY
PART #: F-12PPL-HD-AT1-05
US PATENT NUMBER: [D507,769 S] [7,249,386 B2]
375 LB. [170 kg] MAXIMUM WEIGHT CAPACITY
MANDATORY
LEAVE THIS MANUAL WITH LIFT OWNER
Read and follow all instructions.
Lift safety can only be ensured if the lift is installed and
operated according to these instructions.
• NEVER permit children to play on or around the lift
• Do not allow children to use the lift without adult
supervision
• NEVER apply direct water pressure to the electronics
• Do not use the Patriot-AT1 for deck-to-waterline
measurements over 12”
• NEVER operate lift without 600lbs of sand in ballast
• NEVER use the lift with a dry pool
• For safety reasons, NEVER swim alone
ADA COMPLIANT
1

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/18/19
Patriot-AT1 Components
1. PATRIOT-AT1 LIFT
2. LINAK BATTERY CHARGER
3. 24V LINAK BATTERY
4. VITO HANDSET REMOTE
5. SEAT BELT
6. PVC INSERT
7. 4 1/2” HEX BOLT
8. 1/2” FLAT WASHER
9. *HARDWARE PACKAGE
10. *ADA LIFT SIGN
11. *LUBRICANT PACKET
12. *600LBS OF SAND (NOT INCLUDED)
*ITEMS NOT SHOWN
Patriot-AT1 Lift
Table of Contents
PAGE DESCRIPTION PAGE DESCRIPTION
2 Patriot-AT1 Components 10 Basic Troubleshooting
3 ADA Installation Guidelines 11 Pinch Point Locations
4-5 Patriot-AT1 Lift Assembly Instructions 12 Proper Care of Pool & Spa Lifts
6 Footrest Installation Instructions 13-14 Patriot-AT1 Parts List
7 Fixing Kit Installation Instructions 15 Warranty
8-9 Patriot-AT1 Transportation Instructions
2
36
8
7
5
1
4
FIXING
KIT
ITEMS
2

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/18/19
Installation: ADA Guidelines
ADA REQUIREMENTS:
The Patriot-AT1 Lift is completely ADA Compliant when installed correctly.
The installation must meet the following requirements:
• Clear Deck Space Dimensions (see FIGURE 1)• Centerline of seat between 16 inches and 22 inches from the pool edge• Deck slope no greater than 1:48• The seat must go at least 18 inches into the water. The lift should be installed at a location with 44 inches to 48 inches of depth (deck to pool  oor)*Setback distance will vary on curved walls, contact Aqua CreekNOTE: The FIXING BOLT is used to  x the portable lift in place and to ensure that it remains in an ADA approved location. This makes the lift fully ADA compliant.
36"
48"
12"
* 9" TO 14"
(SETBACK RANGE)
16" TO 22"
26" TO 31"
38 1/2"
70"
ADA REQUIRED
CLEAR DECK SPACE
CHAIR
C
L
POOL WALL
FIXING-BAR
FIXING-BOLT
FIGURE 1
3

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/18/19

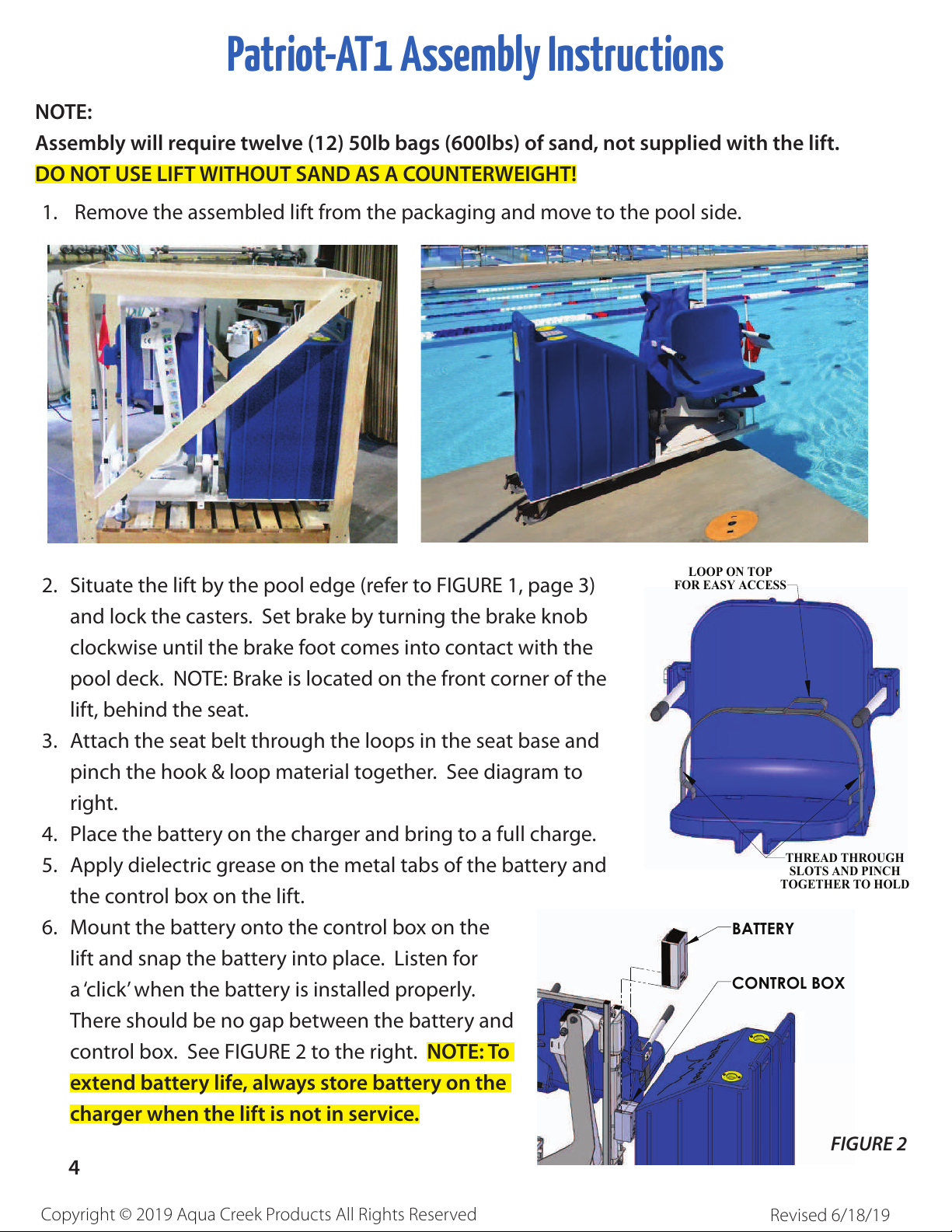

Patriot-AT1 Assembly Instructions
NOTE:
Assembly will require twelve (12) 50lb bags (600lbs) of sand, not supplied with the lift.
DO NOT USE LIFT WITHOUT SAND AS A COUNTERWEIGHT!
1. Remove the assembled lift from the packaging and move to the pool side.2. Situate the lift by the pool edge (refer to FIGURE 1, page 3) and lock the casters. Set brake by turning the brake knob clockwise until the brake foot comes into contact with the pool deck. NOTE: Brake is located on the front corner of the lift, behind the seat.3. Attach the seat belt through the loops in the seat base and pinch the hook & loop material together. See diagram to right.
4. Place the battery on the charger and bring to a full charge.5. Apply dielectric grease on the metal tabs of the battery and the control box on the lift.6. Mount the battery onto the control box on the lift and snap the battery into place. Listen for a ‘click’ when the battery is installed properly. There should be no gap between the battery and control box. See FIGURE 2 to the right. NOTE: To
extend battery life, always store battery on the
charger when the lift is not in service.
LOOP ON TOP
FOR EASY ACCESS
THREAD THROUGH
SLOTS AND PINCH
TOGETHER TO HOLD
BATTERY
CONTROL BOX
FIGURE 2
4

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/18/19

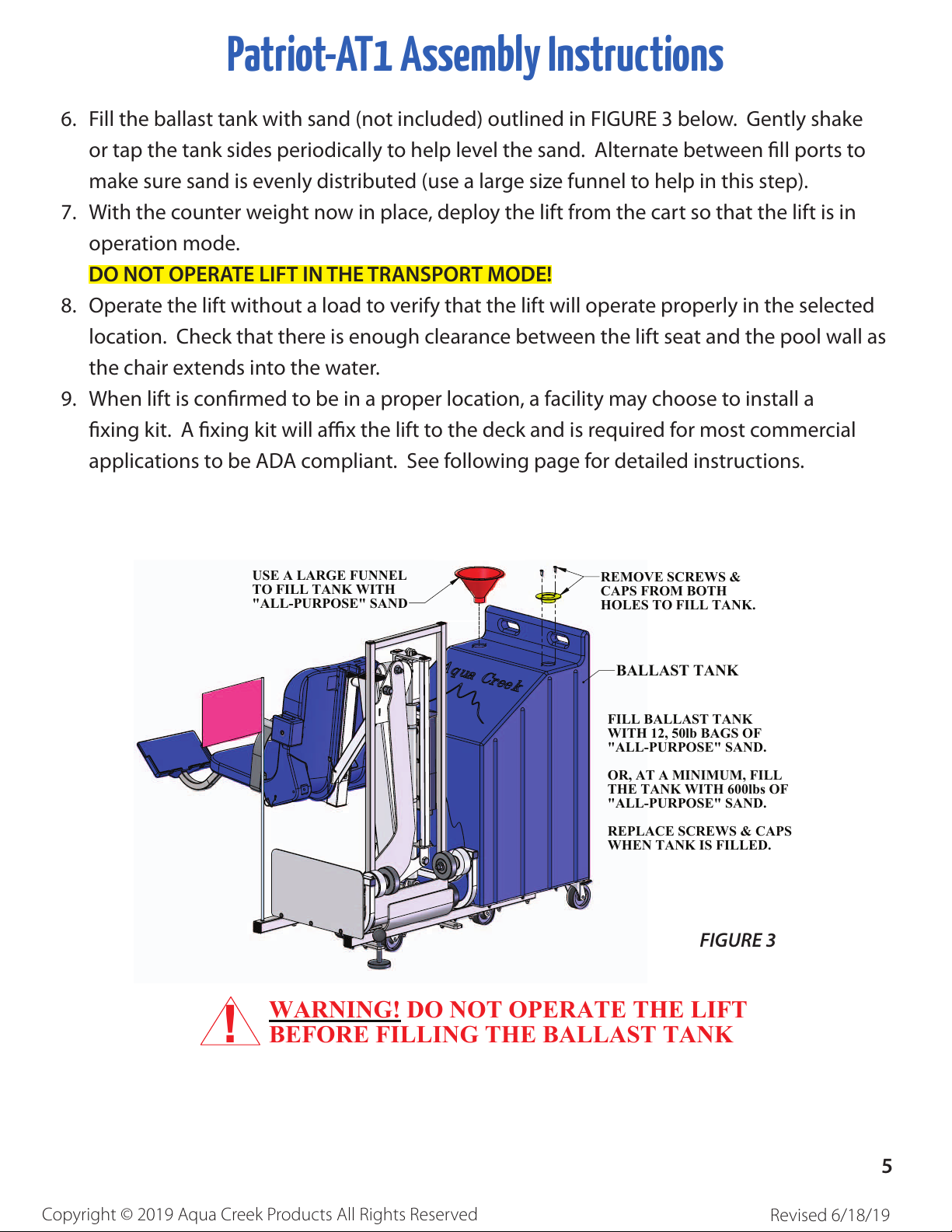

6. Fill the ballast tank with sand (not included) outlined in FIGURE 3 below. Gently shake or tap the tank sides periodically to help level the sand. Alternate between  ll ports to make sure sand is evenly distributed (use a large size funnel to help in this step).7. With the counter weight now in place, deploy the lift from the cart so that the lift is in operation mode.
DO NOT OPERATE LIFT IN THE TRANSPORT MODE!
8. Operate the lift without a load to verify that the lift will operate properly in the selected location. Check that there is enough clearance between the lift seat and the pool wall as the chair extends into the water.9. When lift is con rmed to be in a proper location, a facility may choose to install a  xing kit. A  xing kit will affi x the lift to the deck and is required for most commercial applications to be ADA compliant. See following page for detailed instructions.Patriot-AT1 Assembly Instructions
REMOVE SCREWS &
CAPS FROM BOTH
HOLES TO FILL TANK.
FILL BALLAST TANK
WITH 12, 50lb BAGS OF
"ALL-PURPOSE" SAND.
OR, AT A MINIMUM, FILL
THE TANK WITH 600lbs OF
"ALL-PURPOSE" SAND.
REPLACE SCREWS & CAPS
WHEN TANK IS FILLED.
BALLAST TANK
WARNING! DO NOT OPERATE THE LIFT
BEFORE FILLING THE BALLAST TANK
!
USE A LARGE FUNNEL
TO FILL TANK WITH
"ALL-PURPOSE" SAND
FIGURE 3
5

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/18/19
Footrest Installation Instructions
The Aqua Creek footrest assembly is designed to t under the chair and is installed inside the 2”
square tubing that supports the chair from underneath. To install the footrest;
1. Insert the footrest assembly into the 2 x 2 square tubing that supports the chair until the
plastic insert of the footrest assembly sits ush against the end of the 2 x 2 tube.
2. Using the supplied 1/4” hardware, fasten the legrest assembly to the 2 x 2 tubing using a 5/32”
allen wrench.
1/4" FLAT WASHER
1/4" LOCK WASHER
1/4" X 1/2" BUTTON-HEAD
FOOTREST ASSEMBLY
FOOTREST IN FOOTREST OUT
6

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/18/19

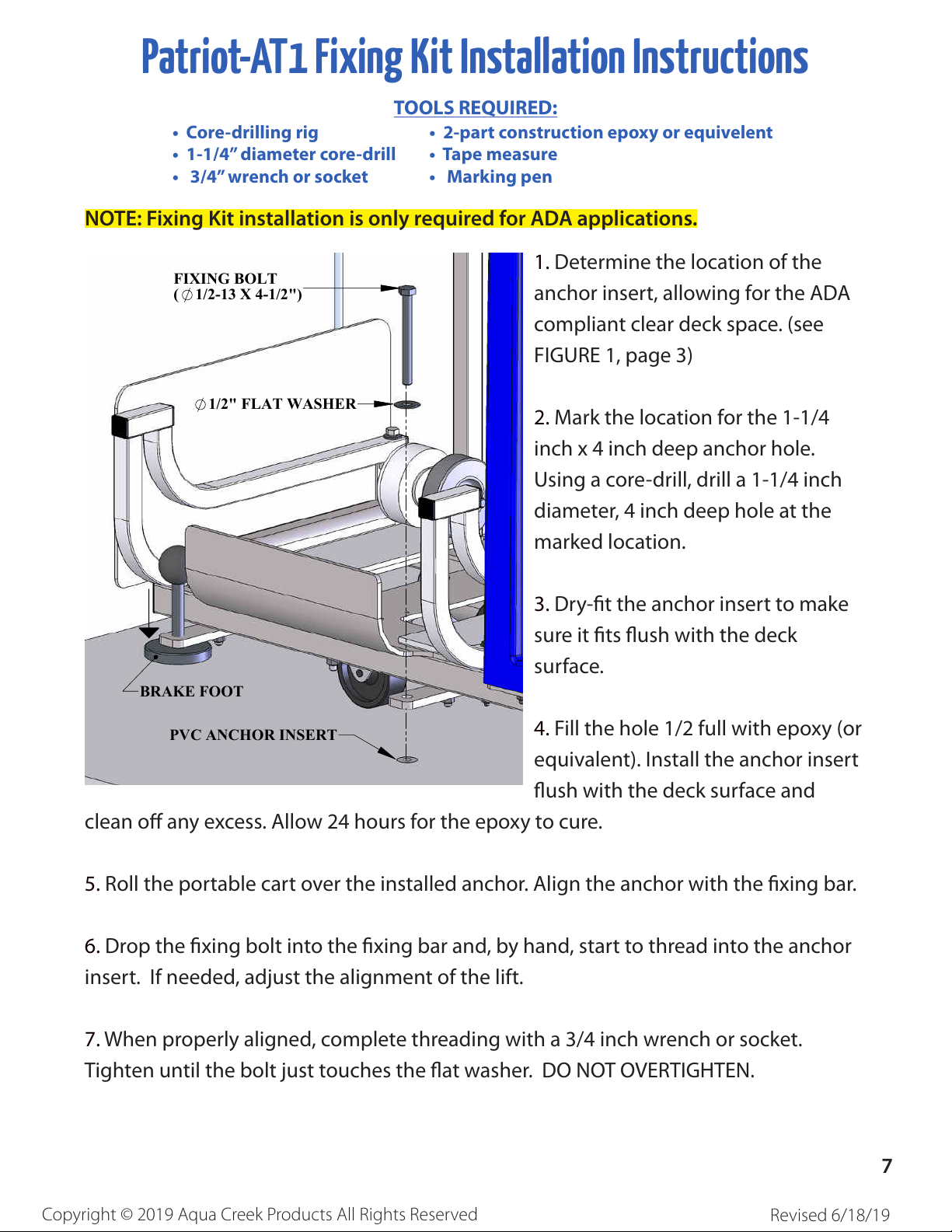

Patriot-AT1 Fixing Kit Installation Instructions
1. Determine the location of the
anchor insert, allowing for the ADA compliant clear deck space. (see FIGURE 1, page 3)2. Mark the location for the 1-1/4 inch x 4 inch deep anchor hole. Using a core-drill, drill a 1-1/4 inch diameter, 4 inch deep hole at the marked location.3.Dry-t the anchor insert to make sure it ts ush with the deck surface.
4.Fill the hole 1/2 full with epoxy (or equivalent). Install the anchor insert ush with the deck surface and clean o any excess. Allow 24 hours for the epoxy to cure.5. Roll the portable cart over the installed anchor. Align the anchor with the xing bar.6.Drop the xing bolt into the xing bar and, by hand, start to thread into the anchor insert. If needed, adjust the alignment of the lift.7. When properly aligned, complete threading with a 3/4 inch wrench or socket. Tighten until the bolt just touches the at washer. DO NOT OVERTIGHTEN.TOOLS REQUIRED:
• Core-drilling rig• 1-1/4” diameter core-drill• 3/4” wrench or socket• 2-part construction epoxy or equivelent• Tape measure• Marking pen
FIXING BOLT
( 1/2-13 X 4-1/2")
1/2" FLAT WASHER
PVC ANCHOR INSERT
BRAKE FOOT
NOTE: Fixing Kit installation is only required for ADA applications.
7

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/18/19

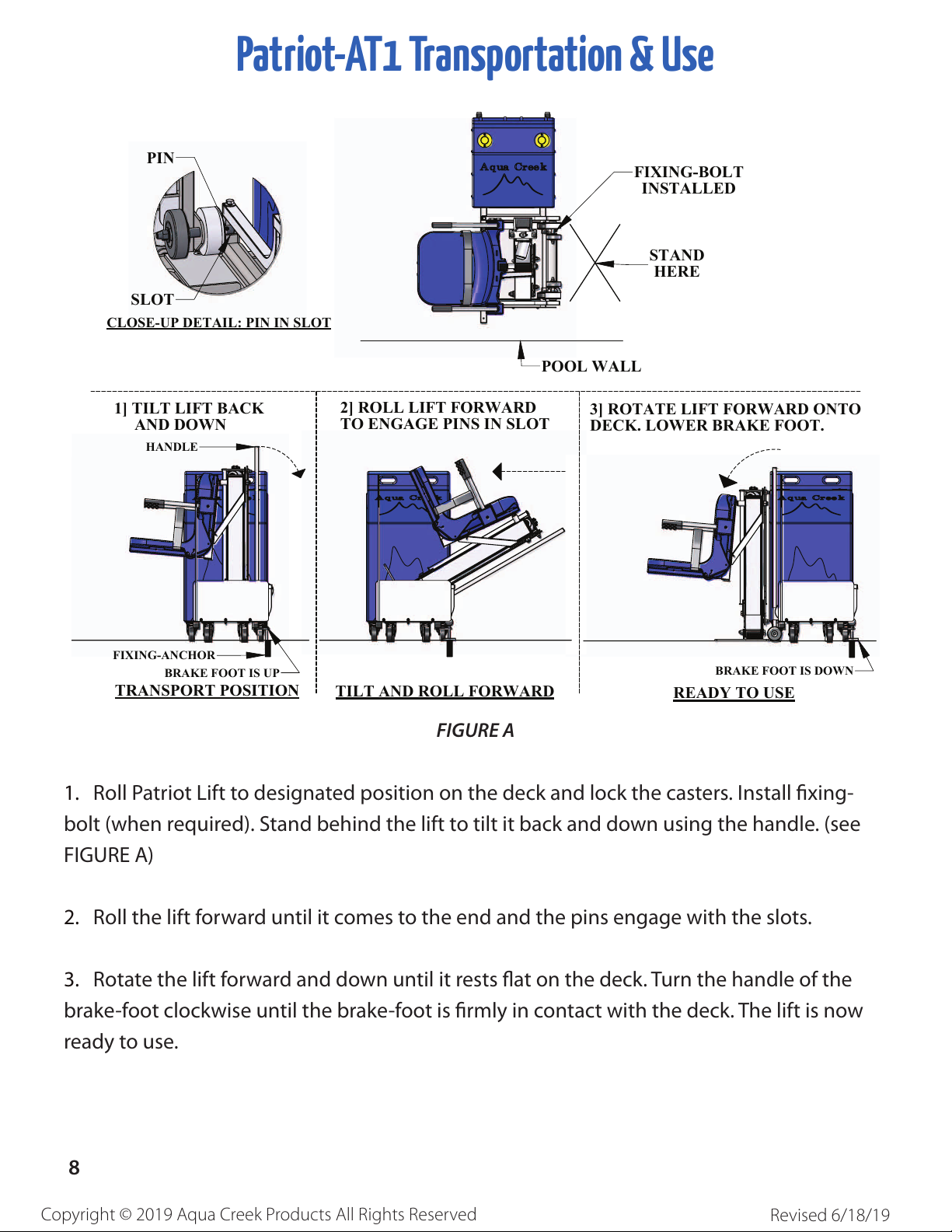

Patriot-AT1 Transportation & Use
STAND
HERE
POOL WALL
1] TILT LIFT BACK
AND DOWN
TRANSPORT POSITION
HANDLE
BRAKE FOOT IS UP
2] ROLL LIFT FORWARD
TO ENGAGE PINS IN SLOT
TILT AND ROLL FORWARD
FIXING-ANCHOR
FIXING-BOLT
INSTALLED
3] ROTATE LIFT FORWARD ONTO
DECK. LOWER BRAKE FOOT.
READY TO USE
BRAKE FOOT IS DOWN
A
CLOSE-UP DETAIL: PIN IN SLOT
PIN
SLOT
FIGURE A
1. Roll Patriot Lift to designated position on the deck and lock the casters. Install  xing-bolt (when required). Stand behind the lift to tilt it back and down using the handle. (see FIGURE A)2.Roll the lift forward until it comes to the end and the pins engage with the slots.
3. Rotate the lift forward and down until it rests  at on the deck. Turn the handle of the brake-foot clockwise until the brake-foot is  rmly in contact with the deck. The lift is now ready to use.
8

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/18/19

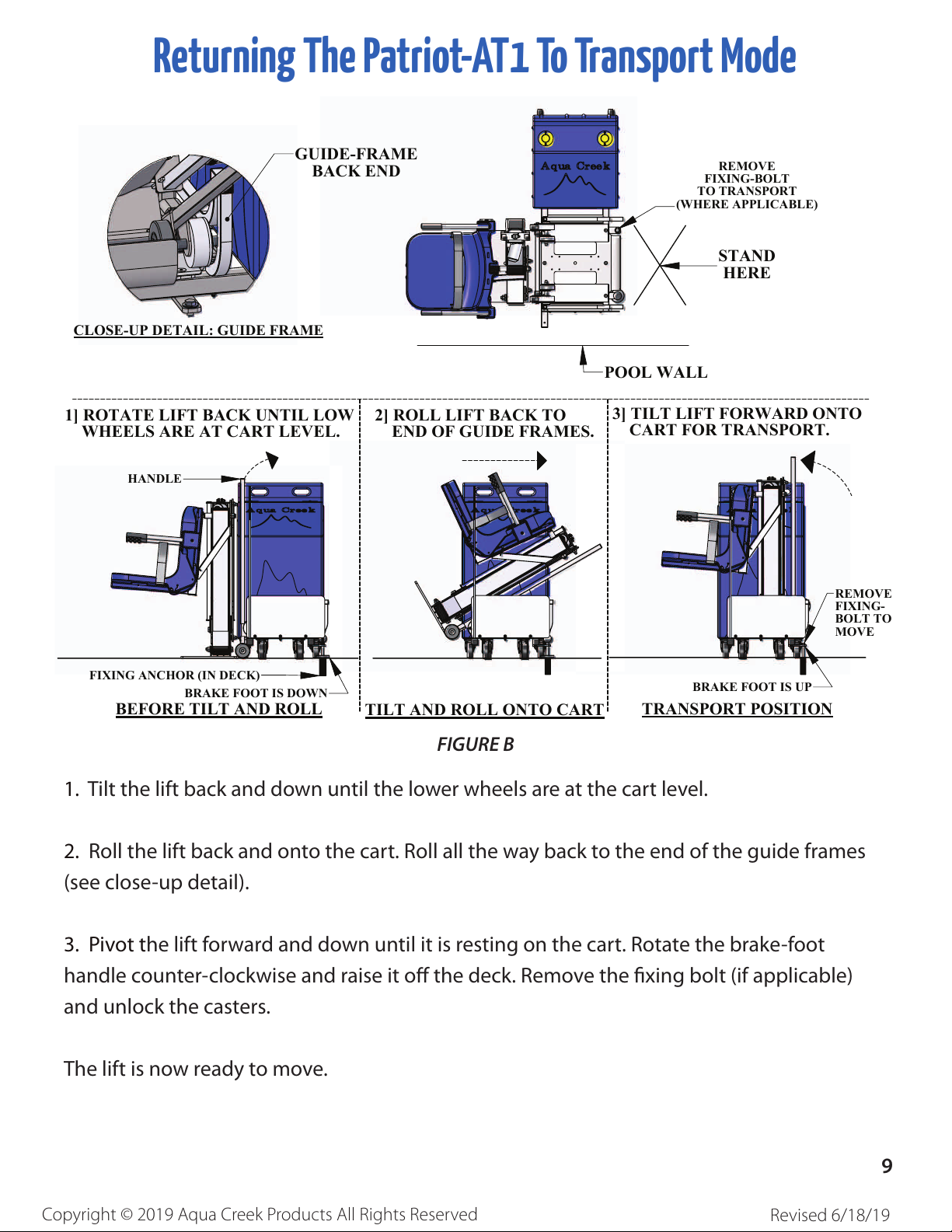

Returning The Patriot-AT1 To Transport Mode
STAND
HERE
POOL WALL
REMOVE
FIXING-BOLT
TO TRANSPORT
(WHERE APPLICABLE)
1] ROTATE LIFT BACK UNTIL LOW
WHEELS ARE AT CART LEVEL.
BEFORE TILT AND ROLL
HANDLE
BRAKE FOOT IS DOWN
FIXING ANCHOR (IN DECK)
2] ROLL LIFT BACK TO
END OF GUIDE FRAMES.
TILT AND ROLL ONTO CART
3] TILT LIFT FORWARD ONTO
CART FOR TRANSPORT.
TRANSPORT POSITION
BRAKE FOOT IS UP
REMOVE
FIXING-
BOLT TO
MOVE
A
CLOSE-UP DETAIL: GUIDE FRAME
GUIDE-FRAME
BACK END
FIGURE B
1. Tilt the lift back and down until the lower wheels are at the cart level.2. Roll the lift back and onto the cart. Roll all the way back to the end of the guide frames (see close-up detail).3. Pivot the lift forward and down until it is resting on the cart. Rotate the brake-foot handle counter-clockwise and raise it o the deck. Remove the  xing bolt (if applicable) and unlock the casters. The lift is now ready to move.9

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/18/19
Basic Troubleshooting
Problem: The lift won’t move.
Solution:1. Make sure the battery is properly seated:You should hear a click when
the battery is properly seated
on the control box or charger.
Click!
NOT Properly Attached:
Note: the white bracket is
in front of the silver clip,
which will not allow for
an electrical connection
Properly Attached:
Note: the white bracket
is behind the silver clip,
holding it securely to al-
low for an electrical con-
nection
Check the ends of the cords for corrosion or
damage. The cord plugs should be recessed
into the outlet. You should feel them pop into
place when they are correctly inserted.
2. Make sure the cords are properly plugged in:NOT Properly Inserted:
The cord plug is fl ush with
or sticking out of the outlet
Properly Inserted:
The cord plug is recessed
into the outlet
POP!
The Charger is ON
when the green
light is glowing
The Battery is CHARG-
ING when the orange
light is glowing
When the Battery is
charged the orange
light will stop glowing
4. Make sure the battery is fully charged:3. Check the contact points:Make sure the contact points of
the control box and the battery
are not damaged or corroded.
If there is corrosion clean with
Scotch-BriteTM pad. Put some
dielectric grease on the contact
points before reattaching the
battery.
Problem: The lift stopped moving over the water and is stuck.
Solution:1. Press the emergency buttonUse a pen or pencil tip and
stick it into the emergency
button on the front of the
control box to retract the lift.
Note: the lift will not retract if
the battery is not fully charged
or if the control box is not
working. The emergency but-
ton only overrides the remote
handset.
10

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/18/19

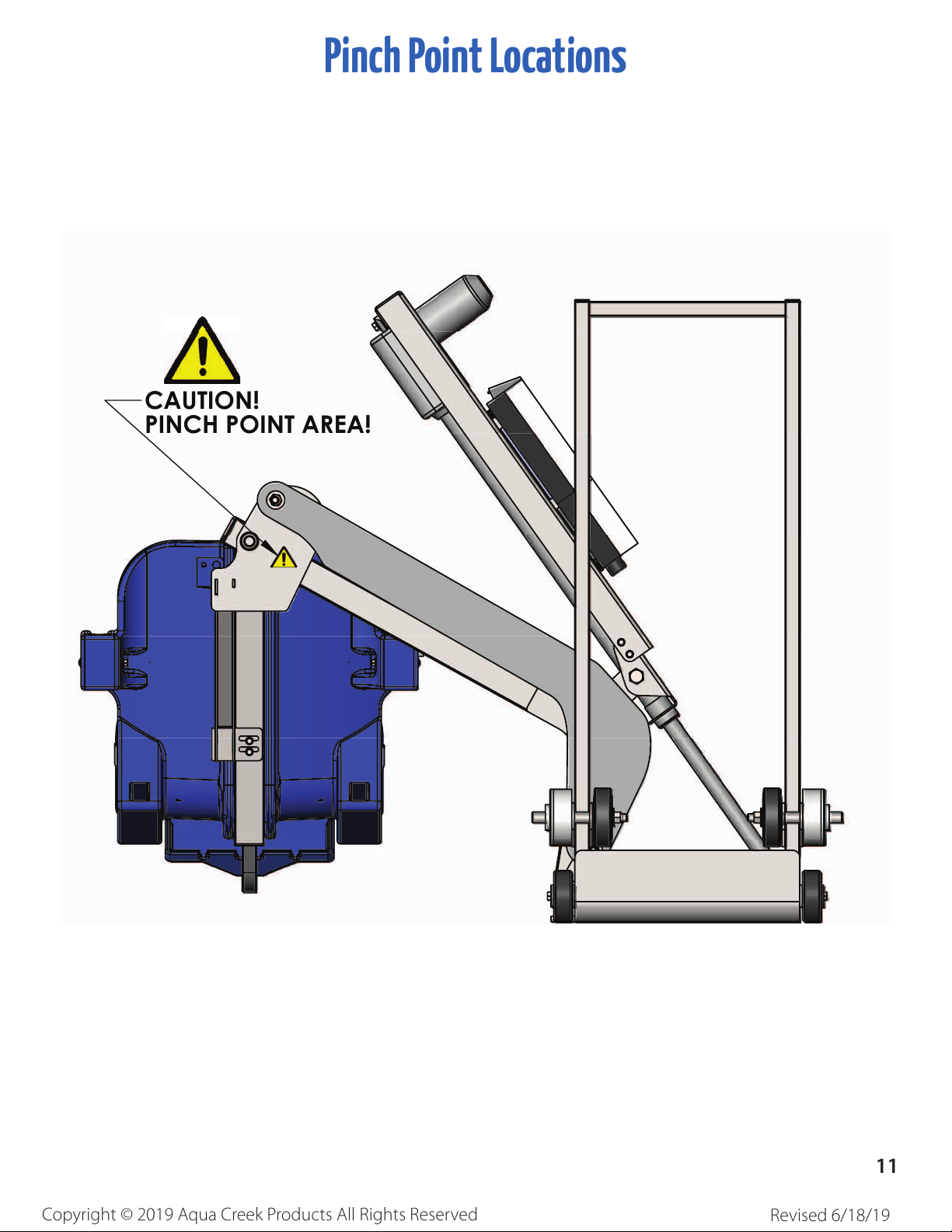

Pinch Point Locations
CAUTION!
PINCH POINT AREA!
PORTABLE CART NOT SHOWN FOR CLARITY
11

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/18/19
PROCEDURE BEFORE
EACH USE
DAILY WEEKLY MONTHLY
Check battery level indicator on control box 
Run the lift through a complete test cycle (fully ex-
tend actuator) to verify it is functioning properly 
Wash lift with fresh water and dry with clean, soft,
non-abrasive cloth 
Recharge battery 
Visually inspect lift for damage, corrosion, and loose
or missing hardware 
Check all contact points for damage and/or corrosion 
Repair, clean and apply dielectric grease to all contact
points 
Thoroughly clean lift frame and apply a liberal coat of
car wax to maintain the lift’s nish 
Check all Warning and Cautionary labels to make sure
they are not faded or worn. Replace as needed. 
Proper Care of Pool & Spa Lifts
PROPER CARE NOTES
• Use only fresh water to wash your lift. Do not wash with pool water.• Use only clean, soft, non-abrasive cloths on your lift.• Do not store lift in pump room or near chemicals.• Do not allow children to play on or around this lift.• When cleaning the lift, do not spray water directly on control box or battery.• The lift may need to be bonded according to local code requirements.To remove stubborn stains from nish, spray aected area with mild dish soap, rub
briskly with a 3M Scotch Brite™ pad. Use white epoxy paint to touch up the nish. Apply
wax to protect when dry.
STAIN REMOVAL TIPS:
12

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/18/19
Patriot-AT1 Parts List
Item # QTY PART # DESCRIPTION
1 1 RAT-200-18 PATRIOT-AT ROLL BASE ASSY
2 1 PPF-200-11 PRO POOL-AT MAIN FRAME ASSY
3 1 A-2012ARM-R1 PORTABLE CHAIR ARM ASSY
4 1 A-2012SRS2 PRO POOL SEAT SUPPORT
5 1 L-2014FBL-PAT-R3 RANGER-AT CONTROL ARM
6 1 UHF-PD-03 DEEP DRAFT ACTUATOR FRAME
7 1 F-0904CA-A 18” CHAIR ASSEMBLY
8 1 F-FRB FOOTREST ASSEMBLY
9 1 PPB-CCB-10 1/2” X 1 3/4” FLATHEAD BOLT
10 2 BHW 1/4 X 3/4 1/4”-20 X 3/4” HEX WASHER HEAD
11 1
SNAP PIN 5/16 X 4 1/2 SS 5/16” X 4 1/2” SNAP PIN
12 1 WF 5/16 5/16” FLAT WASHER
13 1 NN 5/16 5/16”-18 NYLOCK NUT
Item # QTY PART # DESCRIPTION
14 1 BS 3/8 X 1 3/4 18-8 3/8” X 1 3/4” SHOULDER BOLT
15 2 WF 1/2 1/2” FLAT WASHER
16 2 NN 1/2 1/2”-13 NYLOCK NUT
17 2 BH 5/8 X 1 1/2 5/8”-11 X 1 1/2” HEX BOLT
18 1 BH 5/8 X 5 7/8 18-8 5/8”-11 X 5 7/8” HEX BOLT
19 2 WF 5/8 5/8” FLAT WASHER
20 3 NN 5/8 5/8”-11 NYLOCK NUT
21 1 NN 3/4 3/4”-10 NYLOCK NUT
22 2 THRUST WASHER, 1/2,
BRONZE 1/2” BRONZE WASHER
23 1
THRUST WASHER, 3/4,
BRONZE
3/4” BRONZE WASHER
24 2 BRB FL-50-3 1/2” X 5/8” X 3/8” X 1/8” BRONZE
FLANGE BUSHING
1
16
15
5
24
229
20
19
21918
10
20
3
8
11
7
234 21 22 24
16
15
17
14
12 13
6
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 RAT-200-18 ROLL BASE ASSEMBLY 1
2
PPF-200-11
PRO POOL-AT MAIN FRAME
ASSEMBLY
1
3
A-2012ARM-R1
RANGER-AT CHAIR ARM
ASSEMBLY
1
4
A-2012SRS2
PRO POOL-AT SEAT SUPPORT
ASSEMBLY
1
5
L-2014FBL-PAT-R3 PRO POOL SERIES CONTROL ARM 1
6
UHF-PD-03
UNIVERSAL H FRAME ASSEMBLY -
PRO POOL DEEP DRAFT
1
7
F-0904CA-A CHAIR ASSEMBLY, 18" WIDE 1
8
F-FRB FOOTREST ASSEMBLY, BLUE 1
9
PPB-CCB-10
BOLT, 316 SS, 1/2" X 1 3/4" FHSCS,
CUSTOM
1
10
BHW 1-4 X 3-4 BOLT, 316 SS, 1/4-20 X 3/4 HWH 2
11
SNAP PIN 5-16 X 4 1-2
SS
PIN, SS, SNAP PIN 5/16" X 4 1/2" 1
12
WF 5-16 WASHER, FLAT, 5/16, 316 SS 1
13
NN 5-16 NUT, 316 SS, NYLOCK, 5/16"-18 1
14
BS 3-8 X 1 3-4 18-8
BOLT, 18-8 SS, 3/8 X 1 3/4
SHOULDER, 5/16-18 THREAD
1
15
WF 1-2 WASHER, FLAT, 1/2, 316 SS 2
16
NN 1-2 NUT, 316 SS, NYLOCK, 1/2"-13 2
17
BH 5-8 X 1 1-2 BOLT, 316 SS, 5/8-11 X 1 1/4 HCS 2
18
BH 5-8 X 5 7-8 18-8 BOLT, 18-8 SS, 5/8-11 X 5 7/8 HCS 1
19
WF 5-8 WASHER, FLAT, 5/8, 316 SS 2
20
NN 5-8 NUT, 316 SS, NYLOCK, 5/8"-11 3
21
NN 3-4 NUT, 316 SS, NYLOCK, 3/4"-10 1
22
THRUST WASHER, 1-2,
BRONZE
WASHER, BRONZE, 1/2", TT-1001-1 2
23
THRUST WASHER, 3-4,
BRONZE
WASHER, BRONZE, 3/4", TT-1205-1 1
24
BRB FL-50-3
BUSHING, BRONZE FLANGE, 1/2 X
5/8 X 3/8 X 1/8
2
13

Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/18/19
Patriot-AT1 Portable Cart Parts List
1
2 3
45
6
7
8
9
10
11
12
13
14 15
15
16
17
18
18
19
20 21
22
23242627
32
25
2829
30
31
19
33
Item # QTY PART # DESCRIPTION
1 1 RAT-110-00 AT CART TRAY
2 1 RATWM-120-01 AT CART WELDMENT A
3 1 RATWM-130-00 AT CART WELDMENT B
4 1 P-0138PBP-REVA2 PORTABLE CART BASEPLATE
5 2 P-0138PCPS-REVB PORTABLE CART PLASTIC SLIDE
6 1 P-0138PCPG-REVB PORT. CART SIDE GUARD, PLASTIC
7 2 A-0138GFA-REVC GUIDE-FRAME ASSEMBLY, REV C
8 1 SAFETY FLAG FLAG, SAFETY FLAG
9 1 1942K76 BRAKE, FOOT
10 1 65137374 PATRIOT BRAKE HANDLE
11 2 2.03408.471 CASTER, 304 SS, FIXED 3 1/2”
12 2 2.03456.471 CASTER, 304 SS, SWIVEL 3 1/2”
13 2 2.03456.471BRK2 CASTER, 304 SS, 3-1/2”WITH BRAKE
14 3 BB 1/4 X 1/2 BOLT, 316 SS, 1/4-20 X 1/2 BHSCS
15 24 BHW 1/4 X 3/8 BOLT, 316 SS, 1/4-20 X 3/8 HWH
16 2 BH 1/4 X 3 BOLT, 316 SS, 1/4-20 X 3 HCS
17 3 WL 1/4 LOCK WASHER, 1/4”, 316 SS
Item # QTY PART # DESCRIPTION
18 7 WF 1/4 WASHER, FLAT, 1/4, 316 SS
19 14 NN 1/4 NUT, 316 SS, NYLOCK, 1/4”-20
20 2 BH 3/8 X 1-1/2 BOLT, 316 SS, 3/8-16 X 1 1/2 HCS
21 10 BC 3/8 X 2-1/2 BOLT, 316 SS, 3/8-16 X 2 1/2 FHSCS
22 2 BC 3/8 X 3 BOLT, 316 SS, 3/8-16 X 3 FHSCS
23 14 WF 3/8 WASHER, FLAT, 3/8, 316 SS
24 10 NN 3/8 NUT, 316 SS, NYLOCK, 3/8”-16
25 2 NNJ 3/8 NUT, 316 SS, NYLOCK, 3/8”-16, JAM
NUT
26 2 SQR-1-1/2-10-14 CAP, PLASTIC, 1.5” SQUARE
27 1 NHJF 3/8 NUT, 316 SS, HEX, 3/8”-24, JAM NUT
28 1 P-985BB COVER, PLASTIC, BALLAST WEIGHT
COVER, BLUE
29 4 SPH 12 X 3/4 SCREW, 316 SS, #12 X 3/4” PHSMS
30 12 SSE 1/4 X 1-1/2 SCREW, 1/4”-20 X 1 1/2”, SET SCREW
31 2 WWX-21 PLUG TAPERED CAP, YELLOW
32 6 SQR-1-14-20 CAP, PLASTIC, 1”X1” SQUARE
33 12 WFE 1/4 WASHER, FENDER, 316 SS, 1/4 X 1
14
