Aqua Products Aquabot Turbo User manual

DO NOT RETURN THIS PRODUCT TO RETAILER
Should you have any technical issues with this product you must first contact the manufacturer to obtain a
Return Merchandise Authorization Number (RMA#).
To obtain RMA#, Technical Support or to review Troubleshooting Videos and Step-By-Step
Troubleshooting Procedures, please visit www.AquaProducts.com/Service.
IN GROUND
ROBOTIC SWIMMING POOL CLEANER
OPERATOR’S MANUAL &
TROUBLESHOOTING GUIDE
Read and Follow All Instructions Before Using Your Pool Cleaner
This manual is for use with a variety of Aqua Products robotic pool cleaners
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS

2www.AquaProducts.com/Service
TABLE OF CONTENTS
Operating Features ......................................................................................................................... 3-4
Quick Start Instructions.................................................................................................................. 5
Setting Up Your Cleaner............................................................................................................ 6-7
Floating Handle................................................................................................................................ 6
Setting up the Power Supply ......................................................................................................... 7
Cleaner Start Position ..................................................................................................................... 7
Knowing / Using Model Features........................................................................................... 8-10
Setting the Power Supply Timer.................................................................................................... 8-9

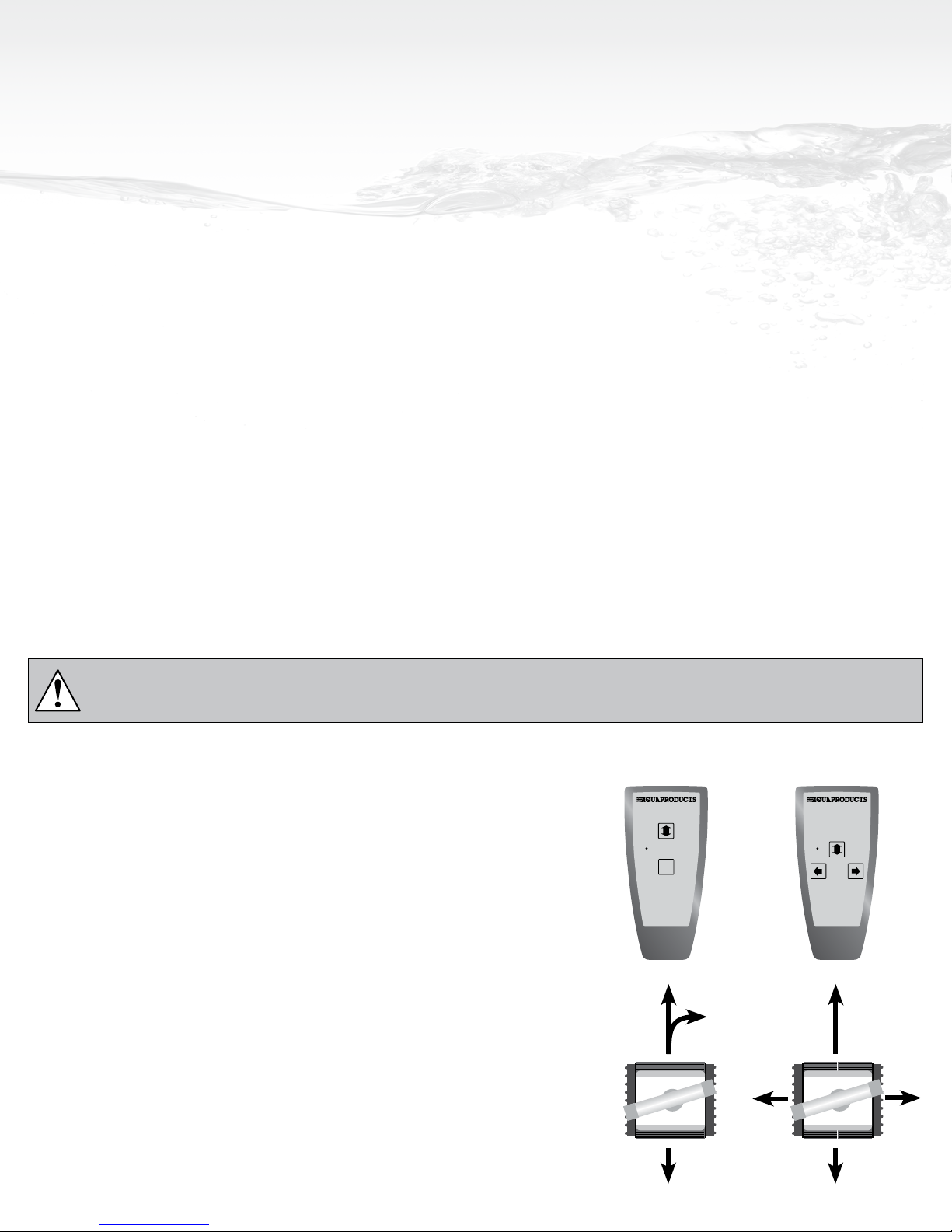

Operation of Models with Remote Control (using the Remote Control) ................................... 9
Debris Intake Port Width Selector ................................................................................................. 10

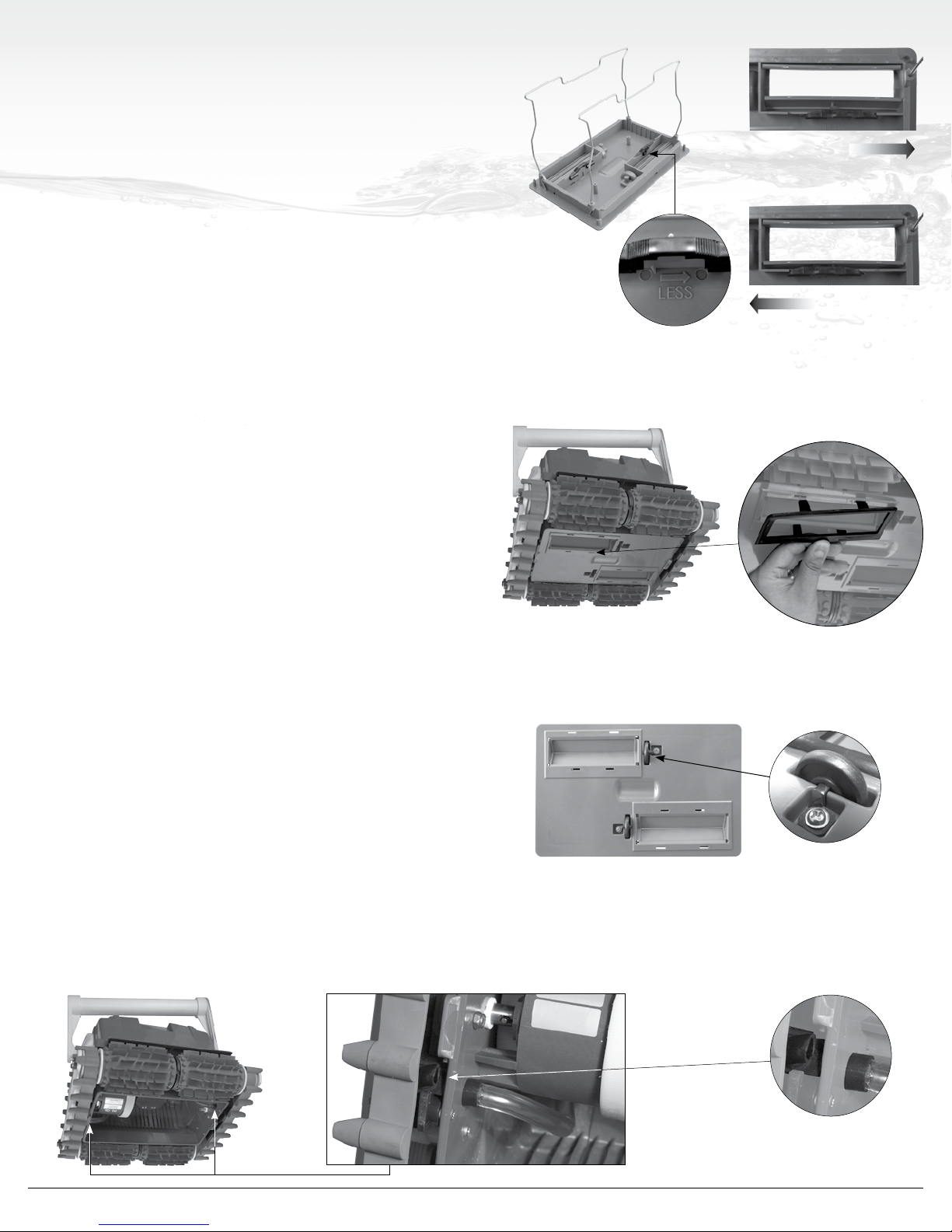

Variable Intake Port Depth Extensions.......................................................................................... 10
NeverStuck™ Rollers ...................................................................................................................... 10
Power Washing Jet System ........................................................................................................... 10
Cleaning Patterns / Directional Guidance Mechanisms ................................................. 11-13
Diagonal Locked Floating Handle .................................................................................................. 11 & 12
Cable Float or Cable Float + 3 Directional Remote Control......................................................... 11 & 12
Handle Float + Split Wheel Tube with Directional Guidance Clutch .......................................... 11 & 13
Magnet
Split Wheel Tube + 4 Directional Remote Control ....................................................................... 11 & 13

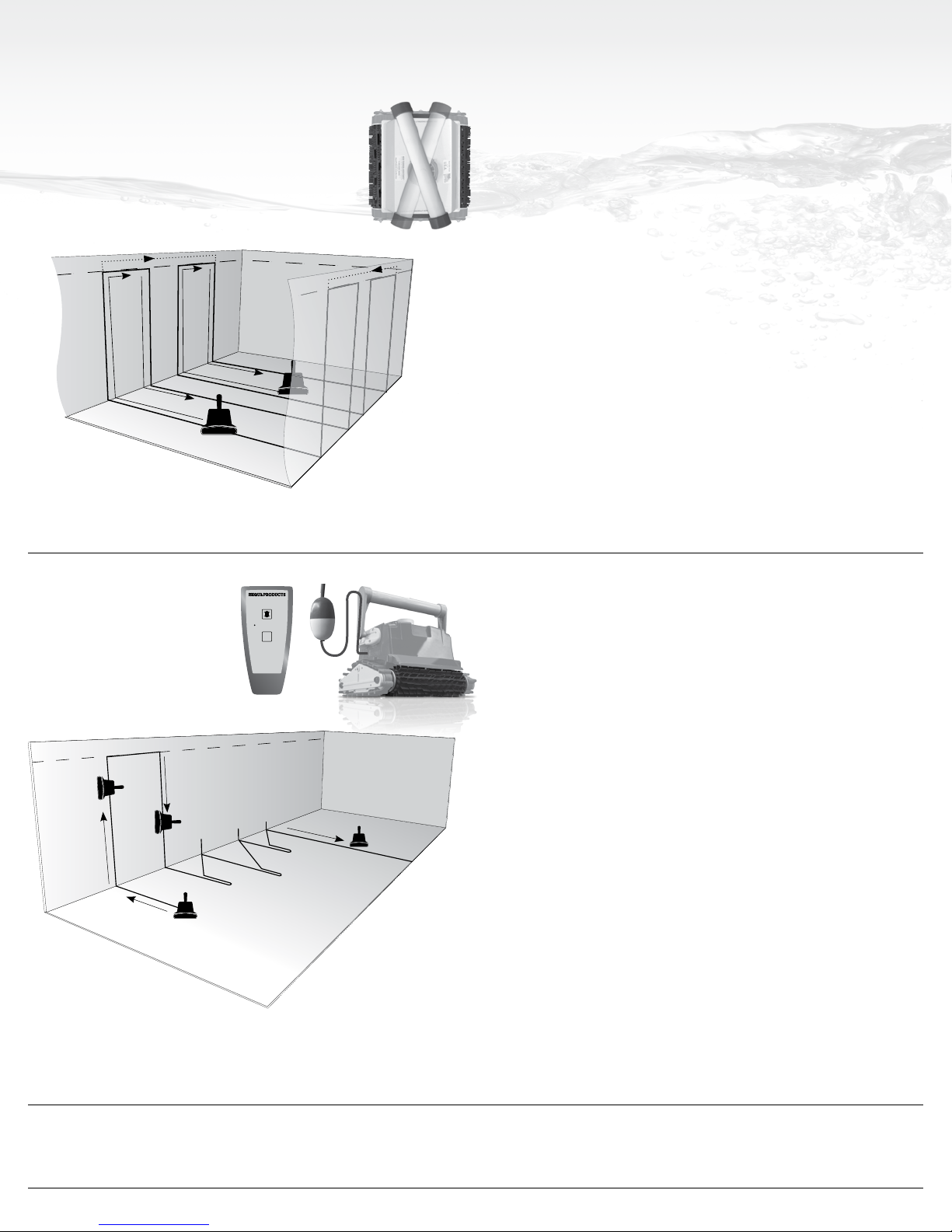

Cleaning Patterns ............................................................................................................................ 12-13
Maintaining Your Pool Cleaner ............................................................................................... 14-20

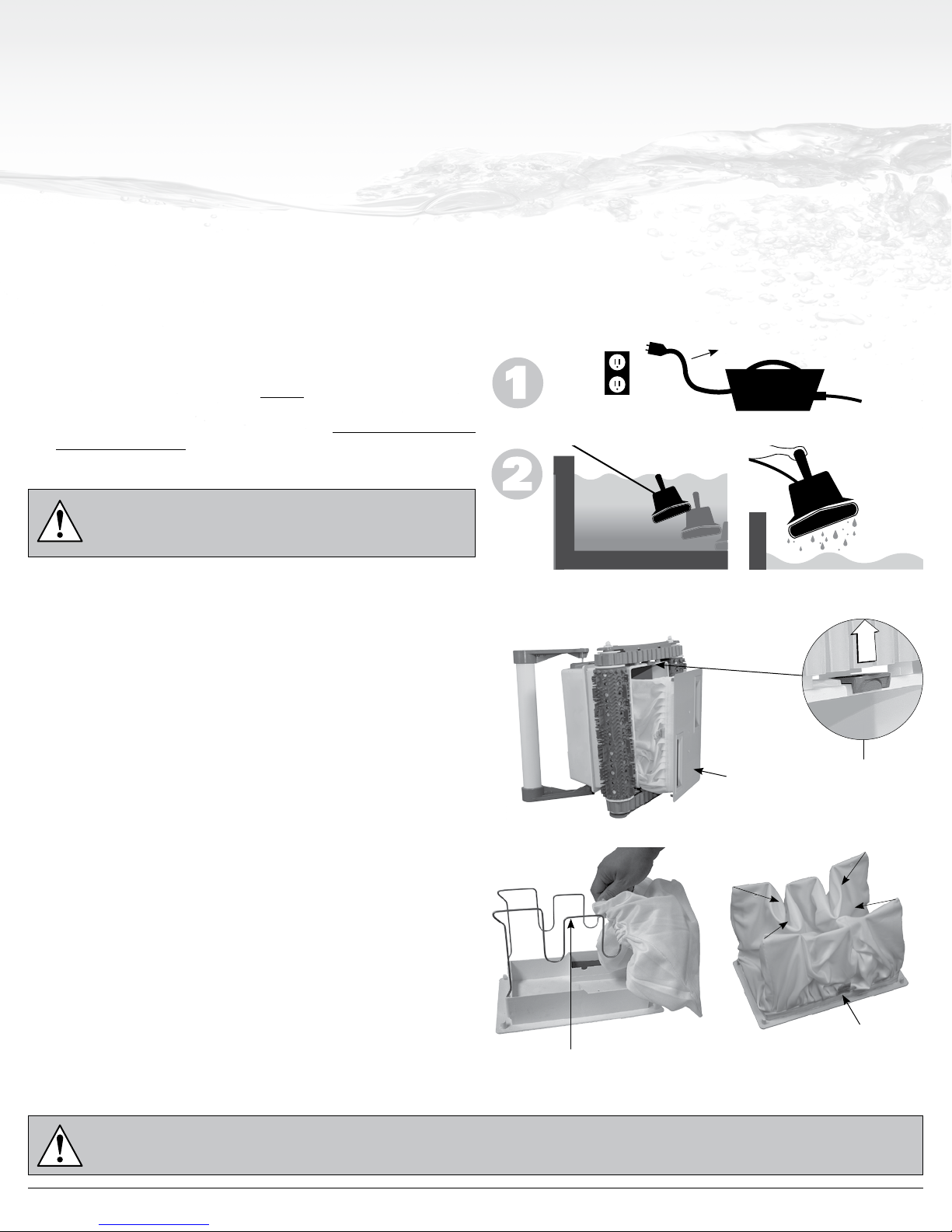

Cleaning and Changing the Filter Bag........................................................................................... 14
Flotation ........................................................................................................................................... 15
Propeller Care .................................................................................................................................. 16
Floating Cable Care ......................................................................................................................... 16
Scrubbing Brushes (Molded, Super, Foam, PVA) Care & Replacement .................................... 16-17
Changing Drive Tracks .................................................................................................................... 18

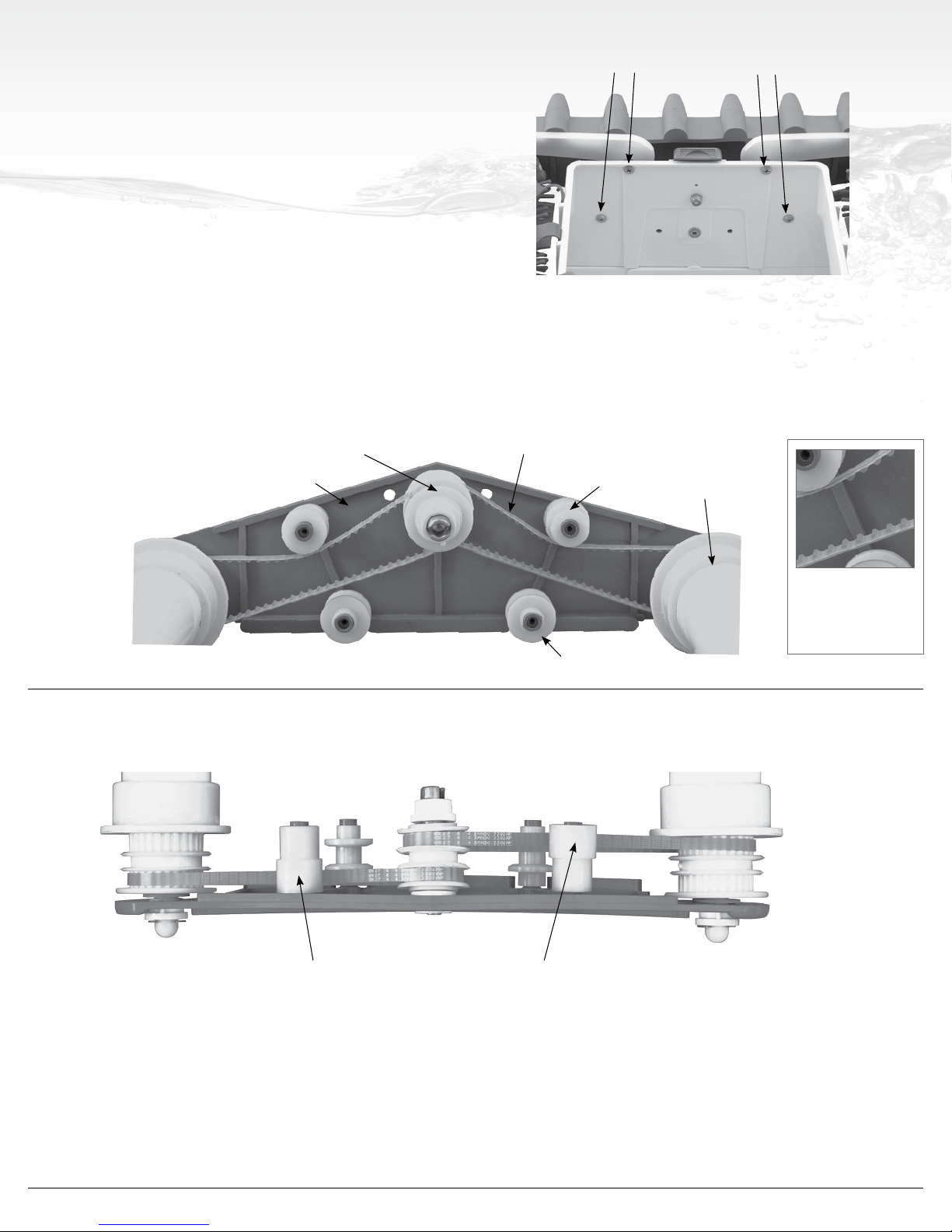

Changing Drive Belts ...................................................................................................................... 18-19
Cleaner Storage............................................................................................................................... 20

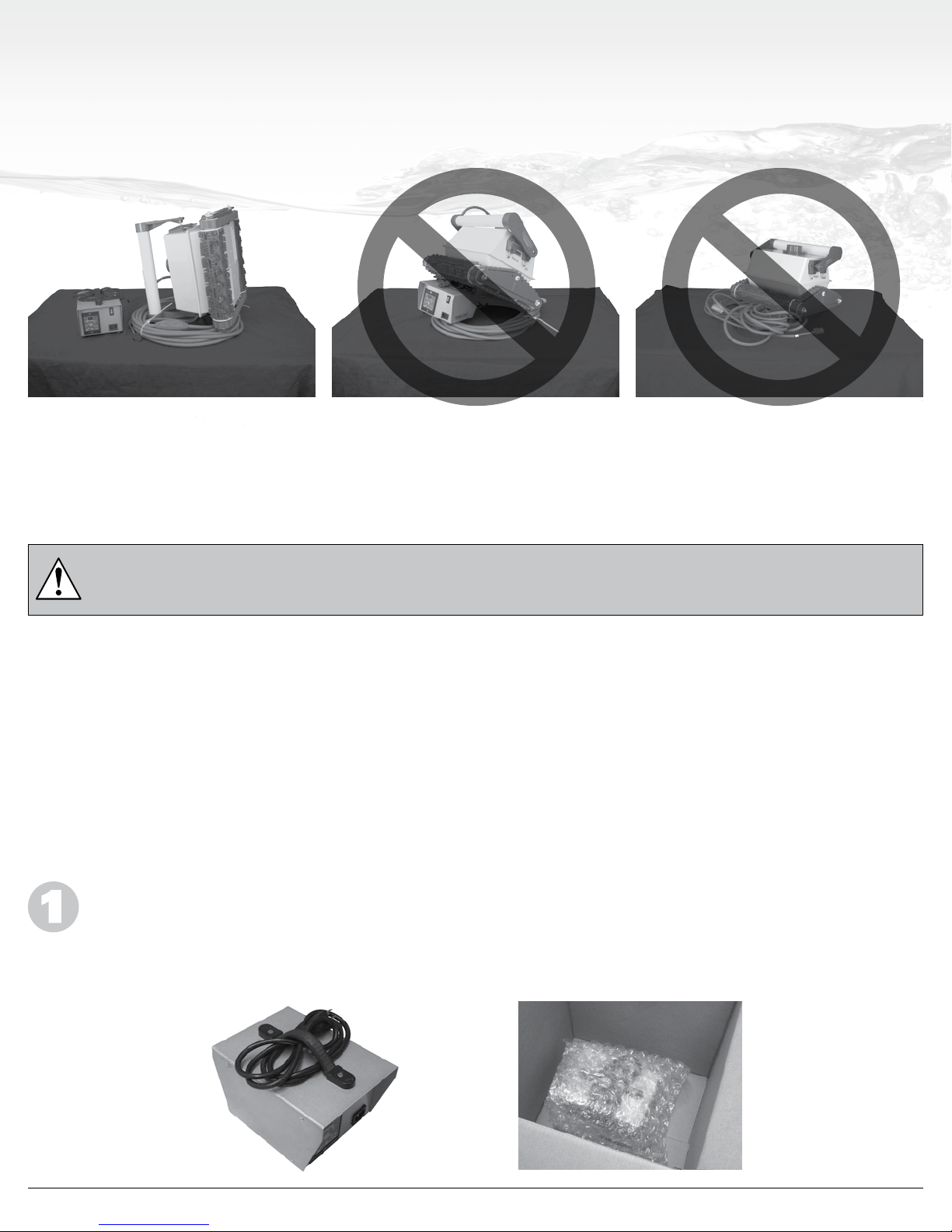

Preparing Your Cleaner for Shipping .................................................................................... 20-21
Troubleshooting Guide (Summary)........................................................................................ 22-23
Troubleshooting Guide (In Depth) ......................................................................................... 24-30
Never operate your cleaner when it is not totally submersed in the pool water! Doing so will void warranty and
may cause severe damage to motors and require costly repairs!
Never allow anyone to swim in the pool while the cleaner is in the pool!
WARNING: Using the Floating Cable to lift the cleaner out of the water will cause severe damage to your cleaner and
may result in costly repair!
WARNING: The Power Supply must be at least 12 feet / 4 meters from the pool’s edge at all times!
WARNING! A Ground Fault Circuit Interrupter (GFCI) / Residual Current Device (R.C.D), must be installed to
protect your electric outlet and to prevent and possible electrical shock!

3www.AquaProducts.com/Service
OPERATING FEATURES
Below and throughout this manual, we show two different models
to represent all of the Aqua Products models.
Although the shape and color of cleaners and components featured herein may not be identical to those of your cleaner,
their operating and service procedures are. Please know that there are a variety of features and some pages may show
features which may not be relevant to your model. The reference numbers below are used throughout this manual.
* Some models have split Wheel Tubes and Brushes to allow one or both sides to turn independently depending on model.
* Some models with split Wheel Tubes and Handle Floats may have a Directional Guidance Clutch built into their Wheel Tubes.
Figure 1
1. Floating Handle
2. Outlet Top
3. Propeller
4. Handle Spring Lock
5. Standard Drive Track
6. Side Plate
7. Wheel Tube Retaining Ring
8. Brushes*
9. Pump Motor
10. Drive Motor
11. Filter Bag
12. Bottom Lid Assembly (SEE PAGE 4)
13. Filter Screen
14. Floating Cable (SEE BELOW)
15. G-Tooth™ Drive Track
16. Handle Float
17. Power Washing Tubes
18. Wheel Tube
1 1
2 2
12 12
3
14 14
15
14a
14
FLOATING CABLE FEATURES
Figure 2
Standard
Female
Connection
4 Prong
Male
Connection
2 Prong
Male
Connection
4
5
6
8
7
9
10
11
13
4
5
6
7
8
9
10
11
13
16
17
*
18
3
Cable Guard
14b
14c
14d 14e 14f
14. Floating Cable
14a. Cable Protector
14b. Cable Float
14c. E-Z Swivel
14d. Cable Plug (FEMALE CONNECTION)
14e. Cable Float (4 PRONG MALE CONNECTION)
14f. Cable Float (2 PRONG MALE CONNECTION)

4www.AquaProducts.com/Service
Figure 4a:
(No Timer or Remote Control)
Figure 4c:
(Dial Timer)
Figure 4d:
(Digital Timer / Digital Timer With
Remote Control)
Figure 4b:
(No Timer with Remote Control)
* Fuse Holder may be located on the back of the Power Supply in some cases.

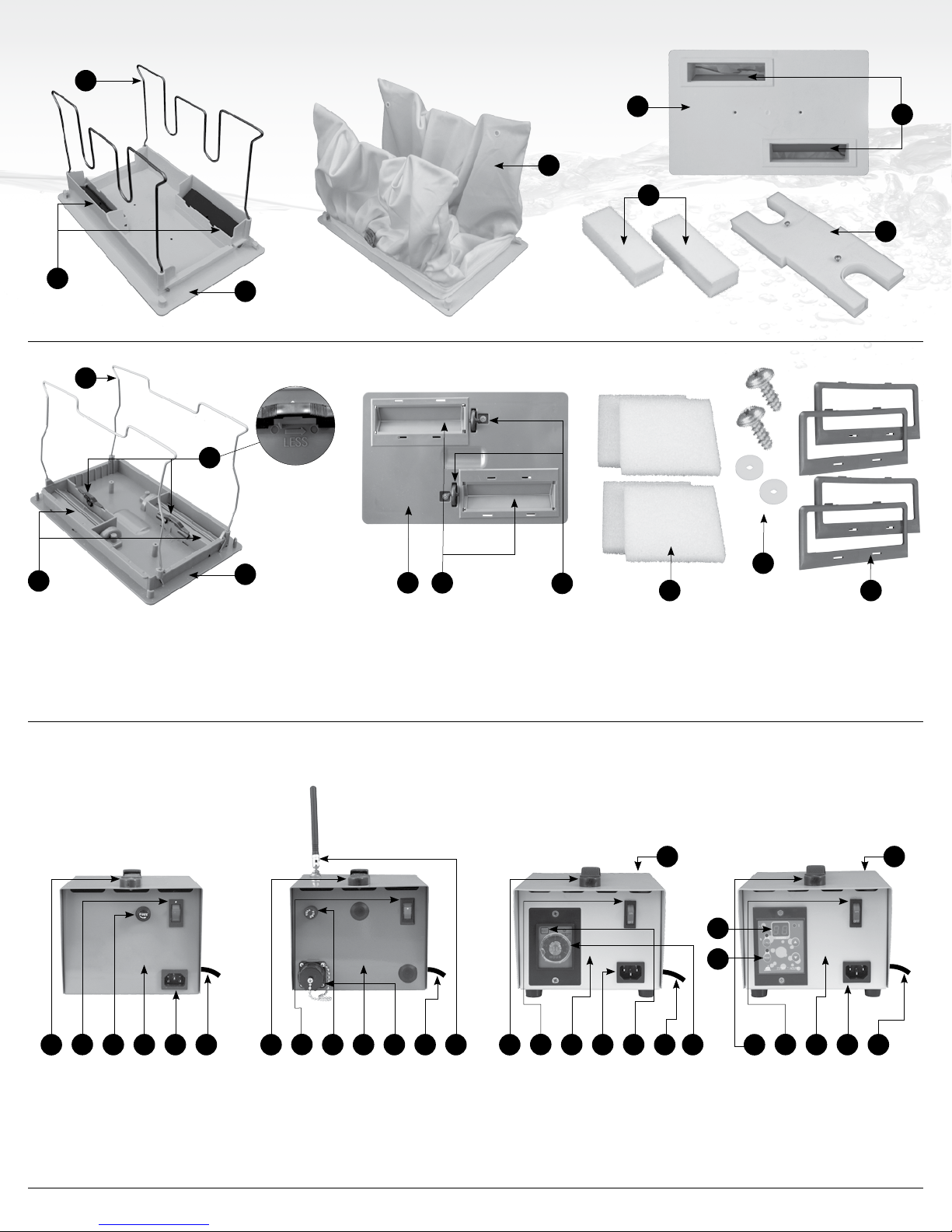

POWER SUPPLY FEATURES
Figure 3a
Figure 3b
Figures 4a, 4b, 4c, 4d
BOTTOM LID ASSEMBLY
12. Bottom Lid
12a. Wire Frame Bag Support
12b. “H” - Float (Fig. 3a)
12c. Side Pocket Floats (Fig. 3a)
19. Power Supply Handle
20. Power Switch - ON/OFF
21. Fuse Holder*
22. Power Supply (Housing)
23. Floating Cable Socket
24. Power Supply Cable (115VAC)
25. Antenna (Fig. 4b)
26. Safety Reset Button (Fig. 4c, 4d)
27. Adjustable Timer / Timer Display (Fig. 4c, 4d)
* *
12d. Debris Intake Port Flap
12e. Filter Bag
12f. Square Floats (Fig. 3b)
12g. Float Screw & Washers (Fig. 3b)
12h. Variable Port Depth Extension (Fig. 3b)
12i. NeverStuck™ Rollers (Fig. 3b)
12j. Debris Intake Port Width Selector (Fig. 3b)
12a
12
12e
12
12c
12d
12b
12d
12a
12j
12d 12 12 12d 12i 12f
12g
12h
19 20 21 22 23 24 19 20 21 22 23 24 25 19 20 22 23 26 24 27 19
27
26
20 22 23 24

5www.AquaProducts.com/Service
QUICK START INSTRUCTIONS
SETTING UP YOUR NEW ROBOTIC POOL CLEANER IS AS EASY AS 1, 2, 3!
NOTE: Models without Floating Handle, Floating Handles permanently locked parallel to cleaner body or models with a Handle
Float (Page 3; Fig. 1) around the Floating Handle do not require this step.
WARNING: The Power Supply must be placed at least 12 feet / 4 meters from the pool’s edge!
IMPORTANT: Alternate the diagonal locked position of the Floating Handle with each use of your cleaner! This will help reduce
possible twisting of your Floating Cable and enable cleaning of any areas missed during the prior cleaning cycle!
Handle Spring Lock
(Version A)
Figure 5a
2 Diagonal Positions
Figure 5b
3 Diagonal Positions
Smaller angle allows slower movement when at waterline,
Larger angle provides faster movement.
Lock Floating Handle diagonally across cleaner body.
Handle Spring Lock
(Version B)
Handle Spring Lock
(Version A)
Power Supply
GFCI / RCD
outlet
Floating
Cable
Figure 5e
NOTE: Power Supplies with adjustable Timed Operation –
Please consult this operator manual for further instructions on
how to set its operating time and automatic shut down.
WARNING: A Ground Fault Circuit Interrupter (GFCI) / Residual Current Device (R.C.D.) must be installed to
protect your electric outlet and to prevent any possible electrical shock!
TIP! To help protect your Floating Cable from potentially getting wrapped around your cleaner’s brushes, it is suggested to
turn off your pool’s filtration system while your cleaner is in operation.
NOTE: It is suggested to unplug the Power Supply when the
cleaner is not in use.
Power Supply Floating Cable 12’ / 4m
from pool’s edge
Make sure that the power
supply is positioned and the
cleaner enters at the center
of the long side of the pool
Figure 5dFigure 5c
NOTE: If your Power Supply features a Safety Reset Button
(Page 4, Fig. 4.26) to prevent unintentional, “out of water”
operation due to power surges or accidental pressing of the
Power Supply ON / OFF Switch – press the Switch to ON and
then press the Reset Button to start your cleaner.
Handle Spring Lock
(Version B)

6www.AquaProducts.com/Service
SETTING UP YOUR ROBOTIC POOL CLEANER
1. FLOATING HANDLE
The Floating Handle (Page 3; Fig. 1.1) is a flotation device that helps your cleaner climb, is a handle to hold and carry your cleaner,
and with some models acts as a guidance mechanism, directing it to move left or right while the cleaner scrubs the waterline.
For proper operation of your pool cleaner, the Handle must be locked diagonally* across the top of the cleaner’s body.
To Lock The Floating Handle :
1. Pull / Push down the right front Handle Spring Lock (Page 5;
Figs. 5a & 5b) while sliding that side of the Floating Handle
towards you as far as it can go (Fig. 6). Release the Handle
Spring Lock to secure the “Handle” in place.
2. Pull / Push down the left rear Handle Spring Lock down and
slide the Handle away from you as far as it can go. Release
the Handle Spring Lock to secure the Handle in place.
To reverse diagonal position of the Floating Handle, simply
reverse the above procedure and lock the Handle diagonally
across the cleaner’s body in the opposite direction.
NOTE: Models with Fig. 6, Version B Spring Locks offer 3 locking positions, providing 2 different speeds when the cleaner moves
laterally (left or right) along the waterline.
POSITION 1: Larger angle provides faster movement at waterline and total pool coverage.
POSITION 2: Smaller angle provides slower movement for more detailed waterline cleaning attention and slower
total pool coverage.
POSITION 3: Keeps the cleaner at a fixed position at the waterline, before reversing down the wall, for slowest total
pool coverage.
NOTE: Occasionally new cleaner’s may require a bit of force in order to slide the Floating Handle into place the first few times
until the internal slot becomes smooth.
NOTE: Some models’ Spring Locks will point upwards, not down. Simply pull up on the Spring Locks and slide the Floating
Handle into position as described above.
Figure 6
Position 1 Position 2 Position 3
Handle Spring Lock
(Version A)
Handle Spring Lock
(Version B)
IMPORTANT: It is necessary to reverse* the diagonal Handle direction after every use of your cleaner to insure
that the Floating Cable (Page 3; Fig. 2) does not become twisted or kinked and does not limit the cleaning
coverage of your cleaner!
*Some models have either a permanently fixed Floating Handle, no Floating Handle or Handle Float (Page 3; Fig. 1).
These models do not require locking the Handle diagonally.

7www.AquaProducts.com/Service
12ft. / 4m
Power Supply
Cleaner
Figure 7a
Figure 7b
Long
side of
pool
NOTE: It is suggested to unplug your Power Supply when not in use to prevent accidental starts!
WARNING: The Power Supply must be placed at least 12 feet / 4 meters from the pool’s edge at all times!
WARNING: A Ground Fault Circuit Interrupter (GFCI) / Residual Current Device (R.C.D.) must be installed to
protect your electric outlet and to prevent any possible electrical shock!

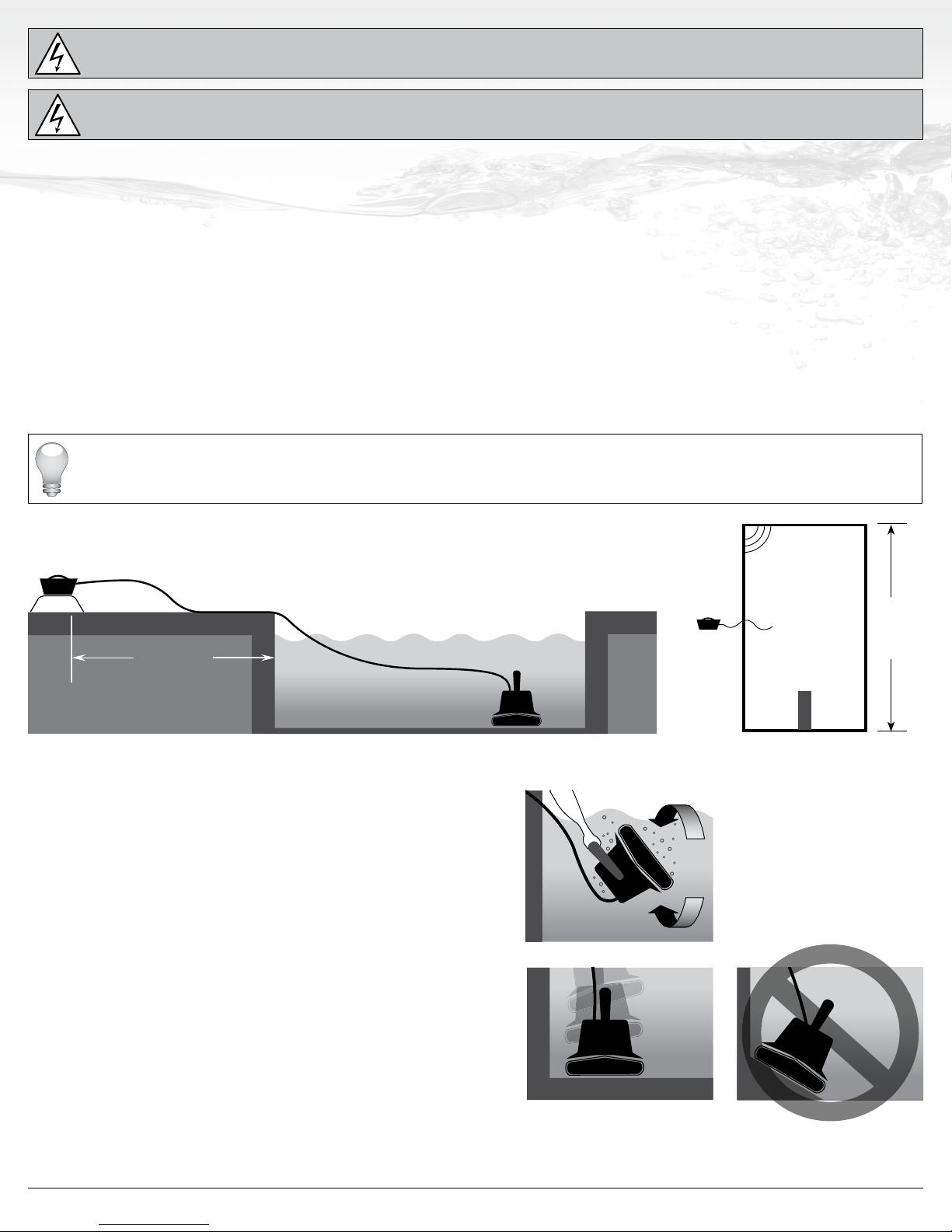

3. CLEANER START POSITION
1. Holding the Floating Handle, submerge your cleaner
upside down, and gently rock it back and forth under the
water to allow any trapped air to escape, which is critical
for proper balancing or it may not clean and cover your
pool as designed.
2. While submerged turn upright, then let go allowing your
cleaner to settle to a level area on the pool floor near the
shallow end. Starting it on an incline (like a deep end
hopper) may cause the cleaner, program and sensors to
mistakenly consider the incline as the floor, and conversly
on the floor as a wall. This would offset its cleaning
program and coverage, resulting in missed areas. Be
sure to start the cleaner on a level surface every time.
3. Turn ON Power Supply to begin cleaning. (See page
8: SETTING THE POWER SUPPLY TIMER for specific
information on timed settings and automatic shut down)
Plug the Power Supply Cord into a standard Ground Fault Circuit Interrupted (GFCI) / Residual Current Device (R.C.D.)
protected outlet. If your GFCI outlet is too far away and your cleaner does not have enough Cable to properly enter the
pool at the midpoint of its longest side then you may use a proper outdoor grounded extension cord, but always keep the
Power Supply at least 12’ / 4 m from the pool’s edge!
The Power Supply (Page 4; Fig. 4a-d) should be placed in
a sheltered area, at least twelve (12) feet / four (4) meters
away from the pool at all times. (Fig 7a). While the Power
Supply is weather-resistant, it is not waterproof and
therefore should be placed in an elevated dry area where
it will not be allowed to sit in puddles of water. Less is
More: For optimum cleaning performance locate the Power
Supply at the mid-point of your pool’s longest side (Fig.
7b). This will allow your cleaner to make the best use of its
length of Floating Cable without using excess Cable length.
Excess Cable in the pool may result in it unnecessarily
twisting, kinking or getting entangled within your cleaner’s
rotating scrubbing Brush system. Excess Cable should be
kept coiled outside the pool near the Power Supply.
2. SETTING UP THE POWER SUPPLY
TIP! To help protect your Cable from potentially getting pulled into your cleaner when at the waterline, it is suggested to turn
off your pool’s filtration system while your cleaner is in operation to reduce the pool’s filter circulation effect that may push
the Cable against the waterline.

8www.AquaProducts.com/Service
Internal Timed Operation
Internal Timed Operation enables owners of Power Supply models equipped with either Dial or Digital timers to customize
their cleaner’s automatic operating cycle to clean anywhere from 1 to 7 hours and then automatically shut OFF. Once shut
OFF the Internal Timed mode will not automatically turn the cleaner back ON.
1. Press the Main Power ON / OFF switch to the “ON” position.
2. Adjust the Timer Control to the desired cleaning time (1 to 7 hours) depending on suggested cleaning cycle for your
model, pool size and amount of debris in pool (i.e. more debris = longer cleaning time).
Dial Timers (Fig 8a): Rotate Dial Timer clockwise to increase time (corresponding with the hour represented on the
face of the Dial Timer) and counterclockwise to decrease operating time.
Digital Timers (Fig 8b): Press the Time Selector Arrows Button upwards to increase time or downwards to decrease
operating time. Each time you press up or down the digital face will display the number of hours of timed operation for.
(DIGITAL TIMERS) NOTE: When pressing the Main Power Switch to “ON” should the Green LED above the C-RUN Button blink
continuously then the Power Supply is currently set to the External Timed Operation mode and needs to be reset to the Internal
Timed Operation mode by doing the following. Press and hold the C-RUN Button for approximately 5 seconds until the Green LED
stops blinking and remains off. If it has stopped blinking and is off then the Internal Timed Operation mode is set.
3. Press the Safety Reset Button (Fig. 8a, 8b). Your cleaner is now set to its Internal Timer and will begin cleaning for
the amount of time set.
NOTE: Your Power Supply will remain in the Internal Timed Operation mode until you physically reset it to the External Timed
Operation mode and will not reset to the External Timed Operation mode even if the power to the Power Supply is turned off or
is set to the OFF position.
Digital Timer (Fig. 8b)
1. Turn the Main Power ON / OFF Switch to “ON.
2. Press the “C-Run” (Continuous Run) button until it is lit.
Your cleaner is now set to Continuous Run mode.
Dial Timer (Fig. 8a)
1. With your Power Supply OFF, rotate Dial Timer counter-
clockwise until you feel it “click”.
2. Press the Main Power ON / OFF Switch to “ON”. Your
cleaner is now set to Continuous Run mode.
Figure 8a
(Dial Timer)
Figure 8b
(Digital Timer)
Safety
Reset
button
Dial Timer
Display
Continuous
Run (CRUN)
button
IMPORTANT: In “Continuous Run” External Timed mode, the Safety Reset button feature becomes inactive and
can not protect models with this feature from accidental “out of water” start up. Therefore, it is imperative that
you always unplug the Floating Cable from its Power Supply when removing your cleaner from the pool!
WARNING: The mode for operating your cleaner should be set after the cleaner has been placed in the pool, the
Floating Cable has been plugged into the Power Supply and the Power Supply has been plugged into the Ground
Fault Circuit Interrupted (GFCI) / Residual Current Device (R.C.D.) protected 115V electrical outlet with the Power
Supply located at least 12 feet / 4 meters from the pool’s edge!
Time Selector
Arrow Buttons
Red “ON” LED
Digital Timer
Display
Green LED
Continuous Run Operation (C-RUN)
Continuous Run mode means that the cleaner will operate continuously until the ON / OFF Switch to is physically pressed
OFF or an external time source automatically turns OFF the power to the Power Supply. When manually pressing OFF,
to restart its operation you must physically press the Switch back to ON. For automatic ON / OFF operation in “C-Run”
mode, please refer to External Timed Operation instructions (Page 9).
No Adjustable Timer
If your Power Supply does not have an Adjustable Timer (Dial or
Digital), then it is considered to always be in Continuous Run mode.
1. Press the Main Power ON / OFF Switch to “ON”. Your cleaner
is now set to Continuous Run mode.
KNOWING / USING MODEL FEATURES
SETTING THE POWER SUPPLY TIMER (INTERNAL AND / OR EXTERNAL)
If your cleaner has an adjustable Dial or Digital timer, you can set it for Continuous Run or Internal Timed Operation. All
Power Supplies (Page 4; Fig. 4a-d) may be connected to an external, separately purchased timer, such as a house-type
timer or pool control system. In this External Timed Operation mode you cleaner can externally be set to automatically
turn ON / OFF / ON / OFF as needed.

9www.AquaProducts.com/Service
Using the Remote Control
If your cleaner has a Remote Control feature, you have the ability to direct
it to various areas of the pool to pick up dirt and debris.
There are two types of radio remote controlled models:
3 Directional Remote Control and 4 Directional Remote Control.
3 Directional Remote Control (Fig. 9a):
This model has 1 Drive Motor (Page 3; Fig. 1.10), full length Wheel Tubes
(Page 3; Fig. 1.18) and a Cable Float on the Floating Cable (Page 3; Fig. 2) about
one foot from the cleaner’s body. This model can be controlled to move forward,
reverse and turn in an arc-radius towards to the direction it is traveling.
4 Directional Remote Control (Fig. 9b):
This model has 2 Drive Motors (Page 3; Fig. 1.10) internally and center split Wheel
Tubes (Page 3; Fig. 18). This model can be controlled to move forward, reverse,
left and right.
NOTE: All Remote Control cleaners turn on their own periodically. This is
a normal occurrence as part of their internal program to ensure complete
coverage and cleaning of all pool shapes.
IMPORTANT: Your wireless radio Remote Controller functions best when
operated within 100 feet / 30 meters of the Power Supply.
Figure 9a Figure 9b
Remote Control SystemRemote Control System
TURN
External Timed Operation
All Power Supplies, including without Adjustable Timers, Dial Timer and Digital Timer models, may be connected to an
external separately purchased timer, such as a house-type timer or pool control system. In this External Timed Operation
mode your cleaner can externally be set to automatically turn ON and OFF repeadly per the external timer schedule set.
To connect your cleaner to your pool control system relay, please consult an electrician, your control system manufacturer
or dealer for appropriate instructions.
No Adjustable Timers
1. Connect your Power Supply to an external timer (that is plugged into a GFCI / R.C.D. protected outlet).
2. Press the Main Power Switch to “ON”. Your cleaner is now set to Continuous Run mode and will operate according
to the External Time source (i.e. house-type timer or pool control system).
Dial Timer (Fig. 8a)
1. Connect your Power Supply to an external timer (that is plugged into a GFCI / R.C.D. protected outlet).
2. Turn the Power Supply to the OFF position and rotate Dial Timer counterclockwise until you feel it “click”.
3. Press the Main Power ON / OFF Switch to “ON”. Your cleaner is now set to Continuous Run mode and will operate
according to the External Time source (i.e. house-type timer or pool control system).
Digital Timer (Fig. 8b)
1. Connect your Power Supply to an external timer (that is plugged into a GFCI / R.C.D. protected outlet).
2. Press the Main Power Switch to “ON” and after a few seconds the Digital Timer Display will flash two horizontal
lines. If the Green LED above the C-RUN Button blinks then the External Timed Operation mode is set.
3. If the Green LED above the C-RUN Button does not blink then it is still set to the adjustable Internal Timed Operation
mode and needs to be reset to the External Timed Operation mode by doing the following.
4. Press the C-RUN Button once. The Green LED should illuminate.
5. Press and hold the C-RUN Button for approximately 5 seconds until the Green LED starts to blink. When it blinks
then the External Timed Operation mode is set.
NOTE: Your Power Supply will remain in the External Timed Operation mode until you physically reset it to the Internal Timed
Operation mode and will not reset to the Internal Timed Operation mode even if the power to the Power Supply is turned off or is
set to the OFF position.
IMPORTANT: “Continuous Run” External Timed mode: The Safety Reset button feature becomes inactive and can
not protect models with this feature from accidental “out of water” start up! Therefore, it is imperative that you
always unplug the Floating Cable from its Power Supply when removing your cleaner from the pool!

10www.AquaProducts.com/Service
Debris may vary due to geography, landscape or season.
Therefore, your cleaner has been equipped with the ability to
adjust theopening sizeof its Debris Intake Ports to accommodate
larger or smaller debris.
For smaller dirt like pine needles, sand and pollen slide the
Intake Port Width Selector (Fig. 10a), located on the inside of the
Bottom Lid Assembly, in the direction of the arrow indicating
“LESS”. This will restrict the opening ability of the Port Flaps
thus increasing its suction velocity to improve the removal of
sediment dirt.
For larger debris like leaves, twigs and acorns slide the Intake
Port Width Selector (Fig. 10b) away from LESS to increase the
Port opening size to accommodate larger dirt and debris.
Similar to a house vacuum that offers varied heights to clean
carpet and hard floors separately, your pool cleaner is equipped
with the patented Variable Intake Port Depth Extensions. There
are 2 pairs provided, each of different thickness / depths,
offering varied depth suction points to access different types of
dirt from different types of pool surfaces.
Use either the thicker pair to access heavy dirt like sand, algae or
silt embedded in porous surfaces like gunite, plaster or pebbled
textures or the thinner pair to access lighter dirt like pollen and
dust in less porous surfaces like vinyl liners. You may even
use one of each of the Port Depth Extension thicknesses to
provide varied dirt accessibility or use none at all and allow the
cleaner’s standard suction depth of the Bottom Lid Assembly
to do the job should your pool surface be virtually porous-free
like fiberglass.
1. To install simply align each Variable Port Depth Extension
tab to fit into its corresponding receptacle in the Bottom Lid
Assembly. Be sure that the angled side of each “Extension”
is facing the nearest Brushes (Fig. 11).
Figure 10a
Figure 10b
Figure 11
Figure 12
Two NeverStuck™ Rollers (Fig. 12) are located adjacent to the
Vacuum Intake Ports (Figure 11) on the Bottom Lid Assembly.
These help prevent the cleaner from being stuck on obstacles
like raised drain covers, convex lights or in-floor pop-up
heads. If they are not needed, the Rollers my be removed
with a phillips head screwdriver.
DEBRIS INTAKE PORT WIDTH SELECTOR (Page 4; Fig. 3b, 12)
Selector moved
toward LESS
Selector moved
away from LESS
VARIABLE INTAKE PORT DEPTH EXTENSIONS (Page 4; Fig. 3b, 12h)
NEVERSTUCK™ROLLERS (Page 4; Fig. 3b, 12)
POWER WASHING JET SYSTEM
Some models come equipped with the Power Wash Hydroscrubbing Jet system (Fig. 13). An internal centrifugal pump
produces two pressurized streams of water that help dislodge dirt like sand from seams, pores and corners where brushes
can’t reach. Periodically check the Power Washing Tubes (Fig. 13) to make sure that they are not clogged.
Close up of Power Wash exit
port nozzle after removal of
the Bottom Lid Assembly and
Filter Screen.
Figure 13

11www.AquaProducts.com/Service
CLEANING PATTERNS / DIRECTIONAL GUIDANCE
MECHANISMS
TWO POSITION DIAGONAL LOCKING FLOATING HANDLE + FULL LENGTH WHEEL TUBES
The Floating Handle (Page 3; Fig. 1) acts as a flotation device that guides your cleaner to move laterally (left or right), depending
on the diagonal angle it is locked in, when it is scrubbing the waterline. This allows your cleaner to climb the walls, move
laterally and reverse down the wall so that it is repositioned elsewhere in the pool on the floor. (see Pages 12-13 CLEANING
PATTERNS). For proper operation of your pool cleaner and to avoid tangling the Floating Cable, the Floating Handle diagonal
angle must be reversed with every use.
CABLE FLOAT or CABLE FLOAT + 3 DIRECTIONAL REMOTE CONTROL
The Cable Float (Page 3; Fig. 2) is a flotation device that enables your cleaner to turn on the floor (rather than the wall), with
limited lateral waterline movements, allowing your cleaner to spend more time on the floor, where the majority of debris
resides. This offers faster, more efficient and complete coverage of virtually any pool configuration. Your cleaner will move
down the wall and about halfway across the pool floor and then reverse. When it reverses its internal Pump Motor will
temporarily turn off allowing the Cable Float to lift its side of the cleaner allowing only the opposing side to have traction. As
the cleaner reverses, the side with traction will cause your cleaner to turn in an arc-radius manner. The internal Pump will turn
back on and full traction will be regained, allowing the cleaner to continue in a straight line to the wall.
3 Directional Remote Control models (Page 9; Fig. 9a) offer the ability to override the automatic mode and guide the cleaner
to move immediately forwards, reverse, and when on the floor, create an arc-radius turn in the direction it is moving for spot
cleaning.
HANDLE FLOAT + SPLIT WHEEL TUBE WITH DIRECTIONAL GUIDANCE CLUTCH
The Handle Float (Page 3; Fig. 1) and “split” Wheel Tube with the Directional Guidance Clutch (Fig. 1), within the “split” area of
the Wheel Tube, enables your cleaner to systematically pivot on the spot with every reverse movement. These features enable
your cleaner to spend the majority of its time on the floor, where the majority of debris resides, without the need for consistent
lateral waterline movements, yet with periodic wall climbing to provide adequate waterline attention. This offers faster, more
efficient and complete coverage of virtually and pool configuration.
NOTE: Should your cleaner get stuck in an area of the pool and not be able to get
out of its cleaning pattern, you may modify its pivot to allow for a greater turn to
overcome this very rare issue by simply removing the small Screw located near
the “split” on each Wheel Tube. To reduce the pivot back to original factory
setting rotate the free-spinning side of the Wheel Tube until it can no longer
turn and then reinsert the Screw. Repeat on opposing Wheel Tube.
Clutch
Screw
Magnet
Figure 14
Magnet Float
(Magnet appearance may vary) Swipe across the
AQUAPRODUCTS logo
Magnet
Non-Remote Control models with a Handle Float and / or split
Wheel Tube with Directional Guidance Clutch come equipped
with a Magnet (provided in plastic bag with Operator Manual. See
Fig. 14). The Magnet is only needed in the very rare instances a
cleaner gets stuck in a pattern in an area of the pool and is unable
to continue to clean elsewhere. The Magnet can be used to
increase or decrease the number of seconds your cleaner travels
forward and reverse along the width of the floor enabling it to
perform as needed. Please refer to the Troubleshooting Guide
(In Depth), DOES NOT CLEAN ENTIRE POOL (MISSES AREAS)
OR DOES NOT CLIMB WALLS for specific instructions on how to
use this feature (see Page 27, #5).
Bumper
If your cleaner is becoming stuck or “stalled” against the pool
wall on a regular basis, you should install Bumpers on the ends
of the Sideplates. See Page 30 for installation instructions.
SPLIT WHEEL TUBE + 4 DIRECTIONAL REMOTE CONTROL
Models with “split” Wheel Tubes (Page 3; Fig.1 ) and 4 Directional Remote Control (Page 9; Fig. 9b) capability feature 2 internal
Drive Motors with each Motor controlling its corresponding side of the cleaner. The free-spinning Wheel Tube sides and Drive
Motors provide 4 Direction movements of immediate forwards, reverse, left and right. This provides your cleaner with total
mobility and systematic scanned movements from side wall to side wall with right angle turns to cover the full length of the
pool. This offers faster, more efficient and complete coverage of virtually and pool configuration.
4 Directional Remote Control models offer the ability to override the automatic mode and guide the cleaner to move immediately
forwards, reverse, left and right for pin-point spot cleaning and total control.

12www.AquaProducts.com/Service
Models with Two Position
Diagonal Locking Floating Handle
+ Full Length Wheel Tubes
Pattern Description:
Your cleaner runs this pattern in SETS of side to side “half laps”. Each
set consists of 7 “half” laps.
Set 1: In the first 6 half laps your cleaner finds the wall, goes up the
wall for about 30 seconds, while at the waterline, moves laterally
and then reverses to travel to the opposite wall (A). The cleaner
goes up the opposing wall for about 30 seconds, moves laterally at
the waterline and reverses to travel back again (B).
On the 7th half lap, your cleaner climbs the wall, finds the waterline and
moves laterally across the waterline for several minutes (C).
Set 2: In the next 6 half laps your cleaner finds the wall, goes up the
wall for about 30 seconds, moves laterally at the waterline and then
reverses to travel to the opposite wall (D). Your cleaner goes up the
wall for about about 30 seconds, moves laterally at the waterline
and reverses to travel back again (E).
On the 7th half lap, your cleaner climbs the wall, finds the waterline and
moves laterally across the waterline for approximately a shorter period
of time (F).
In the next two sets, the 7th half laps will vary by traveling for about 2
minutes laterally across the waterline. After which, your cleaner will
repeat the entire program again.
E
AB
C
D
F
CLEANING PATTERNS
Depending on your cleaner type, you will notice a different cleaning pattern produced.
Please reference the illustrations according to your cleaner.
Pattern Description:
A. Your cleaner searches for the wall and climbs it.
B. Then spends a number of seconds moving across the waterline
and then climbs down the wall.
C. Your Cleaner moves across the floor to about half the width of the
pool and then reverses backwards for a few seconds. The cleaner
turns slightly and moves towards the wall again.
D. Your cleaner climbs the wall for a couple of seconds.
E. Your cleaner reverses to move back across the floor to about
half the width of the pool and then reverses backwards for a few
seconds. The cleaner turns slightly and moves towards the wall
again.
F. Your cleaner climbs the wall for a couple of seconds.
G. Your cleaner moves across the floor to about half the width of the
pool and then reverses backwards for a few seconds. The cleaner
turns slightly and moves towards the wall again.
H. Your cleaner climbs the wall for a couple of seconds.
I. Your cleaner moves to the opposite wall to restart the full pattern.
Models with Cable
Float or Cable Float
+ 3 Directional
Remote Control
B
A
C
D
E
FH
I
G
*
*
* Internal program has a preset number of seconds for climbing.
In deep ends, it may not reach the waterline.
* Models with NO Floating Handle are designed to climb partially
– not to waterline.
NOTE: All models are equipped with a safety feature that automatically reverses your cleaner after a number of minutes should it not
encounter a wall and tilt to approximately 90º. This protects your cleaner should it encounter the underside of a ladder for example. Most
models have a safety shut-off timer that periodically shuts off the power to your cleaner for a few seconds to allow it to float down from
its position as an additional measure of protection against getting stuck.
NOTE: For cleaning with the 3 directional remote control,
your cleaner uses the Cable Float on the Floating Cable to
lift itself on one side, which will allow your cleaner to pivot
on the opposite side in order to turn.
NOTE: Remote Control guidance can override automatic
program.
Remote Control System
TURN

13www.AquaProducts.com/Service
Models with
Split Wheel Tube
+ 4 Directional
Remote Control
Pattern Description:
A. Cleaner searches for the wall, climbs it for a couple of seconds and
then climbs down the wall.
B. Cleaner moves to the opposite end of the pool, finds the wall and
climbs to the waterline. Cleaner moves across the wall for a longer
number seconds and then climbs down the wall.
C. Cleaner searches for the wall, climbs it for a couple of seconds and
then climbs down the wall.
D. Cleaner moves to the opposite end of the pool, finds the wall and
climbs to the waterline. Cleaner moves across the wall for a longer
number seconds and then climbs down the wall.
E. Cleaner searches for the wall, climbs it for a couple of seconds and
then climbs down the wall.
F. Cleaner moves along the floor for several seconds, then turns 90º
to the right to move along the length of the pool.
G. Cleaner will restart the pattern, but will alternate the 90º turn to the
left.
H. Remote Control can override automatic program.
A
G
B
C
D
E
F
Pattern Description:
A. Cleaner searches for the wall, climbs it for a couple of seconds and
then reverses down the wall.
B. Upon reversing from the wall, the Wheel Tube Clutch slightly turns
your cleaner to move on an angle and travels away from the wall
moving along the floor for a number of seconds. Cleaner stops
and reverses, engaging the Clutch, turning your cleaner on an
angle and moves towards the wall again.
C. Cleaner searches for the wall, climbs it for a couple of seconds and
then reverses down the wall.
D. Upon reversing from the wall, the Wheel Tube Clutch slightly turns
your cleaner to move on an angle and travels away from the wall
moving along the floor for a longer number of seconds. Cleaner
stops and reverses, engaging the clutch, turning your cleaner on
an angle and moves towards the wall again.
E. Cleaner searches for the wall, climbs it for a couple of seconds and
then reverses down the wall.
F. Upon reversing from the wall, the Wheel Tube Clutch slightly turns
your cleaner to move on an angle and travels away from the wall
moving along the floor for a fewer number of seconds. Cleaner
stops and reverses, engaging the Clutch, turning your cleaner on
an angle and moves towards the wall again.
G. Cleaner searches for the wall and climbs, spending a number of
seconds moving across the waterline and then climbs down the wall.
H. Cleaner moves across the floor for a slightly longer number of
seconds to the opposite end of the pool. The cleaner will now
restart the pattern.
Models with Handle Float
+ Split Wheel Tube with
Directional Guidance Clutch
A
B
C
D
E
F
G
H
**
*
*
*
*
*
*
*Should your cleaner not reach and clean the center portion of your pool,
you can change the number of seconds your cleaner travels along the
floor using the Magnet provided (Page 11; See Fig. 14).
** Internal program has a preset number of seconds for climbing. In deep
ends, it may not reach the waterline.
NOTE: Manual guidance can override current program.
NOTE: All models are equipped with a safety feature that automatically reverses your cleaner after a number of minutes should it not
encounter a wall and tilt to approximately 90º. This protects your cleaner should it encounter the underside of a ladder for example. Most
models have a safety shut-off timer that periodically shuts off the power to your cleaner for a few seconds to allow it to float down from
its position as an additional measure of protection against getting stuck.
Remote Control System
* Internal program has a preset number of seconds for climbing.
In deep ends, it may not reach the waterline.
* Models with NO Floating Handle are designed to climb partially
– not to waterline.

14www.AquaProducts.com/Service
MAINTAINING YOUR POOL CLEANER
CLEANING AND CHANGING THE FILTER BAG (CLEAN THE BAG! CLEAN THE BAG! ...)
Thoroughly cleaning the Filter Bag after every use is the most important maintenance step you can take to ensure
optimum performance of your cleaner. The Filter Bag’s (Page 4; Fig. 3a) holding capacity is large in comparison to all
other brands of independent pool cleaners, but far smaller than that of a pool’s main filter. Additionally, your cleaner’s
Filter Bag can filter out particles down to 20 times smaller than what many main filters can. This means that the fine
particles such as algae and bacteria, invisible to the naked eye, which slip through the main filter and back into the pool
to settle into the pores of the pool’s surface, will be scrubbed loose and vacuumed up by your cleaner and retained in its
Filter Bag. When the Filter Bag becomes saturated with debris the flow of water through it becomes restricted and suction
is reduced. This will result in remaining dirt and debris not being completely removed from the pool.
Also, strong water flow is required to force the cleaner against the wall when climbing. A dirty Filter Bag weighs the
cleaner down, making it hard for your cleaner to climb due to the added weight and reduced water flow. With models
whose Floating Handles are required to be locked in the diagonal position, this lack of climbing will not allow the cleaner to
move left or right at waterline and thus not cover or clean the entire pool. Therefore, it is important to clean the Filter Bag
thoroughly with every use so that the fine particles that get trapped within the fibers of the Filter Bag are removed.
To Clean The Filter Bag :
1. Unplug the Power Supply (Page 4; Fig. 4a-d).
2. If your cleaner is in the pool, gently pull it toward you using
the Floating Cable (Page 3; Fig. 2) until the Floating Handle
(Page 3; Fig 1) is within reach. Use the Floating Handle (not
the Floating Cable) to slowly pull your cleaner out of the pool
after allowing most of the water to drain from your cleaner
back into the pool.
IMPORTANT: Using the Floating Cable to lift the
cleaner out of the water will cause severe damage to
your cleaner and may result in costly repair!
Power Supply
GFCI / R.C.D.
outlet
Floating
Cable
3. Lay your cleaner on its back or side on a soft surface to avoid
scratching it. Individually pull each Lock Tab gently away
from your cleaner’s body to free the Bottom Lid (Fig. 15a).
4. Remove the Filter Bag from the Wire Frame Bag Supports
(Fig. 15b), turn it inside out and with a high pressure garden
hose, wash off all the dirt from the inside out or dunk it in
a clean bucket of water and wring the Bag continuously
until the rinse water is clear. If necessary, you may machine
wash (Gentle Cycle / Cold Water only) the Bag with NO
DETERGENT. You may re-install the bag immediately or
allow it to air dry (never iron or machine dry the Filter Bag).
5. Re-install the Bag on the Wire Frames of the Bottom Lid
Assembly, making sure that the “felt” (soft) side of the Fine
Filter Bag is facing in. To ensure a proper fit of the Filter
Bag onto the Bottom Lid Assembly, locate the Small Label
near the Filter Bag’s elastic bottom. Position the Filter Bag
so that the Small Label is at the center of either long side of
the Bottom Lid (Fig. 15c). Then pull the elastic bottom over
each Wire (Fig. 15b) and slide the Filter Bag down along the
Wires until the Bag reaches the Bottom Lid. At that point
the Filter Bag’s elastic bottom should be stretched over the
plastic ridges located at the base of the Bottom Lid. This
holds the Filter Bag in place. Pull the Filter Bag corners to
the top corners of the Wire Frame and pull the extra Bag
material from each corner inwards along the top center of
the Wire Frames (Fig. 15c).
6. Re-install the Bottom Lid Assembly into the bottom of your
cleaner. Be sure that the Filter Bag’s fabric is not interfering
with the locking of the Lock Tabs and that you clearly hear
each Tab lock shut.
Figure 15cFigure 15b
Figure 15a
Small Label
Wire Frame Bag
Support
Lock Tabs
Bottom Lid
Assembly
IMPORTANT: Although a Filter Bag may appear clean it is capable of microfiltering out particulates 20 times smaller
than what the naked eye can see! It is crucial to thoroughly clean the Bag with each use to ensure its ability to
properly cover and clean your pool!

15www.AquaProducts.com/Service
FLOTATION
Your cleaner is a universal pool cleaner which performs under varying chemical
and temperature conditions in your pool. Your cleaner offers the best possible
performance when it is virtually weightless in your pool. Therefore, careful
balancing of its weight is important for proper operation. Generally, a new cleaner
is universally balanced when used for the first time and additional Flotation (Fig.
16 a-c) is not required on start-up.
Most pool conditions allow your cleaner to climb most stairs and pool walls
effortlessly up to the waterline. *However, in some instances the pool
environment (e.g. temperature, chemicals, water, etc.) may offset your cleaner’s
natural buoyancy. Therefore, flotation devices (Fig. 16a-c) have been included in
the packaging with your new cleaner to assist its buoyancy.
* Models with NO Floating Handle are designed to climb partially – not to waterline.
Figure 16a
Figure 16cFigure 16b
Adding Flotation on Bottom Lid Assembly (Page 4; Fig. 3a):
1. Remove the Filter Bag. Then place the “H”-Float (Fig. 16a), foam
side down, against the inside base of the Bottom Lid Assembly
(Fig. 17a). Secure the “H”-Float with the 2 screws provided by
fastening them in from the outside of (from under) the Bottom Lid
Assembly. This should provide adequate buoyancy.
2. Should your cleaner require more Flotation, then add the 2
remaining Side Pocket Floats (Fig. 16c) 1 at a time until adequate
buoyancy is achieved. Pocket Floats do not require any screws or
glue. Simply place them into the open rectangular areas next to
the Debris Intake Port Flaps (Fig. 17b).
Adding Flotation on Bottom Lid Assembly (Page 4; Fig. 3b):
1. Remove the Filter Bag (Fig. 17c). Then place the 2 Square Floats
(Fig. 16b), foam side down, against the inside base of the Bottom
Lid Assembly (Fig. 17d). Secure the Square Floats with the 2
Screws provided by fastening them in from the inside of the
Bottom Lid Assembly. This should provide adequate buoyancy.
2. Should your cleaner require more Flotation, then repeat step 1 and
add the 2 remaining Square Floats.
Figure 17a
Figure 17c
Figure 17b
Figure 17d
IMPORTANT: Careful removal of air trapped in the housing is critical.
Each time you place your cleaner in the pool use the Floating Handle
(while submersed) to turn it upside down and gently rock it back and
forth to allow any possible trapped air to escape! (See page 7, #3)
IMPORTANT: Temperature and chemical composition changes can greatly affect the buoyancy of your cleaner!
Therefore, if you have previously installed Flotation devices in your cleaner to assist its buoyancy, it may be
necessary to remove the devices one-by-one until proper buoyancy is restored!

16www.AquaProducts.com/Service
FLOATING CABLE CARE
Occasionally you should stretch the Floating Cable (Page 3; Fig. 2) out to its full length to prevent a memory from forming
and ensure your Cable will not impede your cleaner from reaching all areas of your pool. At that time you should also check
the Floating Cable for external damage. Continual rubbing against sharp or rough surfaces may abrade the Floating Cable
resulting in damage and possible short-circulating your cleaner. Animal bites may puncture or fray the cable as well. For
these reasons it is important to periodically inspect the Floating Cable. The following is not applicable to models with NO
Handle, permanently fixed Handle or Handle with a Handle Float.
Models with Diagonally Locking Floating Handle: With every use, you must reverse the diagonal locked position. This
will reverse the direction your cleaner travels in your pool ensuring that it reaches any areas possibly missed during its
previous use and ensuring a tangle free Cable.
Models with Fixed Floating Handle and Handle Float: With every use, you must reverse the position of the Handle Float
along the Floating Handle by simply sliding it to the same area on the Handle on the opposing side of your cleaner. This
will reverse the direction your cleaner travels in your pool ensuring that it reaches any areas possibly missed during its
previous use and ensuring a tangle free Cable.

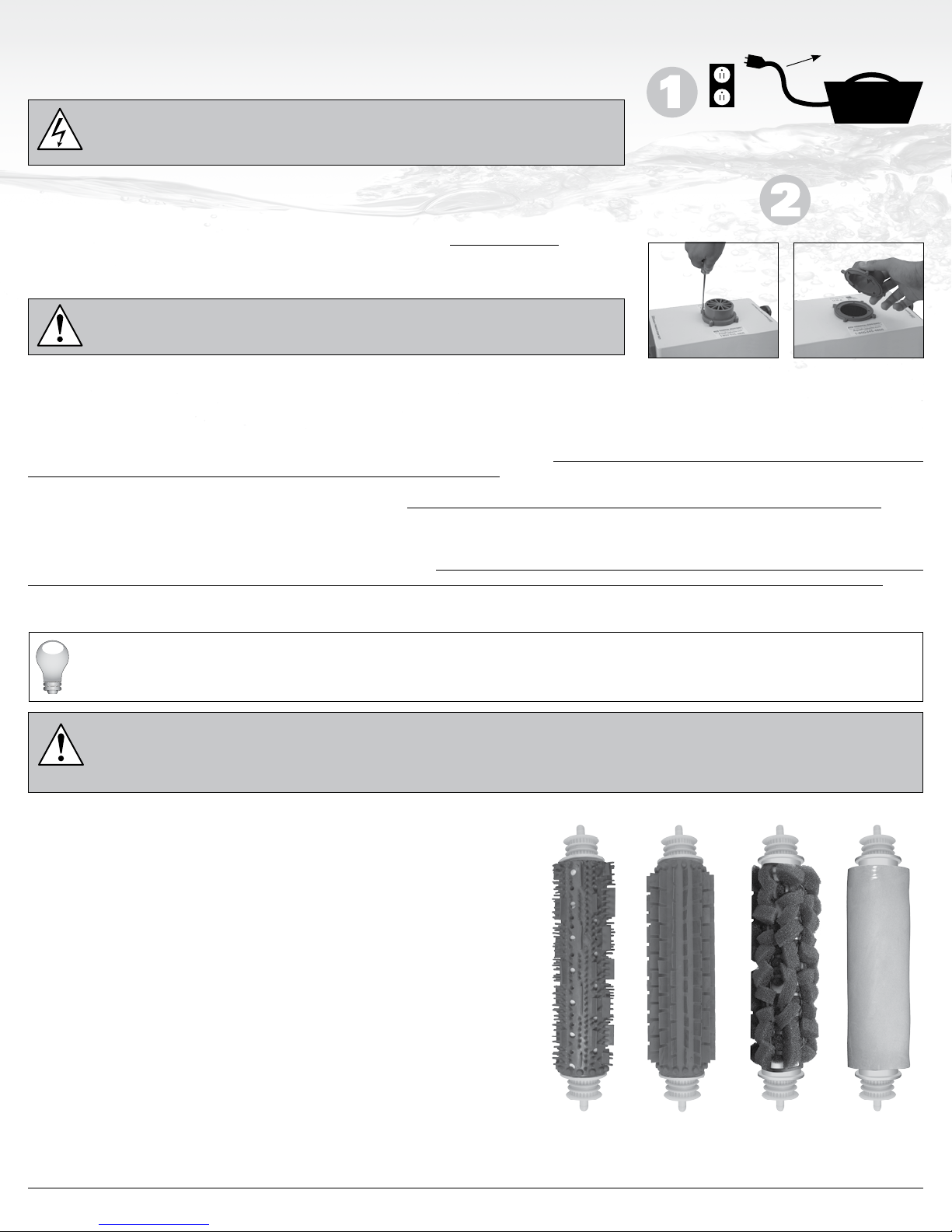

PROPELLER CARE
It is a good practice to inspect the Propeller (Page 3; Fig. 1) once or twice
per season to check for obstructions, which may reduce water flow and thus
vacuuming ability and pool coverage.
1. First unplug the cleaner from the Power Supply (Fig. 18a).
2. Then remove the Screws that secure the Outlet Top (Page 3; Fig. 1) to the
body (Fig. 18b, 18c). Depending on your model the Outlet Top may have 2 or
4 Screws. Using a screwdriver or similar instrument, not your finger, turn the
Propeller to check that it spins freely and inspect the Propeller for clogs: hair,
twigs or other debris, which may keep it from spinning freely. Remove any
accumulated material and replace the Outer Top.
Figure 18c
Figure 18a
Figure 18b
TIP! Cable straightening and untangling is made fast and simple with Aqua Products’ optional E-Z Swivel Cable Detangler.
The “E-Z Swivel” is available to purchase through your Aqua Products Authorized Dealer or online at AquaProducts.com.
IMPORTANT: To protect against personal injury and damage to your
cleaner always unplug your cleaner from its Power Supply prior to
performing any maintenance or repair procedures!
IMPORTANT: Be careful not to over-tighten the Screws or you may
“strip” the screw holes or crack the Outlet Top when re-assembling!
IMPORTANT: Never lift your cleaner out of the pool using the Floating Cable! Your may use the Floating Cable
to pull the cleaner to the side of the pool, but always use the Floating Handle to remove it from the pool! Using
the Floating Cable to remove the cleaner from the pool will result in internal connections being broken and costly
damage being caused to your cleaner! (See page 14, #2)
Power Supply
GFCI
outlet
Your cleaner’s Scrubbing Brushes provide traction and give it the
ability to loosen debris. It is important that you not let the Brushes get
worn down otherwise your cleaner may lose the ability to scrub, climb,
turn and move to clean and cover all areas of the pool. Eventually you
will need to changes the Brushes on your cleaner. When they need
replacement will depend upon how often you use your cleaner and
upon the conditions of your pool. High chemical concentrations and
rough surfaces will cause faster Brush wear. We recommend that
you inspect Brushes frequently to check for excessive wear.
NOTE: Molded and Super Brushes stiffen in water less than
70ºF which may lessen their ability to climb pool walls.
The Molded Rubber Brushes that come standard on most cleaner
models will function well on most any surface (including concrete,
plaster, gunite, vinyl and pebble). The Super Brushes will work on
virtually all surfaces other than highly polished tile. Foam Brushes
are recommended for fiberglass and vinyl surfaces only. PVA Brushes
are recommended for fiberglass, vinyl and highly polished tile. Super Brush
Molded Rubber
Brush
PVA Brush*Foam Brush
* It is recommended that PVA Brushes are installed only by
Aqua Products or an Aqua Products Authorized Service Center.
SCRUBBING BRUSHES CARE AND REPLACEMENT

17www.AquaProducts.com/Service
To Change Super Brushes for full length and “split” Wheel Tubes: (Fig. 20)
1. Using a pair of pliers, grab one end of the stainless steel Rod that is securing
the old Brushes onto the Wheel Tube. Pull away from the Wheel Tube slowly
until the entire existing Brush is freed and removed (Fig. 20).
2. Wrap the new Super Brush around the Wheel Tube.
3. Join the ends of the replacement Super Brush using the Metal Rod supplied
in the package. Slide the Rod through the Tabs molded into the ends of the
Brush (Fig. 20). Make sure that the Rod is inserted through every Tab.
To Change Molded Rubber Brushes for full length Wheel Tubes (Fig. 19a, 19b):
1. Carefully cut the Tabs with scissors facing away from you and your hands clear
from the cutting direction (Fig. 19b).
2. Wrap the new Brush around the Wheel Tube (Fig. 19a).
3. Insert one of the center rubber Tabs into the corresponding Slot on the other
end of the Brush (Fig. 19a). Gently rock the Tab back and forth until the Tab pulls
through and is secure. Be careful not to tear the rubber Tabs.
4. Once secure you may cut the excess Tab Flap away from the Brush. Be careful not
to cut the Tab base that secures the Brush around the Wheel Tube (Fig. 19b).
Figure 19a
Figure 19b
To protect against personal injury and damage to your cleaner always unplug your cleaner from its Power Supply
prior to performing any maintenance or repair procedures!
TIP! Start by working the Tabs at the center of the
Brush and working outwards.
TIP! Leave Molded Rubber Brushes and Super Brushes
in direct sunlight to warm up before mounting. They
will be more pliable and easier to work with.
TIP! Leave Molded Rubber Brushes and Super Brushes
in direct sunlight to warm up before mounting. They
will be more pliable and easier to work with.
TIP! Using needle-nosed pliers will make it easier to grasp and pull the
Tabs as needed.
Figure 20
Figure 21
TIP! Lubricate the Rod with soapy water and use a pair of pliers to hold
the Rod to make it easier to insert.
To Change Foam Brushes for full length Wheel Tubes: (Fig. 21)
1. Grab each plastic Brush Tab and pull away from the plastic Buttons that secure
the Brush to free the Brush from the Wheel Tube.
2. Wrap the new Brushes around the Wheel Tube.
3. Pull the Tabs with the Holes over the corresponding Buttons found on the
opposite end of the plastic Brush Grid (Fig. 21). Make sure that they fit snugly.
Repeat this process with all of the Tabs and Buttons.
IMPORTANT: When using a cutting instrument, such as scissors, always wear protective attire such as protective
goggles and gloves and be sure to always cut away from yourself to prevent unnecessary injury!

18www.AquaProducts.com/Service
CHANGING DRIVE TRACKS
Drive Tracks (Fig. 22a) may become worn over the normal course of use and
will require replacement based on the frequency of use, the pool’s chemical
balance, pool surface and length of season. Worn (stretched, loose or “flat-
spotted”) Drive Tracks will impede your cleaner’s ability to climb stairs and
obstacles and may effect the cleaning pattern impeding its ability to cover the
entire pool. If during your periodic inspection you find that your Drive Tracks
are worn, please contact your Aqua Products Authorized Dealer for replacement
Drive Tracks or visit AquaProducts.com
1. Unplug your cleaner from its Power Supply and remove your cleaner
from the pool.
2. Place your cleaner on its side, on a soft surface which will not scratch the
Body’s finish.
3. With your thumbs pushing against the Side Plate (Fig. 22b), hook your
fingers under the Drive Track and pull it toward the Side Plate. When you
get the Drive Track over the “lip” of the Side Plate, hold it there with one
hand, and with the other hand, grip the Wheel Tube (Fig. 16) and rotate it
away from the cleaner until the Drive Track “walks” over the Side Plate.
Continue this until the Drive Track is free (Fig. 22b).
4. To mount the new Track, hook it around the lower Wheel Tube end and
pull it upward as you guide it between the cleaner’s Body and Side Plate.
5. Push inward on the Drive Track and force it over the edge of the Side
Plate. Rotate the Wheel Tube, towards you, until the Drive Track
properly seats itself on the Wheel Tube between the Side Plate and the
cleaner’s body
6. Repeat steps 1 through 5 with the Drive Track on the other side of the
cleaner.
Figure 22b
Figure 22a
Standard
Drive Track
G-Tooth™
Drive Track
CHANGING DRIVE BELTS
Drive Belts (Page 19; Fig. 26a, 26b) may become worn over
the normal course of use and will require replacement
based on the frequency of use, the pool’s chemical balance
and length of season. Worn Drive Belts will impede your
cleaner’s ability to move or climb and may effect the cleaning
pattern impeding its ability to cover the entire pool. If during
your periodic inspection you find that your Drive Belts are
stretched, loose or “flat-spotted please contact your Aqua
Products Authorized Dealer for replacement Drive Belts or
visit AquaProducts.com.
1. Remove Drive Tracks (See CHANGING DRIVE TRACKS).
2. Place the cleaner on a non-abrasive surface and turn
cleaner upside down. Remove Bottom Lid Assembly
(Fig. 23).
3. Remove the Wheel Tube Retaining Rings (Fig. 24a, 24b).
4. Locate and remove 4 screws (see Figure 25) on Drive
Motor side, which holds Side Plate in place.
Figure 23
Figure 24a Figure 24b
Wheel Tube Retaining Ring
“E” Clip “C” Clip
TIP! We suggest using needle nose pliers to remove
the Wheel Tube Retaining Rings.
IMPORTANT: When ordering replacements specify the type of Track
you are replacing; i.e. “Standard” or “G-Tooth™” Drive Tracks
IMPORTANT: Always replace both Tracks at the same time! Replacing
only one will adversely effect the cleaner’s cleaning pattern!

19www.AquaProducts.com/Service
Drive Pulley Drive Belt
Side Plate
Wheel Tube
Small Rollers
Stepped Sleeve
Rollers
Figure 26a
Inside View
Figure 26b
Top View
NOTE: When re-assembling be sure that the Drive Tracks are positioned
so that they press against the thick side of the Stepped Sleeve Rollers.
When re-assembling,
please make sure
that the teeth of the
Drive Belts are facing
inward.
NOTE: Before removing the screws, notice how the Drive Belts,
Drive Pulley, Stepped Sleeve Rollers, Small Rollers and Bushings
are positioned for re-assembly (Fig. 26a, 26b)
5. Remove old Drive Belts and replace them with new Drive
Belts, being careful to properly position the replacements:
One Belt from the Drive Pulley to the Front Wheel Tube and
one from the Drive Pulley to the Rear Wheel Tube. The
Belts must press against the thicker side of the Stepped
Sleeve Rollers for proper tension (Fig. 26a, 26b).
6. To re-assemble, reverse steps 5 through 2.
*4-Directional Remote Control Cleaners with Two Drive
Motors have a total of 4 Drive Belts, 2 located behind each
Side Plate.
4 Screws on Drive Motor side
Figure 25

20www.AquaProducts.com/Service
PREPARING YOUR CLEANER FOR SHIPPING
In the event that you should have to send your cleaner in for repair, you must package the cleaner properly to ensure it
reaches the repair facility safely and without incurring damage during transport. This will delay your repair turnaround
time and require you to contact your shipper directly to dispute damages.
If the troubleshooting methods shown within the Troubleshooting Guide (Summary or In Depth; Pages 22 - 30) have not
corrected your technical service issue or has proven that your cleaner requires review by an Aqua Products Authorized
Service Center, please visit Aqua Products’ Customer Service Department online at AquaProducts.com/Service to locate
your local Authorized Service Center.
NOTE: A log of all information from your contact with an Aqua Products technical service analyst (i.e. RMA, name of analyst, dates,
cleaner model and serial number, etc.) should be kept with your operator manual and / or other important documents for your
reference (See page 31: NOTES).
Ask the technical service analyst whether the Power Supply needs to accompany the cleaner. If yes, the Power Cord
should be coiled (Fig. 27a) and the Power Supply should be entirely well wrapped in bubble-wrap or equivalent
protective material (Fig. 27b). The Power Supply should be positioned in the center of the base of the shipping
box and the shipping box base must be firmly sealed (Fig. 27b).
IMPORTANT: A Return Authorization Number (RMA) must be obtained from Aqua Products prior to shipping
cleaner to its repair facility. Any item shipped to Aqua Products without a proper RMA number will be refused
and returned!
Figure 27a Figure 27b
Correct Incorrect
(do not coil cable in a
figure 8 configuration)
Incorrect
(do not place cleaner
on top of power supply)
CLEANER STORAGE
When not in use it is important that your cleaner, its Floating Cable and Power Supply are properly stored in a clean and dry
area, away from direct sunlight, protected from below freezing temperatures and exposure to chemicals and their fumes (i.e.
chlorine). This will help prevent any unnecessary wear or damage to your cleaner or its components. Prior to storing your
cleaner, thoroughly clean your Filter Bag and dry off your cleaner. Ensure that its Floating Cable is untangled, not twisted
nor in a figure eight, but rather coiled either around your cleaner’s body or in large circular loops and positioned under your
cleaner. Be sure to rest your cleaner on its side so that its Brushes do not get flat spots.
