QUICK START
GUIDE

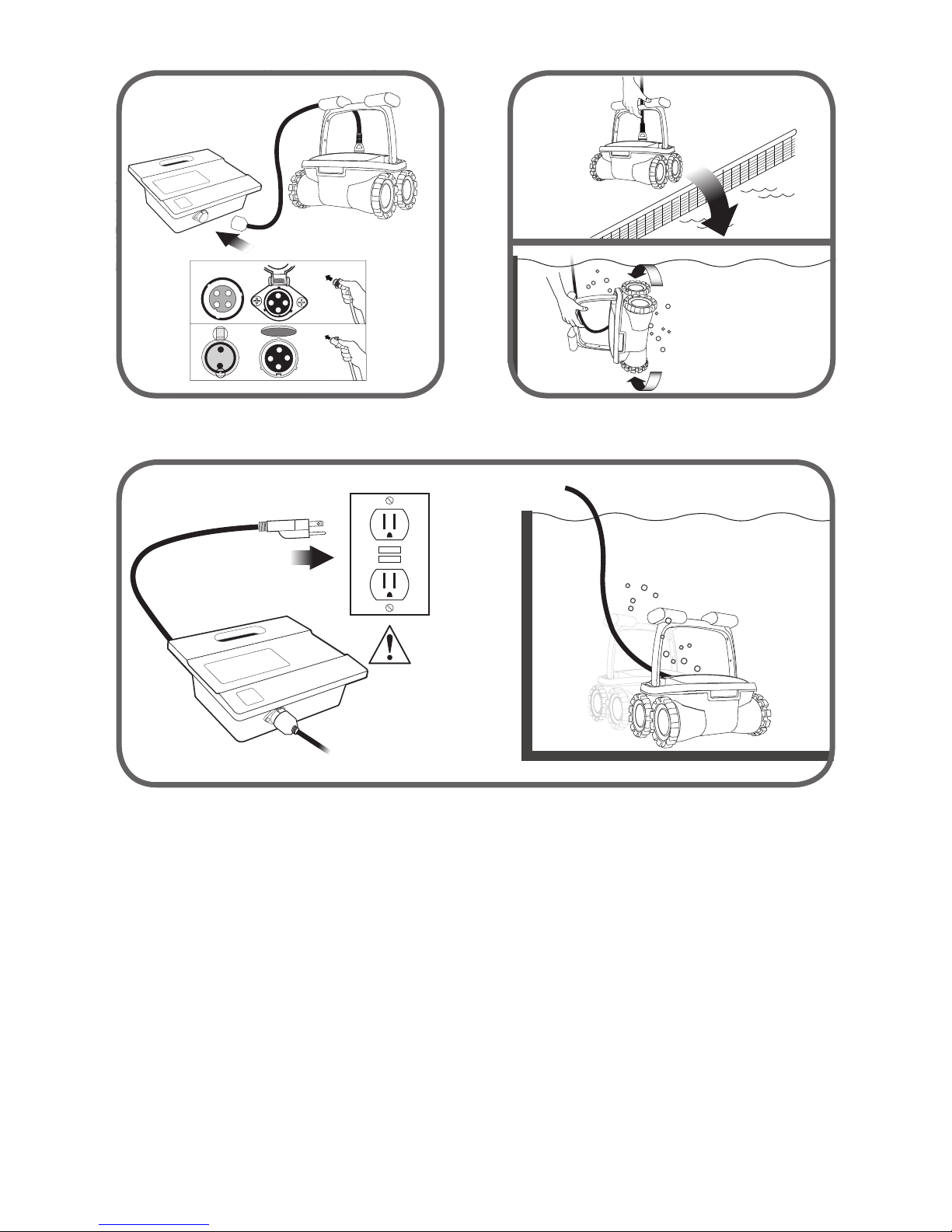

QUICK START INSTRUCTIONS (Steps 1-3)
Place the cleaner in your pool using the handle and turn upside
down to remove any air bubbles.
Plug the power supply’s power cord into a GFCI outlet (Ground Fault Circuit Interrupter) and the cleaner will start working automatically.
Do not operate your machine while people swim in the pool.
2
3
Straighten out the floating cable and plug the cleaner into the
power supply. DO NOT plug the power supply’s power cord
into the wall outlet at this point.
A
B
1

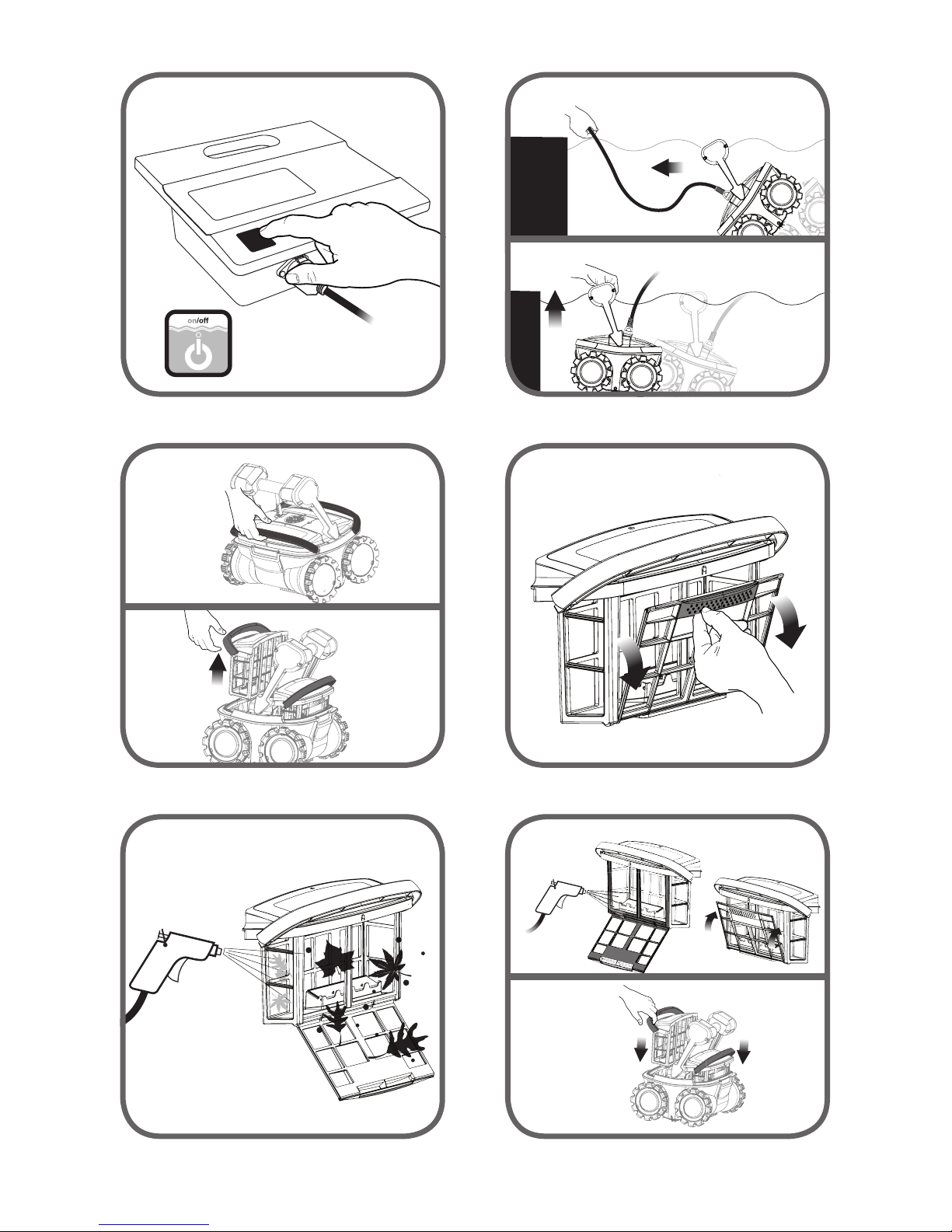

ROBOT REMOVAL and FILTER BASKET CLEANING INSTRUCTIONS (Steps 4-9)
4
7
9
5
8
6
Grab the handle on the filter basket and gently pull up-
ward to remove the baskets on each side
Use a hose to clean out the debris from the basket.
Spray into the basket from the outside.
Gently pull cleaner to edge using the floating cable. Lift
unit out using the front handle and let the water drain.
Open the basket by using the tab on the basket door.
Make sure to clean the inside areas of the basket door.
Press and release the power button to turn power supply OFF.
(See Settings and Troubleshooting Guide)

12ft / 4m
Midpoint of the Long side of Pool
These are the most common questions you might have regarding your unit.
For more detailed troubleshooting, see the Troubleshooting Guide included
in the packaging.
Cleaner
Power
Supply
TROUBLESHOOTING
DO NOT RETURN CLEANER TO RETAILER!
CALL CUSTOMER SERVICE AT
800-221-1750
This guide provides basic troubleshooting.
A more detailed troubleshooting guide is included separate from this guide.
You may also download the Quick Start Guide as well as the Settings and
Troubleshooting Manual at: www.Aquabot.com
My unit is not sucking up debris:
• Make sure the filter basket is clean
• Check to see that you’ve properly set-up the unit and power supply
• Check to see if the propeller is stuck
The LED light is blinking on the power supply:
• Generally indicates that the cleaner’s cleaning cycle has ended.
• Check to see if the propeller is stuck
• Check to see if the brush is stuck or if there is any debris lodged in the
gears.
• To restart, press the power button once. Cleaning program will resume
from it left off provided non of the previous errors are an issue.
NOTE: After every cycle the pool cleaner will automatically go to “standby”. Incase
you want to turn the cleaner off during the working cycle, press the “Power” button
once and the LED will start flashing, indicating that the machine has stopped
running.
Unit is stuck in the middle of the pool but the unit still pumps out water:
• Check to see that there is nothing obstructing the cleaner or that the
cleaner is not stuck on any loose objects in the pool.

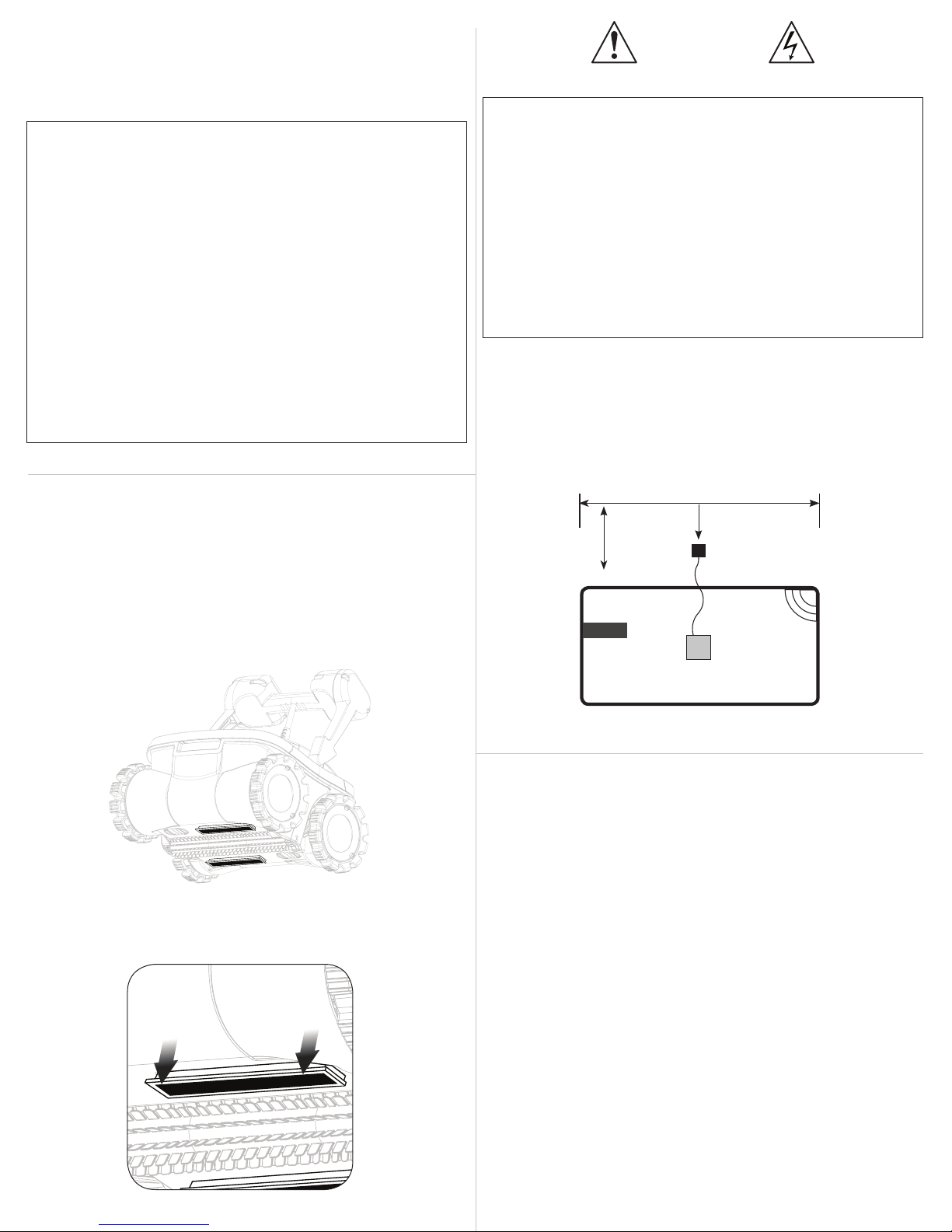

PORT EXTENSIONS
Your cleaner is equipped with two adjustable suction ports on the underside
of the unit. Both can be lowered to maximize the suction strength for picking
up smaller debris. The suction ports are set to the lowest position by default.
To adjust the ports, use your hand to pull or push the extensions into place.
When you hear a click sound, this means the extension is locked into position
and ready. To change again, repeat the same action. (See Figure A below)
Figure A
WARNING: Do not turn the Power Supply on, unless the pool cleaner is in
the water.
WARNING: Do not operate your machine while people swim in the pool.
WARNING: The Power Supply must be placed at least 12 feet / 4 meters from
the pool’s edge at all times! See diagram below.
WARNING: To prevent possible electric shock hazard this unit must be
connected to an RCD (Residual Current Device) with a related residual
operating current not exceeding 30mA.
WARNING: Before performing any troubleshooting maintenance procedures,
your Cleaner should be disconnected from the Power Supply (transformer)
and the Power Supply should be unplugged from the electrical outlet to
prevent the possibility of personal injury or damage to your Cleaner!
WARNINGS
