Aquamatic Aquacell P2 Series User manual

AQUACELL PORTABLE
WASTEWATER SAMPLERS
USER GUIDE
Sira MC 050059
Issue 20.2

Warranty
Contents of Package
1
Introduction
2
Installation
3
Operation
4
Maintenance
5
Technical Specification
6
SECTIONS

WARRANTY
AQUAMATIC PRODUCT
WARRANTY & BASIC TERMS OF SUPPLY
Congratulations on choosing an Aquamatic Product. When used and maintained properly,
this equipment should provide many years of reliable service
As a mark of confidence each new Aquamatic Product is supplied with the following 12
month Warranty:
Electrical and / or mechanical defects occurring during the 12 months from date
of invoice will be rectified free of charge provided the defective item is returned
carriage paid to the supplier during this 12 month period (see MAINTENANCE
section for details of returns procedure)
Please read this User Guide carefully, as neither Aquamatic Ltd. nor its agents accept
responsibility for any damage or defect caused by misuse, abuse, neglect or incorrect
operation
Aquamatic products and equipment are NOT suitable for use in areas classified as
hazardous zones. Aquamatic products are subject to continuous development and
improvement. Components and specifications may change or be withdrawn without notice
One copy of this ‘User Guide’ is provided with your Aquamatic Product. This is intended
to assist the reader in the effective application of the product and although the information
contained is given in good faith, Aquamatic Ltd. accepts no responsibility or liability for
any loss or damage arising from the use of information provided or from information being
omitted
In any event Aquamatic Ltd accepts no liability for any consequential loss or damage
arising from the use or failure of the product or any information provided, including, but
not limited to, economic or financial loss, damage to peripheral equipment or products,
loss of use, productivity or time
All equipment is supplied subject to Aquamatic Standard Terms & Conditions of Sale, this
will be supplied with each order acknowledgment, and is also downloadable from the
Aquamatic website or can be emailed, on request, from the Aquamatic head office
© Copyright 2020 Aquamatic Limited
All Rights Reserved

CONTENTS OF PACKAGE
1.1
CONTENTS OF PACKAGE
Congratulations on buying your new Aquacell P2 Wastewater Sampler!
Before assembling your Sampler please check carefully that the contents of the
package match the your delivery note and in turn the items specified on your purchase
order
Transit damage, or discrepancies, should be reported to Aquamatic immediately. If
transit damage is not reported within 48 hours, transit insurance will be invalidated and
the cost of repair will be chargeable
Samplers..............................................................................................1.3
Power Options.....................................................................................1.4
Sample Collection Vessels.................................................................1.5
Optional Equipment - Electrical .........................................................1.5
Optional Equipment - Mechanical......................................................1.7

CONTENTS OF PACKAGE
1.2

CONTENTS OF PACKAGE
1.3

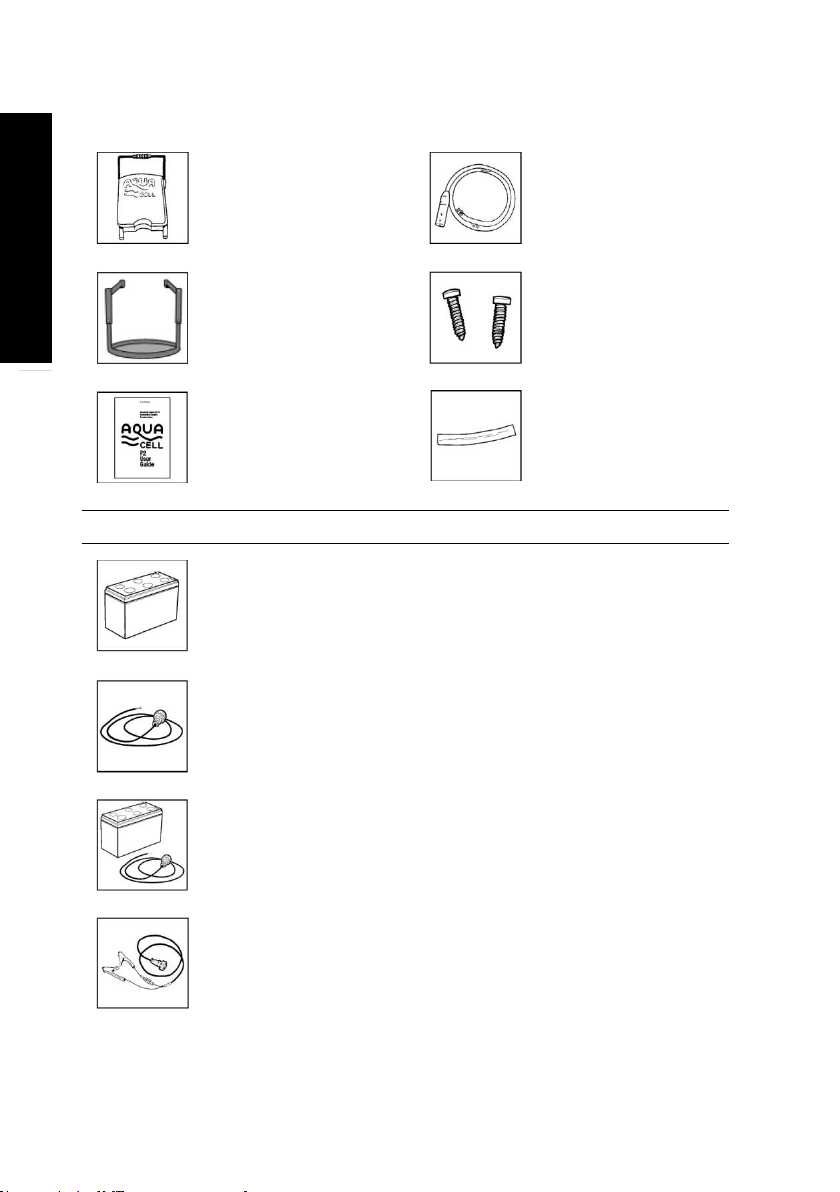

Samplers
Aquacell P2-COMPACT Portable Wastewater Sampler ................................. CL-1010
Aquacell P2-COOLBOX Portable Wastewater Sampler ................................. CL-1020
Aquacell P2 Sampler unit
Intake Hose
Base, COOLBOX
Spare Volume Control
Tube
User Guide
Aquacell P2 Sampler unit
Intake Hose
Base, Compact
2 x Fixing Screws
User Guide
Spare Volume Control
Tube

CONTENTS OF PACKAGE
1.4
Aquacell P2-MULTIFORM Portable Wastewater Sampler .............................. CL-1030
Power Options
Aquacell P2 Sampler unit
Intake Hose
Base, MULTIFORM
2 x Fixing Screws
User Guide
Spare Volume Control
Tube
Integral Battery
CL-2001
Mains Connection
CL-2003-volts / hz
Mains Connection with Integral Float
Charged Backup Battery
CL-2005-volts / hz
Separate 12V Lead Acid Battery Connection
CL-2002

CONTENTS OF PACKAGE
1.5
Sampler Collection Vessels
Optional Equipment - Electrical
25 litre Polyethylene
Container
CL-3001
12 x 1 litre PET Bottler
CL-3003
12 x 0.75 litre Glass
Bottler
CL-3002
24 x 1 litre HDPE Bottler
CL-3004
Ancillary Signal Connection - Basic
CL-4004
Anti-Condensation Heater –PPI
CL-4144-volts / hz
Battery Charger
1 way –UK Plug
1 way –Euro Plug
5 way –UK Plug
5 way –Euro Plug
CL-4002-volts / hz
CL-4119-volts / hz
CL-4060-volts / hz
CL-4150-volts / hz
Bottler Connection - Basic
CL-4001
Partial
Internal
Part
Partial
Internal
Part

CONTENTS OF PACKAGE
1.6
Data Connection
CL-4006
Freezer –Bulk –230V/50Hz
CL-4022
Freezer –Standard –230V/50Hz
CL-4020
Sample Temperature Monitoring –
Portable –P2-COOLBOX
CL-4005
Sample Temperature Monitoring –
Portable –Non P2-COOLBOX
CL-4148
Thermostatic Remote Control Trigger
CL-4149
Pressurised Pipeline Interface –
Standard
CL-4147-volts / hz
Partial
Internal
Part

CONTENTS OF PACKAGE
1.7
Optional Equipment - Mechanical
Intake Hose Extension –2m
CL-4008
Sample Chamber –Glass Supplement
CL-7077
Security Cord
CL-4019
Security Padlock
CL-4055
Transportation Truck
CL-4133
Thermal Jacket –P2
CL-5115

CONTENTS OF PACKAGE
1.8

INTRODUCTION
2.1
INTRODUCTION
Safety First...........................................................................................2.3
Infection
Electrical
Mechanical
The User Guide....................................................................................2.3
The Sampling Process........................................................................2.4
The Aquacell P2 Portable Sampler Range ........................................2.5
Aquacell P2-COMPACT
Aquacell P2-COOLBOX
Aquacell P2-MULTIFORM
Pressurised Pipeline Interface
Optional Connections.........................................................................2.8
Temperature Probe
Aux 1
Mains
Ancillary Signals
Bottler
Security..............................................................................................2.10

INTRODUCTION
2.2

INTRODUCTION
2.3
Safety First
Infection
Aquacell P2 Wastewater Samplers and associated Sample Collection Vessels have
been designed to minimise the risk of operator contact with the potentially hazardous
wastewater medium, however great care should always be exercised when working in
close proximity to wastewater. Particular attention should be paid to the following points:
1. Wash hands thoroughly after handling contaminated sampler parts
2. Do not allow wastewater to come into contact with any open wounds or skin
abrasions
3. If any glass has become cracked or chipped replace immediately to avoid the risk of
cuts
Electrical
Aquacell P2 Wastewater Samplers specified with Mains connection are powered by an
AC mains supply. As all mains voltage terminals are safely housed behind protective
covers then contact with dangerous voltages is avoided. Always check the integrity of
the mains cable/connector before use
Mechanical
Care should be taken, whilst the sampler is in operation, to avoid trapping fingers in the
Pinch Valve Assembly, whilst this does not pose a serious injury risk it could cause
some discomfort
Care should be taken when lowering the Sampler module onto its base, to avoid
trapping fingers where the plastic plugs meet the aluminium socket tubes
The Sampler can be supplied with a glass Sample Chamber and glass Sampler
Collection Vessels, if this is the case care should be taken when handling as these can
be very slippery when wet
The User Guide
This User Guide relates to the complete Aquacell P2 Portable Wastewater Sampler
range. Much of the information supplied applies equally to all formats, however, where
information relates to a specific format, Sample Collection Vessel or Optional Equipment
then this will be stated
The Aquacell P2 sampling system is designed for ease of operation and maintenance. If
followed carefully the instructions given in this guide should quickly enable you to
assemble, program and deploy your new Aquacell Sampler and start to benefit from the
collection of truly representative samples of your wastewater

INTRODUCTION
2.4
The Sampling Process
The Aquacell P2 Wastewater Sampler extracts
individual Sample Shots from a wastewater
channel or vessel according to a predetermined
program and deposits them into one or more
Sample Collection Vessels. In this way the user is
provided with a representative sample of the
wastewater discharge
The benefits of using a Sampler to automatically collect volumes of the wastewater
effluent are varied but are often:
a) Reduce the pollution load of the discharge (to fall within consent limitations)
b) Reducing water company effluent charges
c) Reducing product wastage
Following collection the way in which the samples are processed will vary from
application to application. For example samples can be:
Analysed using in-house laboratory facilities –when the objective of taking samples
is to gain a greater knowledge of the discharge profile
Sent to a specialist analytical laboratory for analysis - when an independent
assessment of the discharge is required
Made available to the local Water Company as a source of data on which to base
charges. Self-monitoring is being increasingly encouraged by water companies both
in the interests of accurate charging and to encourage dischargers to improve plant
efficiency, and so reduce the pollution load of their discharge

INTRODUCTION
2.5
The Aquacell P2 Portable Sampler Range
The Aquacell P2 range of Portable Automatic Wastewater Samplers are designed for
flexibility of application with simplicity of operation
As with all Aquamatic Samplers each model in the Aquacell P2 range is compliant with
the UK Environment Agencies MCERTS standard for Automatic Wastewater Sampling
Equipment
The Aquacell P2 sampling system is designed such that conversion from one variant to
another is readily achieved by simply transferring the Aquacell Sampler module from
one base to another
The range has 3 primary variants, all centred around on a common Aquacell sampler
module. The variants are as follows:
Aquacell P2-COMPACT
As its name suggests, the P2-COMPACT is a super-compact unit and includes a 5 litre
polyethylene Sample Container

INTRODUCTION
2.6

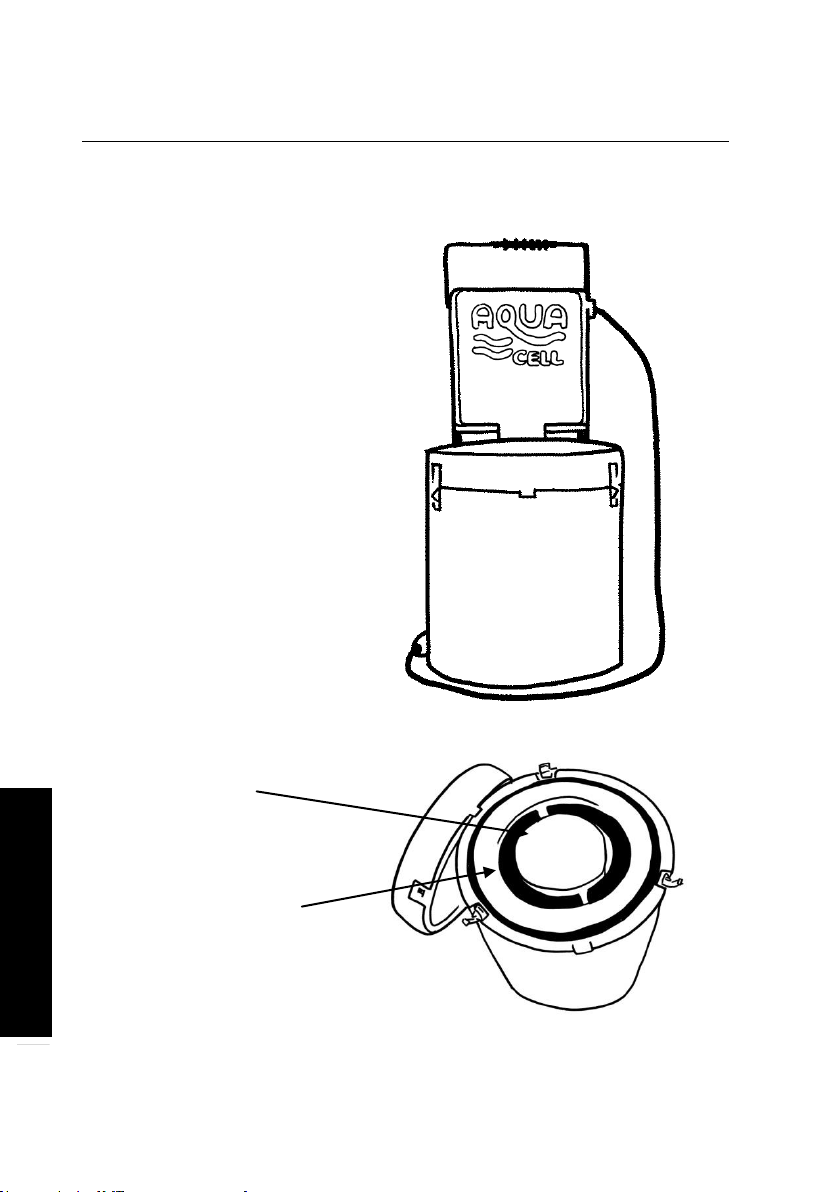

Aquacell P2-COOLBOX
This variant collects samples in a 5 litre polypropylene sample container and stores
them for up to 5 days at between 0°C and 5°C (this is deemed to be the optimum
storage temperature range for bio-degradable samples)
* Optimum sample temperature holding duration will vary considerably with ambient temperature
5 litre Polypropylene
Container
2 x Cooling
Elements
