Aquatic Serenity 32 Motif User manual

The manufacturer accepts a 1/4” variance. There are variations on each tub and specications are subject to change as we improve upon our product as required. The dimensions needed for site preparation and structure building should be measured from the tub;
Aquatic Industries, Inc. assumes no responsibility for preparatory work. www.aquaticwhirlpools.com 800.555.5324
January 2008

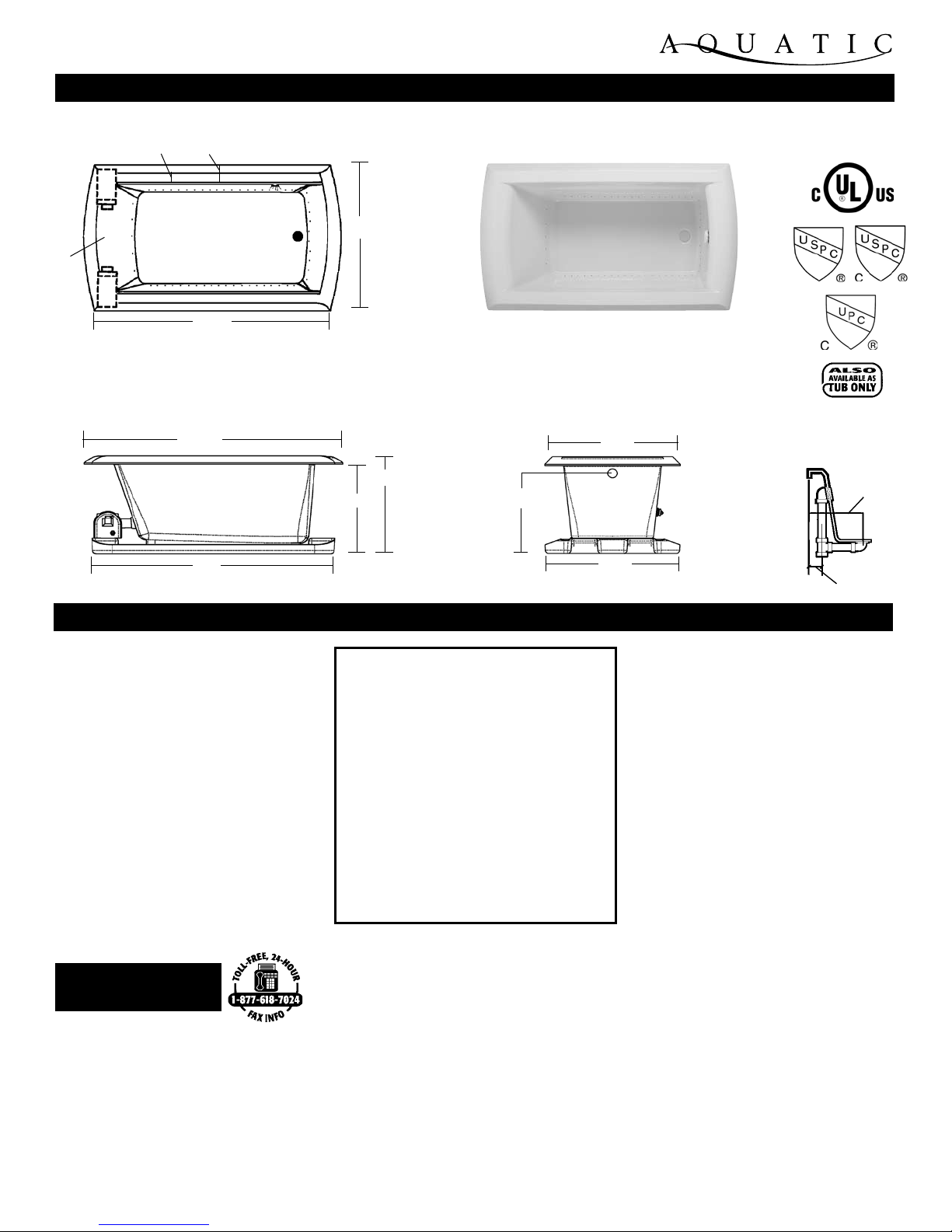

Rough-In Plumbing
Measurements
serenity series MODEL # AI32AIR6036 / AI32AIR6036TO (Tub Only)
serenity 32 Motif
36 1/2”
6”
14”
Deck
Width 3”
Total
Width 5”
sPeCifiCAtions:
GENERAL SPECIFICATIONS:
Tub Size 60 1/2” x 36 1/2” x 25”
153.7 cm x 92.7 cm x 63.5 cm
Bathing Well 37.5” long
19” wide
22 3/4” interior depth
Maximum Water Depth 17 3/4”
Shipping Weight 172 lbs. / 78 kg
Tub Weight Filled 720 lbs. / 327 kg
Tub Only Weight 85 lbs. / 39 kg
Weight w/Equipment 106 lbs. / 48 kg
Gallons to Overow 74 gal. / 281 L
ELECTRICAL SPECIFICATIONS:
Blower/Heater 1 HP; 10.5 AMP; 120V
Requirement 15 AMP; 120V, separate circuit
required protected w/ Class A GFCI
This unit is not recommended for shower installations.
• Comfort Pillow - Oval or Rectangle
• Bolt-On Grab Bar
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
• Lift & Turn Waste and Overow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
• Cable Drive Waste and Overow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)
• Waterproof Remote Control with infrared sensor
and 25’ cord
• Optional Blower Location
• Remote Blower Wiring Kit
• Premium Colors
All acrylic colors featured by Aquatic match the
industry’s leading xture manufacturers.
OPTIONAL EQUIPMENT:
Air Bath System:
- 55 Air Jets
- 1 HP Variable Speed Air Blower with 20-Minute Timer
- 600 Watt Air Heating System
- Electronic Control Package with Wave and Pulse Features
- Automatic Purge and Dry Cycle with Water Sensors
Aquatic Quality Features:
- Chromatherapy
- Slip Resistant Floor
- Air Channels Lined with Antimicrobial Coating
- Extra Deep and Long Bathing Well
- Pre-leveled ABS Support Base
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
UL & IAPMO Listed, Factory Tested
Limited Lifetime Warranty
STANDARD EQUIPMENT:
Fax-On-Demand
Document # 1303
Back
Angle
12˚
Each Serenity Air Bath model is equipped with a 600 watt air heating system to raise the temperature of the air going into the bath. This air temperature will
be less than the bathing temperature of the water, but will help to reduce a rapid decrease in water temperature. In addition, the air coming from the air jets
will feel cool against the skin, just as a breeze on a warm day cools your body. This system does not heat the water.
20 1/2”
60 1/2” 36 1/2”
22 1/4”
25”
56”
57” 33 1/2”
