Arbor Technology ELIT-1250 User manual

1
ELIT-1250
Digital Signage Player w/ AMD G-T56N APU
User’s Manual
Version 1.0
2013.06P/N: 4012125000100P

- 2 -
This page is intentionally left blank.

- i -
Revision History
Version Date Description
1.0 June 2013 Initial release

- ii -
Contents
Revision History ............................................................................. i
Preface............................................................................................ v
Copyright Notice ....................................................................................... v
Declaration of Conformity ......................................................................... v
CE...................................................................................................... v
FCC Class A....................................................................................... v
RoHS .................................................................................................vi
SVHC / REACH .................................................................................vi
Important Safety Instructions...................................................................vii
Warning ..................................................................................................viii
Replacing Lithium Battery.......................................................................viii
Technical Support ...................................................................................viii
Warranty ...................................................................................................ix
Chapter 1 - Introduction................................................................ 1
1.1. The Computer.................................................................................... 2
1.2. About this Manual .............................................................................. 2
1.3. Specications .................................................................................... 3
1.4. Inside the Package ............................................................................ 5
1.5. Ordering Information.......................................................................... 5
1.5.1. Optional Accessories ............................................................... 5
1.5.2. Congure-to-Order Service...................................................... 6
Chapter 2 - Getting Started........................................................... 7

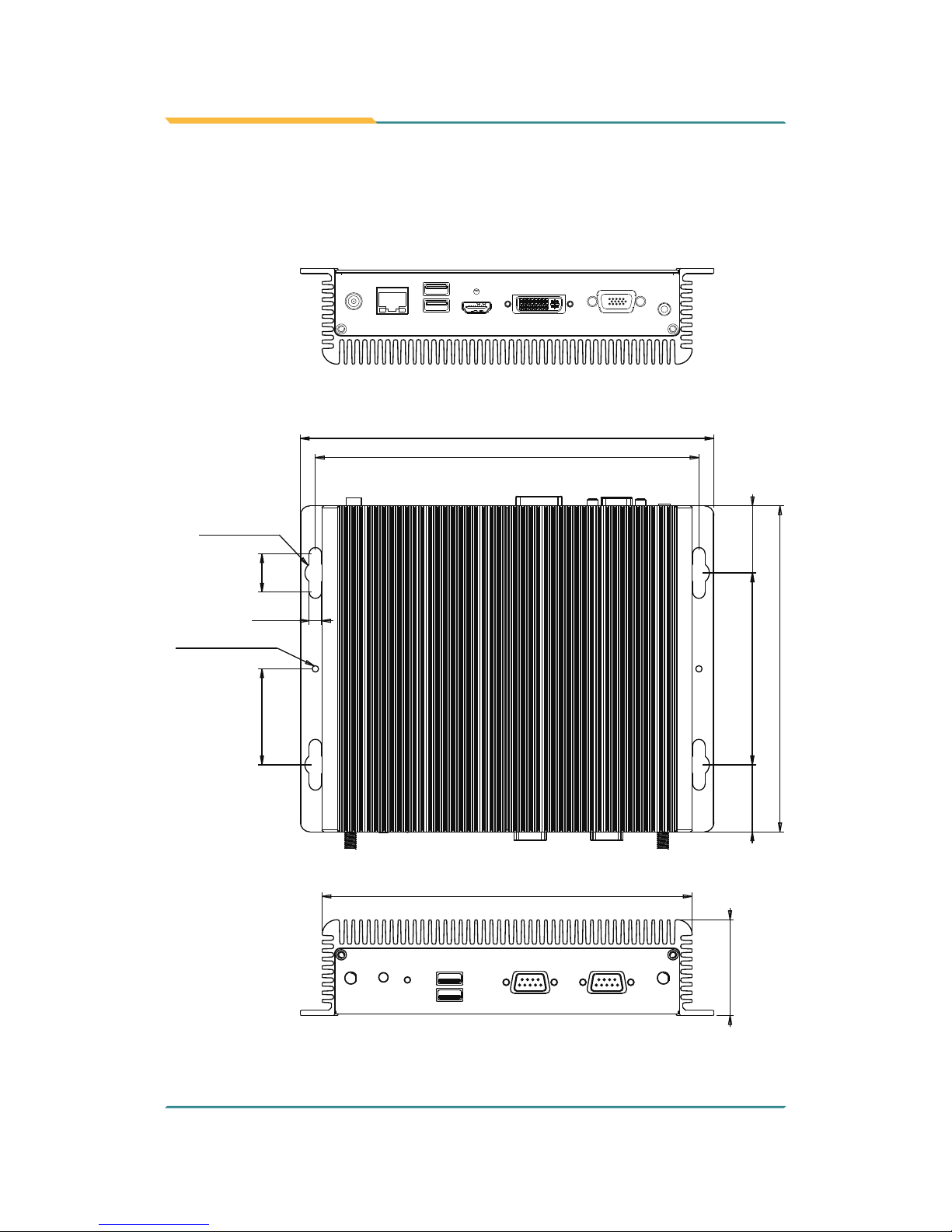

2.1. Dimensions........................................................................................ 8
2.2. Take A Tour ........................................................................................ 9
2.3. Driver Installation Notes .................................................................. 11
Chapter 3 - System Conguration ............................................. 13
3.1. Board Layout ................................................................................... 14
3.2. Jumpers and Connectors ................................................................ 16
3.2.1. Jumpers ................................................................................. 16
3.2.2. Connectors............................................................................. 18
Chapter 4 - Installation and Maintenance.................................. 31
4.1. Install Hardware............................................................................... 32
4.1.1. Open the Computer ............................................................... 32
4.1.2. Install Memory Module........................................................... 35
4.1.3. Install HDD/SSD Storage....................................................... 38
4.1.4. Install SIM Card ..................................................................... 42
4.1.5. Install Wireless Modules ........................................................ 44
4.2. Mount the Computer........................................................................ 45
4.2.1. VESA-Mount .......................................................................... 45
4.2.2. Wall-Mount............................................................................. 46

- iii -
Contents
Chapter 5 - BIOS.......................................................................... 47
5.1. Main................................................................................................. 50
5.2. Advanced......................................................................................... 51
5.2.1. ACPI Settings......................................................................... 53
5.2.2. S5 RTC Wake Settings .......................................................... 54
5.2.3. CPU Conguration................................................................. 55
5.2.4. USB Conguration ................................................................. 56
5.2.5. F81801 Super IO Conguration............................................. 58
5.2.6. F81801 H/W Monitor.............................................................. 60
5.3. Chipset ............................................................................................ 61
5.3.1. North Bridge Conguration .................................................... 62
5.3.2. South Bridge Conguration.................................................... 63
5.4. Boot ................................................................................................. 64
5.5. Security............................................................................................ 66
5.6. Save & Exit ...................................................................................... 67
Appendices .................................................................................. 69
Appendix A: Watchdog Timer (WDT) Setting.......................................... 70
Appendix B: 3G Module HSPA-SI1400 Hardware/Software Installation 71
B.1. Install HSPA-SI1400 ................................................................. 71
B.2. Install Device Driver.................................................................. 76
B.3. Install Application Program....................................................... 78
Appendix C: Wi-Fi Module WIFI-IN1300 Hardware/Software Installation81
C.1. Install WIFI-IN1300................................................................... 81
C.2. Install Device Driver & Application Program............................. 87

- iv -
This page is intentionally left blank.

- v -
Preface
Copyright Notice
All Rights Reserved.
The information in this document is subject to change without prior notice in
order to improve the reliability, design and function. It does not represent a
commitment on the part of the manufacturer.
Under no circumstances will the manufacturer be liable for any direct, indirect,
special, incidental, or consequential damages arising from the use or inability
to use the product or documentation, even if advised of the possibility of such
damages.
This document contains proprietary information protected by copyright. All rights
are reserved. No part of this document may be reproduced by any mechanical,
electronic, or other means in any form without prior written permission of the
manufacturer.
Declaration of Conformity
CE
The CE symbol on the computer indicates that it is in compliance with the
directives of the Union European (EU). A Certicate of Compliance is available
by contacting Technical Support.
This product has passed the CE test for environmental specications when
shielded cables are used for external wiring. We recommend the use of
shielded cables. This kind of cable is available from ARBOR. Please contact
your local supplier for ordering information.
Warning
This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Preface

- vi -
Preface
NOTE:
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
RoHS
ARBOR Technology Corp. certies that all components in its products
are in compliance and conform to the European Union’s Restriction of Use
of Hazardous Substances in Electrical and Electronic Equipment (RoHS)
Directive 2002/95/EC.
The above mentioned directive was published on 2/13/2003. The main purpose
of the directive is to prohibit the use of lead, mercury, cadmium, hexavalent
chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl
ethers (PBDE) in electrical and electronic products. Member states of the EU
are to enforce by 7/1/2006.
ARBOR Technology Corp. hereby states that the listed products do not contain
unintentional additions of lead, mercury, hex chrome, PBB or PBDB that exceed
a maximum concentration value of 0.1% by weight or for cadmium exceed
0.01% by weight, per homogenous material. Homogenous material is dened
as a substance or mixture of substances with uniform composition (such as
solders, resins, plating, etc.). Lead-free solder is used for all terminations
(Sn(96-96.5%), Ag(3.0-3.5%) and Cu(0.5%)).
SVHC / REACH
To minimize the environmental impact and take more responsibility to the earth
we live, Arbor hereby conrms all products comply with the restriction of SVHC
(Substances of Very High Concern) in (EC) 1907/2006 (REACH --Registration,
Evaluation, Authorization, and Restriction of Chemicals) regulated by the
European Union.
All substances listed in SVHC < 0.1 % by weight (1000 ppm)

- vii -
Preface
Important Safety Instructions
Read these safety instructions carefully
1. Read all cautions and warnings on the equipment.
2. Place this equipment on a reliable surface when installing. Dropping it or
letting it fall may cause damage
3. Make sure the correct voltage is connected to the equipment.
4. For pluggable equipment, the socket outlet should be near the equipment
and should be easily accessible.
5. Keep this equipment away from humidity.
6. The openings on the enclosure are for air convection and protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
7. Position the power cord so that people cannot step on it. Do not place
anything over the power cord.
8. Never pour any liquid into opening. This may cause re or electrical shock.
9. Never open the equipment. For safety reasons, the equipment should be
opened only by qualied service personnel.
10. If one of the following situations arises, get the equipment checked by
service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work
according to the user’s manual.
e. The equipment has been dropped or damaged.
f. The equipment has obvious signs of breakage.
11. Keep this User’s Manual for later reference.

- viii -
Preface
Warning
The Box PC and its components contain very delicately Integrated Circuits (IC).
To protect the Box PC and its components against damage caused by static
electricity, you should always follow the precautions below when handling it:
1. Disconnect your Box PC from the power source when you want to work
on the inside.
2. Use a grounded wrist strap when handling computer components.
3. Place components on a grounded antistatic pad or on the bag that came
with the Box PC, whenever components are separated from the system.
Replacing Lithium Battery
Incorrect replacement of the lithium battery may lead to a risk of explosion.
The lithium battery must be replaced with an identical battery or a battery type
recommended by the manufacturer.
Do not throw lithium batteries into the trash can. It must be disposed of in
accordance with local regulations concerning special waste.
Technical Support
If you have any technical difculties, please consult the user’s manual rst at:
ftp://ftp.arbor.com.tw/pub/manual
Please do not hesitate to call or e-mail our customer service when you still
cannot nd out the answer.
http://www.arbor.com.tw
E-mail:[e-mail]

- ix -
Preface
Warranty
This product is warranted to be in good working order for a period of one year
from the date of purchase. Should this product fail to be in good working order
at any time during this period, we will, at our option, replace or repair it at no
additional charge except as set forth in the following terms. This warranty does
not apply to products damaged by misuse, modications, accident or disaster.
Vendor assumes no liability for any damages, lost prots, lost savings or any
other incidental or consequential damage resulting from the use, misuse of, or
inability to use this product. Vendor will not be liable for any claim made by any
other related party.
Vendors disclaim all other warranties, either expressed or implied, including but
not limited to implied warranties of merchantability and tness for a particular
purpose, with respect to the hardware, the accompanying product’s manual(s)
and written materials, and any accompanying hardware. This limited warranty
gives you specic legal rights.
Return authorization must be obtained from the vendor before returned
merchandise will be accepted. Authorization can be obtained by calling or
faxing the vendor and requesting a Return Merchandise Authorization (RMA)
number. Returned goods should always be accompanied by a clear problem
description.

- x -
This page is intentionally left blank.

- 1 -
1Chapter 1
Introduction
Chapter 1 - Introduction

- 2 -
Introduction
1.1. The Computer
The ELIT-1250 is the digital signage player
designed to answer the market needs for
powerful video performance. The computer
comes loaded with AMD G-T56N APU with an
ATI Radeon HD 6320 graphics chip to support three displays and satisfy most
demanding digital signage applications.
Product Highlights
• Fanless Design
• Ultra Low Prole Enclosure
• AMD G-T56N Dual-Core 1.65 GHz Processor
• Rich I/O (4 x USB ports, 2 x serial ports, 1 x GbE LAN port)
• Aluminum Chassis for Harsh Environment
• Optional WiFi or 3G networking
• Slim, Compact & Cable-free Design
1.2. About this Manual
This manual is meant for the experienced users and integrators with hardware
knowledge of personal computers. If you are not sure about the description
herein, consult your vendor before further handling.
We recommend that you keep one copy of this manual for the quick reference
for any necessary maintenance in the future. Thank you for choosing ARBOR
products.

- 3 -
Introduction
1.3. Specications
System
CPU Soldered onboard AMD G-T56N 1.65GHz processor
BIOS AMI BIOS
Chipset AMD Hudson-M1 A50M
Graphics Graphics Integrated AMD Radeon HD 6320 (G-T56N)
Memory One 204-pin DDR3 SO-DIMM socket that supports
1066/1333MHz SDRAM up to 4GB
Serial ATA One serial ATA port with 600MB/s HDD transfer rate
LAN Chipset One Realtek 8111 GbE controller
Watchdog Timer 1 ~ 255 levels reset
I/O Ports
Serial Port Two DB-9 male connectors for RS232
USB Port Four USB 2.0 ports
LAN Port One RJ-45 port for GbE
Video Port
One HDMI female connector for digital video output
One DVI-D female connector for digital video output
One VGA female connector for analog video output
Audio Line-out
Expansion Bus
One line-out (500mW pre-amplied)
One Mini-card socket interconnected with a SIM card socket
for optional WiFi or HSUPA module
Storage
Type One 2.5” drive bay for SSD
Qualification
Certication CE, FCC Class A
Environment
Operating Temp. -20 ~ 55°C (-4 ~ 131°F), ambient w/ air ow
Storage Temp. -40 ~ 80°C (-40 ~ 176°F)
Operating Humidity 10 ~ 95% @ 55°C (non-condensing)
Vibration 3 Grms/5 ~ 500Hz/random operation
Shock Operating 40G (11ms); Non-operating 80G with SSD

- 4 -
Introduction
Mechanical
Construction Aluminum alloy
Mounting VESA-mount / wall-mount
Weight 1.61 kg (3.55 lb)
Dimensions
(W x D x H) 193 x 170 x 50 mm (7.60" x 6.69" x 1.96")
Power Requirement
Power Input DC 16~24V input
Power
Consumption Max. 40W (w/o I/O card)

- 5 -
Introduction
1.4. Inside the Package
Upon opening the package, carefully inspect the contents. If any of the items
is missing or appears damaged, contact your local dealer or distributor. The
package should contain the following items:
One ELIT-1250 Digital
Signage Player
One Driver CD
One User’s Manual
1.5. Ordering Information
ELIT-1250 Digital Signage Player by AMD G-T56N, w/o storage
device and memory
ELIT-1250-16S2G Digital Signage Player by AMD G-T56N, w/ 16G SSD
and 2GB memory
1.5.1. Optional Accessories
The following items are normally optional, but some vendors may include them
as a standard package, or some vendors may not carry all the items.
PAC-B065W-2 19V/3.4A 65W AC/DC adapter kit
VMK-1000 VESA mount kit for ELIT Series

- 6 -
Introduction
1.5.2. Congure-to-Order Service
Make the computer more tailored to your needs by selecting one or more
components from the list below to be fabricated to the computer.
SSD-25032 Memoright 2.5" 32GB SATAII SSD kit
HSPA-SI1400 HSUPA 3.75G module kit & internal
wiring
WIFI-IN1300 Intel®Centrino®Advanced-N 6205 WiFi
module w/ 20cm internal wiring
ANT-H11 2dBi HSUPA antenna
ANT-D11 WiFi Dual-band 2.4G/5G antenna
2GB SO-DIMM DDR3-1333 2GB SDRAM
4GB SO-DIMM DDR3-1333 4GB SDRAM
8GB SO-DIMM DDR3-1600 8GB SDRAM

- 7 -
2Chapter 2
Getting Started
Chapter 2 - Getting Started

- 8 -
Getting Started
2.1. Dimensions
The following illustration shows the dimensions of the computer, with the
measurements in width, depth, and height called out.
170.00
200.00
100.00
20.00
Ø11.00
50.00
215.70
35.00
50.00
35.00
6.50
193.00
NUT UNC#6-32
Unit: mm
