Arbor Technology ELIT-1850 User manual

1
ELIT-1850
Digital Signage Player
w/ Intel®Core™ i7-5650U/i3-5010U CPU
User’s Manual
Version 1.0
2016.04P/N: 4016185000100P

- 2 -
This page is intentionally left blank.

- i -
Revision History
Version Date Description
1.0 April. 2016 Initial release

- ii -
Contents
Revision History ............................................................................. i
Preface............................................................................................ v
Copyright Notice ....................................................................................... v
Declaration of Conformity ......................................................................... v
CE...................................................................................................... v
FCC Class B ...................................................................................... v
RoHS .................................................................................................vi
SVHC / REACH .................................................................................vi
Important Safety Instructions...................................................................vii
Warning ..................................................................................................viii
Replacing Lithium Battery.......................................................................viii
Technical Support ...................................................................................viii
Warranty ...................................................................................................ix
Chapter 1 - Introduction................................................................ 1
1.1. The Computer.................................................................................... 2
1.2. About this Manual .............................................................................. 2
1.3. Specications .................................................................................... 3
1.4. Inside the Package ............................................................................ 5
1.5. Ordering Information.......................................................................... 5

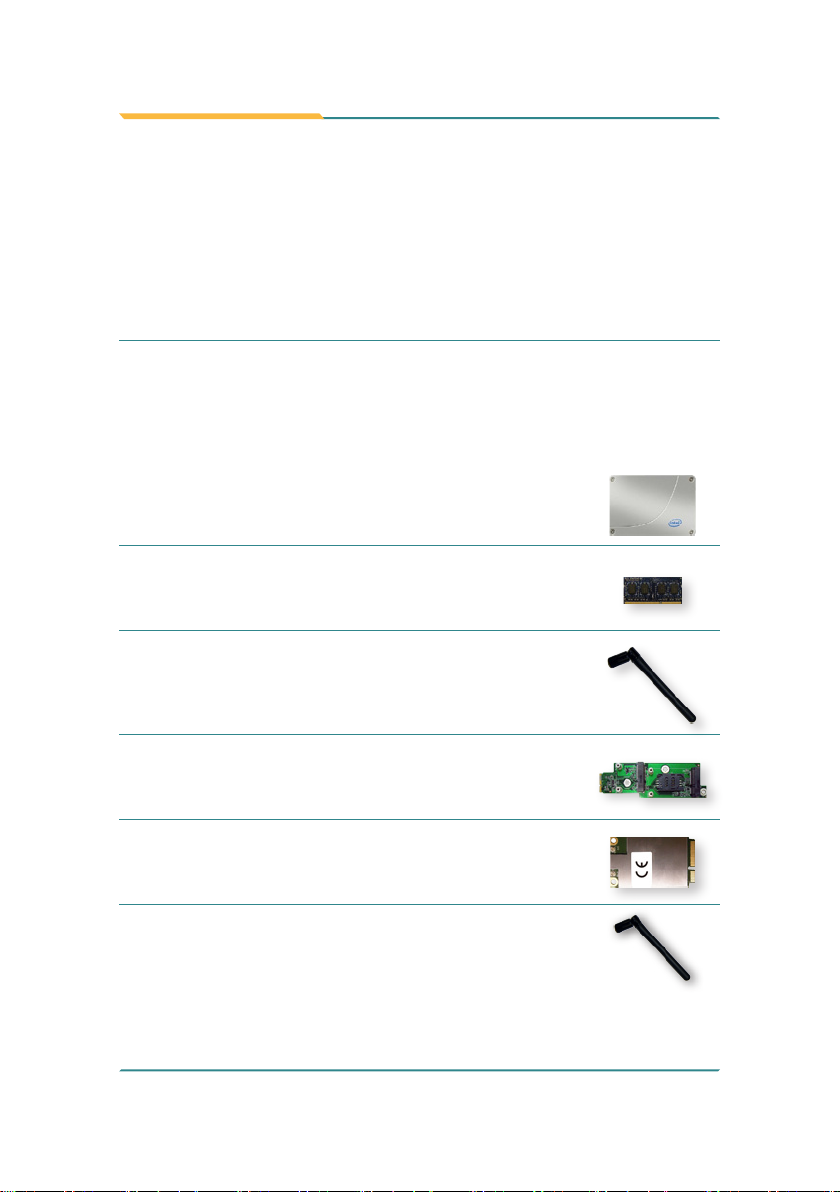

1.5.1. Optional Accessories ............................................................... 6
Chapter 2 - Getting Started........................................................... 7
2.1. Dimensions........................................................................................ 8
2.2. Take A Tour ........................................................................................ 9
2.3. Driver Installation Notes .................................................................. 11
Chapter 3 - System Conguration ............................................. 13
3.1. Board Layout ................................................................................... 14
3.2. Jumpers and Connectors ................................................................ 15
3.2.1. Jumpers ................................................................................. 15
3.2.2. Connectors............................................................................. 17
Chapter 4 - Installation and Maintenance.................................. 31
4.1. Install Hardware............................................................................... 32
4.1.1. Open the Computer ............................................................... 32
4.1.2. Install Memory Module........................................................... 34
4.1.3. Install 2.5" SSD Storage Device ............................................ 37
4.2. Mount the Computer........................................................................ 39
4.2.1. Wall-Mount............................................................................. 39

- iii -
Contents
Chapter 5 - BIOS.......................................................................... 41
5.1. Main................................................................................................. 44
5.2. Advanced......................................................................................... 46
5.2.1. CPU Conguration................................................................. 47
5.2.2. ACPI Settings......................................................................... 48
5.2.3. AMT Conguration ................................................................. 49
5.2.4. Super IO Conguration .......................................................... 50
5.2.5. Hardware Monitor .................................................................. 51
5.2.6. S5 RTC Wake Settings .......................................................... 52
5.2.7. SATA Conguration................................................................ 53
5.2.8. CSM Conguration................................................................. 54
5.2.9 USB Conguration .................................................................. 55
5.2.10 Intel(R) Ethernet Connection I218-LM .................................. 57
5.2.11 Intel(R) Ethernet Connection I210......................................... 58
5.3. Chipset ............................................................................................ 59
5.3.1. Memory Conguration............................................................ 60
5.3.2. PCI Express Conguration..................................................... 61
5.3.3. HDAC Conguration .............................................................. 62
5.3.4. LAN Conguration.................................................................. 63
5.4. Security............................................................................................ 64
5.5. Boot ................................................................................................. 65
5.6. Save & Exit ...................................................................................... 66
Appendices .................................................................................. 67
Appendix A: Install M.2 Wireless Card .................................................. 68
Appendix B: Install M.2 to 2x Mini PCIe daughter board ....................... 72

- iv -
This page is intentionally left blank.

- v -
Preface
Copyright Notice
All Rights Reserved.
The information in this document is subject to change without prior notice in
order to improve the reliability, design and function. It does not represent a
commitment on the part of the manufacturer.
Under no circumstances will the manufacturer be liable for any direct, indirect,
special, incidental, or consequential damages arising from the use or inability
to use the product or documentation, even if advised of the possibility of such
damages.
This document contains proprietary information protected by copyright. All rights
are reserved. No part of this document may be reproduced by any mechanical,
electronic, or other means in any form without prior written permission of the
manufacturer.
Declaration of Conformity
CE
The CE symbol on the computer indicates that it is in compliance with the
directives of the Union European (EU). A Certicate of Compliance is available
by contacting Technical Support.
This product has passed the CE test for environmental specications when
shielded cables are used for external wiring. We recommend the use of
shielded cables. This kind of cable is available from ARBOR. Please contact
your local supplier for ordering information.
Warning
This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
FCC Class B
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
NOTE:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
Preface

- vi -
Preface
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
RoHS
ARBOR Technology Corp. certies that all components in its products
are in compliance and conform to the European Union’s Restriction of Use
of Hazardous Substances in Electrical and Electronic Equipment (RoHS)
Directive 2002/95/EC.
The above mentioned directive was published on 2/13/2003. The main purpose
of the directive is to prohibit the use of lead, mercury, cadmium, hexavalent
chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl
ethers (PBDE) in electrical and electronic products. Member states of the EU
are to enforce by 7/1/2006.
ARBOR Technology Corp. hereby states that the listed products do not contain
unintentional additions of lead, mercury, hex chrome, PBB or PBDB that exceed
a maximum concentration value of 0.1% by weight or for cadmium exceed
0.01% by weight, per homogenous material. Homogenous material is dened
as a substance or mixture of substances with uniform composition (such as
solders, resins, plating, etc.). Lead-free solder is used for all terminations
(Sn(96-96.5%), Ag(3.0-3.5%) and Cu(0.5%)).
SVHC / REACH
To minimize the environmental impact and take more responsibility to the earth
we live, Arbor hereby conrms all products comply with the restriction of SVHC
(Substances of Very High Concern) in (EC) 1907/2006 (REACH --Registration,
Evaluation, Authorization, and Restriction of Chemicals) regulated by the
European Union.
All substances listed in SVHC < 0.1 % by weight (1000 ppm)

- vii -
Preface
Important Safety Instructions
Read these safety instructions carefully
1. Read all cautions and warnings on the equipment.
2. Place this equipment on a reliable surface when installing. Dropping it or
letting it fall may cause damage
3. Make sure the correct voltage is connected to the equipment.
4. For pluggable equipment, the socket outlet should be near the equipment
and should be easily accessible.
5. Keep this equipment away from humidity.
6. The openings on the enclosure are for air convection and protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
7. Position the power cord so that people cannot step on it. Do not place
anything over the power cord.
8. Never pour any liquid into opening. This may cause re or electrical shock.
9. Never open the equipment. For safety reasons, the equipment should be
opened only by qualied service personnel.
10. If one of the following situations arises, get the equipment checked by
service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work
according to the user’s manual.
e. The equipment has been dropped or damaged.
f. The equipment has obvious signs of breakage.
11. Keep this User’s Manual for later reference.

- viii -
Preface
Warning
The Box PC and its components contain very delicately Integrated Circuits (IC).
To protect the Box PC and its components against damage caused by static
electricity, you should always follow the precautions below when handling it:
1. Disconnect your Box PC from the power source when you want to work
on the inside.
2. Use a grounded wrist strap when handling computer components.
3. Place components on a grounded antistatic pad or on the bag that came
with the Box PC, whenever components are separated from the system.
Replacing Lithium Battery
Incorrect replacement of the lithium battery may lead to a risk of explosion.
The lithium battery must be replaced with an identical battery or a battery type
recommended by the manufacturer.
Do not throw lithium batteries into the trash can. It must be disposed of in
accordance with local regulations concerning special waste.
Technical Support
If you have any technical difculties, please consult the user’s manual rst at:
http://arbor-technology.com
Please do not hesitate to call or e-mail our customer service when you still
cannot nd out the answer.
http://arbor-technology.com
E-mail:[e-mail]

- ix -
Preface
Warranty
This product is warranted to be in good working order for a period of one year
from the date of purchase. Should this product fail to be in good working order
at any time during this period, we will, at our option, replace or repair it at no
additional charge except as set forth in the following terms. This warranty does
not apply to products damaged by misuse, modications, accident or disaster.
Vendor assumes no liability for any damages, lost prots, lost savings or any
other incidental or consequential damage resulting from the use, misuse of, or
inability to use this product. Vendor will not be liable for any claim made by any
other related party.
Vendors disclaim all other warranties, either expressed or implied, including but
not limited to implied warranties of merchantability and tness for a particular
purpose, with respect to the hardware, the accompanying product’s manual(s)
and written materials, and any accompanying hardware. This limited warranty
gives you specic legal rights.
Return authorization must be obtained from the vendor before returned
merchandise will be accepted. Authorization can be obtained by calling or
faxing the vendor and requesting a Return Merchandise Authorization (RMA)
number. Returned goods should always be accompanied by a clear problem
description.

- x -
This page is intentionally left blank.

- 1 -
1Chapter 1
Introduction
Chapter 1 - Introduction

- 2 -
Introduction
1.1. The Computer
The ELIT-1850 is the digital signage player designed to answer the market
needs for powerful video performance. The computer comes loaded with
Intel®Core™ i7-5650U/i3-5010U to support three displays and satisfy most
demanding digital signage applications.
Product Highlights
• Intel® Core™ i7-5650U/i3-5010U Processor
• Support Triple-display for 1 x DVI-D, 1 x DisplayPort, 1 x HDMI
• Support one channel 4K (UHD) Display
• Support 2 x COM, 4 x USB3.0, 2 x USB2.0
• Support DirectX 11.1
• Support iAMT Function
• One NGFF connector for Wireless
• RTC Wakeup supported
• Operating Temperature: -20 ~ 60°C
1.2. About this Manual
This manual is meant for the experienced users and integrators with hardware
knowledge of personal computers. If you are not sure about the description
herein, consult your vendor before further handling.
We recommend that you keep one copy of this manual for the quick reference
for any necessary maintenance in the future. Thank you for choosing ARBOR
products.

- 3 -
Introduction
1.3. Specications
System
CPU
Soldered onboard Intel®Core™ i7-5650U,
2.2GHz 4M L2 Cache, up to 3.1GHz, 15W TDP
Soldered onboard Intel®Core™ i3-5010U,
2.1GHz 3M L2 Cache, 15W TDP
BIOS AMI BIOS
Chipset 5th Generation Intel®Core™ ULT SoC
Graphics Integrated Intel®HD Graphics 6000(i7)/5500(i3)
Memory 1 x 204-pin DDR3L SO-DIMM socket,
supporting 1066/1333MHz SDRAM up to 8GB
Serial ATA 1 x Serial ATA port with 600MB/s HDD transfer rate
LAN Chipset 1 x Intel®i218LM GbE PHY (w/ iAMT10.0 supported)
1 x Intel®i210AT GbE controller
Watchdog Timer 1 ~ 255 levels reset
I/O Ports
Serial Port 2 x RS-232/485 ports
USB Port 4 x USB 3.0 ports
2 x USB 2.0 ports
LAN Port 2 x RJ-45 ports for GbE
Video Port
1 x DVI-D
1 x DisplayPort, up to 4K (UHD)
1 x HDMI, up to 4K (UHD)
Audio Realtek ALC662 HDA codec, Mic-in/Line-out
Expansion Bus 1 x M.2 (NGFF) E Key 22 x 30 mm (2230)
Storage
Type 1 x 2.5” drive bay for SSD
Qualification
Certication CE, FCC Class A

- 4 -
Introduction
Environment
Operating Temp. -20 ~ 60°C (-4 ~ 140°F), ambient w/ air ow
Storage Temp. -30 ~ 70°C (-22 ~ 158°F)
Operating Humidity 10 ~ 95% @ 60°C (non-condensing)
Vibration 3 Grms/5 ~ 500Hz/random operation
Shock Operating 40G (11ms); Non-operating 80G with SSD
Mechanical
Construction Aluminum alloy
Mounting VESA-mount / wall-mount
Weight 1.6 kg (3.52 lb)
Dimensions
(W x D x H) 193 x 170 x 50 mm (7.60" x 6.69" x 1.96")
Power Requirement
Power Input DC 12~24V input
Power
Consumption Max. 30W (w/o I/O card)

- 5 -
Introduction
1.4. Inside the Package
Upon opening the package, carefully inspect the contents. If any of the items
is missing or appears damaged, contact your local dealer or distributor. The
package should contain the following items:
One ELIT-1850 Digital
Signage Player
One Driver DVD
One User’s Manual
1.5. Ordering Information
ELIT-1850-5650U Digital Signage Player with Intel®Core™ i7-5650U, w/o
memory and storage
ELIT-1850-5350U(BTO) Digital Signage Player with Intel®Core™ i5-5350U, w/o
memory and storage
ELIT-1850-5010U Digital Signage Player with Intel®Core™
i3-5010U, w/o memory and storage

- 6 -
Introduction
1.5.1. Optional Accessories
The following items are normally optional, but some vendors may include them
as a standard package, or some vendors may not carry all the items.
PAC-B065W-1 19V/3.4A 65W AC/DC adapter kit
1.5.2. Congure-to-Order Service
Make the computer more tailored to your needs by selecting one or more
components from the list below to be fabricated to the computer.
80GB SSD Intel 2.5” 80GB SATAIII SSD kit
MM-3IL-8G Industrial DDR3L-1600 8GB SDRAM
ANT-D11 1 x Wi-Fi dual-band 2.4G/5G antenna
SCDB-1289E M.2 to 2 x Mini PCIe daughter board
HSUPA-1450 HSUPA 3.75G module kit w/ 25cm internal
wiring
ANT-H11 1 x 2dBi HSUPA Antenna Kit

- 7 -
2Chapter 2
Getting Started
Chapter 2 - Getting Started

- 8 -
Getting Started
2.1. Dimensions
The following illustration shows the dimensions of the computer, with the
measurements in width, depth, and height called out.
35.00 100.00 35.00
170.00
200.00 215.70
6.50
20.00
11.00
50.00
193.00
Unit: mm
