ARC Flex ECO Series User manual

ECO6S/X
Instruction Manual
(MRX)

Flex ECO 6S/X MRX Instruction Manual
August 2017 v1.0
Page 1 of 34
Service Information
Your New Radio Remote Control System
Thank you for your purchase of ARC Flex ECO radio remote control system. Without a doubt, our
Flex ECO system is the ultimate solution for providing precise, undeterred, and safe control of your
material.
If your product ever needs modification or service, please contact our representative in your country
or at the following location:
World Headquarter:
Advanced Radiotech Corporation
288-1, Hsin Ya Road, Chien Chen District
Kaohsiung, Taiwan
Telephone:
[phone]
Fax Number:
[phone]
Website:
www.advanced-radiotech.com
E-mails:
[email protected]
[e-mail]
All rights reserved. This notice applies to all copyrighted materials included with this product, including,
but not limited to, this manual and software embodied within the product. This manual is intended for
the sole use of the person(s) to whom it was provided, and any unauthorized distribution of the
manual or dispersal of its contents is strictly forbidden. This manual may not be reproduced in whole
or in part by any means whatsoever without the expressed written permission of ARC.

Flex ECO 6S/X MRX Instruction Manual
August 2017 v1.0
Page 2 of 34
PRODUCT MANUAL SAFETY INFORMATION
Advanced Radiotech Corporation (ARC) offers a broad range of radio remote control product for
material handling applications. This manual has been prepared by ARC to provide information and
recommendations for the installation, use, operation and service of ARC’s material handling products
and systems (ARC Products). Anyone who uses, operates, maintains, services, installs or owns ARC
Products should know, understand, and follow the instructions and safety recommendations in this
manual for ARC Products.
The recommendations in this manual do not take precedence over any of the following requirements
relating to cranes, hoists lifting devices or other material handling equipment which use or include
ARC Products:
Instructions, manuals, and safety warnings of the manufacturers of the equipment where the
radio system is used.
Plant safety rules and procedures of the employers and the owners of facilities where the
ARC Products are being used.
Safety standards and practices for the industries in which ARC Products are used.
This manual does not include or address the specific instructions and safety warnings of these
manufacturers or any of the other requirements listed above. It is the responsibility of the owners,
users and operators of the ARC Products to know, understand and follow all of these requirements. It
is the responsibility of the employer to make its employees aware of all of the above listed
requirements and to make certain that all operators are properly trained. No one should use ARC
Products prior to becoming familiar with and being trained in these requirements and the
instructions and safety recommendations in this manual.
WARRANTY INFORMATION
For information on ARC’s product warranties, please contact ARC representative nearest to you or
visit www.advanced-radiotech.com.
FCC WARNINGS and CAUTIONS
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
 Any changes or modifications not expressly approved by the party responsible for
compliance could void the authority to operate equipment.
This device and its antenna must not be co-located or operating in conjunction with any other
antenna or transmitter.
End-users and installers must be provided with antenna installation instructions and
transmitter operating conditions for satisfying RF exposure compliance.
For product available in the USA/Canada market, only channel 1~141 can be operated.
Selection of other channels is not possible

Flex ECO 6S/X MRX Instruction Manual
August 2017 v1.0
Page 3 of 34
IC WARNINGS
RSS-Gen Issue 4 8.4
According to RSS-Gen Issue 4 section 8.4, User manuals for licence-exempt radio apparatus shall
contain the following text, or an equivalent notice that shall be displayed in a conspicuous location,
either in the user manual or on the device, or both:
(English)
This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the
following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
(French)
Le présent appareil est conforme aux CNR d'Industrie Canada applicables auxappareils radio
exempts de licence.L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage adioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
Industry Canada ICES-003 Compliance Label:
CAN ICES-3 (B)/NMB-3(B)

Flex ECO 6S/X MRX Instruction Manual
August 2017 v1.0
Page 4 of 34
Table of Contents
Page
1. Introduction 4
2. Radio Controlled Safety 5
3. General System Information
3.1 Transmitter
3.1.1 External Illustration 9
3.1.2 Internal Illustration 10
3.2 Receiver
3.2.1 External Illustration 11
3.2.2 Internal Illustration 12
4. Function Settings
4.1 Transmitter
4.1.1 Transmitter Firmware Version 13
4.1.2 Transmitter Channel Settings 13
4.1.3 Remote Pairing 14
4.1.4 Transmitter Start Function Settings 15
4.1.5 Transmitter Inactivity Timer Settings 15
4.1.6 Infrared Programming 16
4.1.7 Pushbutton Function Settings 16
4.2 Receiver
4.2.1 Receiver Channel Setting 17
4.2.2 Output Relay Configurations 17
4.2.3 Dipswitch Settings 20
4.2.4 Other Dipswitch Settings 22
4.2.5 Other Function Output Relays Settings 23
4.2.6 System Channels Table 24
5. Receiver Installation
5.1 Output Relay Contact Diagrams 25
5.2 Pre-installation Precautions 26
5.3 Step-By-Step Installation 26
6. Operating Procedures
6.1 General Operation 29
6.2 Changing Batteries 30
6.3 System Status Light Indications 31
7. General Specifications 33
8. EU Declaration of Conformity 34
1. Introduction

Flex ECO 6S/X MRX Instruction Manual
August 2017 v1.0
Page 5 of 34
The Flex ECO radio remote control systems are designed for control of industrial
equipment and machinery such as overhead traveling cranes, jib cranes, gantry cranes, tower
cranes, electric hoists, winches, monorails, conveyor belts, mining equipment, and all other
material handling equipment where wireless control is preferred.
Each Flex ECO system consists of a transmitter handset and a receiver unit. Other
standard-equipped accessories include transmitter lanyard, vinyl pouch, pushbutton labels,
output cable, and instruction manual CD.
List of notable features include:
* 62 User-programmable Channels – advanced synthesized RF controls with 62 built-in
programmable channels set via pushbuttons and dipswitches.
* Wireless Remote Pairing Function – system pairing and cloning can be done easily and
wirelessly.
* Over One Million Unique Address Codes – each and every Flex ECO system has its
own address code and serial number, never repeats.
* Advanced Controls – the Flex ECO system utilizes dual advanced microprocessor
controls with 32bit CRC and Hamming Code, which provide ultra fast, safe, precise, and
error-free encoding and decoding.
* Two-way Transmission – transmitter and receiver communicate with one another for safe,
precise and uninterrupted operation (e.g. receiver status feedbacks).
* Reliable Pushbuttons – the pushbuttons are rated for more than one million press cycles.
* Low Power Consumption – requires only two “AA” alkaline batteries for more than 150
hours of uninterrupted operation between replacements.
* Durable Nylon and Fiberglass Composite Enclosures – highly resistance to breakage
and deformation even in the most abusive environments. The receiver enclosures and
output cables are UL94-V0 rated.
* Fully Sealed Enclosures – the transmitter and receiver enclosures are IP66 rated.
* Full Compliance – all systems are fully complied with the FCC Part-15 Rules and European
Safety Standards.
* Other Optional Accessories and Features – transmitter magnet mount, transmitter belt
clip, transmitter waist belt, transmitter rubber guards, charging station, external antenna kit,
and many others.

Flex ECO 6S/X MRX Instruction Manual
August 2017 v1.0
Page 6 of 34
2. Radio Controlled Safety
WARNINGS and CAUTIONS
Throughout this document WARNING and CAUTION statements have been deliberately placed to highlight items
critical to the protection of personnel and equipment.
WARNING – A warning highlights an essential operating or maintenance procedure, practice, etc. which if
not strictly observed, could result in injury or death of personnel, or long term physical hazards.
Warnings are highlighted as shown below:
WARNING
CAUTION – A caution highlights an essential operating or maintenance procedure, practice, etc. which if
not strictly observed, could result in damage to, or destruction of equipment, or loss of functional
effectiveness. Cautions are highlighted as shown below:
CAUTION
WARNINGS and CAUTIONS SHOULD NEVER BE DISREGARDED.
The safety rules in this section are not intended to replace any rules or regulations of any applicable local, state,
or federal governing organizations. Always follow your local lockout and tagout procedure when maintaining any
radio equipment. The following information is intended to be used in conjunction with other rules or regulations
already in existence. It is important to read all of the safety information contained in this section before installing
or operating the Radio Control System.

Flex ECO 6S/X MRX Instruction Manual
August 2017 v1.0
Page 7 of 34
2.1 CRITICAL INSTALLATION CONSIDERATIONS
WARNING
PRIOR TO INSTALLATION AND OPERATION OF THIS EQUIPMENT, READ AND DEVELOP AN
UNDERSTANDING OF THE CONTENTS OF THIS MANUAL AND THE OPERATION MANUAL OF THE
EQUIPMENT OR DEVICE TO WHICH THIS EQUIPMENT WILL BE INTERFACED. FAILURE TO FOLLOW
THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND DAMAGE TO EQUIPMENT.
ALL EQUIPMENT MUST HAVE A MAINLINE CONTACTOR INSTALLED AND ALL TRACKED CRANES,
HOISTS, LIFTING DEVICES AND SIMILAR EQUIPMENT MUST HAVE A BRAKE INSTALLED. FAILURE TO
FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND DAMAGE TO EQUIPMENT.
AN AUDIBLE AND/OR VISUAL WARNING MEANS MUST BE PROVIDED ON ALL REMOTE CONTROLLED
EQUIPMENT AS REQUIRED BY CODE, REGULATION, OR INDUSTRY STANDARD. THESE AUDIBLE
AND/OR VISUAL WARNING DEVICES MUST MEET ALL GOVERNMENTAL REQUIREMENTS. FAILURE TO
FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND DAMAGE TO EQUIPMENT.
FOLLOW YOUR LOCAL LOCKOUT TAGOUT PROCEDURE BEFORE MAINTAINING ANY REMOTE
CONTROLLED EQUIPMENT. ALWAYS REMOVE ALL ELECTRICAL POWER FROM THE CRANE, HOIST,
LIFTING DEVICE OR SIMILAR EQUIPMENT BEFORE ATTEMPTING ANY INSTALLATION PROCEDURES.
DE-ENERGIZE AND TAGOUT ALL SOURCES OF ELECTRICAL POWER BEFORE TOUCH-TESTING ANY
EQUIPMENT. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND
DAMAGE TO EQUIPMENT.
THE DIRECT OUTPUTS OF THIS PRODUCT ARE NOT DESIGNED TO INTERFACE DIRECTLY TO TWO
STATE SAFETY CRITICAL MAINTAINED FUNCTIONS, I.E., MAGNETS, VACUUM LIFTS, PUMPS,
EMERGENCY EQUIPMENT, ETC. A MECHANICALLY LOCKING INTERMEDIATE RELAY SYSTEM WITH
SEPARATE POWER CONSIDERATIONS MUST BE PROVIDED. FAILURE TO FOLLOW THIS WARNING
COULD RESULT IN SERIOUS INJURY OR DEATH OR DAMAGE TO EQUIPMENT.
2.2 GENERAL
Radio controlled material handling equipment operates in several directions. Cranes, hoists, lifting devices and
other material handling equipment can be large, and operate at high speeds. Quite frequently, the equipment is
operated in areas where people are working in close proximity to the material handling equipment. The operator
must exercise extreme caution at all times. Workers must constantly be alert to avoid accidents. The following
recommendations have been included to indicate how careful and thoughtful actions may prevent injuries,
damage to equipment, or even save a life.
2.3 PERSONS AUTHORIZED TO OPERATE RADIO
CONTROLLED CRANES
Only properly trained persons designated by management should be permitted to operate radio controlled
equipment.
Radio controlled cranes, hoists, lifting devices and other material handling equipment should not be operated by
any person who cannot read or understand signs, notices and operating instructions that pertain to the equipment.
Radio controlled equipment should not be operated by any person with insufficient eyesight or hearing or by any
person who may be suffering from a disorder or illness, is taking any medication that may cause loss of
equipment control, or is under the influence of alcohol or drugs.

Flex ECO 6S/X MRX Instruction Manual
August 2017 v1.0
Page 8 of 34
2.4 SAFETY INFORMATION AND RECOMMENDED TRAINING
FOR RADIO CONTROLLED EQUIPMENT OPERATORS
Anyone being trained to operate radio controlled equipment should possess as a minimum the following
knowledge and skills before using the radio controlled equipment.
The operator should:
have knowledge of hazards pertaining to equipment operation
have knowledge of safety rules for radio controlled equipment
have the ability to judge distance of moving objects
know how to properly test prior to operation
be trained in the safe operation of the radio transmitter as it pertains to the crane, hoist, lifting device or
other material handling equipment being operated
have knowledge of the use of equipment warning lights and alarms
have knowledge of the proper storage space for a radio control transmitter when not in use
be trained in transferring a radio control transmitter to another person
be trained how and when to report unsafe or unusual operating conditions
test the transmitter emergency stop and all warning devices prior to operation; testing should be done
on each shift, without a load
be thoroughly trained and knowledgeable in proper and safe operation of the crane, hoist, lifting device,
or other material handling equipment that utilizes the radio control
know how to keep the operator and other people clear of lifted loads and to avoid “pinch” points
continuously watch and monitor status of lifted loads
know and follow cable and hook inspection procedures
know and follow the local lockout and tagout procedures when servicing radio controlled equipment
know and follow all applicable operating and maintenance manuals, safety procedures, regulatory
requirements, and industry standards and codes
The operator shall not:
lift or move more than the rated load
operate the material handling equipment if the direction of travel or function engaged does not agree
with what is indicated on the controller
use the crane, hoist or lifting device to lift, support or transport people
lift or carry any loads over people
operate the crane, hoist or lifting device unless all persons, including the operator, are and remain clear
of the supported load and any potential pinch points
operate a crane, hoist or lifting device when the device is not centered over the load
operate a crane, hoist or lifting device if the chain or wire rope is not seated properly in the sprockets,
drum or sheave
operate any damaged or malfunctioning crane, hoist, lifting device or other material handling equipment

Flex ECO 6S/X MRX Instruction Manual
August 2017 v1.0
Page 9 of 34
change any settings or controls without authorization and proper training
remove or obscure any warning or safety labels or tags
leave any load unattended while lifted
leave power on the radio controlled equipment when the equipment is not in operation
operate any material handling equipment using a damaged controller because the unit may be unsafe
operate manual motions with other than manual power
operate radio controlled equipment when low battery indicator is on
WARNING
THE OPERATOR SHOULD NOT ATTEMPT TO REPAIR ANY RADIO CONTROLLER. IF ANY PRODUCT
PERFORMANCE OR SAFETY CONCERNS ARE OBSERVED, THE EQUIPMENT SHOULD IMMEDIATELY BE
TAKEN OUT OF SERVICE AND BE REPORTED TO THE SUPERVISOR. DAMAGED AND INOPERABLE
RADIO CONTROLLER EQUIPMENT SHOULD BE RETURNED TO ARC FOR EVALUATION AND REPAIR.
FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND DAMAGE TO
EQUIPMENT.
2.5 TRANSMITTER UNIT
Transmitter switches should never be mechanically blocked ON or OFF. When not in use, the operator should
turn the transmitter OFF. A secure storage space should be provided for the transmitter unit, and the transmitter
unit should always be placed there when not in use. This precaution will help prevent unauthorized people from
operating the material handling equipment.
Spare transmitters should be stored in a secure storage space and only removed from the storage space after the
current transmitter in use has been turned OFF, taken out of the service area and secured.
2.6 PRE-OPERATION TEST
At the start of each work shift, or when a new operator takes control of the crane, operators should do, as
a minimum, the following steps before making lifts with any crane or hoist:
Test all warning devices.
Test all direction and speed controls.
Test the transmitter emergency stop.
2.7 BATTERIES
WARNING
KNOW AND FOLLOW PROPER BATTERY HANDLING, CHARGING AND DISPOSAL PROCEDURES.
IMPROPER BATTERY PROCEDURES CAN CAUSE BATTERIES TO EXPLODE OR DO OTHER SERIOUS
DAMAGE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND
DAMAGE TO EQUIPMENT.

Flex ECO 6S/X MRX Instruction Manual
August 2017 v1.0
Page 10 of 34
3. General System Information
3.1 Transmitter
3.1.1 External Illustration
1. STOP Button 8. Pushbutton 5 (PB5)
2. START Button 9. Pushbutton 6 (PB6)
3. Status LED Indicator 10. A/B LED Indicators
4. Pushbutton 1 (PB1) 11. Battery Cover Screw
5. Pushbutton 2 (PB2) 12. System Information
6. Pushbutton 3 (PB3) 13. Lanyard and Waist Belt
7. Pushbutton 4 (PB4) Attachment Slot

Flex ECO 6S/X MRX Instruction Manual
August 2017 v1.0
Page 11 of 34
3.1.2 Internal Illustration
1. RF/Encoder Board 5. Function Dipswitch
2. Antenna 6. Programming Port
3. START Button 7. Battery Contacts
4. Infrared Sensors

Flex ECO 6S/X MRX Instruction Manual
August 2017 v1.0
Page 12 of 34

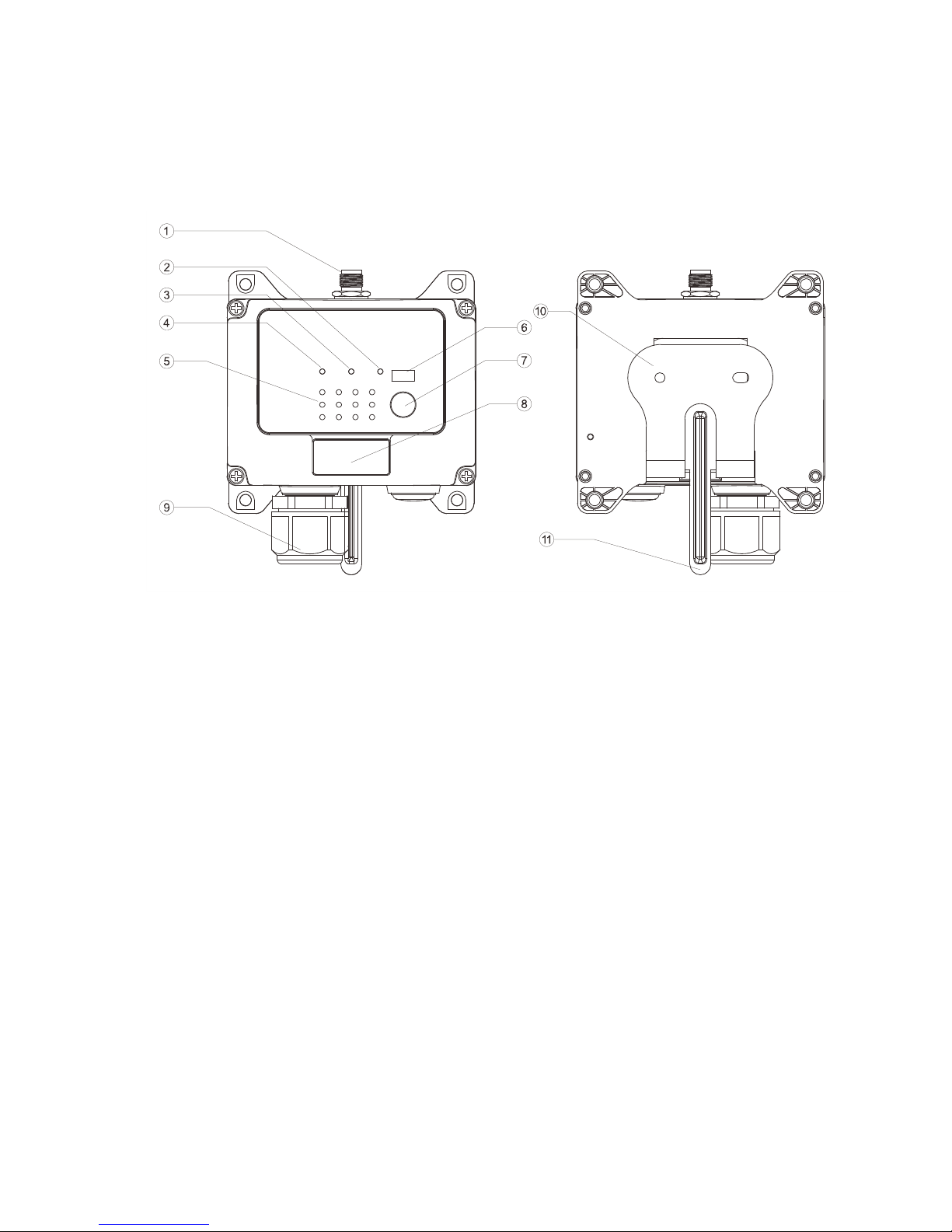

3.2 Receiver
3.2.1 External Illustration
1. External Antenna Port (optional) 7. Remote Pairing Button
2. COM LED Indicator 8. System Information
3. Status LED Indicator 9. Cord Grip
4. Power LED Indicator 10. Mounting Bracket (optional)
5. Output Relay LED Indicators 11. Mounting Bracket Release
6. Infrared Sensors

Flex ECO 6S/X MRX Instruction Manual
August 2017 v1.0
Page 13 of 34
9
3.2.2 Internal Illustration
1. RF/Decoder Board 6. Programming Port
2. Internal Antenna 7. Power Transformer
3. INT/EXT Antenna Jumpers 8. Lower Relay Board
4. Function Dipswitches 9. Upper Relay Board
5. Channel Dipswitch

Flex ECO 6S/X MRX Instruction Manual
August 2017 v1.0
Page 14 of 34
4. Function Settings
4.1 Transmitter

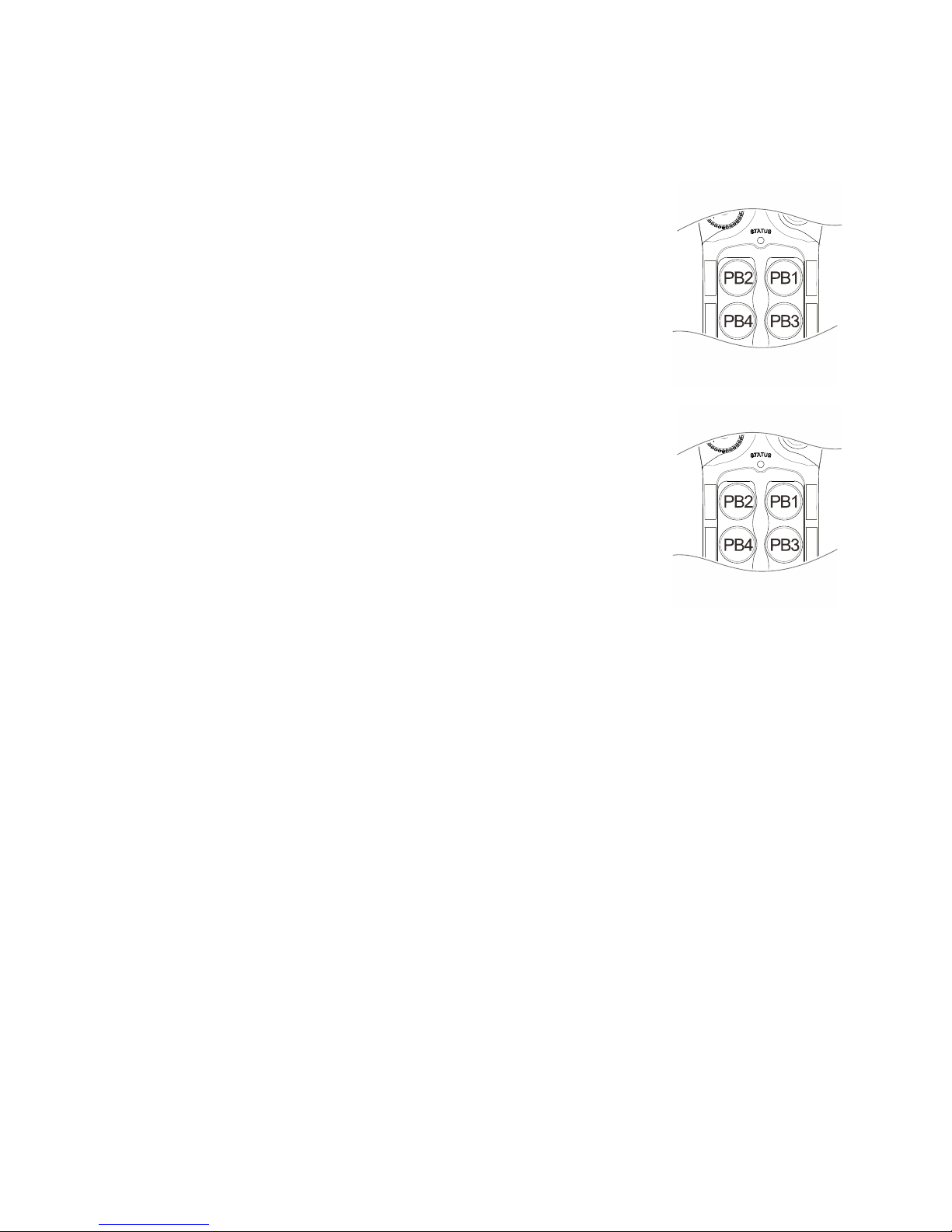

4.1.1 Transmitter Firmware Version
1) Press down the STOP button (transmitter power off).
2) Press and hold PB1 and PB3 at the same time.
3) Reset the STOP button by rotating it clockwise or counter
clockwise, it will pop up (transmitter power on).
4) Let go PB1 and PB3 at the same time. The Status LED
displays firmware version with red, green and orange blinks.
5) Exit Firmware Version mode by pressing down the STOP
button (transmitter power off).
4.1.2 Transmitter Channel Settings
1) Press down the STOP button (transmitter power off).
2) Press and hold PB1 and PB2 at the same time.
3) Reset the STOP button by rotating it clockwise or counter
clockwise, it will pop up (transmitter power on).
4) Let go PB1 and PB2 at the same time. The Status LED
displays current channel setting with red and green blinks. A
green blink represents the tens (+10) and a red blink
represents the units (+1). For example, 1 green blink followed by 5 red blinks is
channel 15. LED-A also lights up during channel setting mode.
5) Change transmitter channel by pressing PB1 to increment the units (+1) and PB2 to
increment the tens (+10). For example, press PB2 two times and then PB1 four times
is channel 24 (Status LED blinks 2 greens and 4 reds). Make sure the newly selected
channel is shown on the Status LED before proceeding to the next step below.
6) Transfer the newly selected channel to the receiver by press and hold the START
button until the Status LED turns to constant green (transfer complete). Press
down the STOP button if constant green is not shown on the Status LED after more
than 10 seconds (transfer incomplete); the transmitter will revert back to its
previous channel setting. Make sure the receiver power is turned on and within the
operating distance during the entire process. Skip step 6 if changing receiver
channel is not required.
7) Exit Channel Setting mode by pressing down the STOP button (transmitter power off).
Note: When selecting a new channel, make sure each button press does not exceed 3 seconds.
Important Note:
Step 6 illustrated above is strictly required if you are intending to change the entire system
channel (both transmitter and receiver). The entire system no longer works if step 6 is skipped
because the transmitter and receiver channels are now different (new vs. old). In this case you
would have to redo step 1~4 and step 6 to transfer the newly selected transmitter channel to
the receiver.

Flex ECO 6S/X MRX Instruction Manual
August 2017 v1.0
Page 15 of 34
ON DIP
S2 DIP 10
4.1.3 Remote Pairing
A. Transmitter-to-Transmitter Pairing:
1) Press down the STOP button (transmitter power off).
2) Press and hold PB1 and PB3 at the same time.
3) Reset the STOP button by rotating it clockwise or counter
clockwise, it will pop up (transmitter power on).
4) Let go PB1 and PB3 at the same time (entered Remote
Pairing mode). The Status LED displays firmware version
with red, green and orange blinks.
5) Output data (original transmitter) by press and hold PB2
(Status LED off and LED-B constant red).
6) Receive data (new transmitter) by press and hold PB1 (Status LED blinks green
and LED-A constant red).
7) When the Status LED (receiving data end) turns to constant green while both
pushbuttons are still pressed down the pairing is completed.
8) Exit Remote Pairing mode by pressing down the STOP button (transmitter power off).
→
Output data – original transmitter Receive data – new transmitter
(press and hold PB2) (press and hold PB1)
Note: During remote pairing make sure the distance between the two transmitters is within 1 meter.
B. Receiver-to-Transmitter Pairing:
S2 dipswitch position 10 set to “0” (down): After the transmitter enters the Remote Pairing
mode, output receiver data by press and hold the PAIRING button located on the receiver cover
and receive data by press and hold PB3 on the transmitter, both at the same time. When the
transmitter Status LED turns to constant green while both pushbuttons are still pressed down
the pairing is completed.
→→
S2 dipswitch position 10 set to “0” Output data – receiver Receiving data – transmitter
(press and hold the Pairing button) (press and hold PB3)
S2 dipswitch position 10 set to “1” (up): After the transmitter enters the Remote Pairing mode,
press and hold PB3 on the transmitter until the Status LED turns to constant green the pairing is
completed. Make sure the pairing process is executed within distance of 10 meters from one
another and no other active receivers nearby. During pairing process the receiver MAIN relays
must be deactivated (relay open).

Flex ECO 6S/X MRX Instruction Manual
August 2017 v1.0
Page 16 of 34
4.1.4 Transmitter Start Function Settings
When transmitter goes into sleep mode the system is temporarily
deactivated (MAIN relays opened). Press the START button or any
pushbutton to wake up the system (MAIN relays closed).
4.1.5 Transmitter Inactivity Timer Settings
Set how long the system enters the sleep mode when the transmitter is not in use (pushbutton
not pressed). When transmitter goes into sleep mode the receiver MAIN relays are deactivated.
Dipswitch
Settings Time
Dipswitch
Settings Time
1 xxx000xxxx 1 minute 5 xxx100xxxx 10 minutes
2 xxx001xxxx 20 seconds 6 xxx101xxxx 30 minutes
3 xxx010xxxx 3 minutes 7 xxx110xxxx 60 minutes
4 xxx011xxxx 5 minutes 8 xxx111xxxx
Constant On
(sleep mode
disabled)
Dipswitch
Settings Function
1 xxxxxxxxx0START
Reactivation
2 xxxxxxxxx1Any Button
Reactivation

Flex ECO 6S/X MRX Instruction Manual
August 2017 v1.0
Page 17 of 34
4.1.6 Infrared Programming
Other custom functions and settings not listed in this manual can be
programmed via the infrared IR programmer unit, such as the system
serial number, frequency range, new and updated functions, plus many
others. Please contact ARC representative for more details.
4.1.7 Pushbutton Function Settings
1) Press down the STOP button (transmitter power off).
2) Press and hold PB3 and PB4 at the same time.
3) Reset the STOP button by rotating it clockwise or counter
clockwise, it will pop up (transmitter power on).
4) Let go PB3 and PB4 at the same time (entered Pushbutton Function mode). LED-B
lights up during pushbutton function setting mode.
5) The Status LED displays current pushbutton function setting with orange, green and
red blinks. An orange blink represents the hundreds (+100), a green blink represents
the tens (+010) and a red blink represents the units (+001). For example, 1orange
blink followed by 2green blinks and 5red blinks is pushbutton function no.125.
Pushbutton function number with “0” is represented by no orange, green or red blink.
For example, 1orange blink followed by 5red blinks is pushbutton function no.105.
6) Set pushbutton function number by pressing PB3 to increment the hundreds (+100),
PB2 to increment the tens (+010), PB1 to increment the units (+001), and PB4 to reset
(000 - constant orange). For example, press PB3 one time, PB2 four times, PB1 six
times is pushbutton function no.146(Status LED blinks 1orange, 4greens and 6reds)
7) Exit Pushbutton Function mode by pressing down the STOP button (transmitter power off).
Toggled Pushbutton with LED Indication – Standard Right/Left
Pushbutton Configuration
Set pushbutton toggled function (latching output relay) with LED
indications. LED A and LED B shown inside the shaded box
illustrates which LED on the transmitter lights up when the
designated pushbutton is pressed.
Function
Number Display Type PB1 PB2 PB3 PB4 PB5 PB6
1 1 Red LED A Normal Normal Normal Normal Normal
2 2 Reds Normal LED B Normal Normal Normal Normal
3 3 Reds Normal Normal LED A Normal Normal Normal
4 4 Reds Normal Normal Normal LED B Normal Normal

Flex ECO 6S/X MRX Instruction Manual
August 2017 v1.0
Page 18 of 34
71 423 56 8
1 2 3 4 5 6 7 8
ON DIP
ON DIP
S3 DIP 1~6
Function
Number Display Type PB1 PB2 PB3 PB4 PB5 PB6
5 5 Reds Normal Normal Normal Normal LED A Normal
6 6 Reds Normal Normal Normal Normal Normal LED B
13 1 Green + 3 Reds LED A LED B Normal Normal Normal Normal
14 1 Green + 4 Reds Normal Normal LED A LED B Normal Normal
15 1 Green + 5 Reds Normal Normal Normal Normal LED A LED B
* PB1…PB6 →Pushbutton number.
* Normal →Normal momentary contact.
* LED A & LED B →Pushbutton toggled function with designated LED indication.
4.2 Receiver
4.2.1 Receiver Channel Settings
Set the receiver channel by configuring the S3 channel dipswitch located on the RF/decoder
board, only the first 6 dip positions are used for channel programming. The system channels
table on section 4.2.6 illustrates which dipswitch setting corresponds to which channel. Once
the receiver channel is altered do make sure to change the transmitter channel as well. The
channel on both transmitter and receiver must be identical in order for the system to work
(refer to section 4.1.2 Transmitter Channel Settings).
Example:
Top position →“1”
Bottom position →“0”
The above dipswitch setting “1 0 0 1 0 0” corresponds to “channel 36” in the system channels table
on section 4.2.6.
4.2.2 Output Relay Configurations
4.2.2.1 Output Relay Types
1. 2 output relays per motion – single speed only
Output relays with Forward (F) and Reverse (R) 1st speed only.

Flex ECO 6S/X MRX Instruction Manual
August 2017 v1.0
Page 19 of 34
F1 F/R2R1 R1F1 F/R2
2. 3 output relays per motion – shared 2nd speed output relay
Output relays with Forward 1st speed (F1), Reverse 1st speed (R1) and
Forward/Reverse 2nd speed (F/R2). Forward and Reverse 2nd speed (F/R2) shared
the same output relay.
4.2.2.2 Output Relay Actions at 2nd Speed (Flex ECO 6X only)
3 output relays configuration with Closed/Closed contact at 2nd speed
F1 (or R1) output relay closed at 1st speed and F1 + F/R2 (or R1 + F/R2) output
relays closed at 2nd speed. Refer to section 4.2.3.1 on how to set to this function.
Forward 1st speed pushbutton pressed Forward 2nd speed pushbutton pressed
↓↓
4.2.2.3 START + AUX Function
After executing the START function at transmitter startup the
same START button becomes an auxiliary function with
momentary contact connected through K10 Function output
relay. There are other types of auxiliary functions made
available for K10 Function output relays (refer to section 4.2.5).
Please contact ARC representative if your application requires
other types of auxiliary function connected to the Function
output relay.
4.2.2.4 ON/OFF Pushbutton Function
The user can set any of the two adjacent pushbuttons on the transmitter to behave
like a mechanical ON & OFF rocker or toggle switch. ON output relay closes when
ON pushbutton is pressed (OFF output relay opens) and OFF output relay closes
when OFF pushbutton is pressed (ON output relay opens). Refer to section 4.2.3.1
on how to set to this function.
4.2.2.5 Magnet ON/OFF Pushbutton Function
The user can set any of the two adjacent pushbuttons on the
transmitter to control industrial magnet lift. Activate the
magnet by pressing the Magnet ON pushbutton. Deactivate
the magnet by first press and hold the Magnet ON
pushbutton and then press the Magnet OFF pushbutton.
Pressing the Magnet OFF pushbutton alone is unable to
deactivate the magnet. Refer to section 4.2.3.1 on how to
set to this function.
