2
Package Contents
Check your product box for the following items:
-ARCHOS 45 Platinum
-Battery
-Headset
-Micro SIM adaptor
-USB cable
-Charger
-Quick start guide
-Warranty Legal & Safety notices
The items supplied with your device and available accessories may vary
depending on your region or service provider.
The supplied items are designed only for your device and may not be
compatible with other devices.
Unapproved accessories may cause your device to malfunction.
ARCHOS_45_Platinum_book.indd 2 02/08/2013 11:53:48

3
2
3
1
22-07-2013
last modification:
AC45 PL
CONFIDENTIAL
DRAWING
Rev
1
scale 1:1 mm
22-07-2013
last modification:
AC45 PL
CONFIDENTIAL
DRAWING
Rev
1
scale 1:1 mm
4
5
EN
1Headset jack
ON/OFF button
Loudspeaker
Webcam
Volume buttons
2
3
4
5

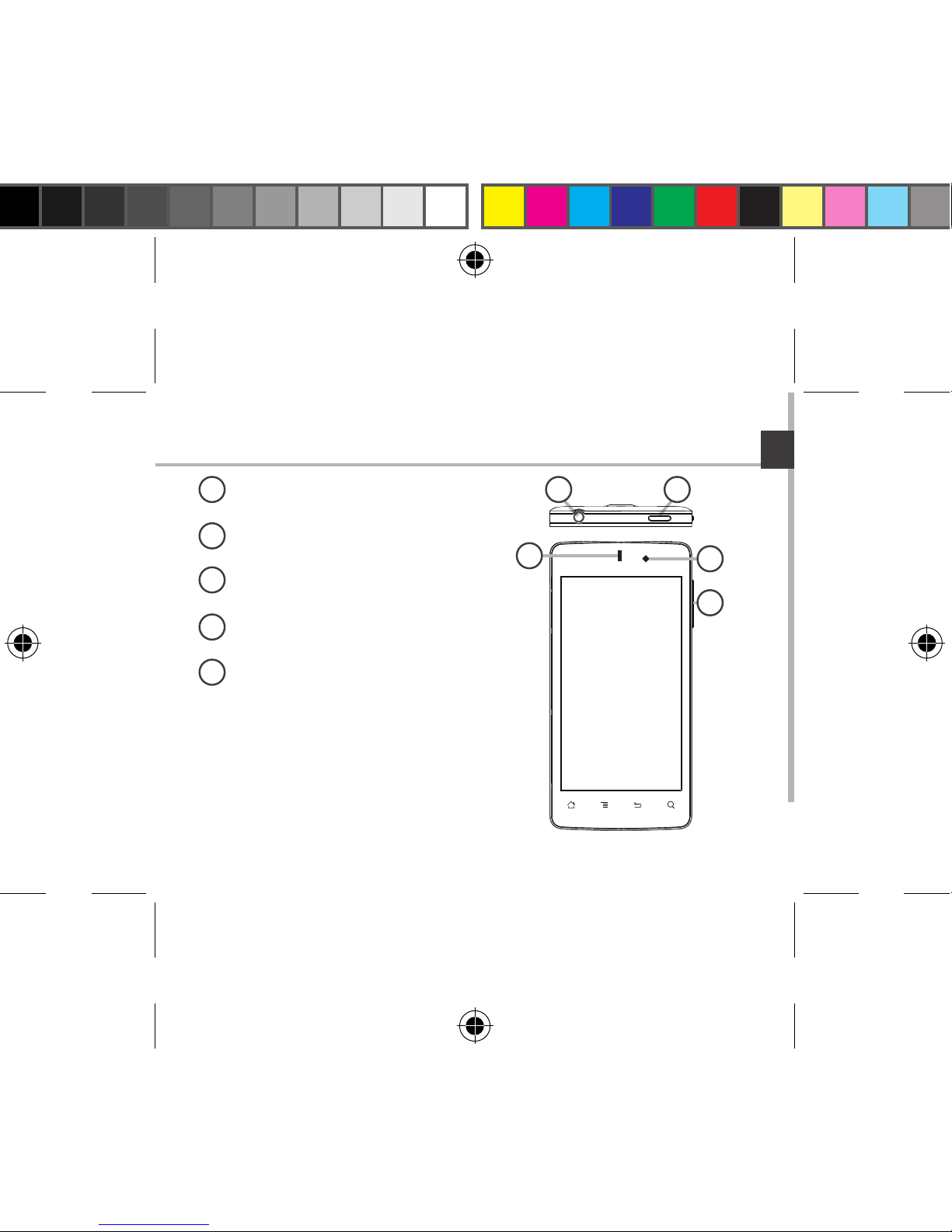

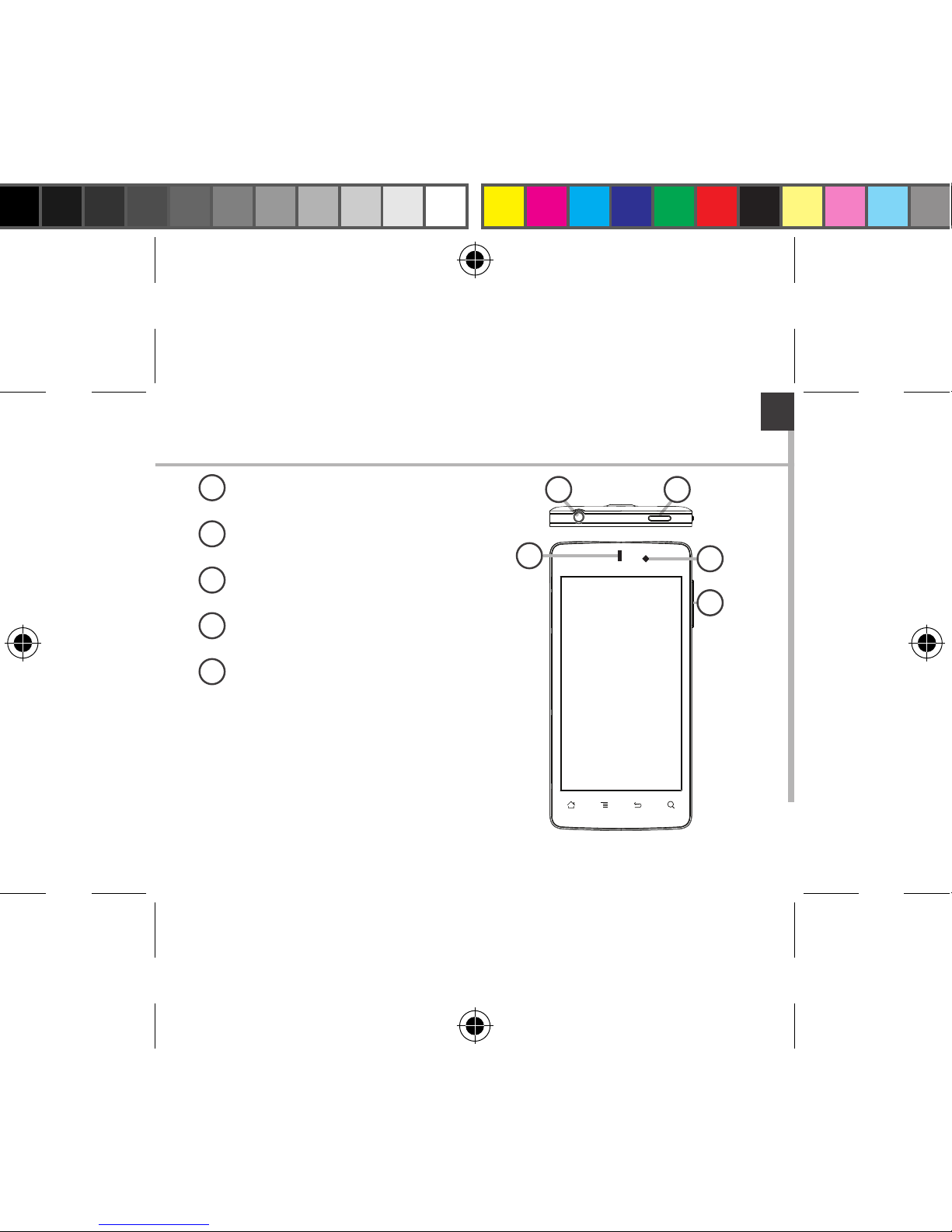

Description of the phone
ARCHOS_45_Platinum_book.indd 3 02/08/2013 11:53:49

49
8
10
22-07-2013
last modification:
AC45 PL
CONFIDENTIAL
DRAWING
Rev
1
scale 1:1 mm
22-07-2013
last modification:
AC45 PL
CONFIDENTIAL
DRAWING
Rev
1
scale 1:1 mm
7
6

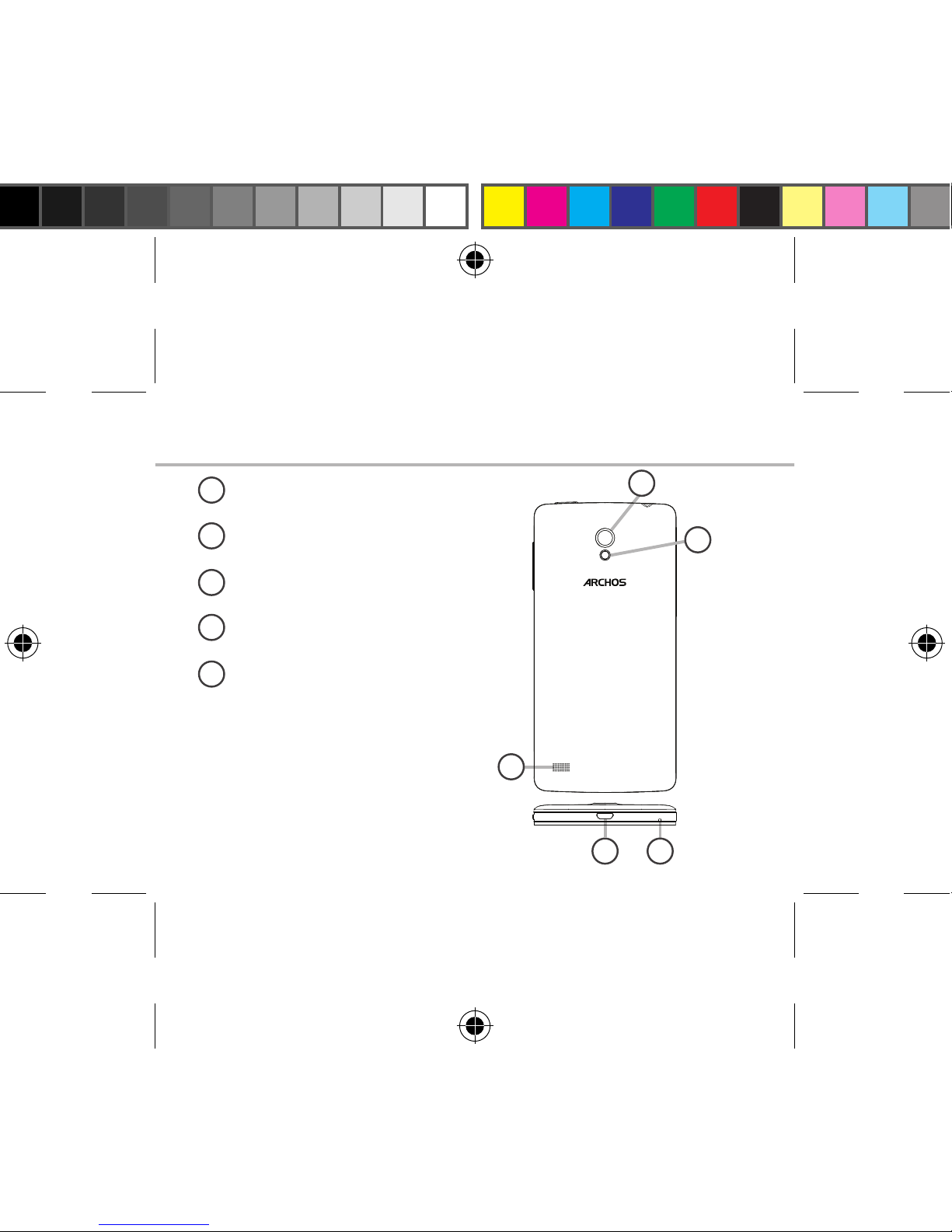

Description of the phone
6
9
8
7
10
Camera
Flash
Loudspeaker
Micro-USB port
Microphone
ARCHOS_45_Platinum_book.indd 4 02/08/2013 11:53:50

5
11 12 13 14
EN
Home/Recent apps: short press to return to the Home screen; double
press to open the list of recent applications.
Menu: open the list of options available on the current screen.
Back: return to the previous screen.
GoogleTM Search: for text search or for voice search and gain access to
Google NowTM.
Home/Recent apps
Menu
Back
GoogleTM Search
13
12
11
14
ARCHOS_45_Platinum_book.indd 5 02/08/2013 11:53:52

6
Assembling

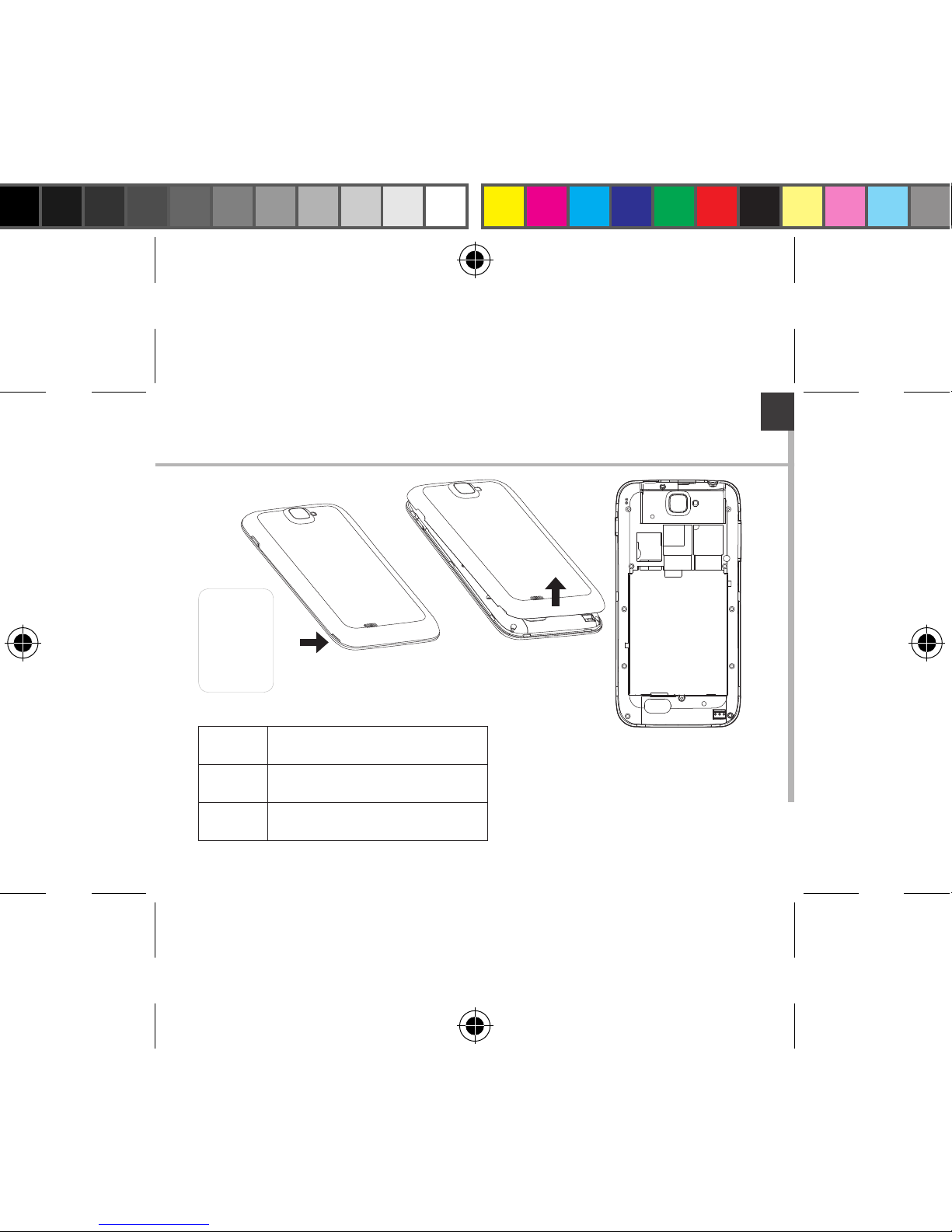

Opening
1. Use the notch to remove the back cover.
Do not bend or twist the back cover excessively. Doing so may damage
the cover.
2. Remove the battery.
Inserting SIM cards
For your 3G SIM card, slide it facing downwards in the 2G/3G slot (slot 1).
For your standard SIM card, slide it facing downwards in the 2G slot (slot 2).
Inserting a Memory card
Push upwards the memory card slot and lift the cover. Place the Memory
card. Close the cover and push it downwards.
Closing
1. Align the battery’s 4 contact points with those of the phone and gently
press the battery down into place.
2. Replace the back cover clicking it back into position.
Tip:
Before using your device for the first time, charge completely its battery.
ARCHOS_45_Platinum_book.indd 6 02/08/2013 11:53:52

7
Picture to show how to removed the bottom casing Picture to show how to insert the battery pack Picture to show the scards position
Picture to show how to removed the bottom casing Picture to show how to insert the battery pack Picture to show the scards position
Slot1Slot2
Slot3
EN
Assembling
Slot1 2G/3G SIM card
Slot2 2G SIM card
Slot3 Memory card up to 64 GB
Lift
the back
cover
using the
notch
ARCHOS_45_Platinum_book.indd 7 02/08/2013 11:53:53

8
Turn ON
1. Press and hold the ON/OFF button to turn on the device.
When you turn on your device, a PIN code may be requested.
2. Type the PIN code supplied with your SIM card.
Beware of typing a wrong PIN code.
3. Select‘OK’.
Turn OFF
To turn o your device, press and hold the ON/OFF button, and then
select Power o > OK.
Sound & Notication proles
Getting started
Tip:
Your device goes in standby mode when you do not use it for a specified
period of time. To wake up your device, press the ON/OFF button.
To set the duration, go to Settings > Display > Sleep.
1. When the device is turned on, press
and hold the ON/OFF button.
2. Select an option.
Silent Vibrate Sound
ARCHOS_45_Platinum_book.indd 8 02/08/2013 11:53:53

9
EN
Through the wizard
The rst time you start up your ARCHOS, the installation wizard will help
you set up your device:
-Language
-Date & time
-WiFi connection
-Location service options
Touch screen actions:
Tap: touch once to select or launch a menu, option, or application.
Tap and hold: tap an item and hold it for more than 2 seconds.
Drag: tap an item and move it to a new location.
Double-tap: tap an item twice quickly.
Flick: briskly scroll up, down, left, or right to move through lists or screens.
Pinch: place two of your ngers far apart, and then pinch them together.
ARCHOS_45_Platinum_book.indd 9 02/08/2013 11:53:53

10
3G connection
With your 3G SIM card, you should be connected to the Internet without
any further setup. The ARCHOS will only have signal if you are in an area
covered by your 3G provider’s 3G or EDGE network. When connected to
the 3G network, the 3G icon is displayed in the status bar.

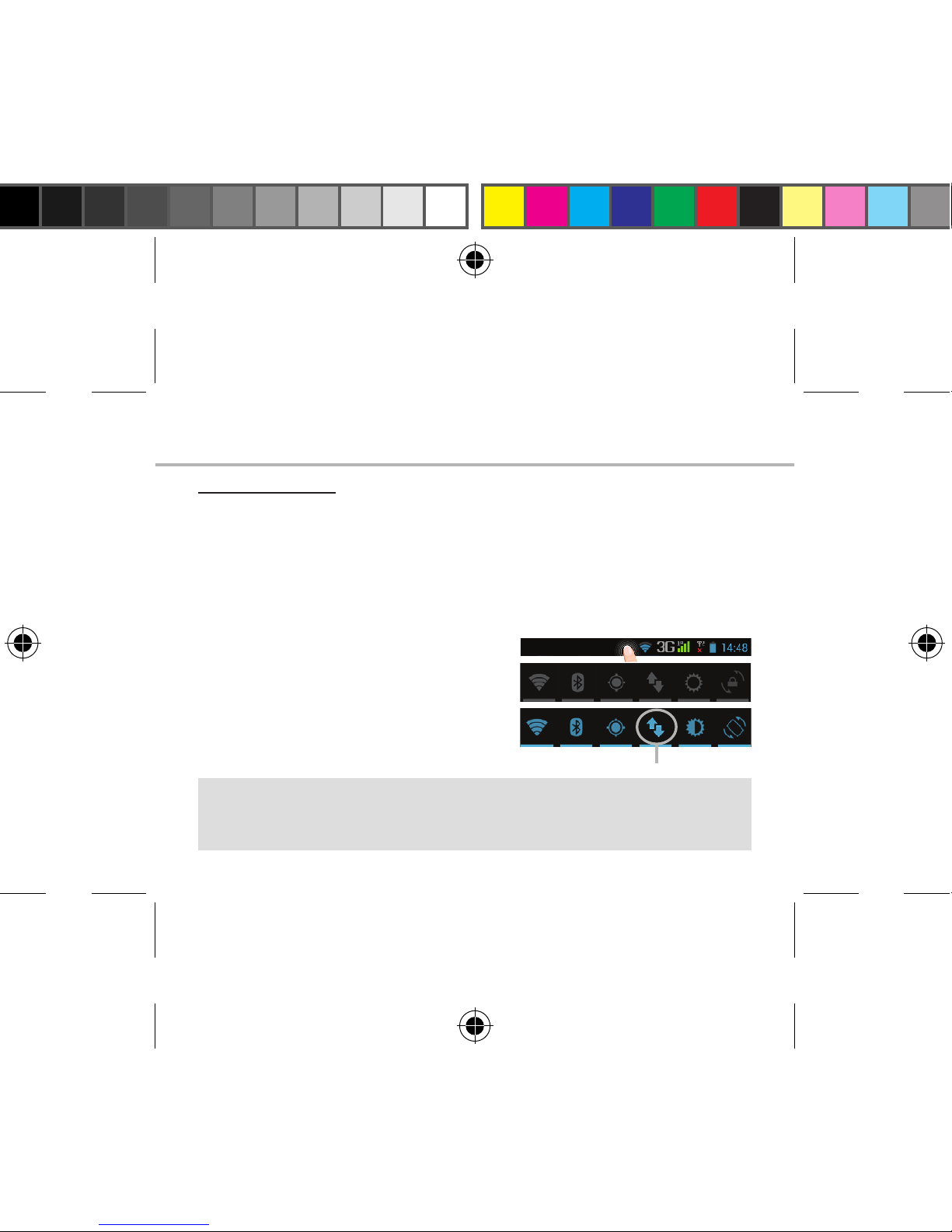

Activating the mobile data
To be able to access Internet, the mobile data icon must be activated.
1. Drag down the status bar.
2. Touch the mobile data icon to activate it.
The mobile data icon is blue when activated.
3G & WiFi connection
mobile data icon
Tip:
When you encounter connection problem’s, see the FAQs on www.
archos.com or contact your 3G network connection provider.
ARCHOS_45_Platinum_book.indd 10 02/08/2013 11:53:53

11
EN
WiFi connection
WARNING: Make sure that you are in a
WiFi zone. You can access the WiFi settings
quickly from the status bar.
1. Drag down the status bar.
The status dashboard is displayed.
2. Touch the “Settings”icon to open the
settings menu.
3. In the “Wireless & networks”section, if the
WiFi is o, slide the WiFi switch to the “ON”
position. Once the WiFi is on, the ARCHOS
Settings icon
will scan for WiFi networks in range.
4. Touch “WiFi” to display available networks.
5. Touch the name of network you want to connect to.
Private networks are shown with a lock icon and will require you to
enter your password.
ARCHOS_45_Platinum_book.indd 11 02/08/2013 11:53:54

12
Adding a Google account
A Google account lets you take full advantage of any Google apps and
services that you may want to use.
1. Go to“Settings” >“Accounts”>“Add account”.
2. Select the account type“Google”to add.
3. Follow the onscreen instructions to enter information about the account.
Once the account is created, you can access Play Store, Gmail, Hangouts,
Maps and many other apps.
Synchronizing info
Information must be sync to be saved. Your data are backed up on
Google servers.
1. Go to“Settings”>“Accounts”>“Google”.
2. Select your account.
The list of information that can be sync are displayed.
3. Check all information in order to sync them.
You can get them back in case of loss of your device or SIM card.
When your Google account is added to a new device, all your saved
information are collected.
Google & Contacts
ARCHOS_45_Platinum_book.indd 12 02/08/2013 11:53:54

13
EN
Saving your contacts
When your contacts are saved, they are always available on the web
and can be synced to any Android phone that’s set up with your Google
account.
1. Install the SIM card with your contacts in your phone.
2. From a Home or All Apps screen, select the People app .
3. Touch the Menu button >“Import/Export”.
4. In Import/export contacts, select“Import from SIM card”.
5. Select your Google account.
6. Check contacts to be imported and validate.
7. Once the contacts are imported in the Google account, go to“Settings”>
“Accounts”>“Google”.
8. Select you Google account. Make sure“Contacts”is checked.
9. Select the Menu button, then“Sync now”.
Your contacts are saved to via your Google account.
ARCHOS_45_Platinum_book.indd 13 02/08/2013 11:53:54

14
The extended home screen:
Navigate between dierent home screen panels by swiping left and
right.
Home button
Short press the Home button to go back to the main screen.
Double press the Home button to display all the apps you have opened.
Swipe any app left or right to close it.
Moving a home screen item:
Touch and hold your nger onto it until the positioning gridlines appear,
then slide it to the desired location, and release your nger.
Removing a home screen item:
Touch and hold it, slide your nger towards the top of the screen and
drop it over the "Remove" icon.
Uninstalling an item:
From the "All apps" screens, touch and hold it, slide your nger towards
the top of the screen and drop it over "Uninstall" bin.
Hints & tips with AndroidTM
ARCHOS_45_Platinum_book.indd 14 02/08/2013 11:53:54

15
EN
Creating application folders:
Drop one app icon over another on a home screen and the two icons will
be combined.
Widgets:
Touch the“All Apps”icon on your home screen. Touch “Widgets”at the
top of the screen. From the main Widget screen, you can move around
widgets just as you do for app icons.
Changing your wallpaper:
Hold your nger on a home screen at an empty location, then choose
from the list.
Locking the touchscreen:
From the quick settings dashboard in the status bar, touch “Settings”. In
“Settings”, scroll down and touch“Security”. Touch “Screen lock”. Touch
the type of lock you would like to use. After you set a lock, a lock screen
is displayed whenever your screen wakes up, requesting the pattern, pin
or other specied key.
ARCHOS_45_Platinum_book.indd 15 02/08/2013 11:53:54

16
Troubleshooting
My phone is frozen or cannot switch on
Check the battery contacts, remove and reinstall your battery, then turn
your phone on. Check the battery power level, charge for at least 20
minutes.
My phone cannot connect to a network or “No service” is displayed
Try connecting in another location. Verify the network coverage with
your operator.
Unable to make outgoing calls
Make sure your phone is connected to a network, and the network is not
overloaded or unavailable.
Unable to receive incoming calls
Make sure your phone is switched on and connected to a network
(check for overloaded or unavailable network).
SIM card PIN locked
Contact your network operator to obtain the PUK code (Personal
Unblocking Key).
To configure a new 3G network:
On your device, tap Settings.
Select Wireless & networks > More... > Mobile networks.
Select Network settings. In Network operators, select your operator. In
Access Point Names, select the correct access point name and enter the
exact connection parameters provided by your 3G provider.
ARCHOS_45_Platinum_book.indd 16 02/08/2013 11:53:54

FR
Pour plus d’informations, consultez-les FAQs sur www.archos.com.
Consultez-les avant d’envisager un éventuel retour du produit. Le
problème que vous rencontrez peut être résolu facilement. Comme nous
mettons à jour et améliorons régulièrement nos produits, le logiciel
de votre appareil peut présenter une interface ou des fonctionnalités
légèrement diérentes de celles décrites dans ce guide.
Contenu de la boîte.....................................................................................................
Description du téléphone.........................................................................................
Assemblage....................................................................................................................
Mise en route.................................................................................................................
Connexion 3G & WiFi...................................................................................................
Compte Google & Contacts......................................................................................
Trucs & Astuces avec AndroidTM................................................................................
Dépannage.....................................................................................................................
18
19
22
24
26
28
30
32
Table des matières
ARCHOS_45_Platinum_book.indd 17 02/08/2013 11:53:54

18
Contenu de la boîte
Vériez que les éléments ci-dessous sont présents dans la boîte :
-ARCHOS 45 Platinum
-Batterie
-Kit piéton
-Adaptateur pour Micro SIM
-Câble USB
-Chargeur
-Guide d’utilisation rapide
-Guide des garanties et des mentions légales
Il se peut que les éléments fournis, de même que les accessoires, varient
en fonction de votre localité ou de votre opérateur.
Les éléments fournis sont conçus uniquement pour votre appareil et ils
pourraient ne pas être compatibles avec d’autres appareils.
Des accessoires non conformes peuvent être la source d’un mauvais
fonctionnement.
ARCHOS_45_Platinum_book.indd 18 02/08/2013 11:53:54

19
2
3
1
22-07-2013
last modification:
AC45 PL
CONFIDENTIAL
DRAWING
Rev
1
scale 1:1 mm
22-07-2013
last modification:
AC45 PL
CONFIDENTIAL
DRAWING
Rev
1
scale 1:1 mm
4
5
FR
Description du téléphone
1Prise kit piéton
Bouton ON/OFF
Haut-parleur
Caméra frontale
Boutons de volume
2
3
4
5
ARCHOS_45_Platinum_book.indd 19 02/08/2013 11:53:55

20 9
8
10
22-07-2013
last modification:
AC45 PL
CONFIDENTIAL
DRAWING
Rev
1
scale 1:1 mm
22-07-2013
last modification:
AC45 PL
CONFIDENTIAL
DRAWING
Rev
1
scale 1:1 mm
7
6
6
8
7
10
9
Description du téléphone
Caméra
Flash
Haut-parleur
Port Micro-USB
Micro
ARCHOS_45_Platinum_book.indd 20 02/08/2013 11:53:55
