Ardwolf A10 Fingerprint Touchscreen Door Lock
User Manual

02
Thank you for choosing Ardwolf A10 fingerprint touchscreen door lock. No more worries
about losing your keys, one touch to unlock. The fingerprint sensor in the lock is combined
with the touch active sensor. This feature allows an easy and fast fingerprint entry--one
touch on the fingerprint sensor unlocks. The lock has self-learning ability, which enables
the lock to update a user fingerprint template after every fingerprint entry. This unique
feature significantly reduces rejection rate when compared to other fingerprint lock systems
on the market. The lock is equipped with OLED display, it makes visual menu based
operation become true. Audit Trail feature allow lock owner to track entry record. Double
verification feature increase lock security level significantly. Enjoy adopted the latest
biometric fingerprint technologies that bring you a convenient and secure lock system.
• Unlock by fingerprint, code, fingerprint + code, fingerprint + fingerprint or key.
• Up to 500 fingerprint users could be enrolled in the system.
• Up to 300 user codes could be programmed into the system.
• Visual menu display on OLED, it makes operation easy.
• Store up to 16384 audit trail logs.
• Individual fingerprint user and user code deletion.
• Build-in touch active sensor: one touch to unlock.
• Self-learning ability: fingerprint template is updated after every fingerprint entry.
• Two ways to login the system: programming code or administrator fingerprint.
• Beeper sound turn off option, you may turn off beeper sound if you don’t like.
1. Features
Active sensor area
Fingerprint sensor
Touchscreen

03
• Unlock by fingerprint, code, fingerprint + code, fingerprint + fingerprint or key.
• Up to 500 fingerprint users could be enrolled in the system.
• Up to 300 user codes could be programmed into the system.
• Visual menu display on OLED, it makes operation easy.
• Store up to 16384 audit trail logs.
• Individual fingerprint user and user code deletion.
• Build-in touch active sensor: one touch to unlock.
• Self-learning ability: fingerprint template is updated after every fingerprint entry.
• Two ways to login the system: programming code or administrator fingerprint.
• Beeper sound turn off option, you may turn off beeper sound if you don’t like.
• Double verification mode: unlock by User code + fingerprint or fingerprint + different
fingerprint, when you enable this mode.
• Support passage mode: stay at “unlock” state during the passage mode.
• Memory function: “power run-out” or “system reset” will not cause the loss of enrolled
fingerprint(s) and user code(s).
• Reversible lever: lock fits both left-handled and right-handed door.
• Reversing lever controlled by key.
• “Schlage C key” as an override key.
• 9V battery may be attached as an additional power source.
• Double-shell heavy duty construction design.
• OLED show battery level and low battery alert.
2. Specifications
• Optical sensor.
• Touchscreen virtual 12-key keypad.
• Single latch.

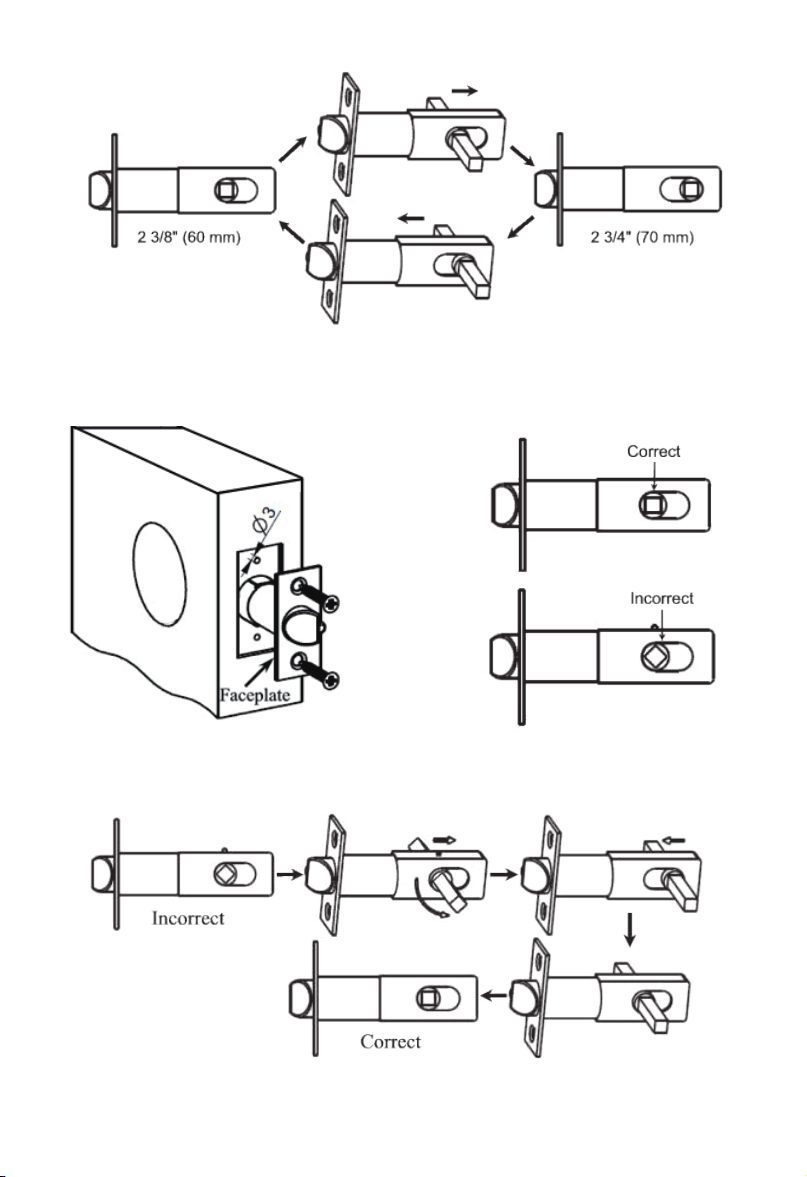

• Adjustable backset 2 ⅜” or 2 ¾”.
• Fit door thickness between 1⅜” and 2⅜”.
• Operation temperature from -22˚F (-30˚C) to 151˚F (66˚C).
• All weather door lock.
• Powered by 4 AA Alkaline batteries (NOT included).
• Lock designed for INTERIOR door ONLY.
• One year limited manufacturer’s warranty.

3. How to scan your fingerprint
04

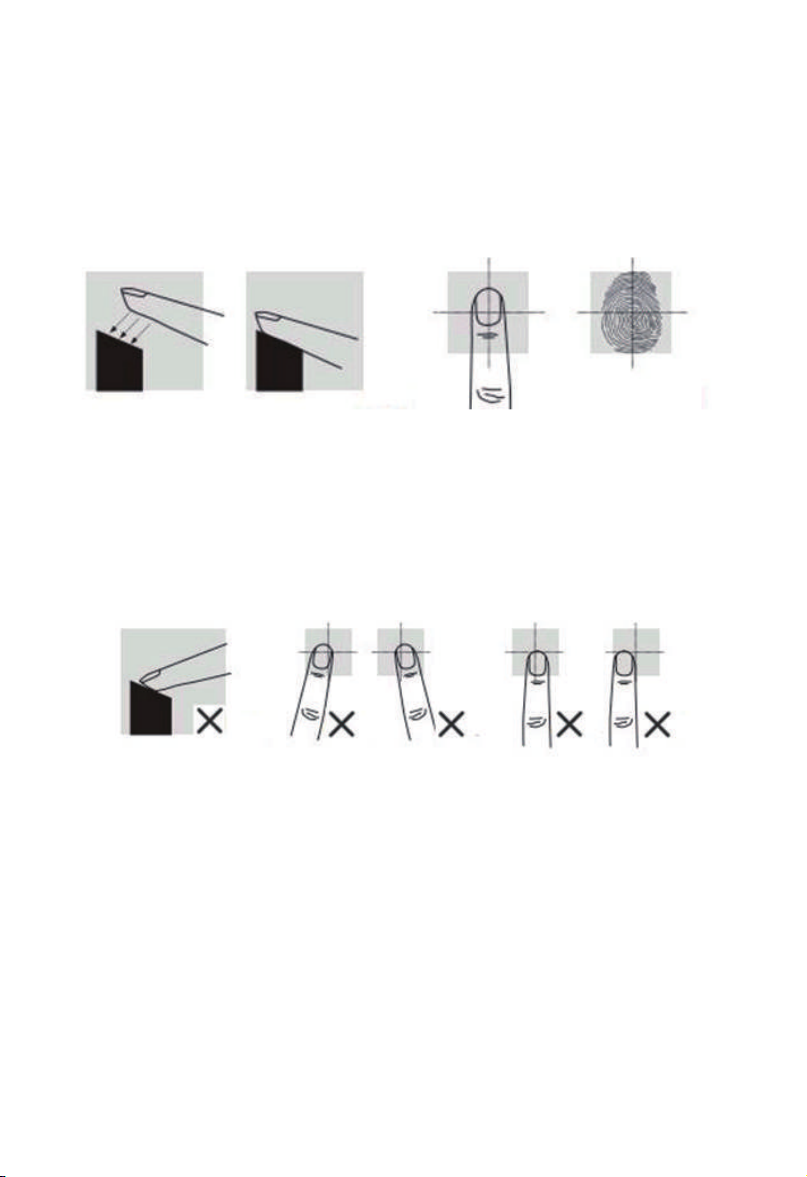

When placing your finger on the fingerprint sensor to scan, make sure that the location of the
fingerprint “core” is making direct contact with fingerprint sensor. Apply medium pressure,
or just enough to flatten the skin on your finger.
The fingerprint sensor won’t get your fingerprint image if you take the following way.
We recommend that you register index finger, thumb or finger with visible fingerprint image.
It is important that your finger be clean when registering or verifying with your fingerprint.
Washing your hands with moisturizing soap and using hand lotion will also improve accuracy.
The fingerprint scanner scan fingerprint 2 to 3 times, user must lift finger and place back
between scanning.

4. Flow chart of menu
05
Fingerprint
User Code
System
AT logs
Fingerprint
Enroll
Fingerpr.
Delete
Fingerpr.
Delete All FP
Date & Time
Verify mode
Beep
About
Admin Code
Reset
Add Code
Delete Code
Delete All
User Code System AT logs

5. Rule of operation
6. Enroll fingerprint
06

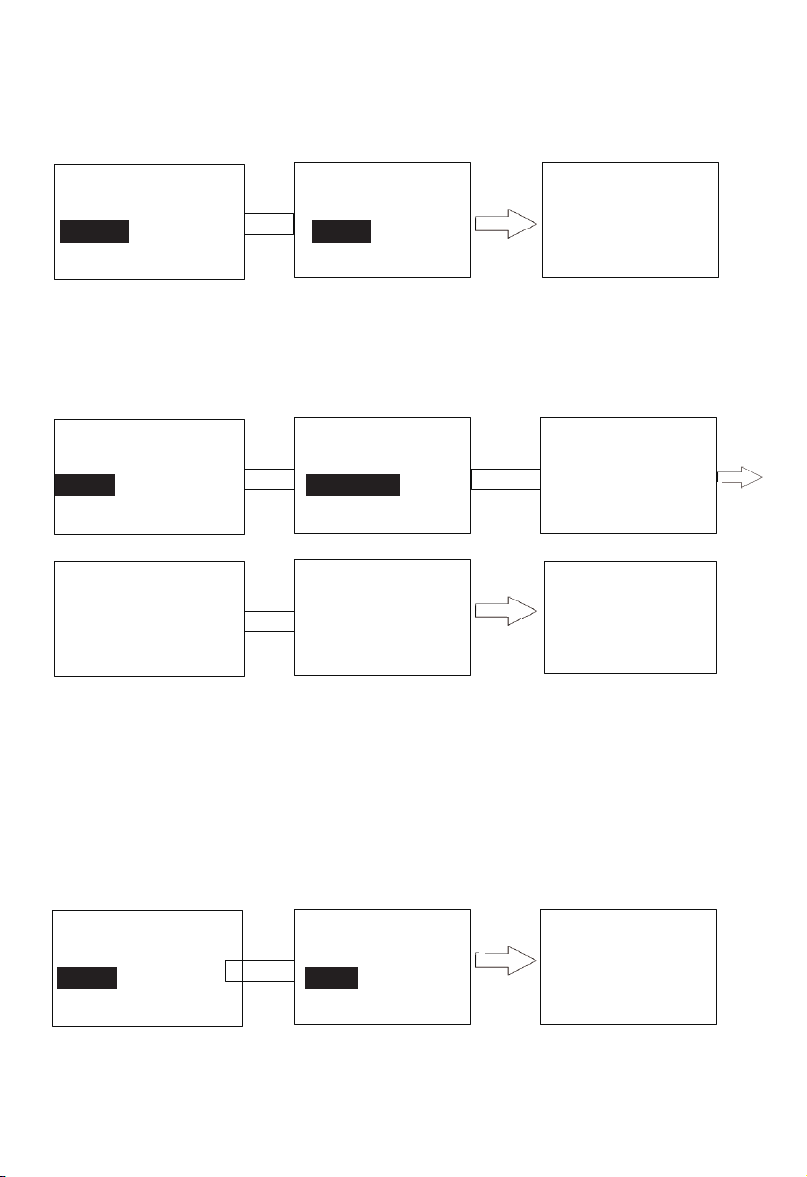

Login system, enter menu page (refer page 5 “5. Rule of operation”).
User could input a desired ID
User ID: 001
Lift and reset
the finger
User ID: 001
Lift and reset
the finger again
Successful
Menu
Fingerprint
User Code
2↑,8↓, # Enter
Enroll Fingerpr.
Delete Fingerpr.
Delete All FP
2↑,8↓, # Enter
User ID
Pop up ID
Desired ID
2↑,8↓, # Enter
User ID
Pop up ID
Desired ID
2↑,8↓, # Enter
Enter user ID
(1 to 500): 1_
* Exit, # Enter
User ID: 001
Place a finger
on sensor firmly
Active lock by touching screen then touch #. Login page will show up. Login system by
Admin Code or Admin Fingerprint. After login system, following Menu to program
fingerprint, user code or set up lock.Default administrator code(1234).
Note: “2↑” stand for touching 2 to scroll cursor up. “8↓” stand for touching 8 to scroll cursor
down. “#Enter” stand for touching # to confirm.
6. Delete all fingerprint
User ID: 001
Place a finger
on sensor firmly
User ID: 001
2↑,8↓, # Enter

07
User could input a desired ID
Menu
Fingerprint
User Code
2↑,8↓, # Enter
Enroll Fingerpr.
Delete Fingerpr.
Delete All FP
2↑,8↓, # Enter
User ID
Pop up ID
Desired ID
2↑,8↓, # Enter
User ID: 001
2↑,8↓, # Enter
Delete User
001_?
* No # Yes
Successful
User ID
Pop up ID
Desired ID
2↑,8↓, # Enter
Enter user ID
(1 to 500): 1_
* Exit, # Enter
Delete User
001_?
* No # Yes
Menu
Fingerprint
User Code
2↑,8↓, # Enter
Enroll Fingerpr.
Delete Fingerpr.
Delete All FP
2↑,8↓, # Enter
Menu
Fingerprint
User Code
2↑,8↓, # Enter
Add Code
Delete Code
Delete All
2↑,8↓, # Enter
Pop up ID
Desired ID
2↑,8↓, # Enter
7. Delete Fingerprint
Login system, enter menu page (refer page 5 “5. Rule of operation”).

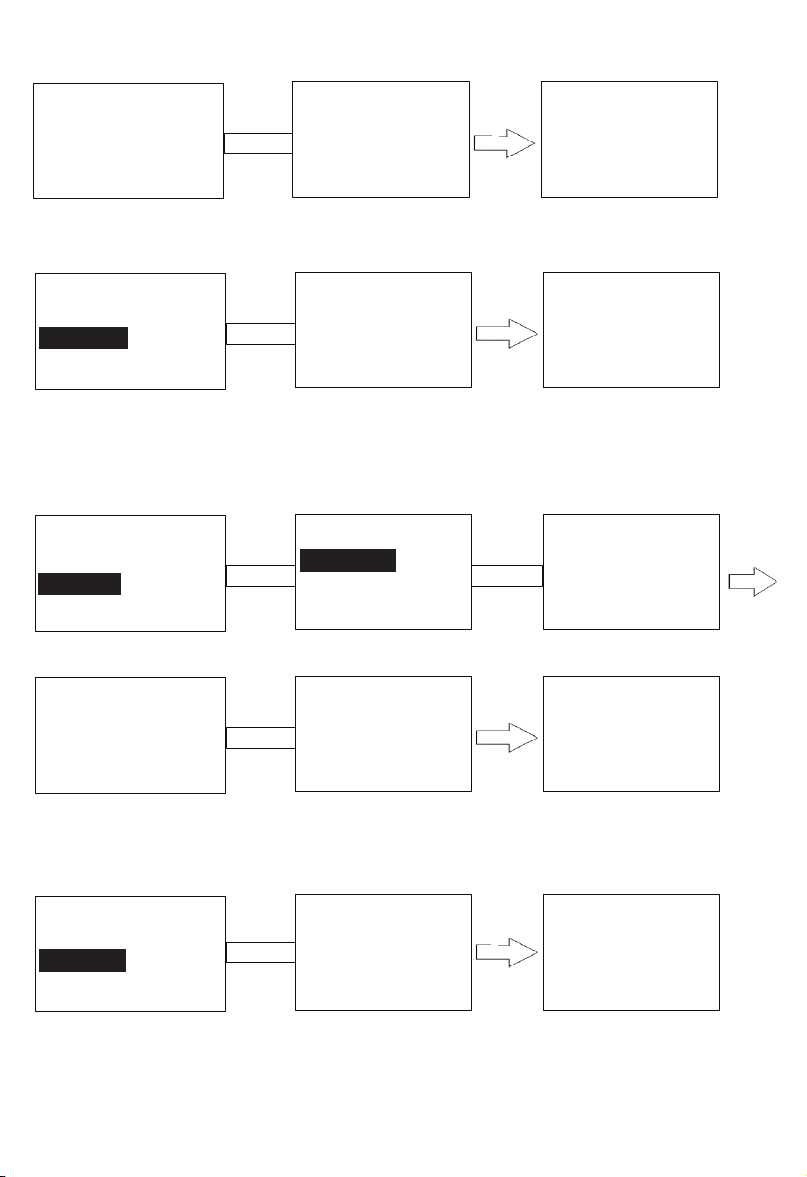

9. Add User Code
Login system, enter menu page (refer page 5 “5. Rule of operation”).
Delete all fingerprint
8. Delete all fingerprint
Login system, enter menu page (refter page 5 “5. Rule of operation”).

08
User could input a desired ID
System allow user input a desired ID
ID: 001
2↑,8↓, # Enter
Enter Code
(4-12 digit)
*******
* Exit # Enter
Enter Code again
(4-12 digit)
*******
* Exit # Enter
Code ID
Pop up ID
Desired ID
2↑,8↓, # Enter
Enter user ID
(1 to 300): 1_
* Exit, # Enter
Enter Code
(4-12 digit)
*******
* Exit # Enter
Menu
Fingerprint
User Code
2↑,8↓, # Enter
Add Code
Delete Code
Delete All
2↑,8↓, # Enter
Code ID
Pop up ID
Desired ID
2↑,8↓, # Enter

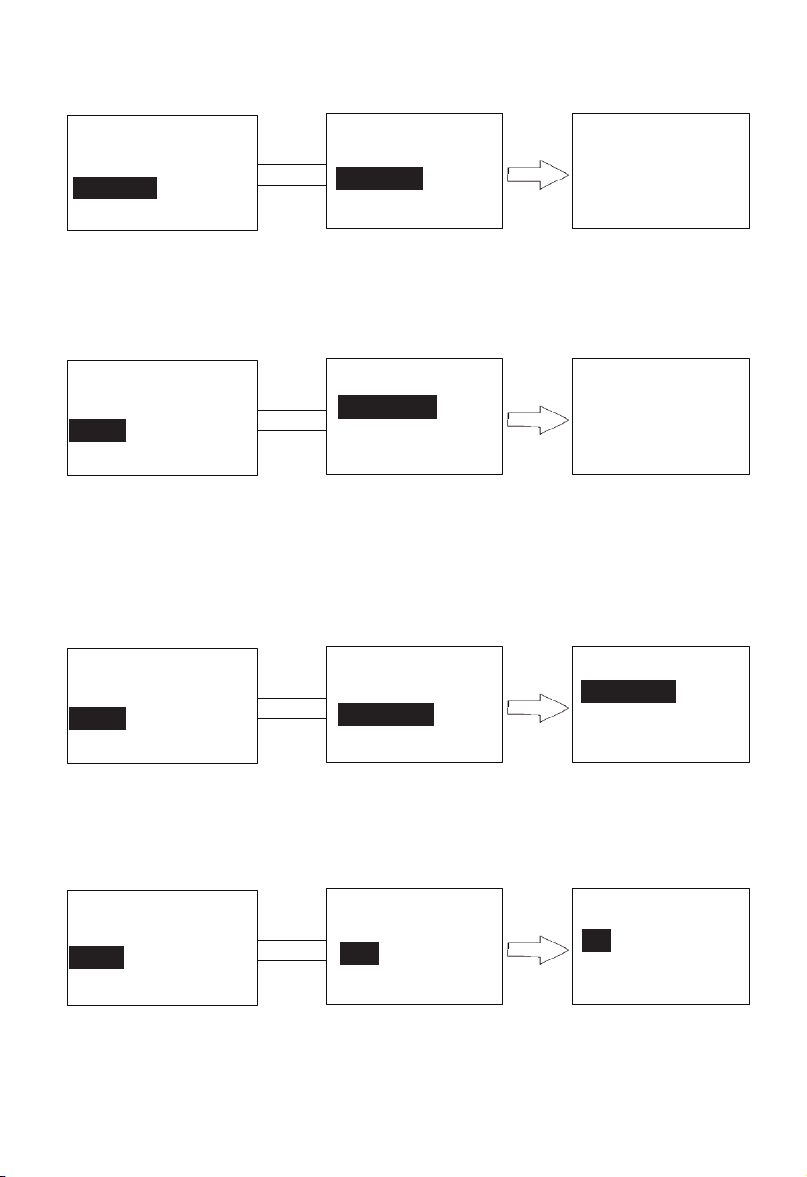

Delete Code
***_?
*No #Yes
Successful
ID: 001
2↑,8↓, # Enter
Code ID
Pop up ID
Desired ID
2↑,8↓, # Enter
Enter user ID
(1 to 300): 1_
* Exit, # Enter
Delete Code
***_?
*No #Yes
10. Delete User Code
Login system, enter menu page (refer page 5 “5. Rule of operation”).
