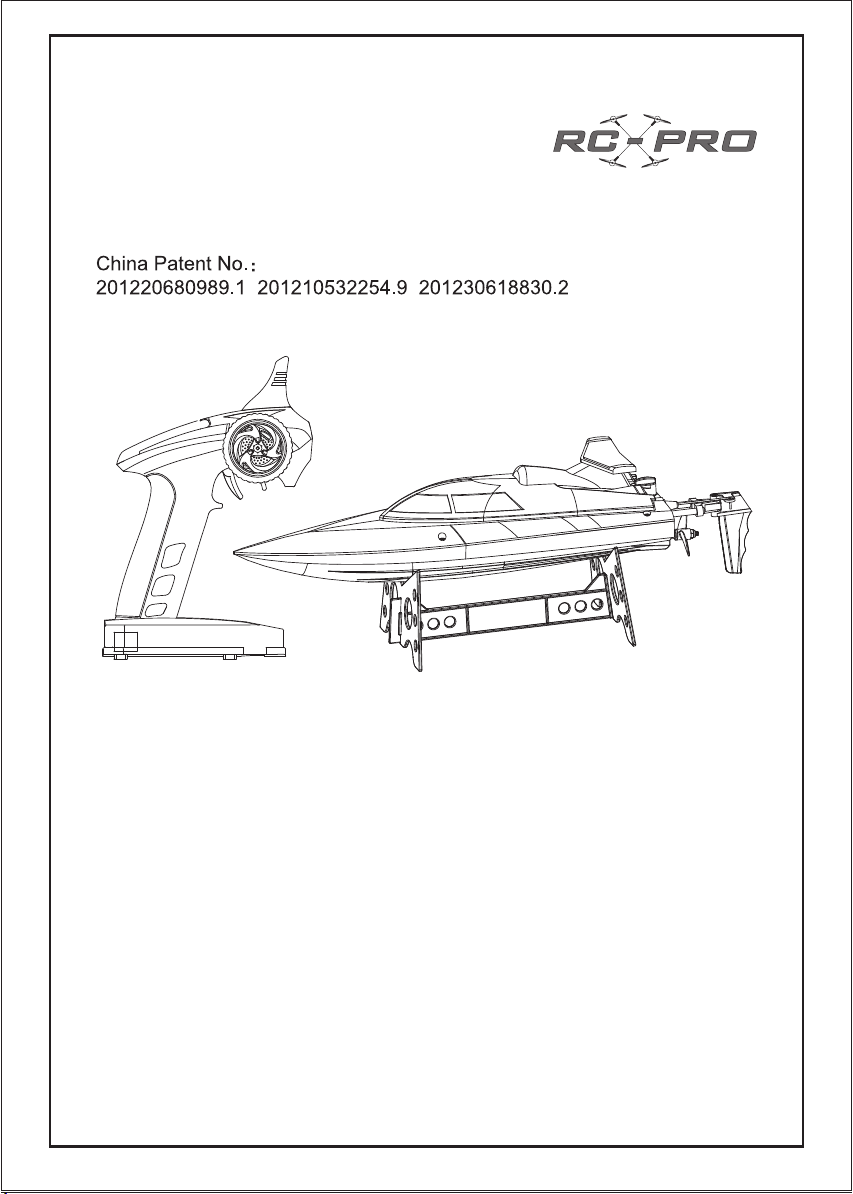

RC-PRO SONIC 14 User manual

AGE 14+
SONIC 14
High Speed Racing Boat
PLEASE READ INSTRUCTION MANUAL CAREFULLY BEFORE OPERATING
Operating Instructions For 2.4G High-Speed
SONIC 14 R/C Boat
Specifications
•Powerful 370-Size brushed motor system
•2.4ghz full-directional radio control
•Rechargeable Li-ion battery and charger included
•Maximum speed aprox. 20km/h
•Length 350mm x Width 88mm x Height 70mm

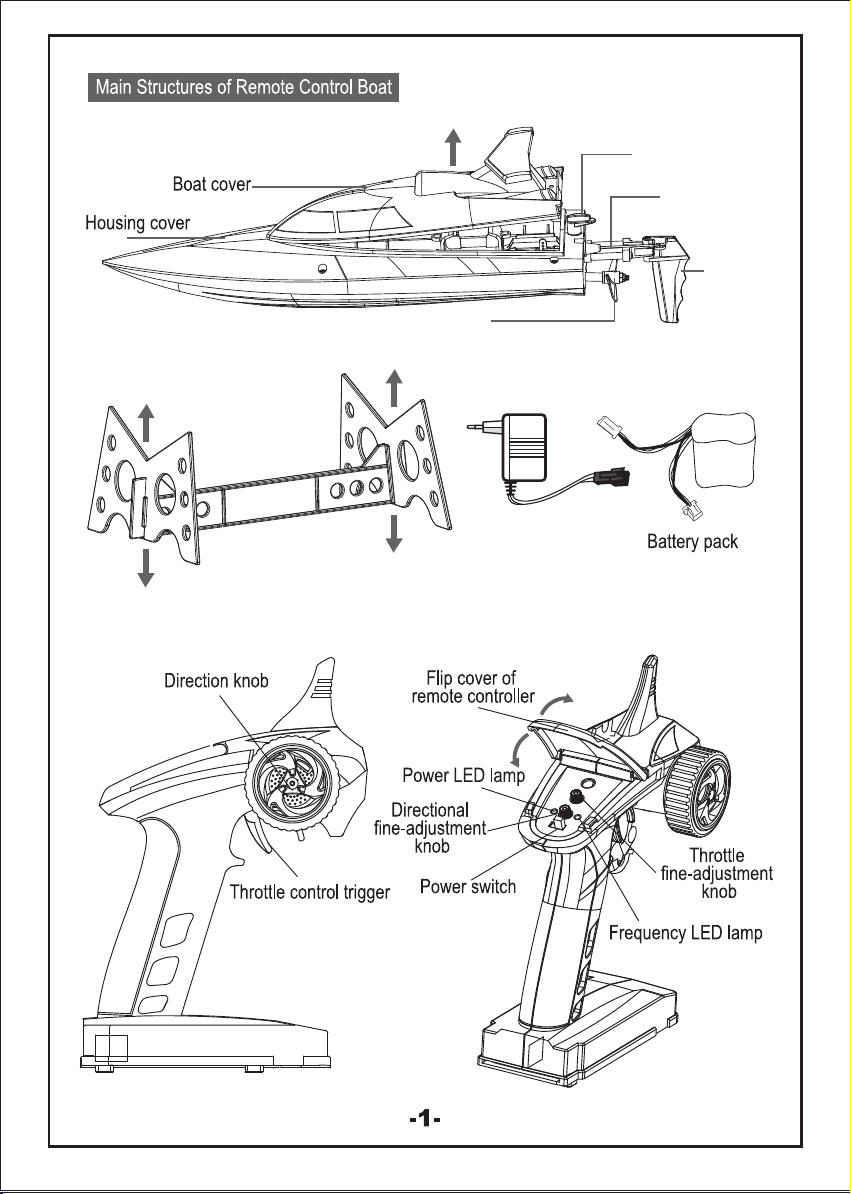

Rudder
Servo Linkage
Propeller
Cover switch
Show carriage UL Charger
(1100 mAh/7.4V high power
rechargeable Li-ion battery)

Open battery cover on controller and correctly insert six 1.5V AA batteries.
Close cover and tighten screws.(see the figure)
Connect the battery to the charger. Plug the charger into a power outlet and fully charge
(about 3.5hrs). DO NOT LEAVE CHARGING BATTERY UNATTENDED. Battery may be
warm when charging is complete. Disconnect the charger from the outlet, then the battery
from the charger.
• AA alkaline batteries recommended for controller
• Non-rechargeable batteries cannot be recharged
• Do not dismantle or short circuit batteries
• Keep batteries away from heat and flame
• Charge rechargeable batteries under adult supervision
• Remove rechargeable battery from boat before
charging and when not in use
• Remove battery before cleaning
• Regularly check all wires, plugs and batteries to ensure
proper performance and safety. In case of damage
discontinue use until repair
Installing Batteries in Remote Controller
Rechargeable Battery
Lithium Battery Safety Precautions
BATTERY PRECAUTIONS
Our company is not liable for any damages or injury caused by appropriate or inappropriate use of
this product
.
Check all batteries before charging and before use. Do not use or charge damaged batteries. Do not
over-charge batteries. Keep batteries away from heat and flame. Lithium is highly reactive with water;
always keep batteries away from water and humid conditions. Keep out of reach of children and pets.
Product should not be used by persons under 14 years of age, and should be accompanied by an
adult until 18 years of age. Our company is not liable for any damages resulting from improper use or
handling of the product.

Installing Boat Battery
Water Sesors
Make sure the transmitter is OFF and connect the battery. Place the boat in
water and turn the transmitter to ON, a solid red light and blinking green light
will appear. Wait for about 5 seconds and the green light will turn solid. The
boat is now paired and ready to go!
**Remember, the transmitter must be OFF before connecting the battery
Activating And Pairing The Boat
1.Turn switch on boat cover to open
3.Connect the battery 4.Replace boat cover and turn switch
to fasten
2.Place Li-Ion battery into holder in
boat body

For safety and the prevention of injury by the propeller, the boat should not be used out of water.
DO NOT OPERATE BOAT OUT OF WATER. Initial steering trim may be needed to correct
unwanted movement.
1. This boat should not be used by persons under 14 years of age, and should
be accompanied by an adult until 18 years of age.
2. Do not use boat in areas where people are swimming.
3. Inspect playing area for any foreign objects ie. Trees, roots, rocks.
4. Maximum control range is 150meters, going beyond this may cause this
boat to lose control.
5. Whenever you are not using your model turn off the controller and unplug
the rechargeable battery from the boat.
6. This model is equipped with a low-voltage cut-off, your speed will decrease
significantly when the battery is low. At this time bring your model to shore.
7. Always be safety-conscious. If your model gets out of control, retrieve it
safely. Always play safe.
Installation of Protective Cover
Anti-collision part
1.Slide cone onto bow (as shown)
2.Click into place
3.To remove, unclip and slide cone off
Refer to illustration：
Nose guard can prevent damage to the bow due to collision.

Operation of Boat
Reverse
Turning Left
Turning Right
Pull trigger toward body of controller, this will make the boat move forward.
Push trigger away from body of the controller, this will make the boat move backwards.
While moving turn the direction knob counter-clockwise and the boat will turn left.
While moving turn the direction knob clockwise to turn right.

In the case where your boat is upside-down, just push
and pull on the trigger, and the boat will automatically right itself.
If your model is automatically turning left, slowly rotate
the Directional fine adjustment knob clockwise (as shown),
this will correct the drift and allow the boat to move forward accurately.
1. Keep body of boat clean and store out of direct sunlight.
2. After use, clean model and use a soft cloth to absorb any water that has accumulated.
3. Always remove batteries from both the boat and the controller when not in use.
4. Occasionally apply provided lubricant to the boats drive shaft connection in order to
keep it turning smoothly.
If your model is automatically turning right, slowly rotate
the Directional fine adjustment knob counter-clockwise (as shown),
this will correct the drift and allow the boat to move forward accurately.
This model is equipped with a low-voltage cut-off. The boat’s speed will decrease
significantly when the battery is running low. At this time bring your model to shore
and recharge/replace to a full battery.
Self-Righting
Fine adjustment toward left
Fine adjustment toward right
Maintenance And Inspection
Low-Voltage Cut Off Feature

Spare Parts
Steering servo Propeller unit
Drive shaft linkage
Outer shaft
Rudder assembly
7.4V Li-ion Control board
Boat cover unit Boat bottom
Protective cone
Motor unit
We believe that you should make the most out of your boat.
If you are ever in need of advice, service or parts please visit
our website for a list of our retailers and service centers.
WWW.RCPRO.CA
UL Charger
