MJX 5W User manual

Point of interest Follow me One-key returr 1080P 5G WIFI
Camera
GPS Positioning Brushless motor  Independent ESC 2.4GHz two-way
Ines rennico 
communication
dem, Ion Maned
L19-041U
Bugs Series Brushless Drone with GPS
User Manual
10130P PHD 200-300111
Farther.Faster.Clearer .
imps camera wens win 5G MR wily.
Please mane are Maryarr device
sJcpsrls 5G Innfl.

Important statement and safety guidelines
Thank you for purchasing MJX product. Please read this manual carefully before use and retain it for
future reference.
Packaging has to be kept since it contains important information.
Important statement
• This aircraft is not a toy, but hobby grade model. It should be assembled and operated properly. Pilot
must operate this aircraft in safe way. Improper operation may cause injury or property damage.
• This aircraft is applicable for pilots aged 14+ who are with skilled flying experience.
• Users are in full charge of proper operating this aircraft. Manufacturer and dealers disclaim any
responsibity for damages caused by misuse.
• Keep the small accessories away from kids to avoid accident.
Flight safety guidelines
Hobby grade radio control aircraft is somewhat considered to be the highest danger potential article.
Users should firmly uphold the principle of "safety comes first'. Never fly the aircraft near airports,
above crowds or in zones storing dangerous goods and understand the responsibility of the accident
may cause by improper operations.
• Stay away from obstacles, crowds, power lines. trees or waters
Ak.vays choose a wide open area for every flight, well away from people and property. Never fly directly
over people or animals. Please don't fly in such bad weather conditions as high temperature, snow,
strong wird (Aevel 5), rain or fog. Maintain a 7ft (2m) distance from the aircraft when taking off and
landing.
• Keep the aircraft in dry environment
The aircraft is composed by sophisticated electronic components and mechanical parts. To avoid
damages on the mechanical and electronic components, please keep the aircraft in dry environment
and use clean cloth to wipe the surface and keep it clean.
• Practice flying together with skillful pilot
Beginners are suggested to practice flying together with skillful pilots guidance. Do not fly alone.

• Bear proper operation and safe flight guidelines in mind
Please take a careful look at the manuals before flights for important information of product functions
and operation tips, and learn how to use the accessory, safe flight always comes first. Stay informed
of and abide strictly by relevant local laws and regulations. Keep away from any non-flight zones and
respect other people's privacy.
• Safe flying
Please make sure you are in good shape mentally before every flight. Fly the aircraft as per your flying
experience. Never fly under influence of alcohol or drugs. Keep the remote controller at least 20 cm
away from your body when flying the aircraft.
• Keep distance from a flying aircraft
Never use your hands to touch a flying aircraft under any circumstance. Don't approach and touch a
landed aircraft before its propellers are completely locked.
• Keep away from heat source
The aircraft is made of metal, fiber, plastic, electronic component and other material. Please keep it
away from the heat source to avoid deformation or even damage caused by sun exposure and high
temperature.
• Environmental protection requirements
To protect our blue planet, so please recycle the aircraft as per local laws and regulations.
Product profile
Product configuration
Package includes
Aircraft X1  Balance charger X1  Undercarriage X4  Battery X1
Propeller changing tool X1  Remote controller X1  Screwdriver X1  USB cable X1
Extra Propellers NB X2  Charging converter X1  Mobile phone holder X1
Technical parameter of the aircraft
Diagonal: 250mm  Overall height: 95mm
Brushless motor: 1806 1500KV  Battery: 7AV 1800mAh 25C
Maximum flying time: about 16-18 minutes  Charging Time: about 5 hours
Gross weight: about 410g (with undercarriage and battery)
-2-

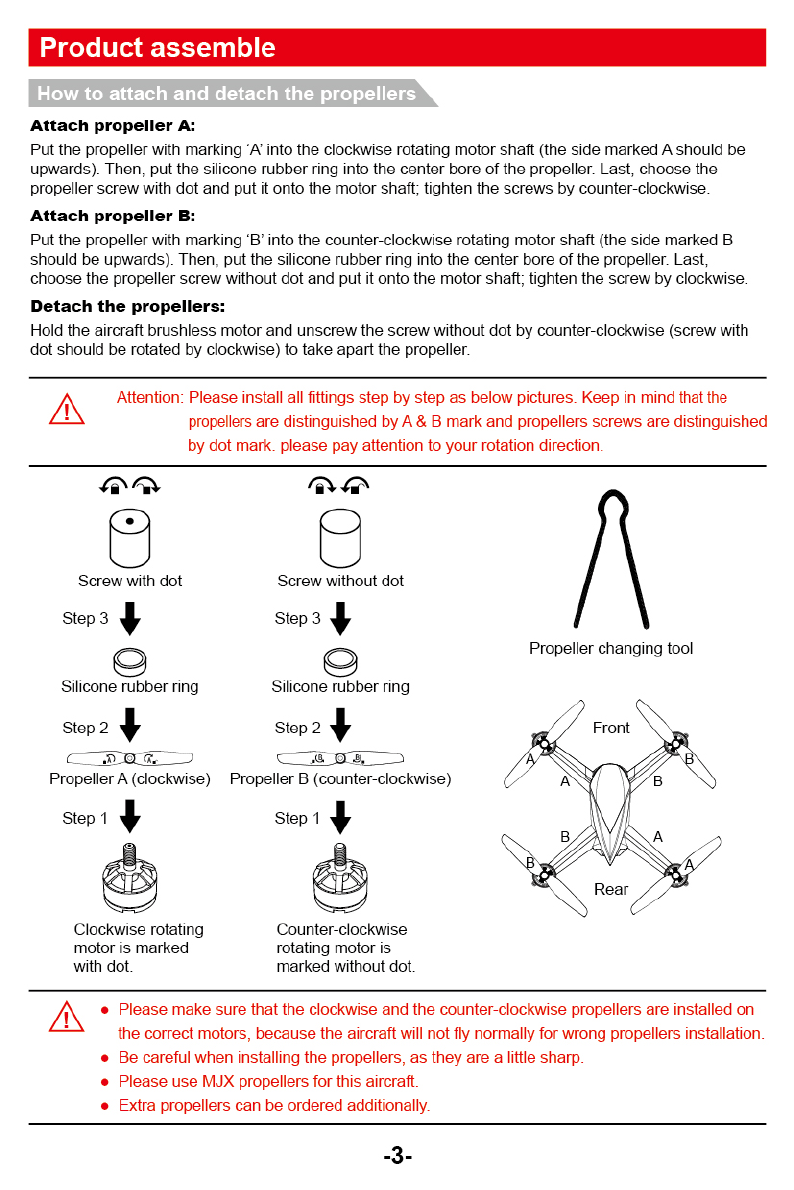

Product assemble
w t ❑ attach and detach the propellers
Attach propeller A:
Put the propeller with marking 'A into the clockwise rotating motor shaft (the side marked A should be
upwards). Then, put the silicone rubber ring into the center bore of the propeller. Last, choose the
propeller screw with dot and put it onto the motor shaft; tighten the screws by counter-clockwise.
Attach propeller B:
Put the propeller with marking 'B' into the counter-clockwise rotating motor shaft (the side marked B
should be upwards). Then, put the silicone rubber ring into the center bore of the propeller. Last,
choose the propeller screw without dot and put it onto the motor shaft; tighten the screw by clockwise.
Detach the propellers:
Hold the aircraft brushless motor and unscrew the screw without dot by counter-clockwise (screw with
dot should be rotated by clockwise) to take apart the propeller.
Attention: Please install all fittings step by step as below pictures. Keep in mind that the
propellers are distinguished by A & B mark and propellers screws are distinguished
by dot mark. please pay attention to your rotation direction.
Screw with dot
Step 3 IF
Silicone rubber ring
Step 2
Propeller A (clockwise)
Step 1
Screw without dot
Step 3 IF
Propeller changing tool
61.)
*aro
Silicone rubber ring
Step 2 IF
Propeller B (counter-clockwise)
Step 1 IF
Clockwise rotating

Counter-clockwise
motor is marked

rotating motor is
with dot.

marked without dot.
• Please make sure that the clockwise and the counter-clockwise propellers are installed on
the correct motors, because the aircraft will not fly normally for wrong propellers installation.
• Be careful when installing the propellers, as they are a little sharp.
• Please use MJX propellers for this aircraft.
• Extra propellers can be ordered additionally.
-3-

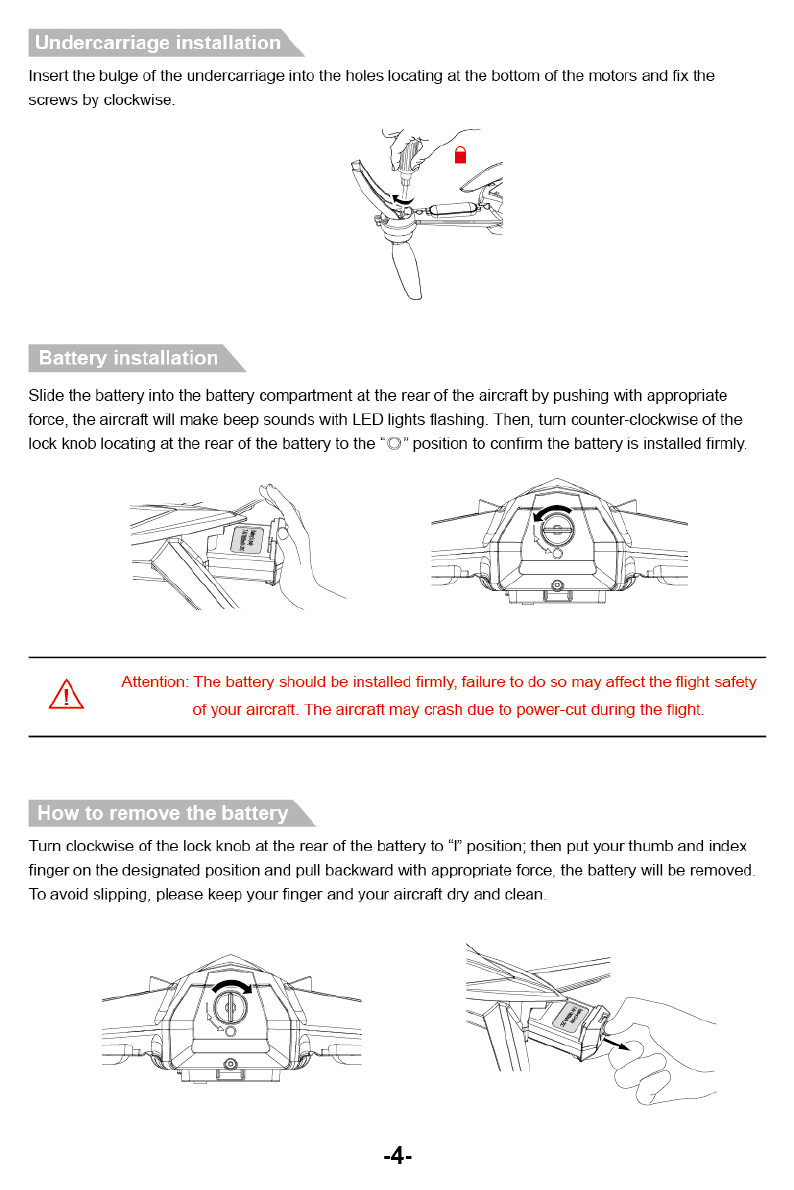

Undercarriage installation
Insert the bulge of the undercarriage into the holes locating at the bottom of the motors and fix the
screws by clockwise.
Battery installation
Slide the battery into the battery compartment at the rear of the aircraft by pushing with appropriate
force, the aircraft will make beep sounds with LED lights flashing. Then, turn counter-clockwise of the
lock knob locating at the rear of the battery to the '0' position to confirm the battery is installed firmly.
Attention: The battery should be installed firmly, failure to do so may affect the flight safety
of your aircraft. The aircraft may crash due to power-cut during the flight.
How to remove the battery
Turn clockwise of the lock knob at the rear of the battery to position; then put your thumb and index
finger on the designated position and pull backward with appropriate force, the battery will be removed.
To avoid slipping, please keep your finger and your aircraft dry and clean.
-4-

Charging
converter
Pic. 3
Power adaptor
(not included)
Pic. 1
USB cable Balance charger
Pic. 2
Battery
Pic. 4
A
Warm tips:  ♦
Ei 0 
A3-•D ®
• The battery plug should be connected correctly with face up( but not upside down) when
plug into the balance charger; Failure to do so will result in battery cannot charge or
charger damaged.
•
We recommend using 5V (1-2A) adaptor for charging.
•
It is not suggested to charge by computer.
II
L
How to charge the battery of aircraft
Step 1. Make sure that your power adaptor (5V 1-2A) is connected with the power outlet (indicated as
Pic. 1);
Step 2. Connect the balance charger to the power adaptor by plug-in the USB cable accordingly
(indicated as Pic. 2);
Step 3. Insert the white triplex-wire plug of the charging converter face up into the triplex-wire socket of
the balance charger (indicated as Pic. 3);
Step 4. Connect the battery to the charging converter and charging is started. Full charging time takes
about 5 hours (indicated as Pic. 4).
■ When charging is proceeding, the green light keeps flashing slowly and the red light keeps solid on
. When charging is finished, both of the green light and the red light keep solid on
. If the battery and charging converter is not connected with the balance charger, but the balance
charger is connected with the adaptor, the red light keeps solid on and the green light is off.
. Once there is any malfunction, the red light will be solid on and the green light will keep flashing rapidly.
A
•Need adult supervision when this aircraft is being played by children.
•
Only batteries of the same or equivalent type as recommended are to be used
•
Insert batteries with correct polarity.
• Non rechargeable batteries are not to be charged; the transmitter need 4*AA batteries for
work.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.
•
Rechargeable batteries are to be removed from the aircraft before being charged.
-5-

*Rechargeable batteries are only to be charged under adult supervision.
*Exhausted batteries are to be removed from the aircraft.
*The supply terminals are not to be short-circuited.
*The charging line to be used with the product should be regularly examined for potential
hazard, such as damage to the cable or cord, plug, enclosure of other parts and that in the
event of such damage, the product must not be used until that damage had been properly
removed.
How to attach and detach the camera
*Attach
Step 1. Insert the white plug of the camera into the socket at the bottom of the aircraft (indicated as
Pia 1);
Step 2. Insert the camera top cylindrical bulge into the slot at the bottom of the aircraft (indicated as
Pia 2); then turn clockwise 90 degrees of the camera to confirm the camera is installed firmly
(indicated as Pic. 3).
Ow;
ejl- *
pic.1

pic.2

pic_3
*Detach
Step t Hold the camera with your thumb and index finger and then turn counter-clockwise 90 degrees
to take out the camera (indicated as Pia 1);
Step 2. Press on the buckle and take out the plug of the camera from the socket of the aircraft
(indicated as Pic. 2).
pic_l

pic.2
-6-

Warm tips:
Please adjust the camera to keep a horizontal level by operating the gimbal upward before
landing on the ground.
A

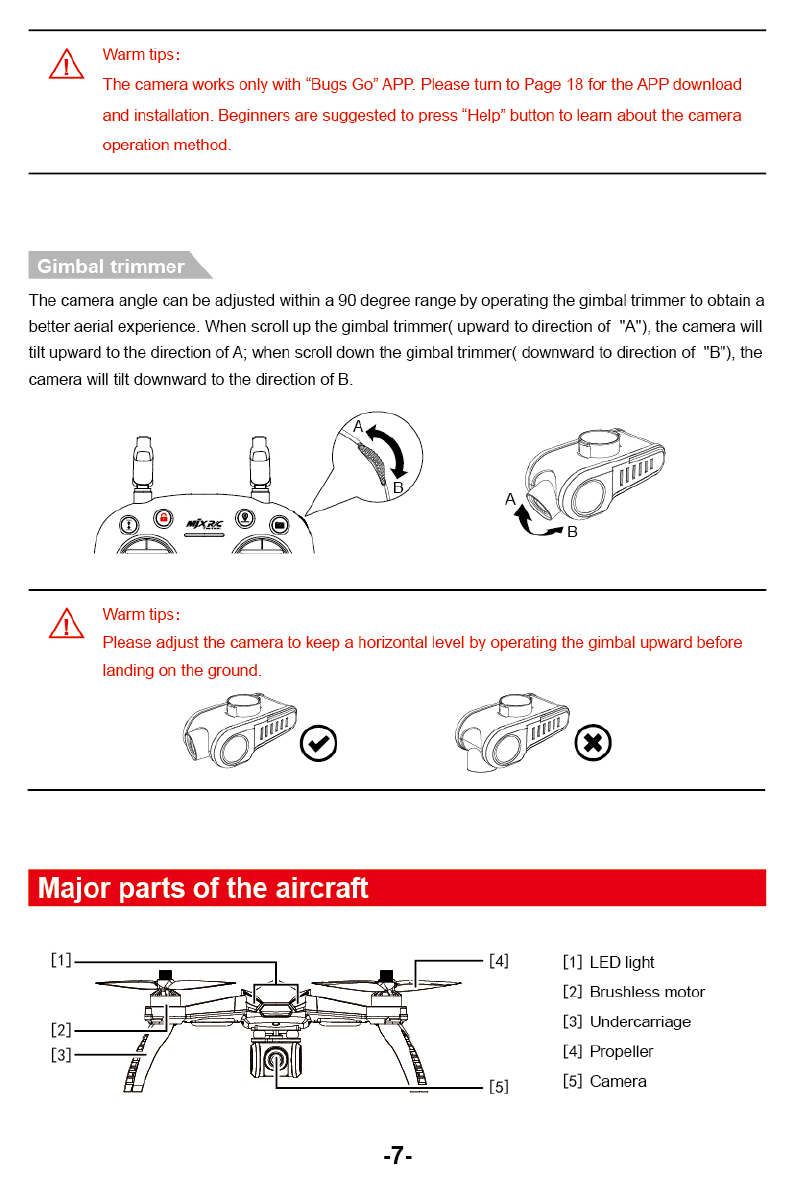

Warm tips:
The camera works only with "Bugs Go" APR Please turn to Page 18 for the APP download
and installation. Beginners are suggested to press "Help" button to learn about the camera
operation method.
Gimbal trimmer
The camera angle can be adjusted within a 90 degree rarcie by operating the gimbal trimmer to obtain a
better aerial experience. When scroll up the gimbal trimmer( upward to direction of "N'), the camera will
tilt upward to the direction of A; when scroll down the gimbal trimmer( downward to direction of "B"), the
camera will tilt downward to the direction of B.
Major parts of the aircraft
[1]
[2]
[3]
[4] [1] LED light
[2] Brushless motor
[3] Undercarriage
[4]
Propeller
[5]
[5] Camera
A
-7-

[7]
[6]
[6] Battery compartment
[7] Front light
[8] Rear light
[9]
Major parts of the remote controller
[4]
[5]
LI] 
[2]
0 Attli:Af
AMIN:
[3]
 .1 1
"IR
 [10]
 [1
fle w  /
118 sp
" 
DOE
*Iti 2
- W
[12]
[1] One-key unlock
[2] One-key takeoff!
One-key landing
[3] Left stick
[4] Gesture/ GPS mode switch
[5] Power switch
[6] Power indicator
171 One-key return
[8] Photo/shooting
[9] Right stick
[10] Headless mode switch
[11] Null button
[12] LCD display
ICI
[6]
[7]
[8]
[9]
[15]
[13] Gimbal trimmer
[14] Null button
[15] Null button
-8-

LCD screen
Altitude against Home Point
Return-to-Home
Satellite Amount

(RTH)
Remote Controller
Battery Level
Video
unnn
nn
no
_
i I I ‘1:- : 11 rum 0
um
Model
Tx
1
1111
1193 
1
GPS Mode
Headless Mode Aircraft Battery Level
Signal Strength Distance against Home Point  Remote Controller
Throttle Mode
How to install the battery of remote controller
Open the battery door, install 4*AA batteries into the battery compartment according to the given polarity
and then close the battery compartment.
4 - 9
. Insert batteries with correct polarity.
• Non rechargeable batteries are not to be charged; the transmitter need 4*AA batteries for
work.
. Do not mix old and new batteries.
. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.
. Rechargeable batteries are to be removed from the aircraft before being charged.
. Rechargeable batteries are only to be charged under adult supervision.
. Exhausted batteries are to be removed from the aircraft
• The supply terminals are not to be short-circuited.
-9-

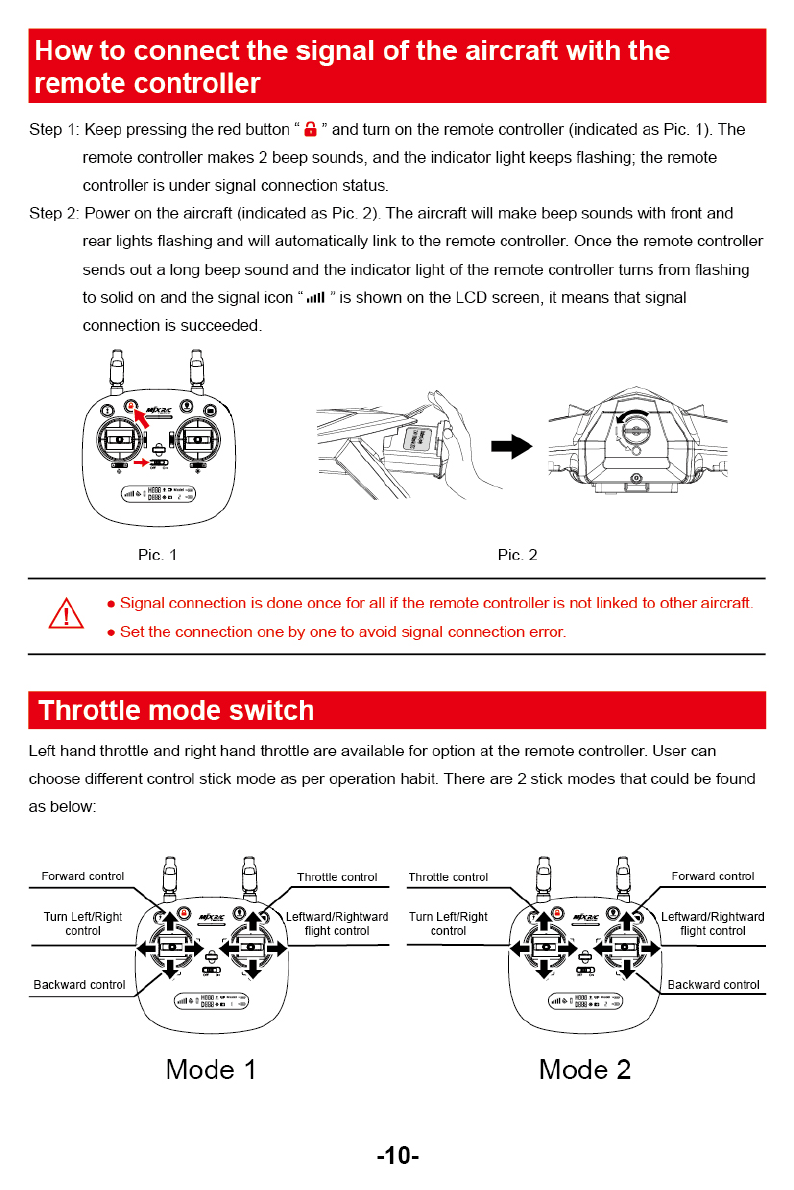

Pic. 2 Pic. 1
L
• Signal connection is done once for all if the remote controller is not linked to other aircraft.
• Set the connection one by one to avoid signal connection error.
Leftward/Rightward  Turn LefURig ht
flight control  control
Mode 1 Mode 2
dill 4D HH " ° “ - '
1011... a
t
-10-
Throttle control Throttle control
Forward control
Leftward/Rightward
flight control
Backward control
Forward control
Turn Left/Right
control
Backward control
How to connect the signal of the aircraft with the
remote controller
Step 1: Keep pressing the red button a" and turn on the remote controller (indicated as Pic. 1). The
remote controller makes 2 beep sounds. and the indicator light keeps flashing; the remote
controller is under signal core c::: on status.
Step 2: Power on the aircraft (indicated as Pic. 2). The aircraft will make beep sounds with front and
rear lights flashing and will automatically link to the remote controller. Once the remote controller
sends out a long beep sauna and the indicator light of the remote controller turns from flashing
to solid on and the signal icon "an! is shown on the LCD screen, it means that signal
connection is succeeded.
Throttle mode switch
Left hand throttle and right hand throttle are available for option at the remote controller. User can
choose different control stick mode as per operation habit. There are 2 stick modes that could be found
as below:

How to change throttle mode:
Step t Keep pressing the red button and turn on the remote controller, the remote controller is under
signal connection status (indicated as pic.1);
Step 2. Keep pressing the RTH button "  for 3 seconds to choose the throttle control mode (indicated
as pic.2). The throttle control mode will change according to each press. The mode number is
shown on the LCD screen. The throttle control mode is set at mode 2 by default.
Pic. 1 Pic. 2
Attention: To change the stick mode of the remote controller, please make sure that the
remote controller is under signal connection status (the indicator light keep
flashing). If not, the stick mode could not be changed.
Remote controller control stick calibration
Step t Keep pressing the red locking button and turn on the remote controller (indicates:: as pic.1);
Step 2. Press the calibration button for 3 seconds, the remote controller will male 3 !:)eep sounds and
the indicator light of the remote controller turns from flashing quickly to slowly. Maximum rotate
both of the left and right control stick to any direction for 2 circles {indicates.: as pic.2);
Step 3. Then, again, press the calibration button for 3 seconds (indicated as pic.3). The 1 - emote
controller will send out 3 beep sounds and the indicator light of the remote controller turns from
flashing slowly to quickly, which means that the control stick calibration is completed.
Pic. 3 Pic_ 1 Pic. 2
Warm tips: All remote controllers have been calibrated when manufacturing.
Remote controller calibration is requested only if pilots find that the remote
controller control sticks are not working normally.
Attention: Please do not power on your aircraft when calibrate the control stick for the
remote controller.

Remote controller status indicator
No Remote controller status Description
1 Indicator lights flash quickly.
The remote controller is under signal connection
status_
2
Indicator lights flash slowly with steady beep..
beep sound and the battery legend " p "on
LCD display flashing.
The remote controller is in low voltage status.
Please crange a full charged battery.
3
legend " Battery  V " on LCD display is as
shown, with steady beep..beep...beep sound.
Battery is running out " 1 !7'" : the aircraft will return
when the altitude is over 1C ; - )1r, :)1 - te distance is
over 300m.
4
Battery legend ''.7 ,- on LCD display is as
shown : . .,4, , iti - i steadv long beep sound.
Battery is low "c)" ; the aircraft „ I return when
the attitude is over 15m or the d-ance is over
15m; if either the flying altitude or tying distance
is less than 15m, the aircraft wil land to the spot.
$
Signal strength on LCD display is less than
two grids or r o displaying. and the remote
controller makes steady beep...beep...beep
sound.
1_The distance between aircraft and remote
controller is so long that the signal is weak.
2.The battery is removed after the aircraft
connects to the remote controller.
Aircraft status indicator
No
Indicator status Meanings
1
Front and rear lights flash yellow rapidly.
Aircraft 2.4GHz disconnected.
2
Front and rear lights flash red, green and
yellow alternatively.
Aircraft is in initialization detection status.
3
Front lights glow solid red, rear lights glow
solid green.
No GPS signal, aircraft is in gesture mode.
4
Front light glows solid red, rear
light glows solid green.
Good GPS signal, aircraft is preparing
for GPS mode.
5 Front and rear lights flash green rapidly.
Aircraft is in gyroscope calibration status.
6 Front and rear lights flash yellow alternatively. Aircraft is in compass horizontal calibration.
7 Front and rear lights flash green alternatively. Aircraft is in compass vertical calibration.
8
Front light glows solid red, rear light
flashes red slowly.
Aircraft is nearly low voltage, 1/4
battery level left.
9
Front light glows solid red, rear light
flashes red rapidly.
Aircraft is in low voltage, only 116
voltage left.
10
Front and rear lights flash once, stop
for 1.5 second.
Something wrong with the gyroscope.
11
Front and rear lights flash twice, stop
for 1.5 second.
Something wrong with the barometer.
12
Front and rear lights flash three times, stop
for 1.5 second.
Something wrong with the compass.
13
Front and rear lights flash fourth times, stop
for 1.5 second.
Something wrong with the GPS module.
-12-

Attention: Make sure that the aircraft is set on a flat and still surface for the initialization
detection.
A
Aircraft initialization detection
After signal connection, the aircraft enters into initialization detection procedure with front and rear
lights flashing red, green and yellow alternatively. Make sure that the aircraft is set on a flat and still
surface for the initialization detection. The aircraft initialization detection takes about 8 seconds. Once
the remote controller sends out "Di Di" sounds and the aircraft front and rear lights flash yellow
alternatively, initialization detection is completed.
Aircraft compass calibration
Attention:
t Compass calibration should be performed after successful aircraft initialization detection.
2. Aircraft compass calibration should be done for every flight. That is to say, if changing new battery
or the battery is reinstalled, compass calibration should be done again.
Two steps of compass calibration:
Step 1: Horizontal calibration
After successful aircraft initialization detection, the aircraft front and rear lights flash yellow
alternatively. Hold the aircraft horizontally and rotate it 360 degrees along the central axis
for about 3 circles. The aircraft front and rear light will change from flashing yellow alternatively
to flashing green alternatively when horizontal calibration is completed.
Hold the aircraft with camera facing up, and rotate it 360 degrees along the central axis for
about 3 circles until the front and rear lights of the aircraft change from flashing to solid on,
the compass calibration is successful.
-13-

ip
Pic. 2

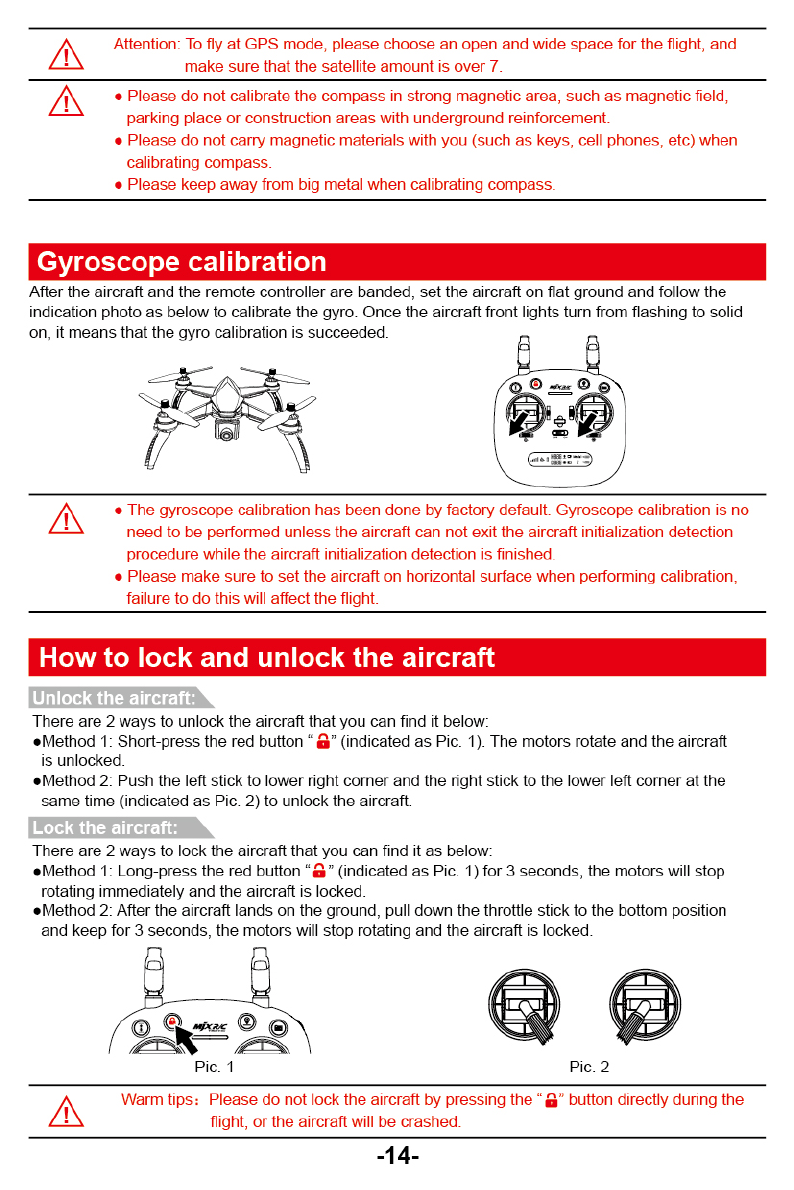

Q  Attention: To fly at GPS mode, please choose an open and wide space for the flight, and
make sure that the satellite amount is over T
• Please do not calibrate the compass in strong magnetic area, such as magnetic field,
parking place or construction areas with underground reinforcement.
• Please do not carry magnetic materials with you (such as keys, cell phones, etc) when
calibrating compass.
• Please keep away from big metal when calibrating compass.
Gyroscope calibration
After the aircraft and the remote controller are banded, set the aircraft on flat ground and follow the
indication photo as below to calibrate the gyro. Once the aircraft front lights turn from flashing to solid
on, it means that the gyro calibration is succeeded.
A
• The gyroscope calibration has been done by factory default. Gyroscope calibration is no
need to be performed unless the aircraft can not exit the aircraft initialization detection
procedure while the aircraft initialization detection is finished.
• Please make sure to set the aircraft on horizontal surface when performing calibration,
failure to do this will affect the flight.
How to lock and unlock the aircraft
Unlock the aircraft:
There are 2 ways to unlock the aircraft that you can find it below:
*Method 1: Short-press the red button a. (indicated as Pic. 1). The motors rotate and the aircraft
is unlocked.
*Method 2: Push the left stick to lower right corner and the right stick to the lower left corner at the
same time (indicated as Pic. 2) to unlock the aircraft.
There are 2 ways to lock the aircraft th you can tine: it as below:
*Method 1: Long-press the rec !:)utton " " (indicatec as Pic. 1) for 3 seconds, the motors will stop
rotating immediately aria the aircraft is locker.:.
*Method 2: After the aircraft lands on the dround, pull down the throttle stick to the bottom position
and keep for 3 seconds, the motors will stop rotating and the aircraft is locked.
Warm tips: Please do not lock the aircraft by pressing the "a" button directly during the
flight, or the aircraft will be crashed.
-14-

Operate the aircraft
Remote controller Aircraft
Ascent
--- 
.  ",  - -----
1711 
''
Descent
1 
4  IPI
■
•
,i
. ---." .
Backward
-I  ig  ,-
-  f ./.
A.--.
4
05-........:
I ' • -' 
•
- -
'-:.
f' 
** , -
[
Forward
\..„ 
(..-2=74
'-- 
-  ---
Flight mode
Remote controller  Aircraft
e
a
-
e
.
—
r
Turn Right  Turn Left
,,.  Front, e„
V
,  Rear ,'
i
A
0
.
Leftward flight
,,-/Front\ s .
/  , i s l i \
•
"-. \ •ear  . ■ ,`
Rightward flight
One-key takeoff/landing
• After the aircraft unlocked, short-press the " I " button (indicated as below), the aircraft will
automatically takeoff and hover at 1.5m altitude.
• When the aircraft is flying, short-press the " " button (indicated as below), the aircraft will
automatically and on the ground.
Gesture mode
Slide the button to position "A" (indicated as below), the aircraft is in Gesture mode that GPS is not
used for positioning, and the aircraft only uses the barometer to maintain altitude. The aircraft will not
fly with precise positioning and hovering. Gesture mode requests pilot with good skill.
°W;
4111 ■
(Col
eipg:::
70
-15-

GPS mode
Slide the button to position 13" (indicated as below), the aircraft is in GPS mode and can precisely
position and hover by the assitance of the GPS module.
u
1110 g B t:7_;)
Headless mode
Slide the Headless mode switch button to position "II I: rid cate . ::  he a n:hat. ei -- .er.]. r - ita
headless made. When the aircraft is in headless mode..:....c.±..e  re . :: tc  .it an he a n:hat n  a
way that its front is your front before the aircraft takes off. Then  c.:1" :1 - e a n:hat
aircraft pointing to the front. you cari give up worrying about oriel - I:a:ion  f
Return-To-Home (RTH)
The Return-to-Home(RTH) procedure brings the aircraft back to the last recorded Home
Point. There are 3 types of RTH procedures: smart RTH, failsafe RTH and low battery RTH.
The following sections describe them in detail.
GPS

Description
Home Point
The Home Point is the rocaio- at vpich the aircraft
takes off. A strong GPS S g-al rr...st lye presented
for the aircraft co recorc: the -one Point.
Smart RTH
If the GPS signal is available (more than 7 satellites is presented) and the Home Point is recorded
previously, press this button, the aircraft will fly back to the Home Point. During the smart RTH, you
can use the remote controller to guide the aircraft around obstacles. You can press the RTH button
again to exit RTH procedure and regain control of the aircraft.
-16-

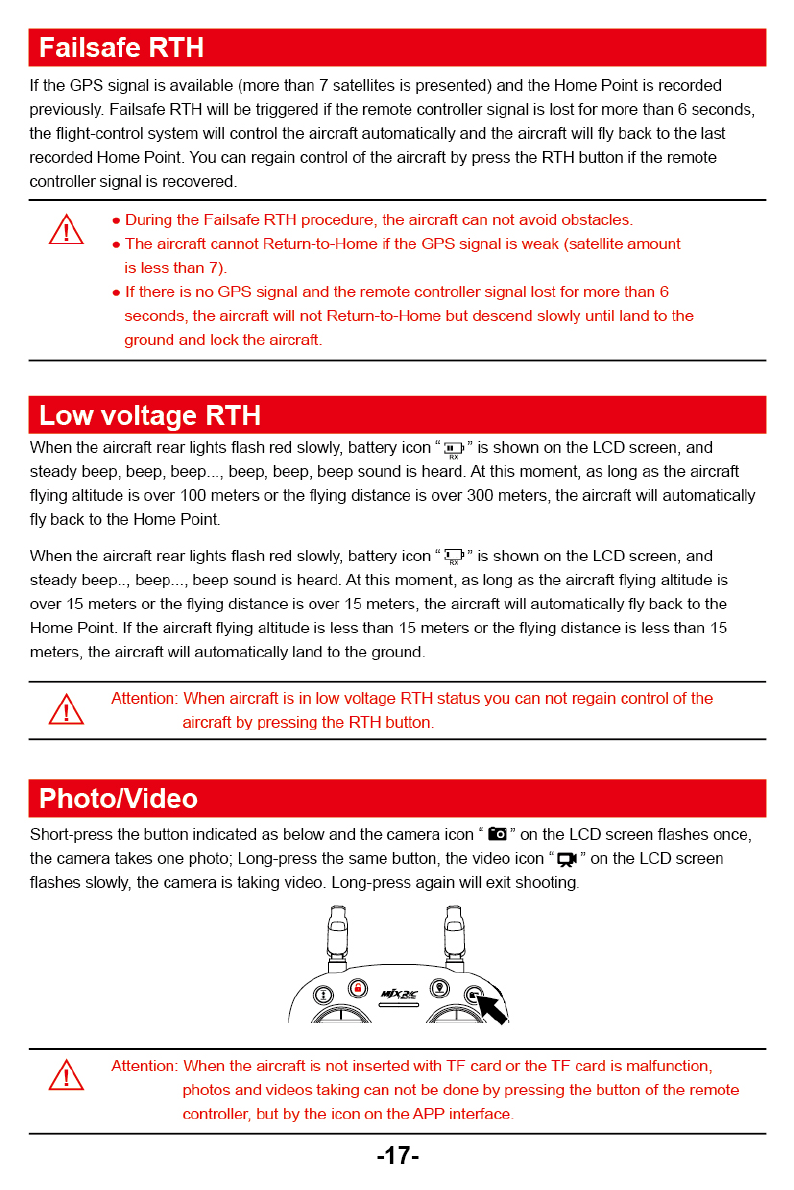

Failsafe RTH
If the GPS signal is available (more than 7 satellites is presented) and the Home Point is recorded
previously. Failsafe RTH will be triggered if the remote controller signal is lost for more than 6 seconds,
the flight-control system  control the aircraft automatically and the aircraft will fly back to the last
recorded Home Point Y.::)t. can regain control of the aircraft by press the RTH button if the remote
controller signal is recovered.
• During the Failsafe RTH procedure, the aircraft can not avoid obstacles.
• The aircraft cannot Return-to-Home if the GPS signal is weak (satellite amount
is less than 7).
• If there is no GPS signal and the remote controller signal lost for more than 6
seconds, the aircraft will not Return-to-Home but descend slowly until land to the
ground and lock the aircraft.
Low voltage RTH
Vlben the aircraft rear lights flash red slowly, battery icon "  is shown on the LCD screen, and
steady beep. beep : beep..., beep, beep, beep sound is heard. At this moment, as long as the aircraft
lying altitude is over 100 meters or the flying distance is over 300 meters, the aircraft will automatically
ly Lack to the Home Point.
tl - e aircraft rear lights flash red slowly, battery icon  is shown on the LCD screen, and
steady beep.., beep... : beep sound is heard. At this moment, as long as the aircraft flying altitude is
over 15 meters or the flying distance is over 15 meters, the aircraft will automatically fly back to the
Home Point. If the aircraft flying altitude is less than 15 meters or the flying distance is less than 15
meters, the aircraft %Nill automatically land to the ground.
L 6  Attention: When aircraft is in low voltage RTH status you can not regain control of the
aircraft by pressing the RTH button.
PhotoNideo
Short-press the butt(:)n indicated as below and the camera icon "  " on the LCD screen flashes once,
the camera takes.  photo; Long-press the same button, the video icon "  on the LCD screen
flashes slov,:ly. the camera is taking viceo. Long-press again will exit shooting.
Attention: When the aircraft is not inserted with TF card or the TF card is malfunction,
photos and videos taking can not be done by pressing the button of the remote
controller, but by the icon on the APP interface.
-17-

Low voltage warning
*When the battery icon "V" is shown on the LCD screen, and the aircraft front lights glow solid on
and the rear lights keep flashing slowly, it means that the battery is nearly low voltage.
*When the battery icon up" is shown on the LCD screen, and the aircraft front lights glow solid on
and the rear lights keep flashing rapidly, it means that the battery is in low voltage.
H988 c
i
qi
Model
TX 1,11
uou8 *

2 F.,.rt, 
di
llie
s
0
HOBBJ

Model

Ark 
D898 *an
2
Pic. 1

Pic. 2
Signal strength indicator
Signal strength "dill " shows the strength of the received signal. The more, the better.
"
u D888 * 
2
H888 k CPI
Model —1 1
Prepare the flight
Before you take off, check and make sure that
1. The aircraft and the remote controller are full charged.
2. The propellers are installed correctly.
3. The motors work normally after unlocking.
Basic flight operation steps
t Connect the remote controller with the aircraft and then proceed aircraft initialization detection.
2. Aircraft compass calibration.
3. Unlock the aircraft after the gyro detection of the aircraft is completed.
4 Pull up the throttle stick then the aircraft takes off, and control the aircraft flight by left/right stick_
5. Pull down the throttle stick to the bottom position and keep for 3 seconds to lock the aircraft.
6. Pull out the battery from the aircraft and then turn off the remote controller.
-18-

<Setting
Wi-Fi
...Bugs****
Elf•vg5
PIN
, M ■
Bugs '3'0
Tap "Bugs Go" App 
Click 'GO"
FPV software download and installation
Where to download "Bugs Go" APP
• For Apple IOS system, please turn to
Apple store, search "Bugs GO" or scan
the OR code at right side to download
the software.
App Store
•
For Android system, please scan the
"Goggle play" or "MJXRC. NET OR
code or search Bugs Go" in "Goggle
play" to download the software.
MJXRC.NET Ellile play
How to link the "Bugs Go" to the camera:
Power on the aircraft, then enter phone settings option. Turn on WiFi, find Bugs . *** on the list and
connect it. When  legend is shown, it means WiFi connecting is successful. Exit settings and
tap "Bugs Go" APP at your mobile device, then select your aircraft model on the home page;
click " Go" to enter into the real-time image transmission interface.
Connect WIFI
Photos and video saving feature:
If the camera is without TF card, videos and photos will be saved at the APR
2. if the camera is with TF card, videos and photos will be saved at the TF card.
3. Videos and photos in the TF card can be downloaded to the APP
A
Attention: Please make sure that your mobile device supports 5G WIFI before linking
Bugs Go to your device.
-19-
