Argo FANCY User manual

V 05/21
14
FANCY
This product is only suitable for well insulated spaces or
occasional use.
OPERATING INSTRUCTIONS
Read the instructions carefully before installing and operating the appliance or performing
maintenance operations. Observe all the safety instructions; failure to observe the instructions may
cause accidents and/or damages. Store these instructions for future reference.
ELECTRIC CONVECTOR HEATER
EN
IP24

V 05/21
15
GENERAL SAFETY INFORMATION
Use this convector only as outlined in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock or
injury to persons.
This convector is designed for domestic use. It must not be used for
commercial or industrial purposes.
Ensure that the mains voltage complies with that indicated on the
convector data plate (230-240V~ 50-60 Hz).
This appliance can be used by children aged from 8 years and
above and people with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
Remove the convector from its packaging and check that it is in good
condition before use. Keep any plastic bags away from children.
Check the cord and plug before using the convector to ensure that
they have not been damaged during transport.
This product is not a toy.
Children under the age of 3 must be kept away if not continuously
supervised.
Children aged between 3 and 8 must only turn the appliance on / off
as long as it has been placed or installed in its normal operating
position and that they receive surveillance or instructions regarding
the safe use of the appliance and understand the dangers.
Children between 3 and 8 years of age must not insert the plug,
adjust or clean the appliance or carry out maintenance by the user.
CAUTION - Some parts of this product can become very hot and
cause burns. Particular attention has to be given where children
and vulnerable people are present.
WARNING: In order to avoid hazard due to inadvertent resetting of
the thermal cut-out, this appliance must not be supplied through and
external switching device, such as a timer, or connected to a circuit
that is regularly switched on and off by the utility.
WARNING: do not use the convector with a controller or any
other external device that activates the appliance automatically,

V 05/21
16
as there may be a risk of fire if the fan heater is covered or
incorrectly positioned.
The appliance is equipped with an IP24 degree of protection
and can be used in private bathrooms in zone 2.
Do not use the convector in the immediate vicinity of bathtubs,
showers, washbasins or swimming pools.
Disconnect the mains power when the appliance is not used or for
cleaning operations.
To disconnect the convector, set the selector to 0 and remove the
plug from the socket. Pull on the plug only. Do not pull the cord.
Avoid placing fingers or foreign objects in the air inlet/outlet grilles,
as this may lead to electric shock or fire and may damage the
convector. To avoid the risk of fire, do not block the grilles or tamper
with them in any way while the convector operates.
Do not use the convector if the cord or plug is damaged. If the
power cable is damaged, it must be replaced by the manufacturer or
its technical assistance service or in any case by a person with a
similar qualification, in order to prevent any risk.
Do not place any objects on the cord and do not bend it. During
operation, the cord must be entirely unwound.
It is not advisable to use extension cords, as these may overheat
and cause the risk of fire. Do not use a single extension cord to
operate more than one convector.
The convector heats up significantly during operation. Risk of burn.
To avoid injury, do not allow skin to come into contact with a hot
surface. Use the handle to move the convector. Keep flammable
materials, such as furniture, cushions, blankets, paper, cloths,
curtains and suchlike at least 1 m from the front and back

V 05/21
17
Do not immerse the cord, plug or any other element of the panel in
water or other liquids.
Do not touch the plug or convector with wet hands.
Avoid using the convector in dusty environments or in the presence
of flammable vapors (e.g. in workshops or garages).
Do not place the convector above or near another heat source.
WARNING: AVOID COVERING THE CONVECTOR TO PREVENT IT
FROM OVERHEATING.
The symbol below signals the above warning:
The convector may cause risk of fire if, while in operation, is covered
by or comes into contact with flammable material including curtains,
drapery, blankets, etc. KEEP THE CONVECTOR AWAY FROM
THESE MATERIALS.
Do not insert and avoid accidental insertion of any external objects
into the ventilation or discharge outlets as this may lead to electric
shock, fire or damage the convector.
A convector contains parts that generate arcs or sparks. It must not
be used in potentially dangerous areas such as areas at risk of fire
or explosion, or areas loaded with chemical substances or humidity.
Do not use the convector on soft surfaces such as beds, where the
grilles may be covered. Always stand the convector on a flat, stable
surface when in operation, in order to prevent it from overturning.
Arrange the cord in such a way that the convector and other objects
do not rest on it. Do not run the cord under carpets. Do not cover the
cord with blankets, carpets or similar materials. Place the cord far
away from busy areas, or in a place where it cannot be accidentally
pulled-out.
Never position the convector where it may fall into a bath or other
containers of water.
Never position the convector on a wet floor.
In any case, the adjustment switches must never be accessible by
anyone in a bath or shower.
The heating appliance must not be positioned immediately below a
power outlet.
The socket must be earthed.

V 05/21
18
Do not allow the electric cord to touch the metal structure of the
convector when it is hot or in operation, in order to avoid the high
temperatures ruining the cord.
Do not operate the convector outdoors. Do not use the convector in
front of or near an open window.
WARNING: do not use the convector with an external controller
or any other external device that activates the convector
automatically, as there may be a risk of fire if the convector is
covered or incorrectly positioned.
Upon initial start-up, the convector may emit a slight, harmless smell.
This smell is a normal effect of the initial heating up of the internal
heating elements, and should not recur later on.
Do not attempt to repair, disassemble or modify the convector. The
convector does not contain parts that can be repaired by the user.
Turn the switch off and unplug before carrying out any maintenance
work or moving the convector. Always unplug from the socket when
the convector is not in use.
WARNING: ALWAYS UNPLUG WHEN CARRYING OUT
MAINTENANCE WORK OR MOVING THE CONVECTOR.
Do not place anything on the convector; avoid placing wet garments
on the convector.
Turn the appliance off if unattended in order to avoid accidents.
If the convector is not used for prolonged periods, disconnect the
plug, replace the convector in its box and store it in a dry, ventilated
place.
Ensure that the air inlet /outlet are not close to walls or curtains when
the convector is in use, so as to avoid obstructing the convector and
hampering its efficiency.
Should you hear an abnormal noise or detect an unusual smell when
using the convector, cease use and unplug immediately.
Do not expose the elderly or children to a continuous flow of air.
Do not use the convector if it has been damaged or dropped.
Always use the convector with feet fixed. Do not use any other feet
except the ones supplied with the product.
WARNING: THE ON/OFF SWITCH IS NOT THE ONLY MEANS TO
DISCONNECT THE POWER SUPPLY. ALWAYS PULL OUT THE
PLUG FROM THE SOCKET IN THE EVENT OF MAINTENANCE
OPERATIONS, WHEN MOVING THE PANEL OR WHEN NOT IN
USE.

V 05/21
19
DESCRIPTION OF PARTS
HOW TO INSTALL THE APPLIANCE
The convector can be used on the floor, after assembling the feet, or alternatively it can be wall-mounted using the
specific accessories supplied.
MONTARE I PIEDINI IN DOTAZIONE
A. Floor portable using: how to assemble the feet supplied
The convector is packed without feet. These must therefore be assembled before using the appliance.
Assemble the feet as shown in the figure and put the convector in an upright position. Position the unit on a flat,
stable surface and follow the indications here below:
1
2
3
4
5
1. ON/OFF switch
2. Rear bracket
3. Control panel
4. Front panel
5. Feet

V 05/21
20

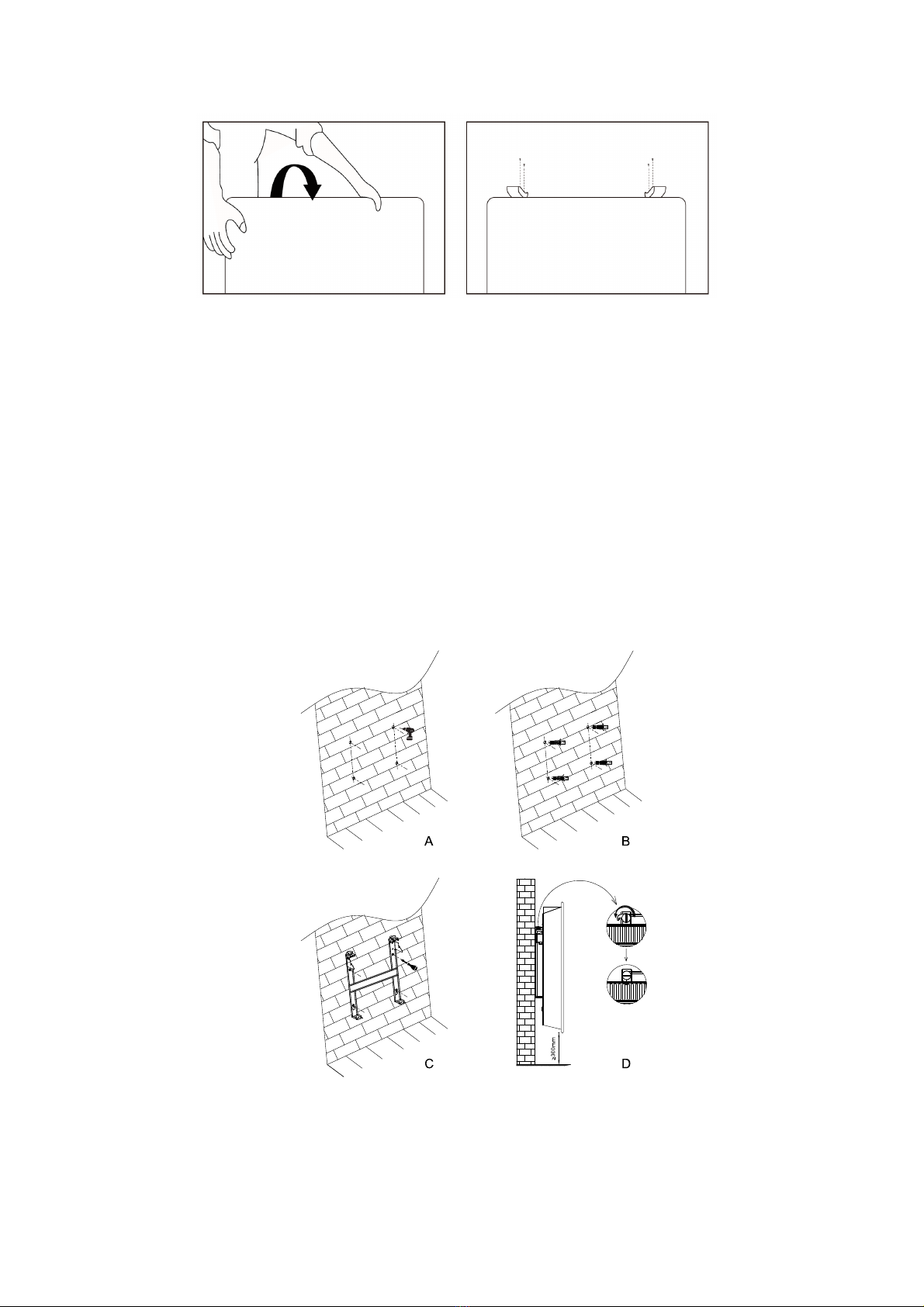

1. Turn the convector upside down 2. Insert the feet. The longest
part must be positioned behind
on the rear the convector.
3. Tighten the wing nuts on the feet.
B. Wall-mounting: how mount the convector onto the wall
The convector packaging contains all the accessories necessary for wall-mounting.
To wall-mount, proceed as follows. The appliance has already attached the bracket to the rear of the product, so
remove it from the convector following these steps:
1. Unscrew the two screws located on the upper part of the two vertical bars of the wall bracket.
2. Pull out the wall bracket by pressing down on the top of the two vertical bars of the wall bracket.
3. Remove the wall bracket completely from the convector.
After removing the bracket, proceed as follows (figure below):
A. By placing the bracket against the wall, mark on the wall with the pencil the points where to make the holes to
insert the fisher. Respect the minimum distances of the convector from the walls.
B. Drill the 8mm diameter holes in the wall and insert the fisher.
C. Attach the bracket to the wall and screw the supplied screws into the fisher.
D. Position the unit straight so that the holes are aligned with the bracket and insert the parts of the bracket into the
holes on the back in the upper part of the convector. Make sure that the convector is firmly hooked to the bracket
by gently pulling it.
Tighten the screws at the top of the convector firmly.

V 05/21
21
Make sure that the convector is placed at least 30 cm from the floor and that the distance from walls and objects is
respected, as indicated in the figure below:
CONTROL PANEL
TOUCH CONTROL PANEL ON THE UNIT
LED ON CONTROL PANEL OPERATIVE BUTTONS ON CONTROL PANEL
①Standby: on/off
②Heating Mode
③Open window function
④Comfort Mode
⑤ECO Mode
⑥Timer
Connect the power cord to an appropriate power outlet (230-240V / 50-60Hz).
The appliance emits a beep, this means that the convector is ready for use.
The LED lights up on the control panel.
Then press the ON / OFF switch located on the side of the unit and move the button to position I to turn on the device. If,
on the other hand, you want to switch off the convector, turn the button to position O.
Standby
Heating Mode
Open window function
Button +
Button -
Timer

V 05/21
22
ON / OFF - STAND-BY BUTTON
After connecting the power cable and turning on the unit with the side power button, press this button on the control
panel to turn on the fan heater. Press this button again to turn off the appliance.
TIMER BUTTON AND WEEKLY SETTING
Press and hold this button on the control panel for 3 seconds to select the timer and weekly setting. The display shows
"d", then press the and keys to select the days of the week in the following sequence:
1 Monday
2 Tuesday
3 Wednesday
4 Thursday
5 Friday
6 Saturday
7 Sunday
Press the button to confirm the desired day and set the time, the display will show
Then press and buttons to select the hour, then press the button to confirm it.
Appears on the display
Press and buttons to set the minutes, then press the button to confirm.
NB: If the power supply is removed, the weekly programming and the timer are reset to the factory settings.
HEATING MODE BUTTON
Press this button on the control panel to activate the heating modes, in the following circular sequence:
- Comfort Mode: Press the buttons and to set the temperature from 5°C to 35°C
- ECO Mode: Press the buttons and to set the temperature from 1°C to 31°C
- Anti-frost Mode: The target temperature is 7°C. The temperature can’t be adjusted.
- P1/P2/P3 Pre-set heating program
- Note: If the clock and day setting are not finished, the first time to enter P1/P2/P3 program setting, it is requested
to set day and clock setting in advance.
P1: (Monday-Sunday) Unadjustable program
P2:(Monday-Friday) Unadjustable program

V 05/21
23
P2 :(Saturday-Sunday) Unadjustable program
P3: (Monday-Friday) Adjustable program
P3:(Saturday-Sunday) Adjustable program
- P3 adjustable program setting
1. When under P3 mode, press over 3 secs to enter day setting.
2. The screen displays , press and to set from (Monday-Sunday). Press to confirm and
enter hour setting
3. The screen displays , press and to set from 00-23). Press to choose heating mode for every
hour (Comfort mode or ECO mode )
4. Repeat the operation until you have completed the schedule of every hour and every day.
Note: After setting heating mode for hour 23, press to come back to day setting.
Note: when screen displays , press finish all setting with display of .
OPEN WINDOW FUNCTION
Press one time and the indicator light is on. If open window function is activated, the indicator light
keeps flashing and stops heating.
Press again to quit open window function and back to previous working situation.
TIMER OFF BUTTON
Press one time, the indicator light is on. And the screen display “0 H” and keeps flashing. press and
to set timer from 0-24 hours. Press again to confirm setting.

V 05/21
24
MAINTENANCE AND STORAGE
ALWAYS UNPLUG THE APPLIANCE BEFORE CLEANING OR MAINTENANCE.
IMPORTANT: DO NOT SUBMERGE THE CONVECTOR IN WATER.
Cleaning the outside surface of the appliance
Turn the switch off and unplug before carrying out any maintenance work or moving the appliance.
Use a soft cloth to remove any dust from the convector.
If the convector is excessively dirty, use a soft cloth moistened with water and a mild detergent at a temperature lower than
50°C. Let the convector dry completely before use.
Do not use corrosive detergents or solvents such as petrol. Do not wash the appliance with water. Do not use oils,
chemical substances or other items to clean that may damage the surface.
Use a vacuum cleaner to remove dust from the air inlet/outlet grilles.
STORAGE
If the appliance is not used for prolonged periods, it must be stored together with this manual in its original packaging, in
a cool and dry place.

V 05/21
25
Table 2
INFORMATION REQUIREMENTS FOR ELECTRIC LOCAL SPACE HEATERS
Annex II - Ecodesign requirements - Requirements for product information -
COMMISSION REGULATION (EU) 2015/1188 of 28 April 2015 implementing Directive 2009/125/EC of the European
Parliament and of the Council with regard to ecodesign requirements for local space heaters
Model identifier(s): FANCY
Item Symbol Value unit Item unit
Heat output Type of heat input, for electric storage local space
heaters only (select one)
Nominal heat output Pnom 1,40 kW manual heat charge control, with
integrated thermostat
[no]
Minimum heat output
(indicative)
Pmin 1,40 kW manual heat charge control with room
and/or outdoor temperature feedback
[no]
Maximum continuous
heat output
Pmax,c 1,40 kW electronic heat charge control with room
and/or outdoor temperature feedback
[no]
Auxiliary electricity
consumption
fan assisted heat output [no]
At nominal heat output elmax NA kW Type of heat output/room temperature control
(select one)
At minimum heat output elmin NA kW single stage heat output and no room
temperature control
[no]
In standby mode elsb 0,0004 kW Two or more manual stages, no room
temperature control
[no]
with mechanic thermostat room
temperature control
[no]
with electronic room temperature control [no]
electronic room temperature control plus
day timer
[no]
electronic room temperature control plus
week timer
[yes]
Other control options (multiple selections
possible)
room temperature control, with presence
detection
[no]
room temperature control, with open
window detection
[yes]
with distance control option [no]
with adaptive start control [no]
with working time limitation [yes]
with black bulb sensor [no]
Seasonal space heating energy efficiency (portable appliance) ηS(%) 38
Seasonal space heating energy efficiency (fixed appliance) ηS(%) 39
Contact details : ARGOCLIMA SPA - Via A. Varo,35 - Alfianello (BS) - ITALY -
www.argoclima.com

V 05/21
26
Information for correct disposal of the product in accordance with the European Directive 2012/19/EU
At the end of its working life this equipment must not be disposed of as an household waste. It must be taken to special local
community waste collection centres or to a dealer providing this service. Disposing of electrical and electronic equipment
separately avoids possible negative effects on the environment and human health deriving from an inappropriate disposal and
enables its components to be recovered and recycled to obtain significant savings in energy and resources. In order to
underline the duty to dispose of this equipment separately, the product is marked with a crossed-out dustbin.
www.argoclima.com
