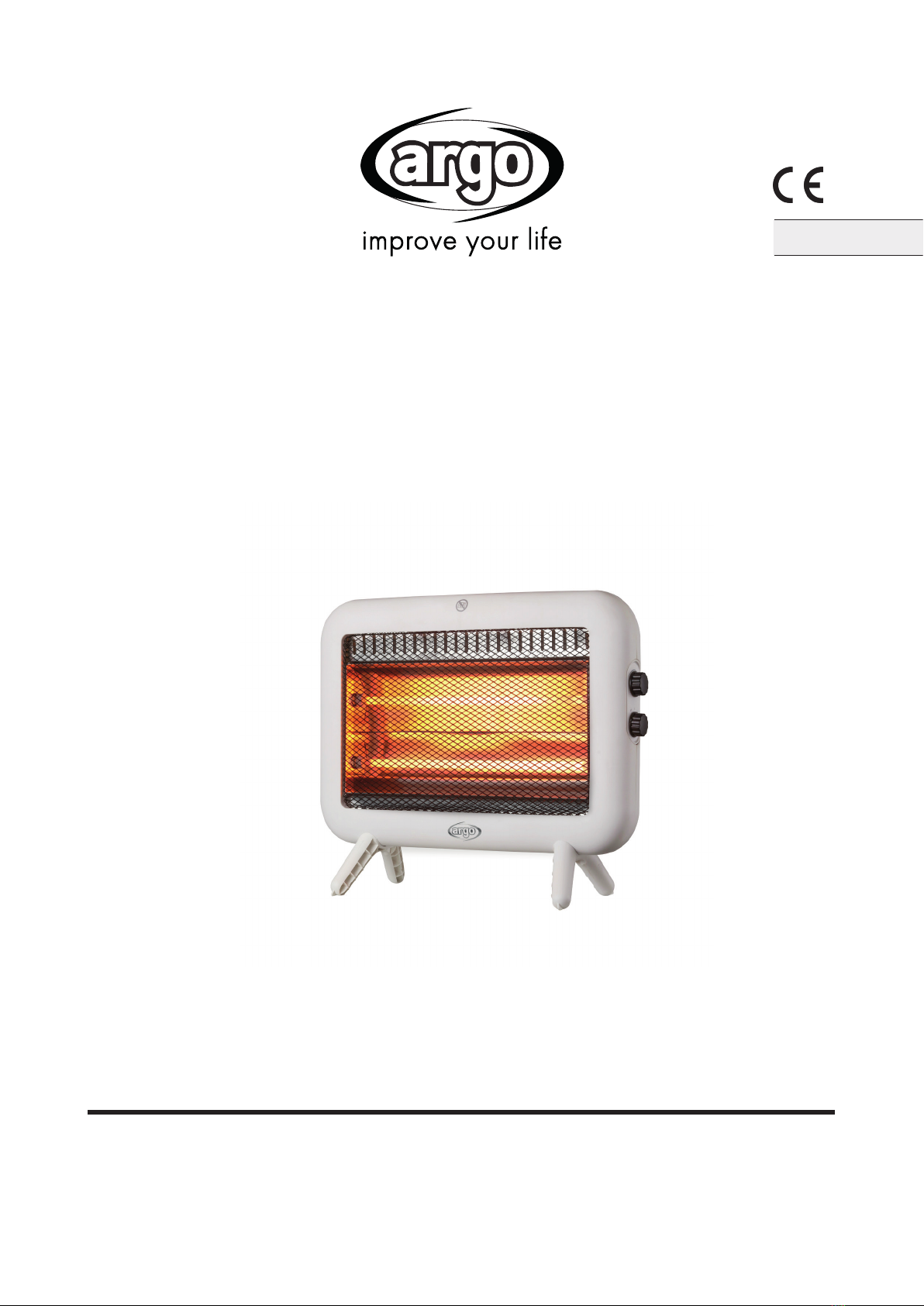

Argo SEVENTY ICE User manual

V 06/22
SEVENTY
ICE - GREEN
ELECTRIC QUARTZ HEATER
This product is only suitable for well
insulated spaces or occasional use.
OPERATING INSTRUCTIONS
Read the instructions carefully before installing and operating the appliance or performing maintenance
operations. Observe all the safety instructions; failure to observe the instructions may cause accidents and/
or damages. Store these instructions for future reference.
EN

10V 06/22
• Use this quartz heater only as outlined in this manual. Any other use
not recommended by the manufacturer may cause re, electric shock
or injury to people.
• Ensure that the mains power complies with the voltage specied on the
quartz heater data plate (220-240V~50-60 Hz).
• This appliance can be used by children aged from 8 years and above
and people with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without
supervision.
• This product is not a toy.
• Children under the age of 3 must be kept away if not continuously
supervised.
• Children aged between 3 and 8 must only turn the appliance on/
off as long as it has been placed or installed in its normal operating
position and that they receive surveillance or instructions regarding the
safe use of the appliance and understand the dangers.
• Children between 3 and 8 years of age must not insert the plug, adjust
or clean the appliance or carry out maintenance by the user.
• WARNING: Certain parts of this product may become very hot
and cause burns. Special care should be taken when children and
vulnerable people are nearby.
• WARNING: In order to avoid hazard due to inadvertent resetting of
the thermal cut-out, this appliance must not be supplied through and
external switching device, such as a timer, or connected to a circuit that
is regularly switched on and off by the utility.
• WARNING: do not use the quartz heater with a controller or any
other external device that activates the appliance automatically, as
there may be a risk of re if the quartz heater is covered or incorrectly
positioned.
• Do not restrict the air inlet and outlet grilles.
• The appliance heats up slightly when in use. In order to avoid burns,
GENERAL SAFETY INFORMATION

11V 06/22
do not let bare skin touch hot surfaces.
• Ensure that all objects are at least 1 meter from the front and sides of
the appliance.
• Disconnect the mains power when the appliance is not used or for
cleaning operations.
• Avoid using the quartz heater in dusty environments or in the presence
of inammable vapors (e.g. in workshops or garages) or paint vapors.
• Do not place anything on the appliance, use the appliance to dry
clothing.
• Use the appliance in a well-ventilated area.
• Avoid placing ngers or foreign objects in the air inlet/outlet grilles, as
this may lead to electric shock or re and may damage the appliance.
• To avoid the risk of re, do not block the grilles or tamper with them in
any way while the carbon ber heater operates.
• Do not use the appliance if the cord or plug are damaged. If the
power cable is damaged, it must be replaced by the manufacturer or
its technical assistance service or in any case by a person with a similar
qualication, in order to prevent any risk.
• Do not operate the appliance if it has fallen from a height or has
suffered damage in any way. Contact qualied technical personnel to
examine the appliance or perform any electrical or mechanical repairs.
• The most common cause of overheating is the build-up of dust in the
appliance. Remove dust deposits by unplugging the appliance and
cleaning the air outlets and grilles with the aid of a vacuum cleaner.
• Do not use abrasive detergents for cleaning this appliance. Clean the
appliance with the aid of a damp (not wet) cloth rinsed in hot soapy
water. Always remove the plug from the mains socket before cleaning.
• To disconnect the quartz heater, use both buttons by placing them in the
position 0 and remove the plug from the socket. Pull on the plug only.
Avoid pulling on the cord when disconnecting the quartz heater.
• Do not place any objects on the cord and do not bend it.
• It is not advisable to use extension cords, as these may overheat and
cause the risk of re. Do not use a single extension cord to operate
multiple appliances.
• Do not immerse the cord, plug or any other element of the appliance in
water or other liquids.

12V 06/22
• Do not touch the plug with wet hands.
• Do not place the quartz heater above or near another heat source.
WARNING: AVOID COVERING THE QUARTZ HEATER TO PREVENT
IT FROM OVERHEATING.
The symbol below signals the above warning:
The quartz heater may cause the risk of re if, while in operation, is co-
vered by or comes into contact with inammable material including cur-
tains, drapery, blankets, etc. KEEP THE QUARTZ HEATER AWAY FROM
THESE MATERIALS.
• Do not connect the appliance to the mains power before it has been
properly assembled and positioned.
• Do not run the cord under carpets. Do not cover the cord with blankets,
carpets or similar materials. Place the cord far away from busy areas or
where it cannot be accidentally pulled-out.
• Do not operate the quartz heater in close proximity to bathtubs, showers,
washbasins or pools.
• No not use the appliance in the bathroom.
• The heating appliance must not be positioned immediately below a
power outlet.
• Do not operate the appliance outdoors.
• Upon initial start-up, the quartz heater may emit a slight, harmless smell.
This smell is a normal effect of the initial heat up of the internal heating
elements, and should not recur later on.
WARNING: DO NOT DEPEND ON THE KNOB AS THE SOLE MEANS
OF DISCONNECTING POWER. WHEN SERVICING OR MOVING
THE QUARTZ HEATER, ALWAYS UNPLUG THE POWER CORD.
• A quartz heater has hot and arcing or sparkling parts inside. It must
not be used in potentially dangerous locations such as ammable,
explosive, chemical-laden or wet atmosphere.
• Do not place the quartz heater on soft surfaces, like a bed, where
openings may become blocked. Always place the quartz heater on a
stable, at, level surface when operating, to avoid the chance of the
quartz heater overturning. Locate the power cord so the quartz heater
or other objects are not resting on it.

13V 06/22
1. Knob for temperature setting (valid only in
COMFORT mode)
2. Knob for ON/OFF and heating mode
selection (ON/OFF - ECO - COMFORT)
3. Feet
4. Quartz candles
DESCRIPTION OF PARTS
• Always unplug the quartz heater when not in use.
• In order to avoid accidents turn unit off if unattended.
• In the event of any problems (abnormal noise or a strange smell)
• switch off the appliance immediately, do not attempt to repair it and
take it to your local after sales service.
1
2
3
4
Place the quartz heater upright on a at, stable surface. Connect the power cord to an appropriate power outlet
(220-240V~50-60 Hz).
Turn the heating mode selection knob from ON to Low (ECO) to High (COMFORT).
In ECO mode only the lower quartz candle is working, while in COMFORT mode both quartz candles are active.
To activate the COMFORT mode, you must rst act on the knob 1 for temperature control (thermostat): once set the
thermostat, place the knob 2 on the High mode (COMFORT): both candles light up, but when you reach the set
temperature, the upper candle switches off (entering in Low Mode (ECO). Then when the room temperature lowers a
few degrees, the second candle turns on again, entering High mode (COMFORT).

14V 06/22
CAUTION: ALWAYS UNPLUG THE APPLIANCE BEFORE CLEANING OR MAINTENANCE OPERATIONS.
IMPORTANT: DO NOT IMMERSE THE QUARTZ ELECTRIC HEATER IN WATER
Cleaning the outside surface of the appliance
Turn the switch off and unplug before carrying out any maintenance work or moving the appliance. Use a soft cloth to
remove any dust from the fan heater. If the fan heater is excessively dirty, use a soft cloth moistened with water and a
mild detergent at a temperature lower than 50 °C. Let the fan heater dry completely before use. Do not use corrosive
detergents or solvents such as petrol. Do not wash the appliance with water. Do not use oils, chemical substances or
other items to clean that may damage the surface. Use a vacuum cleaner to remove dust from the air inlet/outlet grilles.
STORAGE
If the appliance is not used for prolonged periods, it must be stored together with this manual in its original packaging,
in a cool and dry place.
Put the electric quartz heater vertically on a at and stable surface. Connect the power cord to a suitable electric socket
(220-240V~50-60 Hz).
Turn the selection knob in the heating mode between Low (ECO) and High (COMFORT).
In the ECO heating mode only the upper quartz candle is functional, while in the COMFORT heating mode both
quartz candles arwe functional.
Disconnect the power cord when the stove is not in use.
The appliance is equipped with an anti-tipping device that stops operation when the product is tilted. Do not place the
appliance on its side or upside down.
HOW TO USE THE ELECTRIC QUARTZ HEATER
MAINTENANCE AND STORAGE

15V 06/22
Model identier(s): SEVENTY ICE - SEVENTY GREEN
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space
Heaters only (select one)
Nominal heat output Pnom 1,0 kW Manual heat charge control, with integrated
thermostat [no]
Minimum heat output
(indicative) Pmin 0,5 kW Manual heat charge control with room and/or outdoor temperature feedback [no]
Maximum continuous heat
output Pmax,c 1,0 kW Electronic heat charge control with room and/or outdoor temperature feedback [no]
Auxiliary electricity
consumption Fan assisted heat output [no]
At nominal heat output elmax N/A kW Type of heat output/room temperature control (select one)
At minimum heat output elmin N/A kW Single stage heat output and no room temperature
control [no]
In standby mode elsb N/A kW Two or more manual stages, no room temperature
control [yes]
With mechanic thermostat room temperature
control [no]
With electronic room temperature control [no]
Electronic room temperature control plus day timer [no]
Electronic room temperature control plus week
timer [no]
Other control options (multiple selections possible)
Room temperature control, with presence detection [no]
Room temperature control, with open window
detection [no]
With distance control option [no]
With adaptive start control [no]
With working time limitation [no]
With black bulb sensor [no]
The seasonal space heating energy efciency ηs(%) 32
Contact details: ARGOCLIMA SPA - Via A. Varo,35 - Alanello (BS) - ITALY - www.argoclima.com
INFORMATION REQUIREMENTS FOR ELECTRIC LOCAL SPACE HEATERS
Tabel 2 - Annex II - Ecodesign requirements - Requirements for product information - COMMISSION REGULATION
(EU) 2015/1188 of 28 April 2015 implementing Directive 2009/125/EC of the European Parliament and of the
Council with regard to ecodesign requirements for local space heaters.

16V 06/22
INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH THE
EUROPEAN DIRECTIVE 2012/19/EU
At the end of its working life this equipment must not be disposed of as an household waste. It must be
taken to special local community waste collection centres or to a dealer providing this service. Disposing
of electrical and electronic equipment separately avoids possible negative effects on the environment and
human health deriving from an inappropriate disposal and enables its components to be recovered and
recycled to obtain signicant savings in energy and resources. In order to underline the duty to dispose of
this equipment separately, the product is marked with a crossed-out dustbin.
www.argoclima.com
Argoclima assumes no responsibility for any errors or inaccuracies in the content of this manual and reserves the right to make any changes to this
manual at any time and without notice, deemed appropriate for any technical or commercial need.
