ARGON18 GALLIUM User manual

GALLIUM : ASSEMBLY GUIDE

Assembly overview. . . . . . . . . . . . . . . . . . . . . . . ..................2
1. Frame inspection . . . . . . . . . . . . . . . . . . . . . ...................3
2. Headset installation . . . . . . . . . . . . . . . . . . . . ..................4
3. Cable housing installation . . . . . . . . . . . . . . . . . . . . . . . . ......5-7
4. Electronic drive-train cable housing installation . . . . . . . . 8-12
5. Saddle adjustment . . . . . . . . . . . . . . . . . . . . . . . .......... 13-14
6. Derailleur hanger adjustment. . . . . . . . . . . . . . . . . . . . . . . . ....15
For the warranty to be valid, the bicycle must be fully assembled by an authorized Argon 18 dealer. High-end components,
particularly carbon parts, need extra care when assembled. Those components must be installed using a calibrated torque
wrench to make sure every bolt is at the right torque setting to prevent damage.

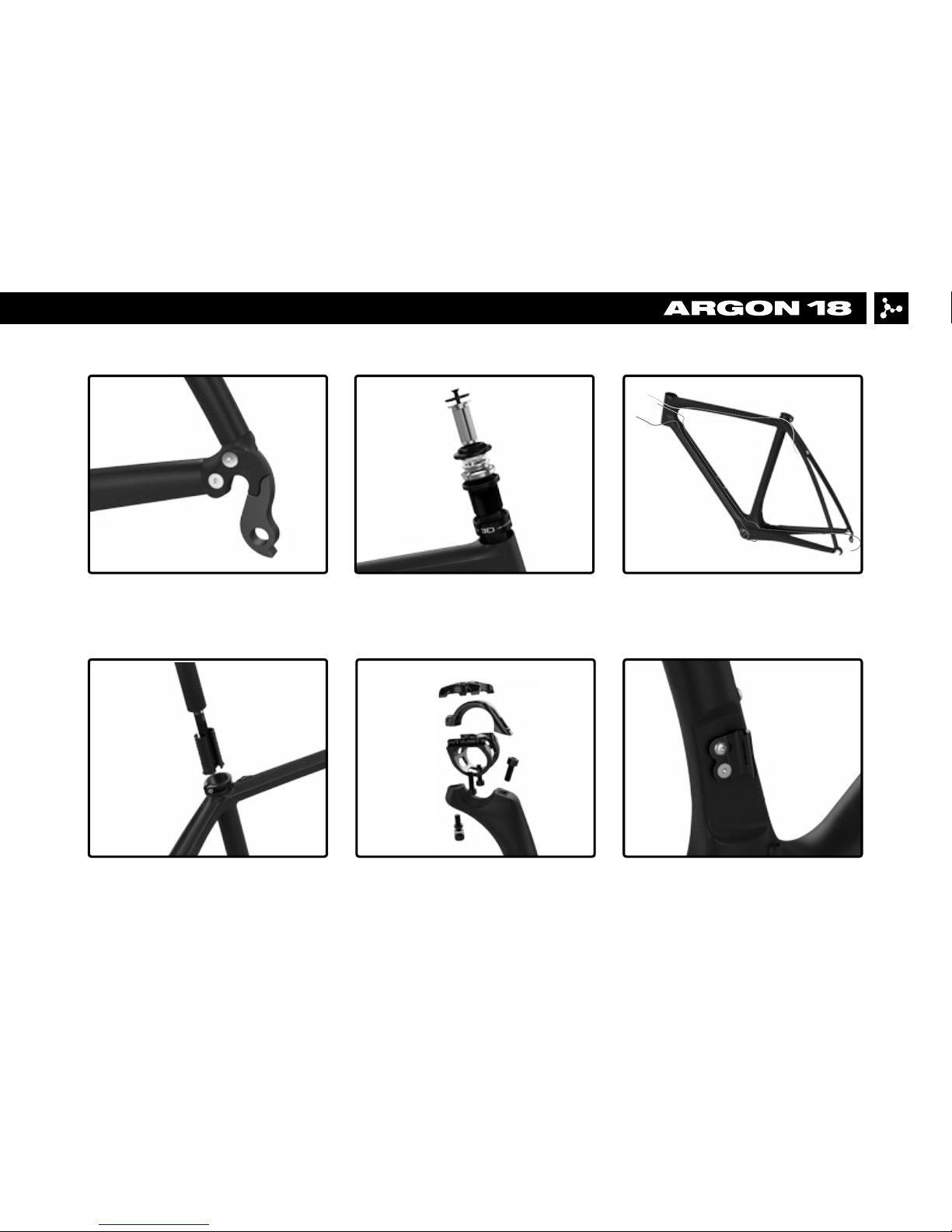

GALLIUM : Table of contents

2. Headset installation 3. Cable housing installation
IMPORTANT NOTICE: It is easier to install the
cables and cable housings before the bearings.
5. Seatpost installation 6. Derailleur hanger adjustment
2
GALLIUM : Assembly overview
4. Electronic drive-train cable
routing specication
1. Frame inspection

3
GALLIUM : 1. Frame inspection
Parts installed on the frame Description Screw Tork Detail
type Nm
1 Seatpost, Ø 31.6mm Seatpost Carbon paste
2 Front derailleur hanger Screw 3mm 3Nm Loctite
3 Rear derailleur hanger Screw (2) 3mm 4Nm Loctite
4 Bottle cage Screw (4) 4mm 3Nm Grease
5 Seatpost collar Clamp 4mm 6Nm Grease
6 Rear derailleur cable stopper Screw (2) 2mm 2Nm Loctite
7 Bottom bracket cable guide Screw 5mm 3Nm Grease
When assembling a new frame, be sure to check if the following parts are assembled correctly.

Install the 3D headset (6) according to
the 3D headset assembly guide. You
can choose from 3 dierent heights :
25mm, 15mm or 0mm.
4
GALLIUM : 2. Headset installation

5
GALLIUM : 3. Cable housing installation
1
2
A : barrel adjuster
speed adjustment
B : metal cap
C : plastic cap
B
B
C
C
speed adjustment : C+A+C C
1. Install the front and rear derailleur
cable starting at the head tube.
2. Install the rear brake cable starting at
the head tube.
For the derailleur and brake housing,
measure a sucient length of housing
to be able to turn the handlebar both
ways correctly.

6

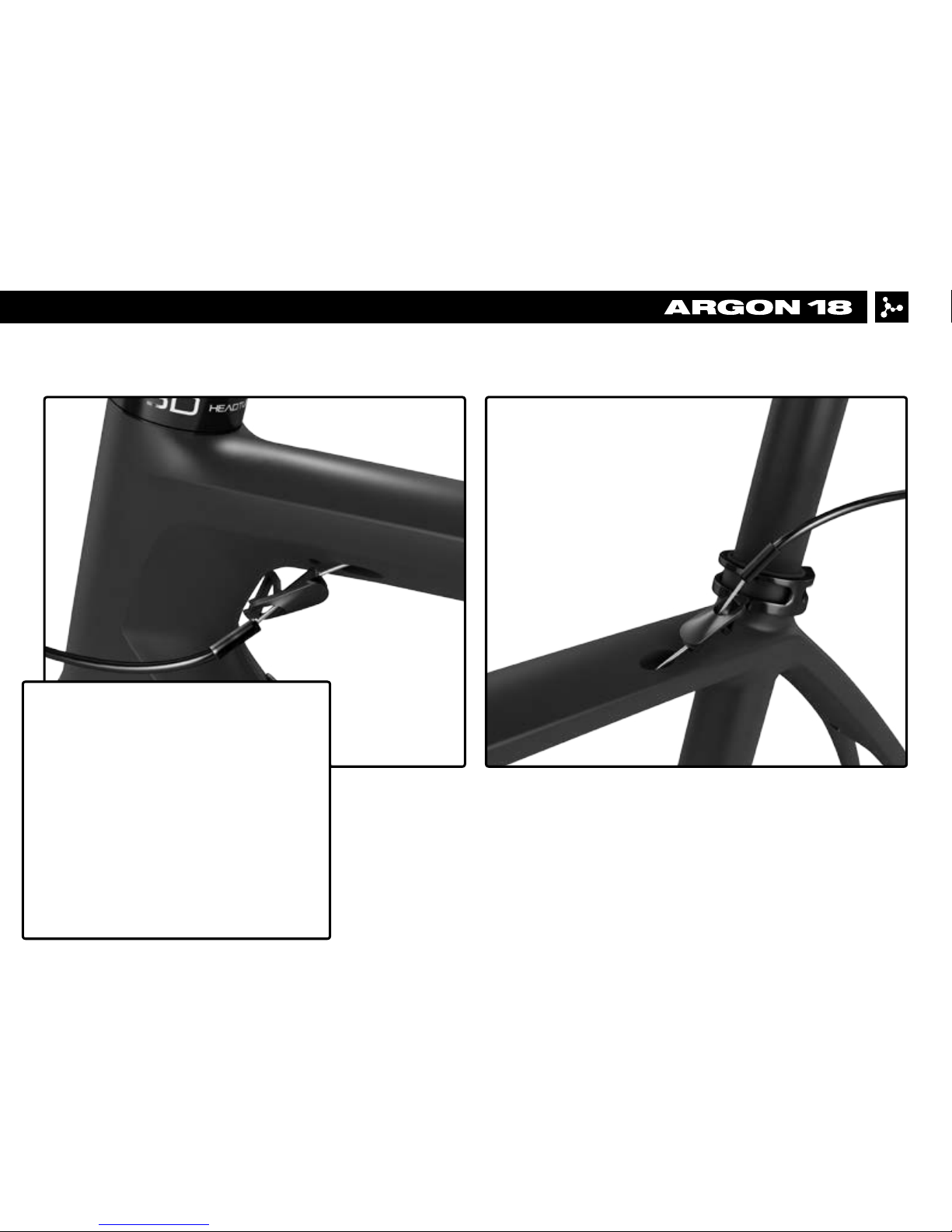

GALLIUM : 3. Cable housing installation (continued)
Rear brake cable housing
Remove the 2 cable stoppers near the head tube
and seat collar.
Font section: Measure the necessary cable housing
to ensure proper rotation of the handlebar. Insert
the cable through the shifter, than insert the cable
housing in the top tube.
Rear section: With a magnet, get the rear brake
cable out of the frame, and pass it trough the rear
cable stopper. Mesure the rear housing correctly
to avoid interference with the rider’s left leg. Fix
the cable to the brake according to the brake
manufacturer assembly guide.

7
GALLIUM : 3. Cable housing installation (continued)
Front & rear derailleur: Remove
the cable guide cap (4h) under
the bottom bracket. Pass the
cables inside the downtube
until they come out under the
bottom bracket, than in the
cable guide (4d).
Fix the cable guide cap under
the bottom bracket with the
5mm screw (1.5 Nm).
It’s better to install the cables
before installing the bottom
bracket, crank and fork.
4d
4h

8
GALLIUM : 4. Electronic drive-train specication
The Di2 cable routing can be achieved easily using this
simple trick: use a brake cable and a metal cable end to
x the Di2 cable. For more information on Shimano Di2
electronic system installation, go to : http://si.shimano.com.

9

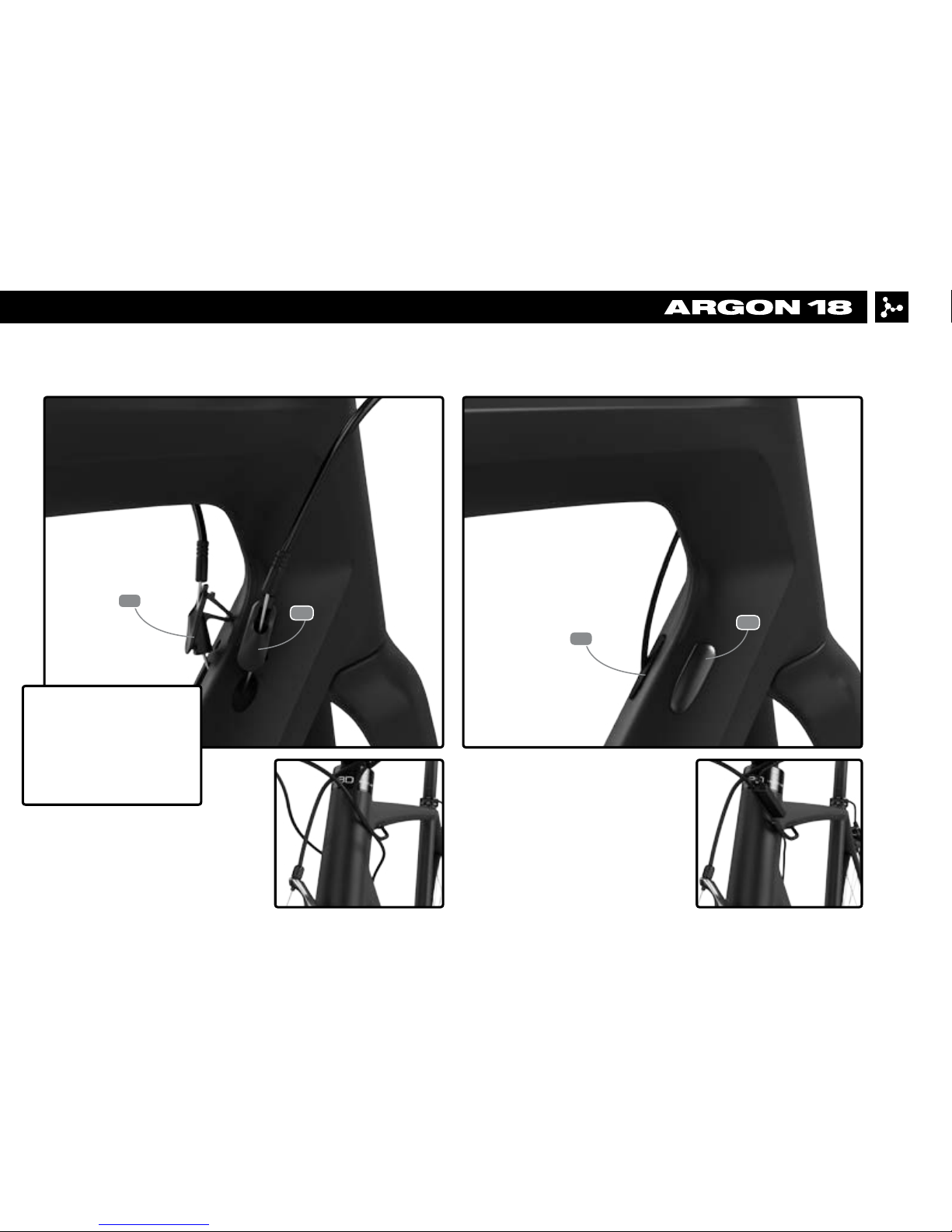

GALLIUM : 4. Electronic drive-train specication
Use the proper grommet
on the downtube to
x the cable correctly
(depending if you use the
mechanical or electronic
drive-train).
5d
4f
5c
4f

10

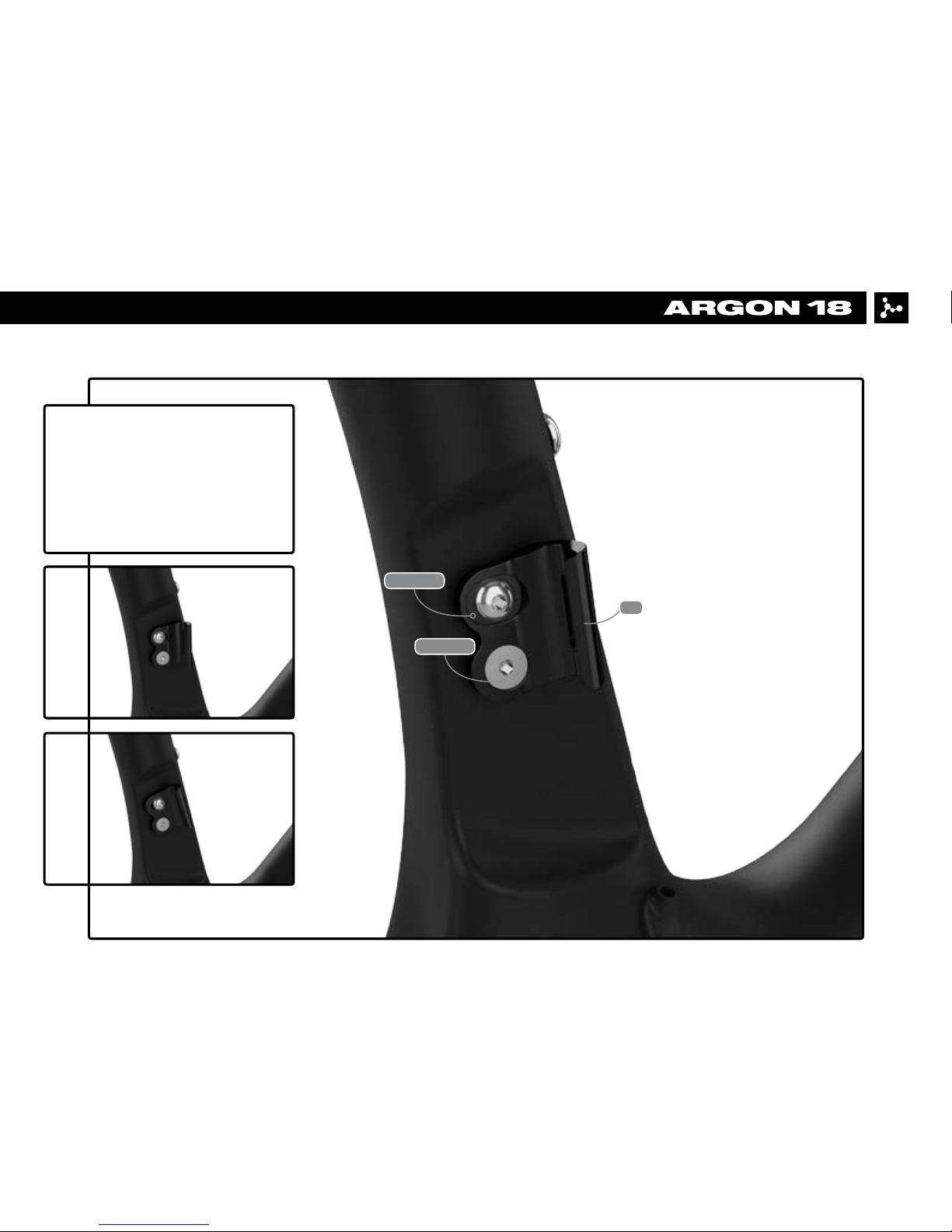

GALLIUM : 4. Electronic drive-train specication
Use the cable stopper (4g) for the rear derailleur
cable if you use mechanical drive-train.
In a Di2 conguration, remove the cable stopper
and replace the 2 screws to avoid empty holes
on the frame. The Di2 cable is routed inside the
chainstay
4g

11
GALLIUM : 4. Electronic drive-train specication
Use the proper grommet for the front
derailleur (depending if you use the
mechanical or electronic drive-train).
5b 5a

12
GALLIUM : 4. Electronic drive-train specication
8
The Di2 battery is hidden in the
seatpost, use the 2 battery holders
(8) to x the battery correctly. Apply a
slight amount of grease on both parts.
GREASE

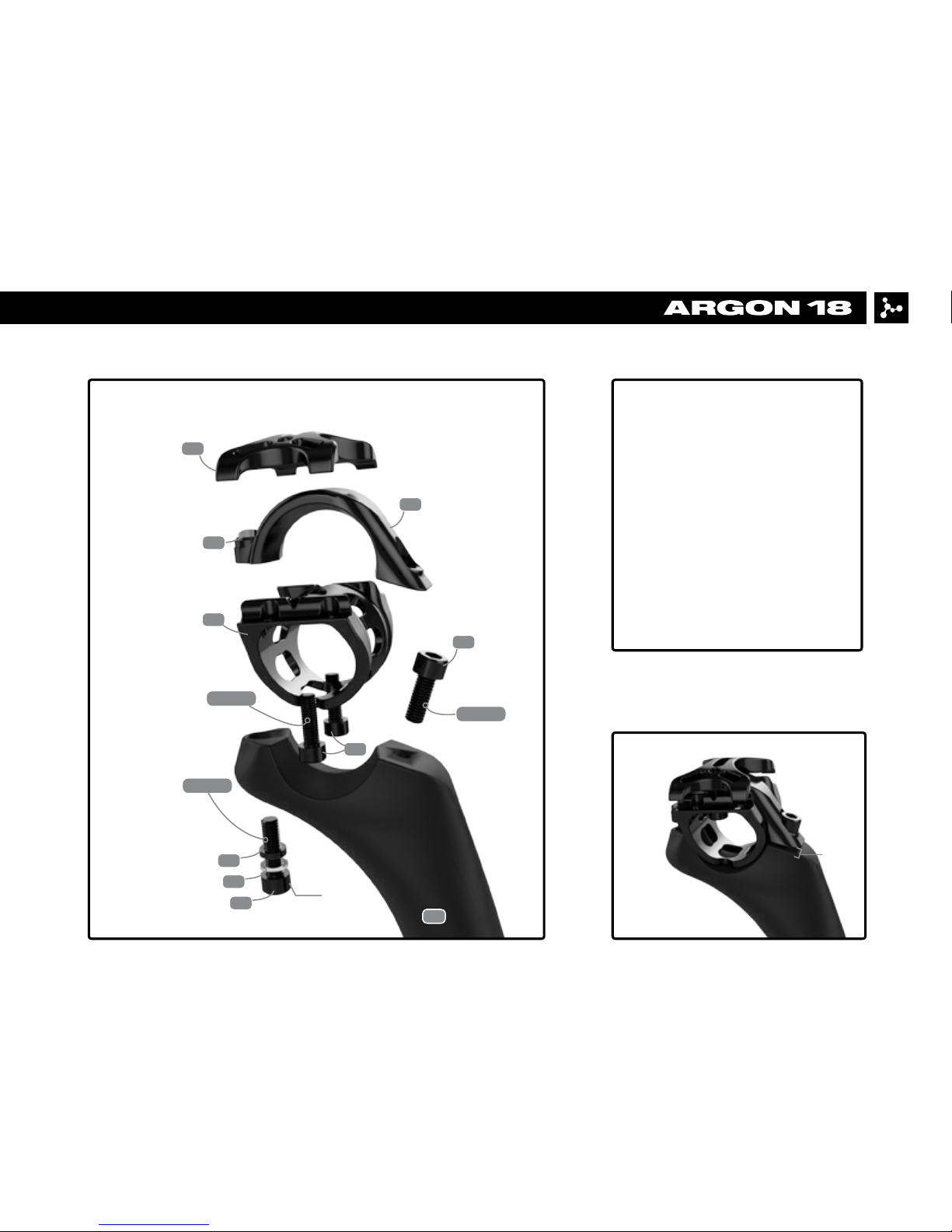

GALLIUM : 5. Saddle adjustment
13
3
3f
3a
3e
3b
3g
3h
3c
3d
GREASE
GREASE
GREASE
3i
6Nm
1. Install the saddle on the rocker (3f)
and slightly tighten the rail clamp (3d)
using a ball end hex key using the
screws 3c.
2. Tighten the upper screw of the rocker
clamp (3a) by keeping a space of 2
to 3mm between the aluminum and
carbon parts.
3. Adjust the angle of the saddle and
tighten the lower screw (3b) of the
rocker clamp (3e).
4. Adjust the saddle oset and nalize
the tightening of the rail clamp (3d)
with screw 3c.
2-3mm

GALLIUM : 5. Saddle adjustment
Adjust the seat clamp oset (+/-5mm) by
ipping the rail clamp (3d) and rocker (3f).
14
3f 3f
3d 3d

GALLIUM : 6. Derailleur hanger adjustment
The front derailleur hanger (4b) can
be adjusted according to the front
derailleur angle in order to obtain an
equal curve between the derailleur and
the big chain ring. Once at the right
angle, use blue 242 Loctite and screw
in at 6Nm.
15
LOCTITE
4b
LOCTITE

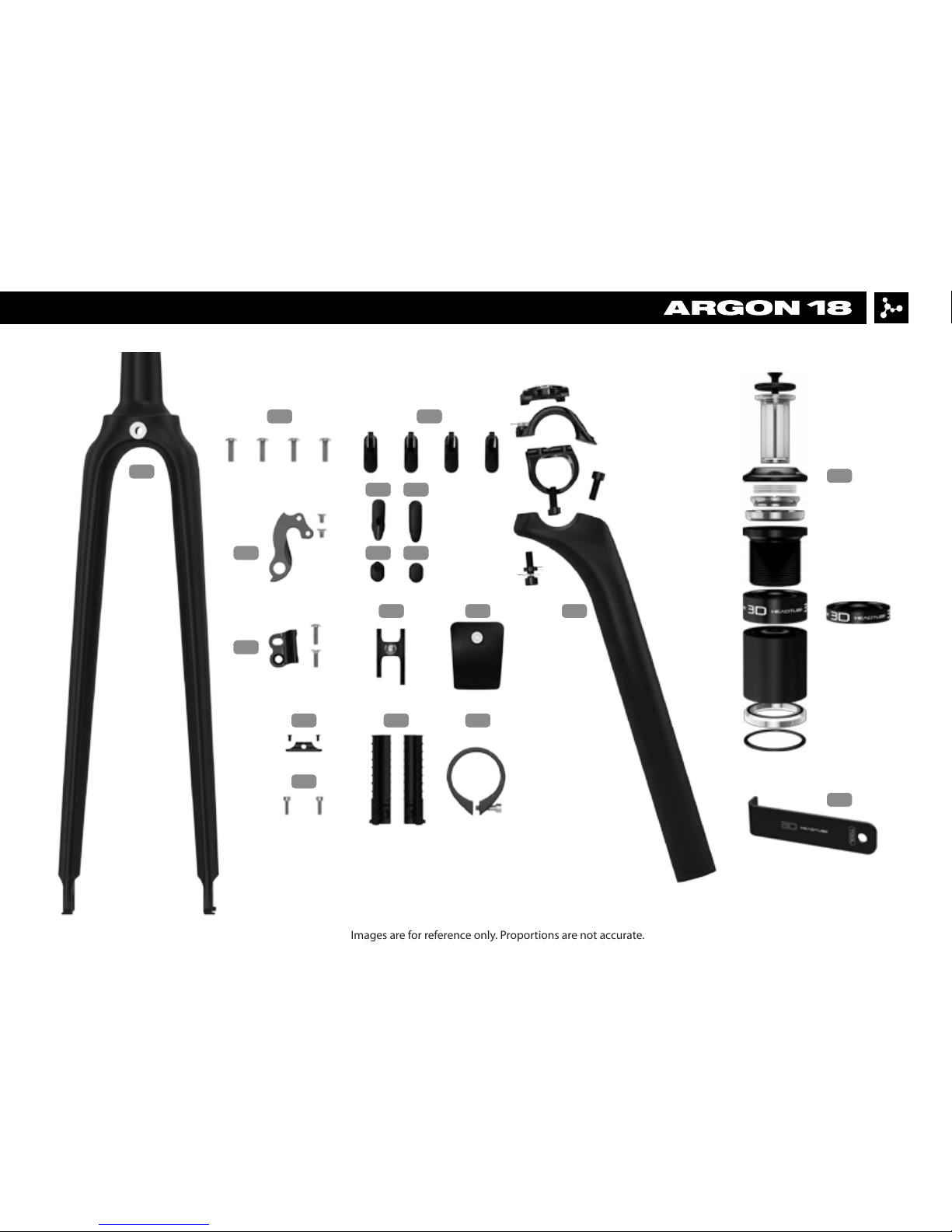

GALLIUM : Parts
Images are for reference only. Proportions are not accurate.
2
4e
5d 5c
5a
4d 4h 3
6
7
84g
28
4c
4a
4b
5b
4f
3d
3e
3a
3c
3b
3h
3g
3f
3i
16

GALLIUM : Parts
17
No Name Supplier Description Qty SKU SKU
# Frameset parts Comp Acc
1 Gallium frame AR-R02-UDG, artwork 211A, black/white, mat/gloss
2 Gallium fork AR-R02FKF-UDG-43*305*56, artwork
211A-FK, black/white, mat/gloss 1 38590 38752
# Seat post with the following parts assembled
3 Gallium seat post (ASP-6000) AR-SP11-UDG-31.6*300 (w/laser etch), artwork 211SP, black/mat 1 38591 38753
3a Upper HexSocket screw (M6*20mm S) for rocker clamp M6*20 S 1
3b LowerHexSocket screw (M6*35mm S) for rocker clamp M6*35 S 1
3c HexSocket screws (M5*20mm S) M5*20 S 2
3d Top rail clamp TT01-SP-top rail clamp 1
3e Rocker clamp TT01-SP-rocker clamp (arc) 1
3f Rocker TT01-SP-rocker 1
3g Stainless washer WSR118 1
3h Black washer Ø6.4*4mm 1
3i Nut NUT-111 1

GALLIUM : Parts
18
No Name Supplier Description Qty SKU SKU
# Frameset parts Comp Acc
# Parts installed on the frame
4a Rear derailleur hanger RD125 rear DO hanger + RD125 rear DO hanger at
with screws - Model C head HexSocket screws (M4*8mm F), black 1 37830
4b Front derailleur hanger M-FD03 (R2) + ButtonHead HexSocket screw (M5*16mm B)
with screws - Model D and at head HexSocket screw (M5*16mm F) 1 36197
4c Seat clamp SC127, seat clamp black polished + HexSocket screw
with screw and washer (M5*16mm S) and Ø5.3*Ø8.2*1mm(M5) washer 1 36193
4d BB cable guide with screw BG124, BB cable guide with round head Phillips screw
(M5*10mm B) for AR-R02 1 38261
4e Screw for water bottle cage Stainless ButtonHead HexSocket screw (M5*16mm B)
for bottle cages, M001E905038 5 38234
4f DT & TT Cable stopper CS177, DT & TT Cable stopper 4 38756
4g Removable CS CS147, AR-R02 & AR-R01D2 CS removable cable stopper
cable stopper and screws with at head HexSocket screws (M3*10mm F), 0206F20006 1 36682
4h BB cover guide with screw OS-243, BB cover guide with HexSocket screw
(M5*10mm S), 0207FH0004, M001E90506 1 37460

GALLIUM : Parts
19
No Name Supplier Description Qty SKU SKU
# Frameset parts Comp Acc
# Di2 conguration specicparts
5a Di2 cable grommet OS-285, Di2 cable grommet for AR-R02-UDG,
AR-R01D2-UDG, AR-R03-UD, 0299FH0033 1 38251
5b Grommet plug for Di2 OS-387, grommet plug for Di2 hole ller (non Di2) for
hole ller (non Di2) AR-R02-UDG, AR-R01D2-UDG, AR-R03-UD, 0299F80032 1 38253
5c Downtube grommet ller
Right Side OS-253, AR-R02 downtube grommet ller 1 36681
5d Downtube Di2 grommet
Left Side OS-252, AR-R02 downtube Di2 grommet plug 1 36680
# Also included with the frameset - shipped separately
6 Headset No. 62-5 + 3D No. 62-5 + 3D (Argon 18 exclusive) with TH-881-1
with compressor TH-881-1 (23mm), H0539C0045E101 ; Ano black, with MW006x4,
with 881-1 23mm, E0247, MW170A/B (Ano black),
logo: 3D headtube (AM packaging) 1 38263 37869
7 3D headset tool 3D head tube tool, 2012 w/3D head tube logo,
with hole, width 33.5mm 1 36165 36919
8 Di2 Battery holder DIS-23, Di2 battery holder for 31.6mm seatpost 1 38889 38890
