ARGSeguridad ZDAS-300 User manual
Luxury Voiced LCD Alarm System
USER’S MANUAL
Model: ZDAS-300
Thank you for choosing our panel
Ple
ase read
th
e manual carefu
lly befo
re fix
in
g it.
Quick reference
00: C.S. Comms. 11= send out information about arming, disarming and alarms; 10 = only
send out the alarm information; 00= not net work.
01: Exit delay time. The time is double-digit (XX). The actual time is the product of XX times
5. The initialization value is 04 = 20 seconds.
02: Entry delay time (delay alarm). The time is double-digit (XX). The actual time is the
product of XX times 5. The initialization value is 06 = 30 seconds.
03: Sounder run time. The time is double-digit (XX). The actual time is the product XX times
20. The initialization value is 06 = 120 seconds
04: Watchdog time. The unit time is hours.
05:Watchdog start and stop time window. Default setting is from 8:00 to 20:00.
06: Set time to Arm. Press * or #, select the time point( 6 time points in all) enter the time
desired. To cancel this set, press Delete key. Refer to figure 11.
07: Set time to Dis-Arm. Press * or #, select the time point( 6 time points in all) enter the
Time desired. To cancel this set, press Delete key. Refer to figure 12.
08: Setting time and date. The system time should be set with Year-Month-Date-Hour-Minute
-Day using the numeric keypad of the panel. 7 = Sunday; 1 =Monday; 2 = Tuesday;
3 = Wednesday; 4 = Thursday; 5 = Friday; 6 = Saturday. (a 24 hour mode)
09: PIN code set, this a 6 digit code for the remote access, Keypad Dis-Arm. Enter the
required PIN No using the numeric keypad on the panel. Cancel the PIN No using the
Delete key on the panel.
10: Set number of ringing in times before answer.
11. Arming with sounder ON/OFF 0: no sounder when arming 1: sounder when arming
12: Two way communication 0: NO 1: YES
13: Engineer Option. Listen to dial out DTMF. 0 : NO 1: YES
14: Mains Fail alarm. The panel will alarm when mains power fails 0 : NO 1:YES
15: exit delay timer with sounder ON/OFF 0: ON 1:OFF
16: Phone line cut alarm: 0: NO 1: YES
17: periodical test at 24 hours: 0: NO 1: YES
Table of Contents
1
OVERVIEW............................................................................
1
1.1 Introduction ................................................................ ....................................1
1.2 Basic Principle of Operation ................................................ .............................1
1.3 Component Parts ..............................................................................................2
1.4 Optional Extra Detectors available.....................................................................2
2 DESCRIPTION.......................................................................3
2.1 The Keypad ...................................................................................... ...............3
2.2 The LCD Character details and description .........................................................4
3 INSTALLATION INFORMATION............................................9
3.1 The Basic Flow Chart ............................................................................ ...........6
3.2 Registering Key Fobs .................................................................................. .....7
3.3Registering Sensors ................................................................................... .......7
3.4 Installing Wired Detector
.........................................................................
........
8
3.5 Checking Registration
............................................................................. ........8
3.6 Deleting Registered Key Fobs
..................................................................... ......9
3.7 Deleting Registered Sensors........................................................................ ..... 9
3.8 The Zone Setting and Allocation ............ ............................................ ...............9
3.9 The System Configuration Setting.................................................... ................11
3.10 The Phone Numbers Setting ............................... ......................... ..................13
3.11 The C.SvAccount Code Setting ............ ........................................ .................13
3.12 Deleting Zones ...................................................................... .......................14
3.13 Viewing The Recording Event Log............................................ ......................14
3.14 Setting Entry and Exit delay timer ............................................. ..................... 16
3.15 Sounder cutoff time..................................................................... ..................17
3.16 View detector's total in every zone............................................... ...................18
3.17 Speak and Listen in............................... ..................................... ...................18
3.18 record & play the voice message................... ................................... .............. 18
4 USER
INFORMATION..........................................................19
4.1 Methods of Arming and Disarming.................................. .................................19
4.2 24 Hour Arming...............................................................................................20
M
D
H
M
D
SET
TYPE
1 2 3 4 5 6 7
1 1:watchdog zone 0:not a watchdog zone
2 1:exit delay 0:no exit delay
3 1:entry delay 0:no entry delay
4 1:24 hours zone 0:not 24 hours zone
5 1:sounder when alarming 0:silent when alarming
6 1:armed zone 0:part armed zone
7 1:sensor in the zone 0:no sensor in the zone
4.3 Selectable Zone Arming............................................... ....................... ............20
4.4 Selectable Detector Alarming Local only or Local and C.S..................................20
4.5 Selectable Key Fob RequiringAssistance with/with out sounder.................. .......21
4.6 Omitting a Zone..................................................................................... .........21
4.7 Sounder or silent alarm setting................................................................ .........21
4.8 Access the Control Panel form a remote telephone(Mobile or Land line) .. ...........21
4.9 Listen in and speak through key fob.................................................................. 22
LOG
27
M
D
H
M
D
1 2 3 4
1 1= local alarm only, when disarmed; 0=Normal detector
2 1= detector will be door bell, when disarmed; 0=not door bell
3 1= key fob request assistance with sounder; 0=key fob request assistance no sounder
4 1= display detector low voltage on LCD; 0=Cancel detector low voltage display
4.10 Alarm confirming ................................................................................ .........22
4.11 Detector battery lowvoltage display one the panel and introduction............... ....23
5 ZONE CONFIGURATION AND
EXPLANATION................25
Quick refrence
...............................................
27
Pres
s
registere
d
remot
e
key fob or enter your PIN
SENSO
R
appear
s
o
n
LC
D
ready to register key fob or
de
t
ec
t
ors
Pres
s
PRO
G
ke
y
Activat
e
th
e
ke
y
fo
b
t
o
b
e
registe
r
COD
E
appear
s
o
n
LCD
,
comfirmin
g
th
e
cod
e
ha
s
bee
n
receive
d
.
Press 0 to select key fob zone. Unit will auto register key fob with next reg. No , eg. If already 2 key
fobs registered, the new key fob will be allocated No 3.Press PROG to save the code. SENSOR
appears again to register more devices or press registered key fob/press ESC to exit
T
o
registe
r
Ke
y
fob
s
O
R
Activate the detector to be registered CODE appears on LCD, confirming the code has been
received
Press 1--8 to select the zone you wish the detector to be allocated to. Unit will auto register the
de-
tector with next reg. No, eg, if already 3 detectors registered, the new detector will be allocated No
4.
Press PROG to save the code. SENSOR appears again to register more devices or press registered
key
fob/press ESC to
exit
T
o
registe
r
sensor
s
O
R
Press * key ,LCD will display ZONE TYPE, press 1---8 to select zone, select 1 or 0 for all 7
fields
per zone. Press PROG to save. Press * key, LCD will display ZONE TYPE to reset the other
ZONE
TYPE or press registered key fob/press ESC to
exit
T
o
se
t
zon
e
typ
e
O
R
T
o
se
t
syste
m
confi
g
Press # key, LCD will display SYS CONFIG, press 00 to 15 to select the configuration of the
system.
Press PROG to save. Press # key, LCD will display SYS CONFIG to re_configure the system or
press
registered key fob/press ESC to
exit
O
R
Press * key, then press # key, the LCD will display PHONE , press 1 and display current C.S. Pry
1
phone No, enter new Pry 1 phone No, press PROG to save the phone, press * key then # key, the
LCD
will display PHONE, press 2 and display current C.S. Pry 2 phone No, enter new Pry 2 phone
No,
press PROG to save, using this way, can set C.S. Account in Pry 7. or other private phone No,
press
the registered key fob/ESC key to
exit
T
o
se
t
C.
S
phon
e
numbe
r
1
T
o
registe
r
Ke
y
fob
s
2 To register Detectors
3 To set Zone type
4 To set System configuration
5 To set C.S phone NO and site code
1.OVERVIEW
1.1 Introduction
1. Blue backup LCD display everything you want to konw about the panel.
2. Full compliance with ADEMCO Contact ID.
a. when alarming, you can hear which sensor in which zone is alarming
b.voice prompt you how to operate for every step
3.85 event logo about arming \ disarming \ alarming (with data stamp), viewable
directly on the panel LCD.
4. 12 seconds voice message, in case ofalarming,automatically playing after you
pick up your phone.
5. Any of the detector can be door bell when disarmed ; any detector can be local
siren when disarmed.
6. Monitor the old,the sick and the important place:when the old or the sick doesn’t
move, or the important warehouse hasn’t human presence for a period of time,
the panel will alarm.
7. Any zone type programmable(including:watchdog zone,exit/entry delay,24 hours
zone,sounder/silent when alarming,armed/part armed zone,sensor/no sensor in
the zone)
8. Panel can receive the detector low voltage signal and display zone number and
detector number on theLCD and sound a beep
9. 7 wired terminals,1 2 v alarming output, 12v power output(continous),
wired siren terminal
10. 6 time points of timed Auto-Arming/disarming(24 hour mode)
11. Wireless detector installing test
12. Listen in and speak function
13. Away arming with siren sounder ON
14. any zone can be seperately armed/disarmed
15. Built-in high capacity rechargeable battery,auto charge/discharge,provide
1.2 Basic Principle of Operation
A
l
a
r
m c
e
n
t
r
e
P
S
T
N
P
r
i
v
a
t
e p
h
o
n
e
Remote
Wireless
detector
Wire detector
D
o
o
r c
o
n
t
a
c
t C
e
l
l
i
n
g P
I
R
P
I
R V
_
P
L
E
X P
I
R
P
h
o
t
o
e
l
e
c
t
r
i
c B
e
a
m
P
I
R
S
m
o
k
e
G
a
s l
e
a
k
shock/vibration
Premises
S
m
o
k
e
G
a
s l
e
a
k
Figure1:Basic principle of operation

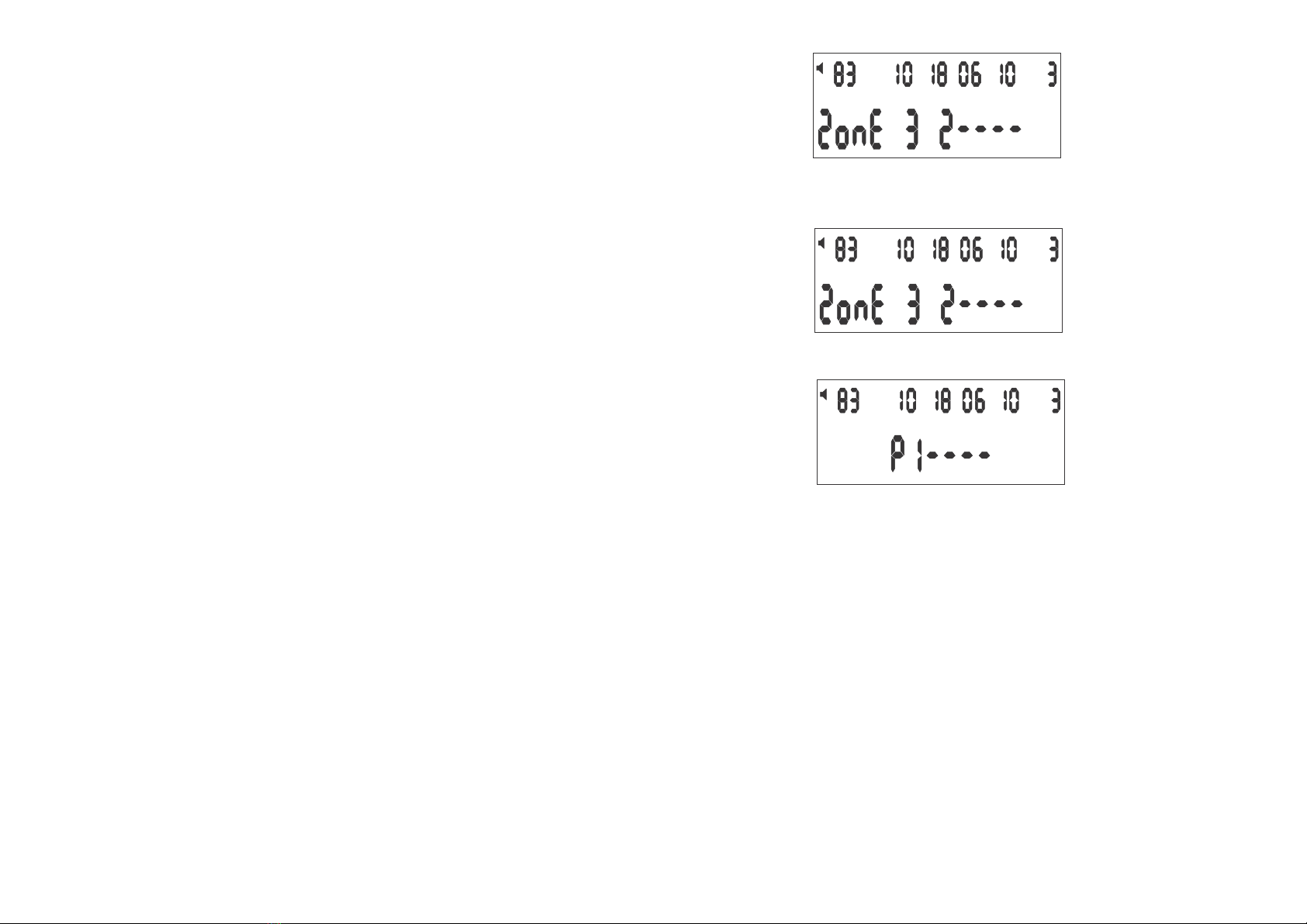

Zone 3 selected
SET
TYPE
M
D
H
M
D
The above chart shows the basic principle of operation of the System. The security
system contains alarm panel, remote key fob, pir detectors, door/window magnetic contact
and high decibel integral siren Also available are some optional Devices such as wired/
wireless Smoke detectors, Gas detector, Flood detector, Temperature detector.The wireless
detector Communicates to the Control Panel by radio on 433 MHZ Frequency and each
detector has an approximate range of 50 Metres dependent on the Local Environments.
The wired detector are also workable.
The above shows that the No 3 zone configured to be a Entry/Exit, Active Sounder when
Arming and there are sensors in this zone.
Zone 8 selected
M
D
H
M
D
SET TYPE
The above shows No 8 zone configured, a watchdog zone (24 hour armed), there
are Sensors in this Zone.
BasicFlow chart for registering devices,sSet zone type,set system configuration
and program C.S. phone numbes and site code in disarmed mode.
1.3 Component Parts
The wired/Wireless Alarm Panel:
This 8 Zone Alarm panel is the central information processor of the system, receiving
and dealing with all the Alarm Signals from the various Detectors. It also contains the
central Station communicator and By-directional Audio Verification mechanism.
Everything you need to know about the security system is displayed on the panel keypad
LCD. The zones, 24 Hours, Armed, Part armed, Disarmed and the important Messages
regarding system status are displayed on the LCD screen. See section 2.1 and 2.2
Wireless Remote Key Fob:
The remote key fob is used to Arm,part arm,disarm the system or to request Assistance
from the C.S. This could mean the summoning of the Emergency Services such as Police,
Fire, Ambulance or just a member of the family. It is also used in the Programming and
device registration for system access.
1.4 Optional Extra Detectors available
Wired/Wireless Magnetic Door / Window contact: (option)
The Magnetic Door contact is used to detect the opening of doors or windows. When
activated it will transmit an alarm signal to the Control Panel to indicate a door or window
has been compromised. It consists of detector with an integrated wireless transmitter and
magnet.
Wired/Wireless PIR detector: (option)
The Passive Infrared detector responds to mobile body heat emissions. If anyone enters
the area of an Armed Zone, once the infrared detector in that Armed Zone detects their
presence it will transmit an alarm signal to the Control Panel.
25 2
M
D
H
M
D
SET TYPE
Wired/Wireless Smoke detector: (option)
The Smoke detector is used to detect potentially dangerous smoke emissions in the home.
Once the detector detects the presence of smoke as a danger and possible Fire Risk it will
transmit an alarm signal to the control panel and also activate its own integral local sounder.
Wired/Wireless Combustible Gas detector: (option)
5 ZONE CONFIGURATION AND EXPLANATION
Zone 7 selected
The combustible gas detector will detect potentially dangerous gas emissions within its
location. It should be fitted in any area where there is a possibility or risk of Gas Leaks or
emissions.
Once The Combustible Gas detector detects unacceptable levels of combustible Gas it
will transmit an alarm signal to the Control Panel and also activate its own integral local
sounder.
Wiredless shock/vibration detector: (option)
Glass Break detector: (option)
The glass break detector should be placed at home where close to glass. When the glass
is broken, the detector could detect the particular frequency and then transmitting an alarm
signal to the control panel.
1 2 3 4 5 6 7
1 1:watchdog zone 0:not a watchdog zone
2 1:exit delay 0:no exit delay
3 1:entry delay 0:no entry delay
4 1:24 hours zone 0:not 24 hours zone
5 1:sounder when alarming 0:silent when alarming
6 1:armed zone 0:part armed zone
7 1:sensor in the zone 0:no sensor in the zone
Zone 1 selected
2 DESCRIPTION
2. 1 The Keypad
SET TYPE
M
D
H
M
D
The above shows Zone 1 is Configured to be a 24 hour zone, Active Sounder when
Arming and there are Sensors in this zone.
Zone 2 selected
ARMED
ON
PART ARMED ON
ALARM
ON
ALARM
FLASH
= ARMED
= PART ARMED
= NEW ALARM LOG
= ALARM OR COMMUNICATION
*
voice
9
RF
out
voice prompt you how to operate
for every step
RF transmit for wireless siren
SET TYPE
M
D
H
M
D
POWER
ON
POWER OFF
=AC POWER
=BATTERY USING
voice
0
OGM
recording the owner voice/
playback the voice
Event/Disarm
Prog
Del/Sensor
Event LOG/Disarm
Program
Delete/Sensor check
#
Press (walk test) or Press & hold
up (alarm with/without sounder) The above shows Zone 2 is configured to be a panic zone, Active Sounder when Arming
and there are Sensors in this zone.
Arm Manual ARM or PART ARM
Figure 2:keypad description
3 24
If after 15 seconds the user does not press the * key to confirm the alarm, the panel will
auto dial next phone number.
After the entry of the listening in status, the next operating steps are same as the remote
control In section 4.9 previous.
4.11 Detector Battery Low Voltage Display On the Panel And Introduction
When detector has been in the low voltage state, it will not run correctly. The Panel can
receive the detector low voltage signal and display on the LCD and sound a beep to indicate
user to replace detector's battery in time.
+12V JD
Auto
L7 L6
output
12
V
i
npu
t
L5 L4 L3
L2 L1 LAMP GND
Note:
GND: the negative electrode of the
power supply , siren , wired
detector and alarm output
L1.L2.L3.L4.L5.L6.L7 (wired detector):
lamp out: connect the relay for turn
on the lamp, this signal is
high-low contral
+12v: continued output for the wire
Power
Low voltage display and introductions:
A: When the panel is in the DISARMED mode, if the detector such as PIR detects itself
Phone Phone line
ON OFF
sensor or other accessaries
JD: output 12V for the wired siren or
other accessaries when alarm
being low voltage, the panel will sound a beep every seconds and display the signal
On the LCD continually. Figure 3: The back view of the panel
Everything you need to know about your Security System is displayed on the Panel
keypad. The zones armed or disarmed and the important messages regarding system status
appear on the LCD screen.
LOG
M
D
H
M
D
2. 2 The LCD Character details and description
2.2.1 The panel LCD screen whole information shows as follows:
Figure 23: Detector No 2 in zone 3 is low voltage
LOG
DIS PART
ARMED
WatchDog
M
D
H
M
D
B: When the panel is in the Armed/PARTArmed mode, if the detector such as PIR detects
itself being low voltage, the panel will sound a beep every seconds and display the signal
armed zone and detectors No on the LCD alternately.
C: Even if the panel LCD displays the detector low Voltage, the operation also can be
done normally on the panel and stop provisionally low voltage display.
SETRMOT
TYPECONFIG
ALM PIN
TESTTIMED
GSM
PHONE
ON=Sounder as alarm
OFF=Silent as alarm
How to cancel the low voltage display:
A: Press 'Delete' key and - - - appears on the LCD. Press registered Key Fob or enter your
PIN, LCD will display 'DEL Sensor' u se keypad to select zone(s) 1 to 8. Use Keypad to select
Detector(s) 1 to 9. Program the 4th field with 0. Press Key Fob Exit. (Refer to figure 25)
B: Press the key Fob
N.B.: When the battery has been replaced, the user must program the 4the field with 0
ARMED
DIS ARMED
PARTARMED
Watchdog
LOG
M
D
H
M
D
Panel armed
Panel disarmed
Panel part armed
Avaible
Event log
Month
Day
Hour
Minute
Weekday
SET
RMOT
TYPE
CONFIG
ALM
PIN
TEST
TIMED
GSM
PHONE
Set program
Remot Zone
type System
config Alarm
Wireless sensor battery low voltage
Pin code
Walk test
Timed auto arm or disarm
GSM signal avaible
C.s. Phone or user owner phone
manually.And then the panel will display normally.
Figure 4: All the info. the LCD dis lays
23 4
If no action has been performed on the keypad and the panel is in the DISARMED mode,
the panel LCD screen will show as following:
DIS
ARMED
After entering correct PIN code the panel will follow the instructions given using the
DTMF tones from the keypad of the remote phone.
Press 1 to tell the panel to switch to listen in mode
Press 2 to tell the panel to switch to speak mode
LOG
M
D
H
M
D
TIMED
Press 3 to tell the panel to switch its sounder ON
Press 4 to tell the panel to switch listening in OFF
Press 5 to tell the panel to terminate the call, disengage the phone line
Press 6 to tell the panel to switch its sounder OFF
85
10
M
8
D
18
H
52
M
D
2
Timed
02
1
Figure5 : LCD dis lay when disarmed
: it means that the panel has been set to sounder alarm
: It means there are 85 items of information (including alarm information,
Armed / disarmed information and others).
: It means the date: November 8th.
: It means the time: 18:52
: It Means weekday Tuesday.
: It means timed auto arming/disarming has been programmed
: It means there are 2 items of alarms which have not been viewed. After
Viewing the information, the display02 will disappear.
: It means that the No. 1 zone armed within 8 zones from No.1 to No.1 8
Zone.
Press 7 to tell the panel to ARM
Press 8 to tell the panel to DIS ARM
4.9 Listen in and speak through key fob
When the phone connected to the panel is call ed ,and the phone rings , press a single
key on the Key Fob directly , then the user could Listen in the premise and speak to the
occupants.
4.10Alarm confirming
When the panel reports an alarm event to the C.S.it does so by using Ademco contact
ID protocol, sometimes called ADEMCO fast format. After the data is transferred to the
C.S. the operator then has access to the customer details, address, name, phone numbers,
2.2.2 When the panel is set in the away armed mode,the LCD screen will show the following :
ARMED
key holders etc. He also has audio access to the premises. He can Listen-in or Speak to the
occupants, this will allow the C.S. operator to request a pre-arranged password to confirm
the identity of the person he is speaking to or make a challenge to an unindented occupant.
LOG
M
D
H
M
D
The C.S. operator will take the appropriate action determined by the circumstances at the
time.
The C.S. Pry 1 and Pry 2 phone numbers are located in fields 1 and 2 and the account
code is located in field 7 in the PHONE program and configuration. In addition to above
Figure 6: LCD dis lay when art armed
The meaning of the characters as follows:
83:Means there are 83 items of information (including alarm information, Armed/Disarmed
information and others).
1234 78 : Means that Zone No. 1, 2, 3, 4,7and 8 zones are armed.
Zones 5 & 6 are Un-Armed as there are no sensors in the two zones
2.2.3 When there is an alarm, the panel LCD will show as following:
procedure the panel has the ability to report alarm incidents to up to 4 private telephone
numbers. These dedicated numbers must be programmed into fields 3 to 6 of the PHONE
program and configuration. These numbers are referred to as USER numbers.
After reporting an alarm event to the C.S., once the C.S. has terminated the call the
panel Can be programmed to call the USER numbers in sequence, i.e No3 field First, then
4 etc. When the panel dials the user phone number and the user answers the telephone,
there will be a beep sound from the panel showing that the phone is being answered. The
user then presses the * key on USER hand set to confirm the alarm, on doing so the panel
will allow the USER to listen-in the premises.
5 22
Press PROG
key
Press registered remote
key fob or enter your PIN
SENSOR appears on LCD
ready to register key fob or detectors
4.5 Selectable key fob require assistance with/without sounder
How to set the function: Press 'Sensor’ key and - - - appears on the LCD. Press the disarm
key on the registered Key Fob or entering the preprogrammed PIN code, LCD will display
'DEL Sensor' Use Key pad to select Zone(s) 0, then select key fob number 1 to 9.Program the
character of the Key Fob with 0 or 1 to suit. Press Key Fob or ESC to save and exit. refer to
figure 25.
LOG
M
D
H
M
D
ALM
Figure7 : LCD dis lay when alarmed
4.6 Omitting a Zone
It may be a requirement to temporarily omit a selected Zone or a number of Zones when
the system is armed. When a zone is selected to be omitted it will only be omitted for current
operation. When next time your System is armed, the omitted ZONE or ZONES will be
re-enstated into the system.
Note: The function is suitable for the armed zone or zones. But 24 hour zone can never
be omitted.
How to Omit a zone or zones: Press Arm button on the panel, then using the numeric
keypad on the panel press the number of the zone want to be omitted, then press the Disarm
key, enter the PIN code to complete the operation.
4.7 Sounder or Silent alarm setting:
The figure shows that Zone 3 detector No2 has generated the Alarm signal at 6:10 on
18
th
, Oct.
3 INSTALLATION INFORMATION
3.1 The Basic Flow Chart for Registering Devices, Set Zone Type,
Set System Configuration and Program C.S. phone numbers and
Site Code in Disarmed mode.
1 To register Key fobs
2 To register Detectors
3 To set Zone type
4 To set System configuration
5 To set C.S phone NO and account
Activate the key fob to be register CODE appears on LCD, comfirming the code has been received .
How to set the function: Press the # key for 2 seconds when the panel is in disarmed mode,
the symbol of speaker displays or disappears; When it displays, the panel would alarm with
sounder ON, while when it disappears, the panel will alarm silently.
Note: Whether the key fob alarms with/without sounder subjects to its own configuration.
When the panel is set with silent alarm, the key fob will still be sounder alarm if it is set with
sounder alarm.
4.9 Access the Control Panel from a remote telephone (mobile or
land line)
The Remote Control enables the use of the land line phone or mobile phone to remotely
control panel. Call the phone number of the line connected to the alarm panel, the panel will
answer the call after 1 to 8 rings (programmable). When the panel answers the call enter the
pre-programmed 6 digit PIN code on the phone keypad to gain access to the Panel.
If the correct 6 digit PIN code is entered a long tone will be emitted from the panel. If the
PIN code is incorrect, three short tones will be emitted from the panel.You must try again and
enter the correct PIN code.
To register Key fobs
OR
To register Sensors
OR
To set zone type
OR
To set system config
OR
To set C.S phone number
Press 0 to select key fob zone. Unit will auto register key fob with next reg. No , eg. If already 2 key
fobs registered, the new key fob will be allocated No 3.Press PROG to save the code. SENSOR
appears again to register more devices or press registered key fob to exit
Activate the detector to be registered CODE appears on LCD, confirming the code has been received
Press 1--8 to select the zone you wish the detector to be allocated to. Unit will auto register the de-
tector with next reg. No, eg, if already 3 detectors registered, the new detector will be allocated No 4.
Press PROG to save the code. SENSOR appears again to register more devices or press registered key
fob to exit
Press * key ,LCD will display ZONE TYPE, press 1---8 to select zone, select 1 or 0 for all 7 fields
per zone. Press PROG to save. Press * key, LCD will display ZONE TYPE to reset the other ZONE
TYPE or press registered key fob to exit
Press # key, LCD will display SYS CONFIG, press 00 to 17 to select the configuration of the system.
Press PROG to save. Press # key, LCD will display SYS CONFIG to re_configure the system or press
registered key fob to exit
Press * key, then press # key, the LCD will display PHONE , press 1 and display current C.S. Pry 1
phone No, enter new Pry 1 phone No, press PROG to save the phone, press * key then # key, the LCD
will display PHONE, press 2 and display current C.S. Pry 2 phone No, enter new Pry 2 phone No,
press PROG to save, using this way, can set C.S. Account in Pry 7. or other private phone No, press
the registered key fob to exit
21 6
LOG
M
D
H
M
D
3.2 Registering Key Fobs
Logging in Key Fob: Press the PROG key on the Keypad, a series of - - - will appear on
the LCD. Enter the PIN code or Press the Disarm key on a current registered Key Fob and the
word 'Sensor' will appear on the LCD.Using the key fob you wish to register,press the disarm
key on the Key Fob, the panel will receive the Key Fob code and the LCD will show the word
'CODE' (refer to below figure 8). Press 0 key on the Keypad to identify you are registering a
Key Fob. The LCD will now display the Key Fob number that it has allocated to that Key Fob.
Press the PROG Key to complete and save the information. The Key Fob is now registered
and recognised by the control panel.
If no further actions take place the panel will automatically return to normal state after
approximately 30 seconds. Otherwise at the end, press Esc on the keypad or the Dis-Arm key
on a registered Key Fob to return the panel to normal state.
Note: whenever a PIN code is necessary ,if you enter a wrong PIN code for 3 times ,the Panel
will alarm automatically. refer to figure 24
LOG
M
D
H
M
D
SET
Figure 8
4.2 24 Hours Arming
24 hours arming is used for the detectors ( i.e. smoke detector and gas detector etc ),
These zones are armed 24 hours whether the system is armed or disarmed. They can at no
time be omitted or disarmed.
4.3 Selectable Zone Arming
This facility allows only a particular selected zone or only a particular selection of
zones to be armed. This is of great use when requiring temporary protection in a selected
area while the premises is occupied.
How to action Selectable Zone Arming: Using the numeric Keypad on the panel, press
the number of the Zone you wish to arm (refer to 1 to 8 zone), then press the ARM key to
arm. When both the Armed and Disarmed lights illuminate arming is completed. The
armed zones will be displayed on the LCD alongside with the 24 hour zones.
4.4 Selectable Detector Alarming Local only or Local and C.S.
This facility allows particular detectors in each Zone to be local alarm only or local
alarm and transmit alarm information to the C.S,each detector can be configured differently
e.g. local Alarm only or local Alarm and C.S. function, door bell function or in the case of
Key Fob, Request Assistance with / without sounder.
How to set the function: press 'Sensor ’ key and - - appears on the LCD. Press registered
Key Fob or entering the preprogrammed PIN code, LCD will display 'DEL Sensor' Use Key
pad to select Zone(s) 1 to 8. Use Key pad to select detector(s) 1 to 9. Program each of the 3
fields of the detector with 0 or 1 to suit. Press Key Fob or ESC to save and exit.
3.3 Registering Sensors
Logging in Sensors: Press the PROG Key on the Keypad, a series of - - - will appear on
the LCD. Enter the PIN code or Press the Disarm key on a current registered Key Fob and the
word 'Sensor' will appear on the LCD. Trigger the detector you wish to register, the Panel
will receive the detectors code and the word 'CODE' will appear on the LCD ( refer to figure
8). Pressing a numeric key 1 to 8 on the Keypad will select the Zone you wish to allocate the
detector. e.g. Pressing No 3 on the Keypad will allocate the detector to Zone 3. The control
panel will then automatically allocate the detector with the next available detector number in
that Zone. So, if there are no detectors allocated in Zone 3 the control panel will allocate it as
detector No 1 and the next detector to be registered in Zone 3 will be allocated detector No 2
etc. To complete and save the information press PROG key.
If no further actions take place the panel will automatically return to normal state after
approximately 30 seconds. Otherwise at the end, press ESC on keypad or the Dis-Arm key on
a registered Key Fob to return the panel to normal state.
1 2 3 4
1 1= local alarm only, when disarmed; 0=Normal detector
2 1= detector will be door bell, when disarmed; 0=not door bell
3 1= key fob request assistance with sounder; 0=key fob request assistance no sounder
4 1= display detector low voltage on LCD; 0=Cancel detector low voltage display
Note: field 1,2,4 are for detector; field 3 is for Key fob
Figure 22: Detector features setting
7 20
4 USER INFORMATION:
3.4 Installing wired detector and its zone setting:
4.1 Methods of Arming and D
i
s
a
r
mi
ng
Arming: Arming is used to arm the whole Alarm system. All detectors in the zones within
the protected area must be closed(not in alarm)in order for you to arm the system successfully.
Part Arming: Part Arming is used to partially Arm your System by arming the selected
zones in the protected area,which permits persons to remain in the premises while the system
is Part Armed.
Disarming:Disarms the system and deactivates any alarms in progress and disarms all the
zones other than the 24 hour Zones.
4.1.1. Arming and Disarming through the Keypad on the p
a
n
el
How To Arm: Pressing the ARM key on the keypad to arm the sys
tem
.
How To Part Arm: Pressing the ARM Key on the Keypad for 2 seconds to Part Arm the
system.
How To Disarm: Press the DISARM key on the keypad then using the Keypad again enter
the pre-programmed 6 digit PIN code to complete the disarming operating.
4.1.2. Arming and Disarming through the Key Fob Remote D
e
v
ice
How To Arm: Press the Arm key on the Key Fob to Arm the system.
How To Part Arm: Pressing the Part Arm key on the key Fob to Part Arm the system.
How To Disarm: Press the DISARM key on the key Fob to Dis-Arm the system.
Various wired detector could be connected to the panel via the N.C terminal. Seven
wired
connection in all, and the terminals for connection are 1\2\3\4 \5\6\7, GND is the
common
terminal.
Zone setting:
After connecting well the wired detector to the panel,press the PROG
key
on the keypad, a series of ----- appear on the LCD. Enter the PIN code or press the Disarm
key
on a registered key fob and the word 'Sensor' will appear on the LCD.Trigger the detector
you
wish to register, the panel will receive the detectors code and the word 'CODE' will appear
on
the LCD.Pressing a numeric key 1 to 8 on the keypad will select the zone you wish to
allocate
the detector. e.g. Pressing No 3 on the keypad will allocate the detector to Zone 3. The
control
panel will then automatically allocate the detector with the next available detector number
in
that Zone. So, if there are no detectors allocated in Zone 3 the control panel will allocate it
as
detector No 1 and the next detector to be registered in Zone 3 will be allocated detector No
2
etc. To complete and save the information press PROG
key.
( Also you could first fix two wires to terminal 1.2.3.4.5.6 or 7 and GND, then
connect
them together. Disconnect them when triggered. It is ok then to replace with a wired
detector
after
registration.)
3.5 Checking Registration
Checking key fob and sensor registration:press the # key on the keypad,the LCD
displays
word TEST, Activate a detector, a bleep noise will be heard confirming the control panel
has
received the signal from the detector and the LCD will display the Detector registration
No
and its Zone allocation e.g. Activate Detector No 2 in Zone 3 the LCD
will
Note: The armed LED flashes to show that the delay timer is being activated for those
zones with delayed time. The zones without a delayed timer is armed. When the armed LED
light, it shows Arming has completed. All the exterior Zones Arm immediately when part
armed, the delay timer will not work under such circumstances.
L
OG
M
D
H
M
D
TEST
Figure 9
19 8
Press the key fob Dis-Arm will return the control panel back to normal status. Otherwise
the Walk Test will Auto extinguish approximately 30 seconds after last test signal was
received.
3.6 Deleting Registered Key Fobs
If no further actions take place the panel will automatically return to normal state after
approximately 30 seconds. Otherwise at the end, press the Dis-Arm key on a registered Key
Fob to return the panel to normal state.
3.16 View detector's total in every zone
Deleting Registered Key Fob: Press the DELETE key on the Keypad, a series of - - - will
appear on the LCD. Press the Disarm key on a current registered Key Fob or entering the
preprogrammed PIN code, and the word 'DEL Sensor' will appear on the LCD.Press '0' on the
numeric Key pad to select the Key Fob Zone and the LCD will display Zone 0, press the
registered No of the Key Fob you wish to delete. e.g. key fob No 2, the LCD will now display
Zone 0 2. Press DELETE key to delete No 2 Key Fob.
If no further actions take place the panel will automatically return to normal
state after approximately 30 seconds. Otherwise at the end, press the Dis-Arm key
on a registered Key Fob to return the panel to normal state.
3.7 Deleting Registered Sensors
Deleting Registered Sensors: Press the DEL key on the Keypad, a series of - - - will
appear on the LCD. Press the Disarm Key on a current registered Key Fob or entering the
preprogrammed PIN code, and the word 'DEL Sensor' will appear on the LCD. Press 1 to 8
on the numeric Keypad to select the Zone the detector to be deleted is allocated to. e.g. Zone
3 and the LCD will display Zone 3, press the registered No of the detector you wish to delete.
e.g. detector No 2, the LCD will now read Zone 3 2. Press Delete key to delete No 2 detector
in Zone 3.
If no further actions take place the panel will automatically return to normal state after
approximately 30 seconds. Otherwise at the end, press Dis-Arm key on a registered Key Fob
to return the panel to normal state.
3.8 The Zone Setting and Allocation
The alarm system has 8 zones which can be configured depending on your requirements.
The Factory Default Zone configuration settings are as follows:
How To view the detector's total In a Zone: Press the Sensor key on the keypad, a series
of - - - will appear on the LCD. Press the Disarm key on any current registered Key Fob or
enter the preprogrammed PIN code, and the word 'DEL Sensor' will appear on the LCD.
Using the *and # keys scroll through the Zones and their registered detectors. e.g. If the
LCD displays: Zone 0 2 this means 2 key fobs are registered. If the LCD displays Zone 5 3
means 3 detectors are registered in the Zone 5 etc.
3.17 Speak and listen in
The function of speak and listen in: When the Panel alarms, the C.S operator or user
could access the speak and listen in function of the panel by pressing the corresponding
keys on the telephone keypad, then the user or operator could know what is going on within
the premise.(the MIC & SPEAK inside the panel)
3.18 record & playback the private voice
Function: When the panel alarms, it will auto dial the user telephone numbers After the
user press the * to confirm, he can listen to the recorded alarming message, which informs
the user what happens. The user can press 9 to replay the message.
How to record/play the message: In the disarmed status, press the OGM and hold it
for 2 seconds. The panel LCD will display COPY.At this time, you can record the alarming
message now. The recording time is 12 seconds. Press OGM, you can hear the recorded
message.
LOG
M
D
H
M
D
No 1 Zone Fire; No 2 Zone Panic ;
No 3 zone: Entry/Exit ;
No 4 . 5 . 6 Zone Exterior Intruder;
No 7 Zone Interior Intruder ； No 8 zone Watchdog
9 18
M
D
H
M
D
SET TYPE
If no further actions take place the panel will automatically return to normal state after
approximately 30 seconds. Otherwise at the end, press the ESC on the keypad or the Dis-Arm
key on a registered Key Fob to return the panel to normal state.Entry Delay timer:Designated
entry points ( i.e. front door and may be back door ) are subject to an Entry Delay Time any
where from 1 to 255 seconds depending on time selected when configuring the system.
This delay provides a user with enough time to enter the armed premises and disarm the
system before an alarm is triggered.
How To Set Entry Delay Timer: Press the PROG key on the keypad, a series of - - - will
appear on the LCD. Press the Disarm key on any current registered Key Fob or entering the
preprogrammed PIN code, and the word 'Sensor' will appear on the LCD. Pressing the # key
on the Keypad, the LCD will show the words 'SYS config'. Press 0 then 2 on the numeric
Keypad. 02 will appear in the top left hand corner of the LCD ( refer to section 3. 9 for the
configuration codes). Enter the required entry time using the configuration code,the selected
code will be displayed in the bottom right hand corner of the LCD. Press PROG to store this
number.
If no further actions take place the panel will automatically return to normal state after
approximately 30 seconds. Otherwise at the end, press Dis-Arm key on a registered Key Fob
to return the panel to normal state.
How to allocate and set zones: Press the PROG key on the Keypad, a series of - - - will
appear on the LCD. Press the Disarm key on any current registered Key Fob or entering the
preprogrammed PIN code, and the word 'Sensor' will appear on the LCD. Pressing the * key
on the Keypad, the LCD will show the words 'Zone type', pressing No1 to 8 numeric key to
select corresponding zone, then pressing the 0 or 1 numeric Keypad to configure all the
fields in this zone. At the end, press the PROG key to complete and save operation.
By way of example, below is configured as follows:
Zone 7 selected is a Watchdog Zone programmed without entry or exit time, it's a 24
hour .
Zone with silent when alarming, its an internal detector and there are sensors allocated
to it.
Zone 7
selected
3.15 Sounder cut off time
The sounder cut off time is the time permitted for the sounder to sound when an alarm
activation takes place. This can be from 1 to 1980 seconds, or do not stop until the C.s or user
confirm it, depending on time selected when configuring the system.
Setting the sounder cut off time: Press the PROG key on the Keypad, a series of - - - will
appear on the LCD. Press the Disarm key on any current registered Key Fob or entering the
preprogrammed PIN code, then the word 'Sensor' will appear on the LCD. Pressing the # key
on the Keypad, the LCD will show the words 'SYS config'. Press 0 then 3 on the numeric
Keypad. 03 will appear in the top left hand corner of the LCD (refer to section 3.9 for the
configuration codes). Enter the required cut off time using the configuration code. The
selected code will be displayed in the bottom right hand corner of the LCD. Press PROG to
store this number.
1 2 3 4 5 6 7
1 1:watchdog zone 0:not a watchdog zone
2 1:exit delay 0:no exit delay
3 1:entry delay 0:no entry delay
4 1:24 hours zone 0:not 24 hours zone
5 1:sounder when alarming 0:silent when alarming
6 1:armed zone 0:part armed zone
7 1:sensor in the zone 0:no sensor in the zone (disabled)
Figure 10: zone ty e configuration
17 10
N.B. For a more detailed example refer to section 5. Zone Configuration and Explanation.
If no further actions take place the panel will automatically return to normal state after
approximately 30 seconds. Otherwise at the end, press the Dis-Arm key on a registered Key
Fob to return the panel to normal state.
LOG
M
D
H
M
D
ALM
3.9 The System Configuration Setting
How To set system configuration: Press the PROG key on the keypad, a series of - - - will
appear on the LCD. Press the Disarm key on any current registered Key Fob or entering the
Figure18: The LCD display when the wireless detector is alarming
preprogrammed PIN code, and the word 'Sensor' will appear on the LCD. Pressing the # key
on the Keypad, the LCD will show the words 'SYS Config', pressing 0 to 9 on the numeric
Keypad to select each Configuration Field Code from 00 to 17 in succession and configure
each field as required. At the end, press the PROG key to save, store the information and exit.
LOG
M
D
H
M
D
ALM
If no further actions take place the panel will automatically return to normal state after
approximately 30 seconds. Otherwise at the end, press the Dis-Arm key on a registered Key
Figure19: The LCD display when the wired detector is alarming
Fob to return the panel to normal state.
LOG
M
D
H
M
D
ALM PIN
Configuration Codes
00: C.S. Comms. 11= send out information about arming, disarming and alarms; 10 = only
send out the alarm information; 00= not net work Default:10
01: Exit delay time. The time is double-digit (XX). The actual time is the product of XX
times 5. The initialization value is 04 = 20 seconds.
02: Entry delay time (delay alarm). The time is double-digit (XX). The actual time is the
product of XX times 5. The initialization value is 06 = 30 seconds.
03: Sounder run time. The time is double-digit (XX). The actual time is the product XX times
20. The initialization value is 06 = 120 seconds.
04: Watchdog time. The unit time is hours. The factory default value is 12hours.
05: Watchdog start and stop time window. Default setting is from 8:00 to 20:00.
06: Set time to Arm. Press * or #, selec the time point( 6 time points in all) enter the time
desired. To cancel this set, press Delete key. Refer to figure 11.
07: Set time to Dis-Arm. Press * or #, select the time point( 6 time points in all) enter the
Time desired. To cancel this set, press Delete key. Refer to figure 12.
Figure 20:The LCD display when the PIN code is entered wrong for 3 times.
3.14 Setting Entry and Exit delay timer
Exit Delay Timer: In order to provide a user with enough time to leave the premises, an
EXIT DELAY TIMER will commence timing when a user arms the system, The timer will
last anywhere from 1 to 255 seconds depending on time selected when configuring the
system.
How to set the Exit delay time: Press the PROG key on the Keypad, a series of - - - will
appear on the LCD. Press the Disarm key on any current registered Key Fob or entering the
preprogrammed PIN code, and the word 'Sensor' will appear on the LCD. Pressing the # key
on the Keypad, the LCD will show the words 'SYS config'. Press 0 then 1 on the numeric
Keypad. 01 will appear in the top left hand corner of the LCD (refer to section 3. 9 for the
configuration codes). Enter the Required Exit Time using the configuration code. The
selected code will be displayed in the bottom right hand corner of the LCD. Press PROG to
store this number.
11 16
Figure13: The LCD display when NO 2 remote armed the system
ARMED
08: Setting time and date. The system time should be set with Year-Month-Date
Hour-Minute - Day using the numeric keypad of the panel.
7 = Sunday; 1 = Monday; 2 = Tuesday; 3 = Wednesday;
LOG
RMOT
M
D
H
M
D
4 = Thursday; 5 = Friday; 6 = Saturday. (a 24 hour mode)
09: PIN code set, this a 6 Digit Code for the Remote Access, Keypad Dis-Arm. Enter the
required PIN No using the numeric Keypad on the panel. Cancel the PIN using the
Delete key on the panel. Default PIN: 123456
RMOT ARMED : keypad armed
Figure14:
The LCD display when t
he panel is armed by keypad
10: Set number of ringing in times before answer. Cancel this set using Delete key on the
panel. When the PIN code or the number of ringing is not set, the panel couldn't have
Remote access; Default number: 9
LOG
M
D
H
M
D
ALM
11. Arming with sounder ON/OFF 0: no sounder when arming 1: sounder when arming
12: Two way communication ---Speak: 0: No 1: YES. Default: 0
When SPEAK is required, within 2.5 seconds after transmitting data to the C.S, the
Panel. Will receive the SPEAK request from C.S. If it is not required, the panel hangs
up automatically
ALM ：phone line cut_off alarm
Figure15: The LCD display when the phone line is cut
13: Engineer Option. Listen to dial out DTMF. 0 = NO : 1 = YES. This option will
Automatically extinguish when the panel is closed or on the hour. Default: 0
14: Mains Fail alarm. The panel will alarm when mains power fails 0 = NO ; 1 =YES.
LOG
M
D
H
M
D
ALM
15: Exit O: ٠OFF /Delay timer with sounder ONN ١: OFF. Default: ON.
16: Phone line cut alarm: The panel will automatically check the line and alarm when It
Detects it is not ok. 0: NO 1: YES. Default: 0
17: Test period of 24 hours: 1 = avaible 0 = OFF
System config
Auto armed
t
ime
ALM ：tamper alarm
ARMED
H
M
Figure16: The LCD display when there is a tampered alarm
SET CONFIG T
I
MED
LOG
M
D
H
M
D
ALM
The second auto armed Auto armed
ALM ：main power fail alarm
Figure17: The LCD display when the power fails
The second auto armed：press * or # to select the 1– 6
ARMED：default
PART ARMED：press the arm key to select ARMED or PART ARMED
Figure11: The second auto armed time is at 13:30
15 12
System config Auto disarmed
time
H
M
SET CONFIG
TI
MED
The first auto disarmed Auto
disarmed
The first auto disarmed：press * or # to select the
1--6
Figure12: The first auto disarmed time is at 17:35.
3.10 The Phone Numbers Setting
How To Set Phone Number: Press the PROG key on the Keypad, a series of - - - will
appear on the LCD. Press the Disarm key on any current registered Key Fob or entering the
preprogrammed PIN code, and the word 'Sensor' will appear on the LCD. Pressing the * key
on the Keypad, the LCD will show the words 'Zone type'. Pressing the # key on the Keypad,
the LCD will show the words 'SYS phone'. Press No 1 on the numeric Keypad. Enter the full
phone number of the Central Station Comms.and press PROG to store this number. Pressing
* then # scroll back down to 'SYS phone' Press No2 on the numeric Keypad. Enter the full
phone number of the Central Station secondary number for comms using the numeric keypad
on the panel, then Press PROG to store this number. The No 1 and 2 are for C.S. Phone
numbers, No 3 to 6 are for personal numbers. If not networking, No 1 and 2 can also be set
with personal numbers.
If no further actions take place the panel will automatically return to normal state after
approximately 30 seconds. Otherwise at the end, press the Dis-Arm key on a registered Key
Fob to return the panel to normal state.
Press disarming key on any current registered key fob or entering the preprogrammed
PIN code, and the word 'Sensor' will appear on the LCD. Pressing the * key on the Keypad,
the LCD will show the words 'Zone type'. Pressing the # key on the Keypad, the LCD will
show the words 'SYS phone'. Press No 7 key on the keypad, the Panel will access the
location of the C.S. account code. Enter the account code using the numeric keypad on the
panel, this is normally a 4 Digit Code called site code. Press 'Prog' key to store the
programmed number.
If no further actions take place the panel will automatically return to normal state after
approximately 30 seconds. Otherwise at the end, press the Dis-Arm key on a registered Key
Fob to return the panel to normal state.
3.12 Deleting Zones
How To Delete a Zone: There are two ways to delete a zone
A: Delete all the detectors within the zone.
Press the DELETE key on the keypad, , a series of - - - will appear on the LCD. Press
the Disarm key on any current registered Key Fob or entering the preprogrammed PIN code
and the word 'DEL Sensor' will appear on the LCD. Pressing the 0 then 1 key on the Keypad
to select the Zone number of the detector or Key fob that needs to be deleted. e.g. select 3 on
Keypad, the LCD will display 'Zone 3'. Using the numeric Keypad select the number of the
detector requiring to be deleted. e.g. Detector No 4 in Zone 3. The LCD will now display
‘Zone 3 4'. Press DELETE and the detector will be deleted from memory.
B: Enter the location of zone type setting, set the No 7 field to 0, refer to 3.8 figure 10.
3.13 Viewing The Recording Event Log
Events refer to occurrences taking place within your s ystem, such as, which key Fob
Armed or Dis-Armed the system and when. If an alarm occurred which detector in which
Zone activated the alarm and when.
How To View the event record: press the * key on the keypad, the panel LCD will show
the latest event, using the * and # keys to look over previous events, times and information.
Note: the top line always shows the latest event information.
Figure13: The LCD display when there is a panic alarm from the keypad
3.11 The C.S. Account Code Setting
LOG
RMOT
M
D
H
M
D
ALM
How To Set C. S. Code: Press the PROG key on the numeric Keypad, a series of - - - will
appear on the LCD.
RMOT ALM : remotepanicalarm
13 14
Table of contents
